1. CAP / RCAP Format Improvement

2. Types of Charts ›Approach Charts ›Cat II and III ›Circling ›Combined IAP ›RNAV ›Helicopter Procedures ›Visual Approach ›Arrival (STAR) ›Departure (SID) ›Aerodrome

3. CAP Volumes 1.Volume 1 – Nunavut, Northwest Territories, Yukon 2.Volume 2 – British Columbia 3.Volume 3 – Alberta, Saskatchewan, Manitoba 4.Volume 4 – Ontario 5.Volume 5 – Quebec (English) 6.Volume 6 – Quebec (French) 7.Volume 7 – New Brunswick, Nova Scotia, Prince Edward Island, Newfoundland

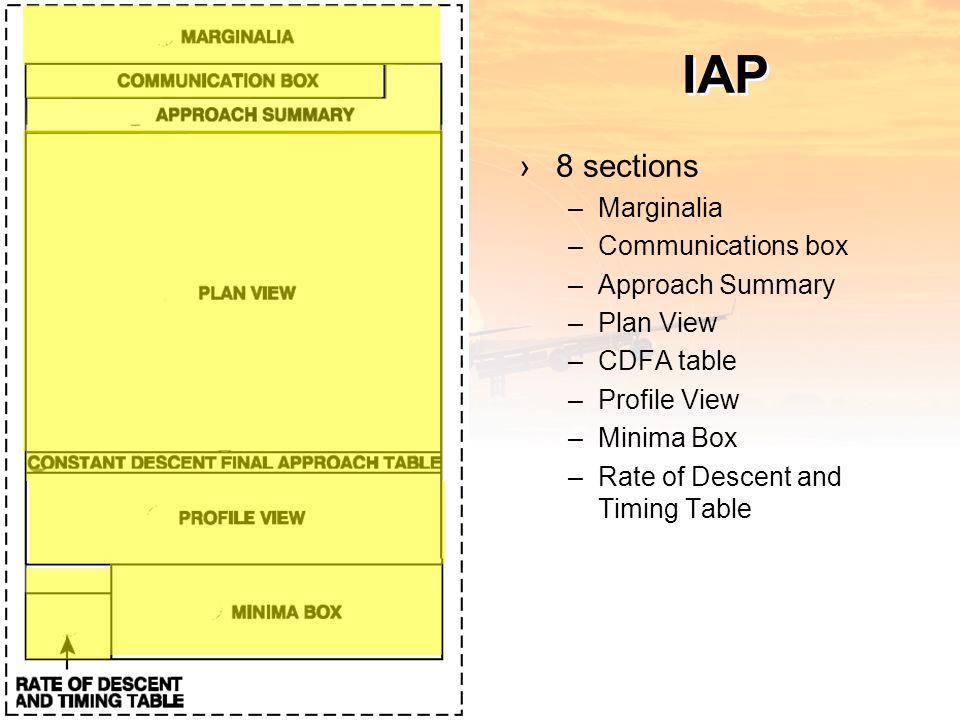

4. IAP ›8 sections –Marginalia –Communications box –Approach Summary –Plan View –CDFA table –Profile View –Minima Box –Rate of Descent and Timing Table

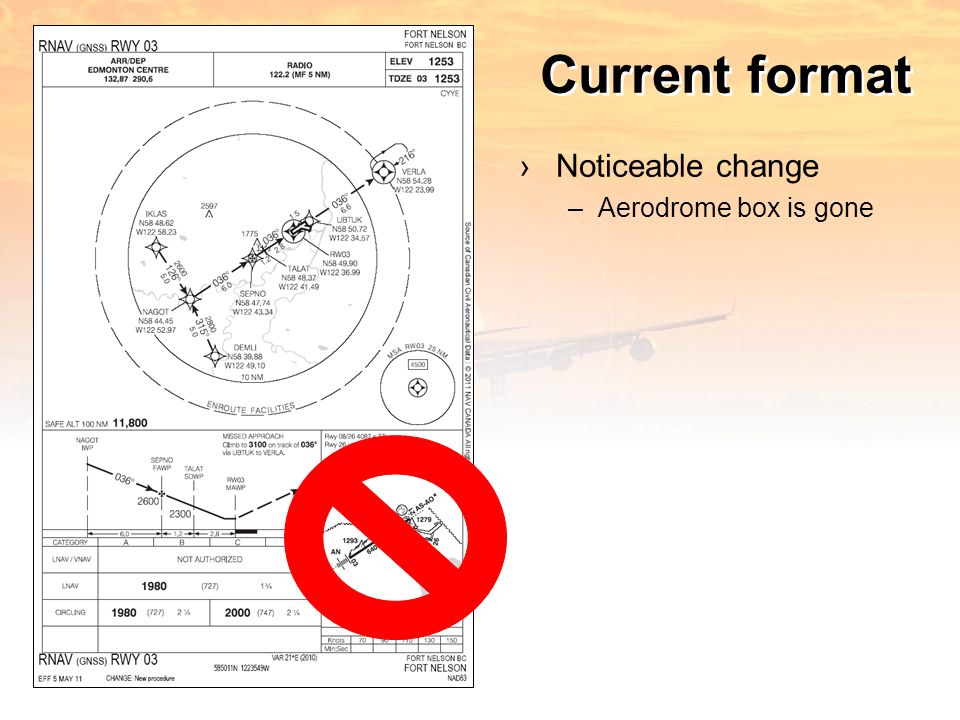

5. Current format ›Noticeable change –Aerodrome box is gone

6. Marginalia ›Information including: –Procedure Identification –Aerodrome Name –Community Served –Variation –Effective Date –Etc.

7. Chart Numbering Protocols ›Five levels –Level 1 – Geographical location –Level 2 – Multiple airports in same location –Level 3 – Each procedure will be listed in sequence for each level 2 –Level 4 – When a level 3 procedure has multiple sub levels –Level 5 – Runway numbers starting with the lowest

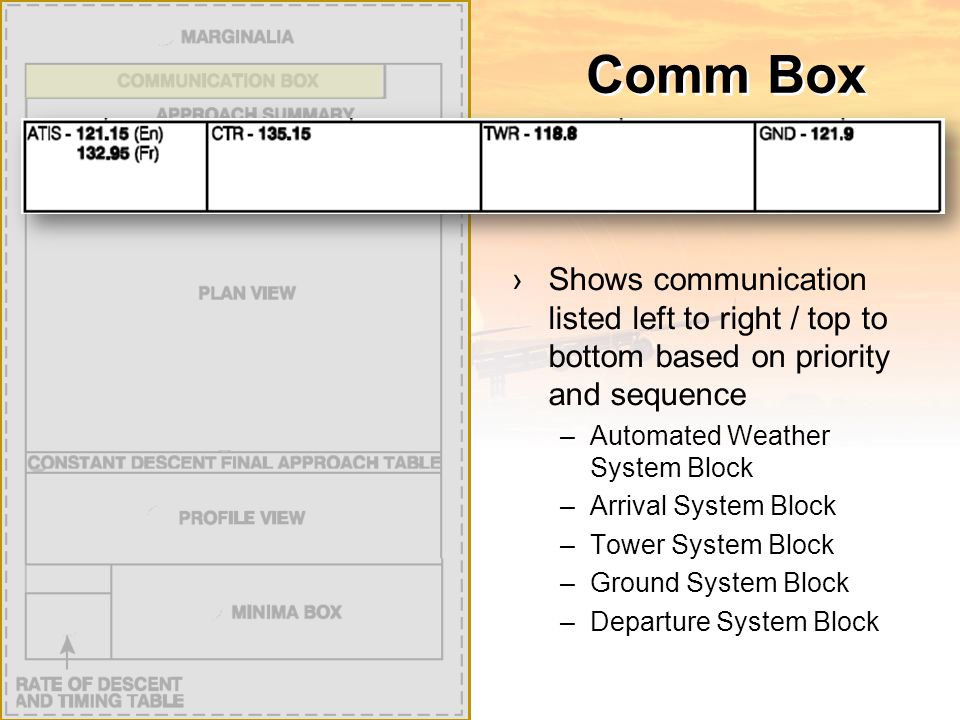

8. Comm Box ›Shows communication listed left to right / top to bottom based on priority and sequence –Automated Weather System Block –Arrival System Block –Tower System Block –Ground System Block –Departure System Block

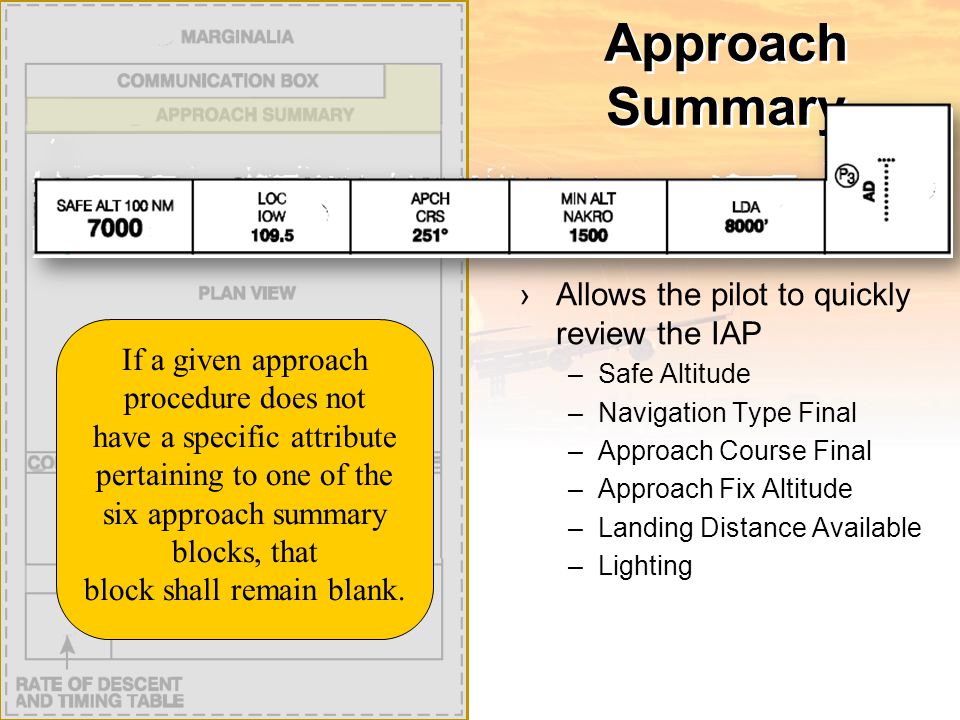

9. Approach Summary ›Allows the pilot to quickly review the IAP –Safe Altitude –Navigation Type Final –Approach Course Final –Approach Fix Altitude –Landing Distance Available –Lighting If a given approach procedure does not have a specific attribute pertaining to one of the six approach summary blocks, that block shall remain blank.

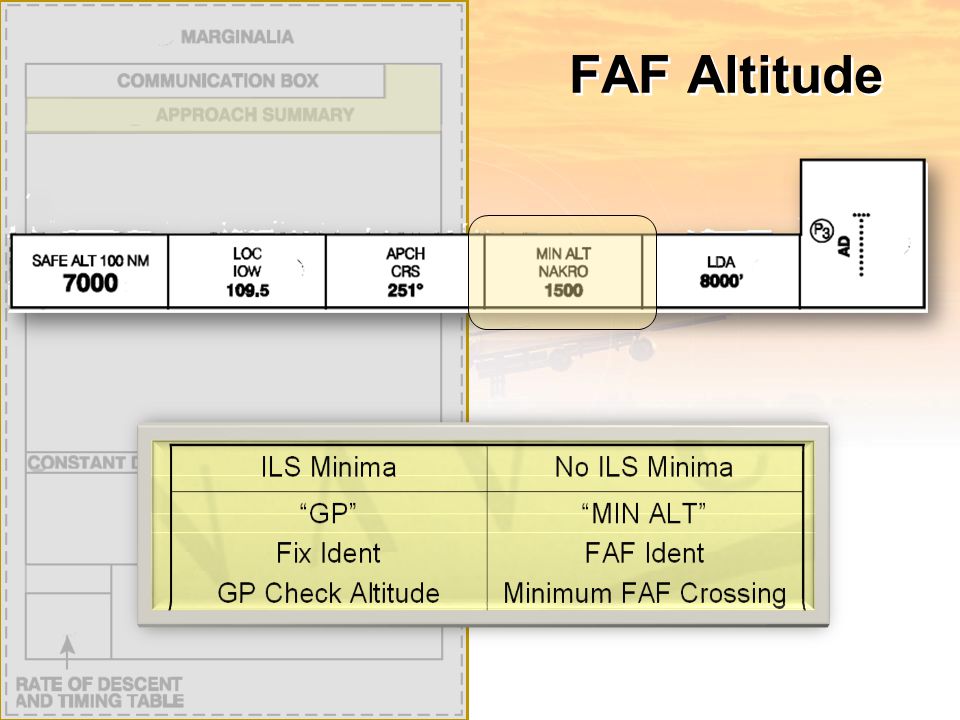

10. FAF Altitude

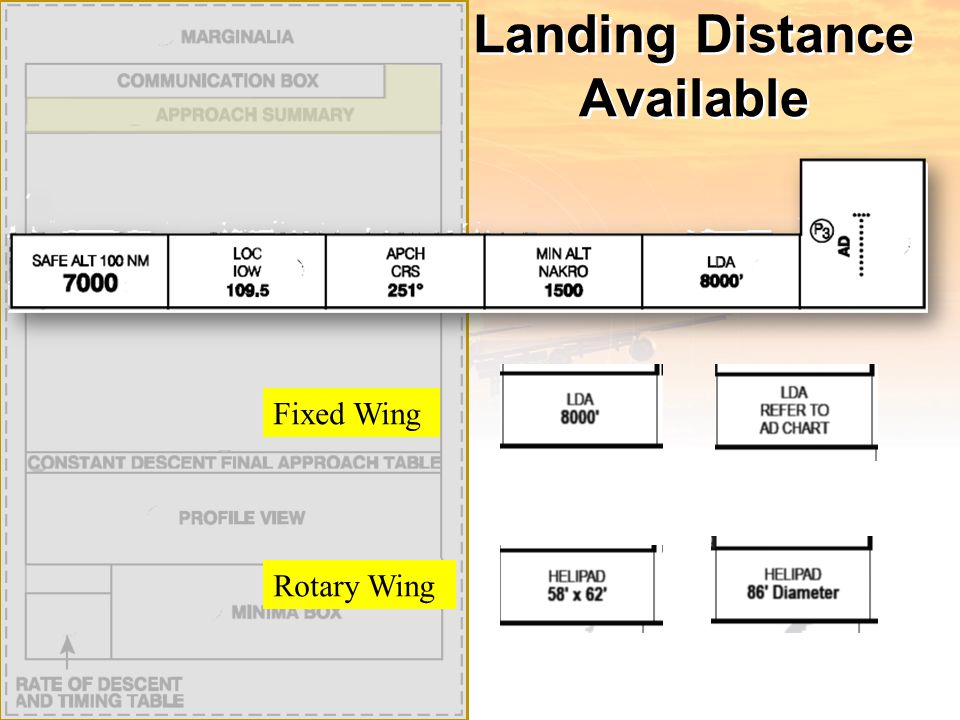

11. Landing Distance Available Fixed WingRotary Wing

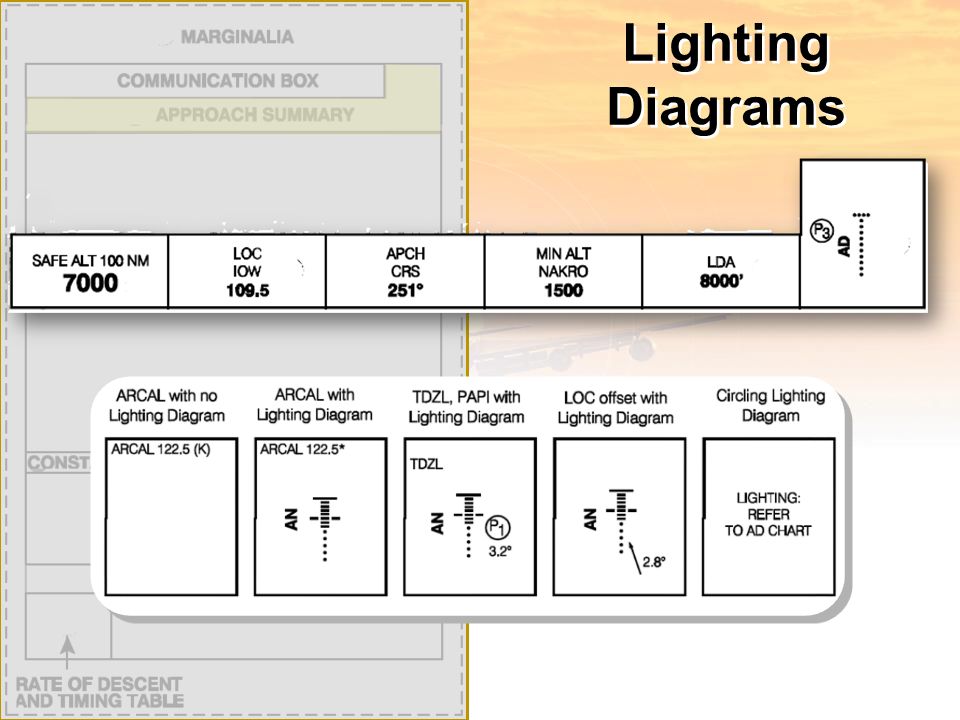

12. Lighting Diagrams

13. Plan View ›Plan view is done to scale ›May have operational notes if needed

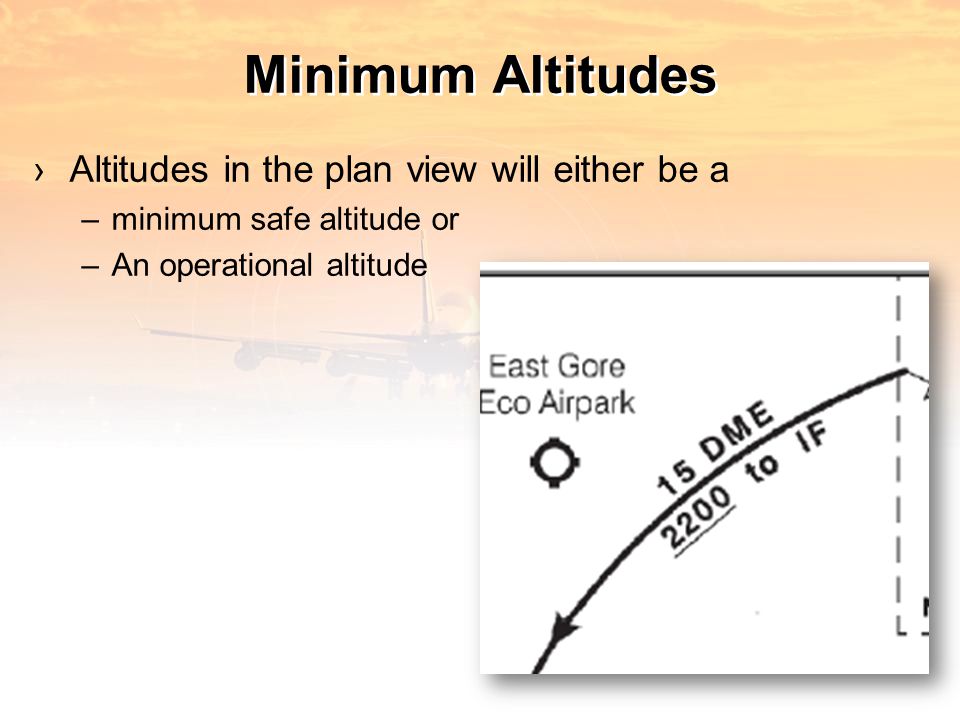

14. Minimum Altitudes ›Altitudes in the plan view will either be a –minimum safe altitude or –An operational altitude

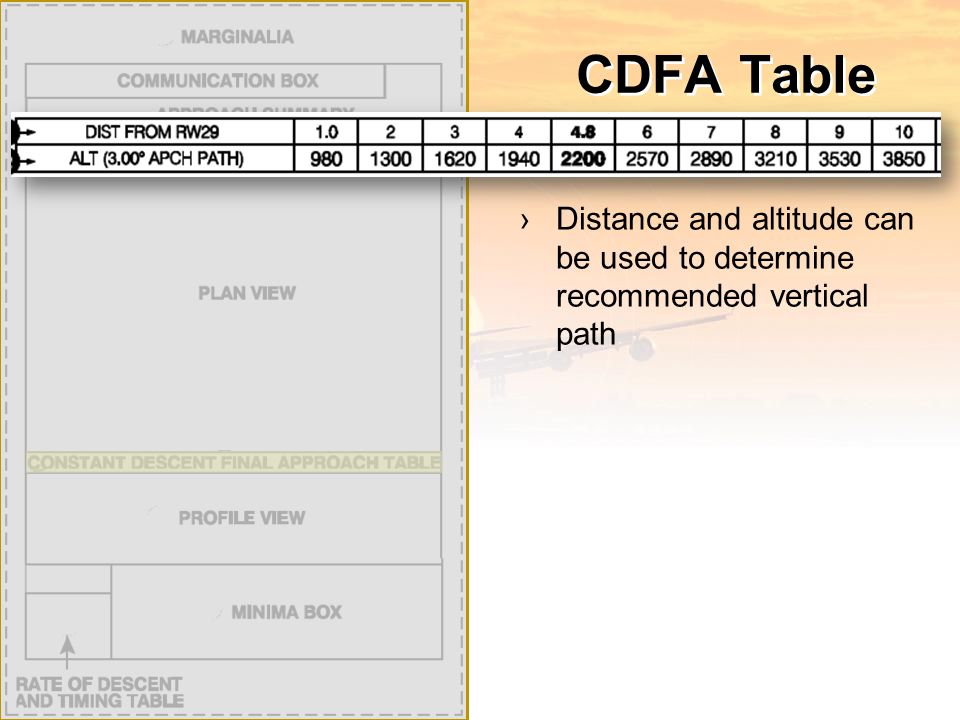

15. CDFA Table ›Distance and altitude can be used to determine recommended vertical path

16. CDFA Table ›Will not be depicted if: –Descent angle greater than 3.5 degrees –Procedure is a precision approach –A fix crossing altitude is above the glide path or CDFA angle.

17. Profile View

18. Minima Box ›Asterisk denotes circling restriction and to refer to the plan view for more info. ›If procedure not authorized the procedure will not be listed

19. Rate of Descent and Timing ›Provides information of how long from the FAF to the MAP based on G/S. ›If CDFA depicted, it will also provide the rate of descent that corresponds to the charted descent angle

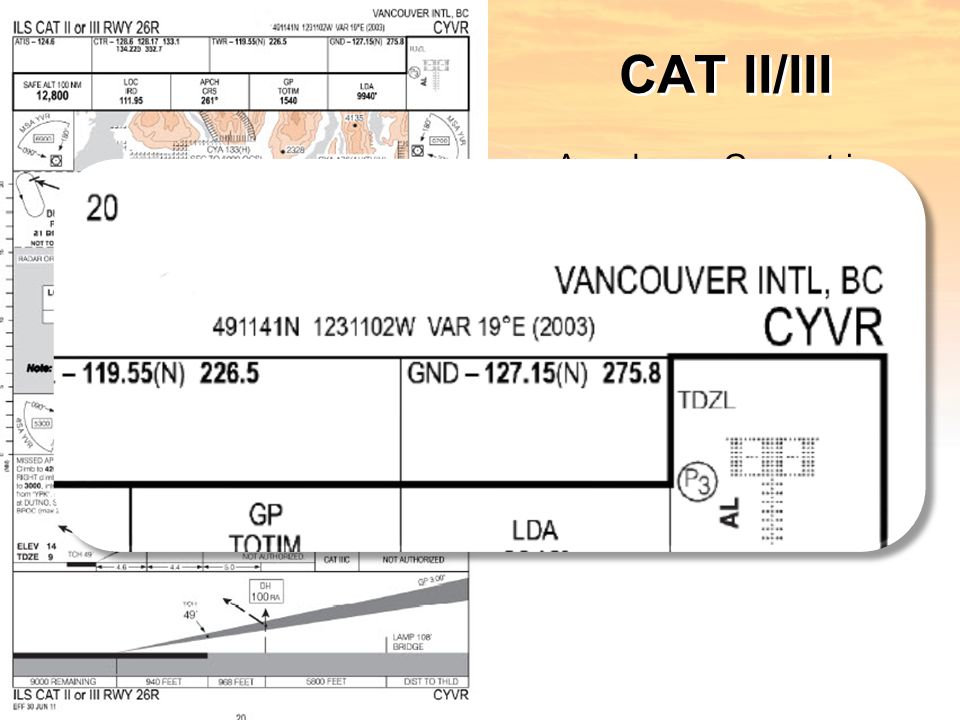

20. CAT II/III ›Aerodrome Geometric Centre Coordinates are represented on top of page

21. CAT II/III ›Not to scale box

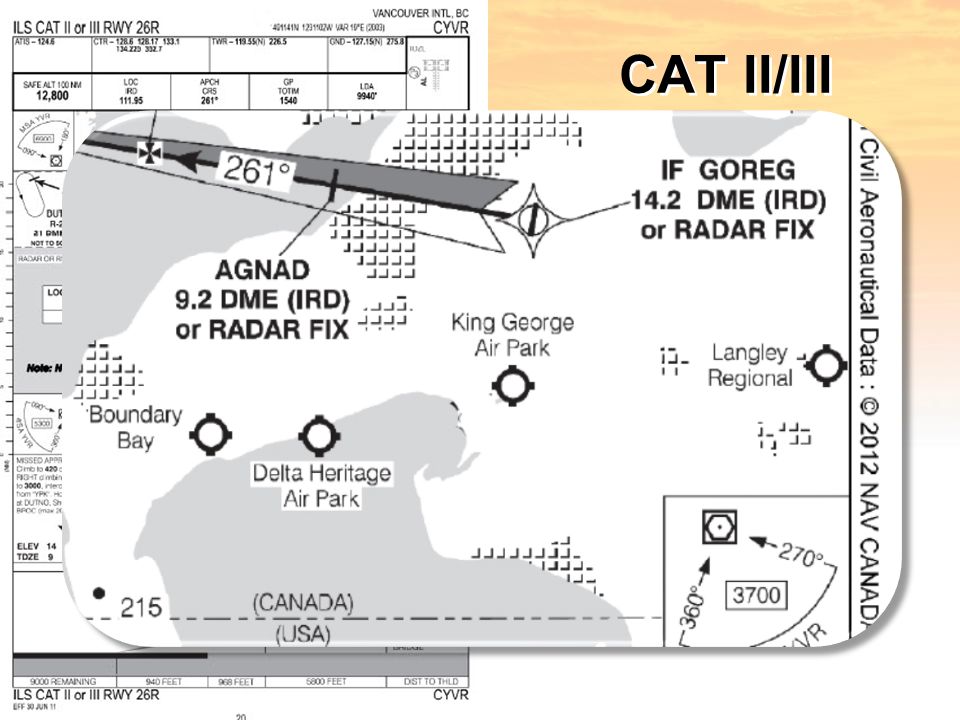

22. CAT II/III ›Other land aerodromes depicted

23. Circling IAP ›Arrival System Block –Identify site name/call name after the agency title if different than the aerodrome

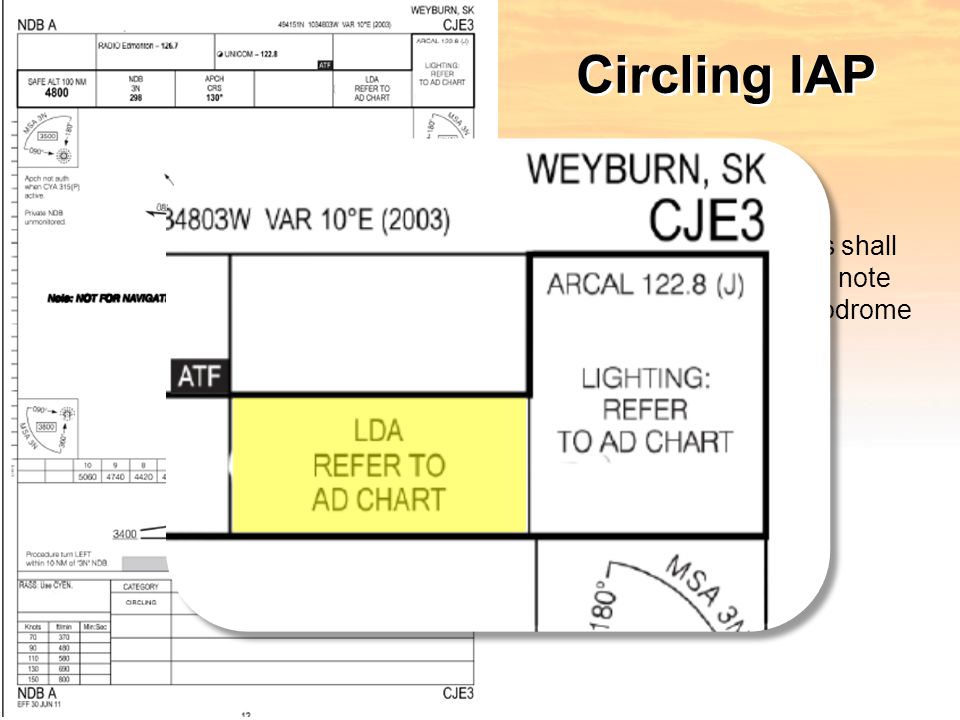

24. Circling IAP ›Landing Distance Available Box –Circling approaches shall depict the LDA as a note referring to the Aerodrome chart.

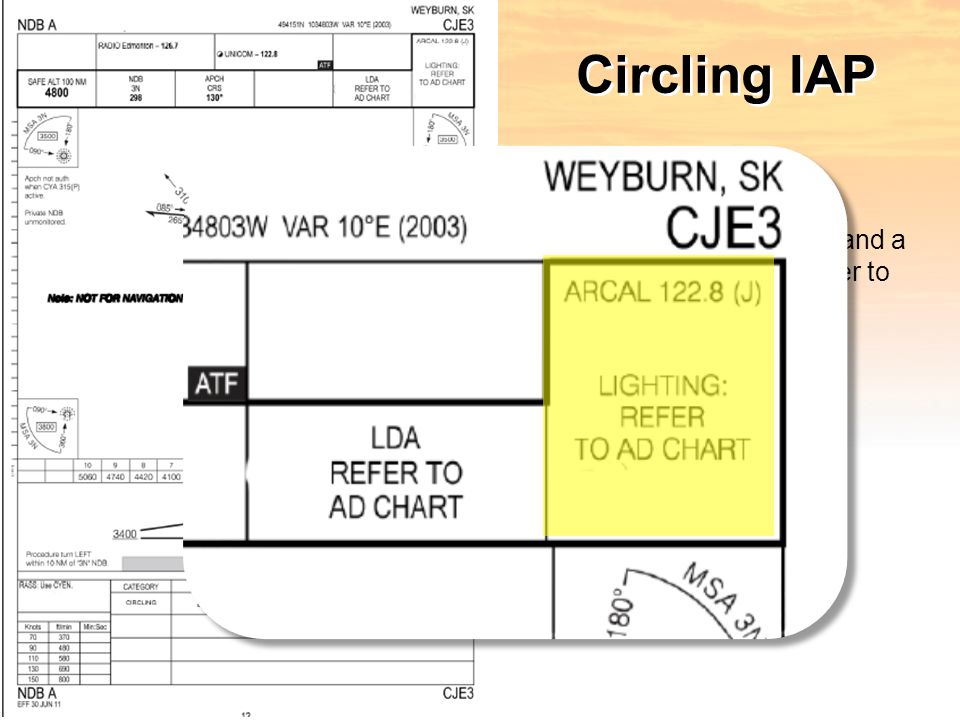

25. Circling IAP ›Lighting Box –ARCAL note shall be depicted if available and a note referring the user to the Aerodrome chart

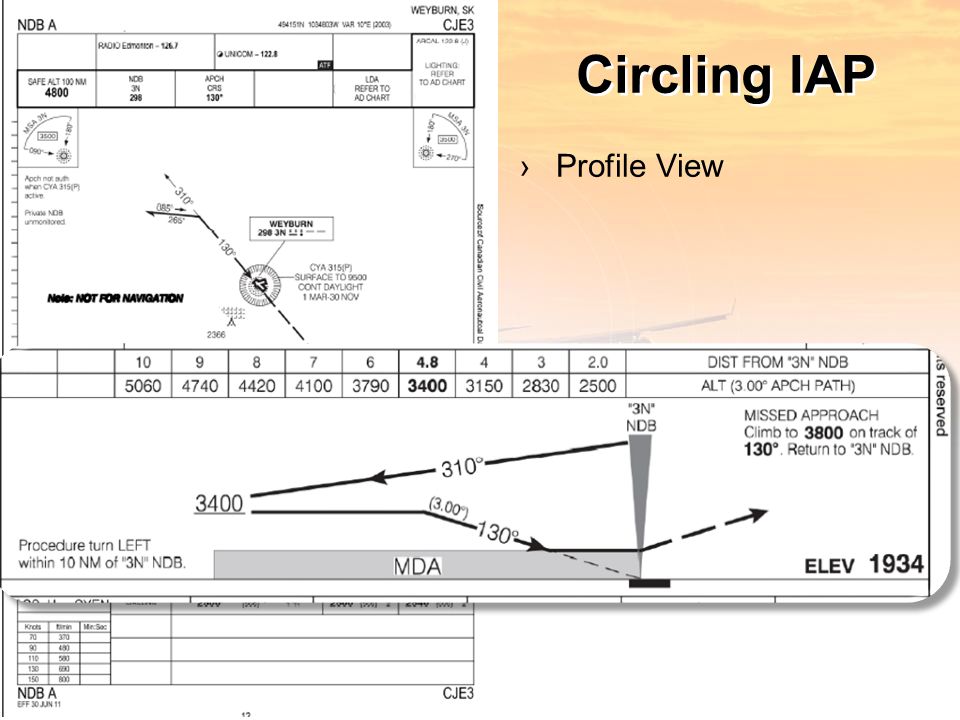

26. Circling IAP ›Profile View

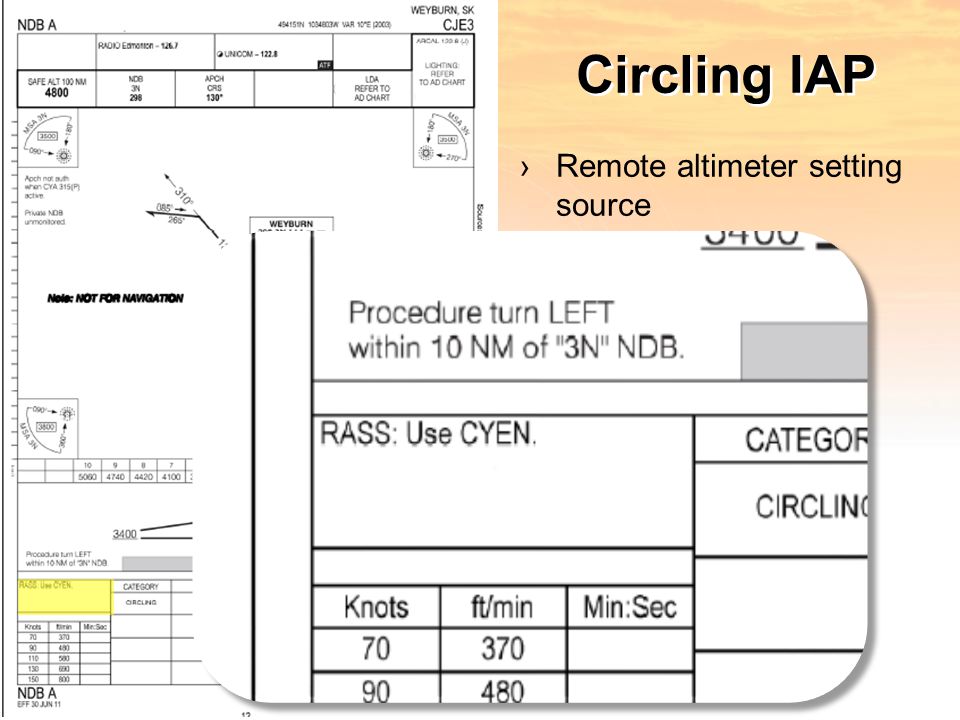

27. Circling IAP ›Remote altimeter setting source

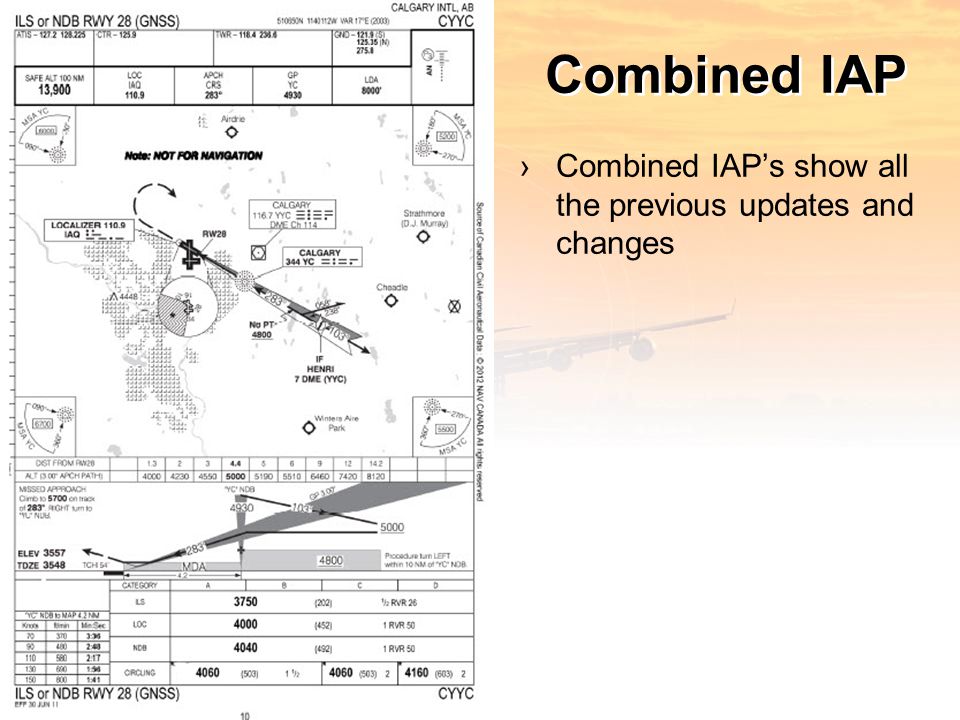

28. Combined IAP ›Combined IAP’s show all the previous updates and changes

29. Combined IAP ›The circling diagram will be depicted as close to the actual affected area as possible. The asterisk indicates that you should check the minima box.

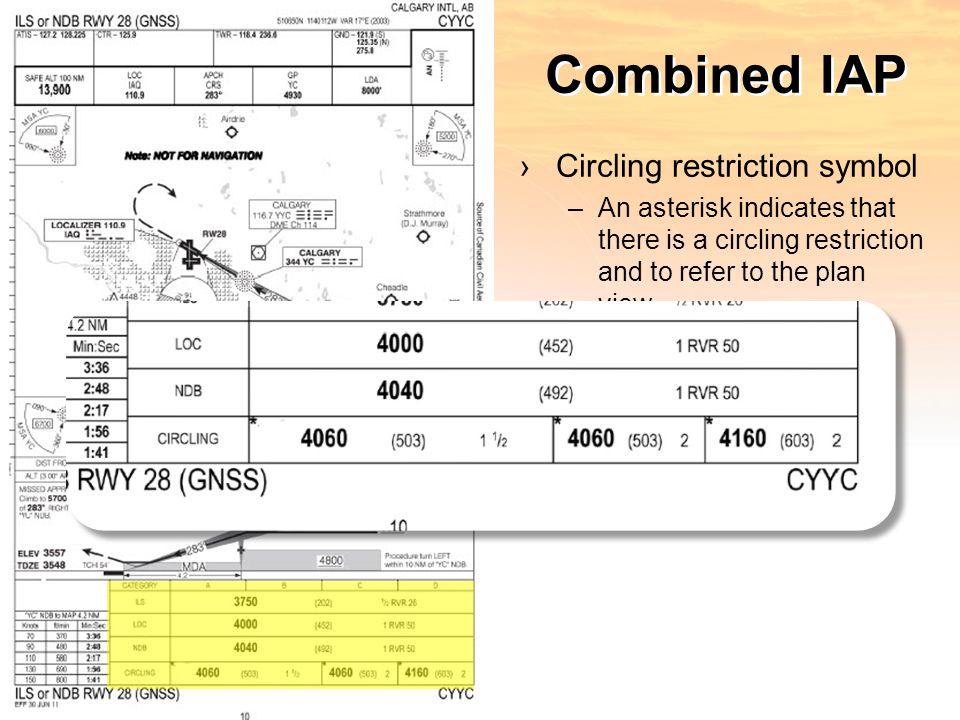

30. Combined IAP ›Circling restriction symbol –An asterisk indicates that there is a circling restriction and to refer to the plan view.

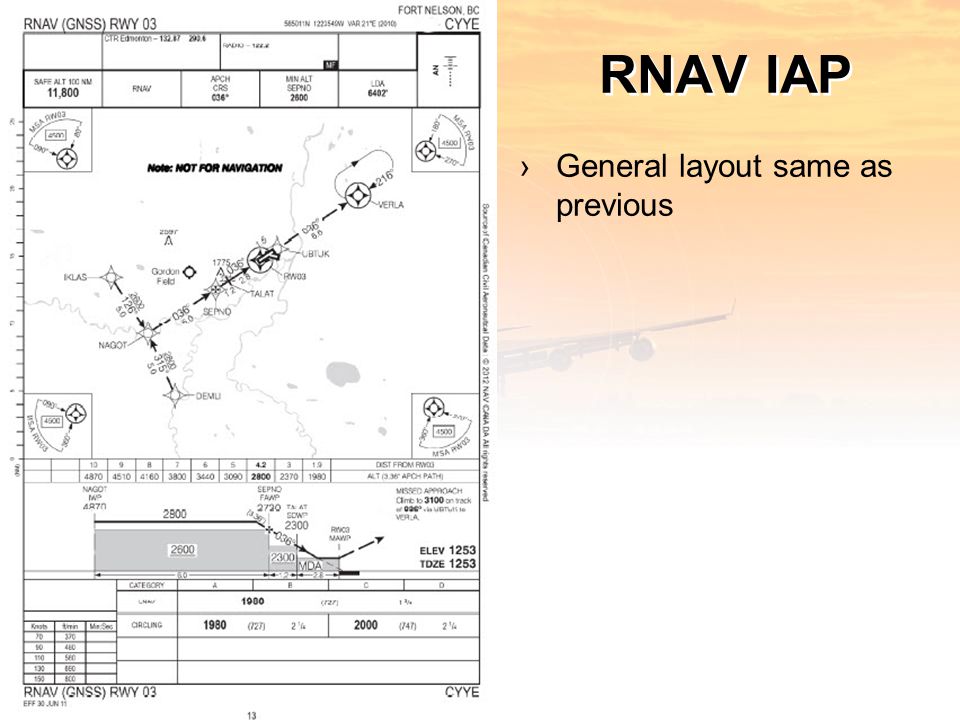

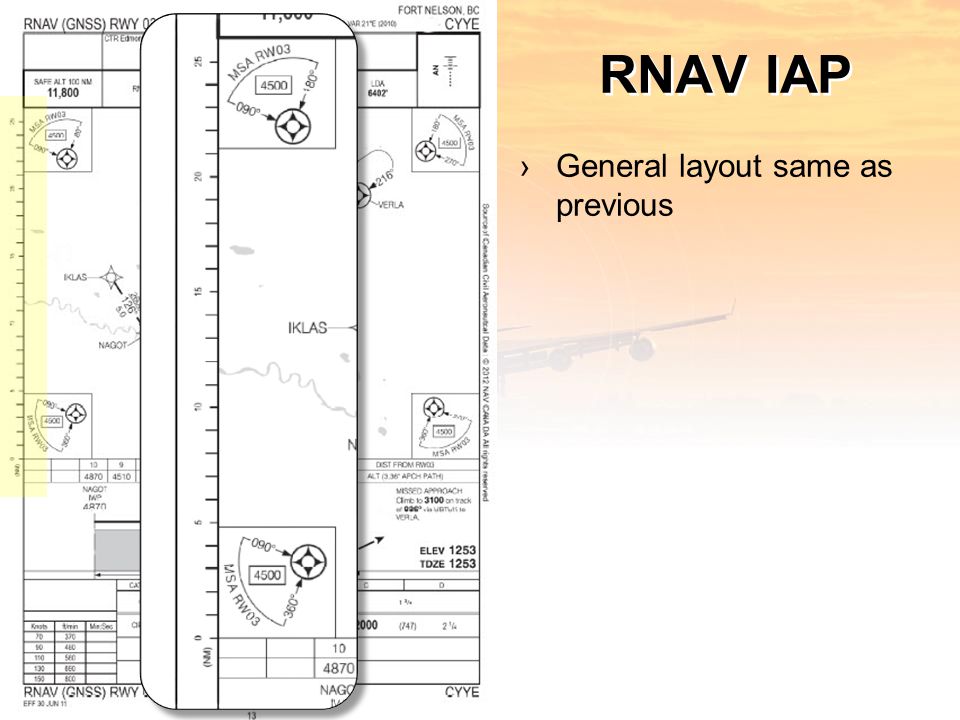

31. RNAV IAP ›General layout same as previous

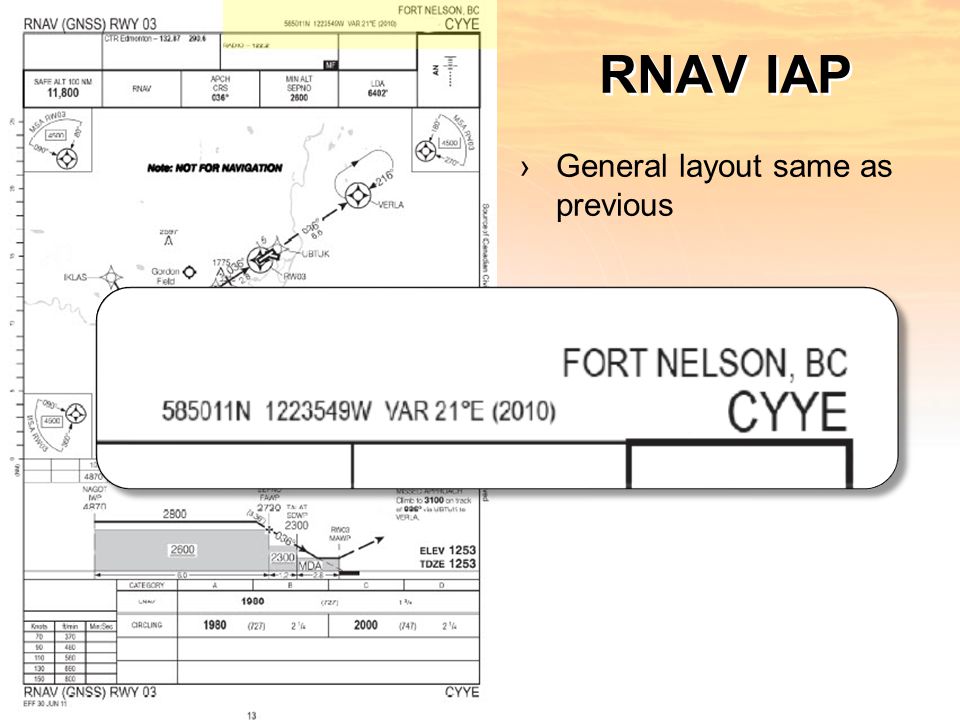

32. RNAV IAP ›General layout same as previous

33. RNAV IAP ›General layout same as previous

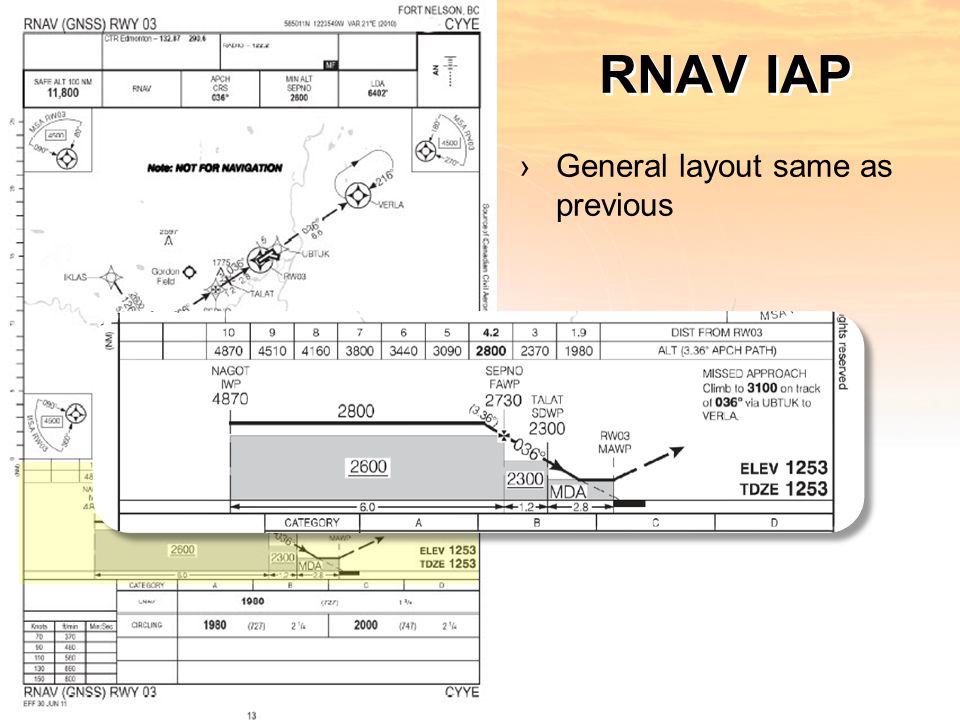

34. RNAV IAP ›General layout same as previous

35. Copter IAP ›Each Helicopter procedure now depicted in 1:350,000

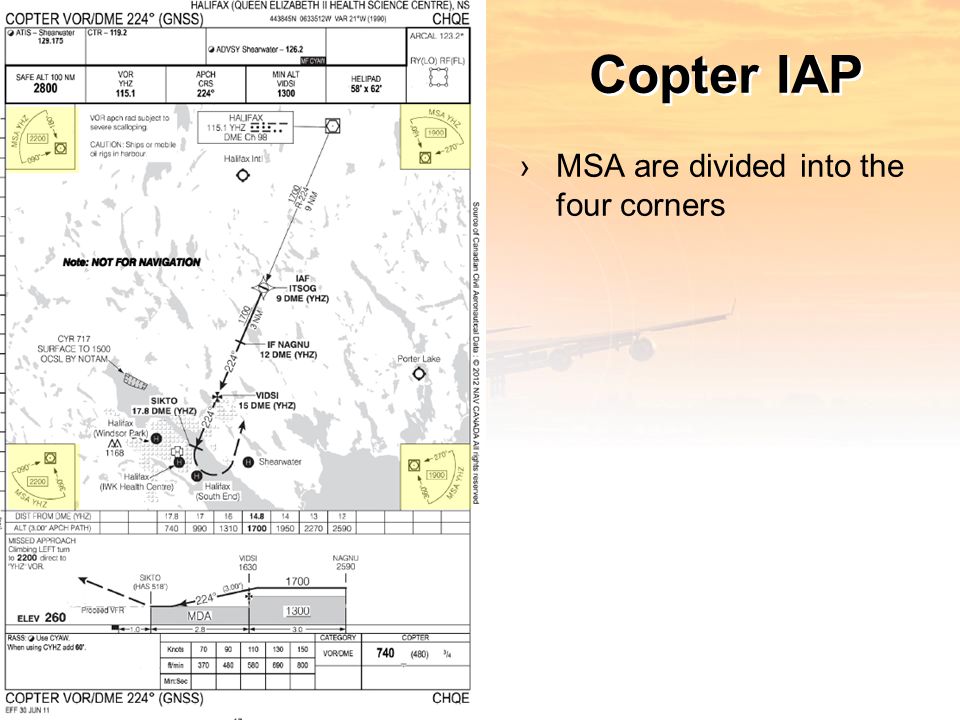

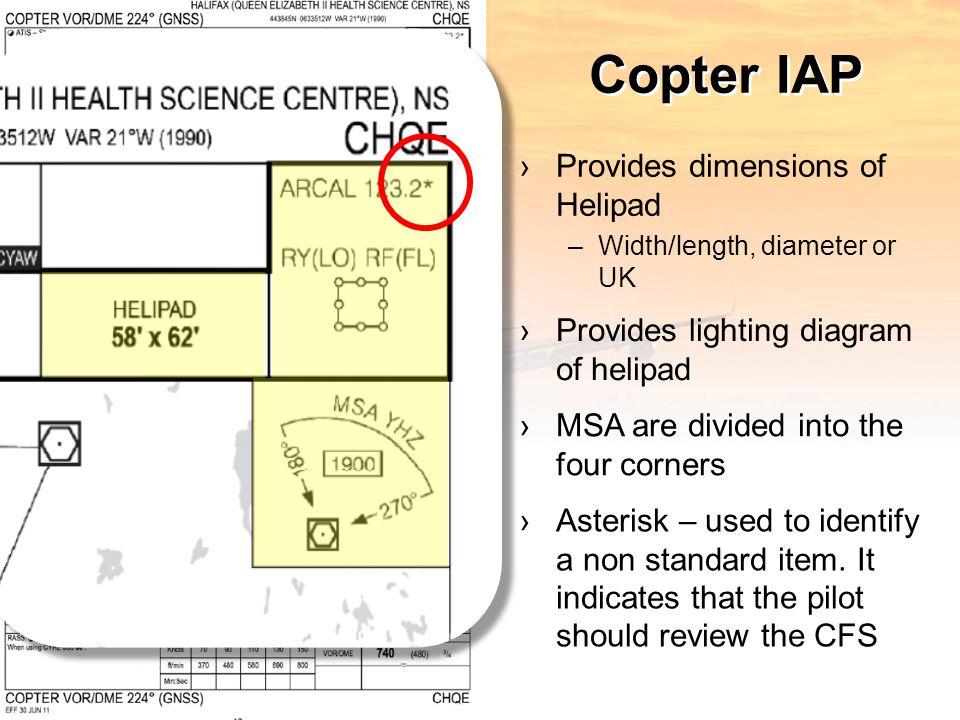

36. Copter IAP ›Provides dimensions of Helipad –Width/length, diameter or UK ›Provides lighting diagram of helipad ›MSA are divided into the four corners ›Asterisk – used to identify a non standard item. It indicates that the pilot should review the CFS

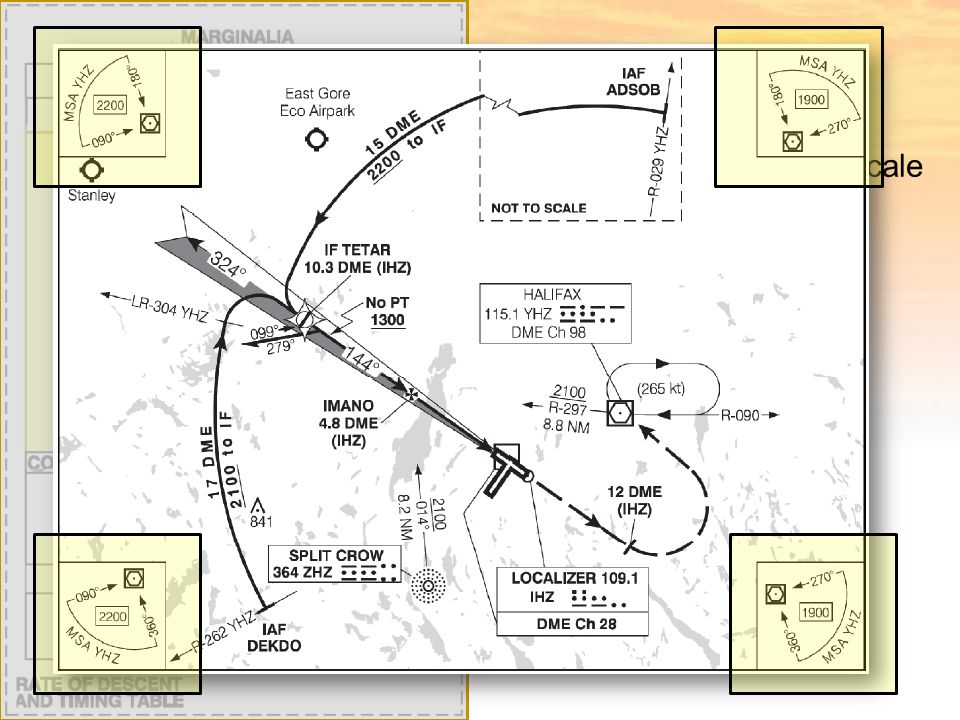

37. Copter IAP ›MSA are divided into the four corners

38. Copter IAP ›Other heliport within the defined area meant for reference only. ›White symbol with black text procedure heliport ›Black symbol with white text all other heliports in area

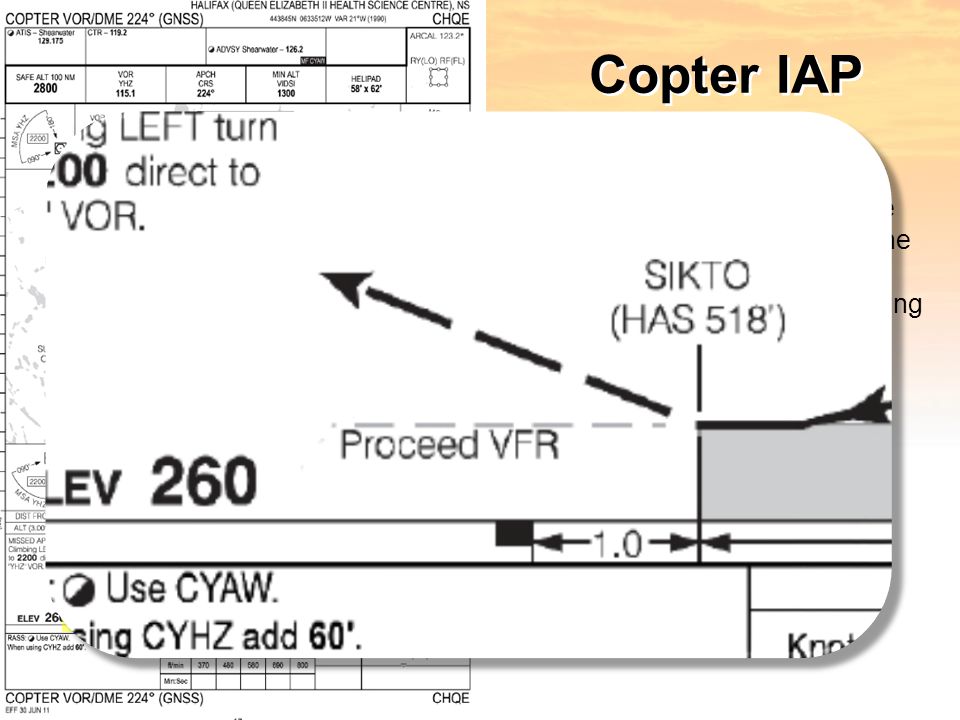

39. Copter IAP ›Proceed VFR track –Point in space procedure where the pilot may do the missed approach or proceed VFR to the landing site

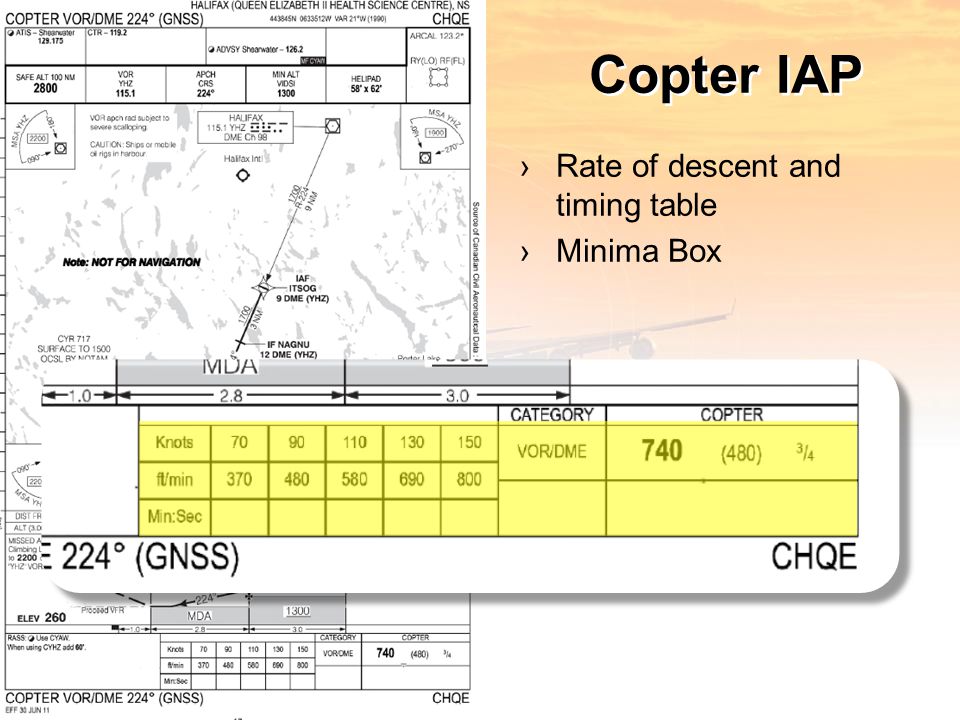

40. Copter IAP ›Rate of descent and timing table ›Minima Box

41. Visual Approach ›“Refer to” note referring to a related IAP

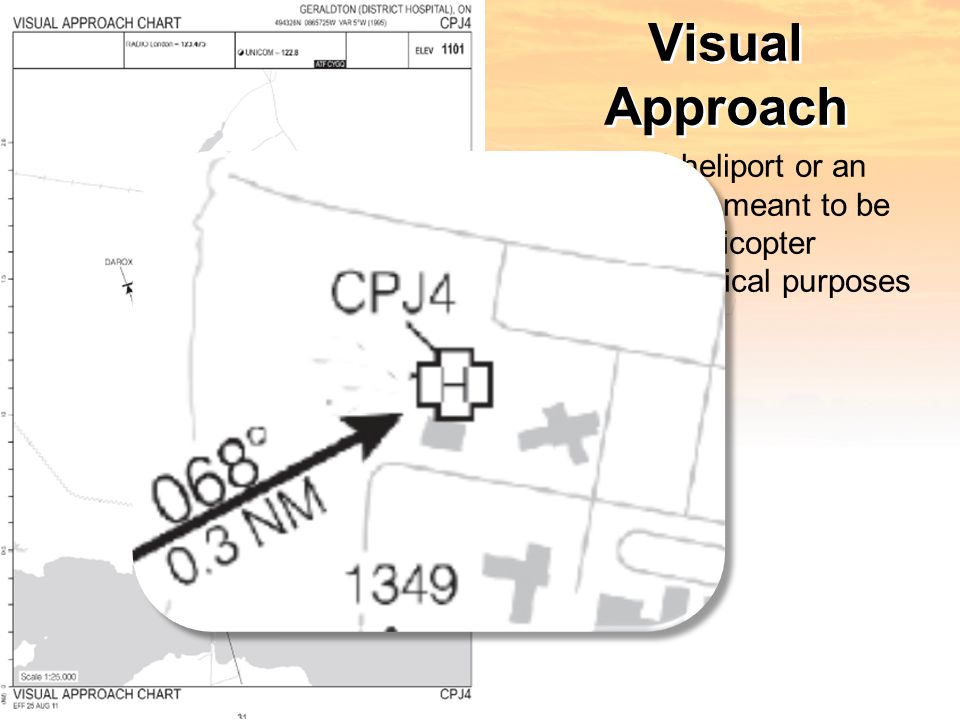

42. Visual Approach ›Hospital heliport or an area that is meant to be used for helicopter related medical purposes

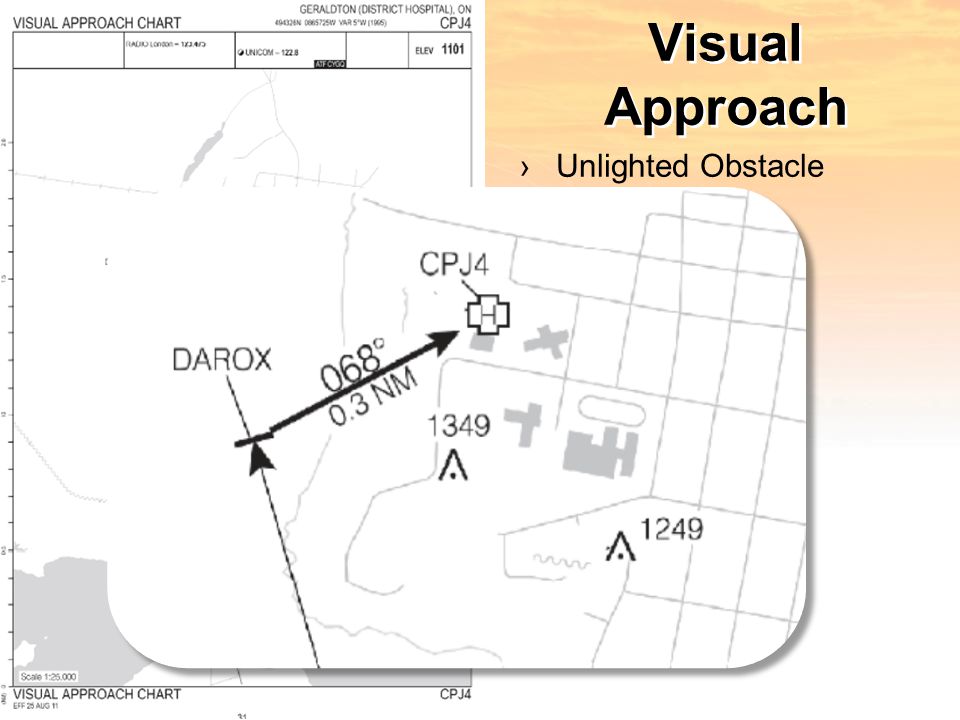

43. Visual Approach ›Unlighted Obstacle

44. Arrival ›Marginalia ›Plan View ›Communications Box

45. Arrival ›May be depicted in multiple charts –Transition –Arrival

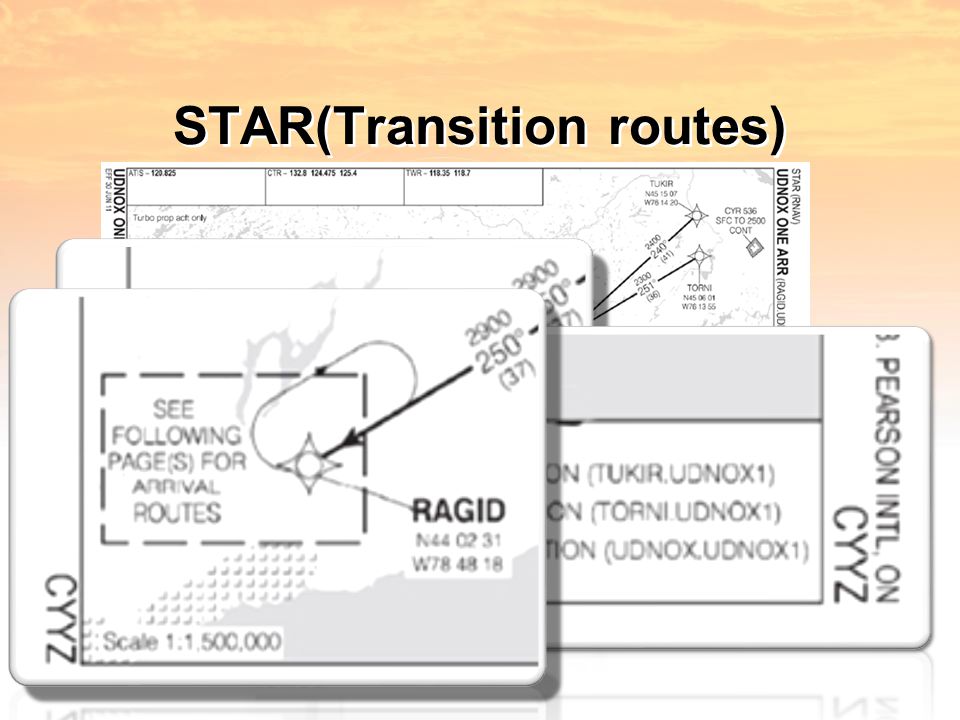

46. STAR(Transition routes)

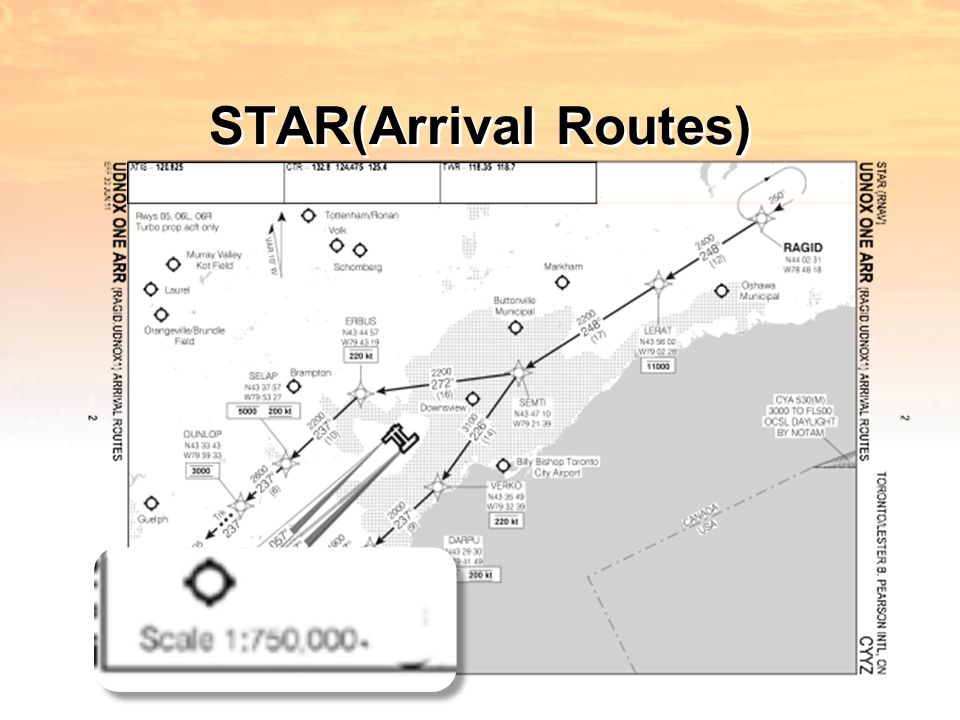

47. STAR(Arrival Routes)

49. SID ›Marginalia ›Plan View ›Communications Box

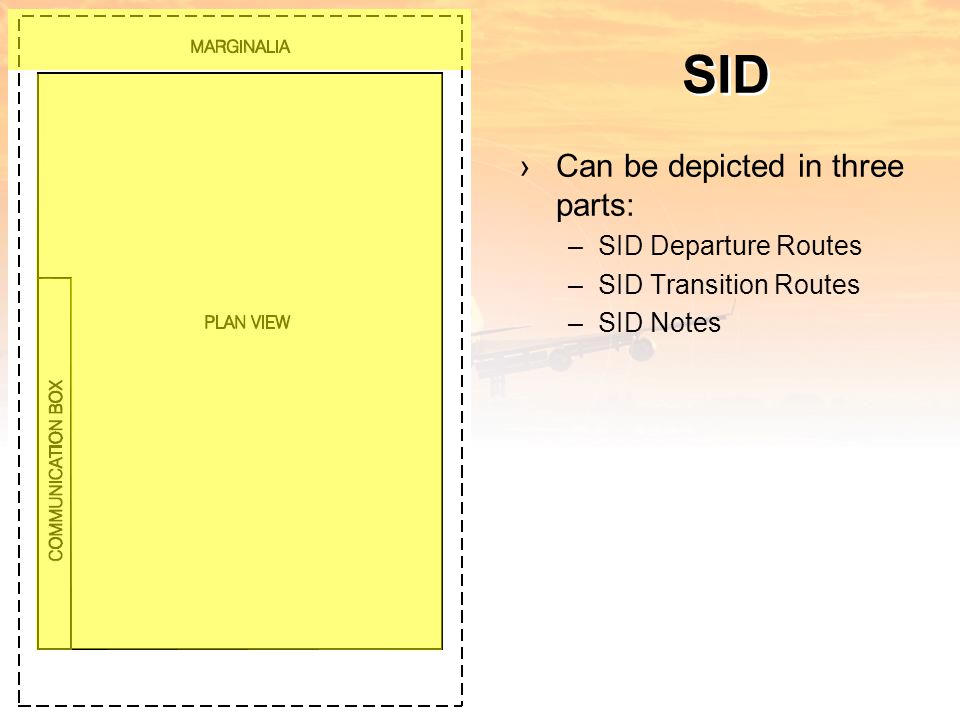

50. SID ›Can be depicted in three parts: –SID Departure Routes –SID Transition Routes –SID Notes

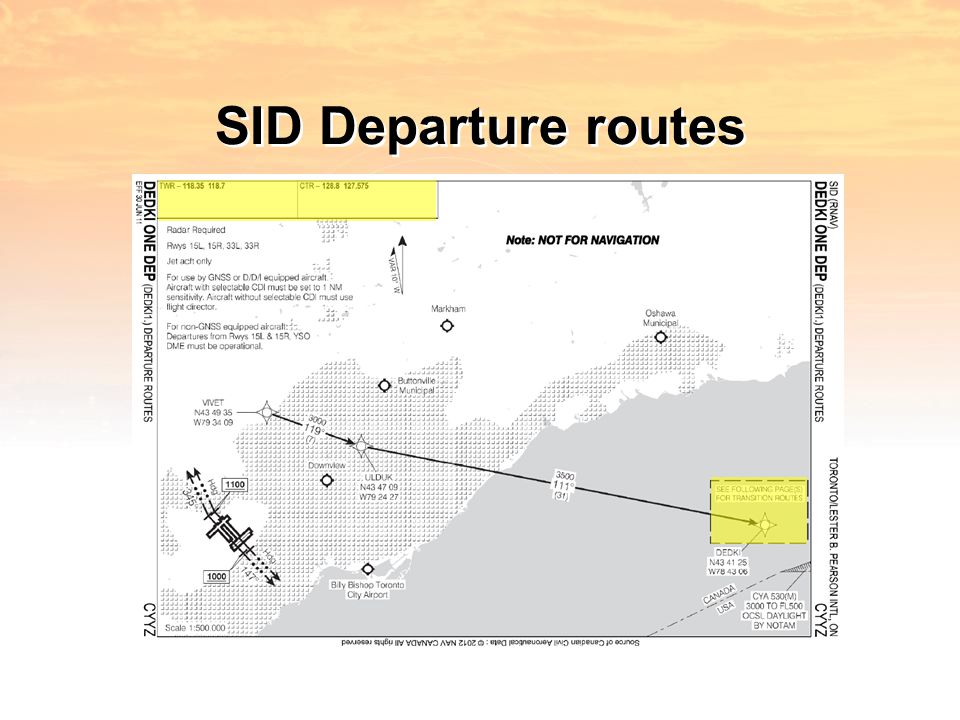

51. SID Departure routes

52. SID Transition Routes

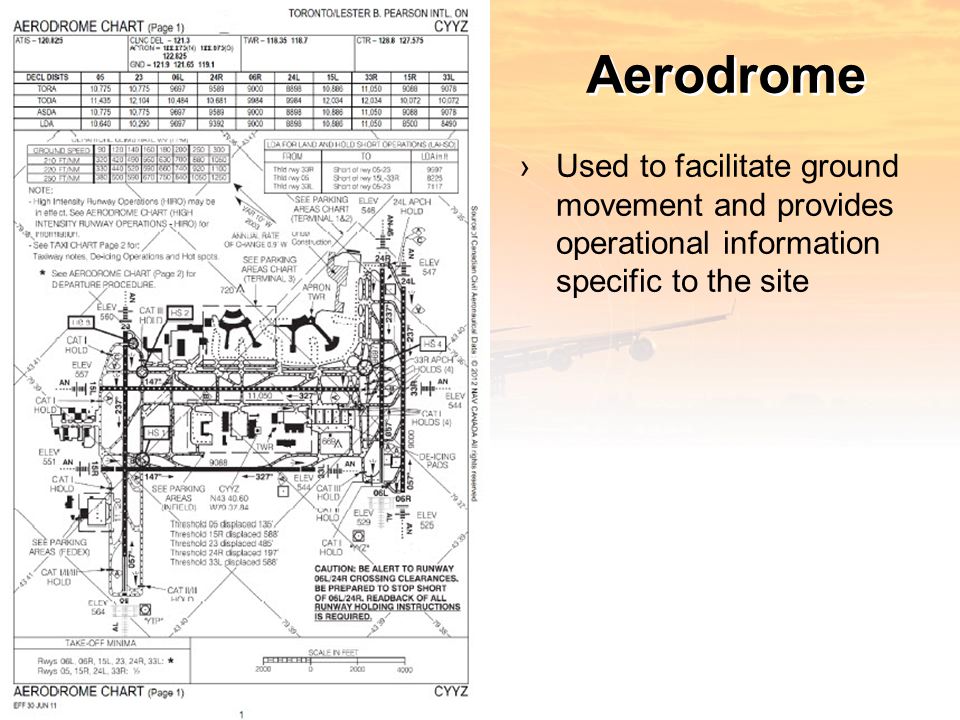

53. Aerodrome ›Used to facilitate ground movement and provides operational information specific to the site

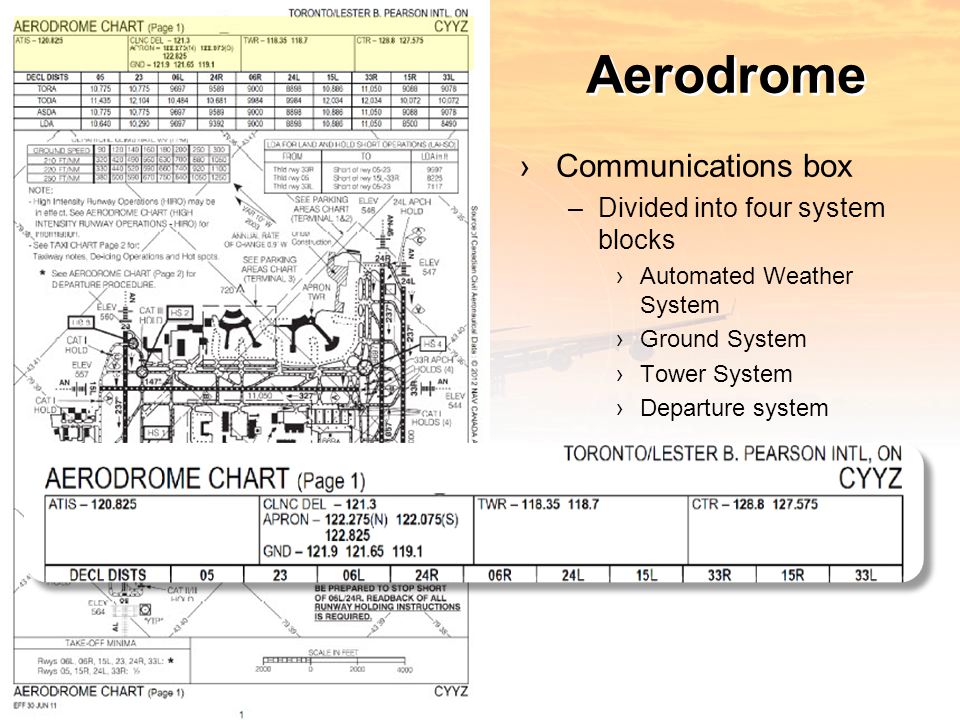

54. Aerodrome ›Communications box –Divided into four system blocks ›Automated Weather System ›Ground System ›Tower System ›Departure system

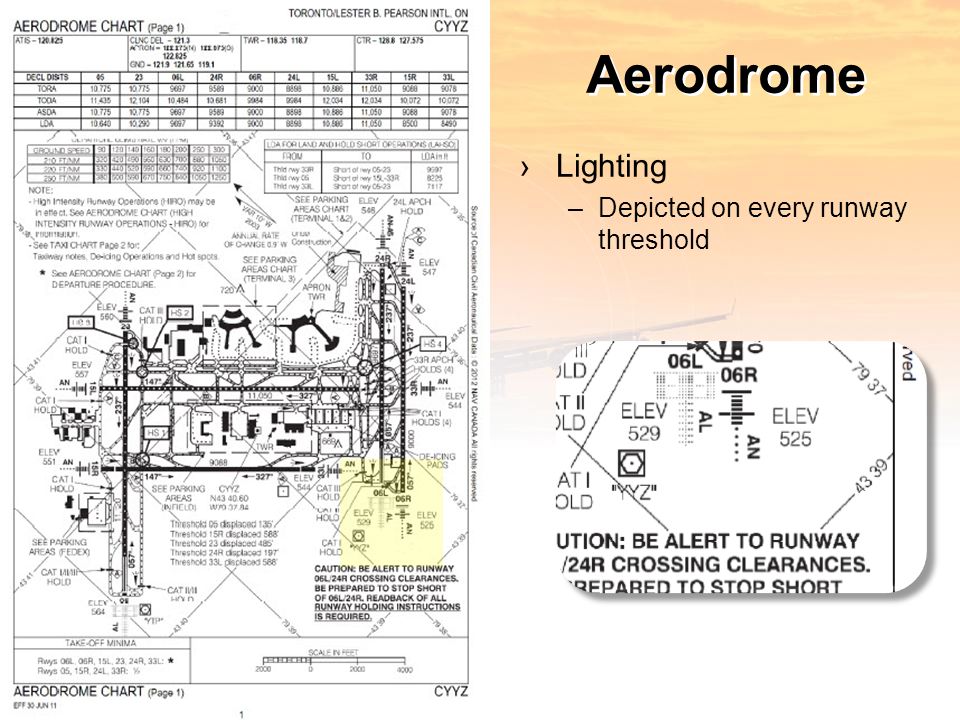

55. Aerodrome ›Lighting –Depicted on every runway threshold
