1. Hydraulic Fracturing 101 Presented by Jerry Strahan, P.E.
Chief, Branch of Fluid Minerals
Bureau of Land Management
Colorado State Office

2. Introduction to Hydraulic Fracturing
Shale Oil and Gas Development
Horizontal Drilling
Fracking Process
Environmental Concerns
Media and Fracking Information
Questions

3. A game changer World’s major gas reserves: Bakken Shale (N.D.)
Qatar TCF
Russia TCF
US Marcellus TCF
US Haynesville TCF
US Eagle Ford (emerging)
US Niobrara (emerging)
Bakken Shale (N.D.)
Largest US oil discovery since Alaska at 3.6B bbls
US is global leader in shale technology & development and in proven gas reserves!
This further augments the last slide. TCF stands for a trillion cubic feet of natural gas. The 3.6 B bbls stands for 3.6 billion barrels of oil. It is imperative to mention that horizontal drilling/hydraulic fracturing has made the US the global leader in proven natural gas reserves.

4. This slide is for shale gas while the next one is for shale plays a year later. Can we find two maps that show the same thing (either plays or gas) and are the same size (just the US lower 48 states)?

5. This is just to illustrate all of the “unconventional” oil and gas plays that become economically feasible because of horizontal drilling and hydraulic fracturing practices. Simply put: it has added lots of reserves that can be produced domestically.
Note that the play are covering more area that previous year based the use of this technology (and the fact the one is just gas in the US and the other is not).

6. What is Horizontal Drilling?
Hydraulic fracturing is generally associated with horizontal drilling practices.
It is defined as deviating the wellbore at least 80 degrees from vertical so that the borehole penetrates a productive formation in a manner parallel to the formation. Or simply “drilling sideways”.
Source: ProPublica

7. What is Hydraulic Fracturing?
Well stimulation technique that has been employed by the oil and gas industry since The technique is used to create spaces in the rock pores deep underground to release the oil and natural gas so that it can flow to the surface.
Fracturing fluids are injected at high pressure into the targeted formation, creating fissures that allow oil and gas to move freely from rock pores where it was trapped.
Source: ProPublica

8. This is an aerial photo of a hydraulic fracturing job in North Dakota
This is an aerial photo of a hydraulic fracturing job in North Dakota. A similar job performed in Montana would likely be on a much smaller scale.
Typical Sanjel Hydraulic Fracture job set-up.

9. Simplified Steps In Hydraulic Fracturing
1. Water, sand and additives are pumped at extremely high pressures down the wellbore.
2. The liquid goes through perforated sections of the wellbore and into the surrounding formation, fracturing the rock and injecting sand or proppants into the cracks to hold them open.
3. Experts continually monitor and gauge pressures, fluids and proppants, studying how the sand reacts when it hits the bottom of the wellbore, slowly increasing the density of sand to water as the frac progresses.
The next two slides provides a simple step-by-step process of what actually occurs during a hydraulic fracturing job.

10. Simplified Steps In Hydraulic Fracturing (Cont’d.)
4. This process may be repeated multiple times, in “stages” to reach maximum areas of the wellbore. When this is done, the wellbore is temporarily plugged between each stage to maintain the highest water pressure possible and get maximum fracturing results in the rock.
5. The frac plugs are drilled or removed from the wellbore and the well is tested for results.
6. The water pressure is reduced and fluids are returned up the wellbore for disposal or treatment and re-use, leaving the sand in place to prop open the cracks and allow the oil/gas to flow.

11. Why Hydraulic Fracturing and Horizontal Drilling?
Combined with horizontal drilling in shale formations, hydraulic fracturing has unlocked vast new supplies of oil and natural gas.
The technology has also made production feasible in many areas that were previously considered too deep, too hard, and too expensive to access.
The “fracture paths” created by hydraulic fracturing, and the increased surface area exposed by horizontal drilling, can increase production rates up to many hundreds of percent.
Hydraulic fracturing and horizontal drilling provide an environmental advantage in that they reduce the amount of wells needed to effectively drain an underground oil/gas reservoir. Less wells mean less roads, less pipeline, less surface disturbance, etc.

12. Horizontal Drilling Animation

13. Hydraulic Fracturing Animation

14. Illustration from EPA’s ‘Potential Relationships Between Hydraulic Fracturing and Drinking Water Resources’ presentation.
The purpose of this slide is that this is what people should envision when they think of Hydraulic fracturing. The fracturing occurs at depths that are far below any fresh water aquifers.

15. Figure 2
The purpose of this slide is that this is what people should envision when they think of Hydraulic fracturing. The fracturing occurs at depths that are far below any fresh water aquifers.

16. Figure 3
The purpose of this slide is that this is what people should envision when they think of Hydraulic fracturing. The fracturing occurs at depths that are far below any fresh water aquifers.

17. Figure 4
The purpose of this slide is that this is what people should envision when they think of Hydraulic fracturing. The fracturing occurs at depths that are far below any fresh water aquifers.

18. Figure 5
The purpose of this slide is that this is what people should envision when they think of Hydraulic fracturing. The fracturing occurs at depths that are far below any fresh water aquifers.

19. Environmental Concerns
Protection of groundwater and surface water from contamination.
Chemicals and additives in the fracturing fluid.
Large volumes of water needed for hydraulic fracturing.
Disposal of spent fracturing fluid (or flow-back fluid).
These are the primary concerns that accompany hydraulic fracturing. And the following slides will concentrate on each issue beginning with the protection of surface and groundwaters.

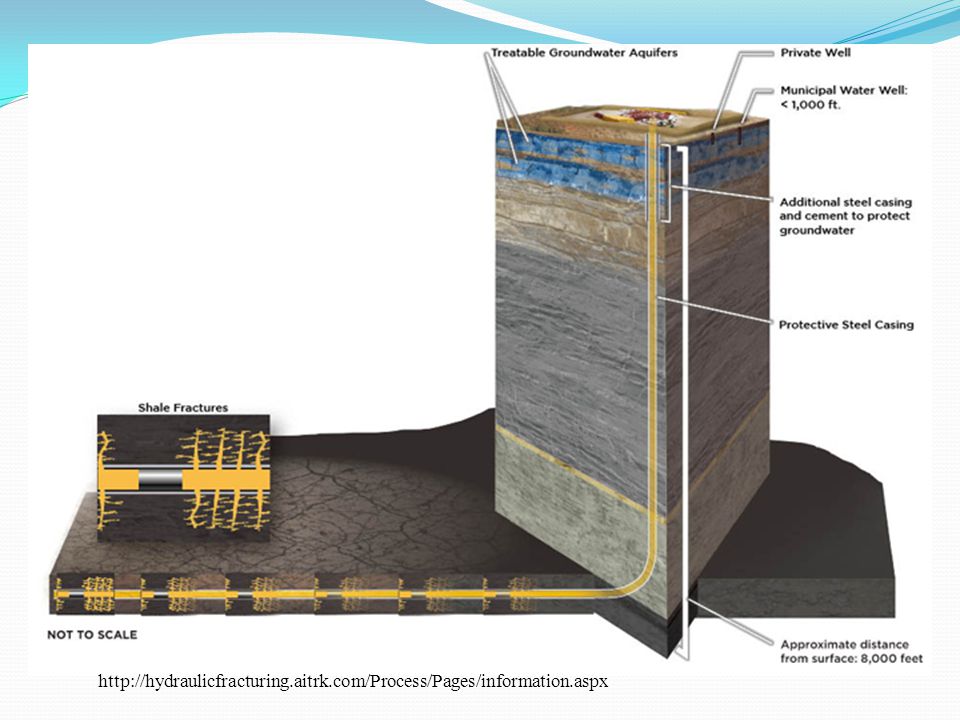

20. Groundwater Protection
Well integrity: Design and construction of the well to ensure isolation in wellbore.
Surface casing set below useable groundwater and cemented to surface.
Intermediate and Production casing is cemented to isolate hydrocarbon zones, providing further protection to groundwater.
Multiple layers of protective steel casing surrounded by cement.
Cement Bond Logs verify quality of cement job and centralizers placed on the casing assures uniform cementing.
The primary purpose of this slide is to highlight the importance of a well’s design. Every well that is drilled on the reservation is designed to protect any useable water aquifers. BLM reviews the design on tribal and allotted minerals, while the Montana Board of Oil and Gas would review the wells on fee and state minerals.

21. This is an example of what a cement bond log, or CBL, would look like
This is an example of what a cement bond log, or CBL, would look like. The CBL utilizes acoustic wave signals to determine the quality of the cement job and would confirm that the cement is providing a proper seal.

22. Evaluating Stratigraphic Confinement
Microseismic Evaluation of Fracking
Evaluating Stratigraphic Confinement
~200’
1000’
Microseismic evaluation allows the oil and gas company to track exactly where the fractures are occurring in the targeted downhole formation. This is achieved by drilling shallow holes near the horizontal wellbore and placing specialized microphones down in the hole. The microphones are able to detect the rock cracking and the data is interpreted to provide a downhole picture of the fractures.
Cross sectional view

23. Groundwater Protection
Make sure to point out the impervious rock layers between the target formation and shallow groundwater.

25. Subsurface Risks are managed by WELL CONSTRUCTION STANDARDS
CONDUCTOR PIPE
FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
SHALLOW PRODUCING ZONE
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

26. GOOD MECHANICAL INTEGRITY: No leaks in or behind the casing strings
CONDUCTOR PIPE
FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
SHALLOW PRODUCING ZONE
So, the bottom line is that wellbore design and construction are critical to protecting shallow groundwater.
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

27. behind production casing
CEMENT CHANNELING
behind production casing
CONDUCTOR PIPE
PRESSURE
BUILDS UP
FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
FORMATION
SHALLOW PRODUCING ZONE
CASING
CEMENT
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

28. INSUFFICIENT CEMENT COVERAGE
CONDUCTOR PIPE
PRESSURE
BUILDS UP
FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
SHALLOW PRODUCING ZONE
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

29. LEAK THROUGH CASING CONDUCTOR PIPE FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
FORMATION
CASING
SHALLOW PRODUCING ZONE
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

30. CEMENT CHANNELING behind surface casing CONDUCTOR PIPE
FRESH WATER AQUIFER ZONE
SURFACE CASING
COAL SEAM (methagenic)
FORMATION
PRODUCTION CASING
CASING
CEMENT
SHALLOW PRODUCING ZONE
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

31. GOOD MECHANICAL INTEGRITY: No leaks in or behind the casing strings
CONDUCTOR PIPE
FRESH WATER AQUIFER ZONE
SURFACE CASING
PRODUCTION CASING
SHALLOW PRODUCING ZONE
So, the bottom line is that wellbore design and construction are critical to protecting shallow groundwater.
INTERMEDIATE PRODUCING ZONE
TARGET PRODUCING ZONE

32. Environmental Concerns
Protection of groundwater and surface water from contamination.
Chemicals and additives in the fracturing fluid.
Large volumes of water needed for hydraulic fracturing.
Disposal of spent fracturing fluid (or flow-back fluid).

33. Chemicals and Additives
This graphic portrays that the majority of the fracking fluid is made up of sand and water.

34. Water Viscosifiers Guar Gum, Cornstarch, Agar
Hydraulic Fracturing Separating the Facts from the Hype
Water Viscosifiers Guar Gum, Cornstarch, Agar
Guar Bean Cluster
Agar – Sea Vegetable Flakes
Oilfield Use
Thicken water for proppant (sand) transport
Home Use
Ice Cream
Gluten Free Baking
Carpet Backing
Petri Dishes

35. Hydraulic Fracturing Separating the Facts from the Hype
Crosslinkers
Borax, a naturally occurring mineral
Oilfield Use
Thicken water for proppant (sand) transport
Home Use
Laundry Detergent
Fire Retardants
Cosmetics
Pesticides
Slime

36. Hydraulic Fracturing Separating the Facts from the Hype
Surfactants
Oilfield Use
Prevent oil and water from forming an emulsion
Cause oil and water to form an emulsion
Foamers
Degreasers and Cleaners
Home Use
Bathing/Shampooing
Salad Dressings
Dust Control
Gardening
Cleaning

37. Disinfectants Bleach, Biocides
Hydraulic Fracturing Separating the Facts from the Hype
Disinfectants Bleach, Biocides
Oilfield Use
Control naturally occurring bacteria or algae
Home Use
Drinking Water Treatment
Household Cleaners
Swimming Pools

38. Hydraulic Fracturing Separating the Facts from the Hype
Buffers Sodium Bicarbonate, Sulfamic Acid, Acetic Acid, Citric Acid, Ascorbic Acid, Sodium Hydroxide
Oilfield Use
Adjusts the pH of the frack fluid which affects the viscosity of the fluid
Home Use
Baking Soda
Remove Grout Haze
Vinegar
Oranges
Vitamin C
Drano

39. Breakers Hydrogen Peroxide, Ammonium Persulfate, Enzymes
Hydraulic Fracturing Separating the Facts from the Hype
Breakers Hydrogen Peroxide, Ammonium Persulfate, Enzymes
Oilfield Use
Causes gel to break down after sand is in place allowing fluid to flow back to surface
Home Use
Septic Tank Maintenance
Manufacture of Circuit Boards
Hair Bleaching
Disinfectant

40. Iron Control Citric Acid, Ascorbic Acid, Acetic Acid
Hydraulic Fracturing Separating the Facts from the Hype
Iron Control Citric Acid, Ascorbic Acid, Acetic Acid
Oilfield Use
Prevent rust which can lead to plugging of the formation
Home Use
Lemons
Vitamin C
Vinegar

41. Chemicals and Additives
Wellbore integrity isolates fracture fluids.
Fluid “flow-back” adequately stored in lined earthen pits or steel tanks until proper disposal.
Material handling on surface is in accordance with requirements and long-standing industry practices.
MSDS sheets available for review on well site.
When the fracturing fluid flows back to the surface, it is important that the fluid is contained. In most instances, the oil and gas operator would contain this fluid in steel tanks. If it is flowed into an earthen pit on location, that pit would need to be lined and earthen berms would be constructed around the pit as an additional caution in case of overflow.

42. Environmental Concerns
Protection of groundwater and surface water from contamination.
Chemicals and additives in the fracturing fluid.
Large volumes of water needed for hydraulic fracturing.
Disposal of spent fracturing fluid (or flow-back fluid).

43. Water Volumes
Typically,10,000-15,000 barrels per well (420, ,000 gallons) are needed for fracture stimulation % will flow back to surface.
Use is temporary, not a long term commitment.
The amount of water that is used can be reduced when fracture fluids are recycled.
Other water use should be considered with respect to current water uses (i.e. agricultural, municipal, power generation, etc.).
Water volumes are based on what we know now for this general area. May change with continued development.
Volumes should be updated by region!

44. Environmental Concerns
Protection of groundwater and surface water from contamination.
Chemicals and additives in the fracturing fluid.
Large volumes of water needed for hydraulic fracturing.
Disposal of spent fracturing fluid (or flow-back fluid).

45. Fluid Disposal Underground injection. Commercial disposal facilities.
Surface disposal pits.
Treatment/Reuse
These are the four basic options that exist now for fluid disposal. Treatment/Reuse is probably the best option; however, these types of systems usually are not employed until the oil and gas operator is in the development phase. Prior to approving a hydraulic fracturing job, the oil and gas operator must display an acceptable plan to dispose of the spent fracturing fluid.

46. Getting to the Bottom of FRACKING
“The truth is rarely pure and never simple”
— Oscar Wilde

47. THE WALL STREET JOURNAL
December 9, 2011
EPA Ties Fracking, Pollution.
“Chemicals found in a Wyoming town's drinking water likely are associated with hydraulic fracturing, the Environmental Protection Agency said Thursday, raising the stakes in a debate over a drilling technique that has created a boom in natural-gas production.”

48. THE WALL STREET JOURNAL
December 20, 2011
The EPA’s Fracking Scare
“…the U.S. Geological Survey has detected organic chemicals in the well water in Pavillion (population 175) for at least 50 years—long before fracking was employed. There are other problems with the study that either the EPA failed to disclose or the press has given little attention to.”

49. THE WALL STREET JOURNAL
April 1, 2012
EPA Backpedals on Fracking Contamination
“The Environmental Protection Agency has dropped its claim that an energy company contaminated drinking water in Texas, the third time in recent months that the agency has backtracked on high-profile local allegations linking natural-gas drilling and water pollution.”
“In addition to dropping the case in Texas, the EPA has agreed to substantial retesting of water in Wyoming after its methods were questioned.”

50. THE DENVER POST
December 9, 2011
Hydraulic Fracking Linked for First Time to Groundwater Pollution
“Hydraulic fracturing, a controversial oil-and-gas production technique used in Colorado and across the country, has been linked for the first time to groundwater pollution in a case near Pavillion, Wyoming.”

51. THE DENVER POST
June 18, 2012
EPA Results on Fracking in Wyoming Continue to Confound
“But the findings on fracking while suggestive and important are limited. Water supplies were not contaminated by frack fluids and fracking did not turn out to be the cause per se of the problems that prompted it the residents of Pavillion to seek the EPA’s help”

52. BOULDER DAILY CAMERA
June 20, 2013
EPA Won't Confirm Fracking-Pollution Tie in Wyoming
“The U.S. Environmental Protection Agency announced Thursday it is dropping its longstanding plan to have independent scientists review its finding that hydraulic fracturing may be linked to groundwater pollution in central Wyoming. ”

53. BLOOMBERG More Evidence Shows Drilling Causes Earthquakes
April 1, 2013
More Evidence Shows Drilling Causes Earthquakes
“There have been a lot of earthquakes recently in parts of the U.S. that traditionally haven’t seen so many, including Arkansas, Texas, Ohio, and Colorado—all states where fracking activity just happens to have increased substantially in the past decade.”

54. BLOOMBERG Fracking Doesn’t Cause Significant Earthquakes, Study Says
April 10, 2013
Fracking Doesn’t Cause Significant Earthquakes, Study Says
“Hydraulic fracturing used to access oil and gas from rock and shale hasn’t caused “significant” earthquakes, according to a study by Durham University.
“The size and number of felt earthquakes caused by fracking is low compared to other manmade triggers such as mining, geothermal activity or reservoir water storage.” .”

55. Questions?
