1 Higher Computing Computer Systems 3. Computer Performance

2 Clock Speed When comparing one computer's performance against another, one of the main criteria is the clock speed of the processor. The clock is controlled by an internal crystal and pulses at a regular rate. All activities start on the pulse of the clock. Cycle time- the time between pulses. Not reliable – some instructions take several cycles and some computers can perform several tasks per cycle.

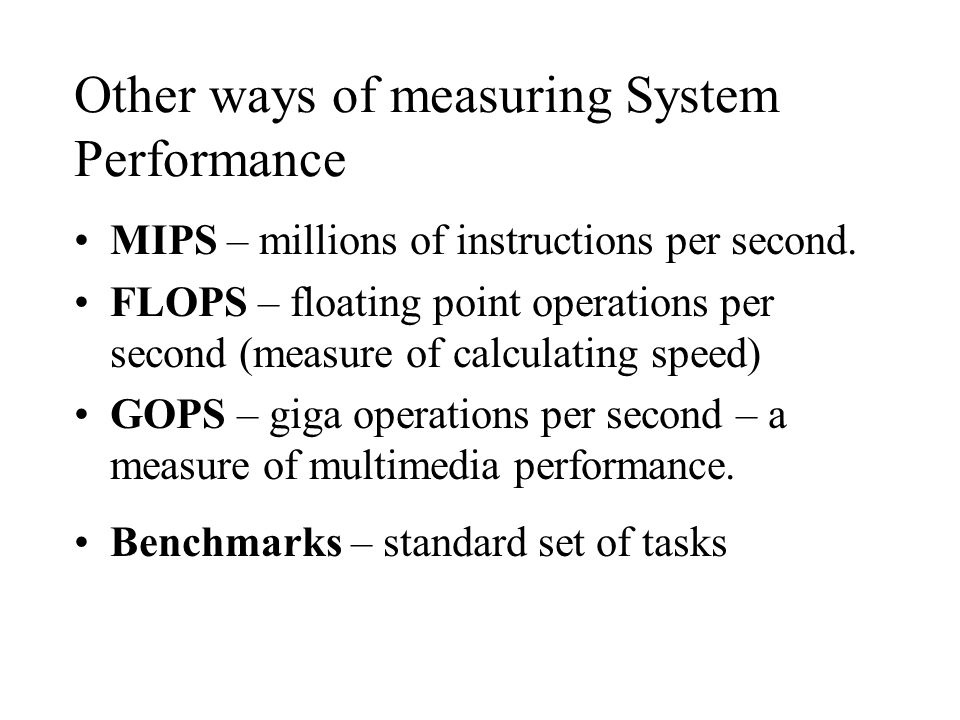

3 Other ways of measuring System Performance MIPS – millions of instructions per second. FLOPS – floating point operations per second (measure of calculating speed) GOPS – giga operations per second – a measure of multimedia performance. Benchmarks – standard set of tasks

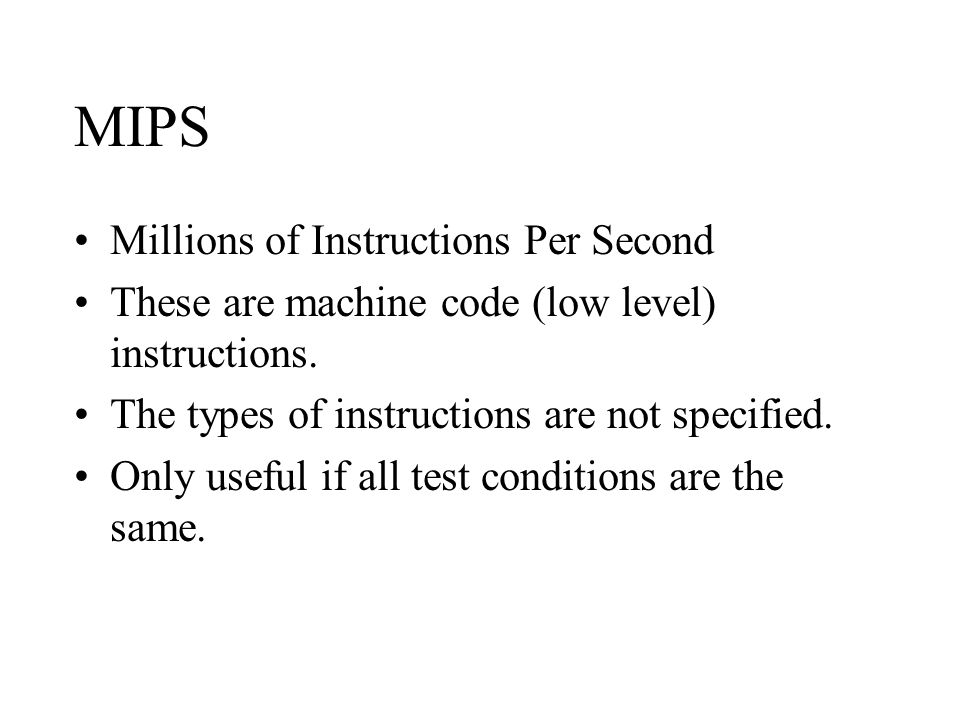

4 MIPS Millions of Instructions Per Second These are machine code (low level) instructions. The types of instructions are not specified. Only useful if all test conditions are the same.

5 MIPS continued Wikipedia says: –Critics of the term refer to it as "Meaningless Indication of Processor Speed“ –MIPS are certainly not comparable between CPU architectures. –See table for MIPS performance down the years.See table Remember: All improvements have a cost. When deciding how to improve a system the ratio of cost to best performance will always be considered.

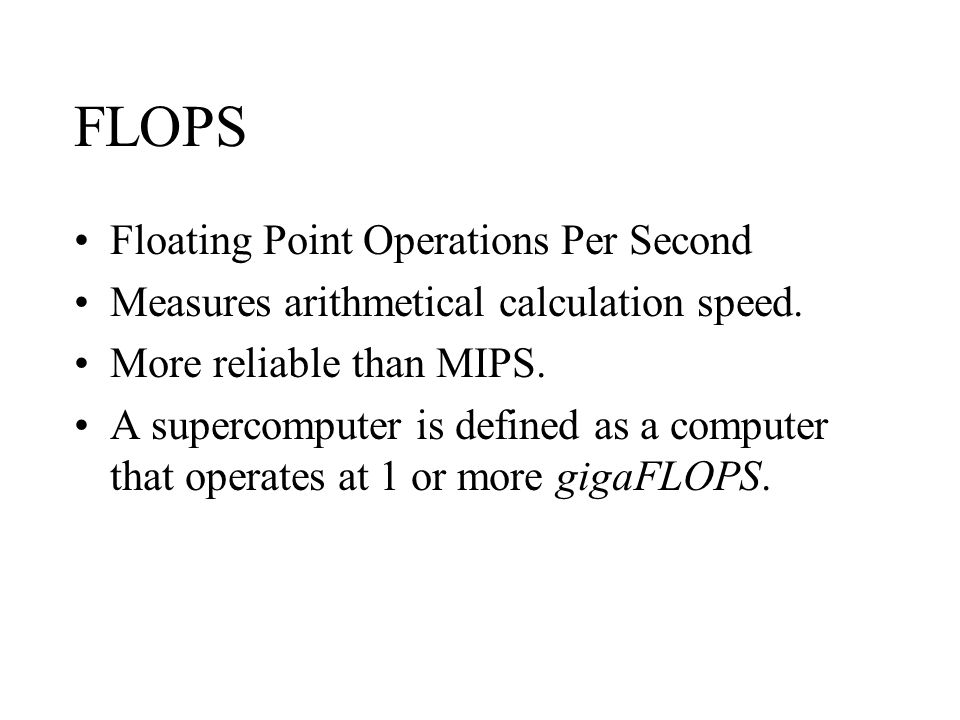

6 FLOPS Floating Point Operations Per Second Measures arithmetical calculation speed. More reliable than MIPS. A supercomputer is defined as a computer that operates at 1 or more gigaFLOPS.

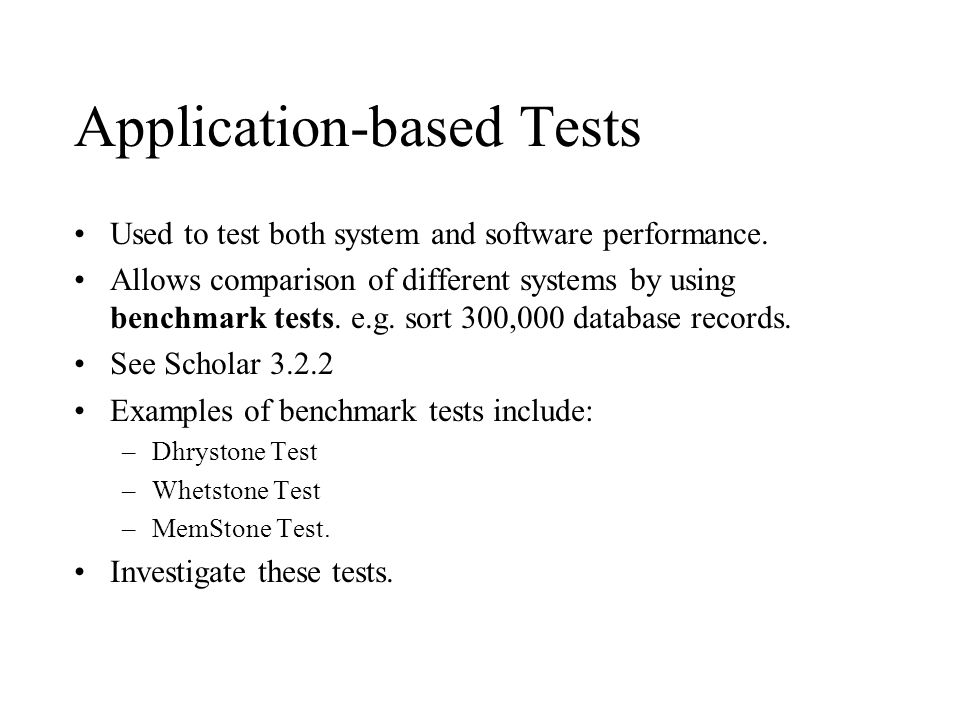

7 Application-based Tests Used to test both system and software performance. Allows comparison of different systems by using benchmark tests. e.g. sort 300,000 database records. See Scholar 3.2.2 Examples of benchmark tests include: –Dhrystone Test –Whetstone Test –MemStone Test. Investigate these tests.

8 Application-based Tests When reviewing products, reviews use benchmark tests. See

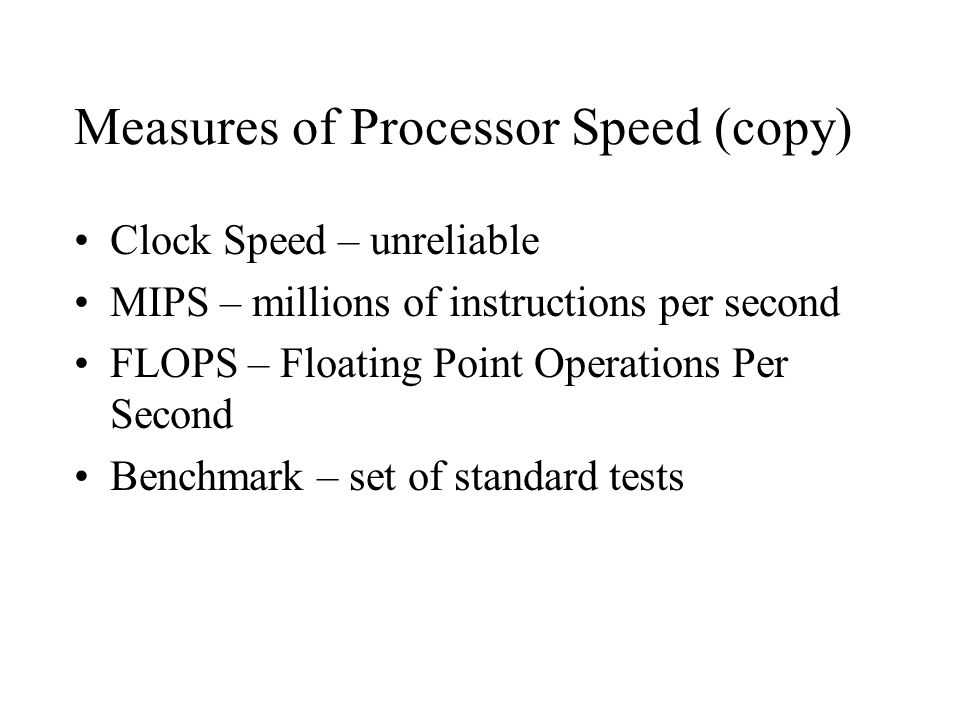

9 Measures of Processor Speed (copy) Clock Speed – unreliable MIPS – millions of instructions per second FLOPS – Floating Point Operations Per Second Benchmark – set of standard tests

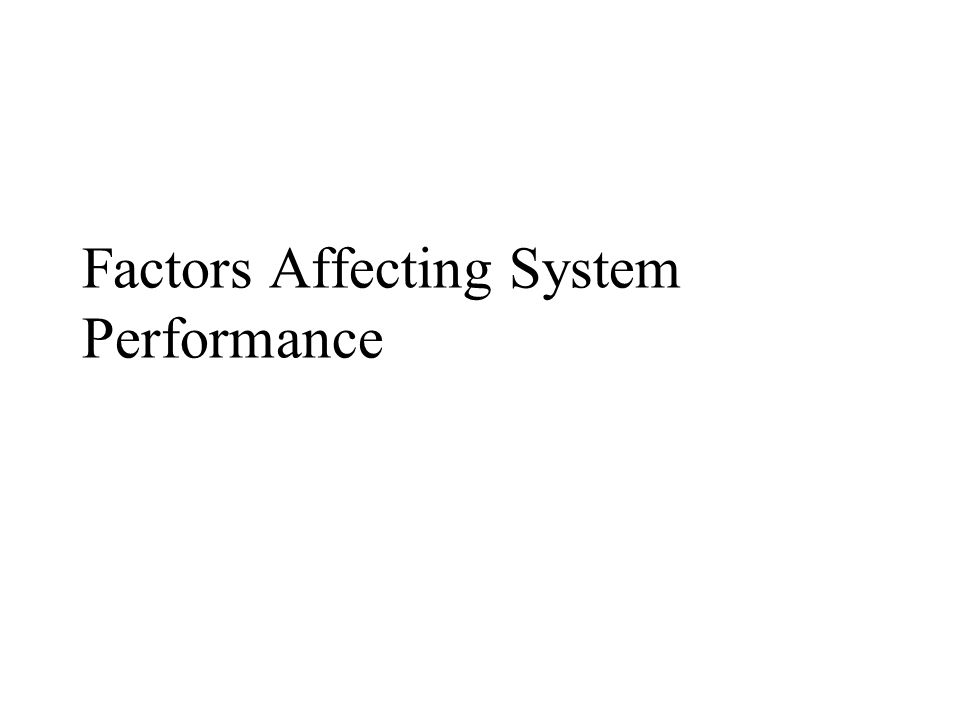

10 Factors Affecting System Performance

11 Factors Effecting Performance Data Bus Width –The wider the data bus, the greater the word size. –Investigate data bus widths on current PCs. –What effect would adding a wire have to the data bus?

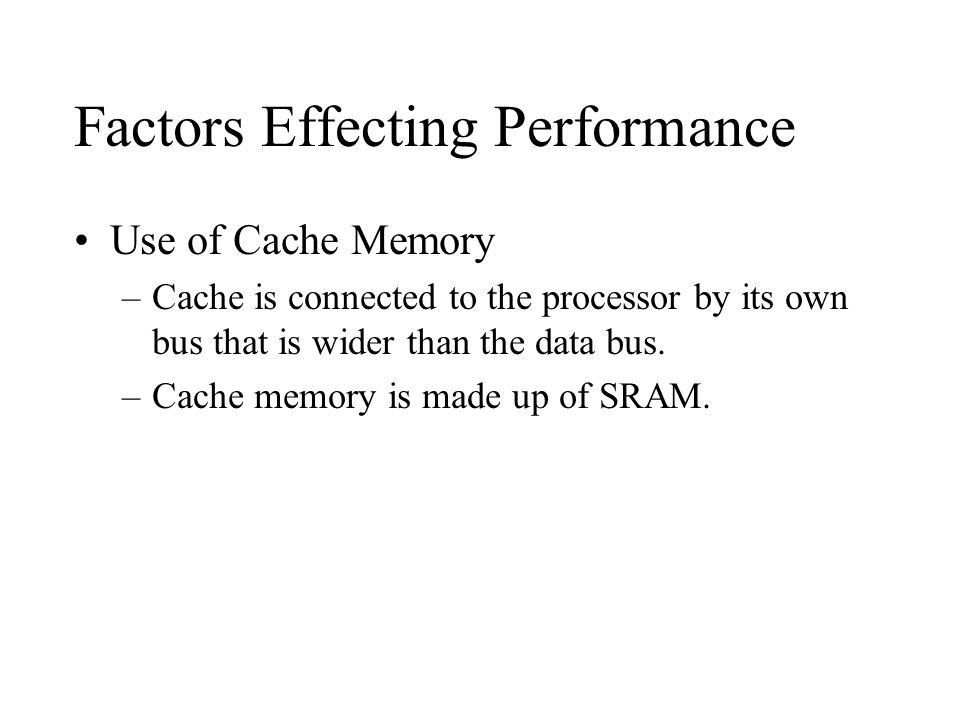

12 Factors Effecting Performance Use of Cache Memory –Cache is connected to the processor by its own bus that is wider than the data bus. –Cache memory is made up of SRAM.

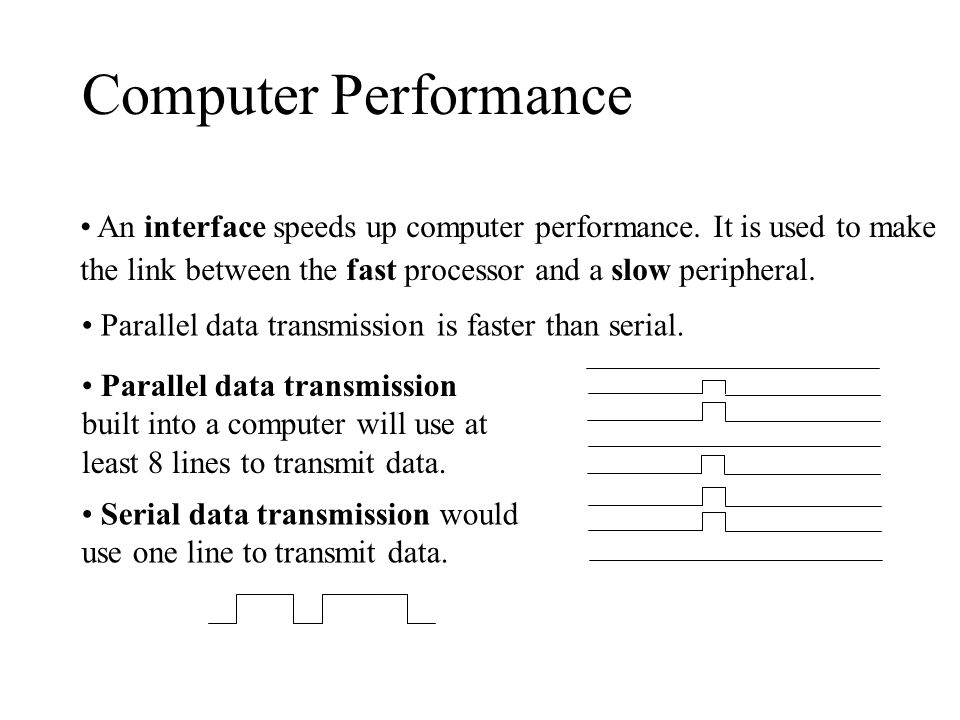

13 Computer Performance An interface speeds up computer performance. It is used to make the link between the fast processor and a slow peripheral. Parallel data transmission built into a computer will use at least 8 lines to transmit data. Serial data transmission would use one line to transmit data. Parallel data transmission is faster than serial.

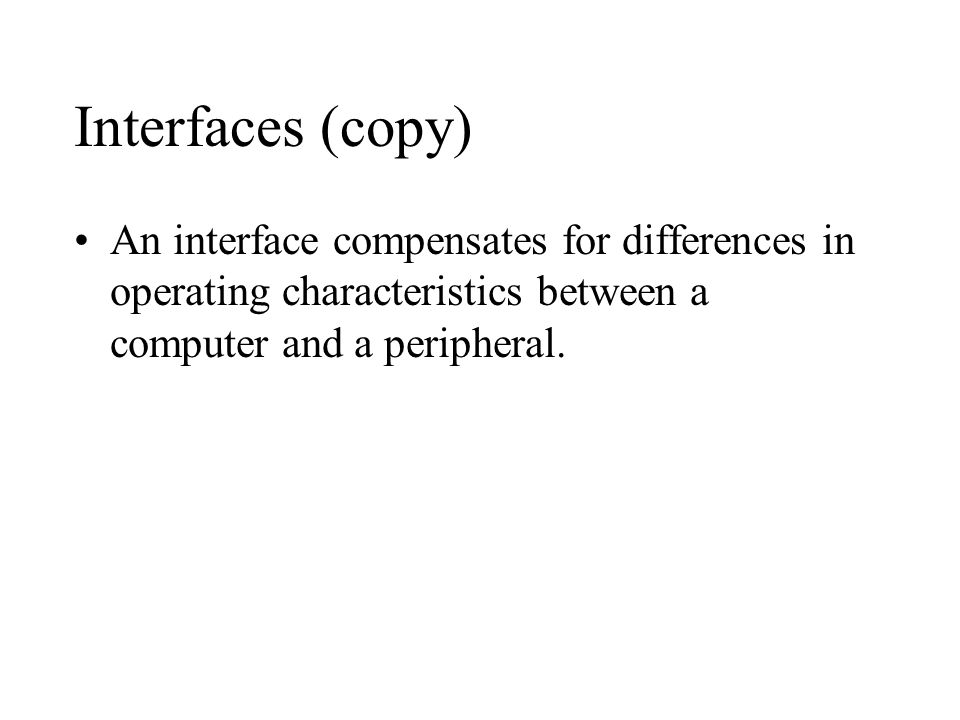

14 Interfaces (copy) An interface compensates for differences in operating characteristics between a computer and a peripheral.

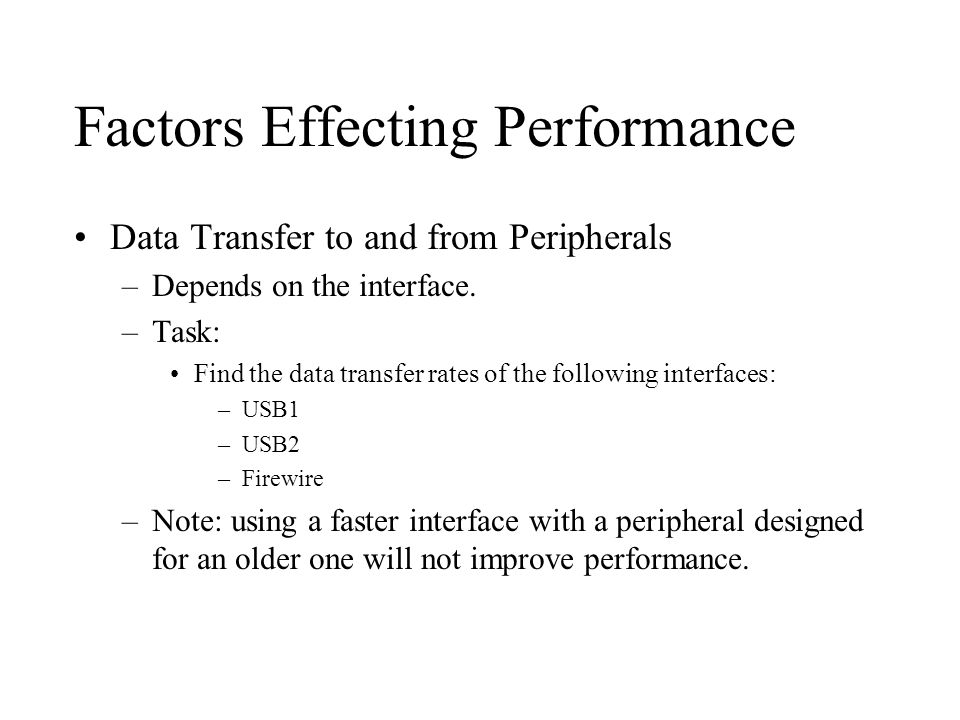

15 Factors Effecting Performance Data Transfer to and from Peripherals –Depends on the interface. –Task: Find the data transfer rates of the following interfaces: –USB1 –USB2 –Firewire –Note: using a faster interface with a peripheral designed for an older one will not improve performance.

16 Factors Effecting Performance Add more Main Memory –Virtual Memory – use of fast access backing storage to behave like RAM. Much slower than using actual RAM. –Most computers do not come with as much memory as it is possible to address. This is because: Costs of computer manufacture is reduced Applications rarely need the maximum amount of RAM to run. Some memory locations that need to be addressed are in ROM.

17 Factors Effecting Performance Increase VRAM Increase Clock Speed Add more processors –This allows for parallel processing where several processors share tasks enabling them to be completed quicker. Increase address bus width. –What effect does this have on total addressable memory?

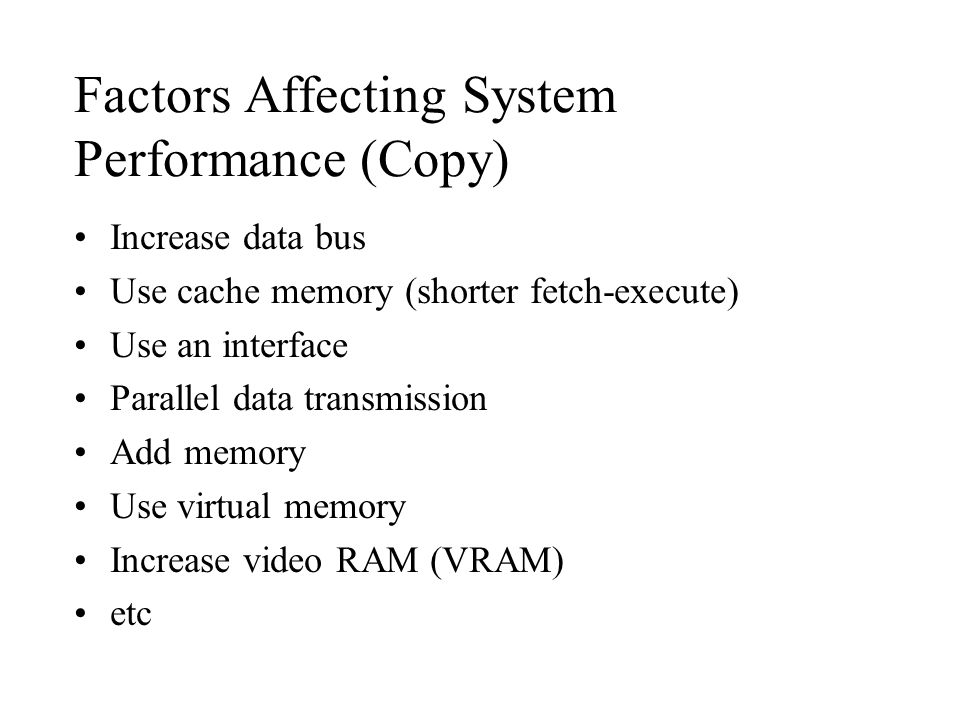

18 Factors Affecting System Performance (Copy) Increase data bus Use cache memory (shorter fetch-execute) Use an interface Parallel data transmission Add memory Use virtual memory Increase video RAM (VRAM) etc

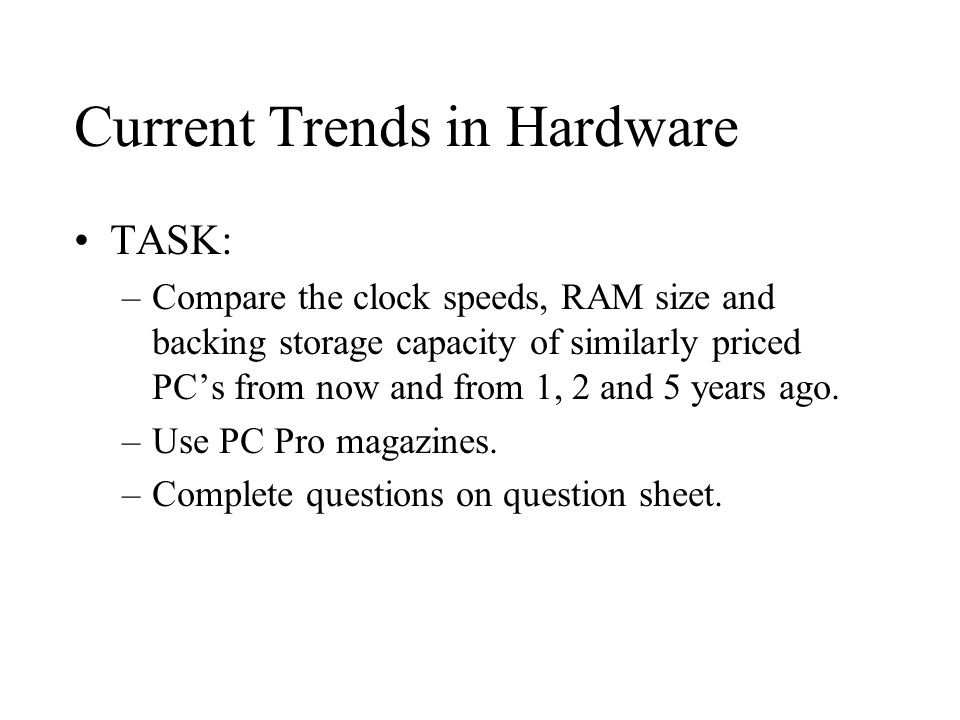

19 Current Trends in Hardware TASK: –Compare the clock speeds, RAM size and backing storage capacity of similarly priced PC’s from now and from 1, 2 and 5 years ago. –Use PC Pro magazines. –Complete questions on question sheet.
