AME 513 Principles of Combustion Lecture 8 Premixed flames I: Propagation rates

2

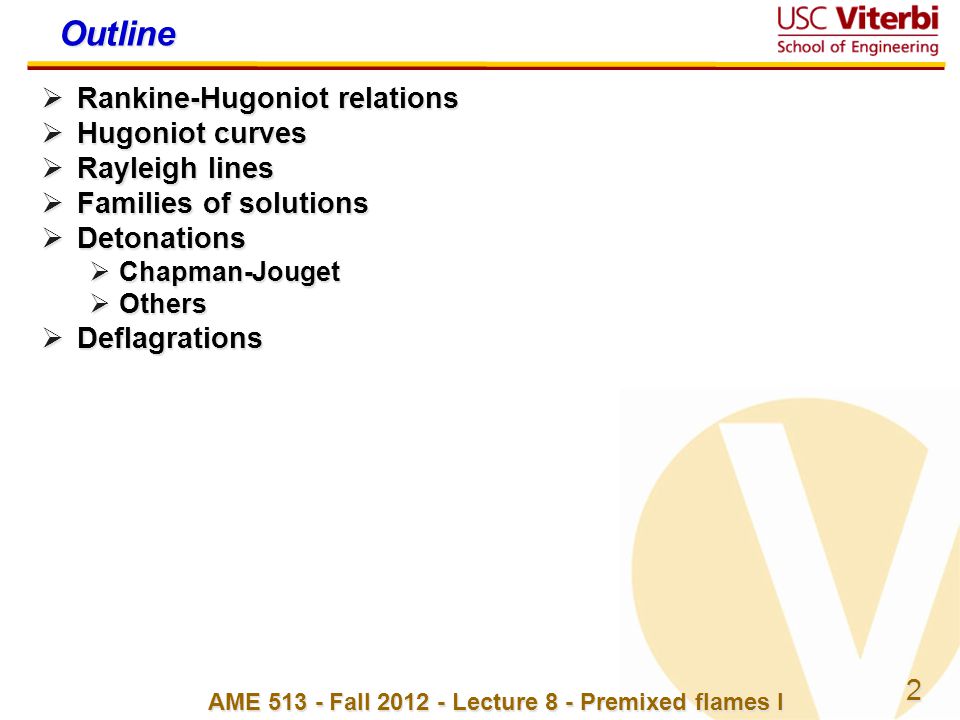

2 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Outline Rankine-Hugoniot relations Hugoniot curves Rayleigh lines Families of solutions Detonations Chapman-Jouget Others Deflagrations

3

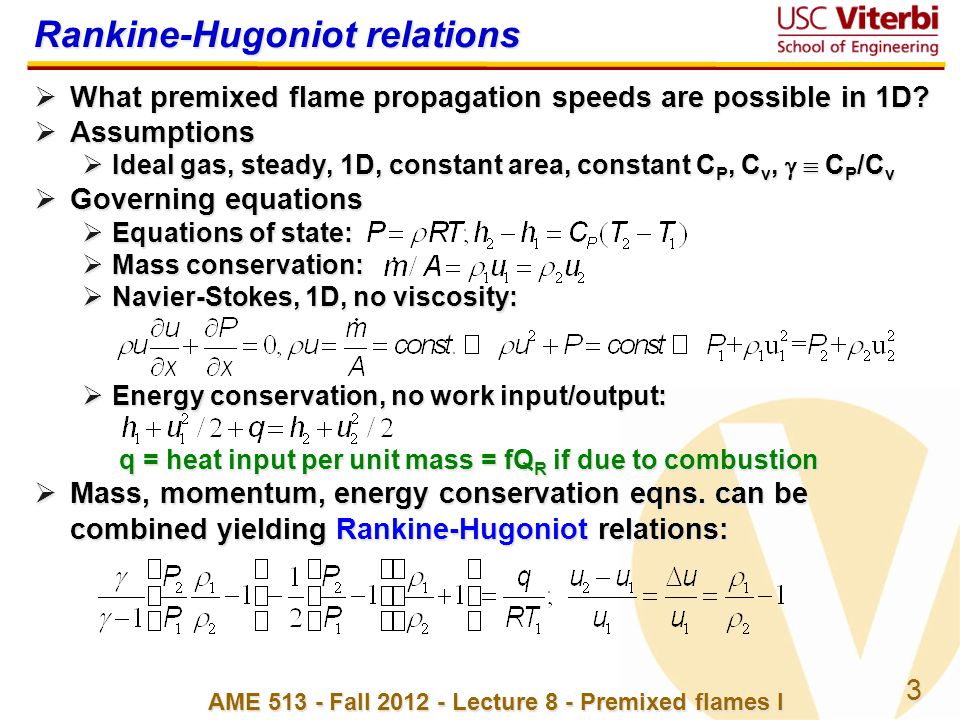

3 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I What premixed flame propagation speeds are possible in 1D? Assumptions Ideal gas, steady, 1D, constant area, constant C P, C v, C P /C v Governing equations Equations of state: Mass conservation: Navier-Stokes, 1D, no viscosity: Energy conservation, no work input/output: q = heat input per unit mass = fQ R if due to combustion q = heat input per unit mass = fQ R if due to combustion Mass, momentum, energy conservation eqns. can be combined yielding Rankine-Hugoniot relations: Rankine-Hugoniot relations

4

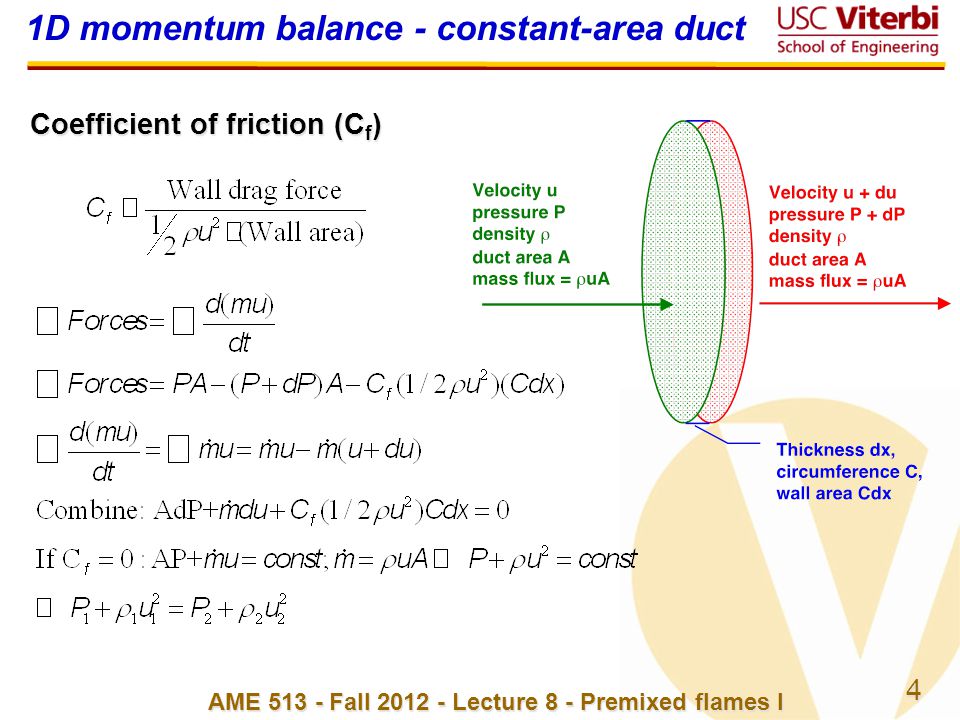

4 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I 1D momentum balance - constant-area duct Coefficient of friction (C f )

5

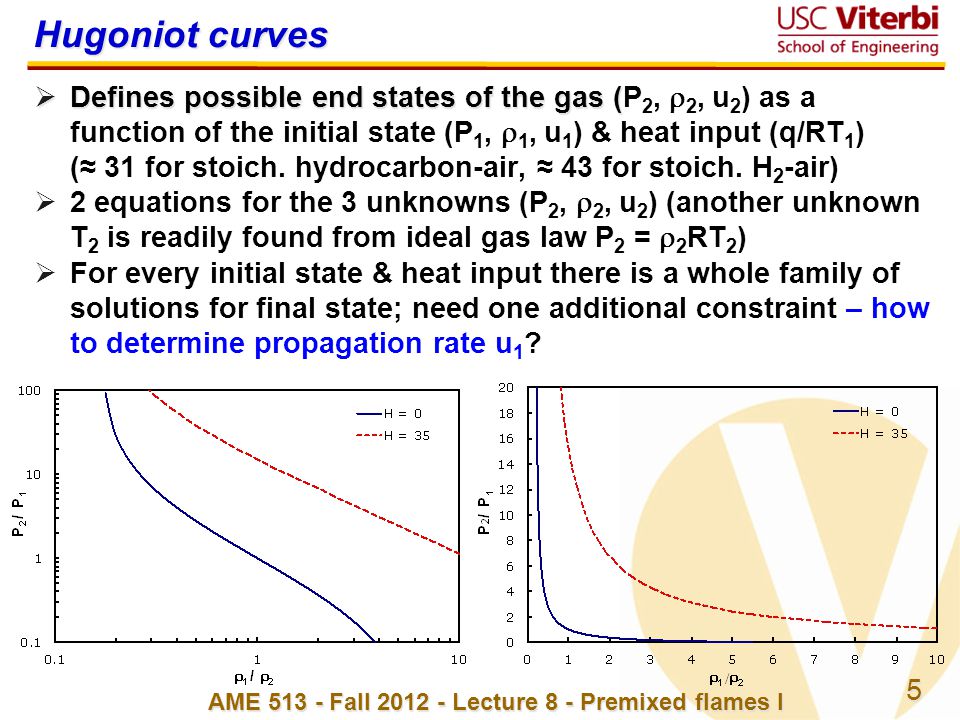

5 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Defines possible end states of the gas ( Defines possible end states of the gas (P 2, 2, u 2 ) as a function of the initial state (P 1, 1, u 1 ) & heat input (q/RT 1 ) (≈ 31 for stoich. hydrocarbon-air, ≈ 43 for stoich. H 2 -air) 2 equations for the 3 unknowns (P 2, 2, u 2 ) (another unknown T 2 is readily found from ideal gas law P 2 = 2 RT 2 ) For every initial state & heat input there is a whole family of solutions for final state; need one additional constraint – how to determine propagation rate u 1 ? Hugoniot curves

6
6 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I In reference frame at rest with respect to the unburned gases u 1 = velocity of the flame front u = u 2 – u 1 = velocity of burned gases Combine mass & momentum: Thus, straight lines (called Rayleigh lines) on P vs. 1/ (or specific volume, v) plot correspond to constant mass flow Note Rayleigh lines must have negative slope Entropy – another restriction on possible processes (S 2 ≥ S 1 ) Hugoniot curves

7
7 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I H = 0: shock Hugoniot – only P 2 /P 1 > 1 (thus 1 / 2 < 1) is possible; P 2 /P 1 < 1 would result in decrease in entropy H ≠ 0, P 2 ≈ P 1 Usual “weak deflagration” branch where Burned gases at T = T ad move away from front u 1 = S L = laminar burning velocity (if perfectly flat, 1D, laminar); depends on transport properties and reaction rates For turbulent flames, u 1 = S T (depends additionally on turbulence properties) H ≠ 0, P 2 > P 1 - detonations Can’t determine T 2 /T 1 as simply as with weak deflagrations Burned gases move in same direction as front Out of all possible choices, how to determine u 1 ? Rankine-Hugoniot relations

8
8 D B C E AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Above D: strong detonations (M 2 < 1) D – B: weak detonations (M 2 > 1) (point B: mass flow = ∞) B – C: impossible (mass flow imaginary, see Rayleigh line discussion) C – E: weak deflagrations (M 2 < 1) (point C: mass flow = 0) Below E: strong deflagrations (M 2 > 1) Rankine-Hugoniot relations A F

9

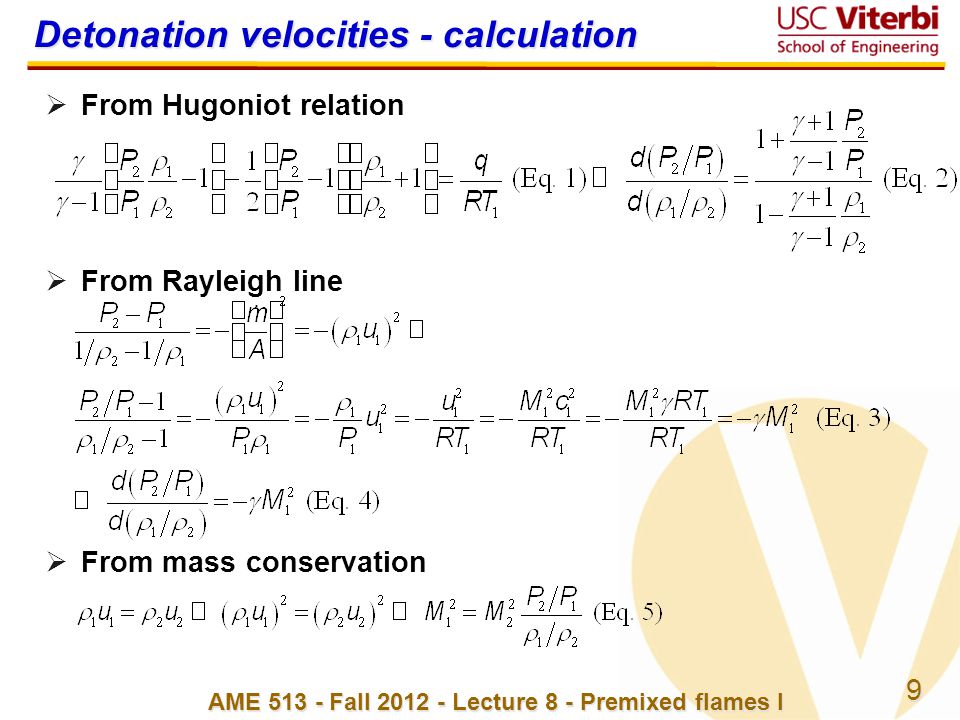

9 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I From Hugoniot relation From Rayleigh line From mass conservation Detonation velocities - calculation

10

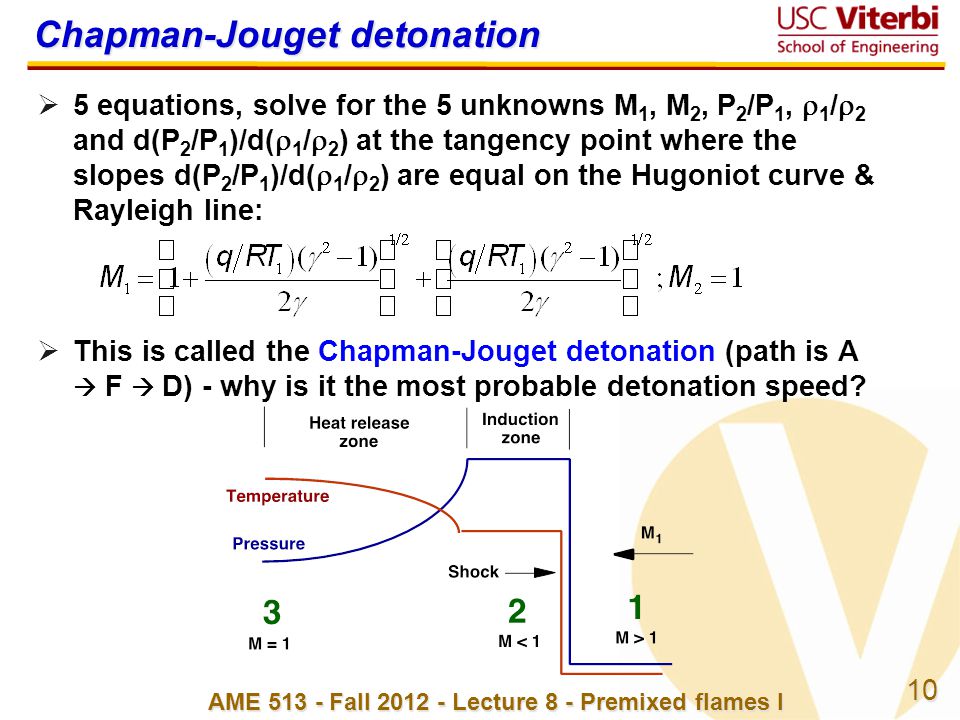

10 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I 5 equations, solve for the 5 unknowns M 1, M 2, P 2 /P 1, 1 / 2 and d(P 2 /P 1 )/d( 1 / 2 ) at the tangency point where the slopes d(P 2 /P 1 )/d( 1 / 2 ) are equal on the Hugoniot curve & Rayleigh line: This is called the Chapman-Jouget detonation (path is A F D) - why is it the most probable detonation speed? Chapman-Jouget detonation

11

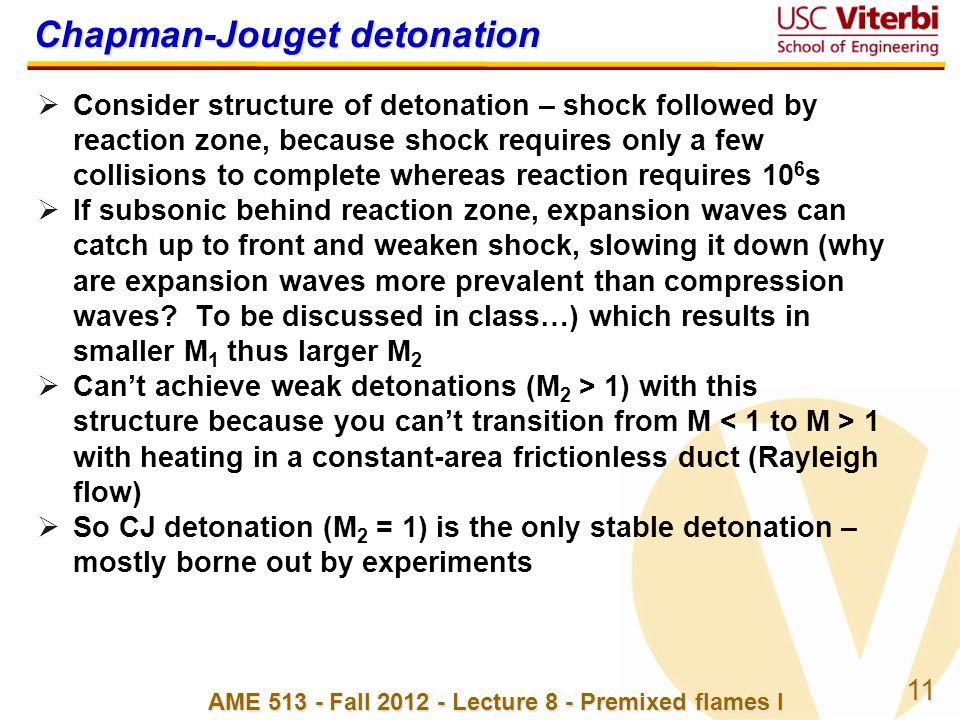

11 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Consider structure of detonation – shock followed by reaction zone, because shock requires only a few collisions to complete whereas reaction requires 10 6 s If subsonic behind reaction zone, expansion waves can catch up to front and weaken shock, slowing it down (why are expansion waves more prevalent than compression waves? To be discussed in class…) which results in smaller M 1 thus larger M 2 Can’t achieve weak detonations (M 2 > 1) with this structure because you can’t transition from M 1 with heating in a constant-area frictionless duct (Rayleigh flow) So CJ detonation (M 2 = 1) is the only stable detonation – mostly borne out by experiments Chapman-Jouget detonation

12

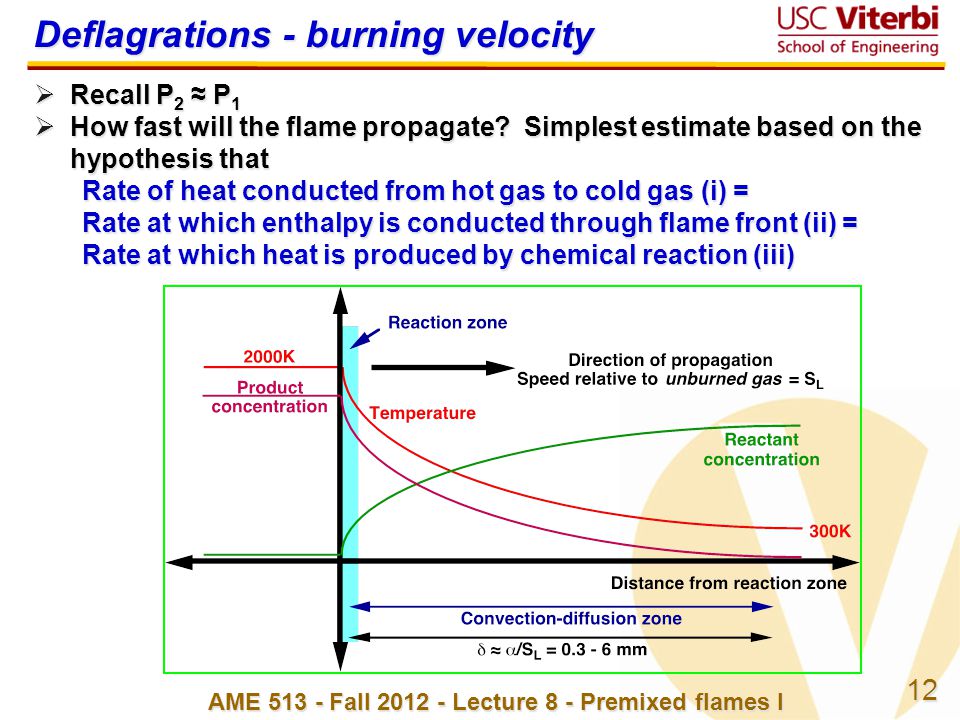

12 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity Recall P 2 ≈ P 1 How fast will the flame propagate? Simplest estimate based on the hypothesis that Rate of heat conducted from hot gas to cold gas (i) = Rate at which enthalpy is conducted through flame front (ii) = Rate at which heat is produced by chemical reaction (iii)

13

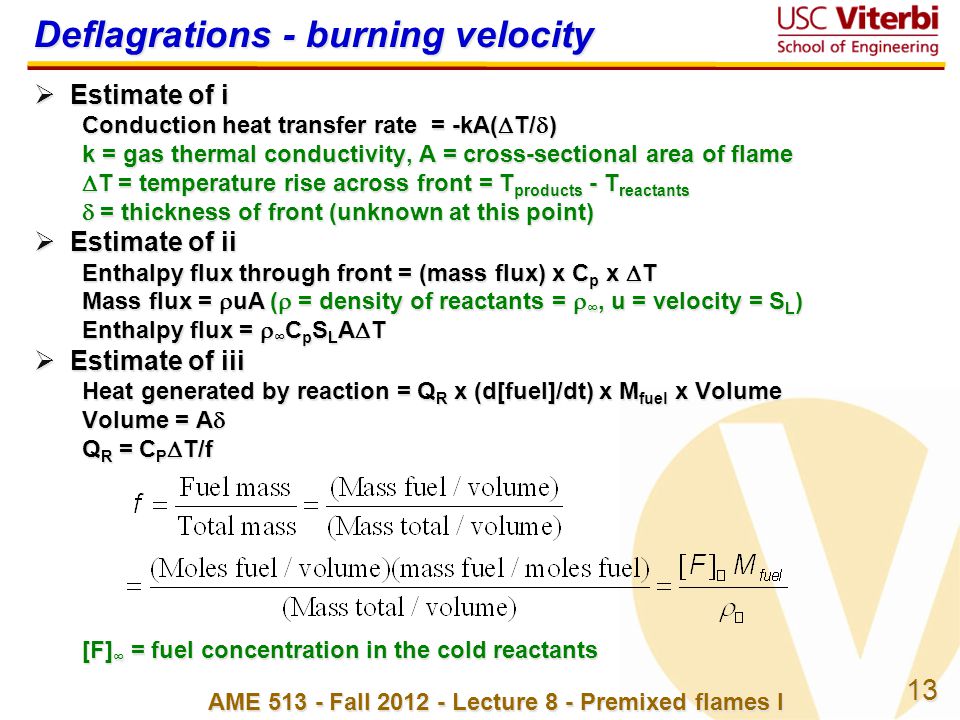

13 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity Estimate of i Conduction heat transfer rate = -kA( T/ ) k = gas thermal conductivity, A = cross-sectional area of flame T = temperature rise across front = T products - T reactants = thickness of front (unknown at this point) Estimate of ii Enthalpy flux through front = (mass flux) x C p x T Mass flux = uA ( = density of reactants = ∞, u = velocity = S L ) Enthalpy flux = ∞ C p S L A T Estimate of iii Heat generated by reaction = Q R x (d[fuel]/dt) x M fuel x Volume Volume = A Q R = C P T/f [F] ∞ = fuel concentration in the cold reactants

14
14 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity Combine (i) and (ii) = k/ C p S L = /S L ( = flame thickness) (same as Lecture 7) Recall = k/ C p = thermal diffusivity (units length 2 /time) For air at 300K & 1 atm, ≈ 0.2 cm 2 /s For gases ≈ ( = kinematic viscosity) For gases ~ P -1 T 1.7 since k ~ P 0 T.7, ~ P 1 T -1, C p ~ P 0 T 0 For typical stoichiometric hydrocarbon-air flame, S L ≈ 40 cm/s, thus ≈ /S L ≈ 0.005 cm (!) (Actually when properties are temperature-averaged, ≈ 4 /S L ≈ 0.02 cm - still small!) Combine (ii) and (iii) S L = ( ) 1/2 = overall reaction rate = (d[fuel]/dt)/[fuel] ∞ (units 1/s) With S L ≈ 40 cm/s, ≈ 0.2 cm 2 /s, ≈ 1600 s -1 1/ = characteristic reaction time = 625 microseconds Heat release rate per unit volume = (enthalpy flux) / (volume) = ( C p S L A T)/(A ) = C p S L /k)(k T)/ = (k T)/ 2 = (0.07 W/mK)(1900K)/(0.0002 m) 2 = 3 x 10 9 W/m 3 !!! Moral: flames are thin, fast and generate a lot of heat!

15
15 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity More rigorous analysis (Bush & Fendell, 1970) using Matched Asymptotic Expansions Convective-diffusive (CD) zone (no reaction) of thickness Reactive-diffusive (RD) zone (no convection) of thickness where 1/[ is a small parameter T(x) = T 0 (x) + T 1 (x)/[ + T 2 (x)/[ + … Collect terms of same order in small parameter Match T & dT/dx at all orders of where CD & RD zones meet Same form as simple estimate (S L ~ { } 1/2, where Ze - is an overall reaction rate, units 1/s), with additional constants Why term on reaction rate? Reaction doesn’t occur over whole flame thickness , only in thin zone of thickness Reactant concentration isn’t at ambient value Y i,∞, it’s at 1/ of this since temperature is within 1/ of T ad

16
16 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity What if not a single reactant, or Le ≠ 1? Mitani (1980) extended Bush & Fendell for reaction of the form resulting in resulting in Recall order of reaction (n) = A + B Still same form as simple estimate, but now -(n+1) term since n may be something other than 1 (as Bush & Fendell assumed) Also have Le A - A and Le B - B terms – why? For fixed thermal diffusivity ( ), for higher Le A, D A is smaller, gradient of Y A must be larger to match with T profile, so concentration of A is higher in reaction zone

17

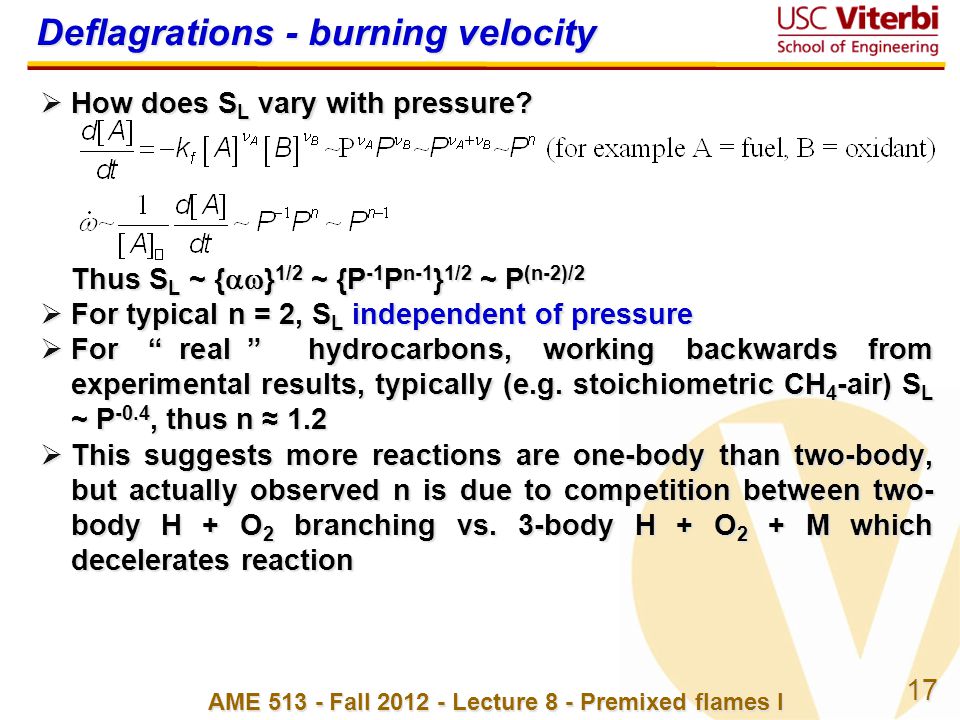

17 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - burning velocity How does S L vary with pressure? Thus S L ~ { } 1/2 ~ {P -1 P n-1 } 1/2 ~ P (n-2)/2 For typical n = 2, S L independent of pressure For “real” hydrocarbons, working backwards from experimental results, typically (e.g. stoichiometric CH 4 -air) S L ~ P -0.4, thus n ≈ 1.2 This suggests more reactions are one-body than two-body, but actually observed n is due to competition between two- body H + O 2 branching vs. 3-body H + O 2 + M which decelerates reaction

18

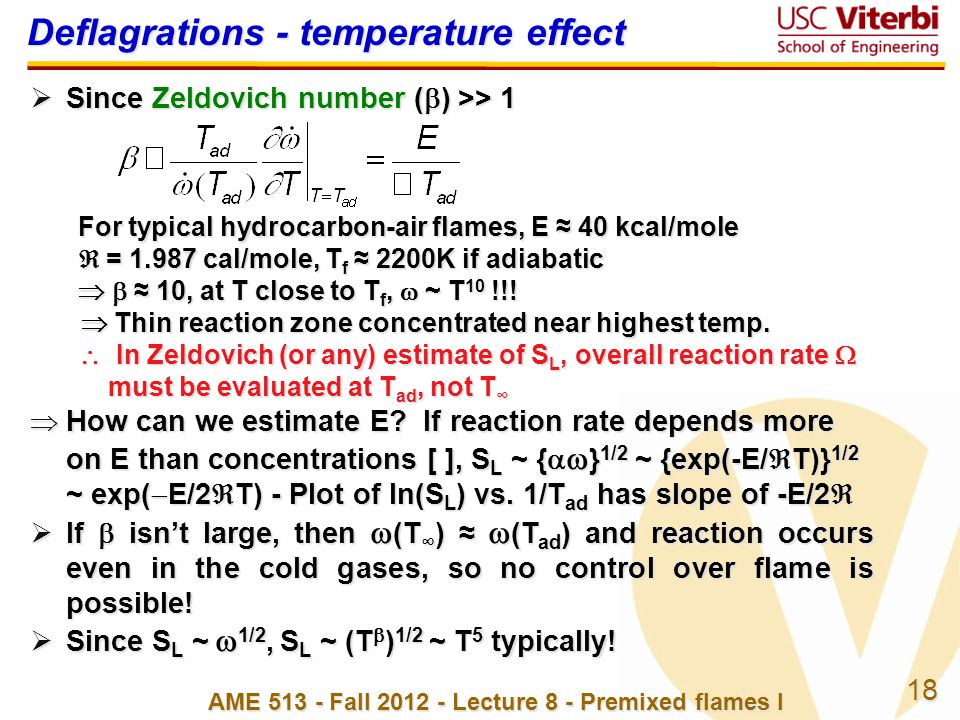

18 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - temperature effect Since Zeldovich number ( ) >> 1 For typical hydrocarbon-air flames, E ≈ 40 kcal/mole = 1.987 cal/mole, T f ≈ 2200K if adiabatic ≈ 10, at T close to T f, ~ T 10 !!! Thin reaction zone concentrated near highest temp. Thin reaction zone concentrated near highest temp. In Zeldovich (or any) estimate of S L, overall reaction rate must be evaluated at T ad, not T ∞ How can we estimate E? If reaction rate depends more on E than concentrations [ ], S L ~ { } 1/2 ~ {exp(-E/ T)} 1/2 ~ exp( E/2 T) - Plot of ln(S L ) vs. 1/T ad has slope of -E/2 If isn’t large, then (T ∞ ) ≈ (T ad ) and reaction occurs even in the cold gases, so no control over flame is possible! Since S L ~ 1/2, S L ~ (T ) 1/2 ~ T 5 typically!

19
19 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Burning velocity measurement Many techniques, all attempt to determine the speed of the unburned gases relative to the flame front or vice versa (since that’s the definition of S L ) Counterflow very popular (e.g. Prof. Egolfopoulos)

20
20 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Schematic of flame temperatures and laminar burning velocities Deflagrations – burning velocities Real data on S L (CH 4 -air, 1 atm)

21

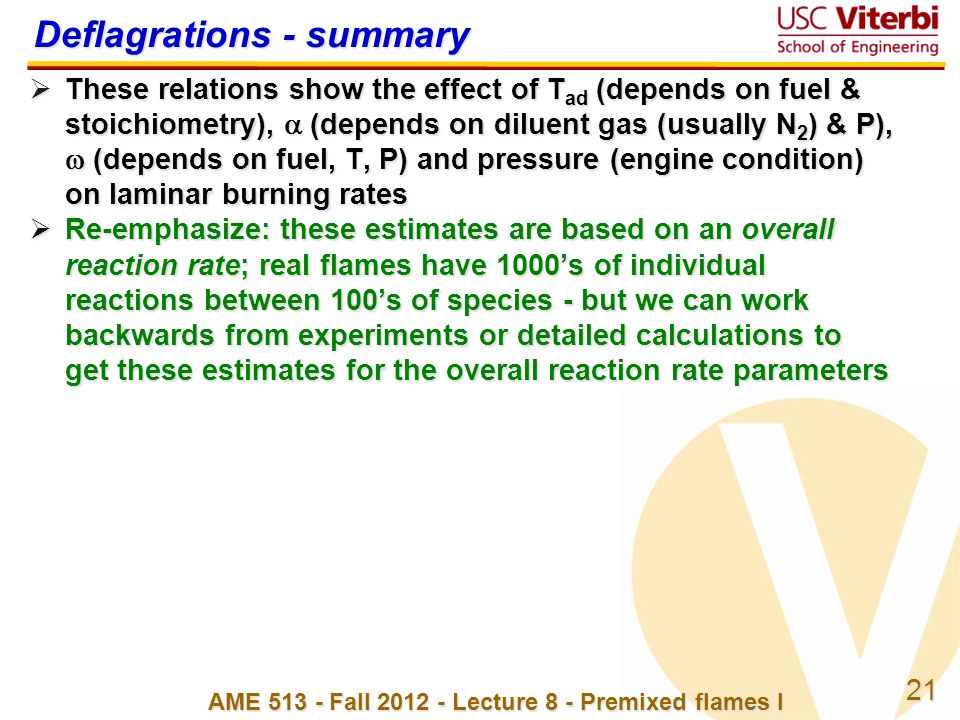

21 AME 513 - Fall 2012 - Lecture 8 - Premixed flames I Deflagrations - summary These relations show the effect of T ad (depends on fuel & stoichiometry), (depends on diluent gas (usually N 2 ) & P), (depends on fuel, T, P) and pressure (engine condition) on laminar burning rates Re-emphasize: these estimates are based on an overall reaction rate; real flames have 1000’s of individual reactions between 100’s of species - but we can work backwards from experiments or detailed calculations to get these estimates for the overall reaction rate parameters
