1 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Zone1 & 21 Universal Access Point Enclosure System

2 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd iWAP101 & iWAP103 Universal Access Point Enclosure System  Multi wireless vendor support with solutions for most leading products  Designed to protect standard wireless products from harsh industrial environments  Can be re-certified in future to incorporate the latest generation of wireless equipment as technology evolves  Range of high quality omni direction antennas for best possible wireless performance  iWAP101 variant designed for bespoke applications where special hardware is required Introduction

3 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd General Specifications  ATEX Zone 1 and Zone 21 certified II 2 G EEx d IIC T5 Ta 55°C Max, T6/Ta 40°C  Ex tD A21 IP66  IP66 rugged enclosure  Marine grade alloy for high resistance to corrosion  -20°C to +55°C ambient temperature range Features & Benefits

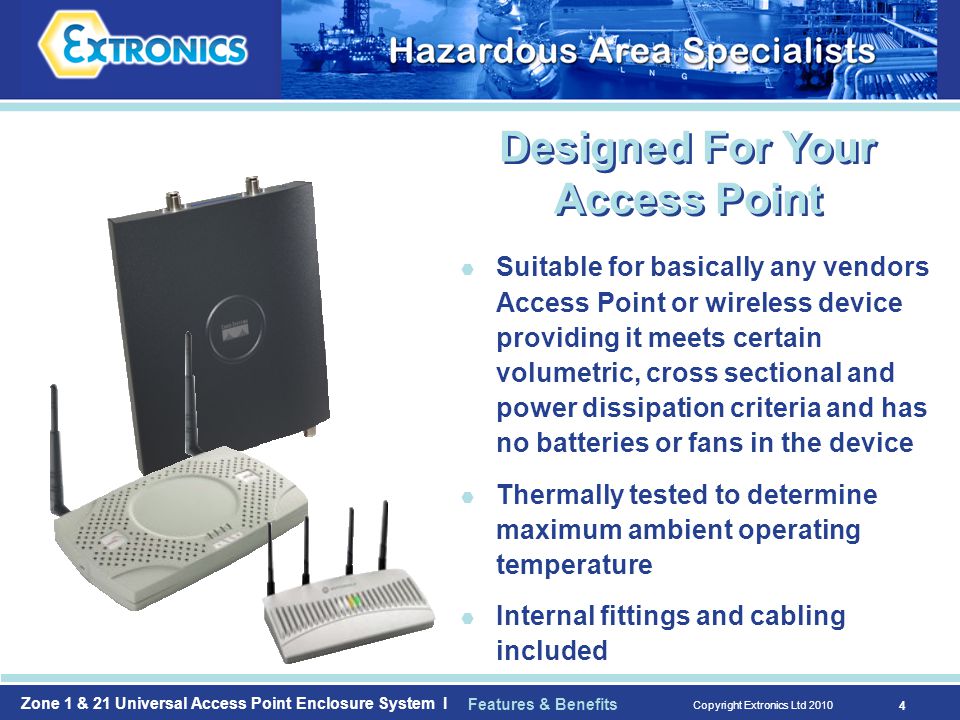

4 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Designed For Your Access Point  Suitable for basically any vendors Access Point or wireless device providing it meets certain volumetric, cross sectional and power dissipation criteria and has no batteries or fans in the device  Thermally tested to determine maximum ambient operating temperature  Internal fittings and cabling included Features & Benefits

5 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Easy Installation  Standard PCB with all connections in same location whatever the internally fitted wireless device  Screw terminals for Ethernet so no need to fit an RJ45 connector to the CAT5 cable when fitted in the gland  All connections on top near the enclosure lid  Optional Ex e terminal enclosure so that Ex e installation principles apply Features & Benefits

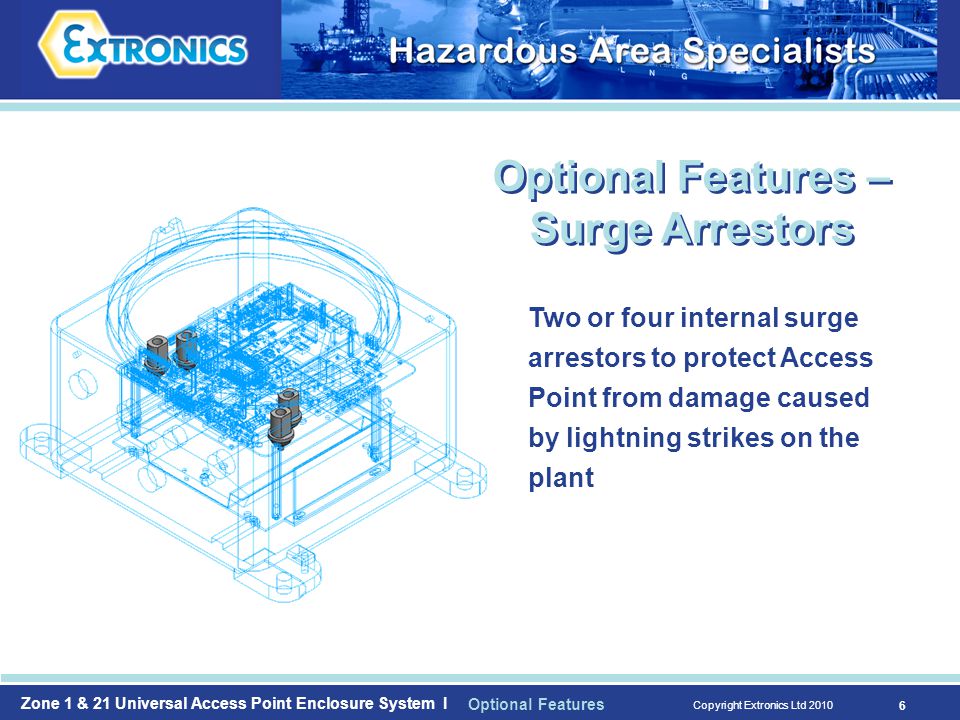

6 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Two or four internal surge arrestors to protect Access Point from damage caused by lightning strikes on the plant Optional Features Optional Features – Surge Arrestors

7 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Improve the lower ambient operating temperature of your wireless device down to -20°C from typical 0°C for indoor Access Points  Protect Access Points from condensation  Improve reliability by ensuring a relatively constant operating temperature for the Access Point Optional Features – Heaters Optional Features

8 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Connect up to four external Ethernet devices  Two of the four ports are 802.3af compatible POE ports to power external POE devices such as IP Cameras Optional Features – POE Switch Optional Features

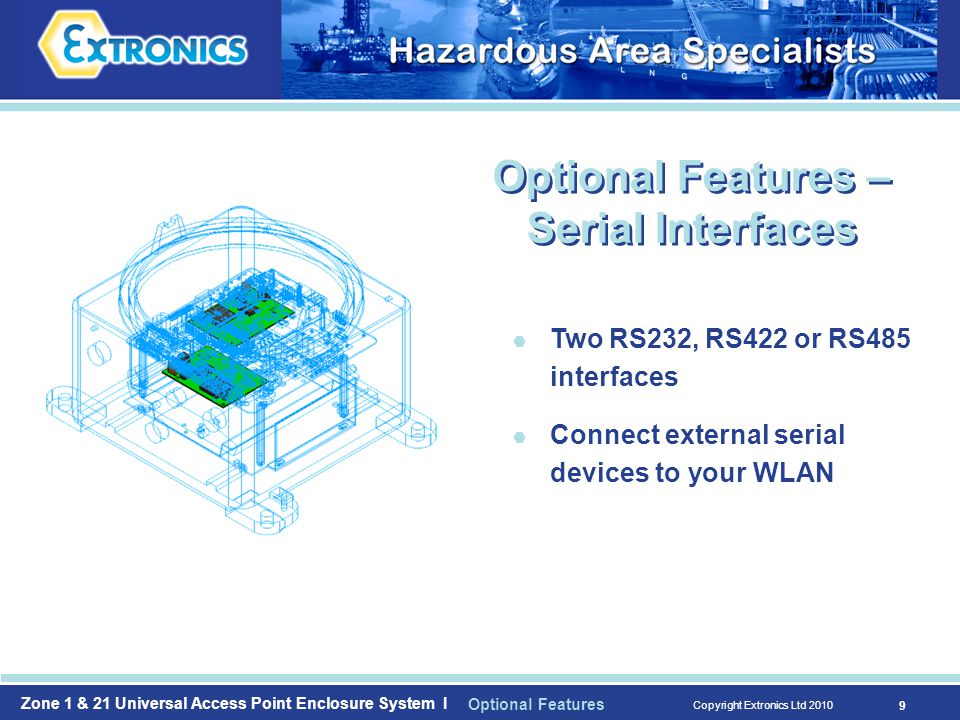

9 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Two RS232, RS422 or RS485 interfaces  Connect external serial devices to your WLAN Optional Features – Serial Interfaces Optional Features

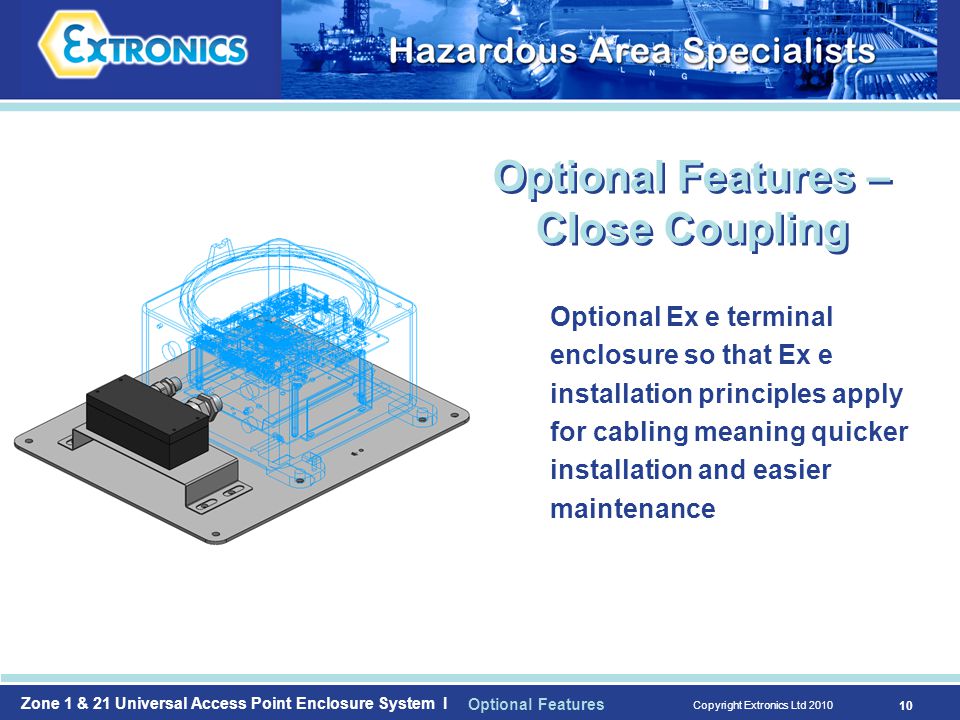

10 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Optional Ex e terminal enclosure so that Ex e installation principles apply for cabling meaning quicker installation and easier maintenance Optional Features – Close Coupling Optional Features

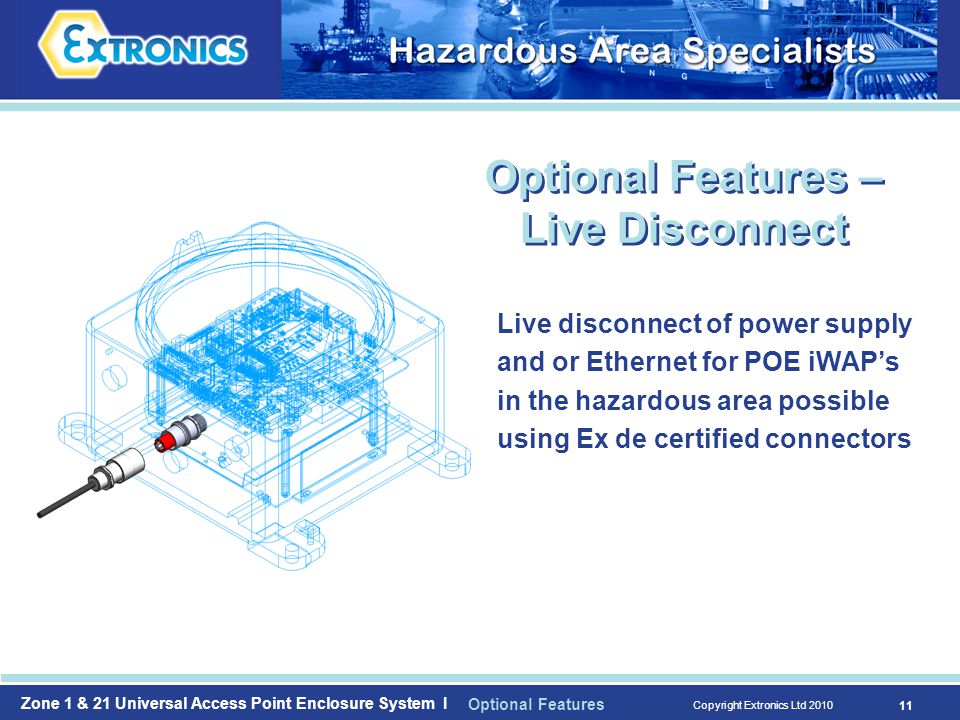

11 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd Live disconnect of power supply and or Ethernet for POE iWAP’s in the hazardous area possible using Ex de certified connectors Optional Features – Live Disconnect Optional Features

12 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Increased safety Ex e antennas for connection to the Access Point in the enclosure  2.4GHz 5 dBi and 5 GHz 8 dBi band A, B and C versions  Locally mounted to enclosure using optional iANTMB02 bracket Antennas – Locally Mounted Antennas

13 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Increased safety Ex e antennas for connection to the Access Point in the enclosure  2.4GHz 5 dBi and 5 GHz 8 dBi band A, B and C versions  5 metres coax cable means antenna can be mounted on a wall or other structure using aluminium bracket included or 316L st iANTMB03 bracket to allow antenna to be mounted in optimal location Antennas – Locally Mounted Antennas

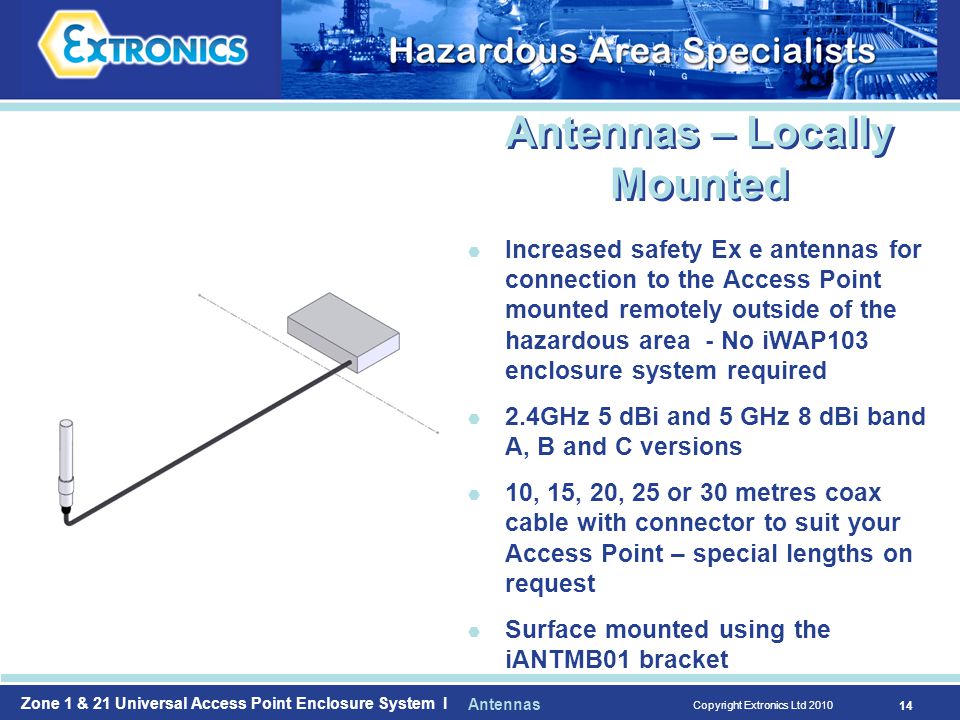

14 Zone 1 & 21 Universal Access Point Enclosure System I Copyright Extronics Ltd  Increased safety Ex e antennas for connection to the Access Point mounted remotely outside of the hazardous area - No iWAP103 enclosure system required  2.4GHz 5 dBi and 5 GHz 8 dBi band A, B and C versions  10, 15, 20, 25 or 30 metres coax cable with connector to suit your Access Point – special lengths on request  Surface mounted using the iANTMB01 bracket Access Point Safe Area Hazardous Area Remote antenna Antennas – Locally Mounted Antennas
