1 Display Devices Display device: output device that presents output visually Monitor/Display screen: The display device used with desktop computers, notebook computers, handheld PCs, smart phones, consumer devices, and many other devices

2

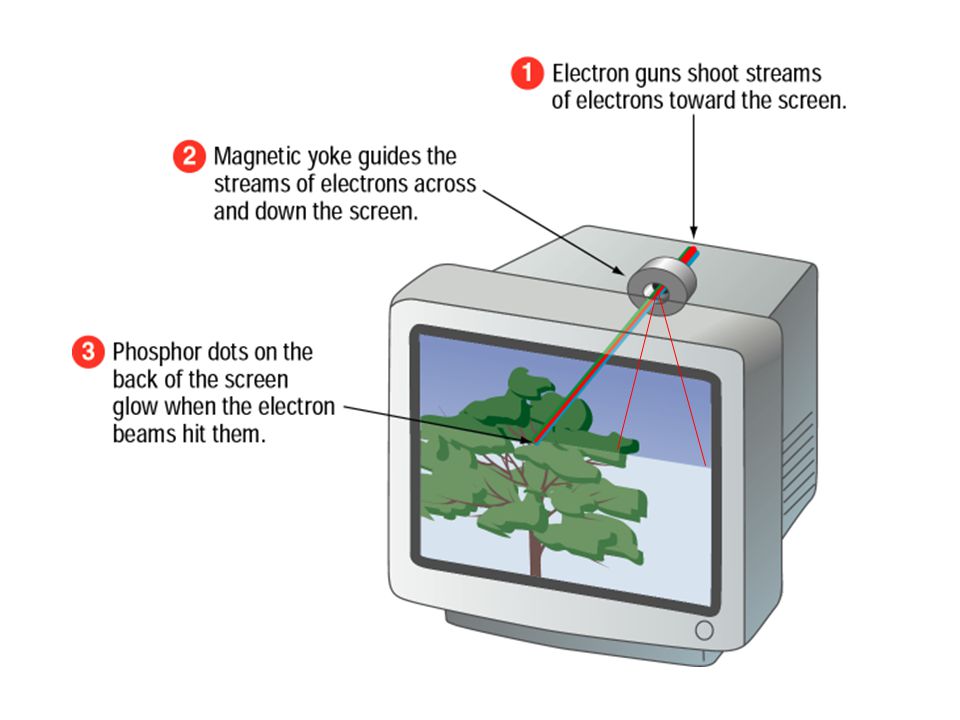

3 Display Device Characteristics Usually color, but can be monochrome Can be a CRT monitor or a flat-panel display –CRT monitor: projects images onto a display screen using technology similar to that of TVs –Flat-panel display: forms images by manipulating electronically charged chemicals or gases sandwiched between thin panes of glass or a liquid crystal. Popular flat panels displays are Plasma screens and LCD screens.

4

5 CRT vs. Flat-Panel Monitors

6 Display Device Characteristics, Cont ’ d Size (measured diagonally) Screen resolution –Can be changed –Higher resolution = more data on the screen at one time

7 Display Device Characteristics, Cont ’ d Video card (determines display characteristics and how monitor can connect to the PC) Monitors can be also be: –Wired or wireless –2D or 3D Displays –Digital TV and/or HDTV ready or capable

8 Flat-Panel Display Technologies Liquid crystal displays (LCDs): use charged liquid crystals to display images Organic light emitting diode (OLED) displays: use emissive organic material to display brighter and sharper images Plasma displays: use layers of gas to display images; most often used on large displays

9 Flat-Panel Display Technologies, Cont ’ d

10 Monitors - Comparing Monitors When comparing monitors, consider four features: Size Resolution Refresh rate Dot pitch

11 Comparing Monitors - Size A monitor's size is the diagonal measurement of its face, in inches. For years, 15" monitors (13"viewing area) were standard. Today, 17" monitors (15" viewing area) are common. Larger monitors are available, but can be expensive.

12 The diagonal size (often 15”)

13 Comparing Monitors - Resolution Resolution is the number of pixels on the screen, expressed as a matrix (such as 600x800). A 17" monitor offers resolutions from 640x480 up to 1280x1024. The Video Graphics Array (VGA) standard is 640x480. Super VGA (SVGA) monitors provide resolutions of 800x600, 1024x768 or higher.

14 Resolution (image sharpness) is important. (Especially for graphics, page layout, and CAD)

15 Comparing Monitors - Refresh Rate Refresh rate is the number of times each second that the electron guns scan the screen's pixels. Refresh rate is measured in Hertz (Hz), or cycles per second. Look for a refresh rate of 72 Hz or higher. A slower rate may cause eyestrain.

16 Fast scanning = Quick refresh (less flicker)

17 Comparing Monitors - Dot Pitch Dot pitch is the distance between the phosphor dots that make up a single pixel. In color monitors, three dots (red, green, and blue) comprise each pixel. Look for a dot pitch no greater than.28 millimeter.

18 Fine dot pitch = Crisp displays

19 Monitors - Video Controllers The video controller is an interface between the monitor and the CPU. The video controller determines many aspects of a monitor's performance, such as resolution or the number of colors displayed. The video controller contains its own on-board processor and memory, called video RAM (VRAM).

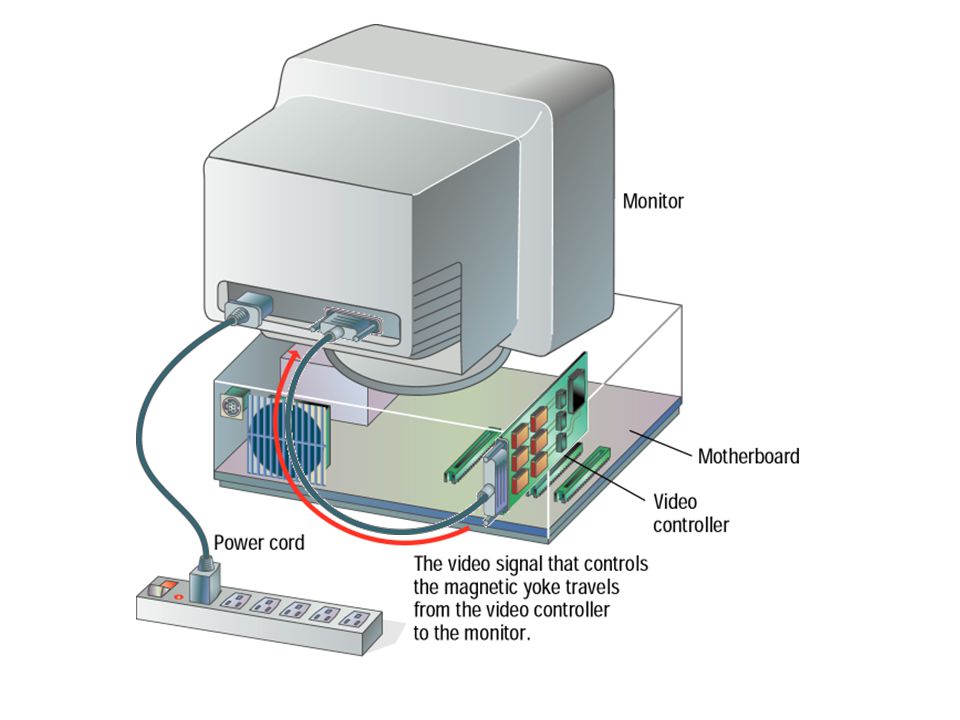

20 VRAM Graphic intensive applications such as games require plenty of VRAM. Video Control Board with Monitor Cable

21

22 Data and Multimedia Projectors Data projector: display device that projects all computer output to a wall or projection screen Most data projectors today can project video, in addition to computer output. Can be wireless projectors

23 Printers Printer: output device that produces output on paper –Produce hard copy –Can be used with both desktop and portable PCs Printer characteristics –Impact vs. nonimpact printing Most printers are nonimpact Impact printers (like dot-matrix printers) are still used for printing multipart forms and shipping documents

24 Printers Printer characteristics, cont’d –Can print in color or black-and white –Can be a personal or network printer –Quality is called print resolution and measured in dots per inch (dpi) –Print speed is measured in pages per minute (ppm)

25 Laser Printers Laser printer: output device that uses toner powder and technology similar to that of a photocopier to produce images on paper The standard for business documents Print one entire page at a time Usually black and white, though color printers are available Common print resolution for laser printers is between 600 and 2,400 dpi

26

27 Ink-Jet Printers Ink-jet printer: output device that sprays droplets of ink to produce images on paper Typically print in color Often the choice for home use Print fairly slowly, one line at a time Quality not quite as good as a laser printer

28

29 Special Purpose Printers Photo printers (designed to print photographs) Barcode printers (print barcodes) Label printers (print labels, electronic postage, etc.) Portable printers (designed to be carried with you) Plotters and wide-format ink-jet printers (print on large paper or other large materials)

30

31 Multifunction Devices Multifunction device: device that offers some combination of printing, copying, scanning, and faxing capabilities Most commonly, these types of devices are based on color ink-jet printer technology, although laser multifunction devices are available Advantage: takes up less space and is less expensive than purchasing multiple machines Disadvantage: Lose all devices if it needs to be repaired

32 Audio Output Audio output: output in the form of voice or music Speakers: connect to a PC and provide audio output for computer games, music, video, TV, videoconferencing, and other applications that have audio output Voice output systems: produce spoken output
