Chapter 2: Refinery Products Over 2000 individual products distributed in 17 classes as shown in table below:

Similar presentations

Presentation on theme: "Chapter 2: Refinery Products Over 2000 individual products distributed in 17 classes as shown in table below:"— Presentation transcript:

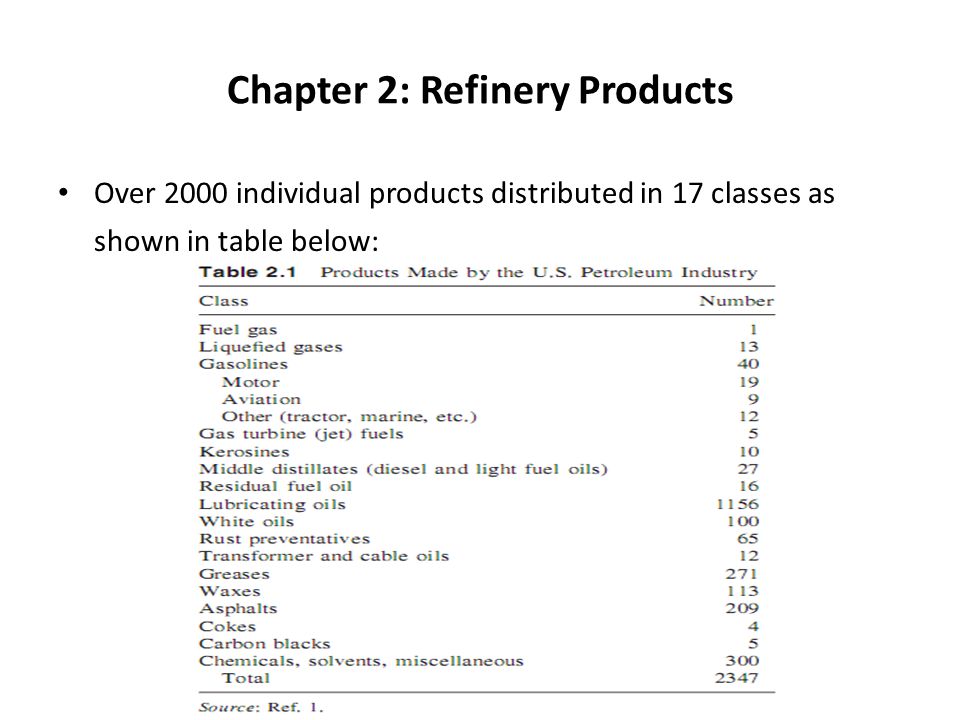

1 Chapter 2: Refinery Products Over 2000 individual products distributed in 17 classes as shown in table below:

2 2.1 Low boiling Products The compounds which are in the gas phase at ambient temperatures and pressures: methane, ethane, propane, butane, and the corresponding olefins. Methane (C1) is usually used as a refinery fuel, but can be used as a feed- stock for hydrogen production by pyrolytic cracking and reaction with steam Ethane (C2) can be used as refinery fuel or as a feedstock to produce hydro- gen or ethylene, which are used in petrochemical processes. Ethylene and hydro- gen are sometimes recovered in the refinery and sold to petrochemical plants.

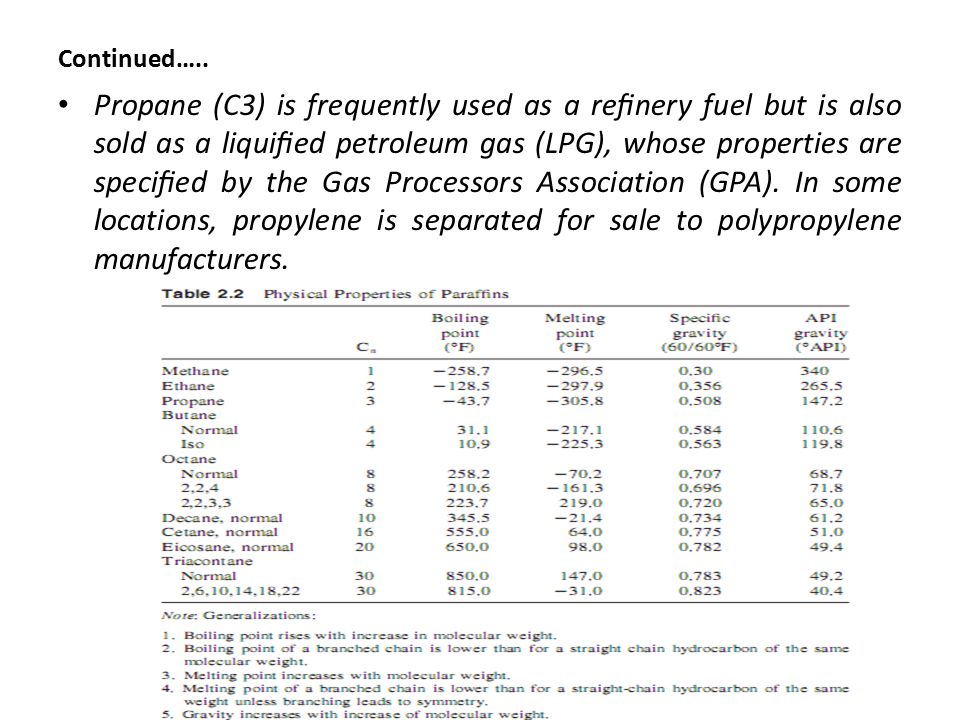

3 Continued….. Propane (C3) is frequently used as a refinery fuel but is also sold as a liquified petroleum gas (LPG), whose properties are specified by the Gas Processors Association (GPA). In some locations, propylene is separated for sale to polypropylene manufacturers.

4 Continued ……. The butanes present in crude oils and produced by refinery processes are used as components of gasoline and in refinery processing as well as in LPG: Normal butane (nC4) has a lower vapor pressure than isobutane (iC4), and is usually preferred for blending into gasoline to regulate its vapor pressure and promote better starting in cold weather. Normal butane has a Reid vapor pressure (RVP) of 52 psi (358 kPa) as compared with the 71 psi (490 kPa) RVP of isobutane, and more nC4 can be added to gasoline without exceeding the RVP of the gasoline product Normal butane is also used as a feedstock to isomerization units to form isobutane. N-butane has a blending octane in the 90s and is a low-cost octane improver of gasoline

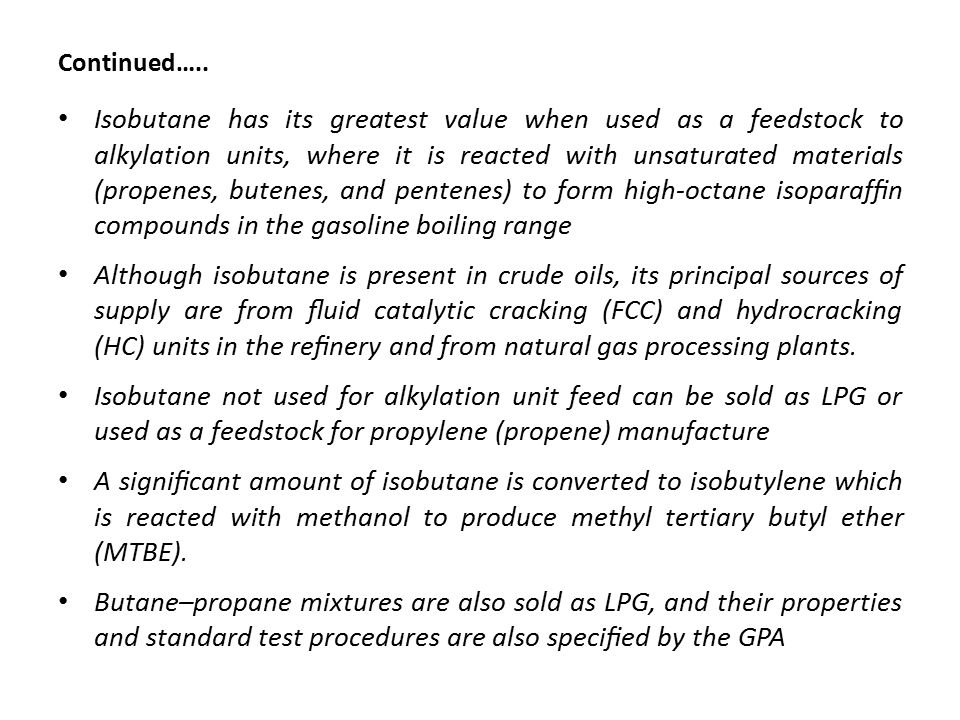

5 Continued….. Isobutane has its greatest value when used as a feedstock to alkylation units, where it is reacted with unsaturated materials (propenes, butenes, and pentenes) to form high-octane isoparaffin compounds in the gasoline boiling range Although isobutane is present in crude oils, its principal sources of supply are from fluid catalytic cracking (FCC) and hydrocracking (HC) units in the refinery and from natural gas processing plants. Isobutane not used for alkylation unit feed can be sold as LPG or used as a feedstock for propylene (propene) manufacture A significant amount of isobutane is converted to isobutylene which is reacted with methanol to produce methyl tertiary butyl ether (MTBE). Butane–propane mixtures are also sold as LPG, and their properties and standard test procedures are also specified by the GPA


7 2.2 Gasoline 40 types of gasolines are made by refineries, about 90% of the total gasoline produced in the United States is used as fuel in automobiles. Most refiners produce gasoline in two or three grades, un- leaded regular, premium, and super-premium, and in addition supply a regular gasoline to meet the needs of farm equipment and pre-1972 automobiles The principal difference between the regular and premium fuels is the antiknock performance. (PON) Posted octane numbers are arithmetic averages of the motor octane number (MON) and research octane number (RON) and average four to six numbers below the RON.

8 MON: the antiknock performance during loading and drive with acceleration RON: The antiknock performance during city drive

9 Gasolines are complex mixtures of hydrocarbons having typical boiling ranges from 100 to 400°F (38 to 205°C) Components are blended to promote high antiknock quality, ease of starting, quick warm-up, low tendency to vapor lock, and low engine deposits Components are: o Light straight-run (LSR) gasoline consists of the C5-190°F(C- 88°C) fraction of the naphtha cuts from the atmospheric crude still o Catalytic reformate is the C5 gasoline product of the catalytic reformer. The processing conditions of the catalytic reformer are controlled to give the desired product antiknock properties in the range of 90 to 104 RON (85 to 98 PON) clear (lead-free)

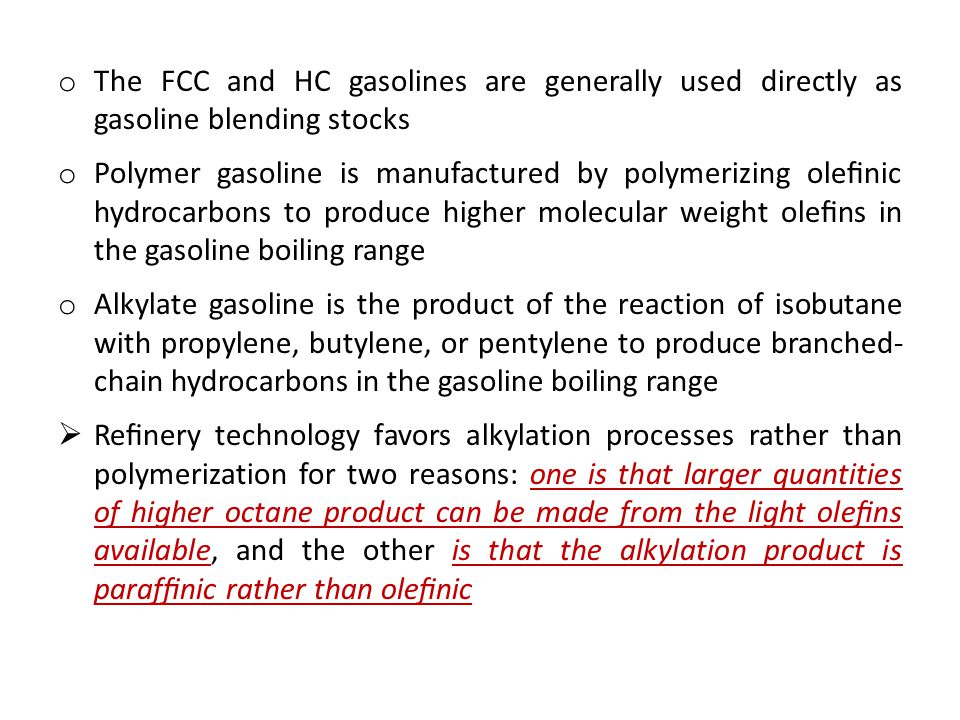

10 o The FCC and HC gasolines are generally used directly as gasoline blending stocks o Polymer gasoline is manufactured by polymerizing olefinic hydrocarbons to produce higher molecular weight olefins in the gasoline boiling range o Alkylate gasoline is the product of the reaction of isobutane with propylene, butylene, or pentylene to produce branched- chain hydrocarbons in the gasoline boiling range  Refinery technology favors alkylation processes rather than polymerization for two reasons: one is that larger quantities of higher octane product can be made from the light olefins available, and the other is that the alkylation product is paraffinic rather than olefinic

11  Alkylation of a given quantity of olefins produces twice the volume of high octane motor fuel as can be produced by polymerization  In addition, the blending octane (PON) of alkylate is higher and the sensitivity (RON MON) is significantly lower than that of polymer gasoline. o Normal butane is blended into gasoline to give the desired vapor pressure. o MTBE (methyl tertiary butyl ether), ETBE (ethyl tertiary butyl ether), TAME (tertiary amyl methyl ether) and ethanol.

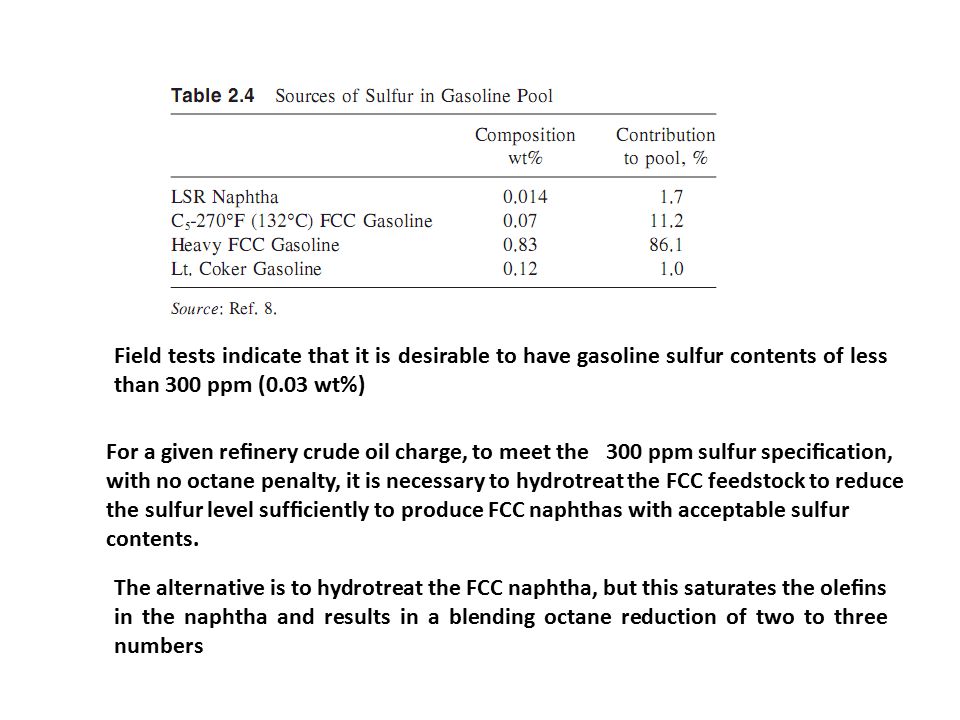

12 Field tests indicate that it is desirable to have gasoline sulfur contents of less than 300 ppm (0.03 wt%) For a given refinery crude oil charge, to meet the 300 ppm sulfur specification, with no octane penalty, it is necessary to hydrotreat the FCC feedstock to reduce the sulfur level sufficiently to produce FCC naphthas with acceptable sulfur contents. The alternative is to hydrotreat the FCC naphtha, but this saturates the olefins in the naphtha and results in a blending octane reduction of two to three numbers

13 Some aromatics and most olefins react with components of the atmosphere to produce visual pollutants. The activities of these gasoline components are ex- pressed in terms of reactivity with (OH) radicals in the atmosphere
