2. n Device Specification Sheet – Purpose n Design Specification – Determine functionality of design n Test List Generation – Insure device lives up to spec sheet claims n Communication – Verify that device is appropriate for the end application n Flexible Document – Ownership - catalog or custom? – Allows changes to specifications – Avoid ambiguities n Late Changes in Specification Sheet Indicates Poor Organization

3. n Device Specification Sheet – Structure n Feature Summary – Quick look at functionality of chip n Principles of Operation – Detailed device function guaranteed by functional or parametric test program n Absolute Maximum Ratings – Failure limits of chip not critical to a test engineer n Electrical Specifications – Core of parametric tests – Test conditions are listed as notes – MAX, MIN, TYP, guaranteed by design

4. n Device Specification Sheet – Structure n Timing Diagrams – Critical to test program development – Manually generated for frequency synchronization n Application Information – Aids customer in designing end application – Functional block diagram shows top level representation of device function n Characterization Data – Data collected during testing i.e. parameter histograms n Circuit Schematics / Die Layout – Device functional pin representation and layout

5. n Generating the Test Plan – To Plan or Not to Plan? n Shoot From the Hip Approach – Non-optimized – May cause a device to be Non-testable n Planned Testing – Allows early interaction between design and test engineers – Identification of non-testable functions – Synchronization of clocking schemes – Tester hardware identification identify tester hardware deficiencies

6. © 2000 R. J. Fink n Generating the Test Plan – Purpose of a Test Plan n Less Formal than a Device Data Sheet n Test Engineers Roadmap to Generate Test Program n Official Communication Tool – Test engineer – Design engineer – Product engineer – Customer

7. n Generating the Test Plan – Structure of a Test Plan n Device Background not Found in Data Sheet n Special Test Requirements n Explanation of the Purpose of Each Test n Assumptions regarding particular test and why n Hardware Setup Diagram for each Test n All Documentation should be Tester Independent n Tester Specific Information should be added as a separate section

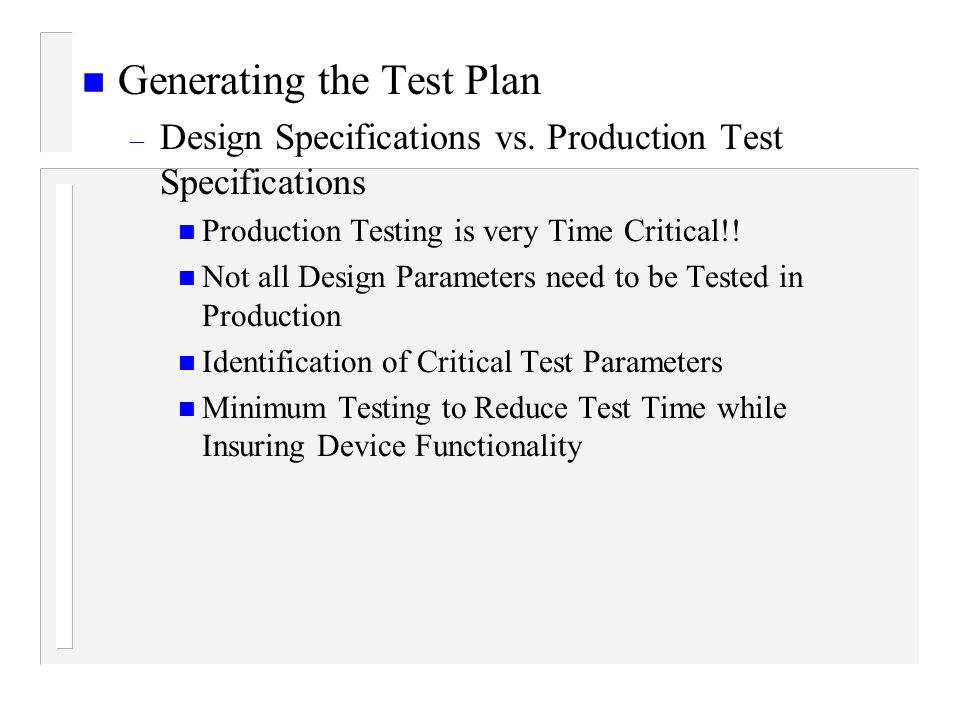

8. n Generating the Test Plan – Design Specifications vs. Production Test Specifications n Production Testing is very Time Critical!! n Not all Design Parameters need to be Tested in Production n Identification of Critical Test Parameters n Minimum Testing to Reduce Test Time while Insuring Device Functionality

9. n Generating the Test Plan – Converting the Spec Sheet into a Test Plan n Infinite Permutations of Possible Tests Indicated by Data Sheet n Caution is necessary due to signal interactions n How does the Test Engineer know which Tests are needed in Production Testing?? – For each sentence in the device description, there should be at least one test that verifies the claim – Max. and Min. electrical specifications must all be verified – Worst case failure modes are often used to limit the number of tests required to verify the device function – Extensive testing of a device will reveal more tests which need to be added or can be omitted

10. n Components of a Test Plan – Test Program Structure n Coded Version of the Test Plan – Waveform creation / Tester initializations – Calibrations – Continuity – DC parametric tests – AC parametric tests – Functional tests / Digital patterns – Digital timing tests – Test sequence control – Test limits – Binning control

11. n Components of a Test Plan – Test Code and Digital Patterns n Test Code – Controls order and timing - does not create timing signal instrument settings signal generation signal measurements n Digital Patterns – Consists of groups of data called vectors drive data for each pin expect data for each pin – Vectors are sent out at a regular rate “bit cell rate” – Tight frequency control is critical – Allow looping and branching of vectors

12. n Components of a Test Plan – Binning n Grading of Devices into “Bins” – Performed by handler – Pass or Fail – Continuity Fail - could indicate handler error – Different grades of device based upon performance 100 MHz chip vs 120 MHz chip n Fast Binning – Device is rejected as soon as it fail first test – Reduces test time

13. © 2000 R. J. Fink n Components of a Test Plan – Test Sequence Control n Sequencers – C program coded – Graphical user interface controlled n Waveform Calculations and Other Initializations n Pre-computed Waveforms – Performed only once when the program is loaded tl_init function in Teradyne architecture n Reset of tester Instrumentation to Default State – Focussed calibrations – Checkers

14. n Components of a Test Plan – Focussed Calibrations n Tester does not have Sufficient Accuracy for a Test n Determines the Inaccuracy of a Fast Instrument using Slower, more Accurate Instrumentation – Software compensation allows a more accurate result. – Not absolutely perfect - still has the inaccuracy of the more accurate instrumentation n Software Calibration due to DIB Design – DIB Checkers n Checks for Faulty Op-Amps, Comparators, and Relays often placed on the DIB – Avoids running thousands of devices on a bad DIB board

15. n Components of a Test Plan – Characterization Code n Used for Characterization of First Production Devices n Very Thorough Testing to Identify and Correct Marginal Portions of the Design – Simulation Code n Added to Test Program to Allow Mathematical Routines to be Verified n Offline Debugging of Test Code – Avoids wasting valuable tester time

16. n Components of a Test Plan – Debuggability n Debugging Consumes 20% of a Test Engineers Week – Test code bugs – Hardware errors – Correlation errors – Intermittent failures – DIB errors – Broken tester modules n Design Debugging – Ability to modify code to isolate a device function – Run experiments for designers or customers to verify device
