1 1 Firewall installation STEP 1: INSALL WINDOWS 2003 SETP 2:INSTALL ISA 2000 WITH SP1 STEP 3:CONFIGURE ISA 2000 STEP 4: DNS

2 2 STEP 1: INSALL WINDOWS 2003 SERVER ON A MACHINE WITH 2 NIC ► Member Server ► NIC1: /29 ► NIC2: /24

3 3 SETP 2: INSTALL ISA 2000 WITH SP1 ► Run ISA from ISA CD Rom

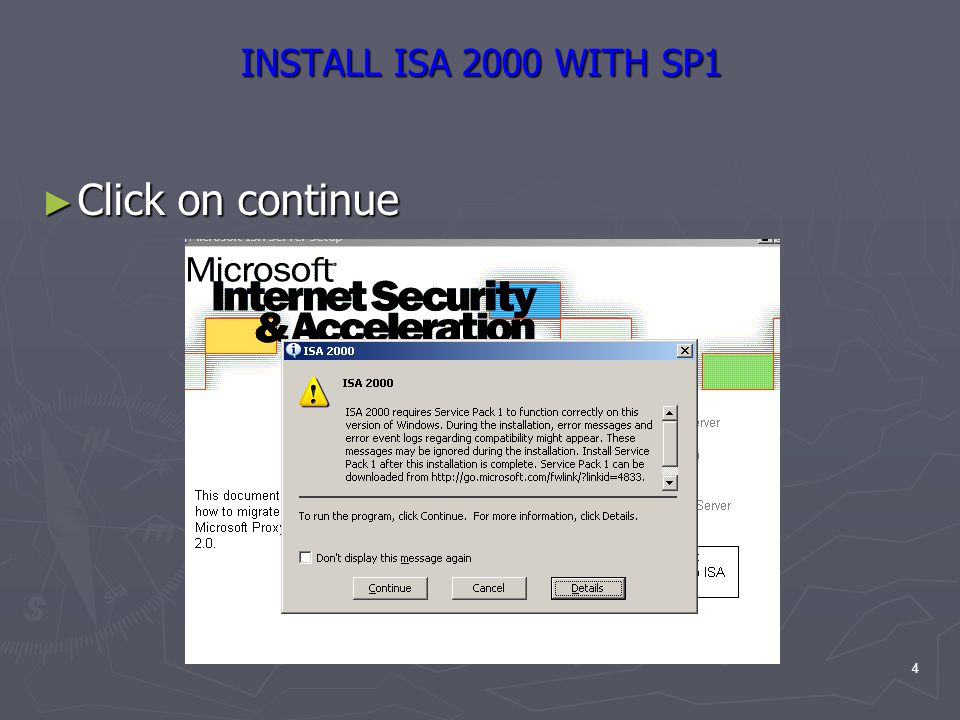

4 4 INSTALL ISA 2000 WITH SP1 ► Click on continue

5 5 INSTALL ISA 2000 WITH SP1 ► Click continue

6 6 INSTALL ISA 2000 WITH SP1 ► I Agree

7 7 INSTALL ISA 2000 WITH SP1 ► Click Add (Constricting LAT Table )

8 8 INSTALL ISA 2000 WITH SP1 ► Add To 7

9 9 INSTALL ISA 2000 WITH SP1 ► Add To 99

10 10 INSTALL ISA 2000 WITH SP1 ► Add To

11 11 INSTALL ISA 2000 WITH SP1 ► Custom Installation

12 12 INSTALL ISA 2000 WITH SP1 ► Continue

13 13 INSTALL ISA 2000 WITH SP1 ► Firewall mode

14 14 INSTALL ISA 2000 WITH SP1 ► Run ISA SP1 FROM CD ROM

15 15 INSTALL ISA 2000 WITH SP1 ► Run ISA SP1 FROM CD ROM

16 16 INSTALL ISA 2000 WITH SP1 ► SYSTEM RESTART AUTOMATICALLY

17 17 STEP3 STEP3 CONFIGURE ISA 2000 CONFIGURE ISA 2000

18 18 CONFIGURE ISA 2000 ► RUN ISA MANAGEMENT

19 19 CONFIGURE ISA PROTOCOL RULES 1- PROTOCOL RULES

20 20 CONFIGURE ISA 2000 ► ADD INTERNET PROTOCOL RULE

21 21 CONFIGURE ISA 2000 ► INTERNET PROTOCOL RULE

22 22 CONFIGURE ISA 2000 ► INTERNET PROTOCOL RULE

23 23 CONFIGURE ISA 2000 ► INTERNET PROTOCOL RULE

24 24 CONFIGURE ISA 2000 ► INTERNET PROTOCOL RULE

25 25 CONFIGURE ISA 2000 ► INTERNET PROTOCOL RULE

26 26 CONFIGURE ISA 2000 ► mailwizard protocol rule

27 27 CONFIGURE ISA 2000 ► mailwizard protocol rule

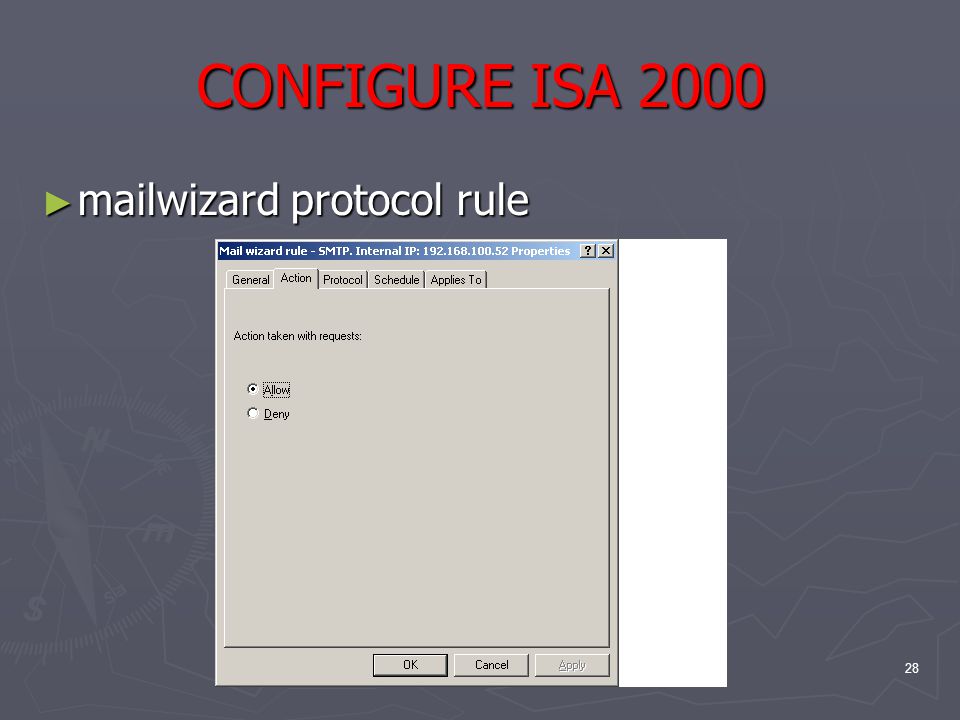

28 28 CONFIGURE ISA 2000 ► mailwizard protocol rule

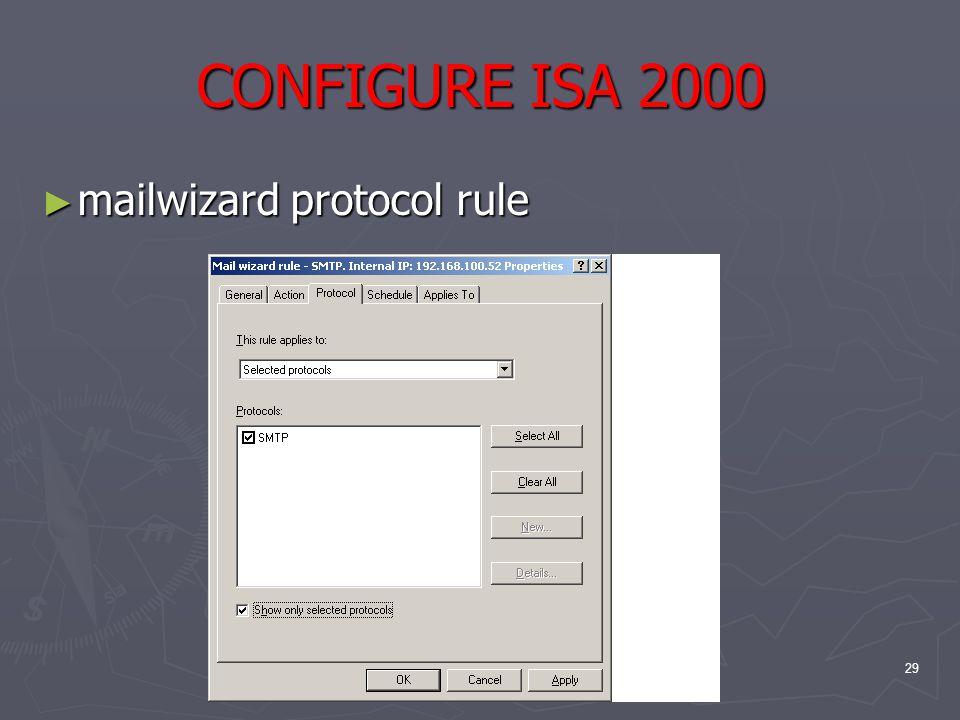

29 29 CONFIGURE ISA 2000 ► mailwizard protocol rule

30 30 CONFIGURE ISA 2000 ► mailwizard protocol rule

31 31 CONFIGURE ISA 2000 ► mailwizard protocol rule

32 32 CONFIGURE ISA 2000 ► SMTP protocol rule

33 33 CONFIGURE ISA 2000 ► SMTP protocol rule

34 34 CONFIGURE ISA 2000 ► SMTP protocol rule

35 35 CONFIGURE ISA 2000 ► SMTP protocol rule

36 36 CONFIGURE ISA 2000 ► SMTP protocol rule

37 37 CONFIGURE ISA IP Packet Filters

38 38 CONFIGURE ISA 2000

39 39 CONFIGURE ISA 2000 ► 2-1 DNS Inbound Packet Filetr

40 40 CONFIGURE ISA 2000 ► DNS Inbound Packet Filetr

41 41 CONFIGURE ISA 2000 ► DNS Inbound Packet Filetr

42 42 CONFIGURE ISA 2000 ► DNS Inbound Packet Filetr

43 43 CONFIGURE ISA 2000 ► DNS Outbound Packet filter

44 44 CONFIGURE ISA 2000 ► DNS Outbound Packet filter

45 45 CONFIGURE ISA 2000 ► DNS Outbound Packet filter

46 46 CONFIGURE ISA 2000 ► DNS Outbound Packet filter

47 47 CONFIGURE ISA 2000 ► NSLookup Inbound Pacet filter

48 48 CONFIGURE ISA 2000 ► NSLookup Inbound Pacet filter

49 49 CONFIGURE ISA 2000 ► NSLookup Inbound Pacet filter

50 50 CONFIGURE ISA 2000 ► NSLookup Inbound Pacet filter

51 51 CONFIGURE ISA 2000 ► NSLookup Outbound Pacet filter

52 52 CONFIGURE ISA 2000 ► NSLookup Outbound Pacet filter

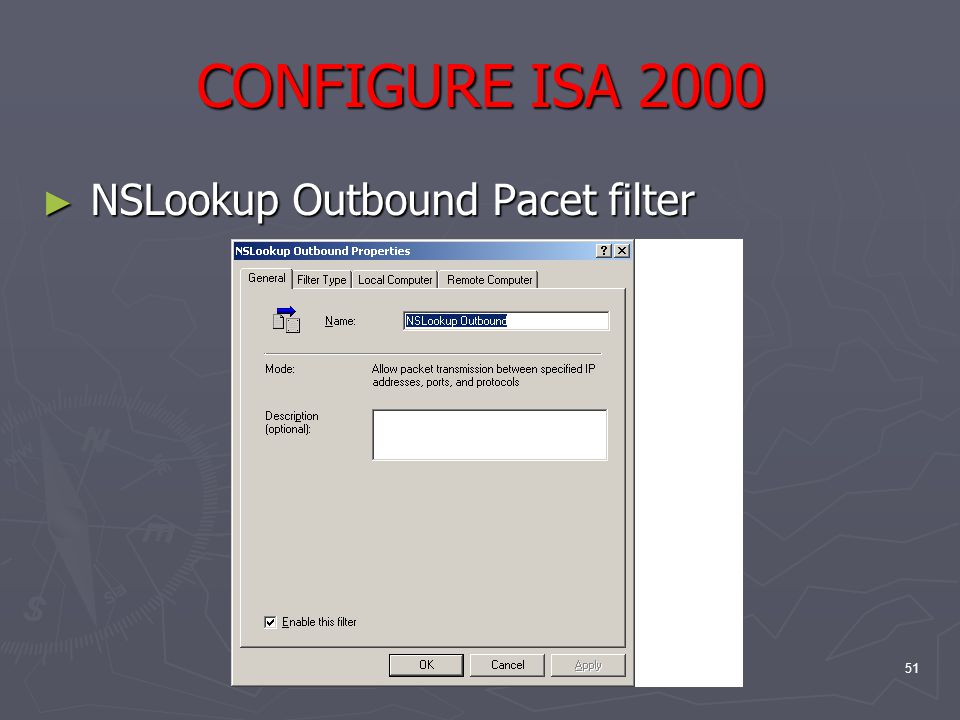

53 53 CONFIGURE ISA 2000 ► NSLookup Outbound Pacet filter

54 54 CONFIGURE ISA 2000 ► NSLookup Outbound Pacet filter

55 55 CONFIGURE ISA 2000 ► SMTP - Outbound Packet Filter

56 56 CONFIGURE ISA 2000 ► SMTP - Outbound Packet Filter

57 57 CONFIGURE ISA 2000 ► SMTP - Outbound Packet Filter

58 58 CONFIGURE ISA 2000 ► SMTP - Outbound Packet Filter

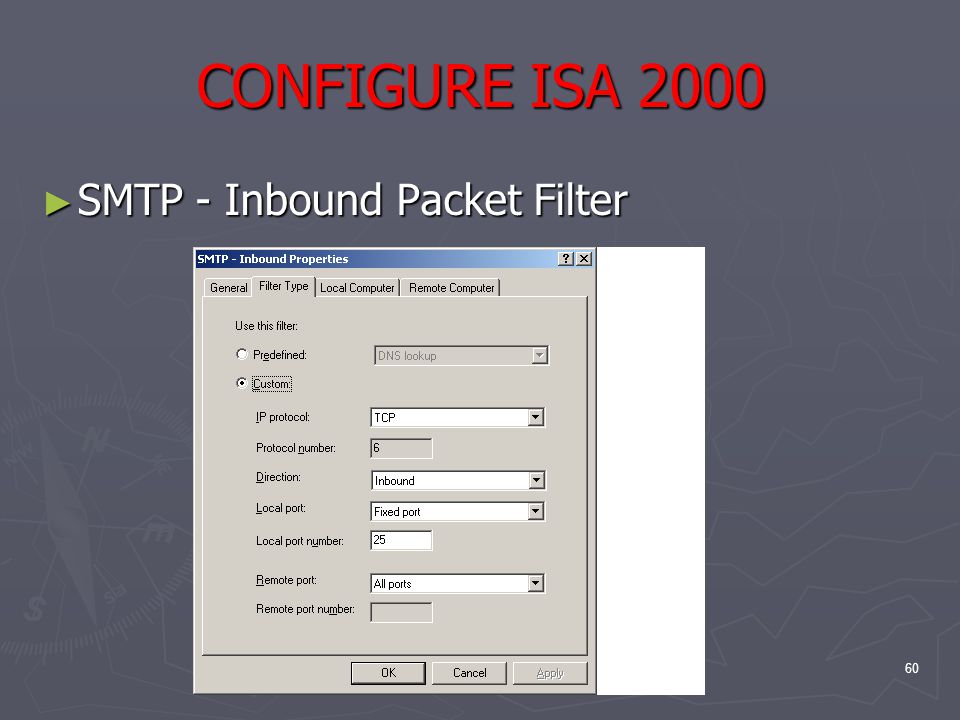

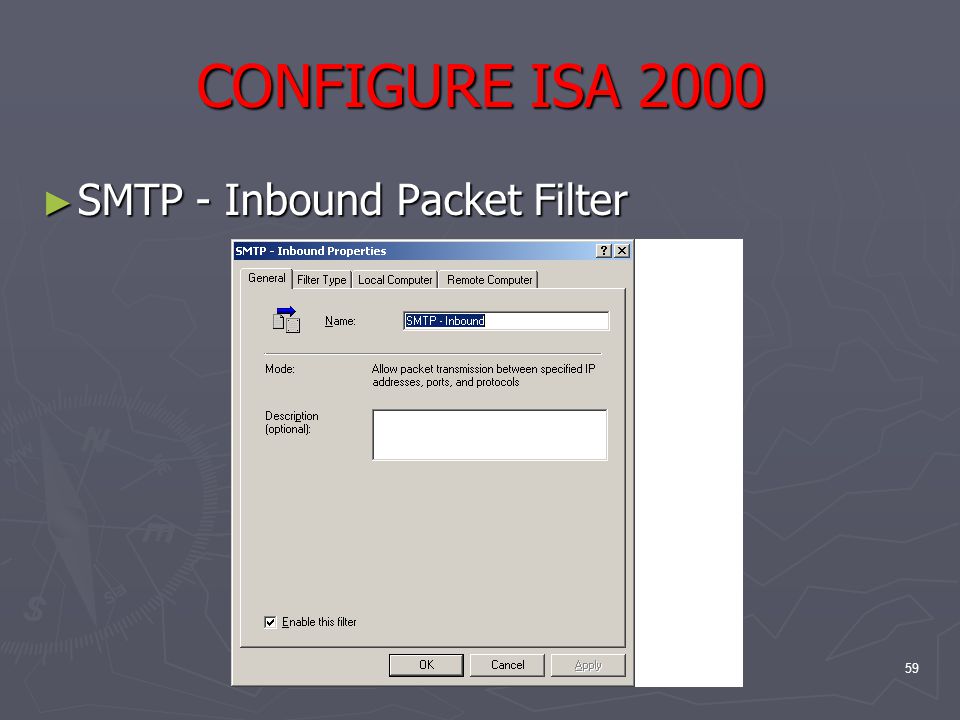

59 59 CONFIGURE ISA 2000 ► SMTP - Inbound Packet Filter

60 60 CONFIGURE ISA 2000 ► SMTP - Inbound Packet Filter

61 61 CONFIGURE ISA 2000 ► SMTP - Inbound Packet Filter

62 62 CONFIGURE ISA 2000 ► DNS Filter Packet filter (Built in)

63 63 CONFIGURE ISA 2000 ► DNS Filter Packet filter (Built in)

64 64 CONFIGURE ISA 2000 ► DNS Filter Packet filter (Built in)

65 65 CONFIGURE ISA 2000 ► DNS Filter Packet filter (Built in)

66 66 CONFIGURE ISA 2000 ► ICMP ping resonse(in) Packet Filter ( Buint in)

67 67 CONFIGURE ISA 2000 ► ICMP ping resonse(in) Packet Filter ( Buint in)

68 68 CONFIGURE ISA 2000 ► ICMP ping resonse(in) Packet Filter ( Buint in)

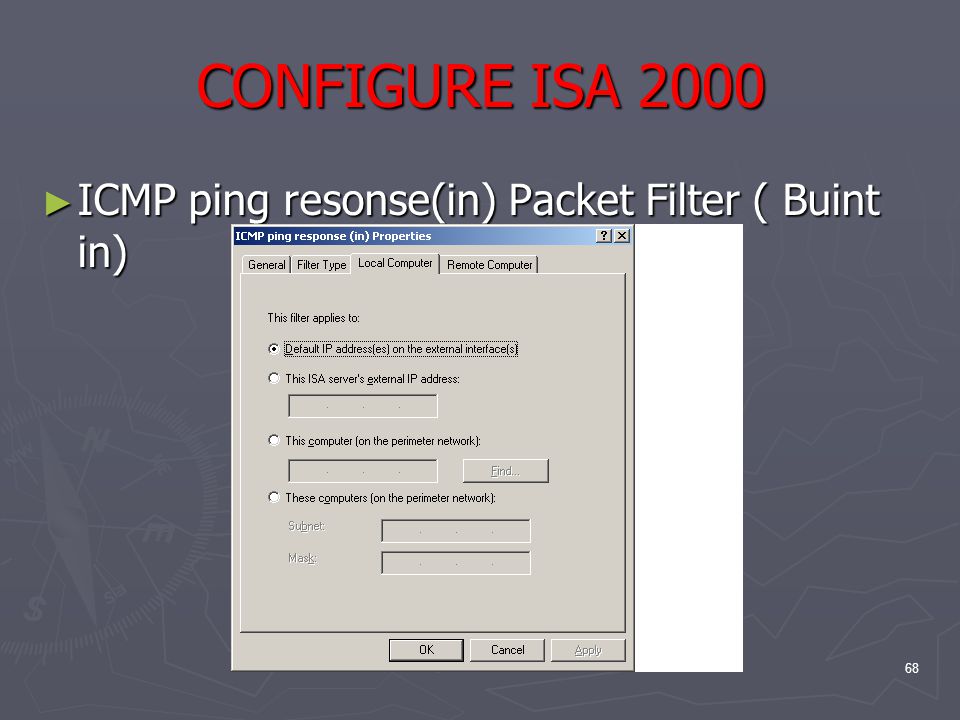

69 69 CONFIGURE ISA 2000 ► ICMP ping resonse(in) Packet Filter ( Buint in)

70 70 CONFIGURE ISA 2000  ICMP source quench Packet filter(Built in)

71 71 CONFIGURE ISA 2000 ► ICMP source quench Packet filter(Built in)

72 72 CONFIGURE ISA 2000 ► ICMP source quench Packet filter(Built in)

73 73 CONFIGURE ISA 2000 ► ICMP source quench Packet filter(Built in)

74 74 CONFIGURE ISA 2000 ► ICMP timeout inPacket filter(Built in)

75 75 CONFIGURE ISA 2000 ► ICMP timeout inPacket filter(Built in)

76 76 CONFIGURE ISA 2000 ► ICMP timeout inPacket filter(Built in)

77 77 CONFIGURE ISA 2000 ► ICMP timeout inPacket filter(Built in)

78 78 CONFIGURE ISA 2000 ► ICMP unreachable in Packet Filter(Buit in)

79 79 CONFIGURE ISA 2000 ► ICMP unreachable in Packet Filter(Buit in)

80 80 CONFIGURE ISA 2000 ► ICMP unreachable in Packet Filter(Buit in)

81 81 CONFIGURE ISA 2000 ► ICMP unreachable in Packet Filter(Buit in)

82 82 CONFIGURE ISA Policy Elements 4- Policy Elements

83 83 CONFIGURE ISA 2000 Policy Elements

84 84 CONFIGURE ISA 2000 ► Client Address set

85 85 CONFIGURE ISA 2000 ► Client Address set

86 86 CONFIGURE ISA 2000 ► DNS FORWARDER Client Set

87 87 CONFIGURE ISA 2000 ► DNS FORWARDER Client Set

88 88 DNS ► Forward Lookup Zone ► Reverse Lookup Zone

89 89 DNS ► Forward Lookup Zone

90 90 Forward Lookup Zone ► Add these Records

91 91 Reverse Lookup Zone

92 92 Reverse Lookup Zone ► Add These Records

93 93
