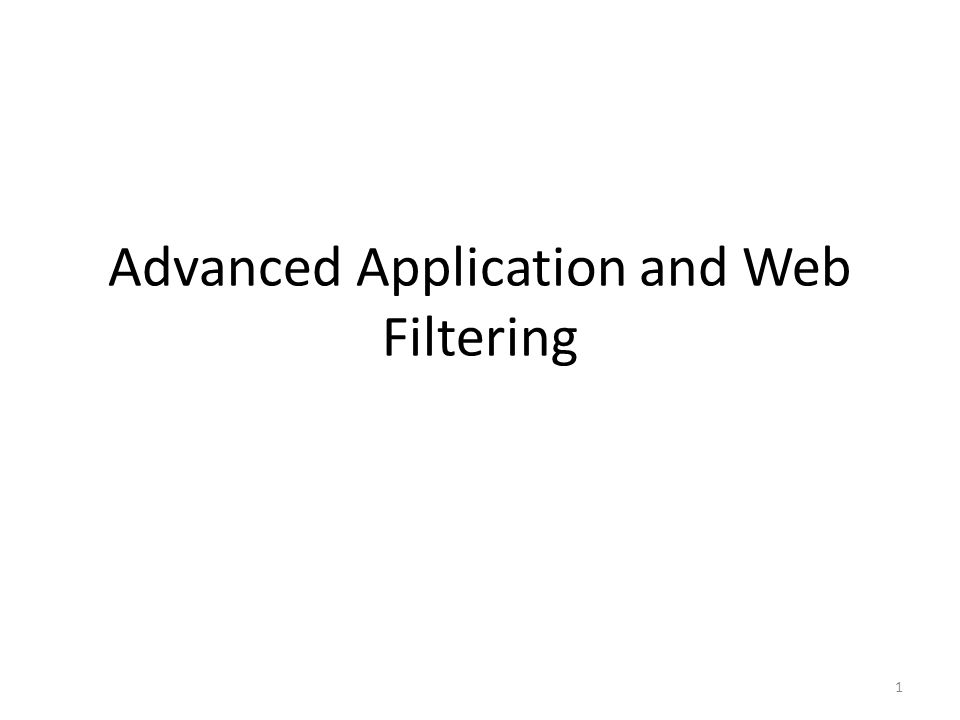

1. 1 Advanced Application and Web Filtering

2. 2 Common security attacks Finding a way into the network Exploiting software bugs, buffer overflows Denial of Service TCP hijacking Packet sniffing Social problems

3. 3 Common security attacks Finding a way into the network Exploiting software bugs, buffer overflows Denial of Service TCP hijacking Packet sniffing Social problems Firewalls Intrusion Detection Systems Ingress filtering, IDS IPSec Encryption (SSH, SSL, HTTPS) Education

4. 4 Types of Firewalls Packet Filtering Stateful Inspection Application-Layer Inspection Internet

5. 5 Application filter and Web Filter Application filters work with the firewall service in ISA Server to intercept and process network packets as they pass through ISA Server Application filters examine the application- level Web filters are used to mediate HTTP, HTTPS, and FTP tunneled

6. 6 Application Filters SMTP filter DNS filter POP Intrusion Detection filter SOCKS V4 filter FTP Access filter H.323 filter MMS filter PNM filter PPTP filter RPC filter RTSP filter

7. 7 The SMTP Filter if a command that is sent over the SMTP channel is not on this list, it is dropped

8. 8 The DNS Filter Three attacks: DNS host name overflow DNS length overflow DNS zone transfer

9. 9 The SOCKS V4 Filter

10. 10 Web Filters HTTP Security filter ISA Server Link Translator Web Proxy filter SecurID filter OWA Forms-based Authentication filter

11. 11 The HTTP Security Filter (HTTP Filter) HTTP Security Filter Settings HTTP Security Filter Logging Disabling the HTTP Security Filter for Web Requests Exporting and Importing HTTP Security Filter Settings Investigating HTTP Headers for Potentially Dangerous Applications Example HTTP Security Filter Policies Commonly Blocked Application Signatures The Dangers of SSL Tunneling

12. 12 The HTTP Security Filter (HTTP Filter)

13. 13 Overview of HTTP Security Filter Settings General Tab can configure the following options: Maximum header length Payload length Maximum URL length Verify normalization Block high bit characters Block responses containing Windows executable content

14. 14 Overview of HTTP Security Filter Settings Methods tab control what HTTP methods are used through an Access Rule or Web Publishing Rule Three options: – Allow all methods – Allow only specified methods – Block specified methods (allow all others)

15. 15 Overview of HTTP Security Filter Settings Add new method

16. 16 Overview of HTTP Security Filter Settings The Extensions Tab control what file extensions are allowed to be requested through the ISA firewall Option: – Allow all extensions – Allow only specified extensions – Block specified extensions (allow all others) – Block requests containing ambiguous extensions

17. 17 Overview of HTTP Security Filter Settings Add file extensions

18. 18 Overview of HTTP Security Filter Settings An HTTP header contains HTTP communication specific information that is included in HTTP requests made from a Web client and HTTP responses sent back to the Web client from a Web server. Option on Header Tab: – Allow all headers except the following – Server header – Via header

19. 19 Overview of HTTP Security Filter Settings Common HTTP headers: Content-length Pragma User-Agent Accept-Encoding

20. 20 Overview of HTTP Security Filter Settings The Via HeaderThe Server Header Option

21. 21 Overview of HTTP Security Filter Settings The Signatures tab allows you to control access through the ISA firewall based on HTTP signatures you create These signatures are based on strings contained components of an HTTP communication: – Request UR L – Request headers – Request body – Response headers – Response body

22. 22 The ISA Server Link Translator Link Translation solves a number of issues that may arise for external users connecting through the ISA firewall to an internal Web site Link Translation Tab in Web Publishing Rule Properties

23. 23 The Web Proxy Filter The Web Proxy filter allows connections from hosts not configured as Web Proxy clients to be forwarded to the ISA firewall’s Cache and Web Proxy components

24. 24 The OWA Forms-Based Authentication Filter Used to mediate Forms- based authentication to OWA Web sites that are made accessible via ISA firewall Web Publishing Rules.

25. 25 IP Filtering and Intrusion Detection/Intrusion Prevention Common Attacks Detection and Prevention DNS Attacks Detection and Prevention IP Options and IP Fragment Filtering

26. 26 Common Attacks Detection and Prevention

27. 27 DNS Attacks Detection and Prevention DNS host name overflow DNS length overflow DNS zone transfer

28. 28 IP Options and IP Fragment Filtering The IP Options TabThe IP Fragments Tab
