LECTURE PRESENTATIONS For CAMPBELL BIOLOGY, NINTH EDITION Jane B. Reece, Lisa A. Urry, Michael L. Cain, Steven A. Wasserman, Peter V. Minorsky, Robert.

Similar presentations


Presentation on theme: "LECTURE PRESENTATIONS For CAMPBELL BIOLOGY, NINTH EDITION Jane B. Reece, Lisa A. Urry, Michael L. Cain, Steven A. Wasserman, Peter V. Minorsky, Robert."— Presentation transcript:

1 LECTURE PRESENTATIONS For CAMPBELL BIOLOGY, NINTH EDITION Jane B. Reece, Lisa A. Urry, Michael L. Cain, Steven A. Wasserman, Peter V. Minorsky, Robert B. Jackson © 2011 Pearson Education, Inc. Lectures by Erin Barley Kathleen Fitzpatrick Cell Communication Chapter 11 Lecture adapted from:

2 Figure 11.1

3 Communication in general Transmission, reception, and response to a signal –Stimulus –Response

4 Think of all the ways YOU communicate

5 Classifying communication routes Direct Local Long distance

6 Cellular Communication Direct contact – neighboring cells Local – cells within the general region “Long” distance

7 Steps of Cellular Communication 1.Reception: “detection” of signal by a receptor molecule on a target cell (or receptor molecule within cell, depending on type of signal) 2.Transduction: information changed into another form 3.Response: specific cellular response elicited

8

9 Labeling Cell Signaling molecule (ligand) Receptor Membrane Channel

10 Definitions LIGAND: molecule that specifically binds to another molecule (usually a larger one) Generally causes a receptor protein to undergo a change in conformation Can come in two major types: –Water soluble/large: non-membrane permeable Require a membrane protein receptor –Hydrophobic/small: membrane permeable Require an intracellular receptor

11 Labeling, part two Autocrine –Auto = self Endocrine –Endo = within Juxtacrine –Juxta = beside, next to, touching Paracrine –Para = nearby

12 Cell Communication POGIL: problems 8 and 9 Read through the examples and determine what type of cell communication is featured.

13 Pathway with Friends Activity Groups of 6: must be 6! Each person gets a card. Read your card. Do not share what your card with others. Do not read the cards of others. Do #1 on the card. Proceed to #2.

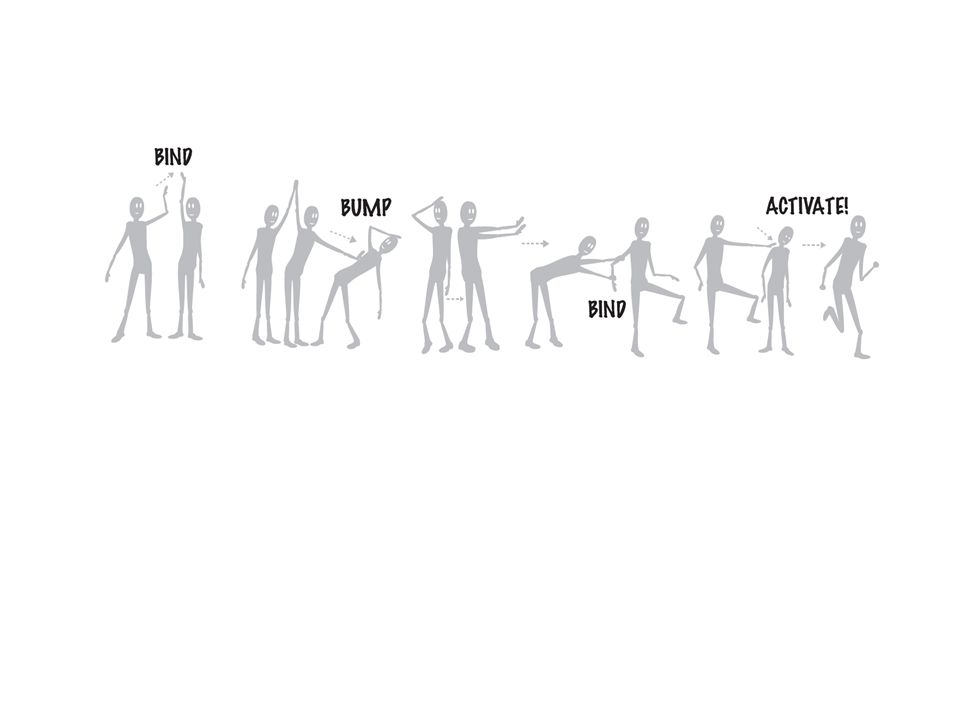

14

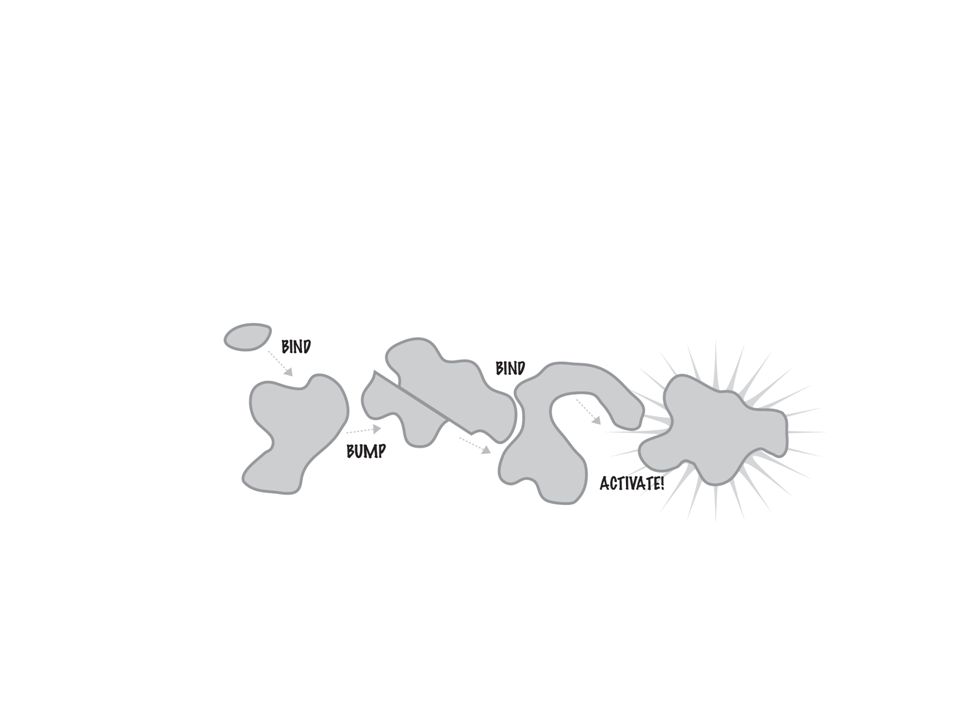

15

16 Figure Plasma membrane EXTRACELLULAR FLUID CYTOPLASM Reception Receptor Signaling molecule 1

17 Figure Plasma membrane EXTRACELLULAR FLUID CYTOPLASM ReceptionTransduction Receptor Signaling molecule Relay molecules in a signal transduction pathway 2 1

18 Figure Plasma membrane EXTRACELLULAR FLUID CYTOPLASM ReceptionTransduction Response Receptor Signaling molecule Activation of cellular response Relay molecules in a signal transduction pathway 3 2 1

19 Pathway with Friends Activity What happened? How did you recognize where to go? How does this model cell communication? What effect did joining the pathway have on you? What problems did you encounter? What would have happened if someone didn’t do their job (follow instructions) or weren’t there?

20 To note… Process helps ensure that crucial activities occur in the right cells at the right time Coordinated with other cells of organism “Eavesdropping” rarely occurs in cells

21 Steps of Cellular Communication 1.Reception: “detection” of signal by a receptor molecule on a target cell (or receptor molecule within cell, depending on type of signal). PRIMARY MESSENGER. Signal does not participate in the actual pathway. In most cases, doesn’t even get into the cell! 2.Transduction: information changed into another form – usually involves the changing of shapes of relay molecules. SECONDARY MESSENGERS 3.Response: specific cellular response elicited

22 Types of Signals and their Receptors Large, polar: non-membrane friendly. Requires a plasma membrane protein receptor. –G protein linked receptors – Receptor tyrosine kinase –Ion channel receptors Small, nonpolar: membrane friendly. Bind with an INTRACELLULAR receptor.

23 Concept 11.2: Reception: A signaling molecule binds to a receptor protein, causing it to change shape The binding between a signal molecule (ligand) and receptor is highly specific A shape change in a receptor is often the initial transduction of the signal Most signal receptors are plasma membrane proteins © 2011 Pearson Education, Inc.

24 G protein-linked receptors (GPLRs) are the largest family of cell-surface receptors A GPLR is a plasma membrane receptor that works with the help of a G protein The G protein acts as an on/off switch: If GDP is bound to the G protein, the G protein is inactive. If GTP is attached = active. © 2011 Pearson Education, Inc.

25 Figure 11.7b G protein-coupled receptor Plasma membrane G protein (inactive) CYTOPLASM Enzyme Activated receptor Signaling molecule Inactive enzyme Activated enzyme Cellular response GDP GTP GDP GTP P i GDP

26 Figure 11.7a G protein-coupled receptor Signaling molecule binding site Segment that interacts with G proteins Reminder: polarity issues

27 Figure 11.7b G protein-coupled receptor Plasma membrane G protein (inactive) CYTOPLASM Enzyme Activated receptor Signaling molecule Inactive enzyme Activated enzyme Cellular response GDP GTP GDP GTP P i GDP

28 G proteins… Also act as GTPase –Hydrolyzes bound GTP to GDP –G protein goes inactive –Signaling pathway shut down Cholera, pertussis, botulism: caused by bacterial infections producing toxins that interfere with G protein activity 60% of all meds today exert effects on G protein pathways

29 Receptor tyrosine kinases (RTKs) are membrane receptors that attach phosphates to tyrosines A receptor tyrosine kinase can trigger multiple signal transduction pathways at once Abnormal functioning of RTKs is associated with many types of cancers © 2011 Pearson Education, Inc.

30 Figure 11.7c Signaling molecule (ligand) Ligand-binding site  helix in the membrane Tyrosines CYTOPLASM Receptor tyrosine kinase proteins (inactive monomers) Signaling molecule Dimer Tyr P P P P P P P P P P P P Activated tyrosine kinase regions (unphosphorylated dimer) Fully activated receptor tyrosine kinase (phosphorylated dimer) Activated relay proteins Cellular response 1 Cellular response 2 Inactive relay proteins 6 ATP 6 ADP

31 Phosphorylated tyrosines Recognized by specific relay proteins inside the cell Bind to a specific tyrosine, change shape, and activate Triggers a transduction pathway

32 A ligand-gated ion channel receptor acts as a gate when the receptor changes shape When a signal molecule binds as a ligand to the receptor, the gate allows specific ions, such as Na + or Ca 2+, through a channel in the receptor © 2011 Pearson Education, Inc.

33 Figure 11.7d Signaling molecule (ligand) Gate closed Ions Ligand-gated ion channel receptor Plasma membrane Gate open Cellular response Gate closed

34 Ion flow Rapidly changes the concentration of the particular ion inside the cell Triggers response When ligand dissociates, gate opens/closes and ions return to normal

35 Neurons Neurotransmitter binds as ligand Channels open Triggers electrical signal that propagates length of receiving cell. Some gated ion channels are controlled by electrical signals (voltage-gated ion channels)

36 Intracellular Receptors Intracellular receptor proteins are found in the cytosol or nucleus of target cells Small or hydrophobic chemical messengers can readily cross the membrane and activate receptors Examples of hydrophobic messengers are the steroid and thyroid hormones of animals An activated hormone-receptor complex can act as a transcription factor, turning on specific genes © 2011 Pearson Education, Inc.

37 Figure Hormone (testosterone) Receptor protein Plasma membrane DNA NUCLEUS CYTOPLASM EXTRACELLULAR FLUID

38 Figure Hormone (testosterone) Receptor protein Plasma membrane Hormone- receptor complex DNA NUCLEUS CYTOPLASM EXTRACELLULAR FLUID

39 Figure Hormone (testosterone) Receptor protein Plasma membrane Hormone- receptor complex DNA NUCLEUS CYTOPLASM EXTRACELLULAR FLUID

40 Figure Hormone (testosterone) Receptor protein Plasma membrane Hormone- receptor complex DNA mRNA NUCLEUS CYTOPLASM EXTRACELLULAR FLUID

41 Figure Hormone (testosterone) Receptor protein Plasma membrane EXTRACELLULAR FLUID Hormone- receptor complex DNA mRNA NUCLEUS CYTOPLASM New protein

42 End show here for today

43 Transduction: Bellringer POGIL, #5-7 Trans- : prefix, across, through, beyond, changing thoroughly

44 Concept 11.3: Transduction: Cascades of molecular interactions relay signals from receptors to target molecules in the cell usually involves multiple steps –Benefits: amplify a signal: A few molecules can produce a large cellular response more opportunities for coordination and regulation of the cellular response © 2011 Pearson Education, Inc.

45 Like falling dominoes, the receptor activates another protein, which activates another, and so on, until the protein producing the response is activated At each step, the signal is transduced into a different form, usually a shape change in a protein

46 Relay Molecules The molecules that relay a signal from receptor to response are mostly proteins Can also be small, nonprotein water soluble molecules (like cyclic AMP) or ions (like Ca 2+) = SECOND MESSENGERS. More on this later © 2011 Pearson Education, Inc.

47 Protein Phosphorylation and Dephosphorylation In many pathways, the signal is transmitted by a cascade of protein phosphorylations Protein kinases transfer phosphates from ATP to protein (phosphorylation) –Phosphate groups are negatively charged = causes a slight change in protein shape as R-groups interact with the phosphate group. –Change in shape = activates or deactivates © 2011 Pearson Education, Inc.

48 Protein phosphatases remove the phosphates from proteins, a process called dephosphorylation This phosphorylation and dephosphorylation system acts as a molecular switch, turning activities on and off or up or down, as required © 2011 Pearson Education, Inc.

49 Receptor Signaling molecule Activated relay molecule Phosphorylation cascade Inactive protein kinase 1 Active protein kinase 1 Active protein kinase 2 Active protein kinase 3 Inactive protein kinase 2 Inactive protein kinase 3 Inactive protein Active protein Cellular response ATP ADP ATP ADP ATP ADP PP P P P P i Figure 11.10

50 Activated relay molecule Phosphorylation cascade Inactive protein kinase 1 Active protein kinase 1 Active protein kinase 2 Active protein kinase 3 Inactive protein kinase 2 Inactive protein kinase 3 Inactive protein Active protein ATP ADP ATP ADP ATP ADP PP P P P i P Figure 11.10a

51 Small Molecules and Ions as Second Messengers Signal = pathway’s “first messenger” Second messengers are small, nonprotein, water- soluble molecules or ions that spread throughout a cell by diffusion Second messengers participate in pathways initiated by GPLRs and RTKs Cyclic AMP and calcium ions are common second messengers © 2011 Pearson Education, Inc.

52 Cyclic AMP Cyclic AMP (cAMP) is one of the most widely used second messengers Adenylyl cyclase, an enzyme in the plasma membrane, converts ATP to cAMP in response to an extracellular signal © 2011 Pearson Education, Inc.

53 Figure Adenylyl cyclase Phosphodiesterase Pyrophosphate AMP H2OH2O ATP P i P cAMP

54 Figure 11.11a Adenylyl cyclase Pyrophosphate ATP P i P cAMP

55 Figure 11.11b Phosphodiesterase AMP H2OH2O cAMP H2OH2O

56 cAMP usually activates protein kinase A, which phosphorylates various other proteins Further regulation of cell metabolism is provided by G-protein systems that inhibit adenylyl cyclase © 2011 Pearson Education, Inc.

57 Figure G protein First messenger (signaling molecule such as epinephrine) G protein-coupled receptor Adenylyl cyclase Second messenger Cellular responses Protein kinase A GTP ATP cAMP

58 Calcium Ions and Inositol Triphosphate (IP 3 ) Calcium ions (Ca 2+ ) act as a second messenger in many pathways Calcium is an important second messenger because cells can regulate its concentration © 2011 Pearson Education, Inc.

59 Figure Mitochondrion EXTRACELLULAR FLUID Plasma membrane Ca 2  pump Nucleus CYTOSOL Ca 2  pump Endoplasmic reticulum (ER) ATP Low [Ca 2  ] High [Ca 2  ] Key

60 A signal relayed by a signal transduction pathway may trigger an increase in calcium in the cytosol Pathways leading to the release of calcium involve inositol triphosphate (IP 3 ) and diacylglycerol (DAG) as additional second messengers Change in Ca2+ concentration = activation of proteins – initiates cell response (ex: muscle cell contraction, secretion, cell division) © 2011 Pearson Education, Inc. Animation: Signal Transduction Pathways

61 G protein EXTRA- CELLULAR FLUID Signaling molecule (first messenger) G protein-coupled receptor Phospholipase C DAG PIP 2 IP 3 (second messenger) IP 3 -gated calcium channel Endoplasmic reticulum (ER) CYTOSOL Ca 2  GTP Figure

62 Figure G protein EXTRA- CELLULAR FLUID Signaling molecule (first messenger) G protein-coupled receptor Phospholipase C DAG PIP 2 IP 3 (second messenger) IP 3 -gated calcium channel Endoplasmic reticulum (ER) CYTOSOL Ca 2  (second messenger) Ca 2  GTP

63 Figure G protein EXTRA- CELLULAR FLUID Signaling molecule (first messenger) G protein-coupled receptor Phospholipase C DAG PIP 2 IP 3 (second messenger) IP 3 -gated calcium channel Endoplasmic reticulum (ER) CYTOSOL Various proteins activated Cellular responses Ca 2  (second messenger) Ca 2  GTP

64 Concept 11.4: Response: Cell signaling leads to regulation of transcription or cytoplasmic activities The cell’s response to an extracellular signal is sometimes called the “output response” © 2011 Pearson Education, Inc.

65 Nuclear and Cytoplasmic Responses Ultimately, a signal transduction pathway leads to regulation of one or more cellular activities The response may occur in the cytoplasm or in the nucleus Many signaling pathways regulate the synthesis of enzymes or other proteins, usually by turning genes on or off in the nucleus The final activated molecule in the signaling pathway may function as a transcription factor © 2011 Pearson Education, Inc.

66 Figure Growth factor Receptor Reception Transduction CYTOPLASM Response Inactive transcription factor Active transcription factor DNA NUCLEUS mRNA Gene Phosphorylation cascade P

67 Other pathways regulate the activity of enzymes rather than their synthesis © 2011 Pearson Education, Inc.

68 Figure Reception Transduction Response Binding of epinephrine to G protein-coupled receptor (1 molecule) Inactive G protein Active G protein (10 2 molecules) Inactive adenylyl cyclase Active adenylyl cyclase (10 2 ) ATP Cyclic AMP (10 4 ) Inactive protein kinase A Active protein kinase A (10 4 ) Inactive phosphorylase kinase Active phosphorylase kinase (10 5 ) Inactive glycogen phosphorylase Active glycogen phosphorylase (10 6 ) Glycogen Glucose 1-phosphate (10 8 molecules)

69 Concept 11.1: External signals are converted to responses within the cell Microbes provide a glimpse of the role of cell signaling in the evolution of life © 2011 Pearson Education, Inc.

70 Evolution of Cell Signaling The yeast, Saccharomyces cerevisiae, has two mating types, a and  Cells of different mating types locate each other via secreted factors specific to each type A signal transduction pathway is a series of steps by which a signal on a cell’s surface is converted into a specific cellular response Signal transduction pathways convert signals on a cell’s surface into cellular responses © 2011 Pearson Education, Inc.

71 Figure 11.2 Exchange of mating factors Receptor  factor a factor Yeast cell, mating type a Yeast cell, mating type  Mating New a/  cell a a a/   

72 Pathway similarities suggest that ancestral signaling molecules evolved in prokaryotes and were modified later in eukaryotes The concentration of signaling molecules allows bacteria to sense local population density © 2011 Pearson Education, Inc.

73 Individual rod-shaped cells Spore-forming structure (fruiting body) Aggregation in progress Fruiting bodies mm 2.5 mm Figure 11.3

74 Figure 11.3a Individual rod-shaped cells 1

75 Figure 11.3b Aggregation in progress 2

76 Figure 11.3c Spore-forming structure (fruiting body) 0.5 mm 3

77 Figure 11.3d Fruiting bodies 2.5 mm

78 Local and Long-Distance Signaling Cells in a multicellular organism communicate by chemical messengers Animal and plant cells have cell junctions that directly connect the cytoplasm of adjacent cells In local signaling, animal cells may communicate by direct contact, or cell-cell recognition © 2011 Pearson Education, Inc.

79 Figure 11.4 Plasma membranes Gap junctions between animal cells Plasmodesmata between plant cells (a) Cell junctions (b) Cell-cell recognition

80 In many other cases, animal cells communicate using local regulators, messenger molecules that travel only short distances In long-distance signaling, plants and animals use chemicals called hormones The ability of a cell to respond to a signal depends on whether or not it has a receptor specific to that signal © 2011 Pearson Education, Inc.

81 Figure 11.5 Local signaling Long-distance signaling Target cell Secreting cell Secretory vesicle Local regulator diffuses through extracellular fluid. (a) Paracrine signaling(b) Synaptic signaling Electrical signal along nerve cell triggers release of neurotransmitter. Neurotransmitter diffuses across synapse. Target cell is stimulated. Endocrine cell Blood vessel Hormone travels in bloodstream. Target cell specifically binds hormone. (c) Endocrine (hormonal) signaling

82 Figure 11.5a Local signaling Target cell Secreting cell Secretory vesicle Local regulator diffuses through extracellular fluid. (a) Paracrine signaling (b) Synaptic signaling Electrical signal along nerve cell triggers release of neurotransmitter. Neurotransmitter diffuses across synapse. Target cell is stimulated.

83 Figure 11.5b Long-distance signaling Endocrine cell Blood vessel Hormone travels in bloodstream. Target cell specifically binds hormone. (c) Endocrine (hormonal) signaling

84 The Three Stages of Cell Signaling: A Preview Earl W. Sutherland discovered how the hormone epinephrine acts on cells Sutherland suggested that cells receiving signals went through three processes –Reception –Transduction –Response © 2011 Pearson Education, Inc. Animation: Overview of Cell Signaling

85 Figure 11.8 Plasma membrane Cholesterol  2 -adrenergic receptors Molecule resembling ligand

86 Figure Growth factor Receptor Reception Transduction CYTOPLASM Response Inactive transcription factor Active transcription factor DNA NUCLEUS mRNA Gene Phosphorylation cascade P

87 Other pathways regulate the activity of enzymes rather than their synthesis © 2011 Pearson Education, Inc.

88 Figure Reception Transduction Response Binding of epinephrine to G protein-coupled receptor (1 molecule) Inactive G protein Active G protein (10 2 molecules) Inactive adenylyl cyclase Active adenylyl cyclase (10 2 ) ATP Cyclic AMP (10 4 ) Inactive protein kinase A Active protein kinase A (10 4 ) Inactive phosphorylase kinase Active phosphorylase kinase (10 5 ) Inactive glycogen phosphorylase Active glycogen phosphorylase (10 6 ) Glycogen Glucose 1-phosphate (10 8 molecules)

89 Signaling pathways can also affect the overall behavior of a cell, for example, changes in cell shape © 2011 Pearson Education, Inc.

90 Wild type (with shmoos)  Fus3  formin Mating factor activates receptor. Mating factor G protein-coupled receptor Shmoo projection forming Formin G protein binds GTP and becomes activated P P P P Formin Fus3 GDP GTP Phosphory- lation cascade Microfilament Actin subunit Phosphorylation cascade activates Fus3, which moves to plasma membrane. Fus3 phos- phorylates formin, activating it. Formin initiates growth of microfilaments that form the shmoo projections. RESULTS CONCLUSION Figure 11.17

91 Figure 11.17a Wild type (with shmoos)

92 Figure 11.17b  Fus3

93 Figure 11.17c  formin

94 Fine-Tuning of the Response There are four aspects of fine-tuning to consider –Amplification of the signal (and thus the response) –Specificity of the response –Overall efficiency of response, enhanced by scaffolding proteins –Termination of the signal © 2011 Pearson Education, Inc.

95 Signal Amplification Enzyme cascades amplify the cell’s response At each step, the number of activated products is much greater than in the preceding step © 2011 Pearson Education, Inc.

96 The Specificity of Cell Signaling and Coordination of the Response Different kinds of cells have different collections of proteins These different proteins allow cells to detect and respond to different signals Even the same signal can have different effects in cells with different proteins and pathways Pathway branching and “cross-talk” further help the cell coordinate incoming signals © 2011 Pearson Education, Inc.

97 Figure Signaling molecule Receptor Relay molecules Response 1 Cell A. Pathway leads to a single response. Response 2Response 3 Response 4 Response 5 Activation or inhibition Cell B. Pathway branches, leading to two responses. Cell C. Cross-talk occurs between two pathways. Cell D. Different receptor leads to a different response.

98 Signaling molecule Receptor Relay molecules Response 1 Cell A. Pathway leads to a single response. Response 2Response 3 Cell B. Pathway branches, leading to two responses. Figure 11.18a

99 Response 4 Response 5 Activation or inhibition Cell C. Cross-talk occurs between two pathways. Cell D. Different receptor leads to a different response. Figure 11.18b

100 Signaling Efficiency: Scaffolding Proteins and Signaling Complexes Scaffolding proteins are large relay proteins to which other relay proteins are attached Scaffolding proteins can increase the signal transduction efficiency by grouping together different proteins involved in the same pathway In some cases, scaffolding proteins may also help activate some of the relay proteins © 2011 Pearson Education, Inc.

101 Figure Signaling molecule Receptor Plasma membrane Scaffolding protein Three different protein kinases

102 Termination of the Signal Inactivation mechanisms are an essential aspect of cell signaling If ligand concentration falls, fewer receptors will be bound Unbound receptors revert to an inactive state © 2011 Pearson Education, Inc.

103 Concept 11.5: Apoptosis integrates multiple cell-signaling pathways Apoptosis is programmed or controlled cell suicide Components of the cell are chopped up and packaged into vesicles that are digested by scavenger cells Apoptosis prevents enzymes from leaking out of a dying cell and damaging neighboring cells © 2011 Pearson Education, Inc.

104 Figure  m

105 Apoptosis in the Soil Worm Caenorhabditis elegans Apoptosis is important in shaping an organism during embryonic development The role of apoptosis in embryonic development was studied in Caenorhabditis elegans In C. elegans, apoptosis results when proteins that “accelerate” apoptosis override those that “put the brakes” on apoptosis © 2011 Pearson Education, Inc.

106 Figure Mitochondrion Ced-9 protein (active) inhibits Ced-4 activity Receptor for death- signaling molecule Ced-4 Ced-3 Inactive proteins (a) No death signal Death- signaling molecule Ced-9 (inactive) Cell forms blebs Active Ced-4 Active Ced-3 Other proteases Nucleases Activation cascade (b) Death signal

107 Figure 11.21a Mitochondrion Ced-9 protein (active) inhibits Ced-4 activity Receptor for death- signaling molecule Ced-4 Ced-3 Inactive proteins (a) No death signal

108 Death- signaling molecule Ced-9 (inactive) Cell forms blebs Active Ced-4 Active Ced-3 Other proteases Nucleases Activation cascade (b) Death signal Figure 11.21b

109 Apoptotic Pathways and the Signals That Trigger Them Caspases are the main proteases (enzymes that cut up proteins) that carry out apoptosis Apoptosis can be triggered by –An extracellular death-signaling ligand –DNA damage in the nucleus –Protein misfolding in the endoplasmic reticulum © 2011 Pearson Education, Inc.

110 Apoptosis evolved early in animal evolution and is essential for the development and maintenance of all animals Apoptosis may be involved in some diseases (for example, Parkinson’s and Alzheimer’s); interference with apoptosis may contribute to some cancers © 2011 Pearson Education, Inc.

111 Figure Interdigital tissue Cells undergoing apoptosis Space between digits 1 mm

112 Figure 11.22a Interdigital tissue

113 Figure 11.22b Cells undergoing apoptosis

114 Figure 11.22c Space between digits 1 mm

115 Figure 11.UN01 Reception TransductionResponse Receptor Signaling molecule Relay molecules Activation of cellular response

116 Figure 11.UN02

117 ORG/WEBPAGES/NPSDHINNE NKAMP/RESOURCES.CFM?SU BPAGE=38496
