1
The Mathematics of Elections Part II: Voting Mark Rogers

2

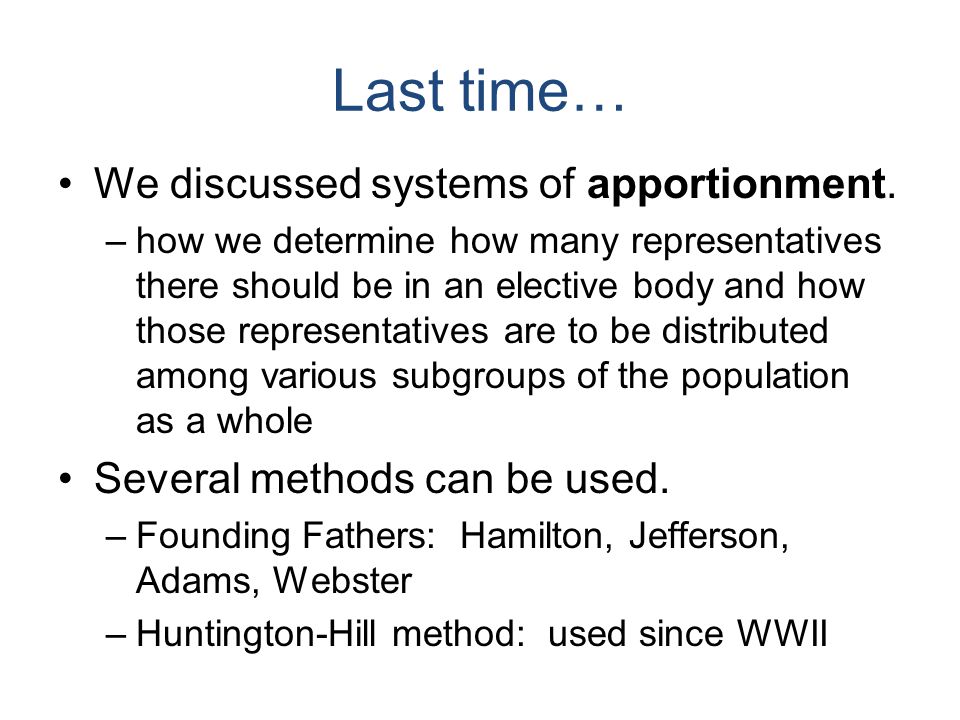

Last time… We discussed systems of apportionment. –how we determine how many representatives there should be in an elective body and how those representatives are to be distributed among various subgroups of the population as a whole Several methods can be used. –Founding Fathers: Hamilton, Jefferson, Adams, Webster –Huntington-Hill method: used since WWII

3
Last time… Problems can result from any type of apportionment. –Alabama paradox: in an even larger group of representatives, one group could end up losing one, even with the same percentage of the population –Population paradox: one group can lose a representative to another group, even though they are growing at a faster rate –New states paradox: one group can lose a representative to another group if a new group is added, with their own delegation considered separately –Violation of the apportionment criterion: each representative should represent (approximately) the same number of voters –Violation of the quota rule: using some methods, a group can end up with a number of representatives very different than their “deserved” proportion of the entire body (too many or too few)

4

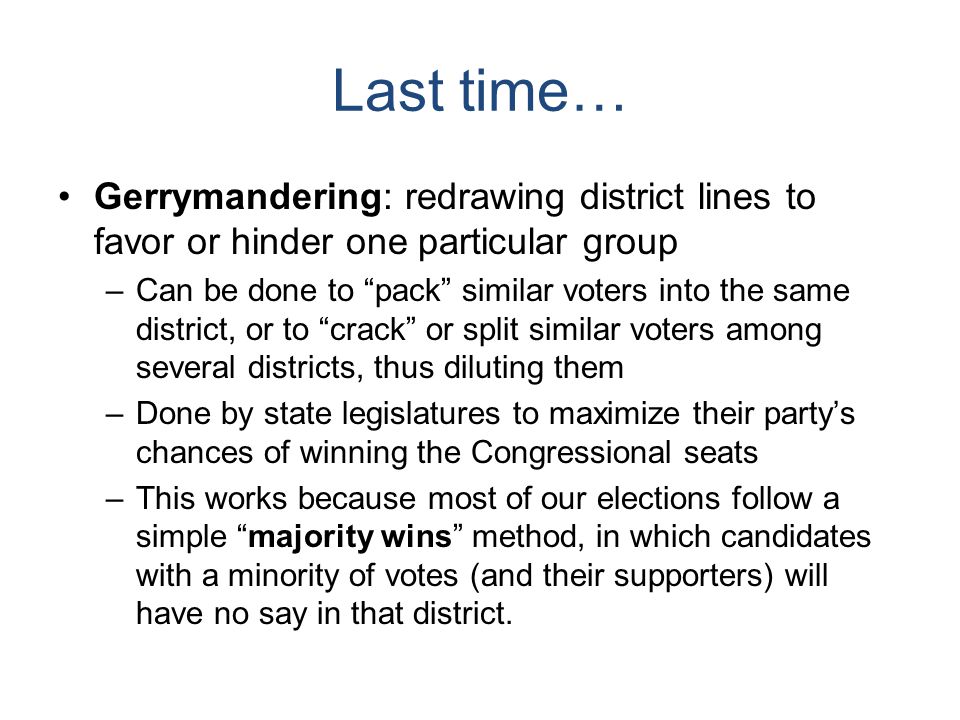

Last time… Gerrymandering: redrawing district lines to favor or hinder one particular group –Can be done to “pack” similar voters into the same district, or to “crack” or split similar voters among several districts, thus diluting them –Done by state legislatures to maximize their party’s chances of winning the Congressional seats –This works because most of our elections follow a simple “majority wins” method, in which candidates with a minority of votes (and their supporters) will have no say in that district.

5

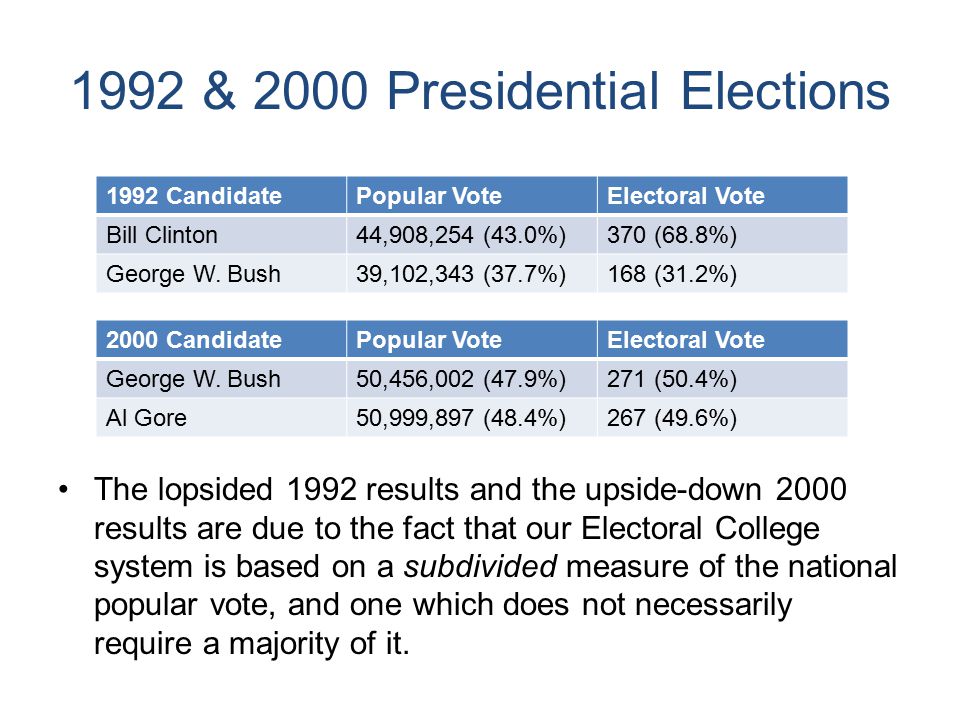

1992 & 2000 Presidential Elections The lopsided 1992 results and the upside-down 2000 results are due to the fact that our Electoral College system is based on a subdivided measure of the national popular vote, and one which does not necessarily require a majority of it. 2000 CandidatePopular VoteElectoral Vote George W. Bush50,456,002 (47.9%)271 (50.4%) Al Gore50,999,897 (48.4%)267 (49.6%) 1992 CandidatePopular VoteElectoral Vote Bill Clinton44,908,254 (43.0%)370 (68.8%) George W. Bush39,102,343 (37.7%)168 (31.2%)

6

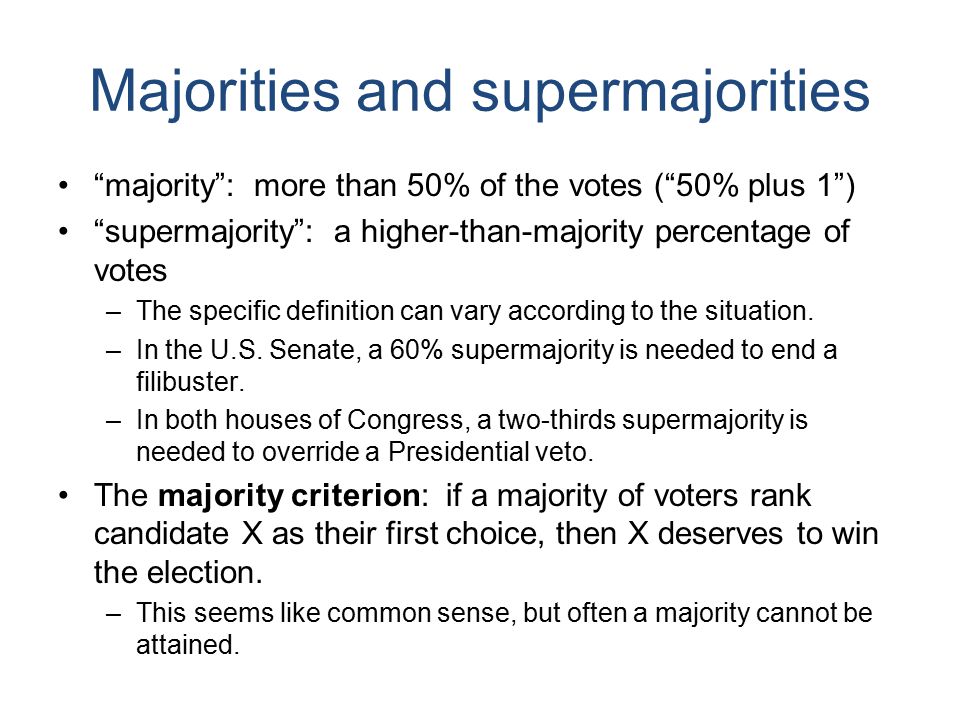

Majorities and supermajorities “majority”: more than 50% of the votes (“50% plus 1”) “supermajority”: a higher-than-majority percentage of votes –The specific definition can vary according to the situation. –In the U.S. Senate, a 60% supermajority is needed to end a filibuster. –In both houses of Congress, a two-thirds supermajority is needed to override a Presidential veto. The majority criterion: if a majority of voters rank candidate X as their first choice, then X deserves to win the election. –This seems like common sense, but often a majority cannot be attained.

7

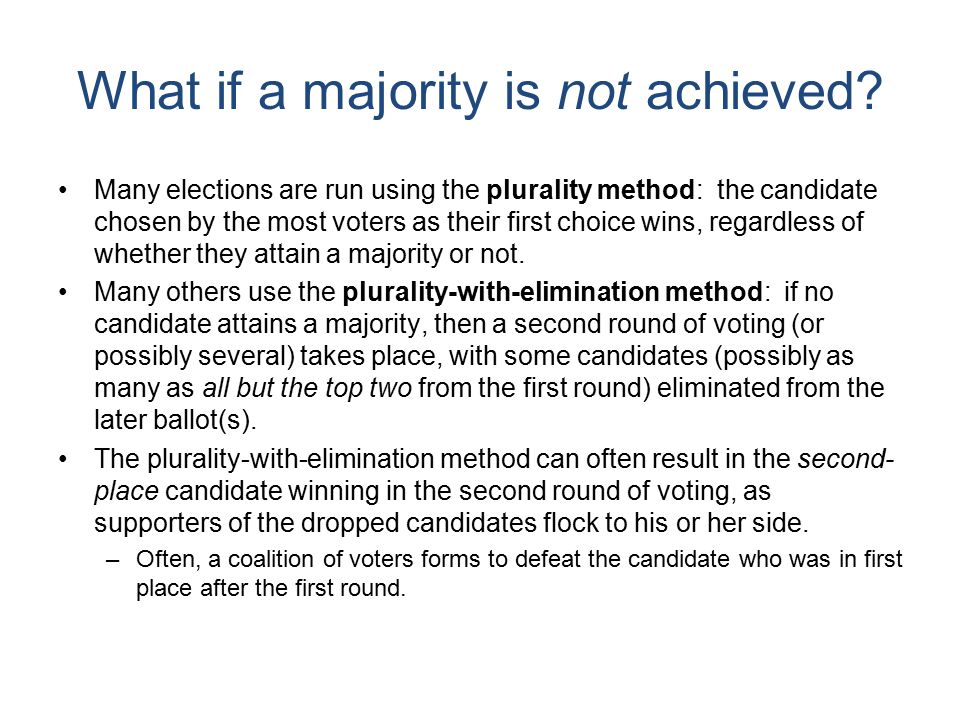

What if a majority is not achieved? Many elections are run using the plurality method: the candidate chosen by the most voters as their first choice wins, regardless of whether they attain a majority or not. Many others use the plurality-with-elimination method: if no candidate attains a majority, then a second round of voting (or possibly several) takes place, with some candidates (possibly as many as all but the top two from the first round) eliminated from the later ballot(s). The plurality-with-elimination method can often result in the second- place candidate winning in the second round of voting, as supporters of the dropped candidates flock to his or her side. –Often, a coalition of voters forms to defeat the candidate who was in first place after the first round.

8
2007 French presidential elections 12 candidates, including four major ones in an extremely tight race: –Conservative Nicolas Sarkozy, favored in early polls by 26% of voters –Socialist Ségolène Royal, favored by 25% –Centrist François Bayrou, favored by 24% –Far-right nationalist Jean-Marie Le Pen, favored by 16% The top two candidates would advance to a runoff. However, Bayrou’s support was more widespread; not being as despised by members of the other extreme as either Sarkozy or Royal, he would have been able to attract far more voters in a runoff than either of them…if he could make the runoff. Unfortunately for him, he did indeed finish in 3 rd place, leaving him unable to surpass the two frontrunners in this manner. In the end, Sarkozy won the runoff against Royal 53% to 47%. While this is not surprising or even unexpected, curious paradoxes can occur in certain other situations.

9

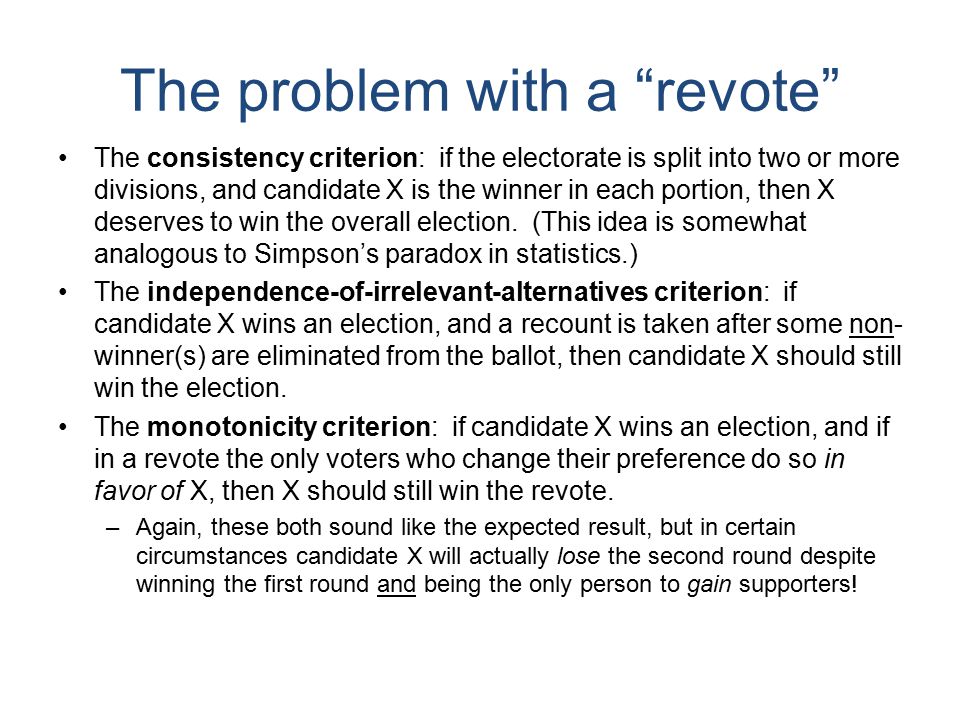

The problem with a “revote” The consistency criterion: if the electorate is split into two or more divisions, and candidate X is the winner in each portion, then X deserves to win the overall election. (This idea is somewhat analogous to Simpson’s paradox in statistics.) The independence-of-irrelevant-alternatives criterion: if candidate X wins an election, and a recount is taken after some non- winner(s) are eliminated from the ballot, then candidate X should still win the election. The monotonicity criterion: if candidate X wins an election, and if in a revote the only voters who change their preference do so in favor of X, then X should still win the revote. –Again, these both sound like the expected result, but in certain circumstances candidate X will actually lose the second round despite winning the first round and being the only person to gain supporters!

10
1992 & 2000 Presidential Elections Stronger-than-usual showings by third-party candidates are thought to have tilted the balance in recent elections. Experts theorize that if even “most” (say, 2/3) of the third-party voters had stayed with the main candidate of their (former) party, both elections would have swung the other way. 1992 CandidatesNational Vote Bill Clinton44,908,254 George H.W. Bush39,102,343 Ross Perot8,085,294 2000 CandidatesFlorida Vote George W. Bush2,912,790 Al Gore2,912,253 Ralph Nader97,488 Electoral Vote With “2/3” support Clinton370267 Bush Sr.168271 Electoral Vote With “2/3” support Bush Jr.271246 Gore267292

11
Splitting your vote Many voters see this sort of “splitting” of the vote of one end of the political spectrum to be self-defeating. –By opting for their favorite candidate instead of a slightly less- favored alternative whose higher support levels might have given them a more realistic chance of winning, they “hand the election” to the close-running candidate of the opposite persuasion. Cumulative voting: Voters can choose to split their vote into fractional portions divided among several candidates, or concentrate it for a single candidate. –Voters could give small-party candidates enough fractional votes to help make them viable, but reserve the bulk of their vote for mainstream candidates who might otherwise lose a close race.

12
An unexpected election result First-round results: Since Bonnie was the first choice of the fewest number of voters, she is eliminated and a runoff held. Given each voter’s runner-up preferences, the following results are likely in the second round: Thus, Charles wins the second-round runoff. However, suppose that due to irregularities, the election is ordered to be started from scratch. Charles should still win, right? Preference12 voters9 voters3 voters8 voters 1 st CharlesBonnieAdam 2 nd AdamCharles Bonnie 3 rd BonnieAdamBonnieCharles Preference12 voters9 voters3 voters8 voters 1 st Charles Adam 2 nd Adam Charles

13

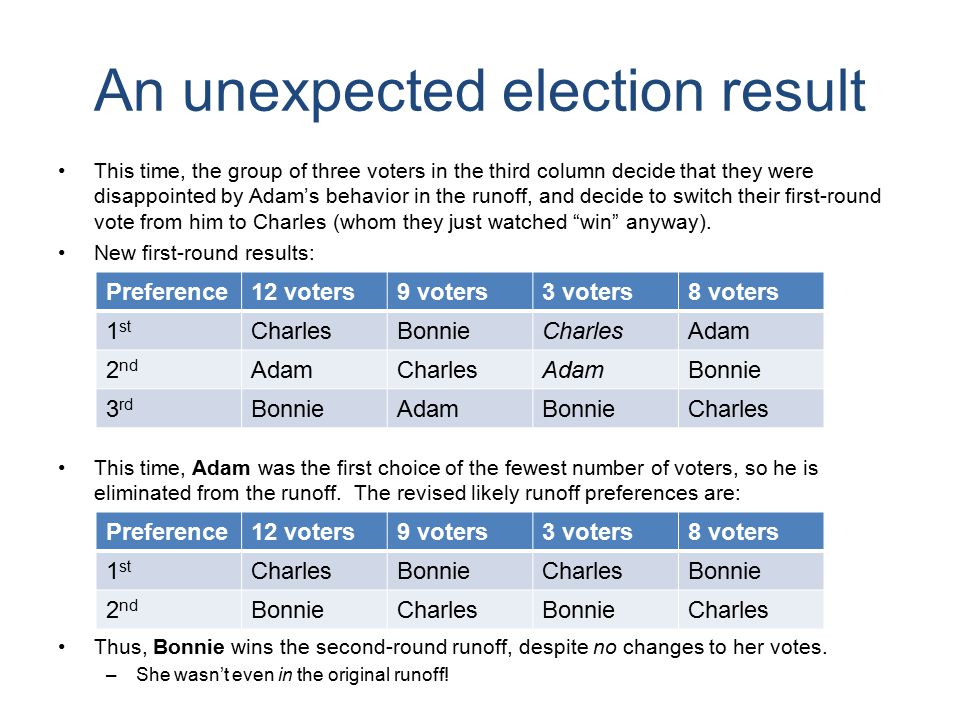

An unexpected election result This time, the group of three voters in the third column decide that they were disappointed by Adam’s behavior in the runoff, and decide to switch their first-round vote from him to Charles (whom they just watched “win” anyway). New first-round results: This time, Adam was the first choice of the fewest number of voters, so he is eliminated from the runoff. The revised likely runoff preferences are: Thus, Bonnie wins the second-round runoff, despite no changes to her votes. –She wasn’t even in the original runoff! Preference12 voters9 voters3 voters8 voters 1 st CharlesBonnieCharlesAdam 2 nd AdamCharlesAdamBonnie 3 rd BonnieAdamBonnieCharles Preference12 voters9 voters3 voters8 voters 1 st CharlesBonnieCharlesBonnie 2 nd BonnieCharlesBonnieCharles

14

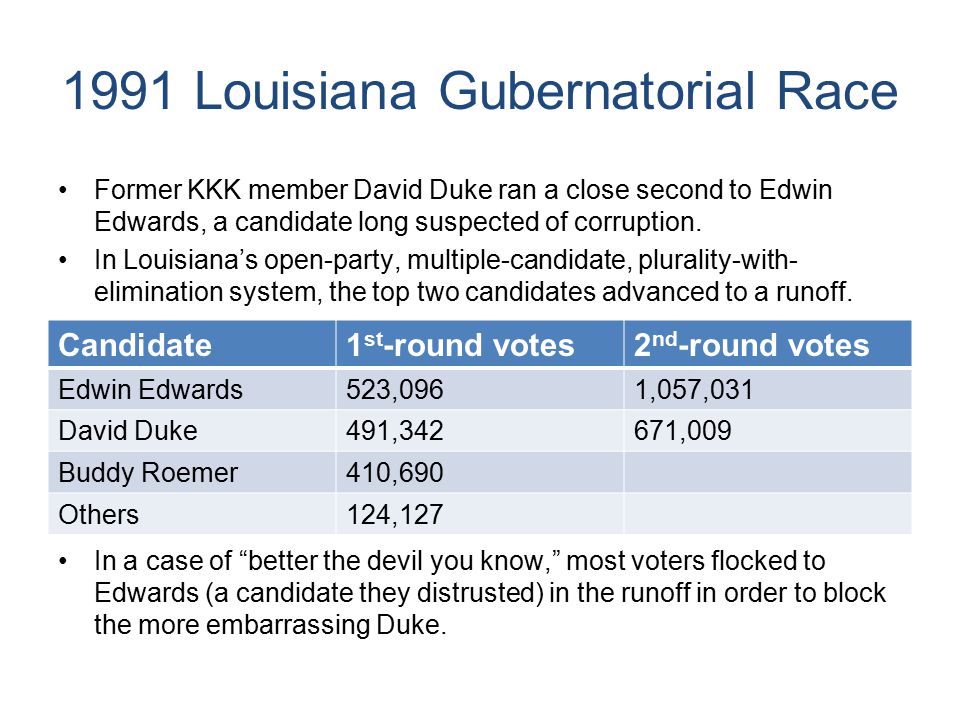

1991 Louisiana Gubernatorial Race Former KKK member David Duke ran a close second to Edwin Edwards, a candidate long suspected of corruption. In Louisiana’s open-party, multiple-candidate, plurality-with- elimination system, the top two candidates advanced to a runoff. In a case of “better the devil you know,” most voters flocked to Edwards (a candidate they distrusted) in the runoff in order to block the more embarrassing Duke. Candidate1 st -round votes2 nd -round votes Edwin Edwards523,0961,057,031 David Duke491,342671,009 Buddy Roemer410,690 Others124,127

15

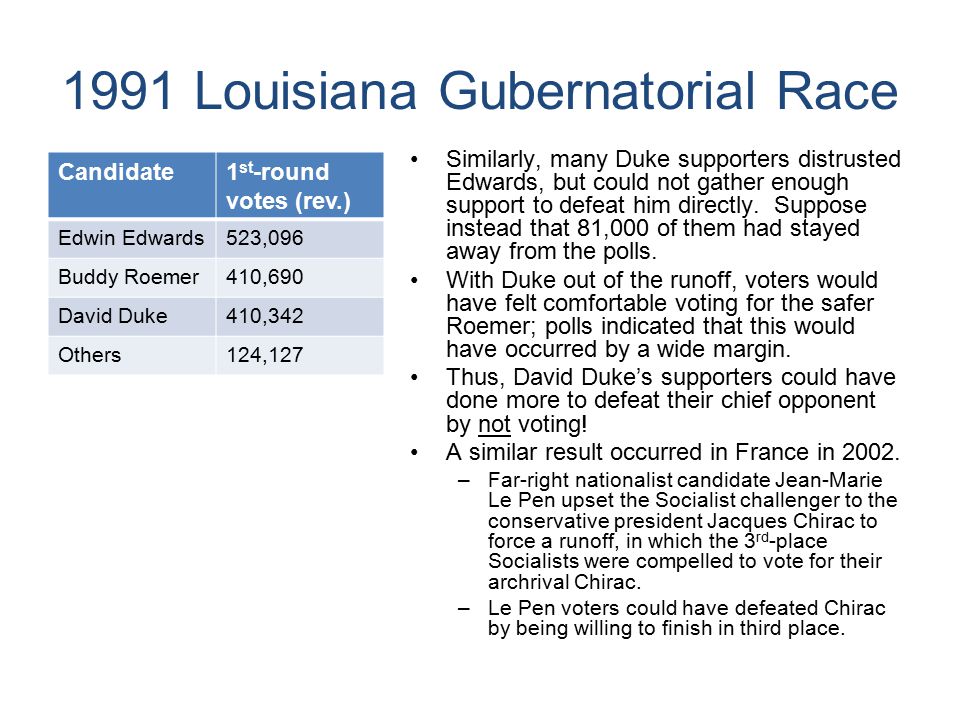

1991 Louisiana Gubernatorial Race Similarly, many Duke supporters distrusted Edwards, but could not gather enough support to defeat him directly. Suppose instead that 81,000 of them had stayed away from the polls. With Duke out of the runoff, voters would have felt comfortable voting for the safer Roemer; polls indicated that this would have occurred by a wide margin. Thus, David Duke’s supporters could have done more to defeat their chief opponent by not voting! A similar result occurred in France in 2002. –Far-right nationalist candidate Jean-Marie Le Pen upset the Socialist challenger to the conservative president Jacques Chirac to force a runoff, in which the 3 rd -place Socialists were compelled to vote for their archrival Chirac. –Le Pen voters could have defeated Chirac by being willing to finish in third place. Candidate1 st -round votes (rev.) Edwin Edwards523,096 Buddy Roemer410,690 David Duke410,342 Others124,127

16
A reusable ballot One way to avoid the time and expense of a runoff round of voting is to use ballots that allow voters to express their levels of preference for each candidate, by ranking them in order. –These “preference ballots” can then be reused as needed, since they are presumed to express the widest possible intention of the voters in a variety of scenarios. –The ballots could be used as a preemptive runoff ballot, with voters getting either their original 1 st choice (if still in the running) or their highest-ranked runner-up still in the running. This is also known as instant-runoff voting.

17

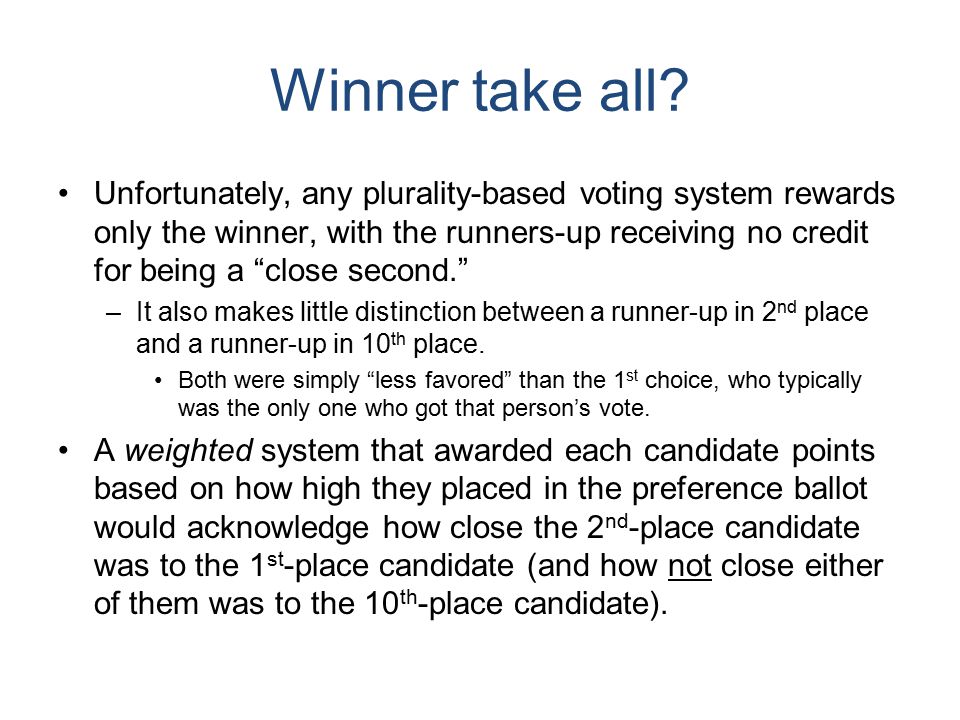

Winner take all? Unfortunately, any plurality-based voting system rewards only the winner, with the runners-up receiving no credit for being a “close second.” –It also makes little distinction between a runner-up in 2 nd place and a runner-up in 10 th place. Both were simply “less favored” than the 1 st choice, who typically was the only one who got that person’s vote. A weighted system that awarded each candidate points based on how high they placed in the preference ballot would acknowledge how close the 2 nd -place candidate was to the 1 st -place candidate (and how not close either of them was to the 10 th -place candidate).

18
The Borda count method Jean-Charles de Borda (1733-1799), French mathematician and mariner If there are n candidates in an election, each voter ranks their preferences in order from 1 st place through n th place. –The candidate in 1 st place receives n points. –The candidate in 2 nd place receives (n – 1) points. –The candidate in 3 rd place receives (n – 2) points. –And so on, until the candidate in n th (last) place receives 1 point. Then all such points are totaled for each candidate, and the one with the highest point total is the winner.

19

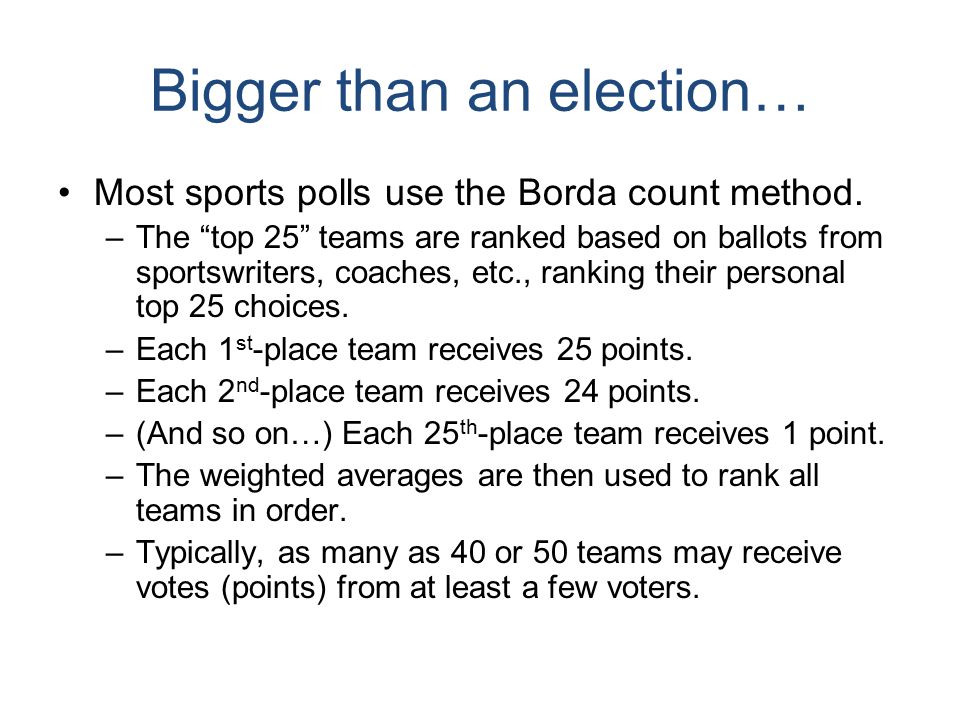

Bigger than an election… Most sports polls use the Borda count method. –The “top 25” teams are ranked based on ballots from sportswriters, coaches, etc., ranking their personal top 25 choices. –Each 1 st -place team receives 25 points. –Each 2 nd -place team receives 24 points. –(And so on…) Each 25 th -place team receives 1 point. –The weighted averages are then used to rank all teams in order. –Typically, as many as 40 or 50 teams may receive votes (points) from at least a few voters.

20
NCAA Women’s Preseason Poll ESPN/USA Today (31 writers) Team/RankPointsTeam/RankPoints 1. Connecticut773 (30 1 st -place votes, one 3 rd -place) 18. Arizona State215 2. Stanford67619. Ohio State188 3. Rutgers63920. Old Dominion163 4. North Carolina62921. Auburn154 5. Maryland62422. LSU133 6. Tennessee602 (one 1 st -place vote)23. Pittsburgh104 7. Oklahoma60024. Florida State101 8. Duke50825. Georgia94 9. California49526. Xavier87 10. Texas A&M49327. Purdue85 11. Louisville48128. Kansas State72 12. Vanderbilt41929. Iowa State63 13. Texas31530. Marist48 14. Notre Dame294…… 15. Virginia27941. (3 teams)3 15. Oklahoma State27944. (4 teams)2 17. Baylor27248. (5 teams)1

21
A method from very close to home The Bucklin method: a multi-stage variation on the Borda count method –Voters rank their choices on a preference ballot. –The preferences are considered one level at a time. Initially, only the 1 st choices are considered. If one candidate receives a majority of them, that candidate is the winner. If not, the 2 nd choices are added to each candidate’s total. –There are now twice as many “votes,” cast by the same number of voters. –If any candidate now has the support of a majority of voters, that candidate is the winner. If multiple candidates surpass a majority in the same round, the one with the highest level of support is the winner. This process repeats through as many stages as needed. –Invented by James W. Bucklin (1856-1919), co-founder of Grand Junction.

22

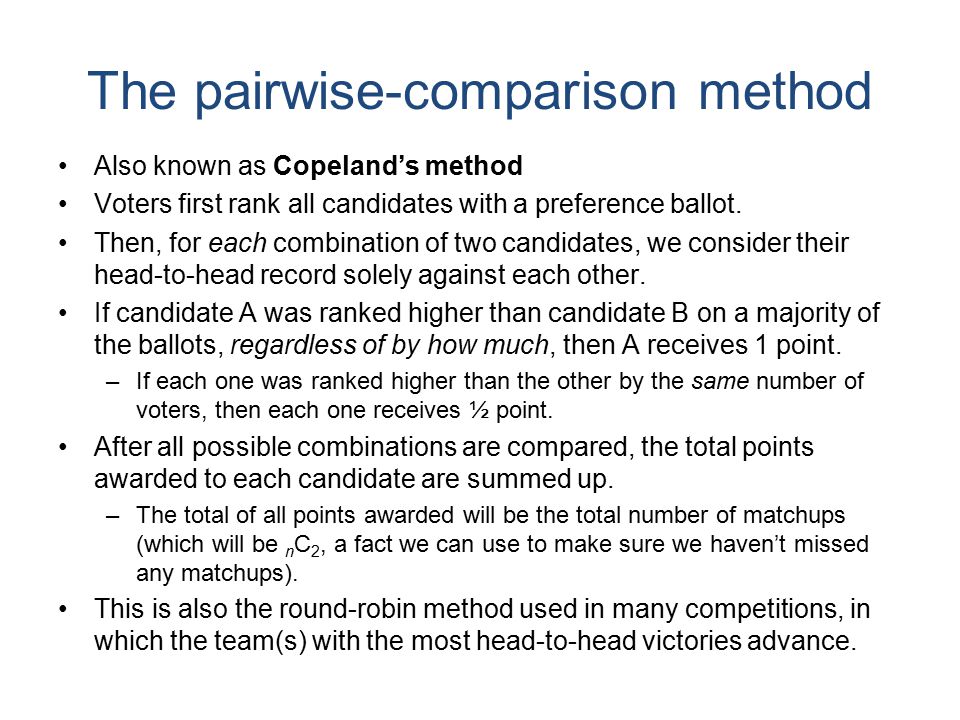

The pairwise-comparison method Also known as Copeland’s method Voters first rank all candidates with a preference ballot. Then, for each combination of two candidates, we consider their head-to-head record solely against each other. If candidate A was ranked higher than candidate B on a majority of the ballots, regardless of by how much, then A receives 1 point. –If each one was ranked higher than the other by the same number of voters, then each one receives ½ point. After all possible combinations are compared, the total points awarded to each candidate are summed up. –The total of all points awarded will be the total number of matchups (which will be n C 2, a fact we can use to make sure we haven’t missed any matchups). This is also the round-robin method used in many competitions, in which the team(s) with the most head-to-head victories advance.

23
Another pairwise-comparison method One alternative version is the Kemeny-Young method. Voters again rank all candidates with a preference ballot and tally their head-to-head record for each combination of two candidates. This time, we keep track of how many voters ranked candidate A higher than candidate B on the ballots, not just “who was higher.” For each of the possible n! permutations of the rankings of the n candidates, we tally the percent of voters who preferred each of the n candidates to each of the ones below them. –Example: For ranking ACB (1 of 6 A/B/C ones), find how many preferred A over C, A over B, and C over B. (no other comparisons) After all of those matchups are compared, the sum of all the percentages calculated gives the Kemeny sequence score. –Whichever specific sequence of the n candidates has the highest Kemeny sequence score is decreed to be the “winning sequence.” Its rankings are considered the aggregate voters’ 1 st choice, 2 nd choice, etc.

24
Bad news from France In the 2007 French elections, François Bayrou would have likely defeated all of his opponents using either the Borda count or pairwise- comparison methods. Condorcet’s criterion: if candidate X can defeat all other candidates in a head-to-head match, then X deserves to win the election. –Marie Jean Antoine Nicolas Caritat, the Marquis de Condorcet (1743-1794), French mathematician Clearly, anyone who is ranked first on all ballots will win the election. –They will automatically win every head-to-head matchup, for an unsurpassable total of (n - 1) points. However, it is possible for a candidate who would win using the plurality method to lose using the Borda count method, if they are ranked low on many other ballots.

25

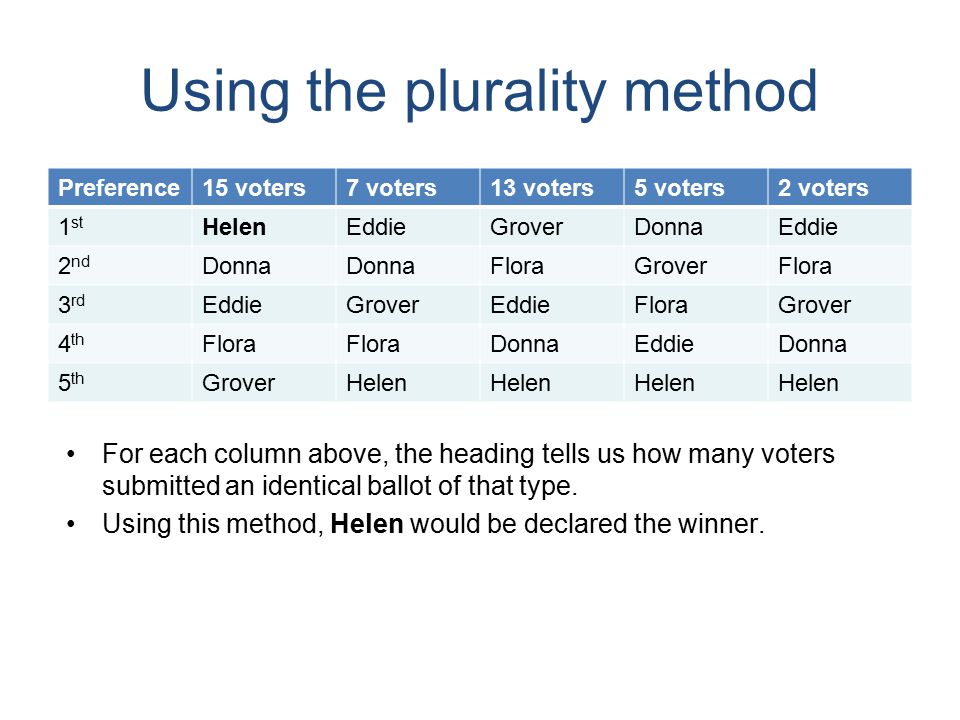

Using the plurality method For each column above, the heading tells us how many voters submitted an identical ballot of that type. Using this method, Helen would be declared the winner. Preference15 voters7 voters13 voters5 voters2 voters 1 st HelenEddieGroverDonnaEddie 2 nd Donna FloraGroverFlora 3 rd EddieGroverEddieFloraGrover 4 th Flora DonnaEddieDonna 5 th GroverHelen

26
Using the plurality-with-elimination method Suppose that only Helen and Grover, the two candidates with the most number of “1 st choice” votes, advance to a runoff. –Barring any unforeseen change of heart, the likely result for the runoff would be: Preference15 voters7 voters13 voters5 voters2 voters 1 st HelenEddieGroverDonnaEddie 2 nd Donna FloraGroverFlora 3 rd EddieGroverEddieFloraGrover 4 th Flora DonnaEddieDonna 5 th GroverHelen Preference15 voters7 voters13 voters5 voters2 voters 1 st HelenGrover 2 nd GroverHelen Helen is “hated” by most voters, but her supporters are numerous enough to get her into the runoff, where all other voters flock to Grover, who would be declared the winner using this method.

27

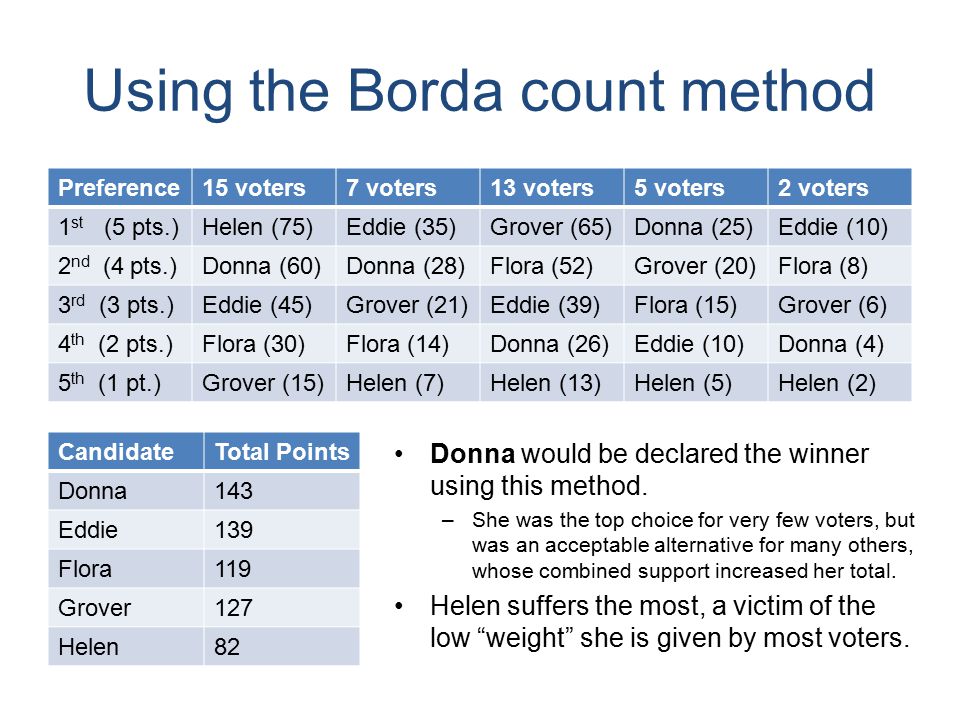

Using the Borda count method Donna would be declared the winner using this method. –She was the top choice for very few voters, but was an acceptable alternative for many others, whose combined support increased her total. Helen suffers the most, a victim of the low “weight” she is given by most voters. Preference15 voters7 voters13 voters5 voters2 voters 1 st (5 pts.)Helen (75)Eddie (35)Grover (65)Donna (25)Eddie (10) 2 nd (4 pts.)Donna (60)Donna (28)Flora (52)Grover (20)Flora (8) 3 rd (3 pts.)Eddie (45)Grover (21)Eddie (39)Flora (15)Grover (6) 4 th (2 pts.)Flora (30)Flora (14)Donna (26)Eddie (10)Donna (4) 5 th (1 pt.)Grover (15)Helen (7)Helen (13)Helen (5)Helen (2) CandidateTotal Points Donna143 Eddie139 Flora119 Grover127 Helen82

28

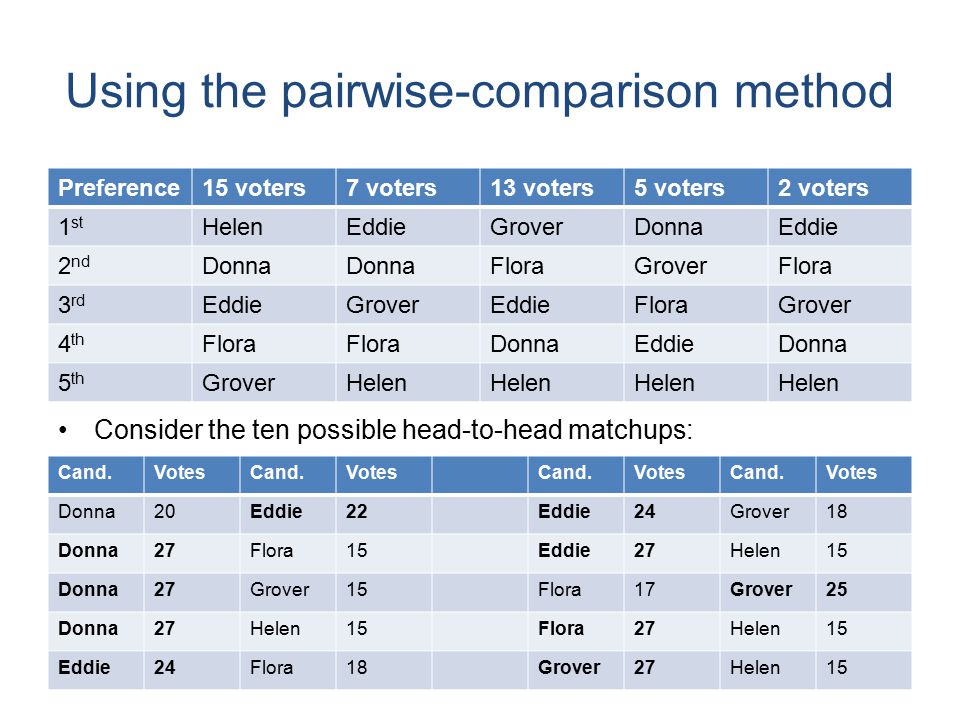

Using the pairwise-comparison method Consider the ten possible head-to-head matchups: Preference15 voters7 voters13 voters5 voters2 voters 1 st HelenEddieGroverDonnaEddie 2 nd Donna FloraGroverFlora 3 rd EddieGroverEddieFloraGrover 4 th Flora DonnaEddieDonna 5 th GroverHelen Cand.VotesCand.VotesCand.VotesCand.Votes Donna20Eddie22Eddie24Grover18 Donna27Flora15Eddie27Helen15 Donna27Grover15Flora17Grover25 Donna27Helen15Flora27Helen15 Eddie24Flora18Grover27Helen15

29

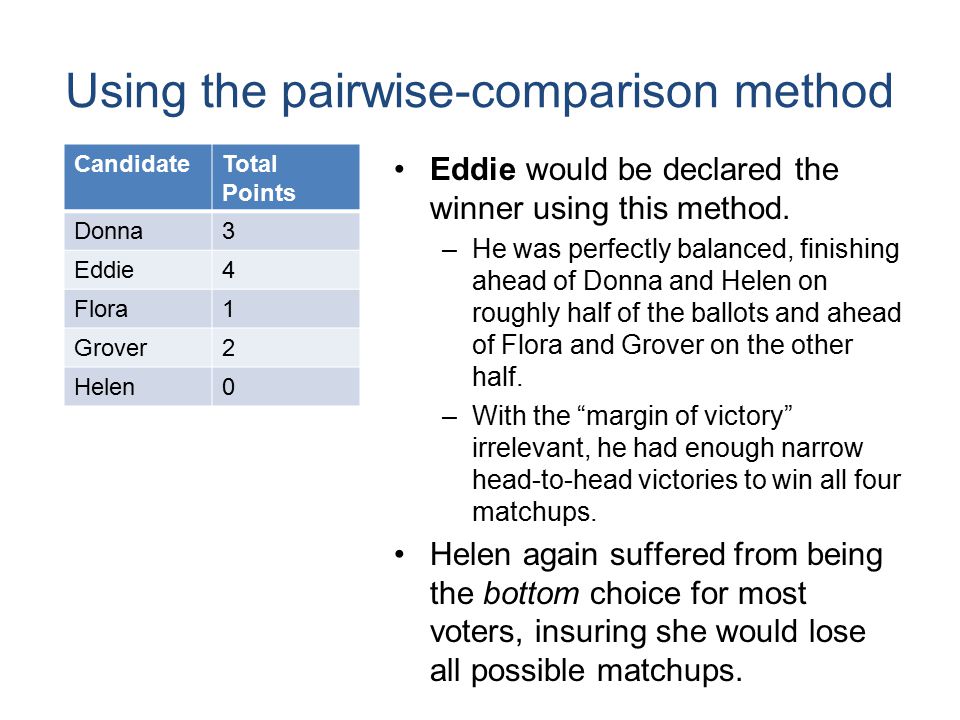

Using the pairwise-comparison method Eddie would be declared the winner using this method. –He was perfectly balanced, finishing ahead of Donna and Helen on roughly half of the ballots and ahead of Flora and Grover on the other half. –With the “margin of victory” irrelevant, he had enough narrow head-to-head victories to win all four matchups. Helen again suffered from being the bottom choice for most voters, insuring she would lose all possible matchups. CandidateTotal Points Donna3 Eddie4 Flora1 Grover2 Helen0

30

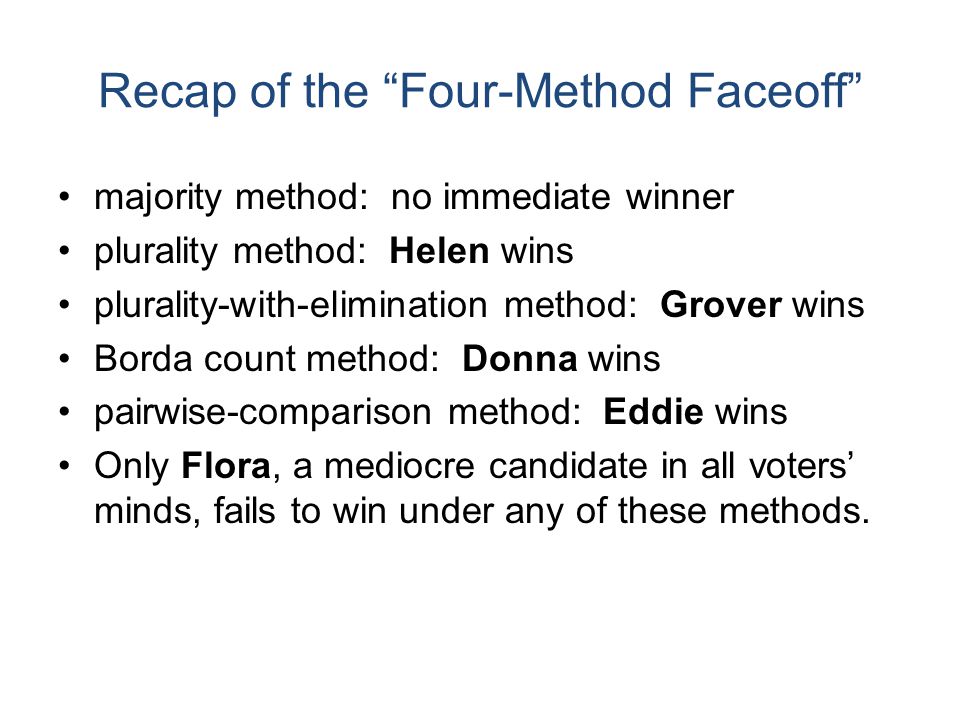

Recap of the “Four-Method Faceoff” majority method: no immediate winner plurality method: Helen wins plurality-with-elimination method: Grover wins Borda count method: Donna wins pairwise-comparison method: Eddie wins Only Flora, a mediocre candidate in all voters’ minds, fails to win under any of these methods.

31
Recap of the “Four-Method Faceoff” Each method yielded different results because each was violating a different “fairness criterion.” So...which voting method should we use? Violates majority criterion? Violates Concorcet’s criterion? Violates indep.-of- irrelevant-alt. criterion? Violates monotonicity criterion? Plurality methodNoYes No Plurality-with- elimination NoYes Borda count method Yes No Pairwise-comp./ Kemeny-Young No YesNo

32

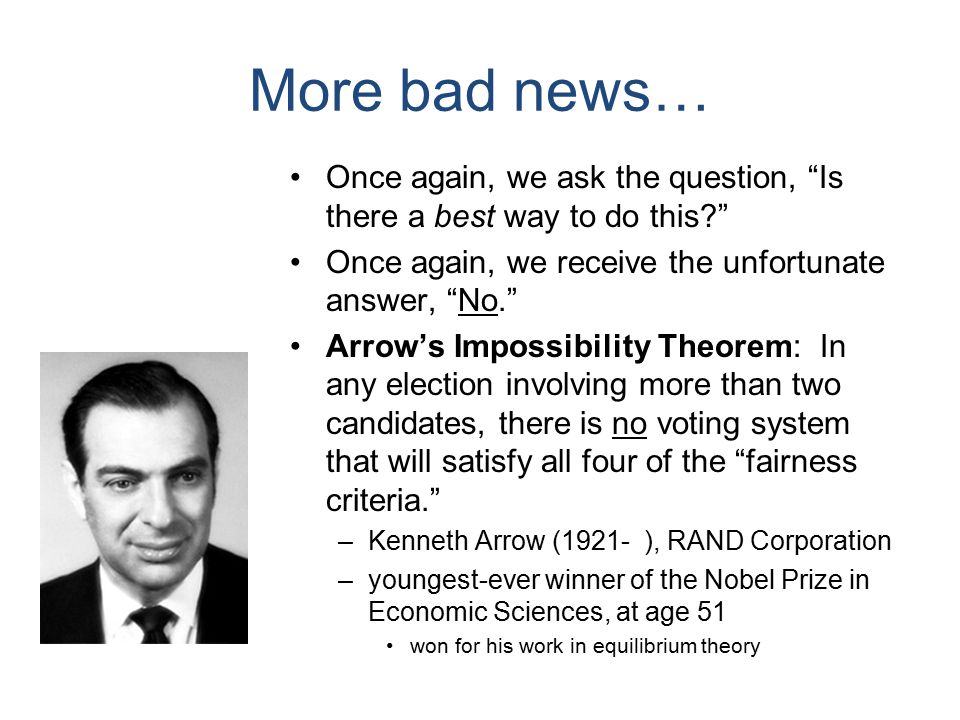

More bad news… Once again, we ask the question, “Is there a best way to do this?” Once again, we receive the unfortunate answer, “No.” Arrow’s Impossibility Theorem: In any election involving more than two candidates, there is no voting system that will satisfy all four of the “fairness criteria.” –Kenneth Arrow (1921- ), RAND Corporation –youngest-ever winner of the Nobel Prize in Economic Sciences, at age 51 won for his work in equilibrium theory

33

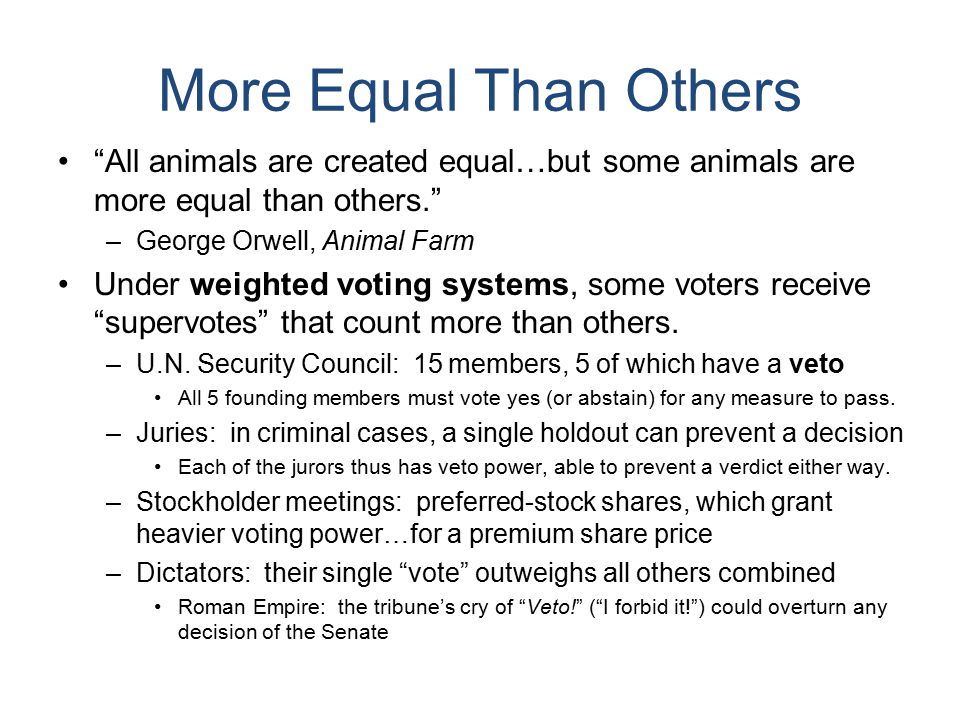

More Equal Than Others “All animals are created equal…but some animals are more equal than others.” –George Orwell, Animal Farm Under weighted voting systems, some voters receive “supervotes” that count more than others. –U.N. Security Council: 15 members, 5 of which have a veto All 5 founding members must vote yes (or abstain) for any measure to pass. –Juries: in criminal cases, a single holdout can prevent a decision Each of the jurors thus has veto power, able to prevent a verdict either way. –Stockholder meetings: preferred-stock shares, which grant heavier voting power…for a premium share price –Dictators: their single “vote” outweighs all others combined Roman Empire: the tribune’s cry of “Veto!” (“I forbid it!”) could overturn any decision of the Senate

34

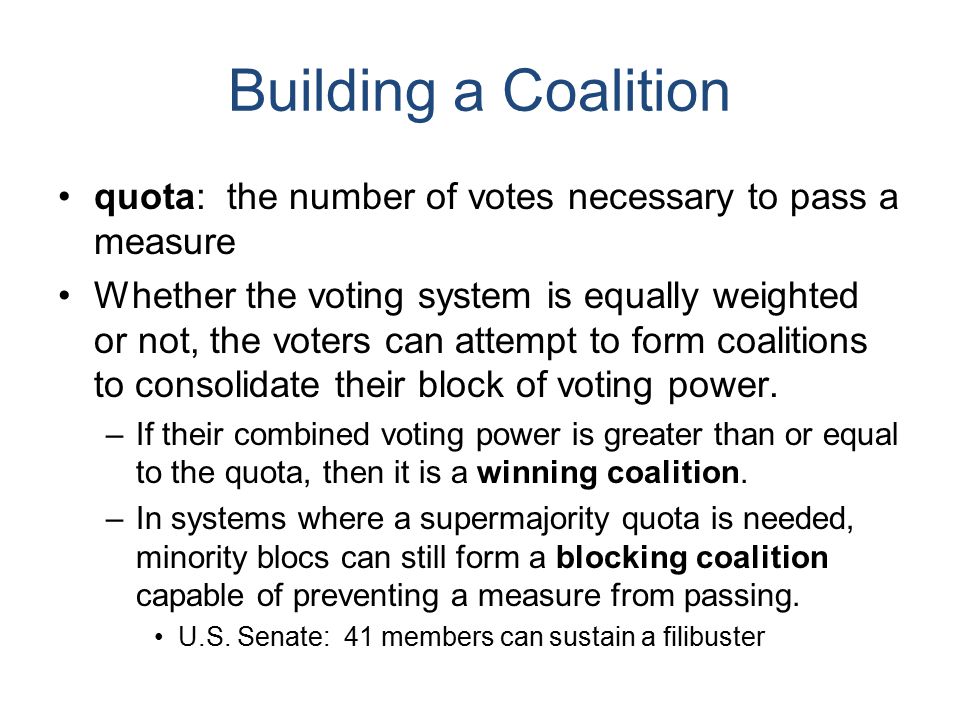

Building a Coalition quota: the number of votes necessary to pass a measure Whether the voting system is equally weighted or not, the voters can attempt to form coalitions to consolidate their block of voting power. –If their combined voting power is greater than or equal to the quota, then it is a winning coalition. –In systems where a supermajority quota is needed, minority blocs can still form a blocking coalition capable of preventing a measure from passing. U.S. Senate: 41 members can sustain a filibuster

35

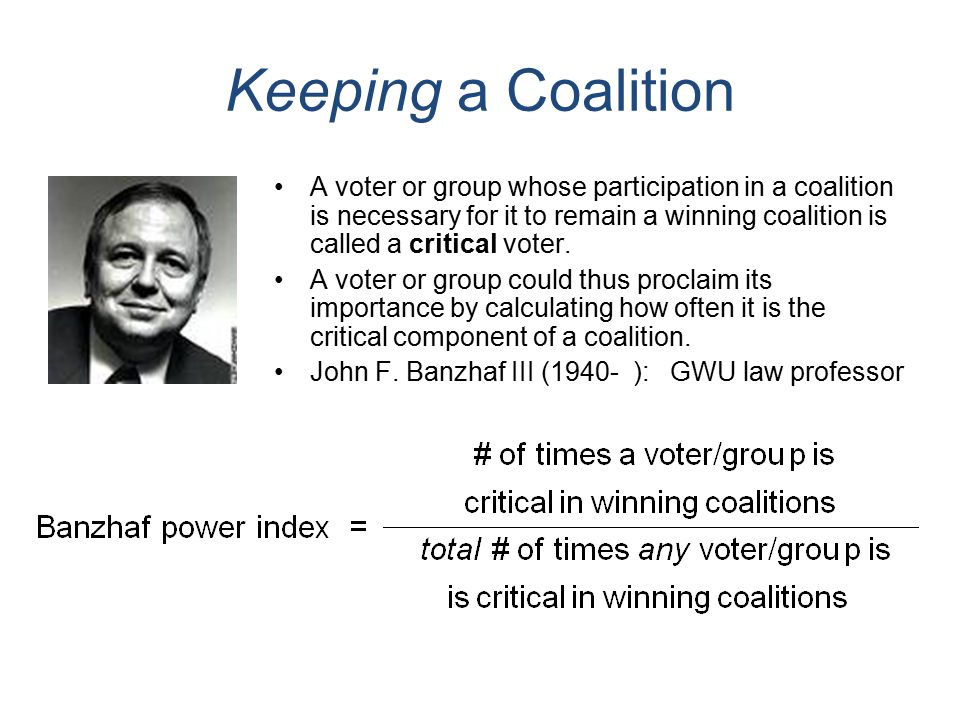

Keeping a Coalition A voter or group whose participation in a coalition is necessary for it to remain a winning coalition is called a critical voter. A voter or group could thus proclaim its importance by calculating how often it is the critical component of a coalition. John F. Banzhaf III (1940- ): GWU law professor

36
Canadian House of Commons With just short of a majority, the Conservatives can theoretically choose any of the other three major parties to ally with for a ruling coalition. They are thus critical in every winning coalition except the triad coalitions of the other three (163 MPs total). However, so are any of the three when only one works with the Conservatives, or when the three band together. Winning coalitions: {CL}, {CQ}, {CN}, {CLQ}, {CLN}, {CQN}, {CLQN}, {LQN}, and each with either/both of the other 2 –(i.e., 4 versions of each of these 7) PartyMPs Conservative143 Liberal77 Québécois49 NDP37 Others2 Total308 PartyBPI Conservative Liberal Québécois NDP

37

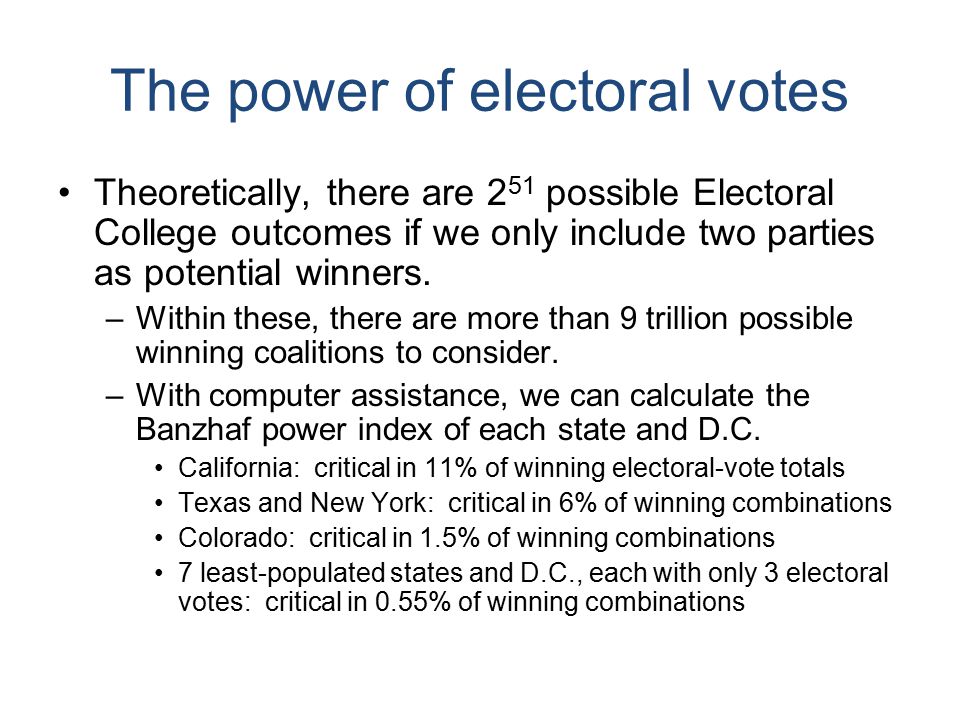

The power of electoral votes Theoretically, there are 2 51 possible Electoral College outcomes if we only include two parties as potential winners. –Within these, there are more than 9 trillion possible winning coalitions to consider. –With computer assistance, we can calculate the Banzhaf power index of each state and D.C. California: critical in 11% of winning electoral-vote totals Texas and New York: critical in 6% of winning combinations Colorado: critical in 1.5% of winning combinations 7 least-populated states and D.C., each with only 3 electoral votes: critical in 0.55% of winning combinations

38

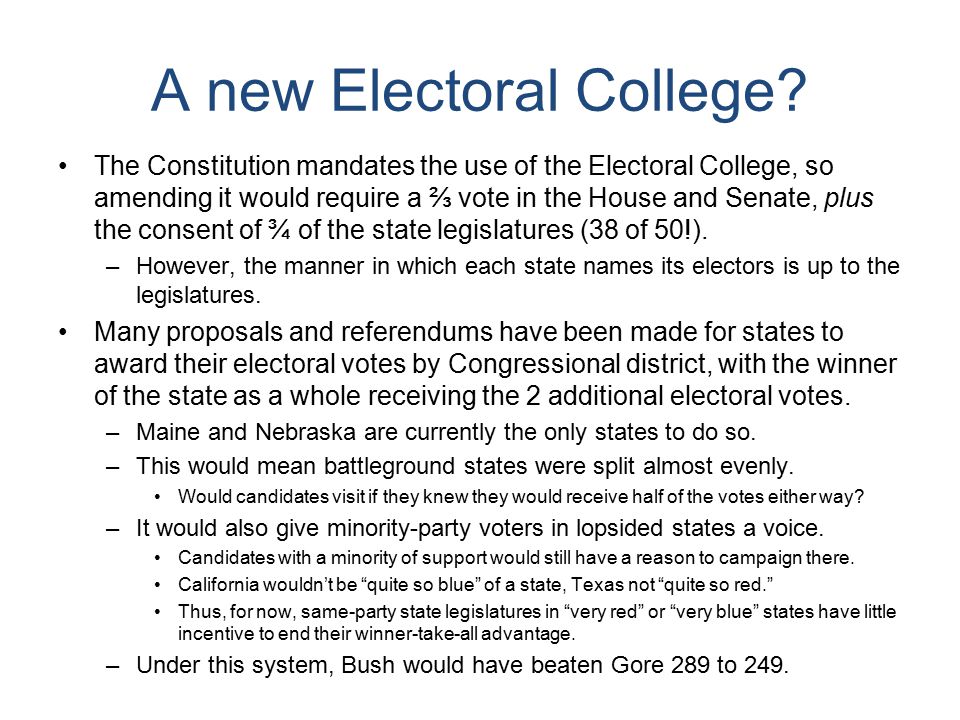

A new Electoral College? The Constitution mandates the use of the Electoral College, so amending it would require a ⅔ vote in the House and Senate, plus the consent of ¾ of the state legislatures (38 of 50!). –However, the manner in which each state names its electors is up to the legislatures. Many proposals and referendums have been made for states to award their electoral votes by Congressional district, with the winner of the state as a whole receiving the 2 additional electoral votes. –Maine and Nebraska are currently the only states to do so. –This would mean battleground states were split almost evenly. Would candidates visit if they knew they would receive half of the votes either way? –It would also give minority-party voters in lopsided states a voice. Candidates with a minority of support would still have a reason to campaign there. California wouldn’t be “quite so blue” of a state, Texas not “quite so red.” Thus, for now, same-party state legislatures in “very red” or “very blue” states have little incentive to end their winner-take-all advantage. –Under this system, Bush would have beaten Gore 289 to 249.

39
Other voting dilemmas Presidential primary season –Statewide party votes staggered throughout the winter and spring of election years –Intense focus on early primaries (NH, IA, SC), with very little on states late in the primary season (winners chosen before then) –2008: historical exception, with 10 candidates from each party Democratic candidate Obama: did not achieve majority of convention delegates until final primaries in early June Republican candidate McCain: achieved majority of delegates relatively early Candidates dropped out quickly if they found little early support –Lower turnout in Republican primaries once the contest was “over” –Later ballots would include only 2 or 3 of the 10 original candidates –Republican voters in late-primary states felt robbed of their chance to vote for their preferred candidate

40

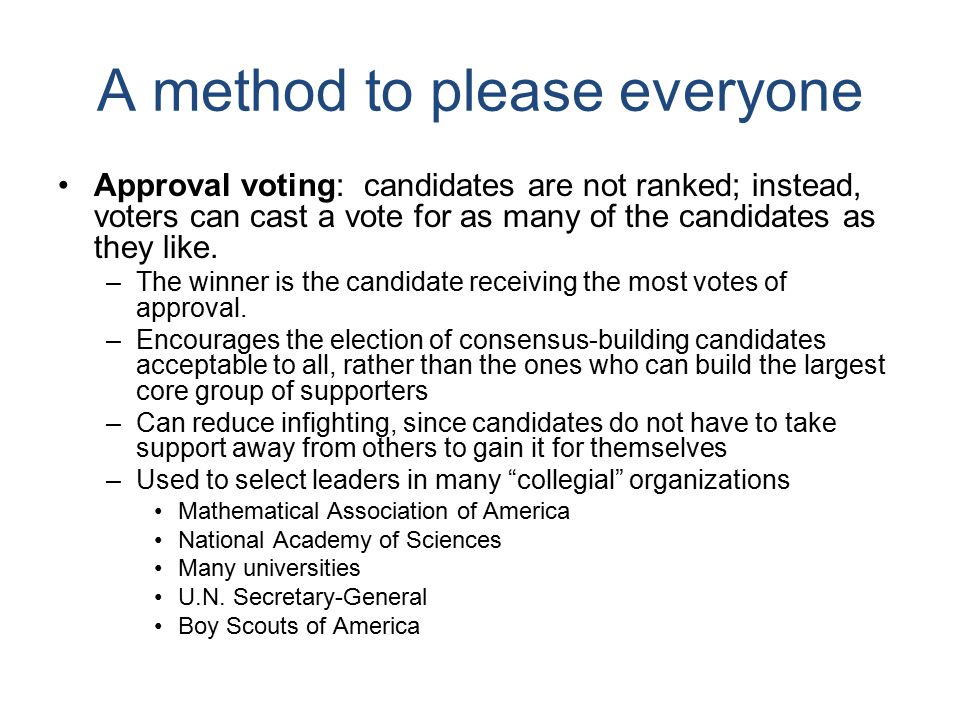

A method to please everyone Approval voting: candidates are not ranked; instead, voters can cast a vote for as many of the candidates as they like. –The winner is the candidate receiving the most votes of approval. –Encourages the election of consensus-building candidates acceptable to all, rather than the ones who can build the largest core group of supporters –Can reduce infighting, since candidates do not have to take support away from others to gain it for themselves –Used to select leaders in many “collegial” organizations Mathematical Association of America National Academy of Sciences Many universities U.N. Secretary-General Boy Scouts of America

41
What have we learned? Much like allocating a group of representatives, deciding how they will be elected is not easy. In yet another world of paradoxes, contradictory results, and unhappy candidates, no method of voting is perfect. Depending on the voting system used, a candidate can end up with a narrow victory, a crushing landslide, or a stunning defeat, all with the same vote tallies. Even in our “two-party” system, smaller third-party candidates can have a major mathematical impact. Under our current Electoral College system, large states get more attention because there are more ways they can end up on the “winning side.” –If their electoral votes were split up, the “balance of power” might change. (Of course, that’s why it probably won’t be changed.) And don’t even get me started about Parliamentary systems.

42
References Most liberal-arts college-mathematics course (ex.: MATH 110) textbooks –Including ours, Thomas L. Pirnot’s Mathematics All Around, 3 rd edition The Alfred Nobel Foundation: www.nobelprize.orgwww.nobelprize.org Banzhaf Power Index analysis of the Electoral College (2 studies): –www.everything2.com/node/1678149www.everything2.com/node/1678149 –www.cs.uiowa.edu/~dsidran/2000%20Power%20Indices.htmwww.cs.uiowa.edu/~dsidran/2000%20Power%20Indices.htm Banzhaf’s own website: www.banzhaf.netwww.banzhaf.net National Archive 2000 Election Returns: –www.archives.gov/federal_register/electoral_college/votes/2000_2005.html#2000www.archives.gov/federal_register/electoral_college/votes/2000_2005.html#2000 Analysis of 2000 Presidential election given different House sizes: –www.thirty-thousand.org/pages/Neubauer-Zeitlin.htmwww.thirty-thousand.org/pages/Neubauer-Zeitlin.htm Interactive electoral maps, both historic and modern: www.270towin.comwww.270towin.com The story of GJ’s own James W. Bucklin: www.gjhistory.org/cat/main.htmwww.gjhistory.org/cat/main.htm –And look for his Grand Junction charter and voting system debut at books.google.com!books.google.com And yes, of course, Google and Wikipedia. My Mesa State homepage, at www.mesastate.edu/~mcrogers, will have this presentation plus the previous one.www.mesastate.edu/~mcrogers
