2 7 Auxiliary Views

3 Permission granted to reproduce for educational use only. Explain the purposes of auxiliary views. Identify auxiliary views and explain their relationship to regular views. Discuss terms related to auxiliary view projection. Read prints that incorporate auxiliary views.

4 Permission granted to reproduce for educational use only. Auxiliary Views Created with a projection plane that is not in one of the normal directions An orthographic view

5 Permission granted to reproduce for educational use only. Auxiliary View Purpose Can be used to show the true size and shape of an inclined surface

6 Permission granted to reproduce for educational use only. Auxiliary View Purpose Can be used to show the true angle of a groove

7 Permission granted to reproduce for educational use only. Auxiliary Views in Education In education or standards, reference lines are often used to help construct the auxiliary view

8 Permission granted to reproduce for educational use only. Visualizing Auxiliary Views Turn the drawing to see the auxiliary view in a horizontal or vertical orientation

9 Permission granted to reproduce for educational use only. Auxiliary View Types Primary: projected from a normal view Secondary: projected from a primary auxiliary By dimension: –Height: projected from the top view –Width: projected from the side view –Depth: projected from the front view

10 Permission granted to reproduce for educational use only. Partial Auxiliary View Does not show the entire object

11 Permission granted to reproduce for educational use only. Secondary Auxiliary View Projected from a primary auxiliary view

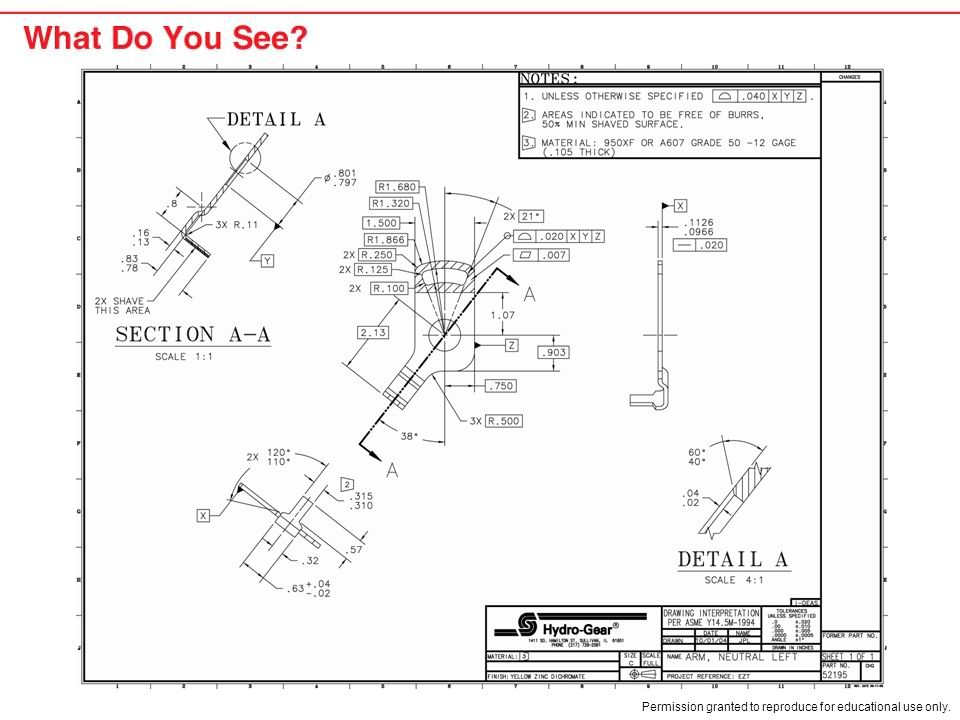

12 Permission granted to reproduce for educational use only.

13 When is an auxiliary view used? To show the true size and shape of a feature that cannot be shown as such in a normal view

14 Permission granted to reproduce for educational use only. What is the relationship of an auxiliary view to the normal views? Any projected view that is not one of the six normal views is an auxiliary view.

15 Permission granted to reproduce for educational use only. Define dihedral angle. The true angle between two surfaces

16 Permission granted to reproduce for educational use only. What is a primary auxiliary view? An auxiliary view projected from one of the six normal views

17 Permission granted to reproduce for educational use only. What is a secondary auxiliary view? An auxiliary view projected from a primary auxiliary view instead of a normal view
