1. 1 Requirements Catalog Scott A. Moseley Farbum Scotus

2. 2 Why a Requirements Catalog? Why not write TPs immediately?  To answer the question: What are the core IPv6 requirements?  RFCs not written using the same rules as ETSI uses; e.g. extensive use of MAYs, SHOULDs, and NOTs. Thus, fuzzier requirements (for us).  Language and meaning are important.  Multiple sources: RFCs, 3GPP, “industry practice,” IPv6 Forum label work  Same requirement expressed across multiple source documents  Requirements for Node, Router, and Host where Node can be either Router or Host  Need a link between requirement source and resulting test purpose and test case/description  A functional classification system is useful  This is not easy  Who can use? Developers, manufacturers, procurement, test writers.

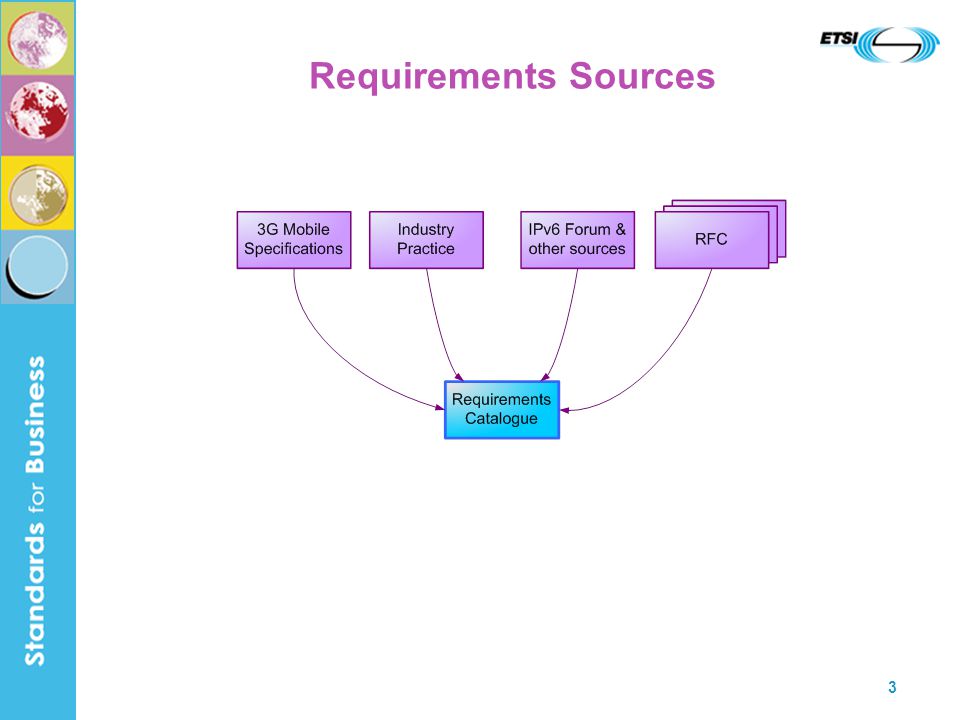

3. 3 Requirements Sources

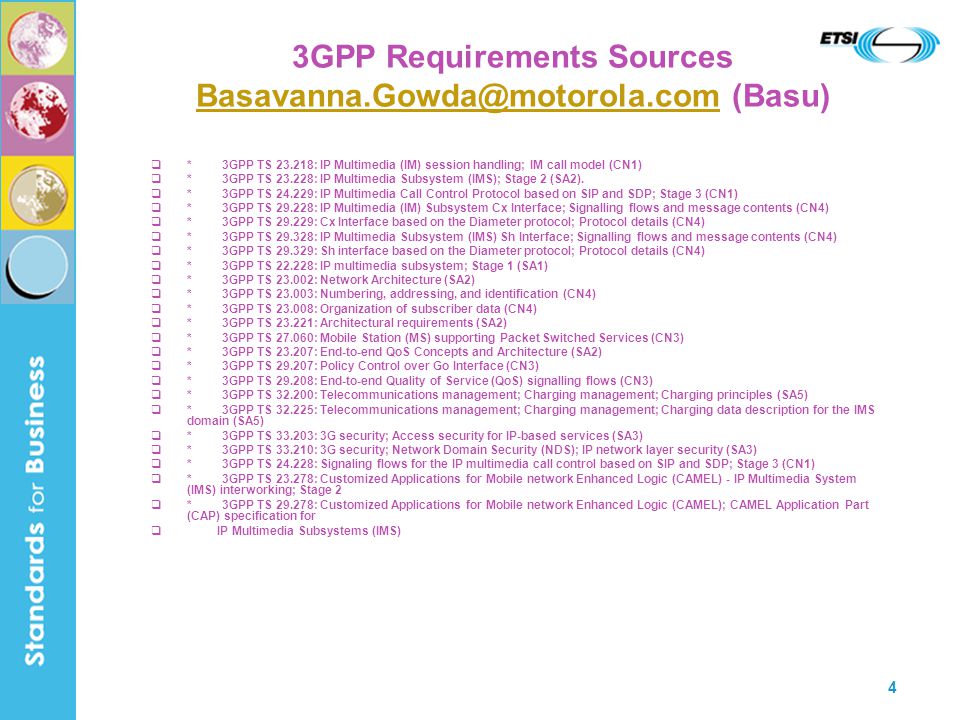

4. 4 3GPP Requirements Sources Basavanna.Gowda@motorola.com (Basu) Basavanna.Gowda@motorola.com  * 3GPP TS 23.218: IP Multimedia (IM) session handling; IM call model (CN1)  * 3GPP TS 23.228: IP Multimedia Subsystem (IMS); Stage 2 (SA2).  * 3GPP TS 24.229: IP Multimedia Call Control Protocol based on SIP and SDP; Stage 3 (CN1)  * 3GPP TS 29.228: IP Multimedia (IM) Subsystem Cx Interface; Signalling flows and message contents (CN4)  * 3GPP TS 29.229: Cx Interface based on the Diameter protocol; Protocol details (CN4)  * 3GPP TS 29.328: IP Multimedia Subsystem (IMS) Sh Interface; Signalling flows and message contents (CN4)  * 3GPP TS 29.329: Sh interface based on the Diameter protocol; Protocol details (CN4)  * 3GPP TS 22.228: IP multimedia subsystem; Stage 1 (SA1)  * 3GPP TS 23.002: Network Architecture (SA2)  * 3GPP TS 23.003: Numbering, addressing, and identification (CN4)  * 3GPP TS 23.008: Organization of subscriber data (CN4)  * 3GPP TS 23.221: Architectural requirements (SA2)  * 3GPP TS 27.060: Mobile Station (MS) supporting Packet Switched Services (CN3)  * 3GPP TS 23.207: End-to-end QoS Concepts and Architecture (SA2)  * 3GPP TS 29.207: Policy Control over Go Interface (CN3)  * 3GPP TS 29.208: End-to-end Quality of Service (QoS) signalling flows (CN3)  * 3GPP TS 32.200: Telecommunications management; Charging management; Charging principles (SA5)  * 3GPP TS 32.225: Telecommunications management; Charging management; Charging data description for the IMS domain (SA5)  * 3GPP TS 33.203: 3G security; Access security for IP-based services (SA3)  * 3GPP TS 33.210: 3G security; Network Domain Security (NDS); IP network layer security (SA3)  * 3GPP TS 24.228: Signaling flows for the IP multimedia call control based on SIP and SDP; Stage 3 (CN1)  * 3GPP TS 23.278: Customized Applications for Mobile network Enhanced Logic (CAMEL) - IP Multimedia System (IMS) interworking; Stage 2  * 3GPP TS 29.278: Customized Applications for Mobile network Enhanced Logic (CAMEL); CAMEL Application Part (CAP) specification for  IP Multimedia Subsystems (IMS)

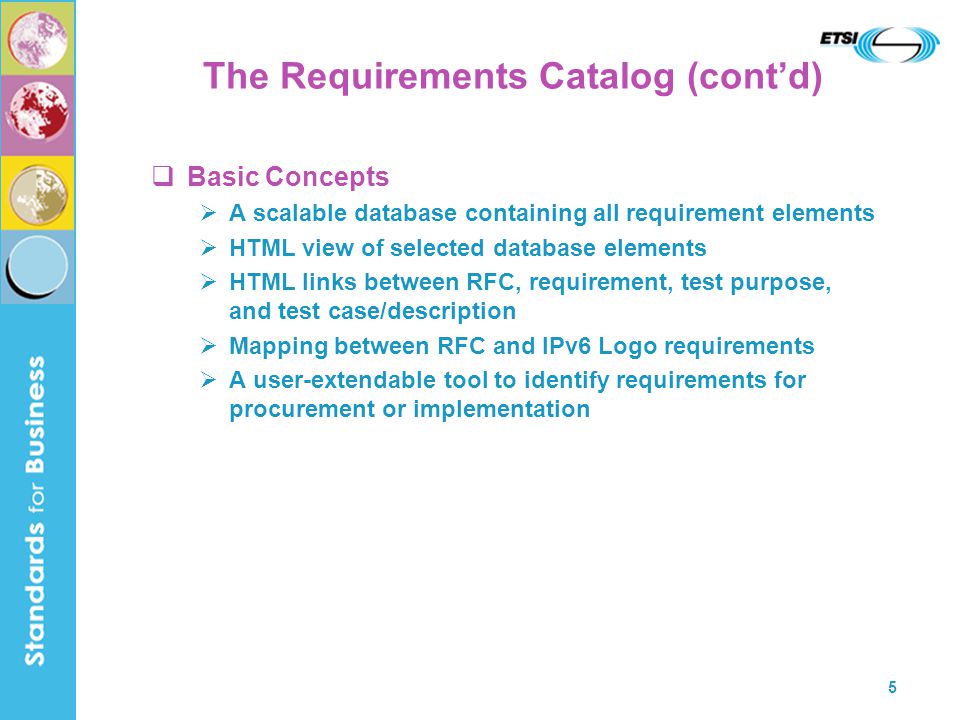

5. 5 The Requirements Catalog (cont’d)  Basic Concepts  A scalable database containing all requirement elements  HTML view of selected database elements  HTML links between RFC, requirement, test purpose, and test case/description  Mapping between RFC and IPv6 Logo requirements  A user-extendable tool to identify requirements for procurement or implementation

6. 6 Extract from Requirements DB

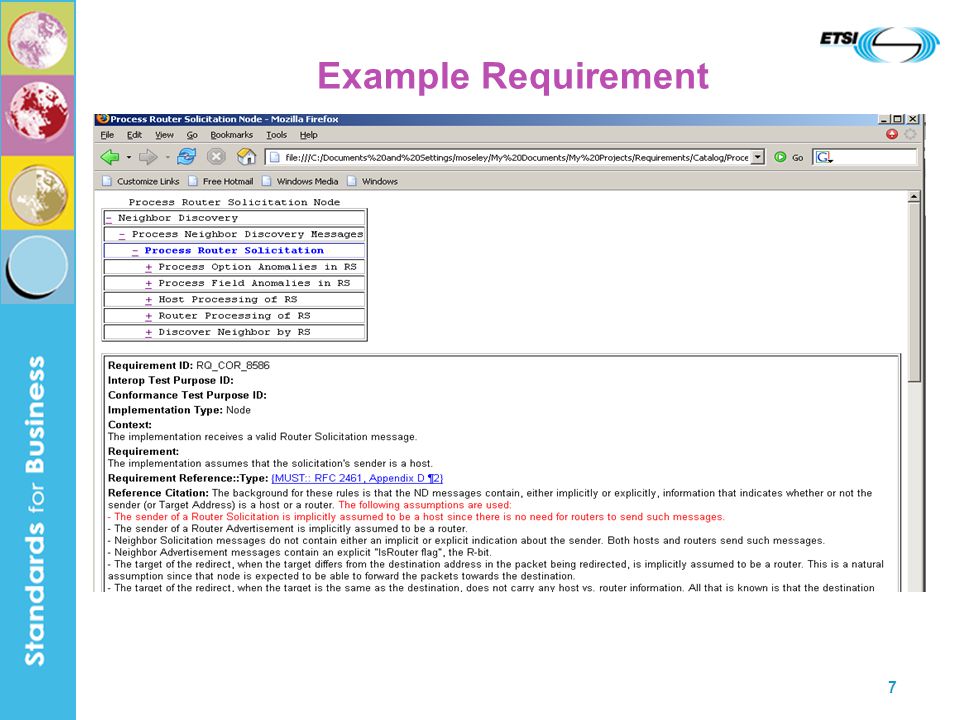

7. 7 Example Requirement
