Company LOGO Interworked WiMAX-3G Cellular Data Networks: An Architecture for Mobility Management and Performance Evaluation 指導教授： 童曉儒 教授 學生：許益晨 IEEE TRANSACTIONS ON WIRELESS COMMUNICATIONS, VOL. 8, NO. 4, APRIL 2009 Kumudu S. Munasinghe, Student Member, IEEE, and Abbas Jamalipour, Fellow, IEEE
Outline Introduction IMS Based Session Management WiMAX-3G Cellular Interworking Performance Modeling Numerical Results and Analysis Conclusions and Future Work 2
Introduction Mobile WiMAX networks are still in its infancy with many technical challenges lying ahead. The lack of an infrastructure for the WiMAX Core Network (CN). If mobile WiMAX is interworked with the already well established 3G cellular networks, that it may become an essential partner of the future 4G networks. 3
Introduction Mobile IP (MIP) has been exploited as the mobility management mechanism in most of these designs. The primary focus of this paper is to introduce novel architecture and investigate various performance measures such as vertical handoff delay transient packet loss jitter signaling cost relating to vertical handoff management. 4

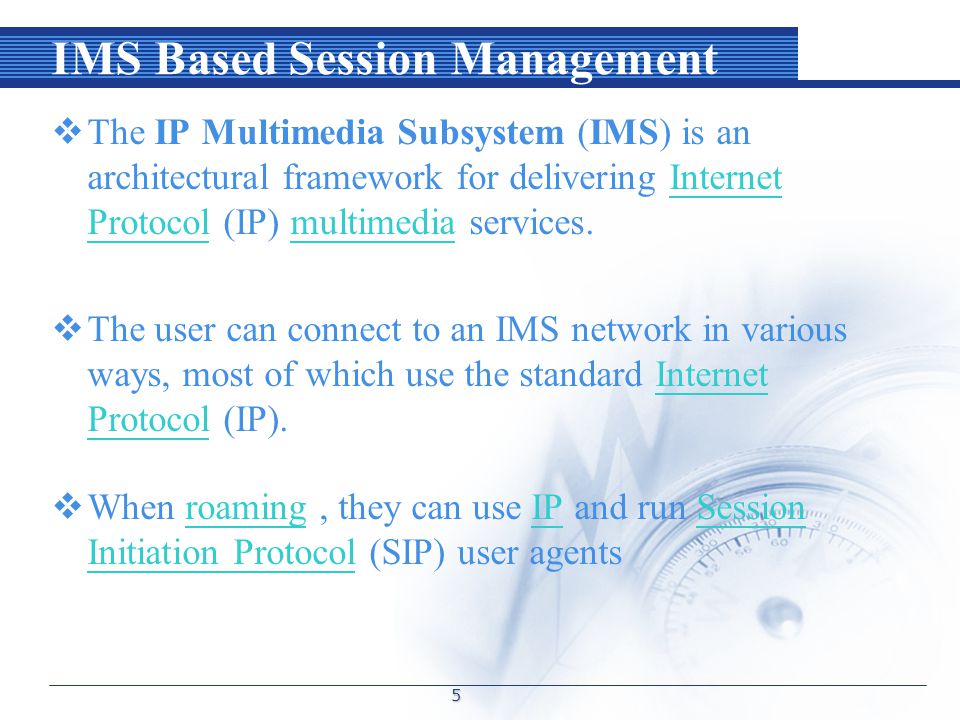

IMS Based Session Management The IP Multimedia Subsystem (IMS) is an architectural framework for delivering Internet Protocol (IP) multimedia services.Internet Protocolmultimedia The user can connect to an IMS network in various ways, most of which use the standard Internet Protocol (IP).Internet Protocol When roaming, they can use IP and run Session Initiation Protocol (SIP) user agentsroamingIPSession Initiation Protocol 5

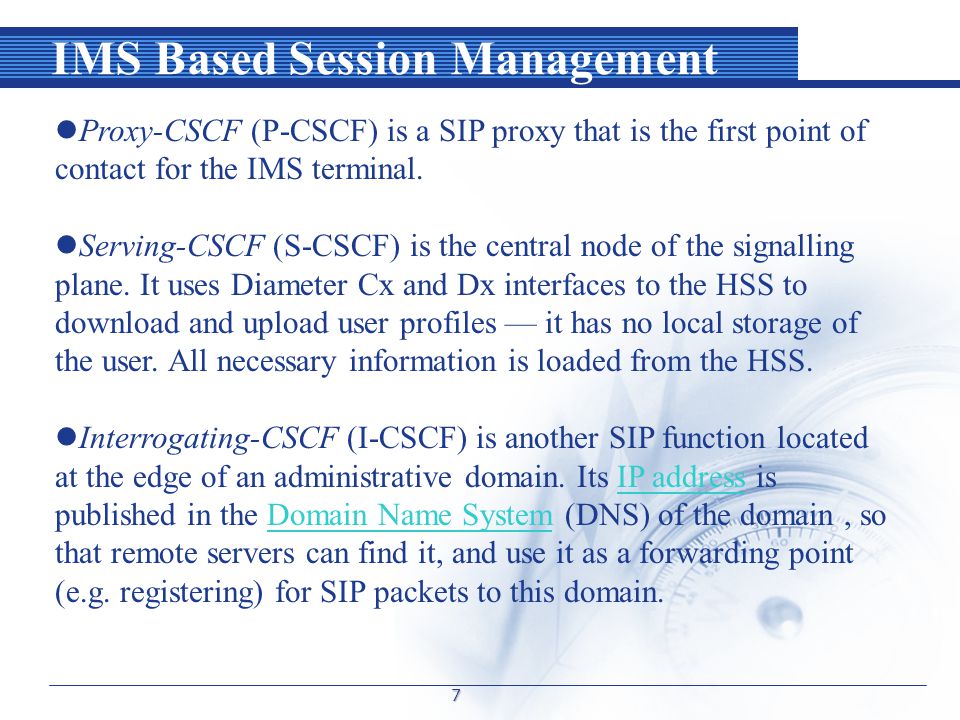

IMS Based Session Management 7 Proxy-CSCF (P-CSCF) is a SIP proxy that is the first point of contact for the IMS terminal. Serving-CSCF (S-CSCF) is the central node of the signalling plane. It uses Diameter Cx and Dx interfaces to the HSS to download and upload user profiles — it has no local storage of the user. All necessary information is loaded from the HSS. Interrogating-CSCF (I-CSCF) is another SIP function located at the edge of an administrative domain. Its IP address is published in the Domain Name System (DNS) of the domain, so that remote servers can find it, and use it as a forwarding point (e.g. registering) for SIP packets to this domain.IP addressDomain Name System
WiMAX-3G Cellular Interworking A.Architectural Considerations Design will be primarily based on MIPv4 3GPP2’s IMS does not fully support inter-Packet Data Switching Node(PDSN) mobility for IPv6. Eliminates the complexity of managing two IP addresses and enables IP mobility management transparently to the layers above. 9

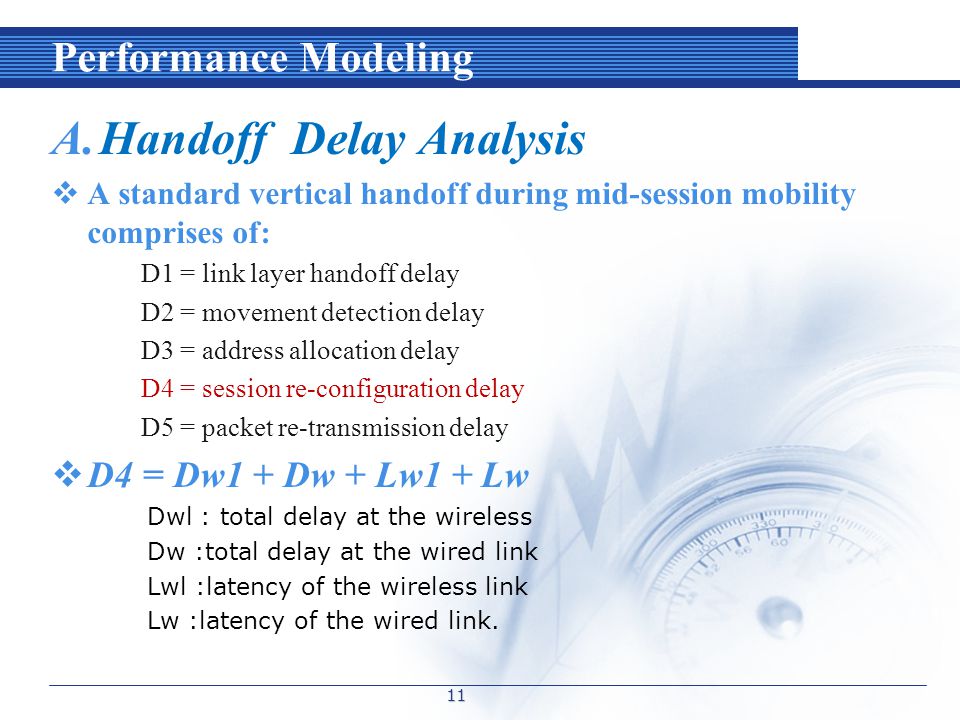

Performance Modeling A.Handoff Delay Analysis A standard vertical handoff during mid-session mobility comprises of: D1 = link layer handoff delay D2 = movement detection delay D3 = address allocation delay D4 = session re-configuration delay D5 = packet re-transmission delay D4 = Dw1 + Dw + Lw1 + Lw Dwl : total delay at the wireless Dw :total delay at the wired link Lwl :latency of the wireless link Lw :latency of the wired link. 11

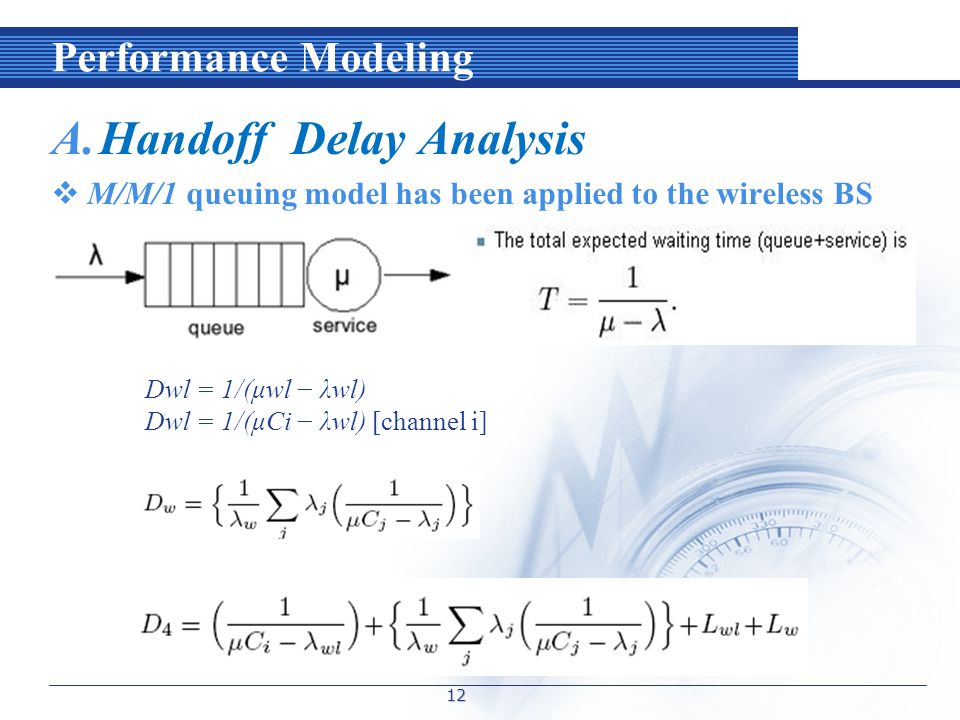

Performance Modeling A.Handoff Delay Analysis M/M/1 queuing model has been applied to the wireless BS 12 Dwl = 1/(μwl − λwl) Dwl = 1/(μCi − λwl) [channel i]

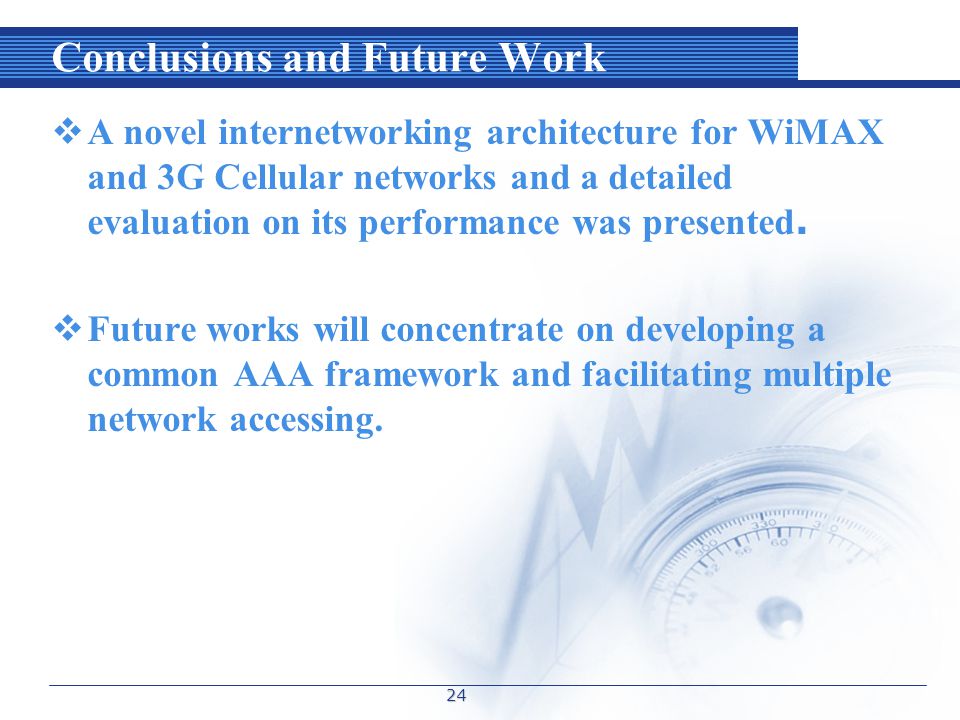

Conclusions and Future Work 24 A novel internetworking architecture for WiMAX and 3G Cellular networks and a detailed evaluation on its performance was presented. Future works will concentrate on developing a common AAA framework and facilitating multiple network accessing.
