1 Public Meeting: March 3, 2014 Truckee River Water Quality Standards Review

2 Overview of Topics for Discussion Welcome and introductions Review of water quality standards review process – Background – Water quality models – Approach for analysis – Results and observations Next steps 2

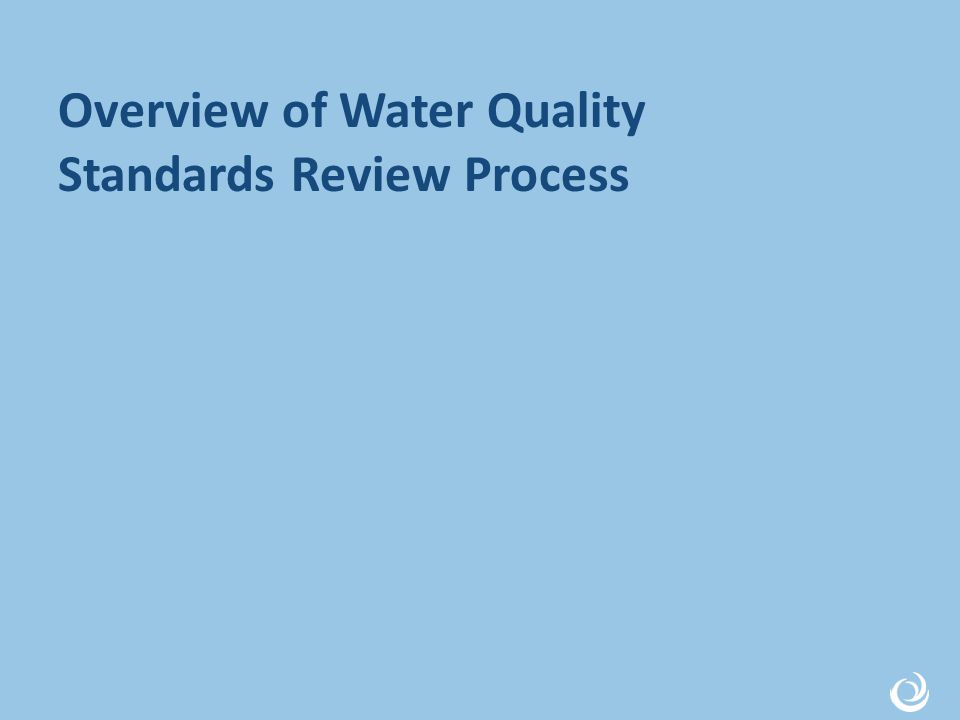

3 Overview of Water Quality Standards Review Process

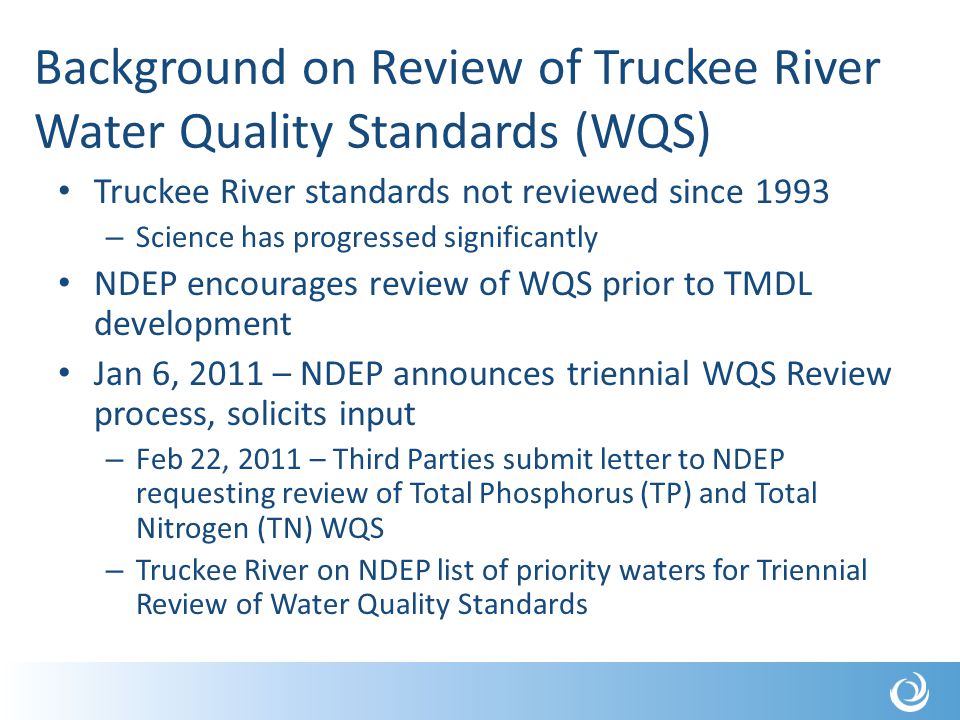

4 Background on Review of Truckee River Water Quality Standards (WQS) Truckee River standards not reviewed since 1993 – Science has progressed significantly NDEP encourages review of WQS prior to TMDL development Jan 6, 2011 – NDEP announces triennial WQS Review process, solicits input – Feb 22, 2011 – Third Parties submit letter to NDEP requesting review of Total Phosphorus (TP) and Total Nitrogen (TN) WQS – Truckee River on NDEP list of priority waters for Triennial Review of Water Quality Standards

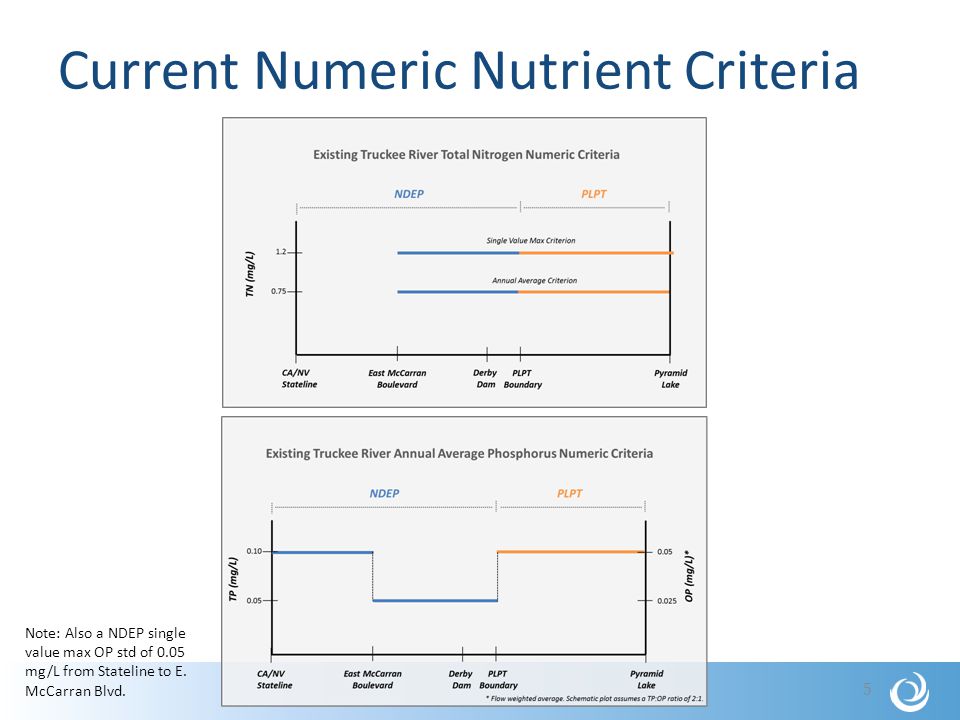

5 Current Numeric Nutrient Criteria 5 Note: Also a NDEP single value max OP std of 0.05 mg/L from Stateline to E. McCarran Blvd.

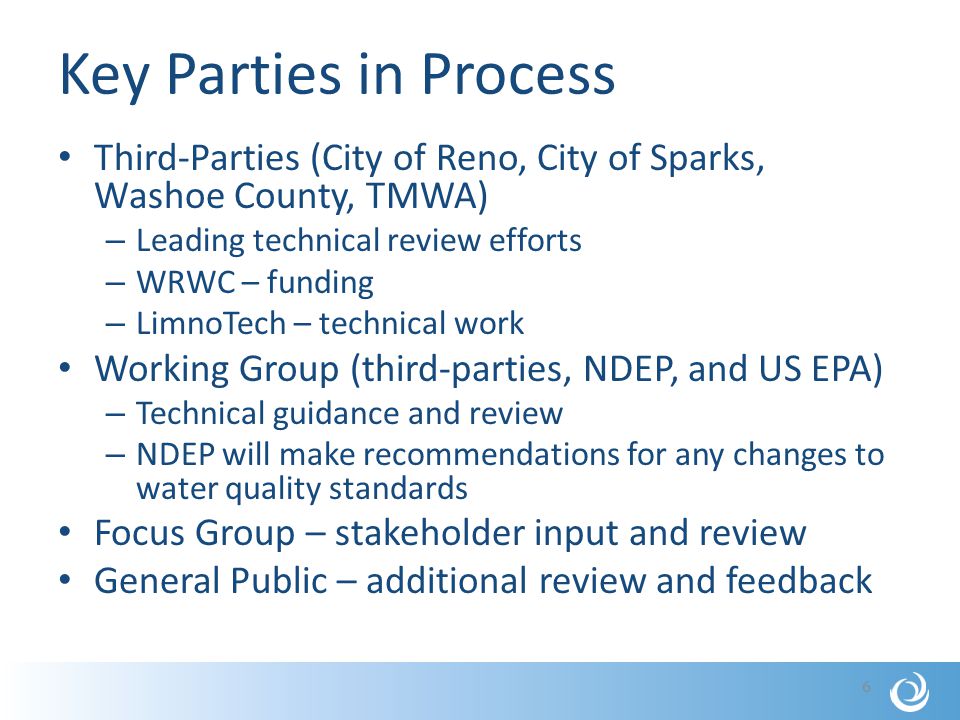

6 Key Parties in Process Third-Parties (City of Reno, City of Sparks, Washoe County, TMWA) – Leading technical review efforts – WRWC – funding – LimnoTech – technical work Working Group (third-parties, NDEP, and US EPA) – Technical guidance and review – NDEP will make recommendations for any changes to water quality standards Focus Group – stakeholder input and review General Public – additional review and feedback 6

7 Documentation of WQS Review All relevant reports and presentations available on TRIG (Truckee River Information Gateway) 7

8 Review of Water Quality Models

9 WARMF: Watershed Model 125 catchments (subwatersheds) Time step = 1 day 9 Peer reviewed, public domain Predicts watershed flow and pollutant loads based on – land use – meteorological conditions – water management – watershed improvements

10 TRHSPF: River Water Quality Model Based on science used for 1994 TMDL Open code, EPA-supported, peer reviewed Calibrated and verified, technology transferred Inputs are flow, watershed loads, point sources Predicts: – water quality response of river – nutrients  periphyton  dissolved oxygen 10

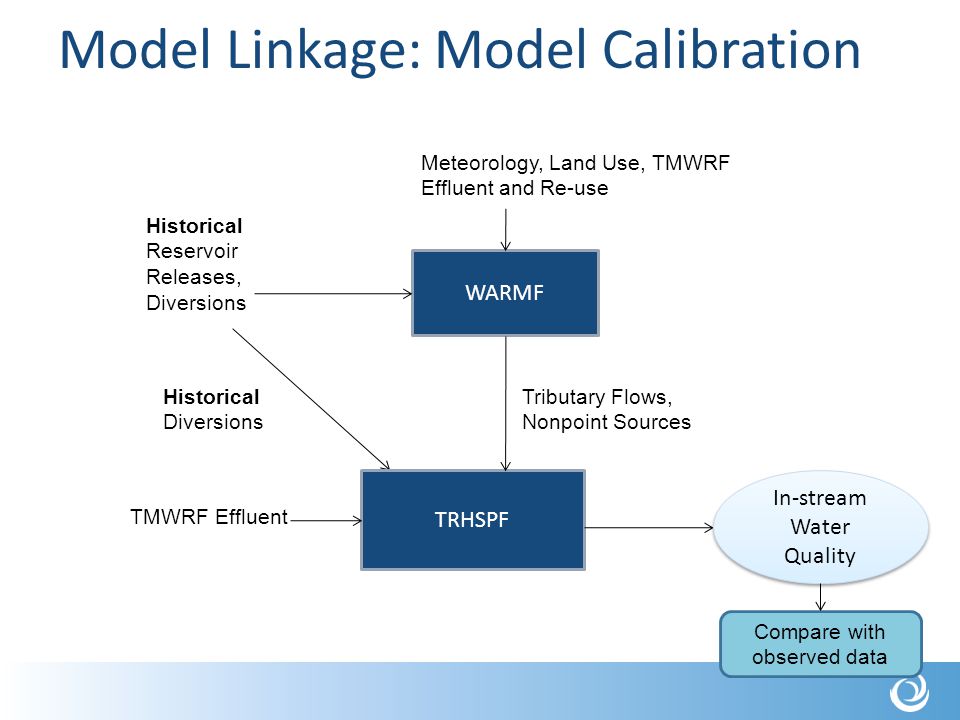

11 Model Linkage: Model Calibration WARMF TRHSPF Historical Reservoir Releases, Diversions Historical Diversions Tributary Flows, Nonpoint Sources In-stream Water Quality Meteorology, Land Use, TMWRF Effluent and Re-use TMWRF Effluent Compare with observed data

12 2012/2013 Model Extension/Update Effort to keep models current and build confidence in models Extended all databases through 12/31/2011 – Minor refinement of calibration – Several previous shortcomings addressed Model performance results “as good as” or “better” compared to prior model update Documented results in updated model confirmation report (available on TRIG) 12

13 Review of Approach for Technical Analysis

14 Use of Models for WQS Review Provide linkage between nutrient concentrations in the Truckee River and resulting dissolved oxygen levels Account for other factors (flow, temperature, light, organic matter, aeration) Understand river water quality response (dissolved oxygen) to ranges of nutrient concentrations under range of flow conditions Review site-specific nutrient criteria 14 Dissolved Oxygen Sunlight Flow Algae Aeration Nutrients (N&P) Temperature Organic Matter

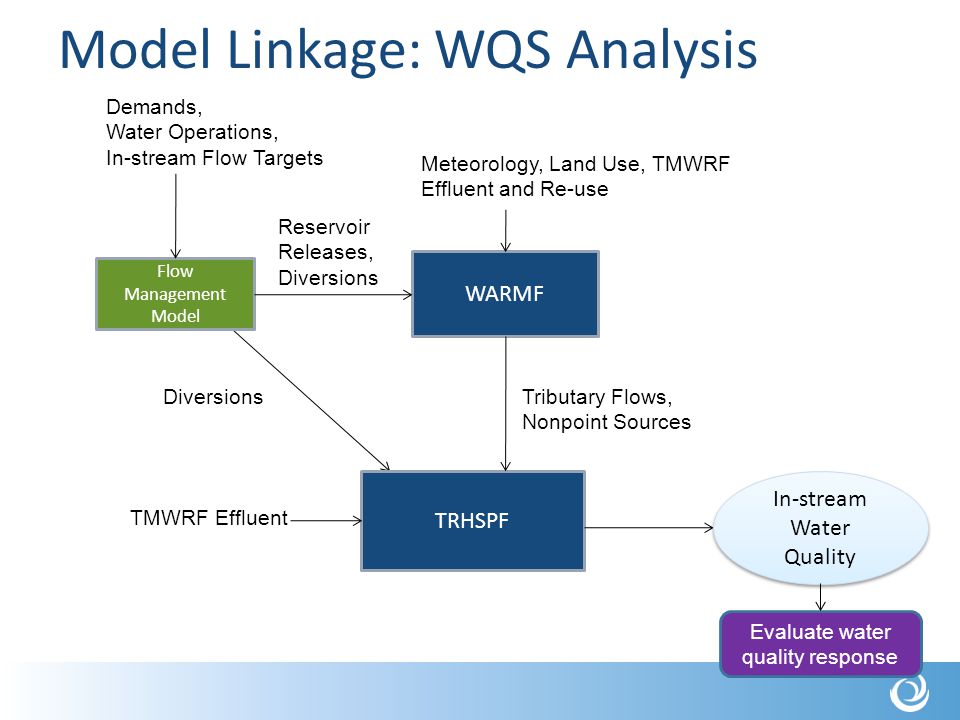

15 Model Linkage: WQS Analysis WARMF TRHSPF Flow Management Model Reservoir Releases, Diversions DiversionsTributary Flows, Nonpoint Sources In-stream Water Quality Demands, Water Operations, In-stream Flow Targets Meteorology, Land Use, TMWRF Effluent and Re-use TMWRF Effluent Evaluate water quality response

16 Conceptual Plot of Model Results 16

17 Assumptions for Model Application Flow management model provides model inputs reflective of historical climate/hydrology under selected river operations: – Reservoir releases – Diversions – TMWRF discharge flows Climate – consistent with selected representative year Land use / land cover – updated layer circa 2006 17

18 WQS Modeling Steps Select flow management model Establish representative flow period(s) Construct / run a set of scenario runs – Link flow management model with WQ models – Vary N and P concentrations, examine DO response – Use visualization tools to view / report results 18

19 Why Flow Regime is Important Truckee River water quality relates to flow – Managed flow conditions – Highly variable flow conditions year to year WQS are set to protect Beneficial Uses throughout the expected range of flows Highest potential for algal growth and depressed DO during low flows WQS don’t apply if flows are too low – NAC 445A.121(8) – “The specified standards are not considered violated when the natural conditions of the receiving water are outside the established limits, including periods of extreme high or low flows”

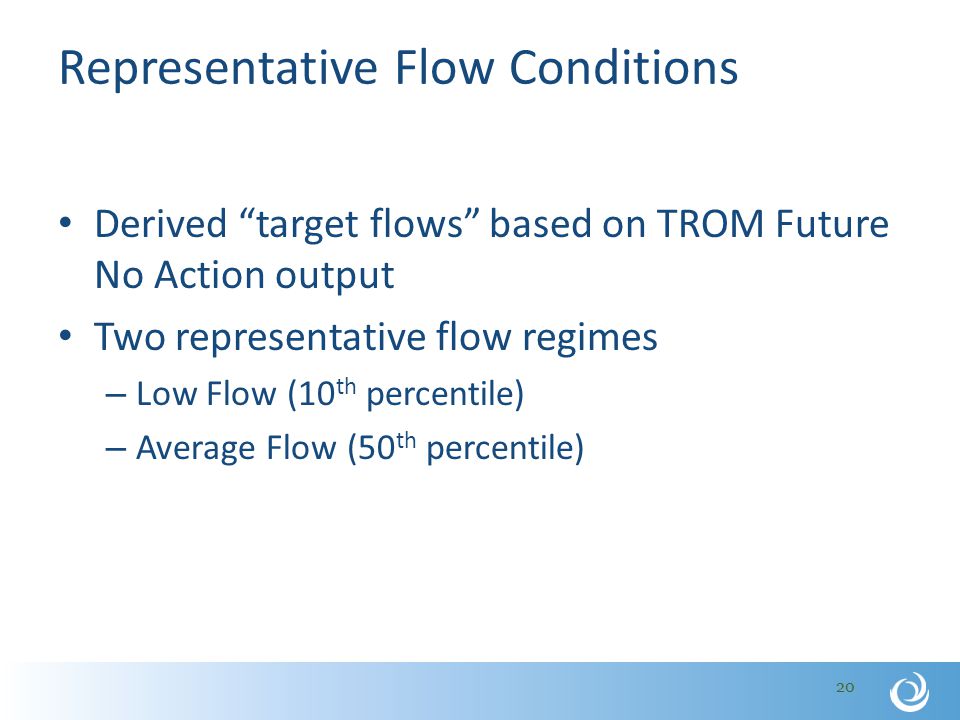

20 Representative Flow Conditions Derived “target flows” based on TROM Future No Action output Two representative flow regimes – Low Flow (10 th percentile) – Average Flow (50 th percentile) 20

21 Flow Regimes for Water Quality Standards Modeling 21

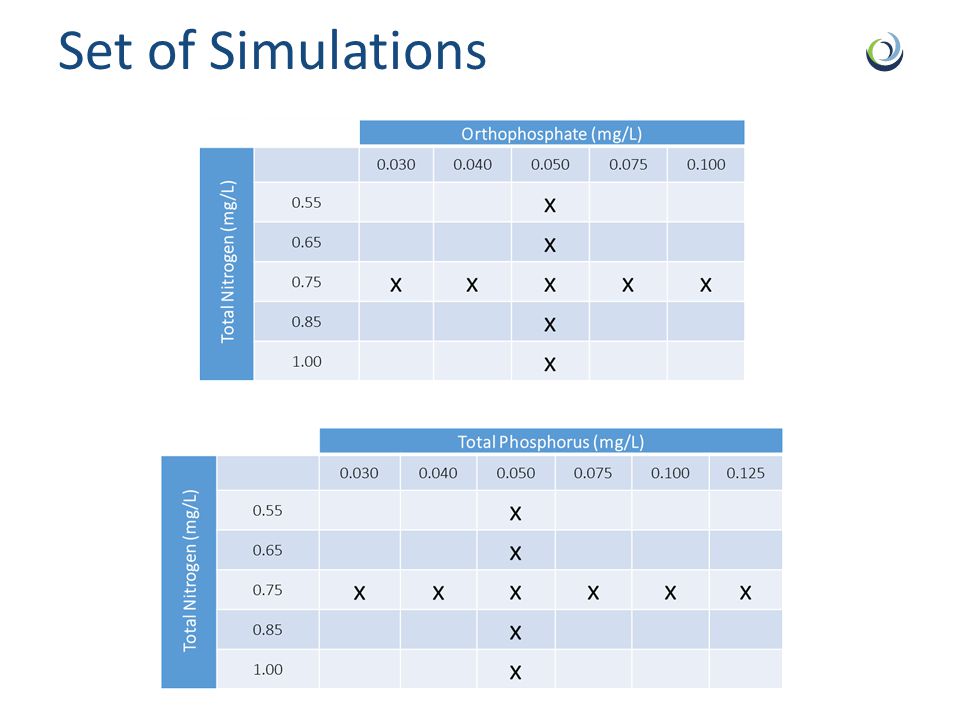

22 Set of Simulations

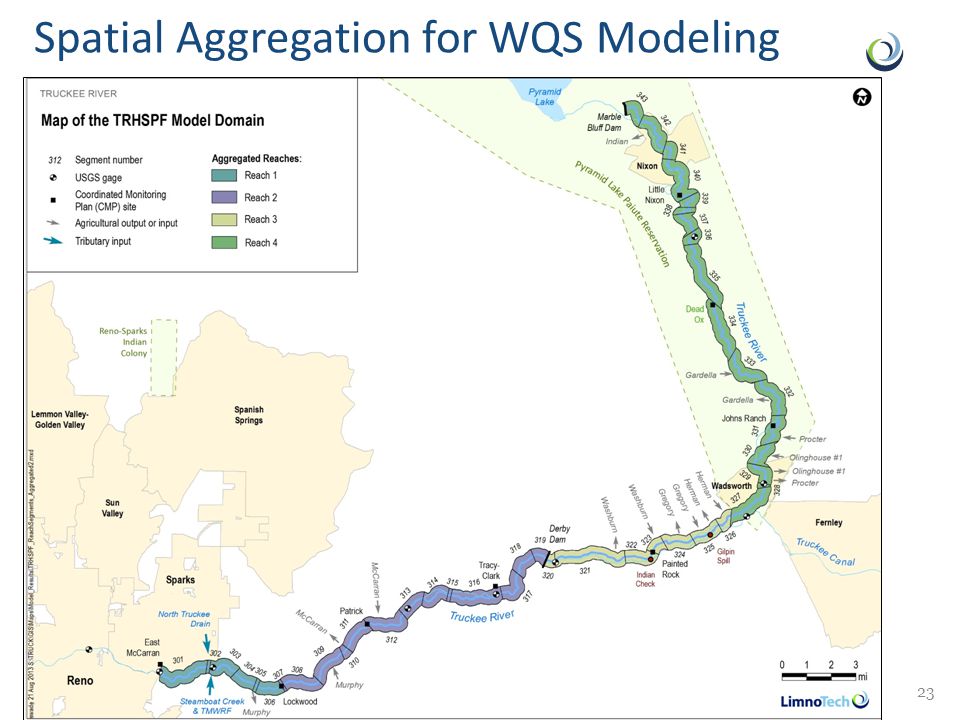

23 Spatial Aggregation for WQS Modeling 23

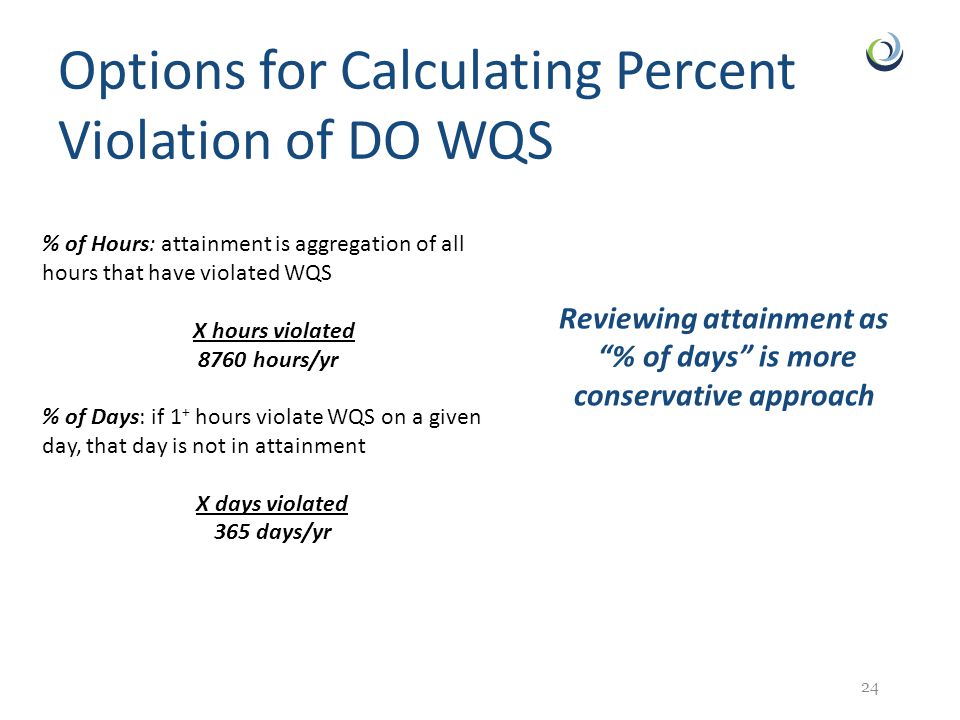

24 Options for Calculating Percent Violation of DO WQS 24 % of Hours: attainment is aggregation of all hours that have violated WQS X hours violated 8760 hours/yr % of Days: if 1 + hours violate WQS on a given day, that day is not in attainment X days violated 365 days/yr Reviewing attainment as “% of days” is more conservative approach

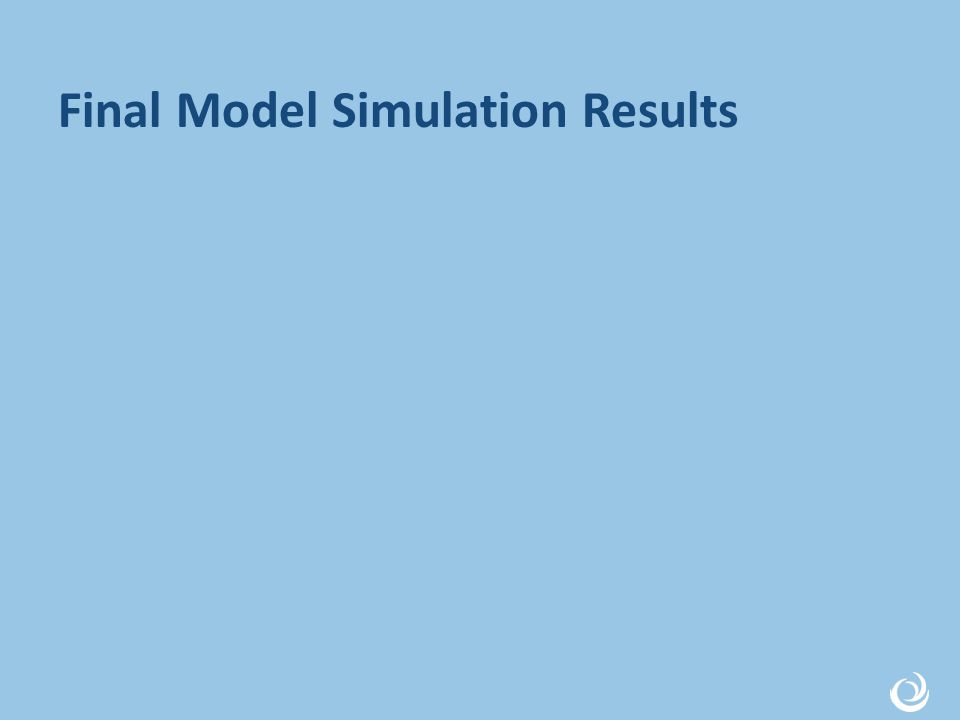

25 Final Model Simulation Results

26 Final Results Total P 10 th Percentile Flow: Reach Averaged 26 % of Days% of Hours TN = 0.75

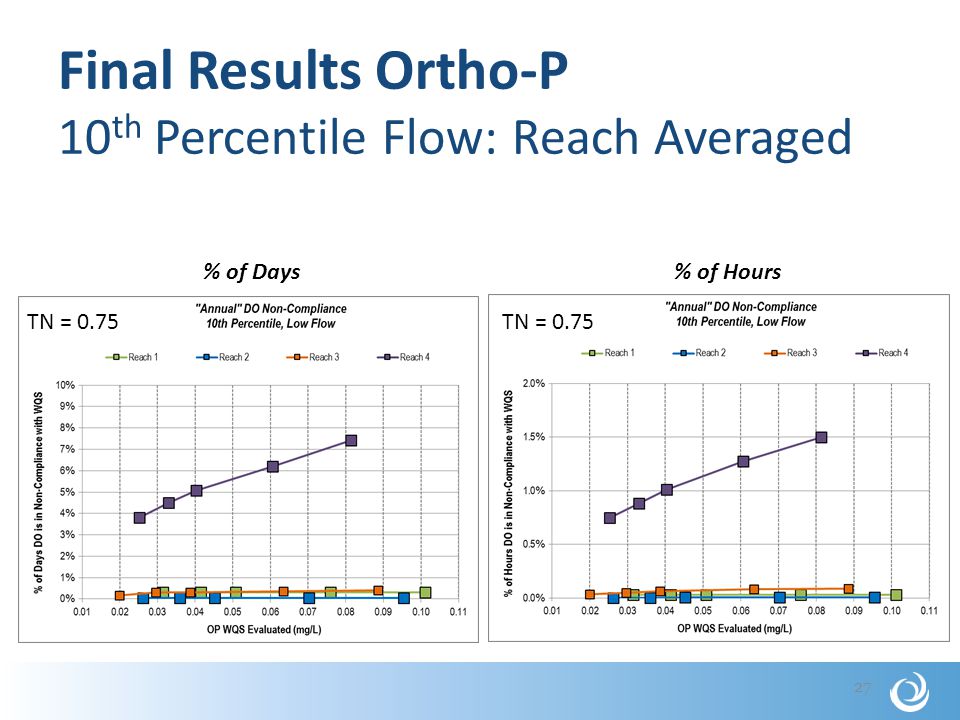

27 Final Results Ortho-P 10 th Percentile Flow: Reach Averaged 27 % of Days% of Hours TN = 0.75

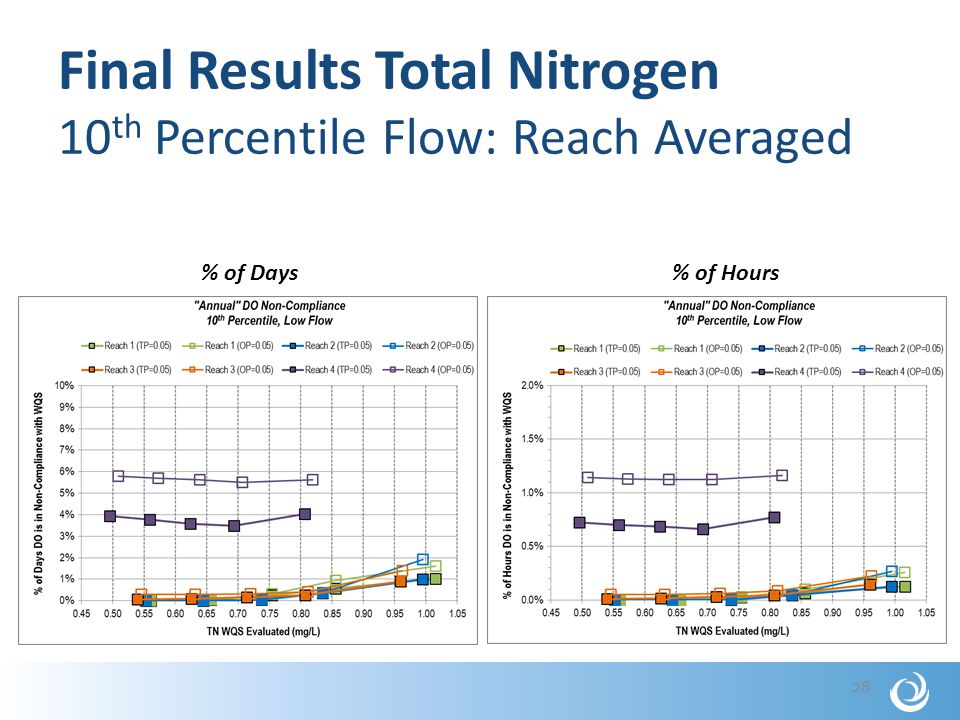

28 Final Results Total Nitrogen 10 th Percentile Flow: Reach Averaged 28 % of Days% of Hours

29 Longitudinal Plot: Low Flow Year 29 OP = 0.05 mg/L TP = 0.05 mg/L

30 Final Results Total P 50 th Percentile Flow: Reach Averaged 30 % of Days% of Hours TN = 0.75

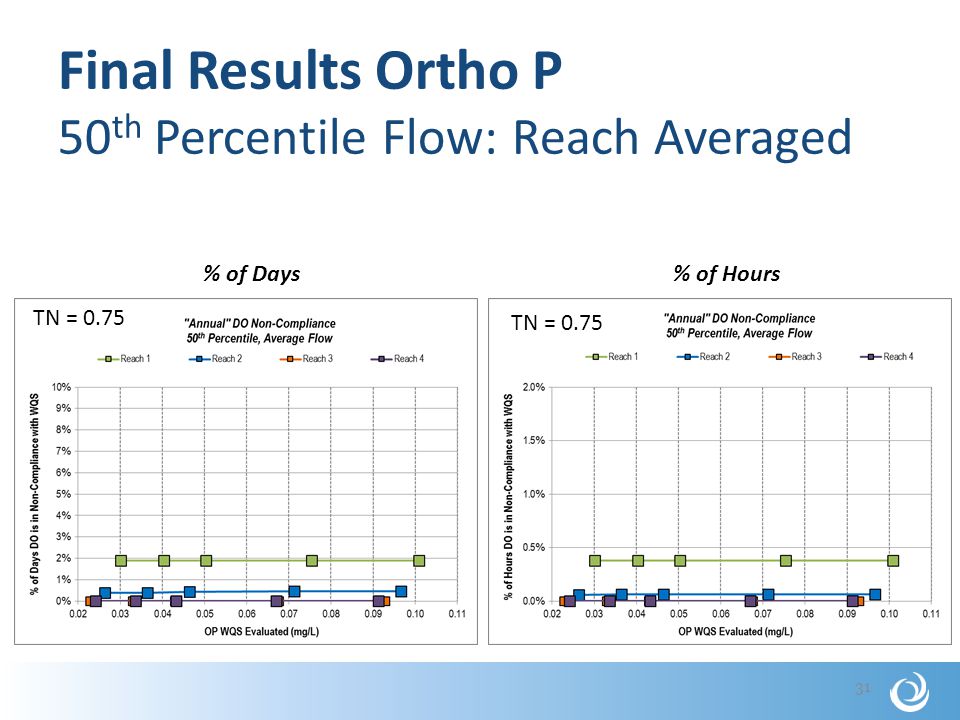

31 Final Results Ortho P 50 th Percentile Flow: Reach Averaged 31 % of Days% of Hours TN = 0.75

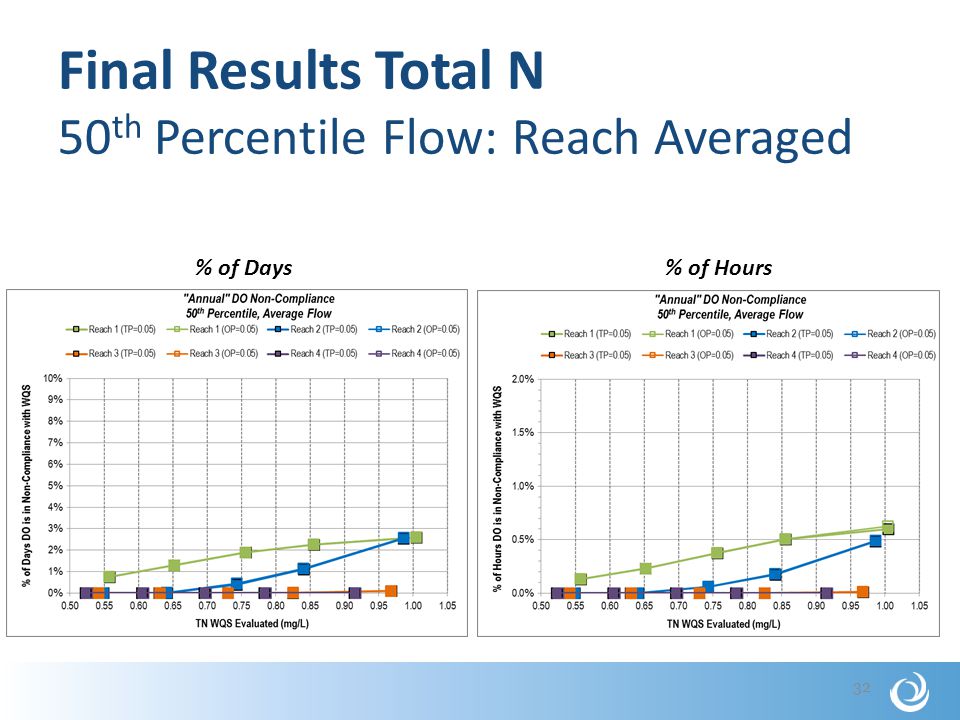

32 Final Results Total N 50 th Percentile Flow: Reach Averaged 32 % of Days% of Hours

33 Longitudinal Plot: Average Flow Year 33 OP = 0.05 mg/L TP = 0.05 mg/L

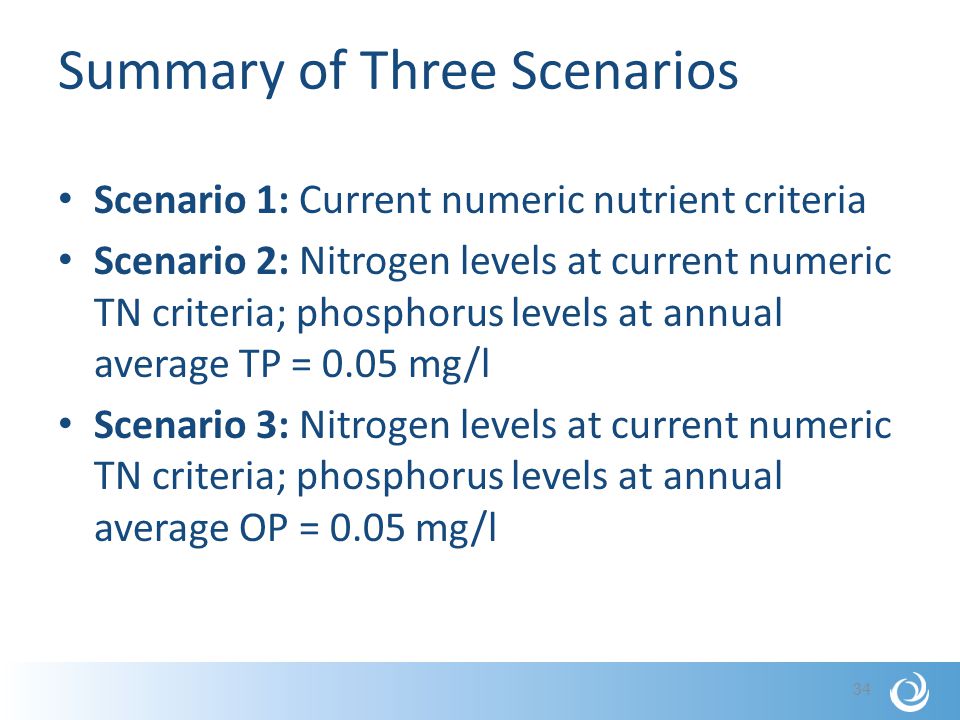

34 Summary of Three Scenarios Scenario 1: Current numeric nutrient criteria Scenario 2: Nitrogen levels at current numeric TN criteria; phosphorus levels at annual average TP = 0.05 mg/l Scenario 3: Nitrogen levels at current numeric TN criteria; phosphorus levels at annual average OP = 0.05 mg/l 34

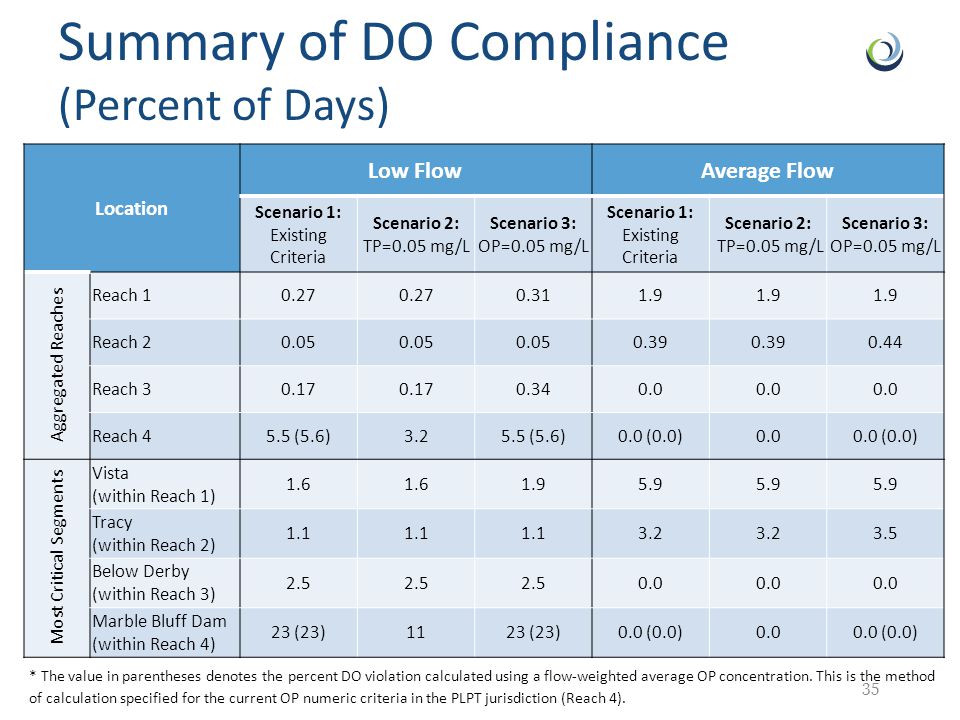

35 Summary of DO Compliance (Percent of Days) 35 Location Low Flow Average Flow Scenario 1: Existing Criteria Scenario 2: TP=0.05 mg/L Scenario 3: OP=0.05 mg/L Scenario 1: Existing Criteria Scenario 2: TP=0.05 mg/L Scenario 3: OP=0.05 mg/L Aggregated Reaches Reach 1 0.27 0.311.9 Reach 2 0.05 0.39 0.44 Reach 3 0.17 0.340.0 Reach 4 5.5 (5.6)3.25.5 (5.6)0.0 (0.0)0.00.0 (0.0) Most Critical Segments Vista (within Reach 1) 1.6 1.95.9 Tracy (within Reach 2) 1.1 3.2 3.5 Below Derby (within Reach 3) 2.5 0.0 Marble Bluff Dam (within Reach 4) 23 (23)1123 (23)0.0 (0.0)0.00.0 (0.0) * The value in parentheses denotes the percent DO violation calculated using a flow-weighted average OP concentration. This is the method of calculation specified for the current OP numeric criteria in the PLPT jurisdiction (Reach 4).

36 Other Considerations

37 Integrated Flow: Reached Averaged 37 % violations in Reach 4 (PLPT) much lower when integrating over all flows than for only the low flow year

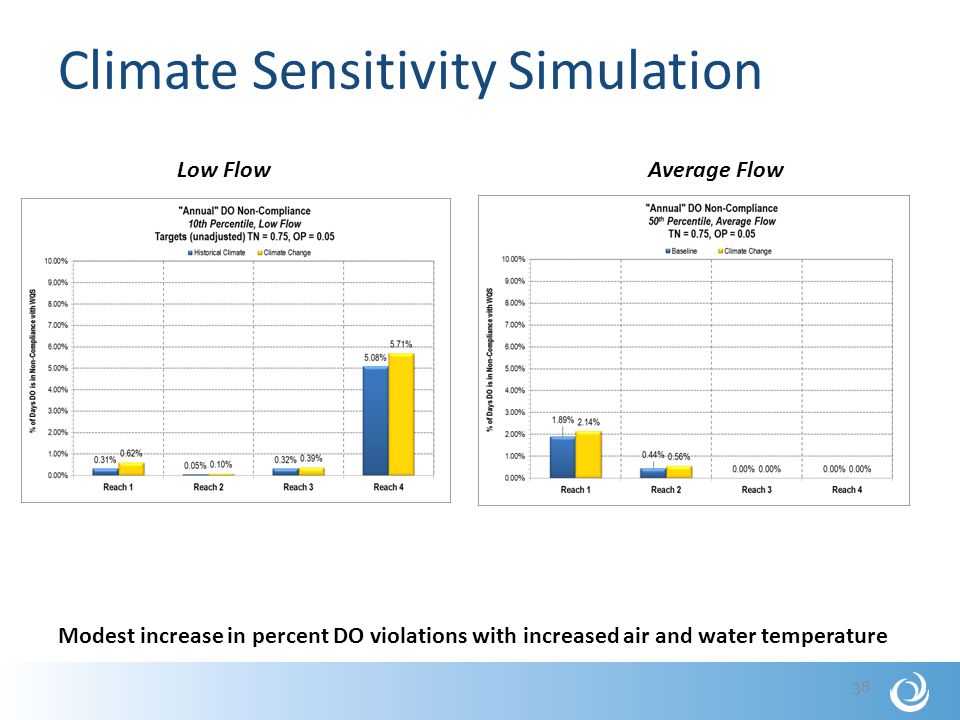

38 Climate Sensitivity Simulation 38 Low Flow Average Flow Modest increase in percent DO violations with increased air and water temperature

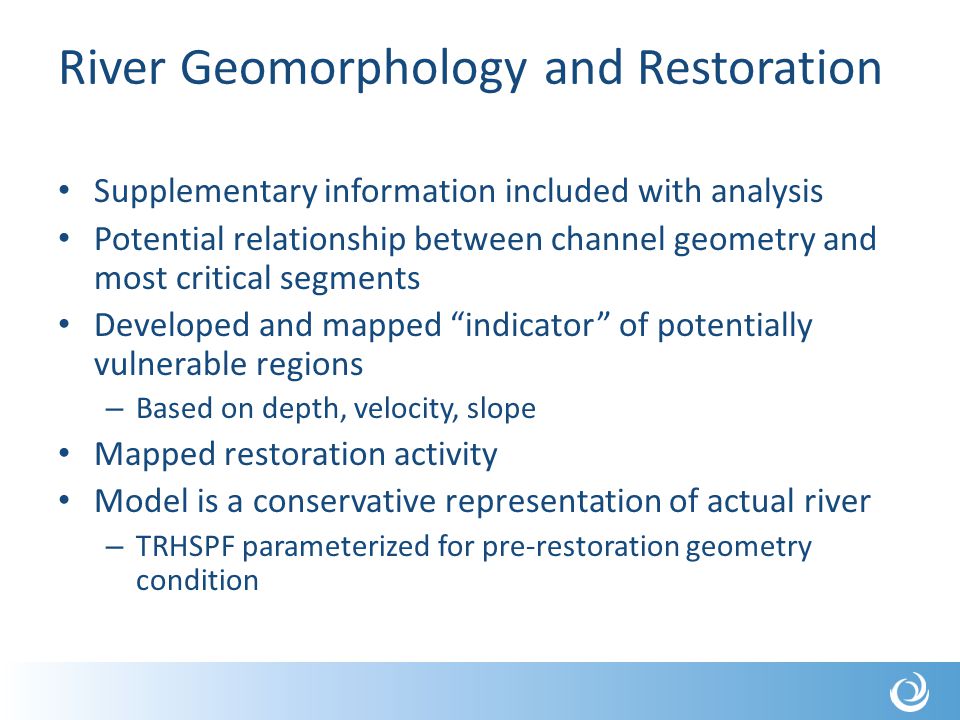

39 River Geomorphology and Restoration Supplementary information included with analysis Potential relationship between channel geometry and most critical segments Developed and mapped “indicator” of potentially vulnerable regions – Based on depth, velocity, slope Mapped restoration activity Model is a conservative representation of actual river – TRHSPF parameterized for pre-restoration geometry condition

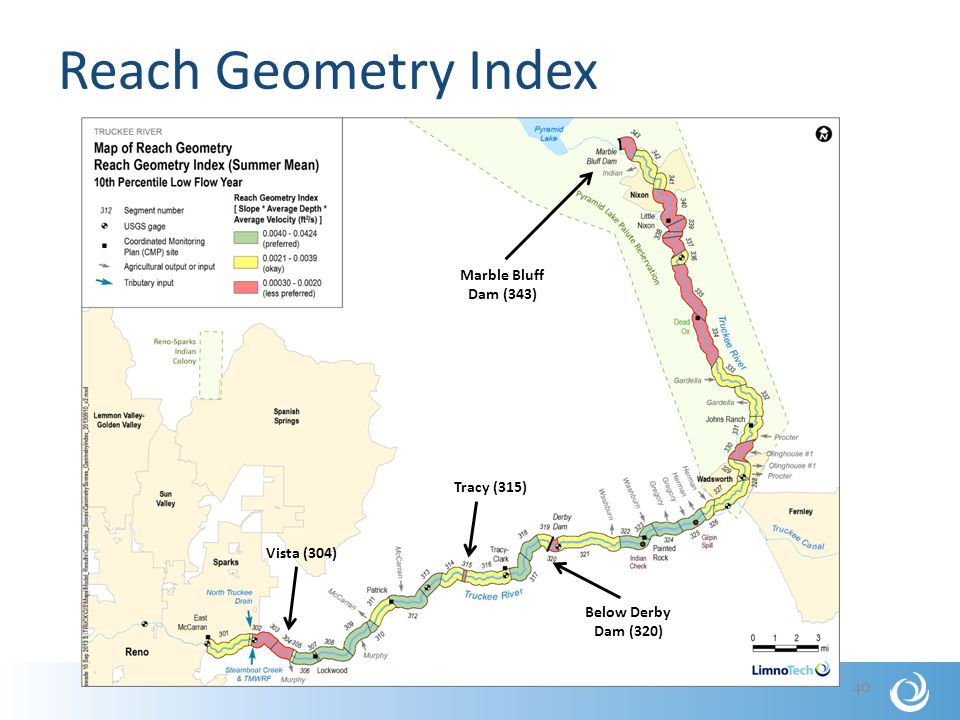

40 Reach Geometry Index 40 Vista (304) Tracy (315) Marble Bluff Dam (343) Below Derby Dam (320)

41 Observations

42 Summary of Technical Findings Reaches 1, 2, 3 of the Truckee River DO criterion violation is low over the entire range of annual average nutrient concentration examined With both low and average flow, no sensitivity to increasing phosphorus concentrations With low flow, slight sensitivity to increasing TN concentrations – Does not occur unless the annual average TN concentration is greater than approximately 0.80 mg/L – Verifies appropriateness of existing TN criterion

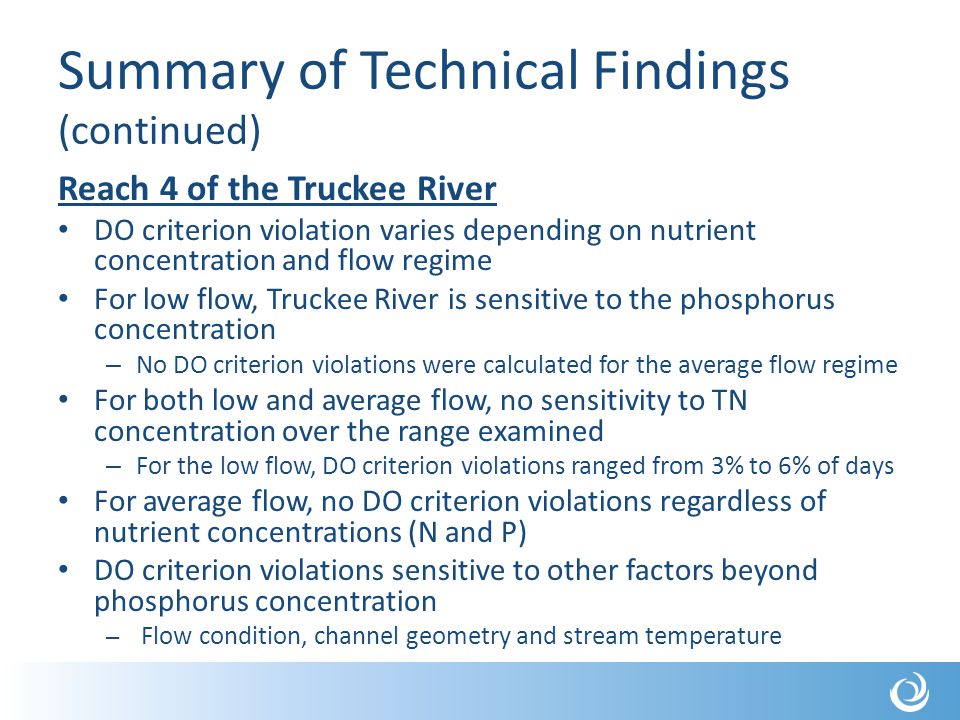

43 Summary of Technical Findings (continued) Reach 4 of the Truckee River DO criterion violation varies depending on nutrient concentration and flow regime For low flow, Truckee River is sensitive to the phosphorus concentration – No DO criterion violations were calculated for the average flow regime For both low and average flow, no sensitivity to TN concentration over the range examined – For the low flow, DO criterion violations ranged from 3% to 6% of days For average flow, no DO criterion violations regardless of nutrient concentrations (N and P) DO criterion violations sensitive to other factors beyond phosphorus concentration – Flow condition, channel geometry and stream temperature

44 Closing Thought If the Nevada phosphorus criterion were changed to be consistent with the current PLPT criterion, there would be no expected increase in DO violations in the Truckee River under either low flow or average flow conditions compared to conditions under existing standards 44

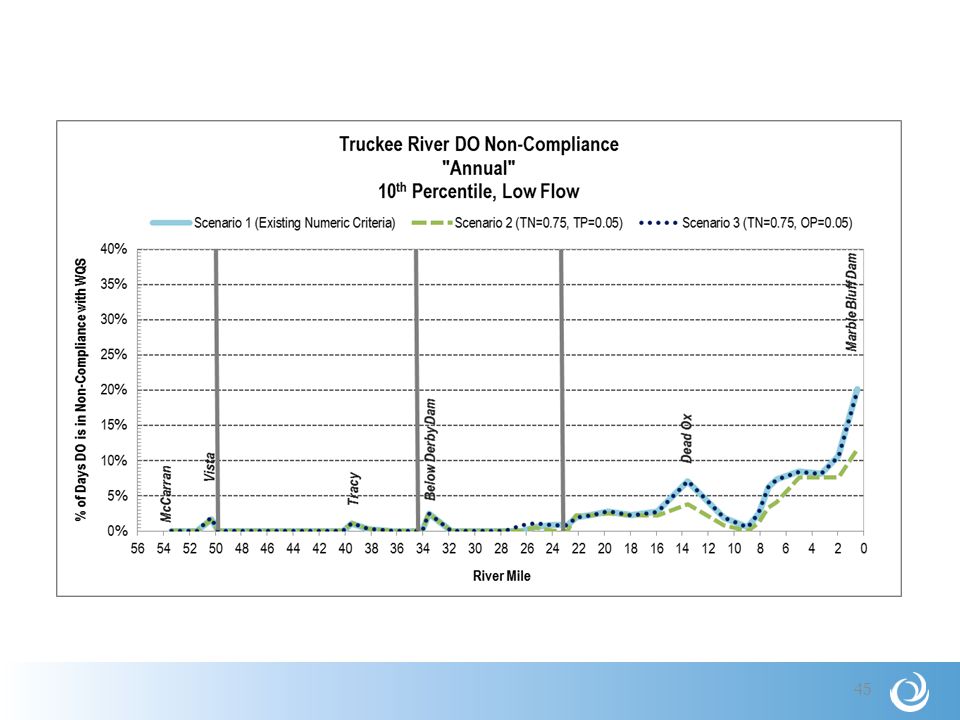

45 45

46 46

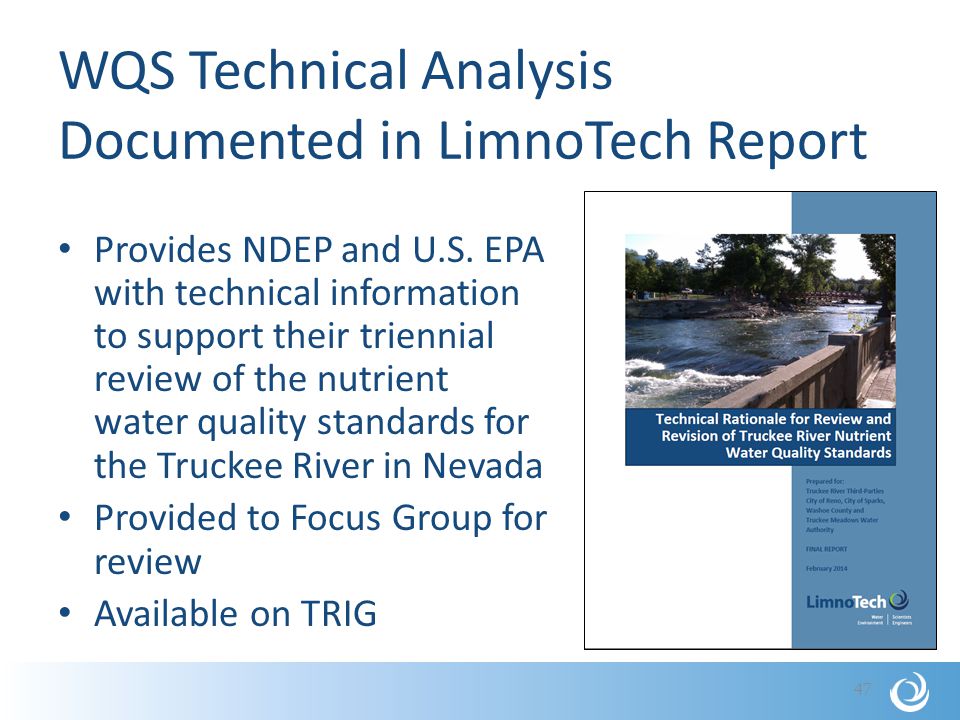

47 WQS Technical Analysis Documented in LimnoTech Report Provides NDEP and U.S. EPA with technical information to support their triennial review of the nutrient water quality standards for the Truckee River in Nevada Provided to Focus Group for review Available on TRIG 47

48 Next Steps

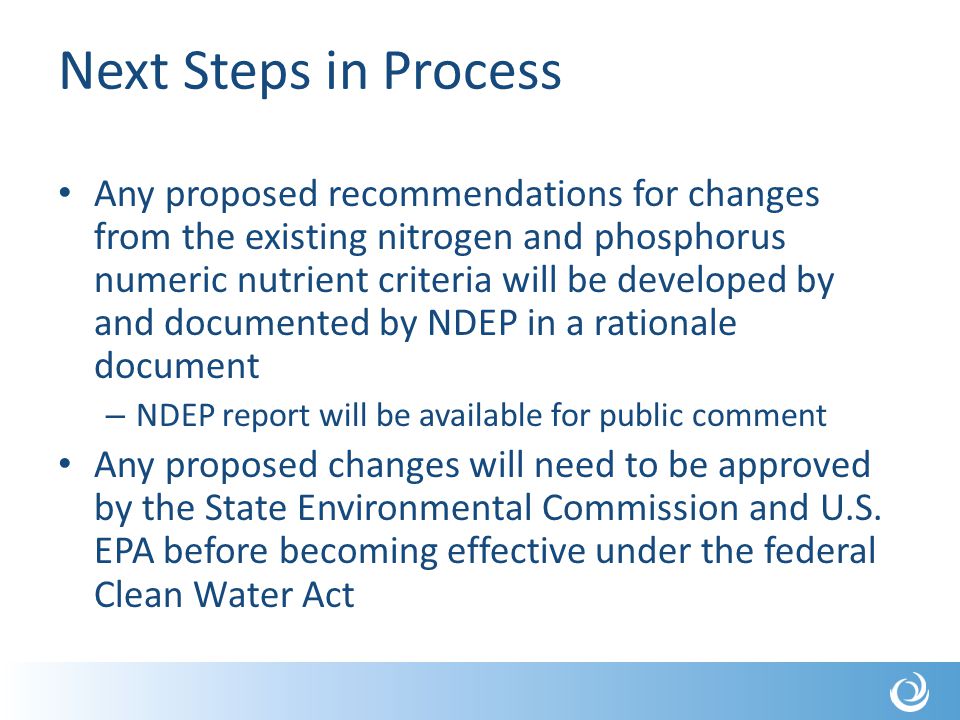

49 Next Steps in Process Any proposed recommendations for changes from the existing nitrogen and phosphorus numeric nutrient criteria will be developed by and documented by NDEP in a rationale document – NDEP report will be available for public comment Any proposed changes will need to be approved by the State Environmental Commission and U.S. EPA before becoming effective under the federal Clean Water Act

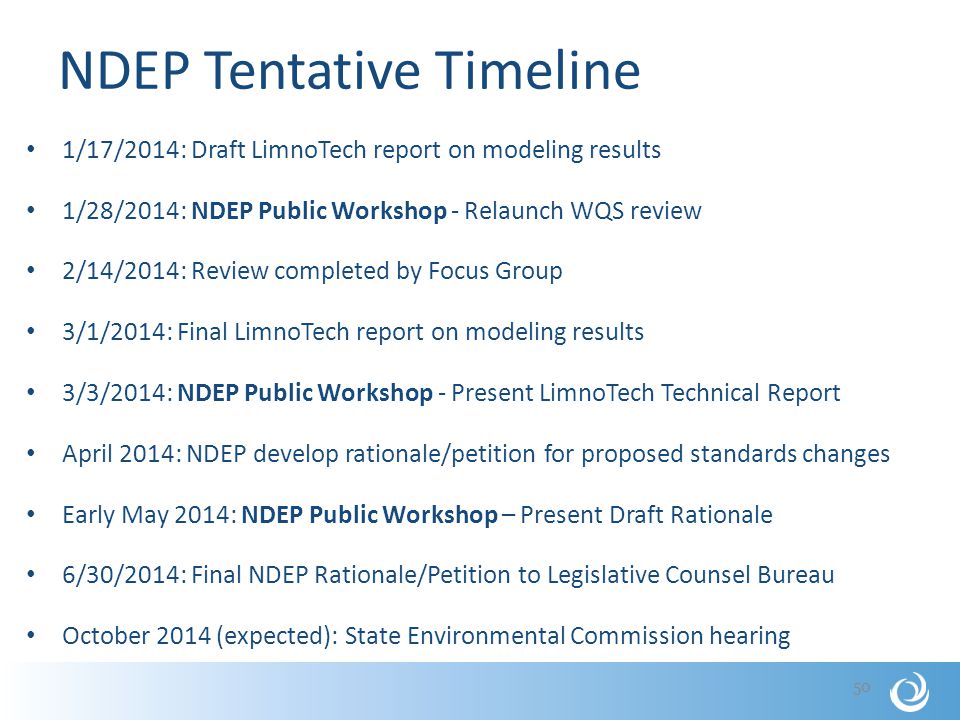

50 NDEP Tentative Timeline 1/17/2014: Draft LimnoTech report on modeling results 1/28/2014: NDEP Public Workshop - Relaunch WQS review 2/14/2014: Review completed by Focus Group 3/1/2014: Final LimnoTech report on modeling results 3/3/2014: NDEP Public Workshop - Present LimnoTech Technical Report April 2014: NDEP develop rationale/petition for proposed standards changes Early May 2014: NDEP Public Workshop – Present Draft Rationale 6/30/2014: Final NDEP Rationale/Petition to Legislative Counsel Bureau October 2014 (expected): State Environmental Commission hearing 50

51 Questions? 51
