1 1 Electrochemical Machining (ECM)

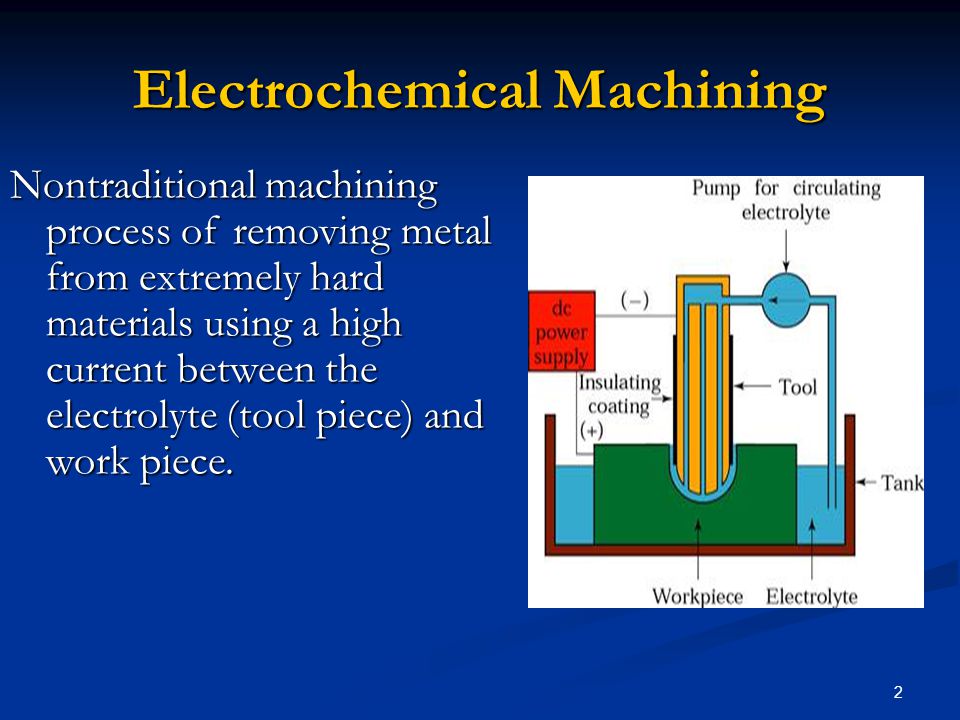

2 2 Electrochemical Machining Nontraditional machining process of removing metal from extremely hard materials using a high current between the electrolyte (tool piece) and work piece.

3 3 Electrochemical Machining Uses an electrolyte and electrical current to ionize and remove metal atoms Can machine complex cavities in high-strength materials Leaves a burr-free surface Not affected by the strength, hardness or toughness of the material

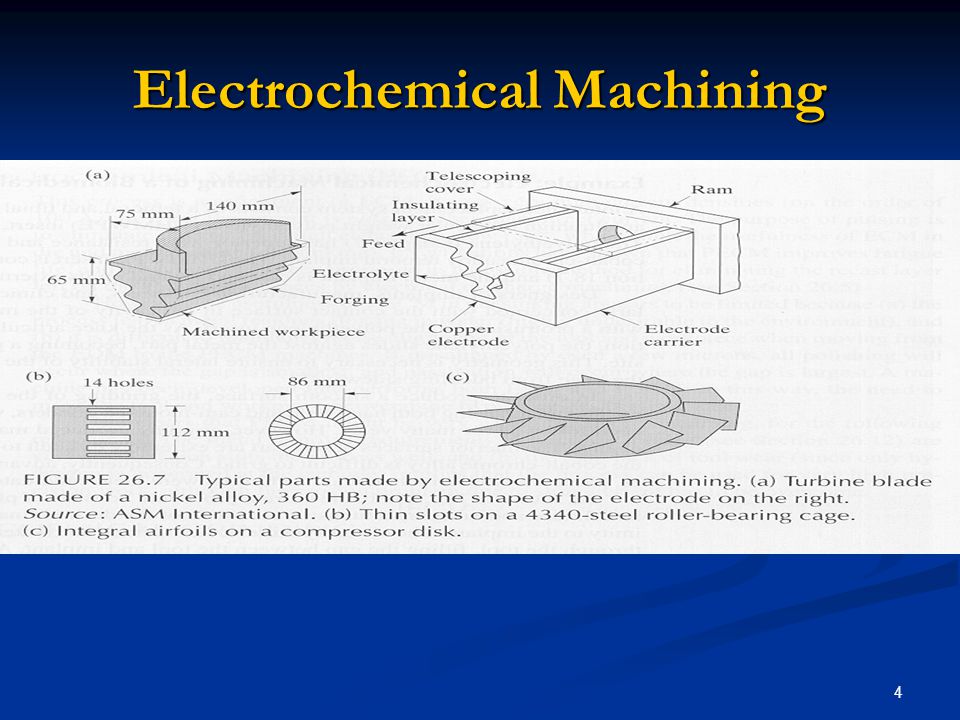

4 4 Electrochemical Machining

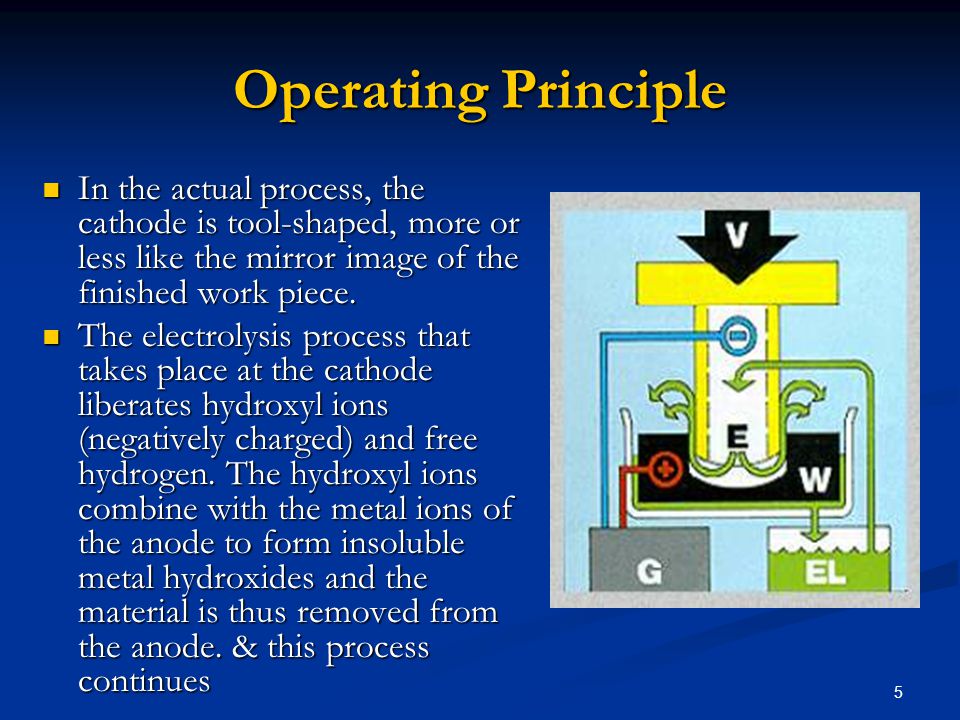

5 5 Operating Principle In the actual process, the cathode is tool-shaped, more or less like the mirror image of the finished work piece. In the actual process, the cathode is tool-shaped, more or less like the mirror image of the finished work piece. The electrolysis process that takes place at the cathode liberates hydroxyl ions (negatively charged) and free hydrogen. The hydroxyl ions combine with the metal ions of the anode to form insoluble metal hydroxides and the material is thus removed from the anode. & this process continues The electrolysis process that takes place at the cathode liberates hydroxyl ions (negatively charged) and free hydrogen. The hydroxyl ions combine with the metal ions of the anode to form insoluble metal hydroxides and the material is thus removed from the anode. & this process continues

6 6 Operating Principle A constant gap between Tool & work Piece is maintained with Constant Tool Feed Rate. A constant gap between Tool & work Piece is maintained with Constant Tool Feed Rate. Conventional machines may be easily changed to an ECM and is a common practice. Conventional machines may be easily changed to an ECM and is a common practice.

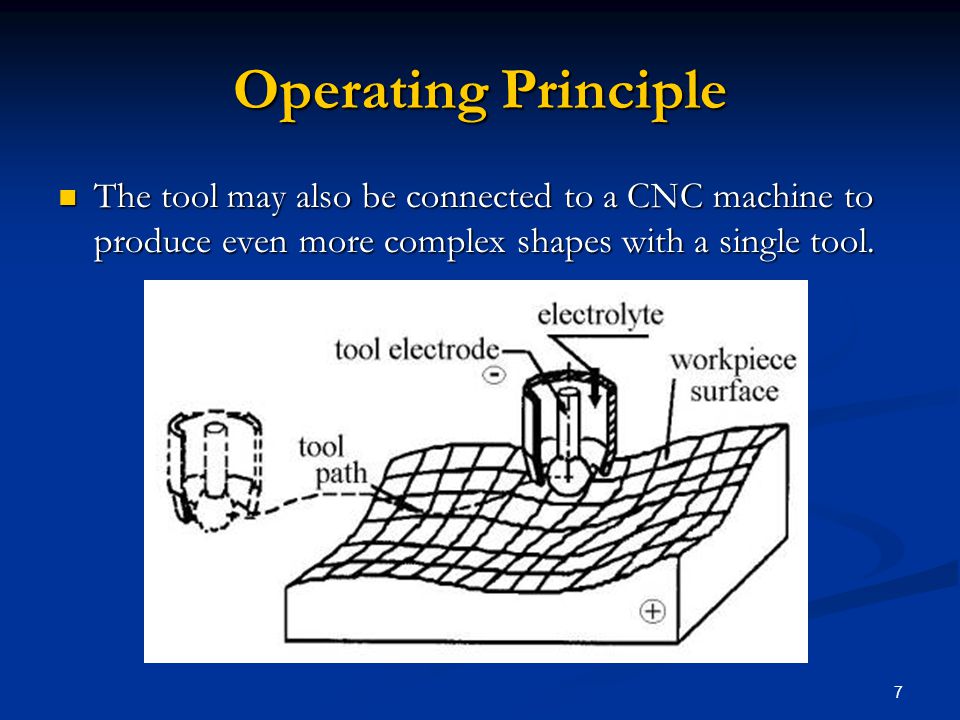

7 7 Operating Principle The tool may also be connected to a CNC machine to produce even more complex shapes with a single tool. The tool may also be connected to a CNC machine to produce even more complex shapes with a single tool.

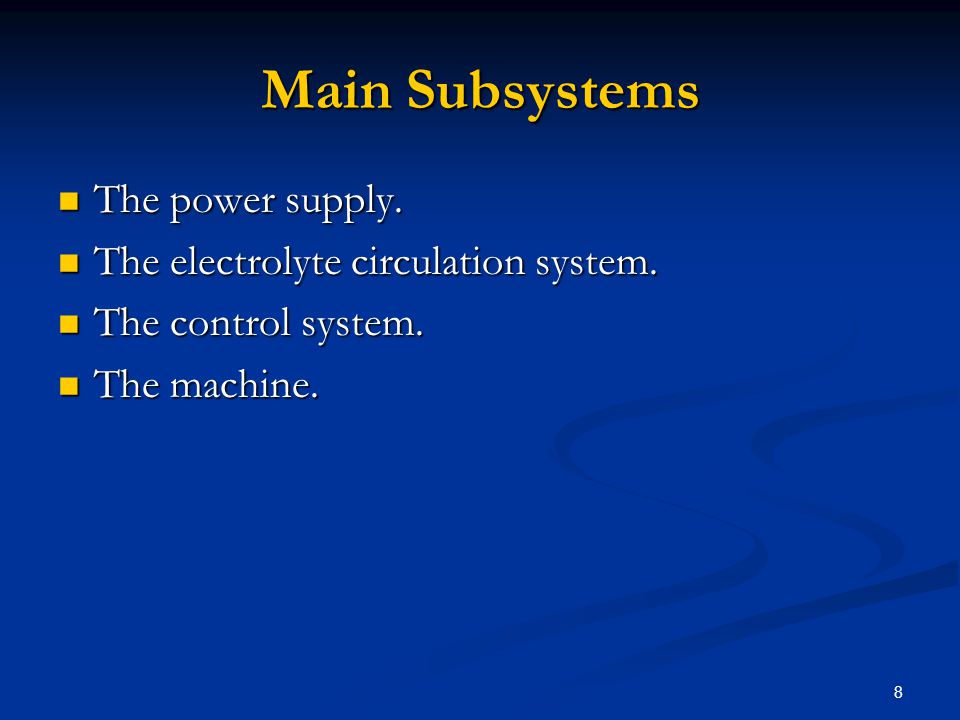

8 8 Main Subsystems The power supply. The power supply. The electrolyte circulation system. The electrolyte circulation system. The control system. The control system. The machine. The machine.

9 9 ECM Components (Power) The power needed to operate the ECM is obviously electrical. The power needed to operate the ECM is obviously electrical. The current density must be high. The current density must be high. The gap between the tool and the work piece must be low for higher accuracy. The gap between the tool and the work piece must be low for higher accuracy. The voltage must below to avoid a short circuit. The voltage must below to avoid a short circuit. The electric current is of the order of 50 to Ampere at 5 to 30 V D.C. for a current density of 20 to 300 Ampere/Square cm, across a gap of 0.05 to 0.70 mm between the tool and the work piece. The electric current is of the order of 50 to Ampere at 5 to 30 V D.C. for a current density of 20 to 300 Ampere/Square cm, across a gap of 0.05 to 0.70 mm between the tool and the work piece.

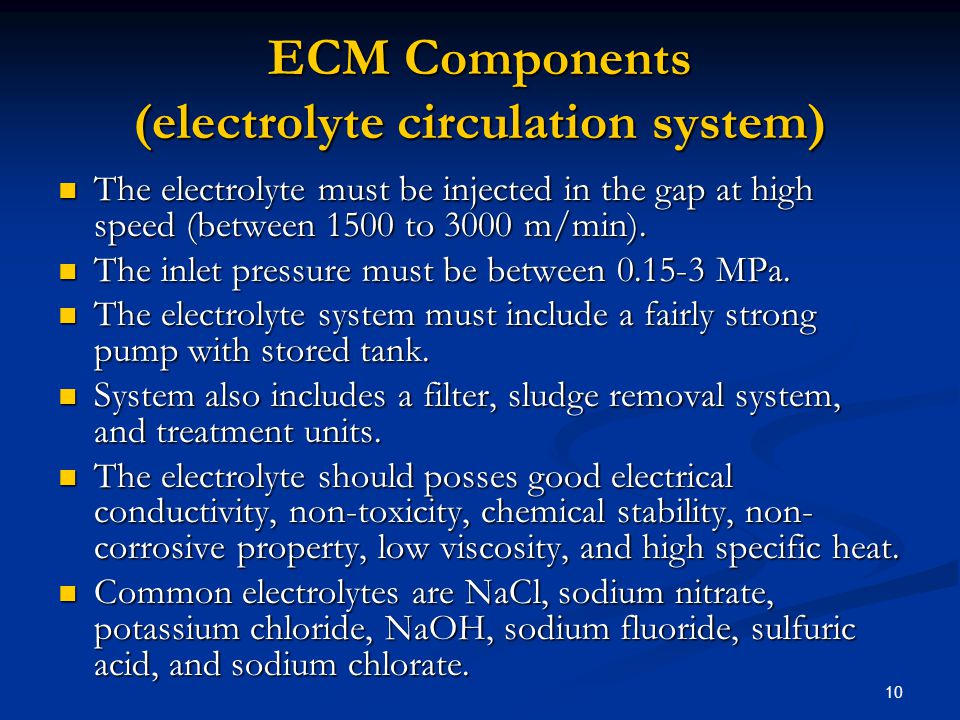

10 10 ECM Components (electrolyte circulation system) The electrolyte must be injected in the gap at high speed (between 1500 to 3000 m/min). The electrolyte must be injected in the gap at high speed (between 1500 to 3000 m/min). The inlet pressure must be between MPa. The inlet pressure must be between MPa. The electrolyte system must include a fairly strong pump with stored tank. The electrolyte system must include a fairly strong pump with stored tank. System also includes a filter, sludge removal system, and treatment units. System also includes a filter, sludge removal system, and treatment units. The electrolyte should posses good electrical conductivity, non-toxicity, chemical stability, non- corrosive property, low viscosity, and high specific heat. The electrolyte should posses good electrical conductivity, non-toxicity, chemical stability, non- corrosive property, low viscosity, and high specific heat. Common electrolytes are NaCl, sodium nitrate, potassium chloride, NaOH, sodium fluoride, sulfuric acid, and sodium chlorate. Common electrolytes are NaCl, sodium nitrate, potassium chloride, NaOH, sodium fluoride, sulfuric acid, and sodium chlorate.

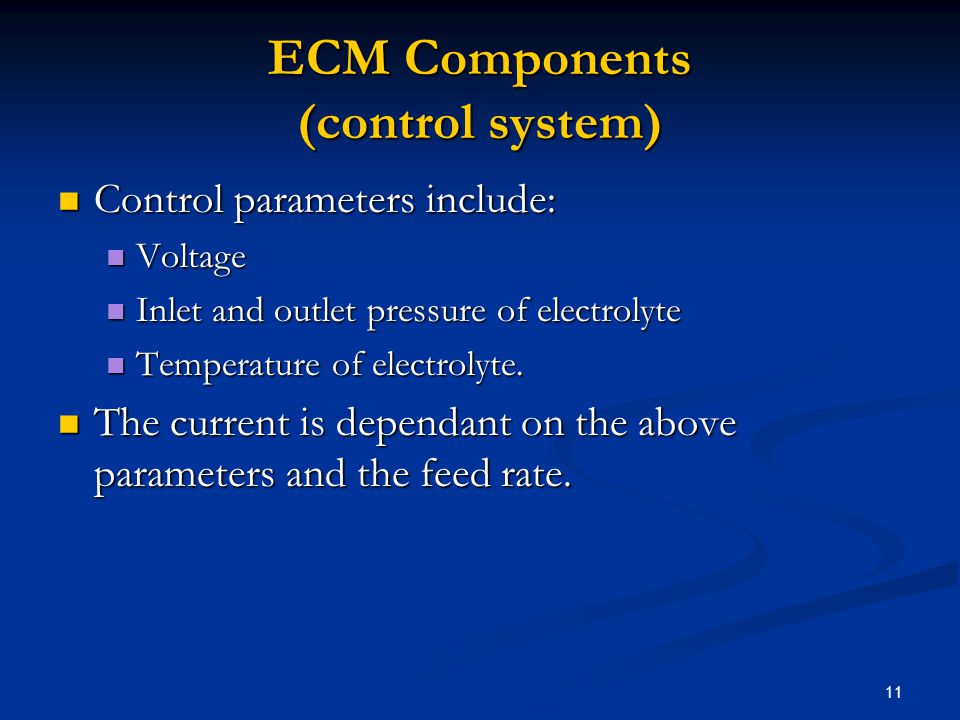

11 11 ECM Components (control system) Control parameters include: Control parameters include: Voltage Voltage Inlet and outlet pressure of electrolyte Inlet and outlet pressure of electrolyte Temperature of electrolyte. Temperature of electrolyte. The current is dependant on the above parameters and the feed rate. The current is dependant on the above parameters and the feed rate.

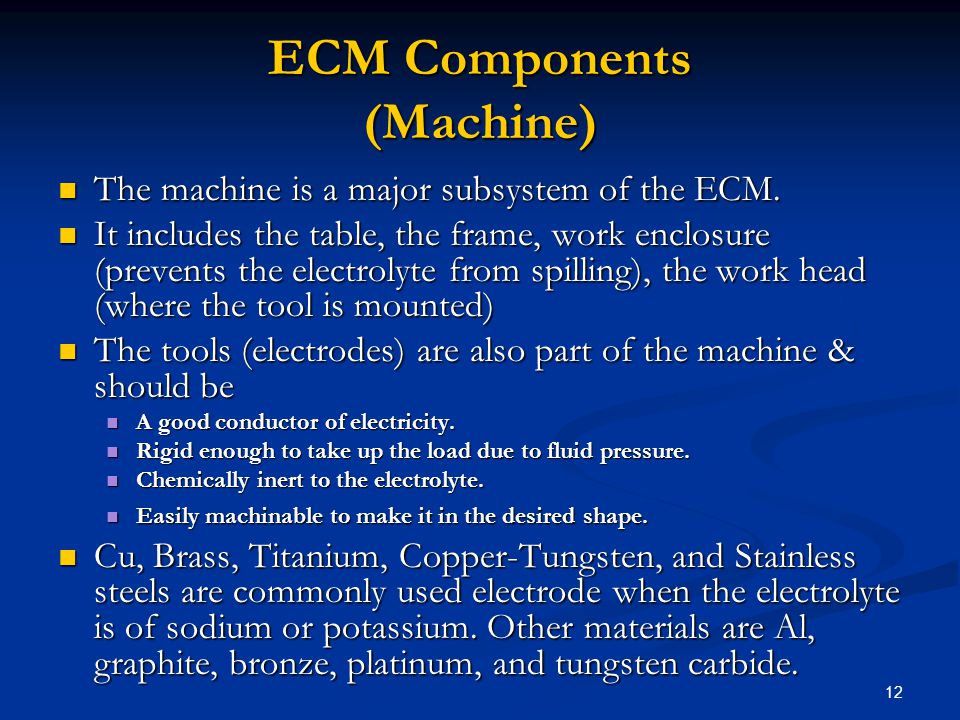

12 12 ECM Components (Machine) The machine is a major subsystem of the ECM. The machine is a major subsystem of the ECM. It includes the table, the frame, work enclosure (prevents the electrolyte from spilling), the work head (where the tool is mounted) It includes the table, the frame, work enclosure (prevents the electrolyte from spilling), the work head (where the tool is mounted) The tools (electrodes) are also part of the machine & should be The tools (electrodes) are also part of the machine & should be A good conductor of electricity. A good conductor of electricity. Rigid enough to take up the load due to fluid pressure. Rigid enough to take up the load due to fluid pressure. Chemically inert to the electrolyte. Chemically inert to the electrolyte. Easily machinable to make it in the desired shape. Easily machinable to make it in the desired shape. Cu, Brass, Titanium, Copper-Tungsten, and Stainless steels are commonly used electrode when the electrolyte is of sodium or potassium. Other materials are Al, graphite, bronze, platinum, and tungsten carbide. Cu, Brass, Titanium, Copper-Tungsten, and Stainless steels are commonly used electrode when the electrolyte is of sodium or potassium. Other materials are Al, graphite, bronze, platinum, and tungsten carbide.

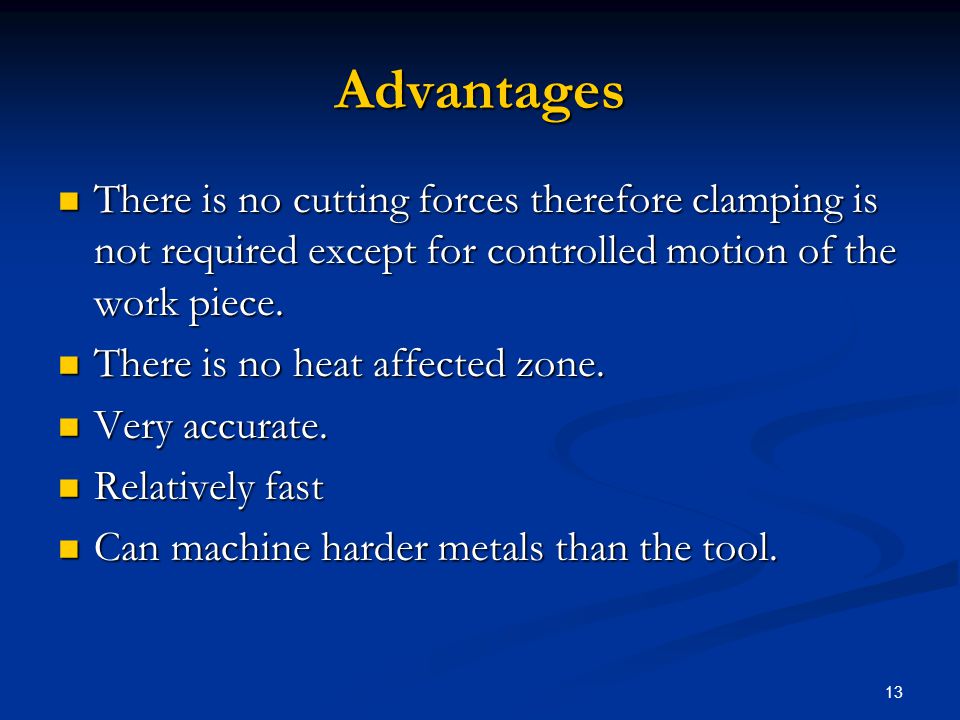

13 13 Advantages There is no cutting forces therefore clamping is not required except for controlled motion of the work piece. There is no cutting forces therefore clamping is not required except for controlled motion of the work piece. There is no heat affected zone. There is no heat affected zone. Very accurate. Very accurate. Relatively fast Relatively fast Can machine harder metals than the tool. Can machine harder metals than the tool.

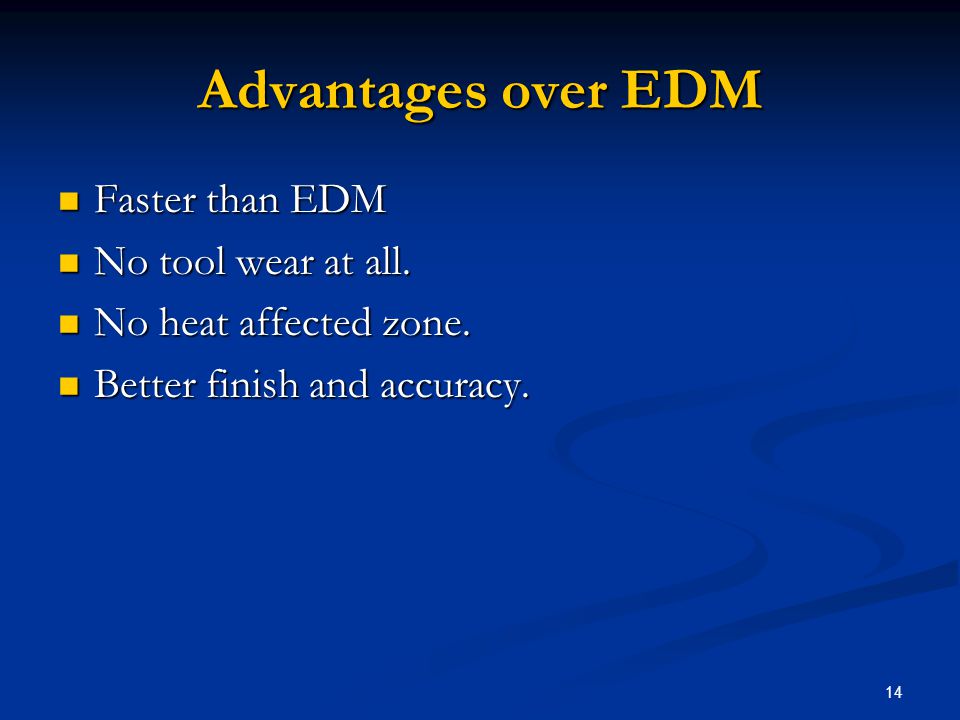

14 14 Advantages over EDM Faster than EDM Faster than EDM No tool wear at all. No tool wear at all. No heat affected zone. No heat affected zone. Better finish and accuracy. Better finish and accuracy.

15 15 Disadvantages More expensive than conventional machining. More expensive than conventional machining. Need more area for installation. Need more area for installation. Electrolytes may destroy the equipment. Electrolytes may destroy the equipment. Not environmentally friendly (sludge and other waste) Not environmentally friendly (sludge and other waste) High energy consumption. High energy consumption. Material has to be electrically conductive. Material has to be electrically conductive.

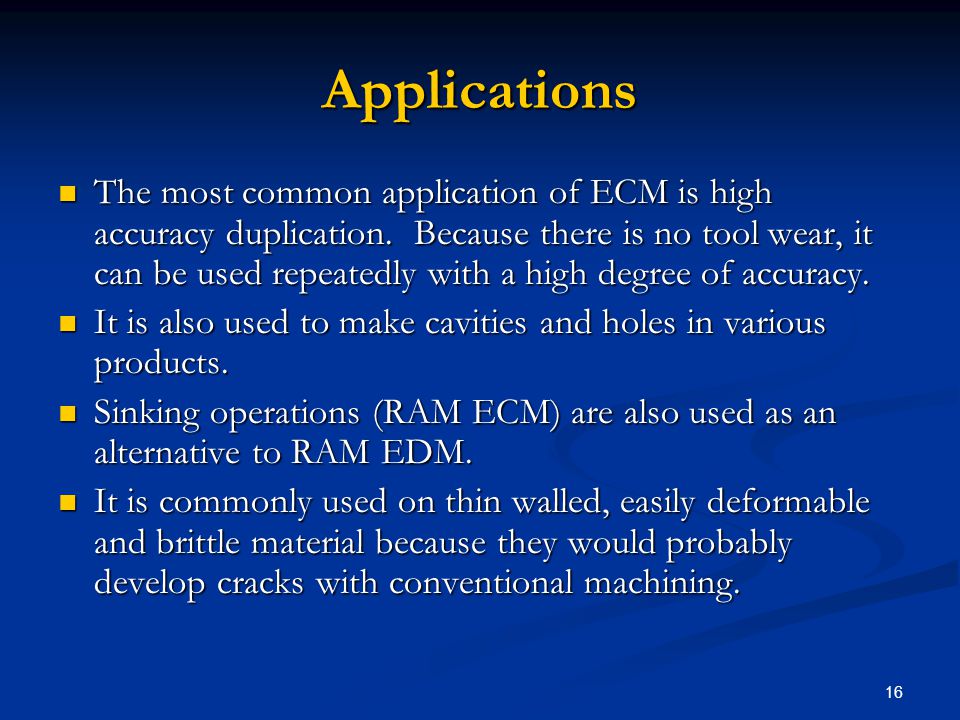

16 16 Applications The most common application of ECM is high accuracy duplication. Because there is no tool wear, it can be used repeatedly with a high degree of accuracy. The most common application of ECM is high accuracy duplication. Because there is no tool wear, it can be used repeatedly with a high degree of accuracy. It is also used to make cavities and holes in various products. It is also used to make cavities and holes in various products. Sinking operations (RAM ECM) are also used as an alternative to RAM EDM. Sinking operations (RAM ECM) are also used as an alternative to RAM EDM. It is commonly used on thin walled, easily deformable and brittle material because they would probably develop cracks with conventional machining. It is commonly used on thin walled, easily deformable and brittle material because they would probably develop cracks with conventional machining.

17 17 Economics The process is economical when a large number of complex identical products need to be made (at least 50 units) The process is economical when a large number of complex identical products need to be made (at least 50 units) Several tools could be connected to a cassette to make many cavities simultaneously. (i.e. cylinder cavities in engines) Several tools could be connected to a cassette to make many cavities simultaneously. (i.e. cylinder cavities in engines) Large cavities are more economical on ECM and can be processed in 1/10 the time of EDM. Large cavities are more economical on ECM and can be processed in 1/10 the time of EDM.

18 18 Products The two most common products of ECM are turbine/compressor blades and rifle barrels. Each of those parts require machining of extremely hard metals with certain mechanical specifications that would be really difficult to perform on conventional machines. The two most common products of ECM are turbine/compressor blades and rifle barrels. Each of those parts require machining of extremely hard metals with certain mechanical specifications that would be really difficult to perform on conventional machines. Some of these mechanical characteristics achieved by ECM are: Some of these mechanical characteristics achieved by ECM are: Stress free grooves. Stress free grooves. Any groove geometry. Any groove geometry. Any conductive metal can be machined. Any conductive metal can be machined. Repeatable accuracy of ”. Repeatable accuracy of ”. High surface finish. High surface finish. Fast cycle time. Fast cycle time.

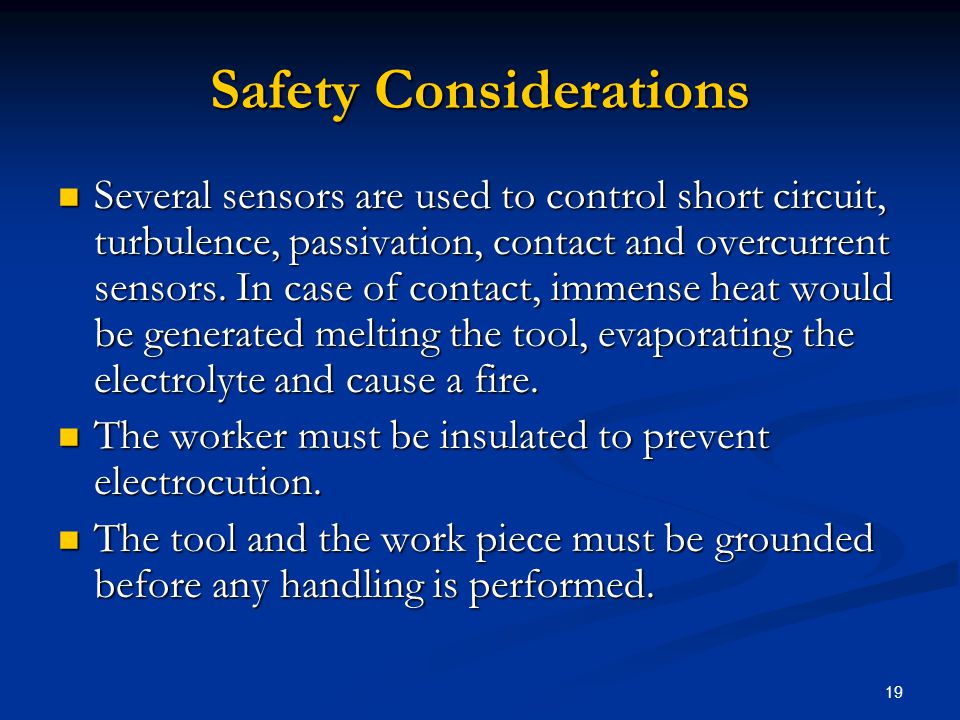

19 19 Safety Considerations Several sensors are used to control short circuit, turbulence, passivation, contact and overcurrent sensors. In case of contact, immense heat would be generated melting the tool, evaporating the electrolyte and cause a fire. Several sensors are used to control short circuit, turbulence, passivation, contact and overcurrent sensors. In case of contact, immense heat would be generated melting the tool, evaporating the electrolyte and cause a fire. The worker must be insulated to prevent electrocution. The worker must be insulated to prevent electrocution. The tool and the work piece must be grounded before any handling is performed. The tool and the work piece must be grounded before any handling is performed.

20 20 Safety Consideration Hydrogen gas emitted is very flammable, so it should be disposed of properly and fire precautions should be taken. Hydrogen gas emitted is very flammable, so it should be disposed of properly and fire precautions should be taken. The waste material is very dangerous and environmentally unfriendly (metal sludge) so it must be recycle or disposed of properly. The waste material is very dangerous and environmentally unfriendly (metal sludge) so it must be recycle or disposed of properly. Electrolyte is highly pressurized and worker must check for minor cracks in piping before operating. Electrolyte is highly pressurized and worker must check for minor cracks in piping before operating.
