Presentation on theme: "What do you know about frogs?"— Presentation transcript:
1 What do you know about frogs? What class are frogs placed in? Why are they placed in this class?How do frogs differ from humans in terms of their habitats and eating habits?How do frogs differ structurally from humans? Why do you think these differences exist?
2 Which is a frog? Which is a toad? How can you tell the difference?
3 How do frogs differ from toads? Do not need to live near water to surviveHave rough, dry, bumpy skinHave a wider bodyHave lower, football shaped eyesHave shorter, less powerful hind legsWill run or take small hops rather than jumpDo not have many predators. Skin lets out a bitter taste and smell that burns the eyes and nostrils of its predators.FrogsNeed to live near waterHave smooth, moist skin that makes them look “slimy”.Have a narrow body Have higher, rounder, bulgier eyesHave longer hind legs Take long high jumpsHave many predators
4 How are these frogs similar? How are these frogs different?
5 Classification of the Frog Kingdom: Animalia Phylum: Chordata Subphylum: Vertebrata Class: Amphibia Subclass: Lissamphibia Order: Anura Suborder: Neobatrachia Family: Ranidae Genus: Rana
6 Rules for Dissection1. Do not mutilate the organism. Any unnecessary cutting or abuse of the specimen will not be tolerated. Follow the directions and do not go off on your own.2. Do not even pretend to threaten classmates with any tool found in the dissection kit. Any threat made will be taken as real and the student will be turned into the school for violent intent.3. Act accordingly. No horseplay. No throwing of anything. Once you get started, stay in your seat with your group and focus on the dissection. If you have questions – ask!*Any violation of the above rules will result in the student being instructed to put everything away, they will lose all dissection privileges, and the will have a visit to the local office and receive a detention*
7 Procedures for Dissection 1. You will be working with a partnerIf you do not want to dissect the frog, make sure that you a pick a partner who will do the dissection2. You will need to obtain the following materials before you beginDissection trayScissors (Be careful, they are sharp)Probe (Be careful, they are sharp)Frog (Place the frog in your dissection tray)3. We will be doing the lab together one section at a time. When you have finished answering the questions for one section, wait for instructions before beginning the next section.
10 A. Skin and Eyes1. Observe the exterior of the frog. Describe the texture and color of the skin.2. Observe the location of the frog’s eyes relative to the head-How might this be an adaptation for its way of life?
11 B. Tympanic Membranes #3 = ? Tympanic membrane 3. Right behind the eyes are dark circular structures called the tympanic membranes.-What is their function?
12 D. Feet4. Observe the frog’s feet. Compare the frog’s feet to that of humans. Why do you think the frog’s feet are shaped as they are?-How is the structure of the frog’s feet related to its function?-How many toes are on the front legs? How many toes are on the back legs?
14 A. The TongueCut the edges of the jaw with scissors. Cut back till hear crack (hit jaw bone)Compare the frog’s tongue to a human’s1. How do the tip ends differ?2. How do the points of attachment to the lower jaw different?
15 B. The Glottis and Esophagus Locate the slit-like glottis in the center of the back of the mouth. Use a probe to determine where the glottis leads.-3. To where does the glottis lead?Locate the esophagus. Using a probe, determine where it leads4. To where does the esophagus lead?glottis
16 C. TeethMaxillary teethRub your fingers along the inside edge of the frog’s upper jaw. You should feel the maxillary teeth.Compare these teeth to human teeth7. Why do you think a frog’s teeth are this wayExtending from the roof of the mouth are two vomerine teeth-8. What is their function?Vomerine teeth
18 Dissection Cuts 3 main cuts total -1. Cut from abdomen up to neck -2. Cut across front legs-3. Cut across rear legs*Have to perform cuts twice. Once to cut through skin, then again to cut through muscle**When finished, fold back skin flaps*
19 Dissection Cuts Skin First Skin First1. Make the first incision in the skin along the center ofthe frog between the rear legs.(Take care to cut only the skin.)2. Use the scissors to continue the incision up the midline all the way to the frog's chin.3. Stop cutting when your scissors reach the frog's chin.
20 Dissection Cuts Skin Horizontal Skin Horizontal1. Use the scissors to make sideways incisions in the skin.2. The first incisions are made between the front legs.3. The next incisions are made just above the rear legs.4. Be careful to only cut through the skin, not the muscle.
21 Dissection Cuts First Muscle Incision First Muscle Incision1. Repeat the incisions, this time through the muscle layer.2. Make a small cut with the scissors at the rear legs of the frog.3. Using the scissors, continue the incision up the midline to a point just below the front legs.4. Be careful that you don't cut too deeply. The muscle is thin. It is easy to damage the organs underneath.
22 Dissection Cuts Muscle Horizontal 1. Make the horizontal incisions. Muscle Horizontal1. Make the horizontal incisions.2. Just as you did with the skin, make a sideways incision in the muscle with the scissors.3. Make the first incision between the front legs.4. The next incision is just above the rear legs.
23 Removal of EggsIf you have a female frog, you will have many black circle shaped structures on the inside of the frog.These are eggs and need to be removed so that you can see the organs below them.
25 A. Liver and Gall Bladder Locate the liver and gall bladderLiver (large brown lobes)Gall Bladder (greenish-brown sac)-is located behind liver
26 B. Stomach Locate the stomach and compare it to a human’s Using scissor, cut along the outer curvature of the stomach toward the pylorus. Examine the contents of the stomach and its liningstomach
27 C. Small IntestineFollow the stomach to the small intestine. The small intestine in the frog has three portions just as in humansThe small intestine is surrounded by a thin membrane called the mesentery.
28 D. Large Intestine Locate the large intestine -8. To where does it lead?Large intestine leads to cloaca.-function of cloaca = collecting spacefor urine, feces, and eggs or spermcloaca

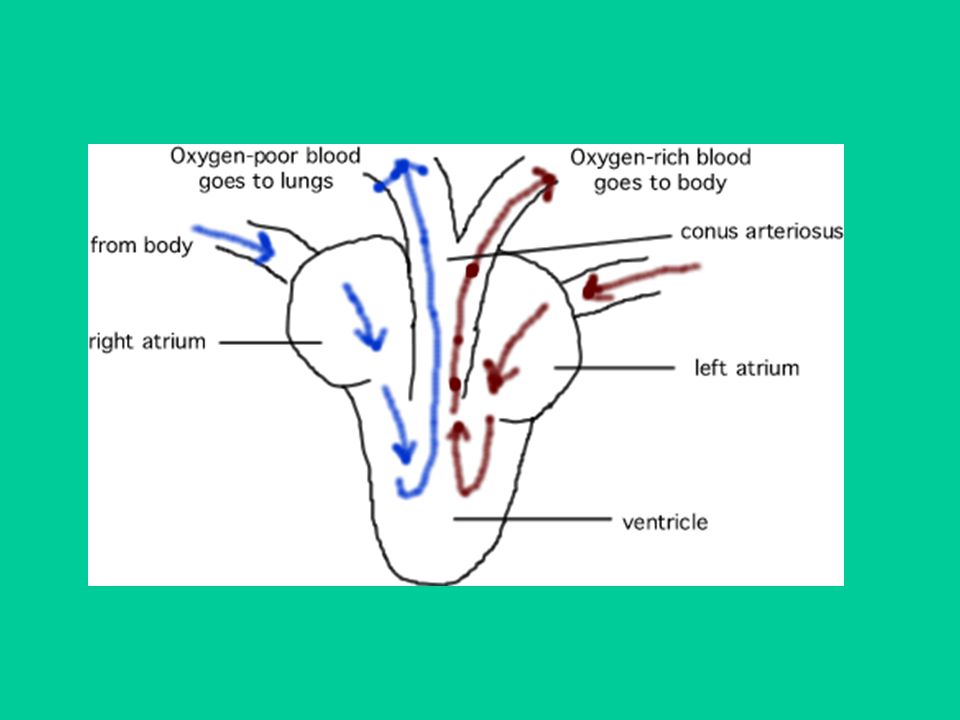

30 A. The HeartRemove the heart, leaving as much of the blood vessels attached as possible. Examine the front side. Locate the right atrium, left atrium, and ventricle.*A frog heart only has 3 chambers: 2 atria and 1 ventricle*Right atriumLeft atriumVentricle
33 Is Your Frog a Girl or a Boy? FemaleMaleovary/eggsoviductFunctions: transport eggs, add jelly coatingTestesFunction: Make sperm
34 This frog is a ______________ female male #1 = ?#2 = ?Ovary with eggsoviducts#2#1femaleThis frog is a ______________female male
35 This frog is a ______________ male female ??testes? = _______________This frog is a ______________ male femalemale
36 A. Urinary Bladder, Kidneys, and Oviducts Locate the cream colored oviducts through which eggs pass from the anterior of the body cavity to the posterior opening, the cloaca. Remove the oviducts to reveal the brownish kidneys. The kidneys lie along the back of either side of the spine.kidney
