1 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1 Claud Mendonca

2 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2 Extends the Existing ISR-G2 portfolio This is not an ISR-G3 1-2 Gbps forwarding router UCS-E, T3/E3 and T1/E1 WAN support at FCS (First Customer Shipment) Launch Cisco Live Orlando Internally Orderable April 17 th 2013 Externally Orderable June 24 th 2013

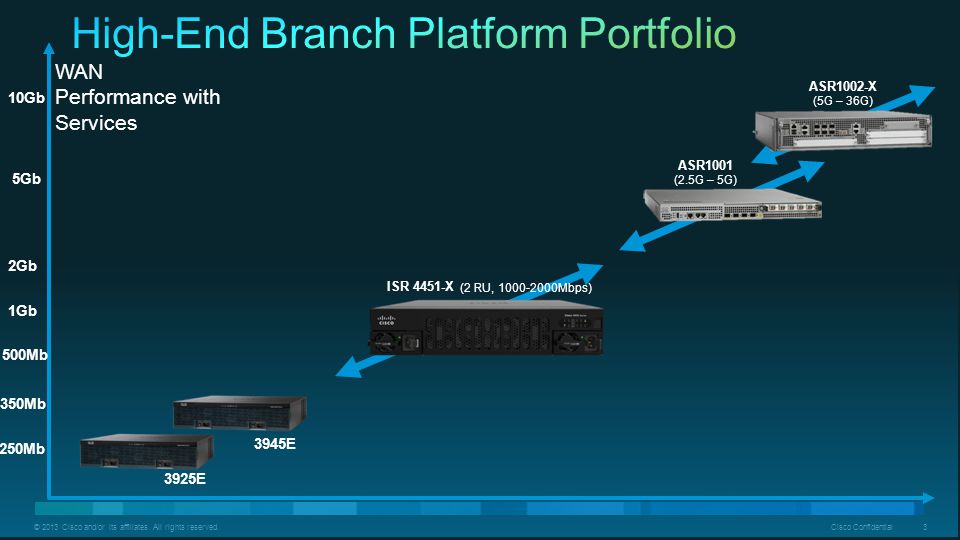

3 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3 250Mb 350Mb 500Mb 1Gb WAN Performance with Services 3945E 3925E 2Gb 5Gb 10Gb ISR 4451-X (2 RU, Mbps) ASR1001 (2.5G – 5G) ASR1002-X (5G – 36G)

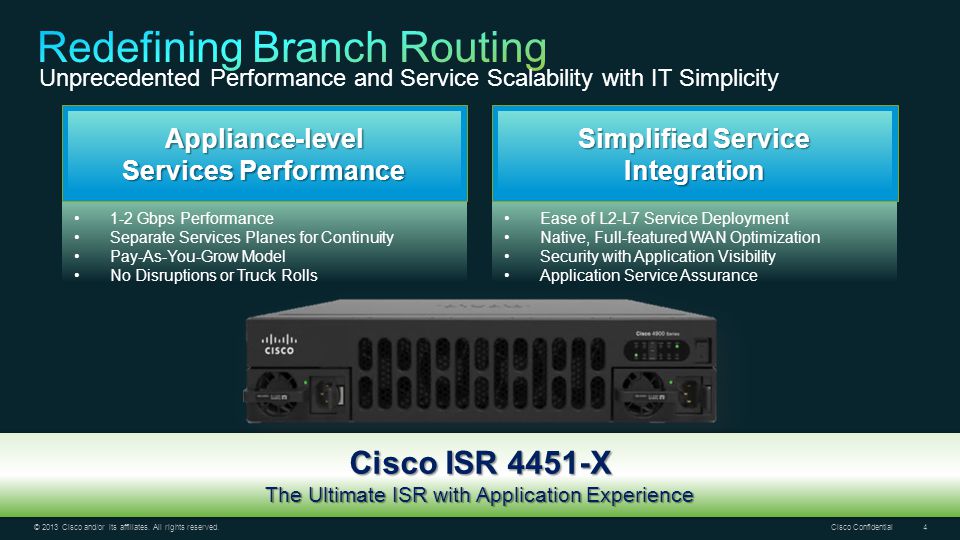

4 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4 Unprecedented Performance and Service Scalability with IT Simplicity Cisco ISR 4451-X The Ultimate ISR with Application Experience 1-2 Gbps Performance Separate Services Planes for Continuity Pay-As-You-Grow Model No Disruptions or Truck Rolls Ease of L2-L7 Service Deployment Native, Full-featured WAN Optimization Security with Application Visibility Application Service Assurance Appliance-level Services Performance Simplified Service Integration

5 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5 Benefits Simplified provisioning and configuration Elastic scale out of L7 services Deterministic L3 performance with services enabled Cloud aware Services Aware Data Plane AppNav Today Coming Soon Vision WAAS L7 FW Cloud Connector

6 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6 Forwarding with Services Interface Density 800 Series 1900 Series Series 3900E Series 4451-X 2Gbps 500Mbps350Mbps 250Mbps 100Mbps 75Mbps50Mbps25Mbps35Mbps

7 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7 USB Connections 2 x Type A for file storage and charging your cell phone USB Type B Console in addition to RJ45 Console and Aux ports USB Connections 2 x Type A for file storage and charging your cell phone USB Type B Console in addition to RJ45 Console and Aux ports Management Interface Connects router’s control plane directly to a management network. Front Panel GE 4 RJ45/SFP GE Interfaces PoE available on 2 Interfaces Front Panel GE 4 RJ45/SFP GE Interfaces PoE available on 2 Interfaces Network Interface Modules (NIM) Larger & more powerful than EHWICs Up to 8 ports per module DSPs directly on modules Network Interface Modules (NIM) Larger & more powerful than EHWICs Up to 8 ports per module DSPs directly on modules Optional Drive NIM for Embedded Applications RAID 1 for data protection Single HD & Dual SSD Options Optional Drive NIM for Embedded Applications RAID 1 for data protection Single HD & Dual SSD Options Enhanced Service Modules Compatible with ISR G2 Up to 10Gb connection to system Faster & more powerful than SMs Enhanced Service Modules Compatible with ISR G2 Up to 10Gb connection to system Faster & more powerful than SMs

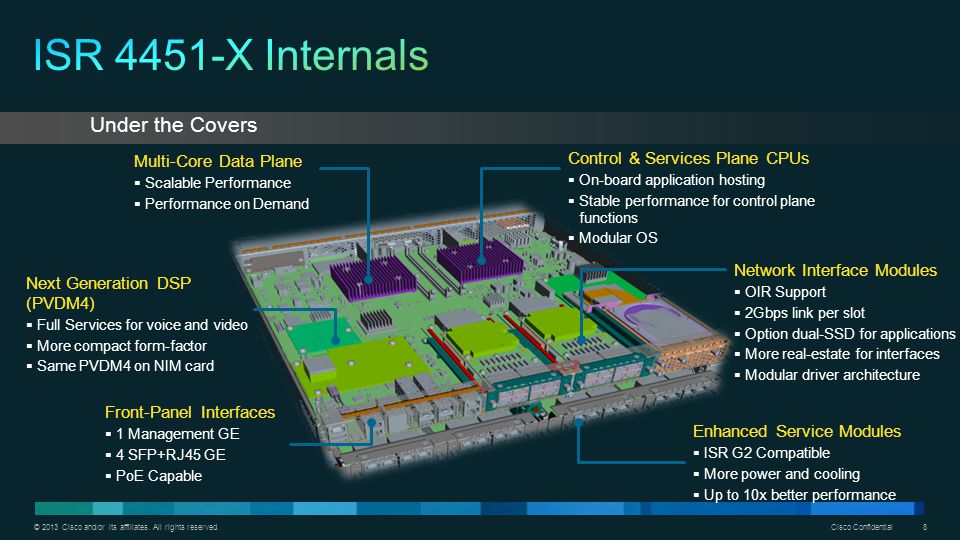

8 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8 Under the Covers Control & Services Plane CPUs  On-board application hosting  Stable performance for control plane functions  Modular OS Multi-Core Data Plane  Scalable Performance  Performance on Demand Next Generation DSP (PVDM4)  Full Services for voice and video  More compact form-factor  Same PVDM4 on NIM card Network Interface Modules  OIR Support  2Gbps link per slot  Option dual-SSD for applications  More real-estate for interfaces  Modular driver architecture Front-Panel Interfaces  1 Management GE  4 SFP+RJ45 GE  PoE Capable Enhanced Service Modules  ISR G2 Compatible  More power and cooling  Up to 10x better performance

9 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential X Architecture

10 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10 Control Plane (1 core) & Services Plane (3 cores) Data Plane (10 cores) 4xPCIe FPG E 4xSGMII DRAM Multi Gigabit Fabric Platform Controller Hub Mgt Eth Cons/Au x USB Flash SM-X ISC 2Gbps 10G/slot 10G XAUI 4xPCIe SM-X NIM 2G/slot PCIe & SERDES management links not shown. System FPGA

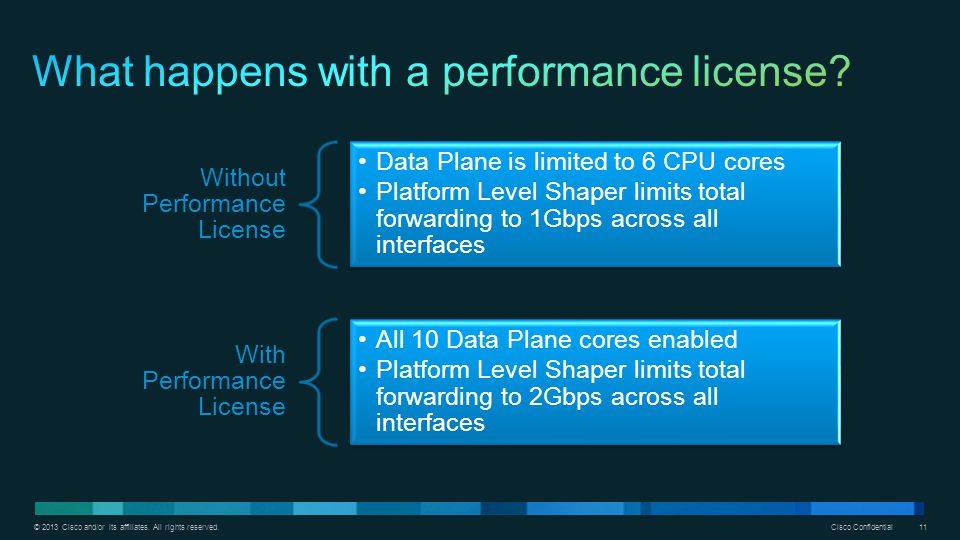

11 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11 Without Performance License Data Plane is limited to 6 CPU cores Platform Level Shaper limits total forwarding to 1Gbps across all interfaces With Performance License All 10 Data Plane cores enabled Platform Level Shaper limits total forwarding to 2Gbps across all interfaces

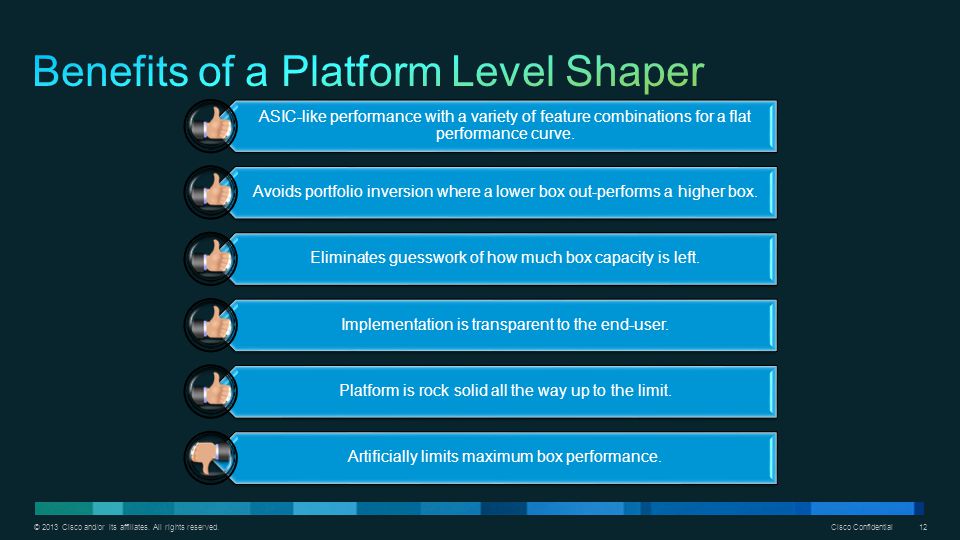

12 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12 ASIC-like performance with a variety of feature combinations for a flat performance curve. Avoids portfolio inversion where a lower box out-performs a higher box. Eliminates guesswork of how much box capacity is left. Implementation is transparent to the end-user. Platform is rock solid all the way up to the limit. Artificially limits maximum box performance.

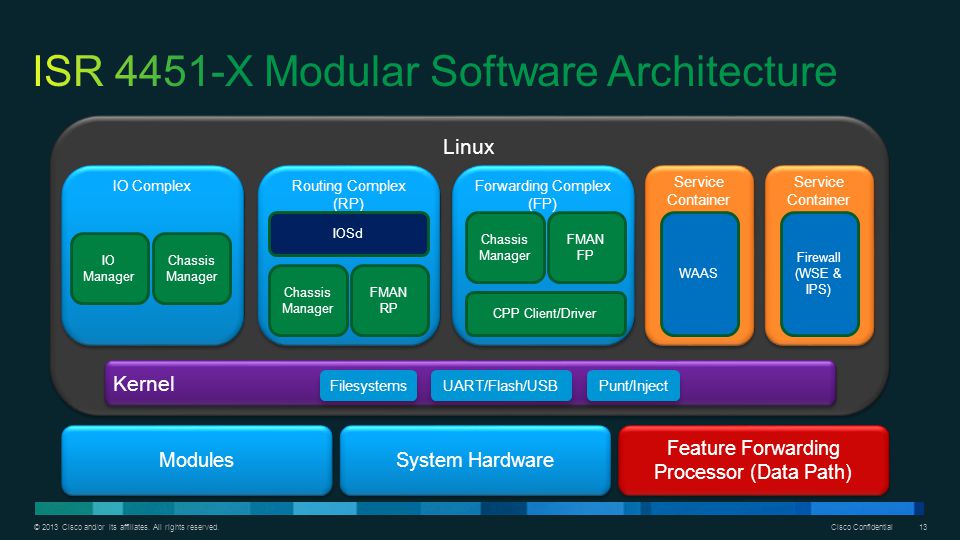

13 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13 Linux Routing Complex (RP) Kernel IO Complex Forwarding Complex (FP) IOSd Chassis Manager FMAN RP IO Manager Chassis Manager FMAN FP CPP Client/Driver Filesystems UART/Flash/USB Punt/Inject System Hardware Modules Feature Forwarding Processor (Data Path) Service Container WAAS Firewall (WSE & IPS)

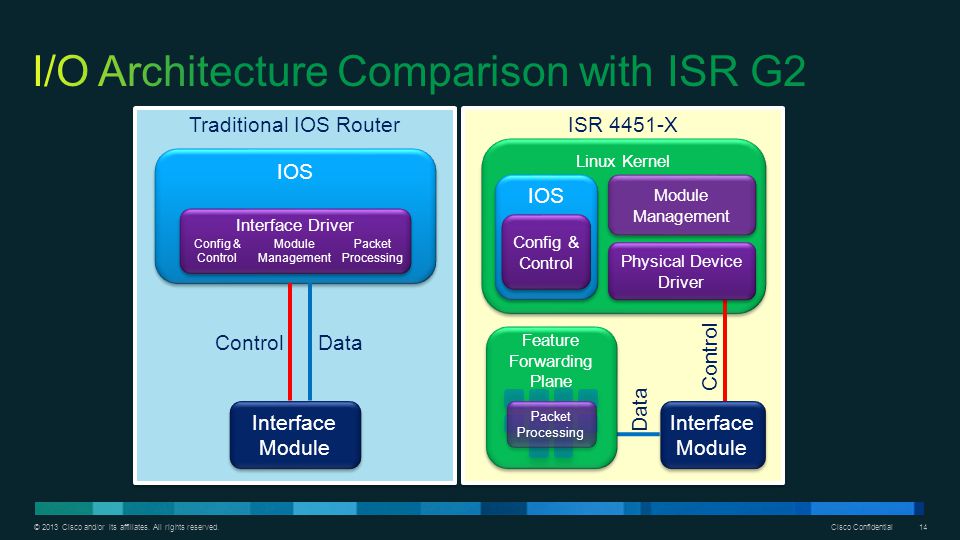

14 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14 ISR 4451-X Linux Kernel Traditional IOS Router IOS Interface Driver Config & Control Module Management Packet Processing Interface Module Data Control IOS Config & Control Interface Module Data Control Module Management Physical Device Driver Feature Forwarding Plane Packet Processing

15 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15 Services on the 4451-X

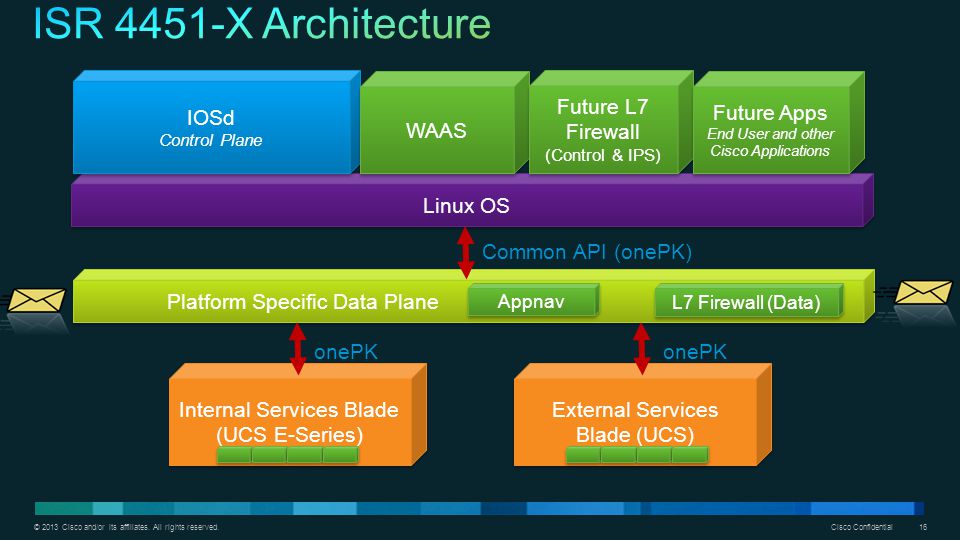

16 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16 Platform Specific Data Plane Linux OS IOSd Control Plane IOSd Control Plane WAAS Future L7 Firewall (Control & IPS) Future Apps End User and other Cisco Applications Future Apps End User and other Cisco Applications Common API (onePK) L7 Firewall (Data) Internal Services Blade (UCS E-Series) External Services Blade (UCS) onePK Appnav

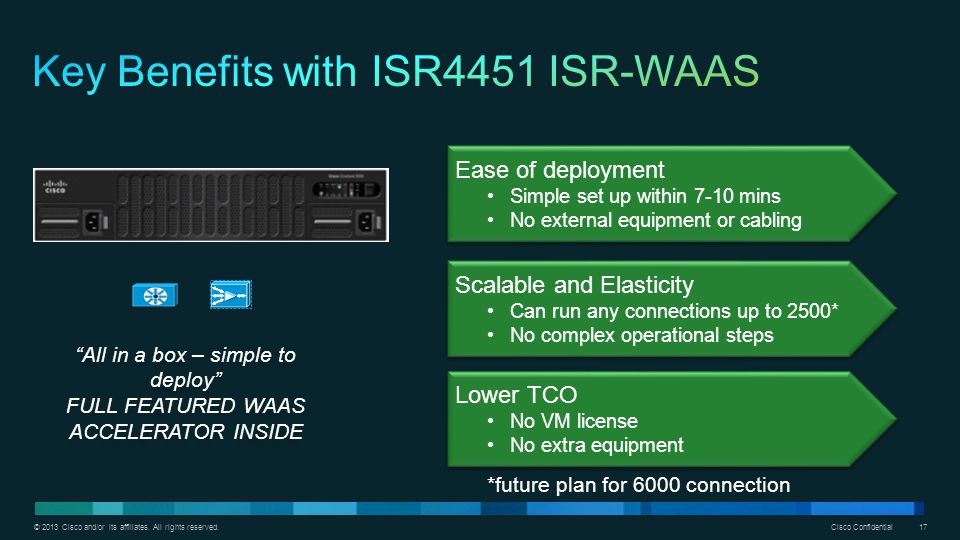

17 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17 Ease of deployment Simple set up within 7-10 mins No external equipment or cabling Ease of deployment Simple set up within 7-10 mins No external equipment or cabling Scalable and Elasticity Can run any connections up to 2500* No complex operational steps Scalable and Elasticity Can run any connections up to 2500* No complex operational steps Lower TCO No VM license No extra equipment Lower TCO No VM license No extra equipment “All in a box – simple to deploy” FULL FEATURED WAAS ACCELERATOR INSIDE “All in a box – simple to deploy” FULL FEATURED WAAS ACCELERATOR INSIDE *future plan for 6000 connection

18 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18 Minimum requirements for WAAS on 4451-X are 8GB CP DRAM, 16GB Flash and one 200GB SSD. EZConfig Script can have WAAS + AppNav up and running in <10 minutes. router# service waas enable ************************************************************************** **** Entering WAAS service interactive mode. **** **** You will be asked a series of questions, and your answers **** **** will be used to modify this device's configuration to **** **** enable a WAAS Service on this router. **** ************************************************************************** Continue? [y]: At any time: ? for help, CTRL-C to exit.

19 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19 Hardware and Modules

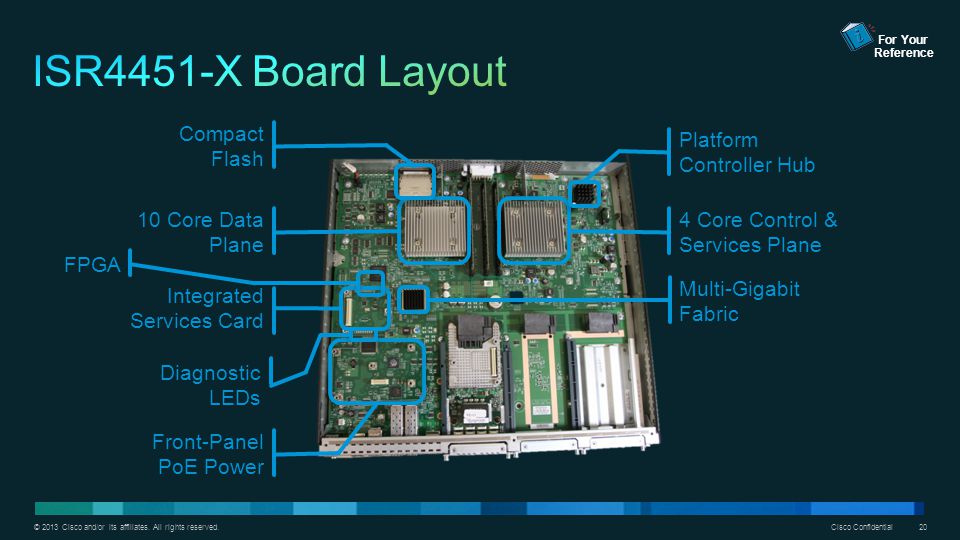

20 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Core Data Plane 4 Core Control & Services Plane Compact Flash Integrated Services Card Front-Panel PoE Power Platform Controller Hub FPGA Diagnostic LEDs Multi-Gigabit Fabric For Your Reference

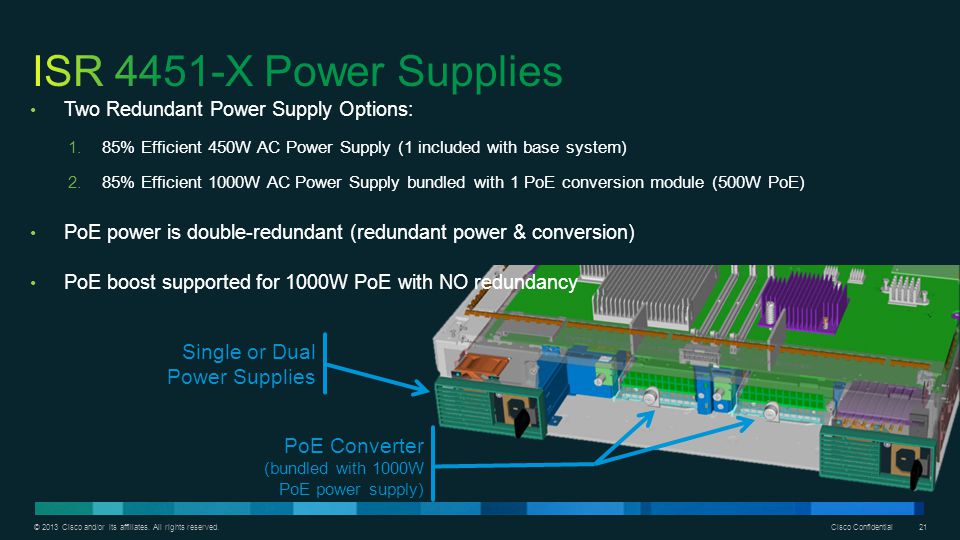

21 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21 Two Redundant Power Supply Options: 1.85% Efficient 450W AC Power Supply (1 included with base system) 2.85% Efficient 1000W AC Power Supply bundled with 1 PoE conversion module (500W PoE) PoE power is double-redundant (redundant power & conversion) PoE boost supported for 1000W PoE with NO redundancy Single or Dual Power Supplies PoE Converter (bundled with 1000W PoE power supply)

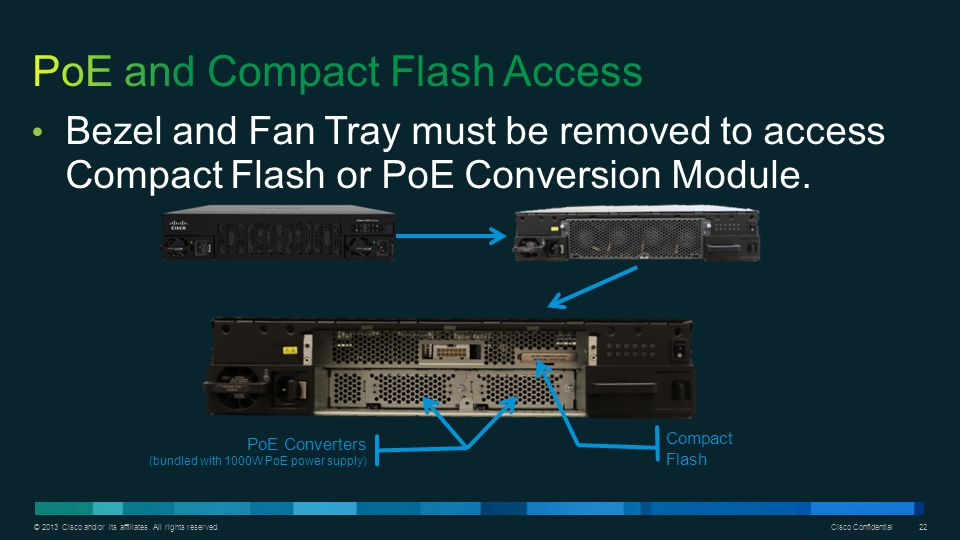

22 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22 Bezel and Fan Tray must be removed to access Compact Flash or PoE Conversion Module. PoE Converters (bundled with 1000W PoE power supply) Compact Flash

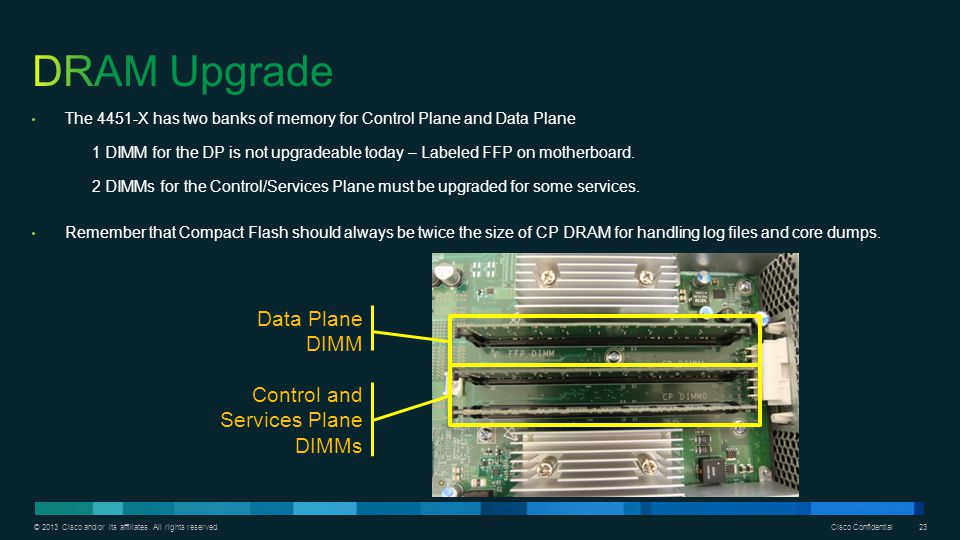

23 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23 The 4451-X has two banks of memory for Control Plane and Data Plane 1 DIMM for the DP is not upgradeable today – Labeled FFP on motherboard. 2 DIMMs for the Control/Services Plane must be upgraded for some services. Remember that Compact Flash should always be twice the size of CP DRAM for handling log files and core dumps. Data Plane DIMM Control and Services Plane DIMMs

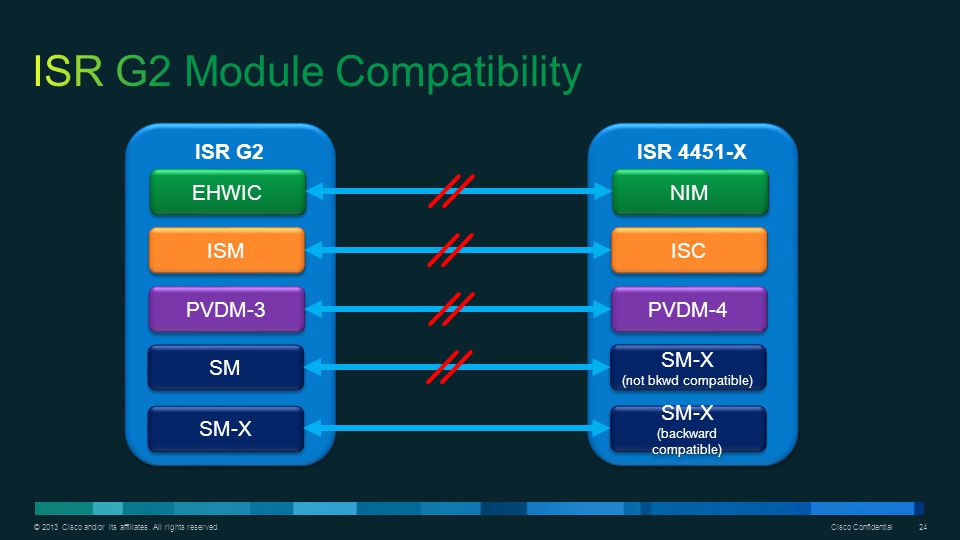

24 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24 ISR G2 EHWIC ISM PVDM-3 SM SM-X ISR 4451-X NIM ISC PVDM-4 SM-X (not bkwd compatible) SM-X (backward compatible)

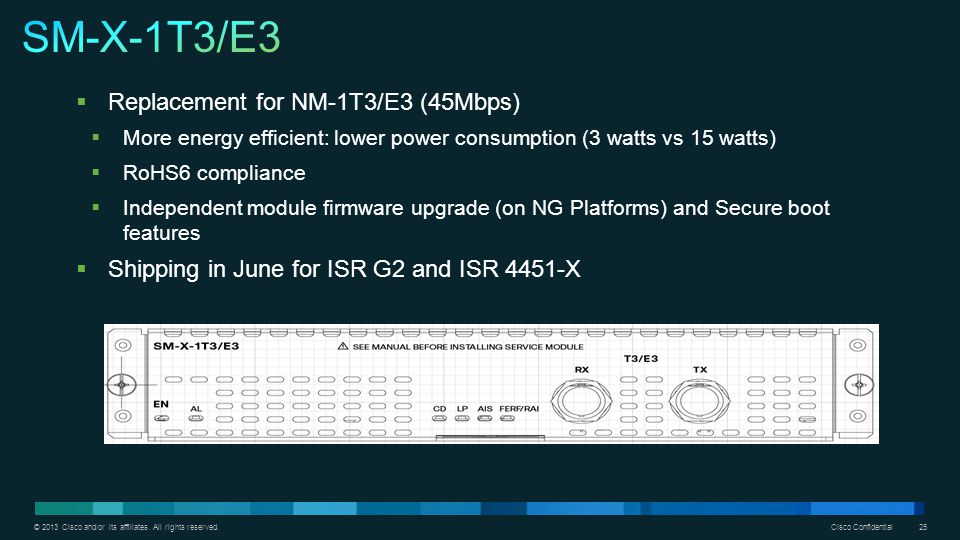

25 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25  Replacement for NM-1T3/E3 (45Mbps)  More energy efficient: lower power consumption (3 watts vs 15 watts)  RoHS6 compliance  Independent module firmware upgrade (on NG Platforms) and Secure boot features  Shipping in June for ISR G2 and ISR 4451-X

26 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26  1 common single-wide NIM for ‘Clear Channel + Voice + G703’ available in 1/2/4/8-port options  Shipping in June for ISR 4451-X SKUDescription NIM-1MFT-T1/E11 port MFT Voice/Clear Channel T1/E1 Card NIM-2MFT-T1/E12 port MFT Voice/Clear Channel T1/E1 Card NIM-4MFT-T1/E14 port MFT Voice/Clear Channel T1/E1 Card NIM-8MFT-T1/E18 port MFT Voice/Clear Channel T1/E1 Card SKUDescription NIM-1CE1T1-PRI1 port channelized T1/E1 and PRI NIM (data only) NIM-2CE1T1-PRI2 port channelized T1/E1 and PRI NIM (data only) NIM-8CE1T1-PRI8 port channelized T1/E1 and PRI NIM (data only)  A Single-wide NIM for ‘Channelized T1/E1’ available in 1/2/8-port options  Shipping in June for ISR 4451-X

27 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27  L3 and L2 Ether switch modules for ISR G2 and ISR 4451-X  Cisco Trust Sec/MACSec/POE+  L3 SKUs support same licensing capabilities as Catalyst 3560-X: LAN Base, IP Base and IP Services  First models available in June for ISR G2 and 4451-X Module IDDescription SM-ES3X-16-P16-port, Gigabit Ethernet, POE+, MACSec PHY, L3 Service Module SM-ES3X-24-P24-port, Gigabit Ethernet, POE+, MACSec PHY, L3 Service Module SM-D-ES3X-48- P 48-port, Gigabit Ethernet, POE+, MACSec PHY, L3 Double-Wide Service Module SM-ES2X-16-P16-port, Gigabit Ethernet, POE+, MACSec PHY, L2 Service Module SM-ES2X-24-P24-port, Gigabit Ethernet, POE+, MACSec PHY, L2 Service Module SM-D-ES2X-48- P 48-port, Gigabit Ethernet, POE+, MACSec PHY, L2 Double-Wide Service Module

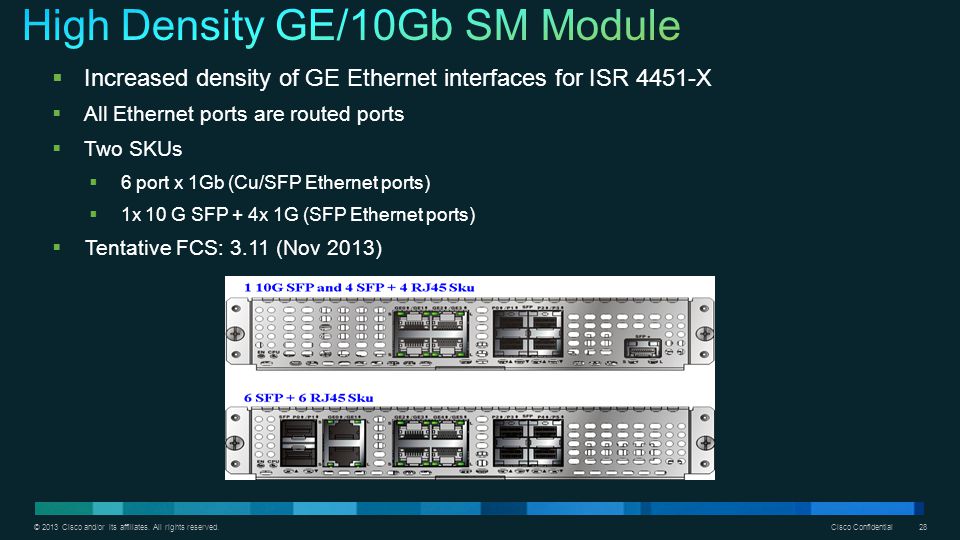

28 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28  Increased density of GE Ethernet interfaces for ISR 4451-X  All Ethernet ports are routed ports  Two SKUs  6 port x 1Gb (Cu/SFP Ethernet ports)  1x 10 G SFP + 4x 1G (SFP Ethernet ports)  Tentative FCS: 3.11 (Nov 2013)

29 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

30 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30 Software, Ordering and Management

31 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31 Security Application Experience Unified Collaboration IP Base Performance High Security CUBE CME/SRST

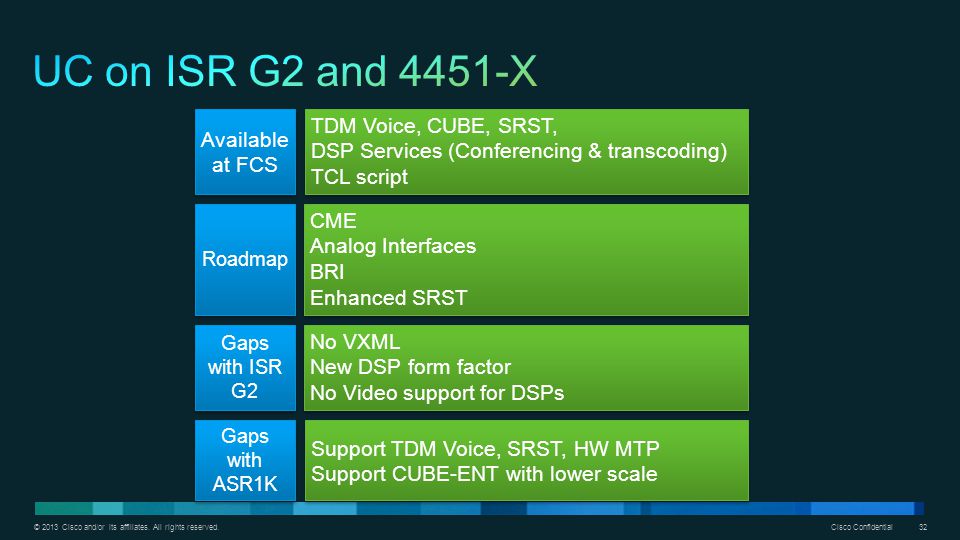

32 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32 TDM Voice, CUBE, SRST, DSP Services (Conferencing & transcoding) TCL script CME Analog Interfaces BRI Enhanced SRST No VXML New DSP form factor No Video support for DSPs No VXML New DSP form factor No Video support for DSPs Available at FCS Roadmap Gaps with ISR G2 Gaps with ASR1K Support TDM Voice, SRST, HW MTP Support CUBE-ENT with lower scale Support TDM Voice, SRST, HW MTP Support CUBE-ENT with lower scale

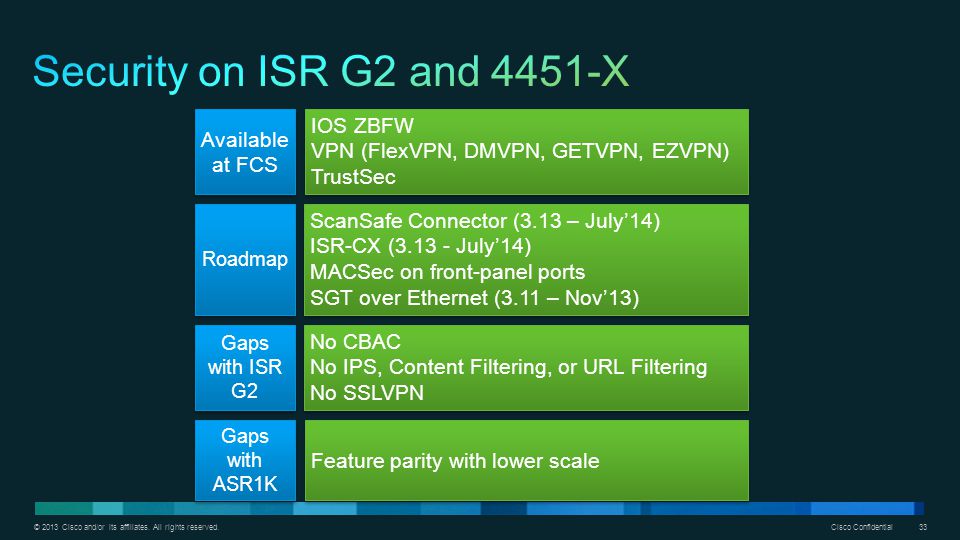

33 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33 IOS ZBFW VPN (FlexVPN, DMVPN, GETVPN, EZVPN) TrustSec IOS ZBFW VPN (FlexVPN, DMVPN, GETVPN, EZVPN) TrustSec ScanSafe Connector (3.13 – July’14) ISR-CX ( July’14) MACSec on front-panel ports SGT over Ethernet (3.11 – Nov’13) ScanSafe Connector (3.13 – July’14) ISR-CX ( July’14) MACSec on front-panel ports SGT over Ethernet (3.11 – Nov’13) No CBAC No IPS, Content Filtering, or URL Filtering No SSLVPN No CBAC No IPS, Content Filtering, or URL Filtering No SSLVPN Available at FCS Roadmap Gaps with ISR G2 Gaps with ASR1K Feature parity with lower scale

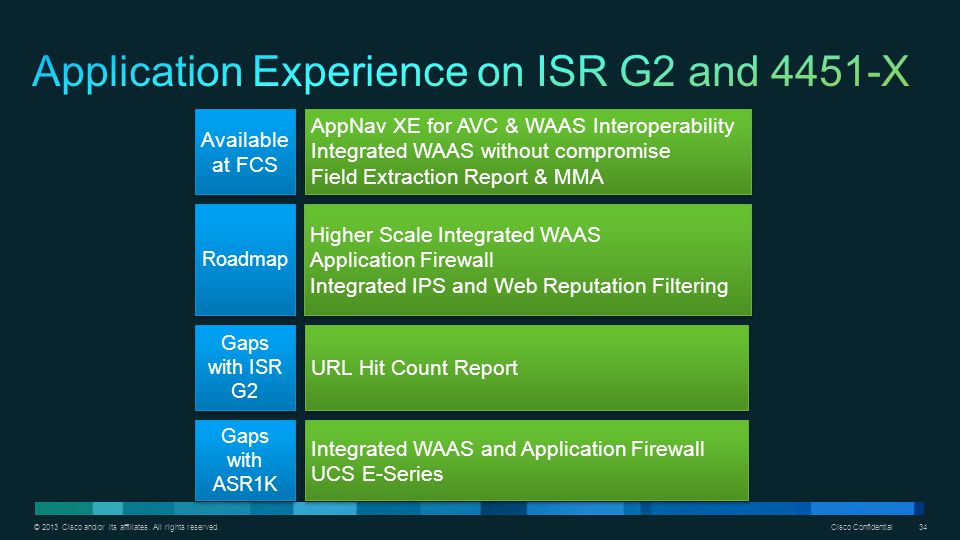

34 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 34 AppNav XE for AVC & WAAS Interoperability Integrated WAAS without compromise Field Extraction Report & MMA AppNav XE for AVC & WAAS Interoperability Integrated WAAS without compromise Field Extraction Report & MMA Available at FCS Roadmap Gaps with ISR G2 Gaps with ASR1K Integrated WAAS and Application Firewall UCS E-Series Higher Scale Integrated WAAS Application Firewall Integrated IPS and Web Reputation Filtering Higher Scale Integrated WAAS Application Firewall Integrated IPS and Web Reputation Filtering URL Hit Count Report

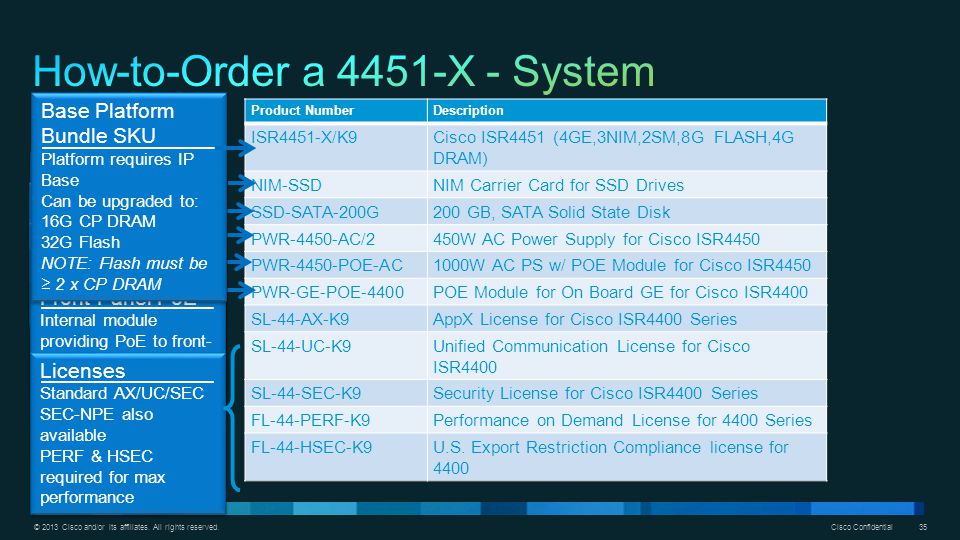

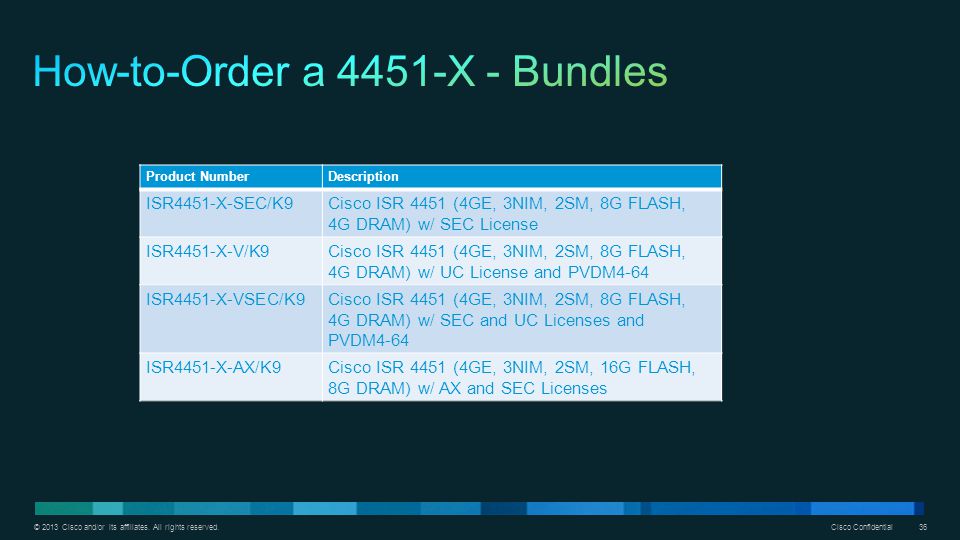

35 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 35 Product NumberDescription ISR4451-X/K9Cisco ISR4451 (4GE,3NIM,2SM,8G FLASH,4G DRAM) NIM-SSDNIM Carrier Card for SSD Drives SSD-SATA-200G200 GB, SATA Solid State Disk PWR-4450-AC/2 450W AC Power Supply for Cisco ISR4450 PWR-4450-POE-AC1000W AC PS w/ POE Module for Cisco ISR4450 PWR-GE-POE-4400POE Module for On Board GE for Cisco ISR4400 SL-44-AX-K9AppX License for Cisco ISR4400 Series SL-44-UC-K9Unified Communication License for Cisco ISR4400 SL-44-SEC-K9Security License for Cisco ISR4400 Series FL-44-PERF-K9Performance on Demand License for 4400 Series FL-44-HSEC-K9U.S. Export Restriction Compliance license for 4400 Solid State Drive NIM Takes two SSDs RAID 0 & 1 support Up to 3 per system NIM-HDD in future for single hard drive Solid State Drive NIM Takes two SSDs RAID 0 & 1 support Up to 3 per system NIM-HDD in future for single hard drive Solid State Drive Initially 200GB Future 100GB and 400GB options Future hard drive options Redundant AC Power Supply Not PoE Capable Up to two per system PoE AC Power Supply Bundle includes 1000W power supply & 500W PoE module Up to two per system Front-Panel PoE Internal module providing PoE to front- panel GE ports Works with either power supply. Licenses Standard AX/UC/SEC SEC-NPE also available PERF & HSEC required for max performance Licenses Standard AX/UC/SEC SEC-NPE also available PERF & HSEC required for max performance Base Platform Bundle SKU Platform requires IP Base Can be upgraded to: 16G CP DRAM 32G Flash NOTE: Flash must be ≥ 2 x CP DRAM Base Platform Bundle SKU Platform requires IP Base Can be upgraded to: 16G CP DRAM 32G Flash NOTE: Flash must be ≥ 2 x CP DRAM

36 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 36 Product NumberDescription ISR4451-X-SEC/K9Cisco ISR 4451 (4GE, 3NIM, 2SM, 8G FLASH, 4G DRAM) w/ SEC License ISR4451-X-V/K9Cisco ISR 4451 (4GE, 3NIM, 2SM, 8G FLASH, 4G DRAM) w/ UC License and PVDM4-64 ISR4451-X-VSEC/K9Cisco ISR 4451 (4GE, 3NIM, 2SM, 8G FLASH, 4G DRAM) w/ SEC and UC Licenses and PVDM4-64 ISR4451-X-AX/K9Cisco ISR 4451 (4GE, 3NIM, 2SM, 16G FLASH, 8G DRAM) w/ AX and SEC Licenses

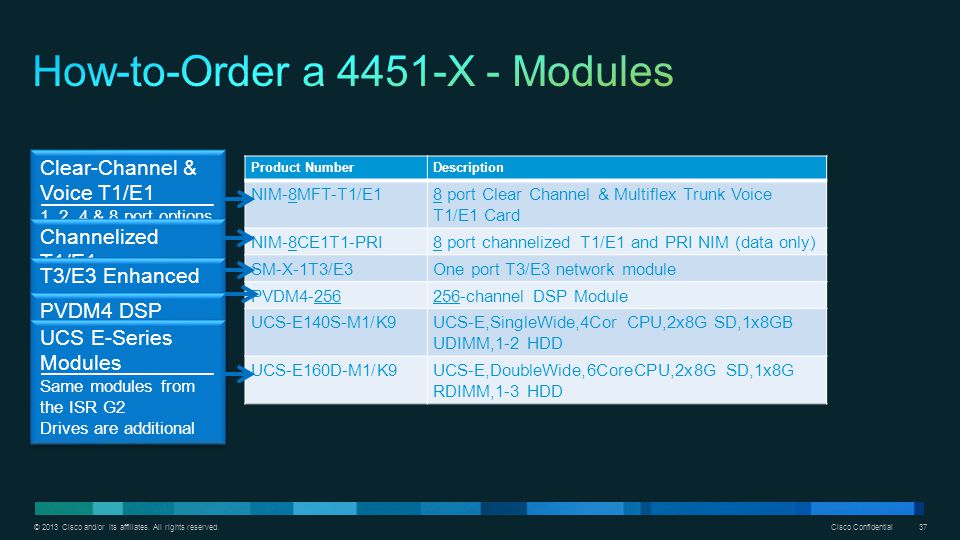

37 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 37 Product NumberDescription NIM-8MFT-T1/E18 port Clear Channel & Multiflex Trunk Voice T1/E1 Card NIM-8CE1T1-PRI8 port channelized T1/E1 and PRI NIM (data only) SM-X-1T3/E3One port T3/E3 network module PVDM channel DSP Module UCS-E140S-M1/K9UCS-E,SingleWide,4Cor CPU,2x8G SD,1x8GB UDIMM,1-2 HDD UCS-E160D-M1/K9UCS-E,DoubleWide,6CoreCPU,2x8G SD,1x8G RDIMM,1-3 HDD Clear-Channel & Voice T1/E1 1, 2, 4 & 8 port options Configurable with PVDM4 on-board. Clear-Channel & Voice T1/E1 1, 2, 4 & 8 port options Configurable with PVDM4 on-board. Channelized T1/E1 1, 2, & 8 port options Channelized T1/E1 1, 2, & 8 port options T3/E3 Enhanced Service Module Compatible with ISR G2 T3/E3 Enhanced Service Module Compatible with ISR G2 PVDM4 DSP Module 32, 64, 128, 192 & 256 channel options Works in ISC slot as well as on MFT NIMs. PVDM4 DSP Module 32, 64, 128, 192 & 256 channel options Works in ISC slot as well as on MFT NIMs. UCS E-Series Modules Same modules from the ISR G2 Drives are additional UCS E-Series Modules Same modules from the ISR G2 Drives are additional

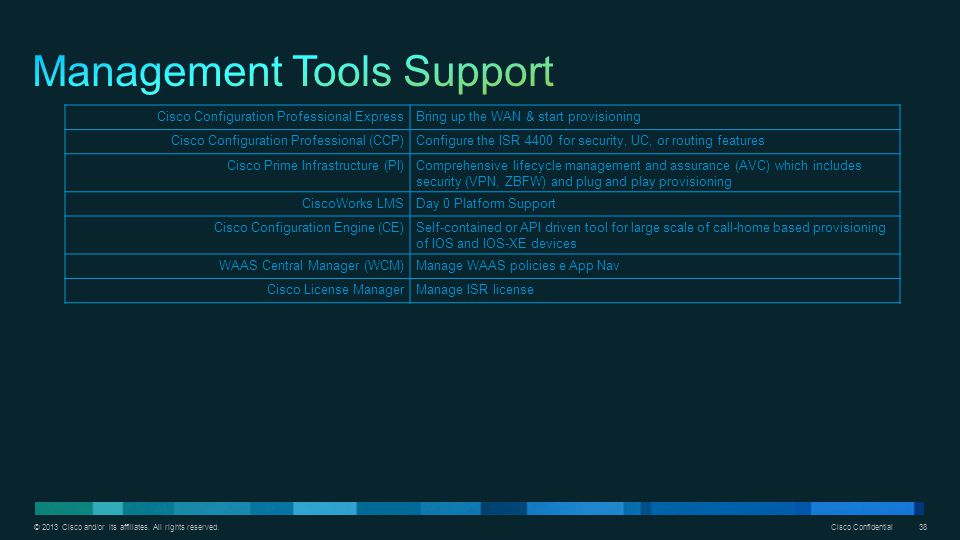

38 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38 Cisco Configuration Professional ExpressBring up the WAN & start provisioning Cisco Configuration Professional (CCP)Configure the ISR 4400 for security, UC, or routing features Cisco Prime Infrastructure (PI)Comprehensive lifecycle management and assurance (AVC) which includes security (VPN, ZBFW) and plug and play provisioning CiscoWorks LMSDay 0 Platform Support Cisco Configuration Engine (CE)Self-contained or API driven tool for large scale of call-home based provisioning of IOS and IOS-XE devices WAAS Central Manager (WCM)Manage WAAS policies e App Nav Cisco License ManagerManage ISR license

39 © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 39 Robust Performance  Delivers ASIC-like performance with services at branch prices  Upgradeable performance with no new hardware Built-In Virtualized Services  Network Virtualization layer for feature-rich services with zero hardware footprint WAAS and App Firewall without compromise Vast UC/Collaboration Architecture Hardware Encryption Ready for Metro Ethernet Services Long-Life Hardware  Redundant power and cooling  Designed for long deployed life with no truckrolls  Extendable with rich module portfolio World Class Architecture  Proven IOS-XE architecture with split data, control and services processors  Consistency with ASR1K and many other current and future Ent platforms
