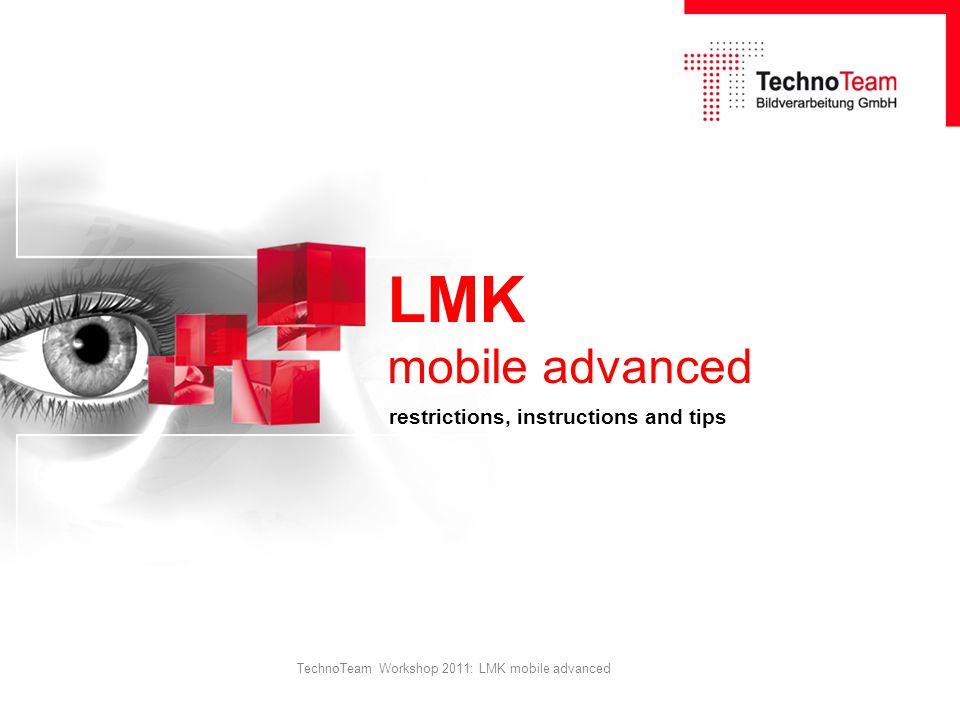

1 TechnoTeam Workshop 2011: LMK mobile advanced LMK mobile advanced restrictions, instructions and tips

2 page 2 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Overview Overview of models and technical data The package LMK mobile advanced –Hardware components –Software components –Additional components Instructions –Control- and Display elements –Quick start guide –Options for an image data control

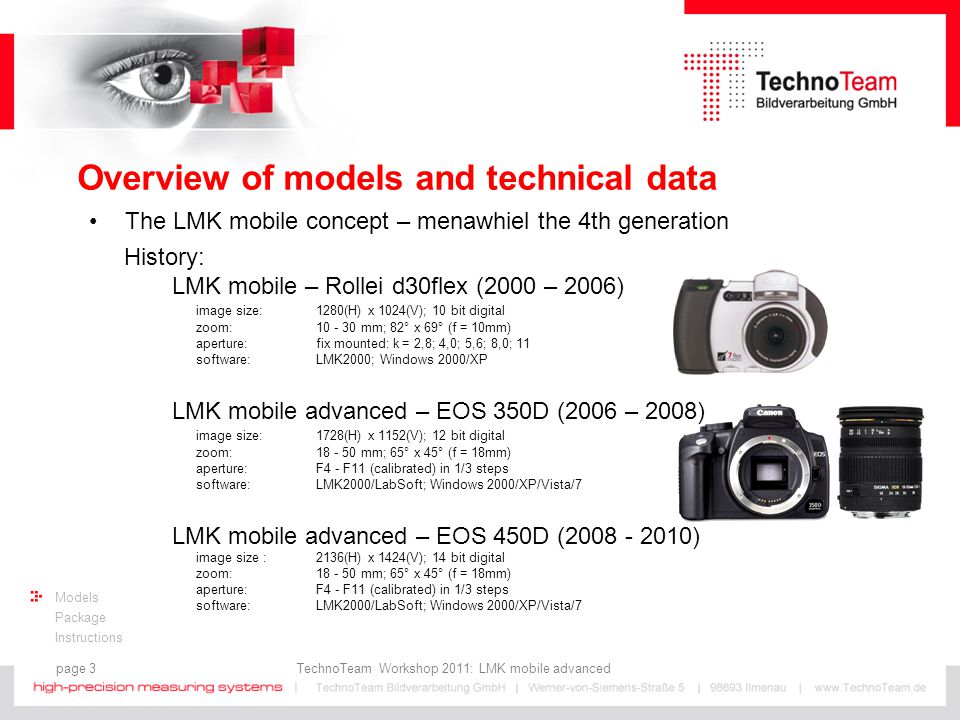

3 page 3 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Overview of models and technical data The LMK mobile concept – menawhiel the 4th generation History: LMK mobile – Rollei d30flex (2000 – 2006) image size: 1280(H) x 1024(V); 10 bit digital zoom: mm; 82° x 69° (f = 10mm) aperture:fix mounted: k = 2,8; 4,0; 5,6; 8,0; 11 software:LMK2000; Windows 2000/XP LMK mobile advanced – EOS 350D (2006 – 2008) image size: 1728(H) x 1152(V); 12 bit digital zoom: mm; 65° x 45° (f = 18mm) aperture:F4 - F11 (calibrated) in 1/3 steps software:LMK2000/LabSoft; Windows 2000/XP/Vista/7 LMK mobile advanced – EOS 450D ( ) image size : 2136(H) x 1424(V); 14 bit digital zoom: mm; 65° x 45° (f = 18mm) aperture:F4 - F11 (calibrated) in 1/3 steps software:LMK2000/LabSoft; Windows 2000/XP/Vista/7

4 page 4 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Overview of models and technical data The LMK mobile concept – menawhiel the 4th generation Current: LMK mobile advanced – EOS 550D ( …) image size: 2592(H) x 1728(V); 14 bit digital zoom: mm; 65° x 45° (f = 18mm) aperture:F4 - F11 (calibrated) in 1/3 steps software:LMK LabSoft; Windows 2000/XP/Vista/7 Ti\Av45,6811 0,25ms7,68,08,28,8 2,5ms6,06,36,57,2 25ms5,86,26,47,0 0,25s5,86,26,47,0 2,5s5,86,26,47,0 Measurement uncertainty ΔL: in % (on standard illuminant A)

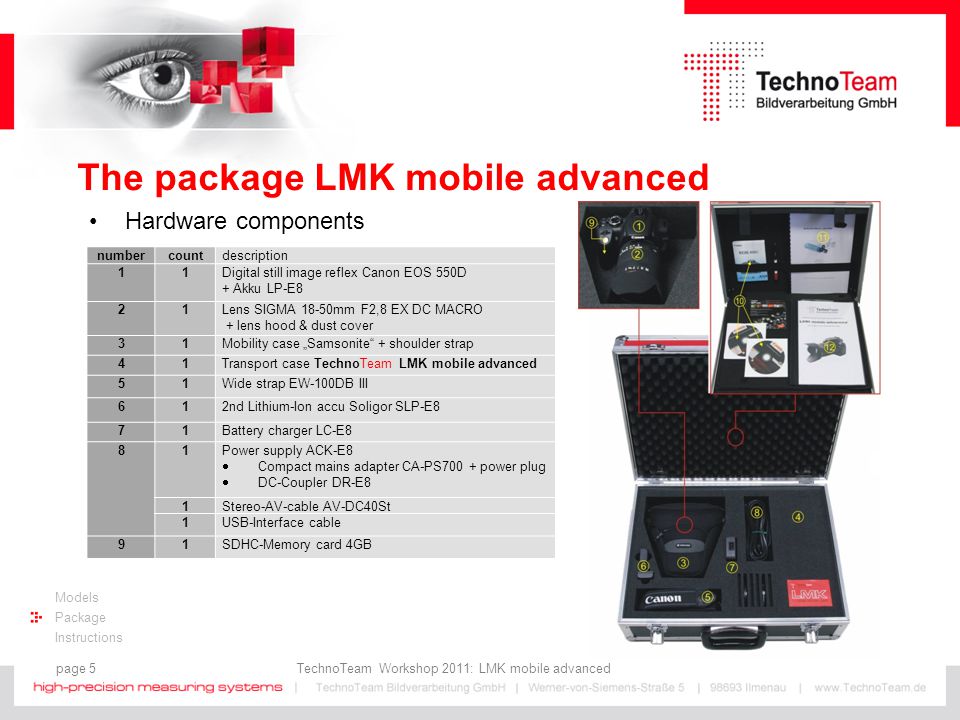

5 page 5 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions The package LMK mobile advanced Hardware components numbercountdescription 11Digital still image reflex Canon EOS 550D + Akku LP-E8 21Lens SIGMA 18-50mm F2,8 EX DC MACRO + lens hood & dust cover 31Mobility case „Samsonite“ + shoulder strap 41Transport case TechnoTeam LMK mobile advanced 51Wide strap EW-100DB III 612nd Lithium-Ion accu Soligor SLP-E8 71Battery charger LC-E8 81Power supply ACK-E8  Compact mains adapter CA-PS700 + power plug  DC-Coupler DR-E8 1Stereo-AV-cable AV-DC40St 1USB-Interface cable 91SDHC-Memory card 4GB

6 page 6 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions The package LMK mobile advanced Software components Optional components numbercountdescription 131SIGMA 4,5mm F2,8 EX Circular FishEye 141ND-grey filter (opt. density: 1,0; 2,0; 3,0) 151Tripod 161Remote controller numbercountdescription 102CD-ROM:  EOS Digital Solution Disk  Software manual (PDF) 1Manual Canon EOS 550D 111CD-ROM: LMK LabSoft analysis software 1Manual LMK LabSoft analysis software 121Manual LMK mobile advanced

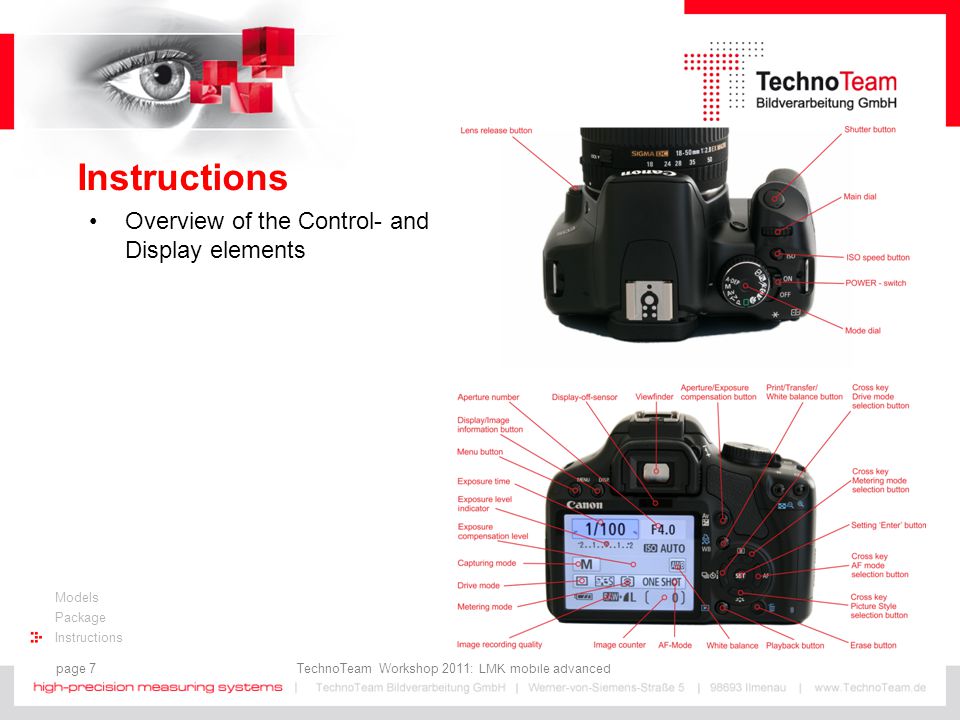

7 page 7 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Overview of the Control- and Display elements

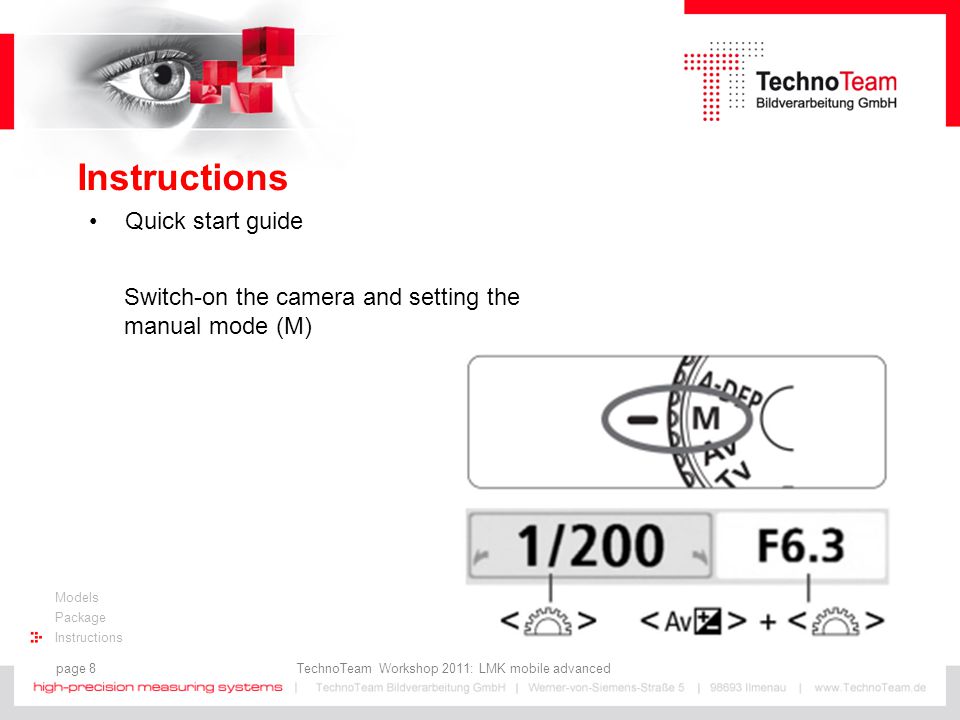

8 page 8 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Switch-on the camera and setting the manual mode (M)

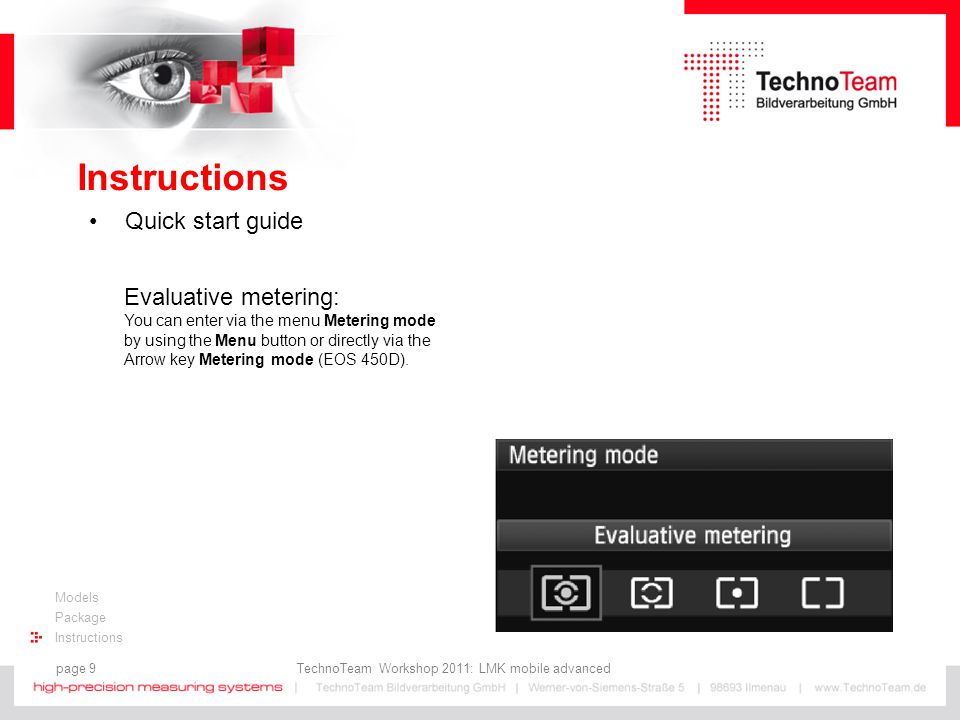

9 page 9 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Evaluative metering: You can enter via the menu Metering mode by using the Menu button or directly via the Arrow key Metering mode (EOS 450D).

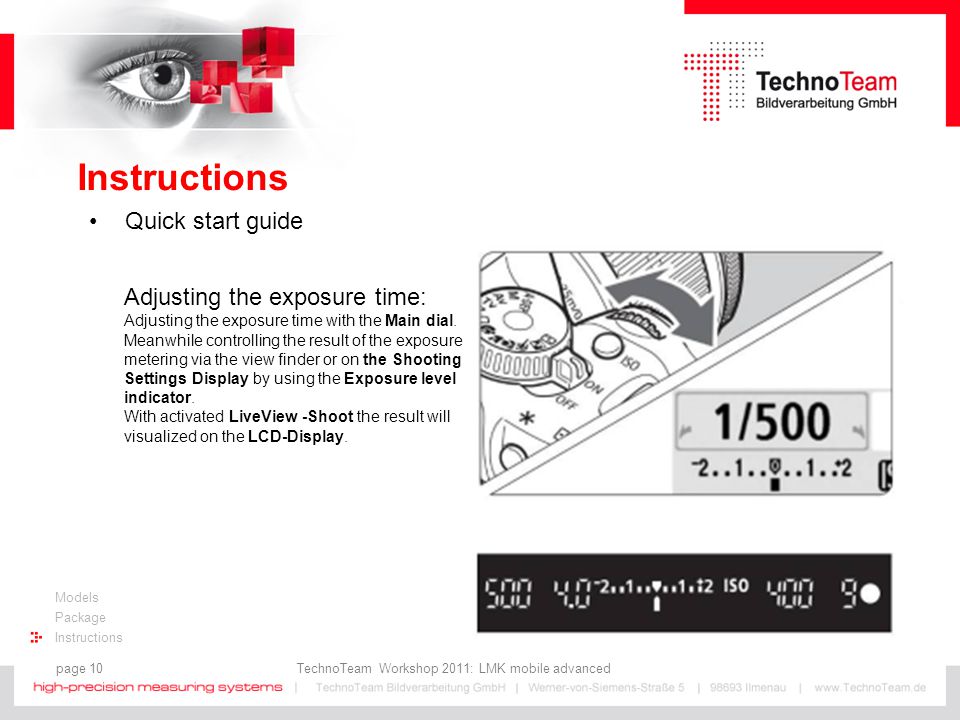

10 page 10 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Adjusting the exposure time: Adjusting the exposure time with the Main dial. Meanwhile controlling the result of the exposure metering via the view finder or on the Shooting Settings Display by using the Exposure level indicator. With activated LiveView -Shoot the result will visualized on the LCD-Display.

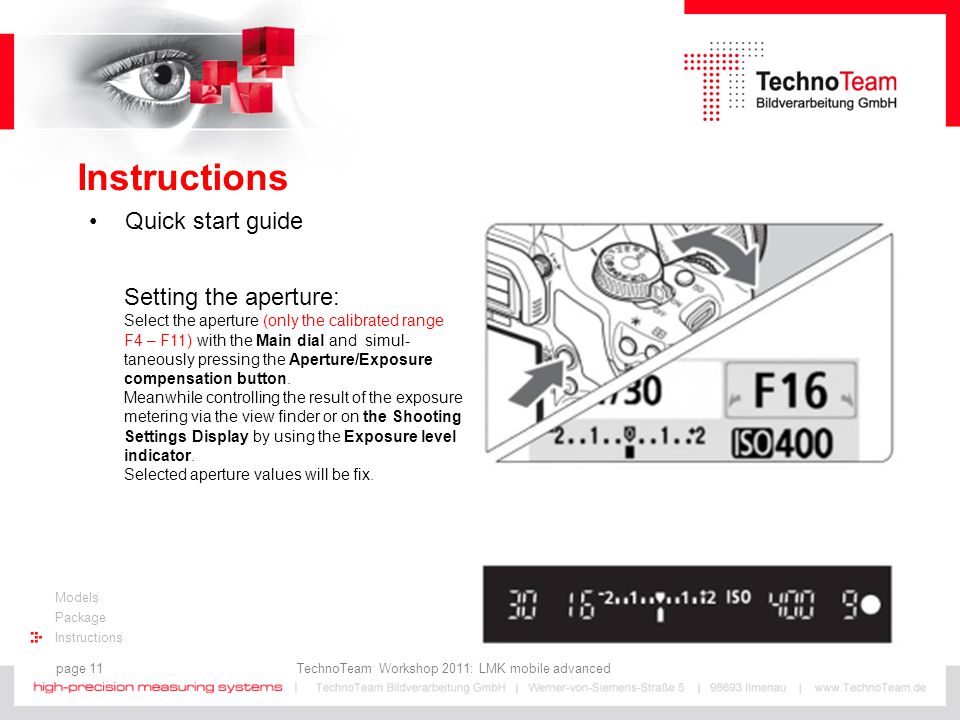

11 page 11 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Setting the aperture: Select the aperture (only the calibrated range F4 – F11) with the Main dial and simul- taneously pressing the Aperture/Exposure compensation button. Meanwhile controlling the result of the exposure metering via the view finder or on the Shooting Settings Display by using the Exposure level indicator. Selected aperture values will be fix.

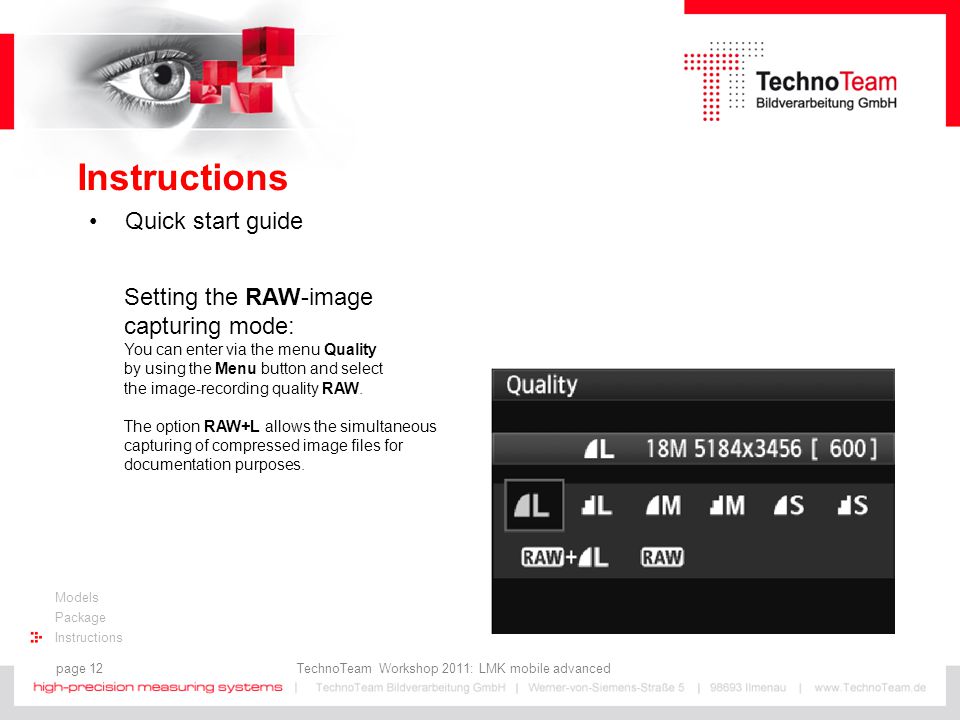

12 page 12 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Setting the RAW-image capturing mode: You can enter via the menu Quality by using the Menu button and select the image-recording quality RAW. The option RAW+L allows the simultaneous capturing of compressed image files for documentation purposes.

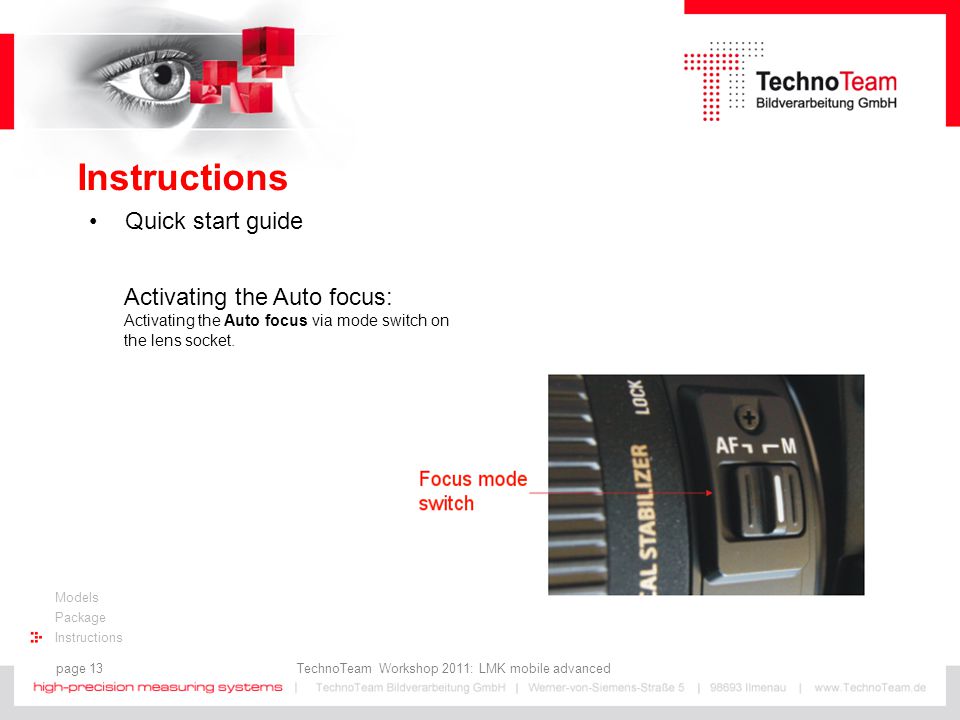

13 page 13 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Activating the Auto focus: Activating the Auto focus via mode switch on the lens socket.

14 page 14 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Image Stabilizer deactivated: Deactivating the Image Stabilizer via mode switch on the lens socket.

15 page 15 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Adjusting the Auto Exposure Bracketing AEB with ±2 Exposure values (EV): You can enter via the menu Quality by using the Menu button and select the sub menu AEB. After pressing the SET button you can select the AEB amount via the Main-dial. Finally pressing the SET button again to set it.

16 page 16 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Using tripod for stable camera stand:

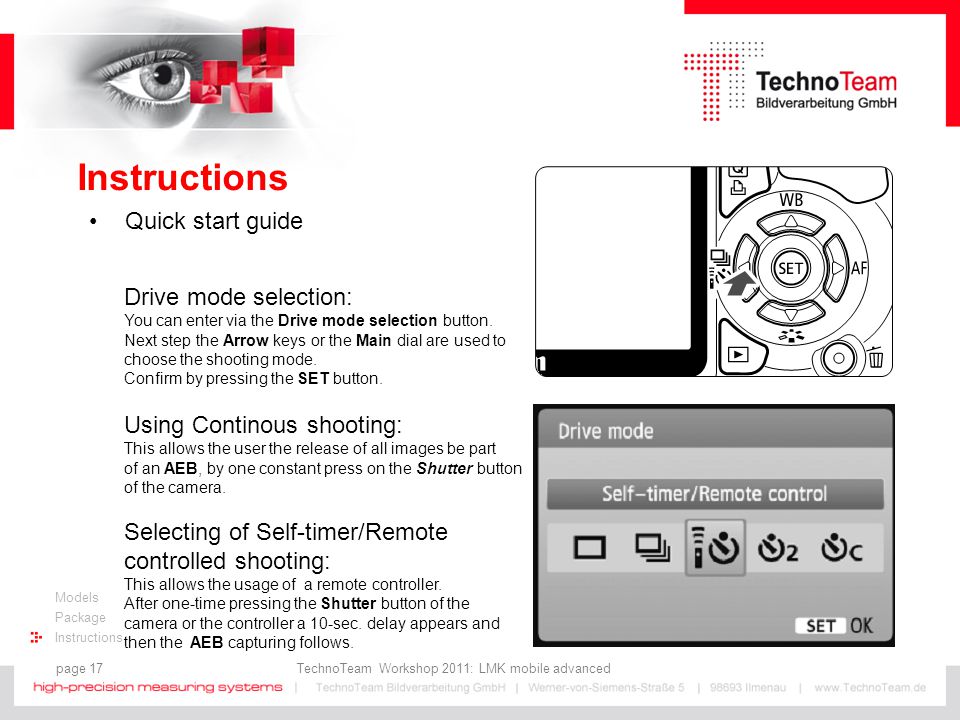

17 page 17 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Drive mode selection: You can enter via the Drive mode selection button. Next step the Arrow keys or the Main dial are used to choose the shooting mode. Confirm by pressing the SET button. Using Continous shooting: This allows the user the release of all images be part of an AEB, by one constant press on the Shutter button of the camera. Selecting of Self-timer/Remote controlled shooting: This allows the usage of a remote controller. After one-time pressing the Shutter button of the camera or the controller a 10-sec. delay appears and then the AEB capturing follows.

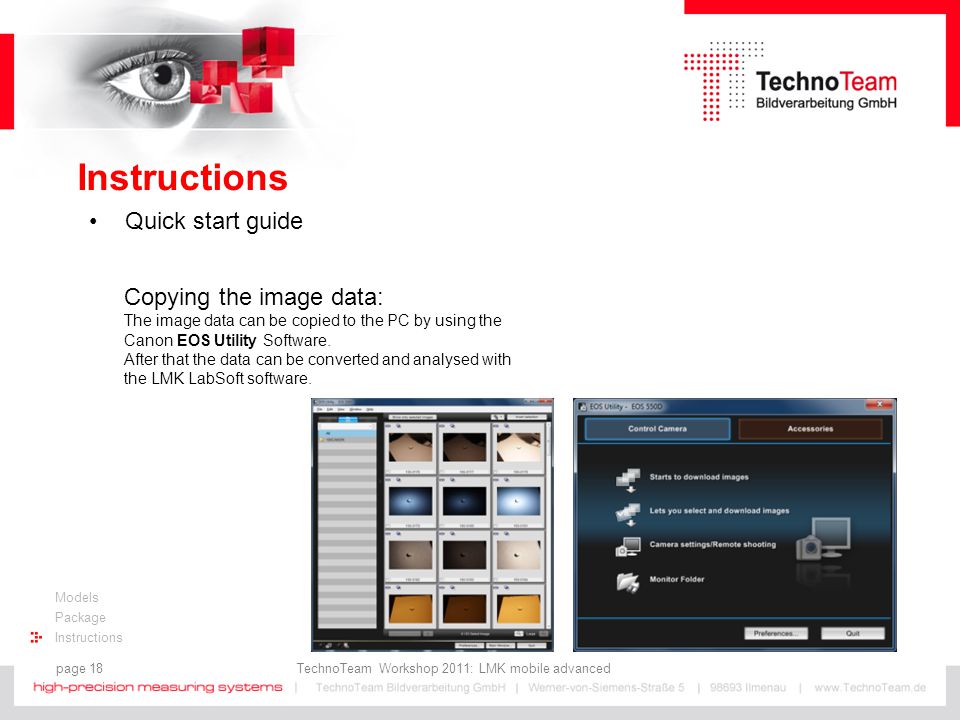

18 page 18 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Quick start guide Copying the image data: The image data can be copied to the PC by using the Canon EOS Utility Software. After that the data can be converted and analysed with the LMK LabSoft software.

19 page 19 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Options for an image data control Image Playback at the camera display: By using the LCD-Displays of the camera and the Playback button, it is possible to have a first view and check of the images without the PC.

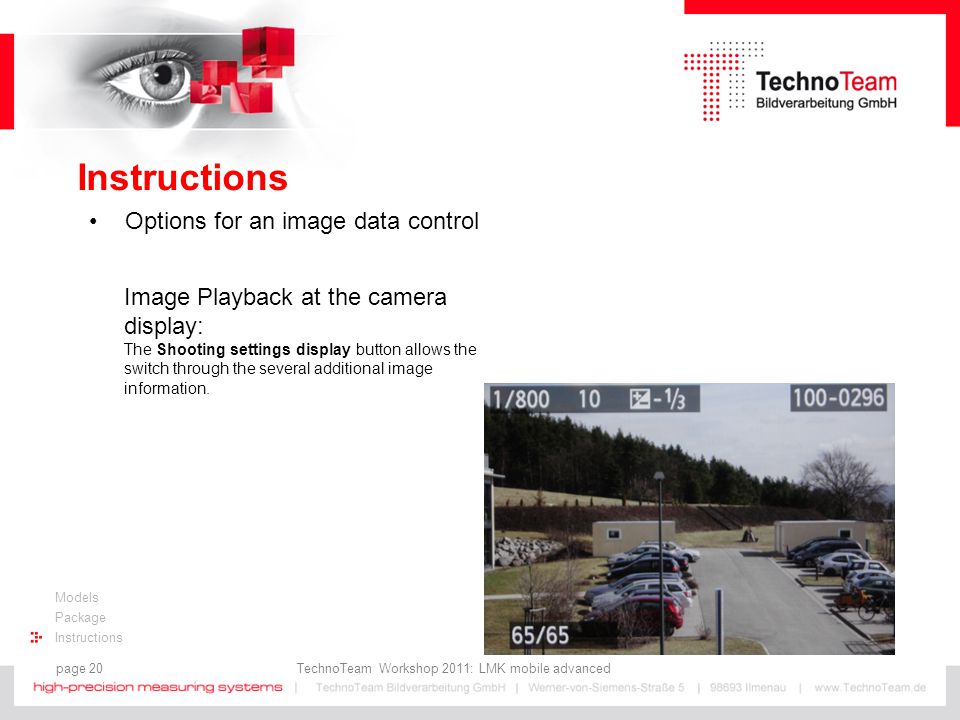

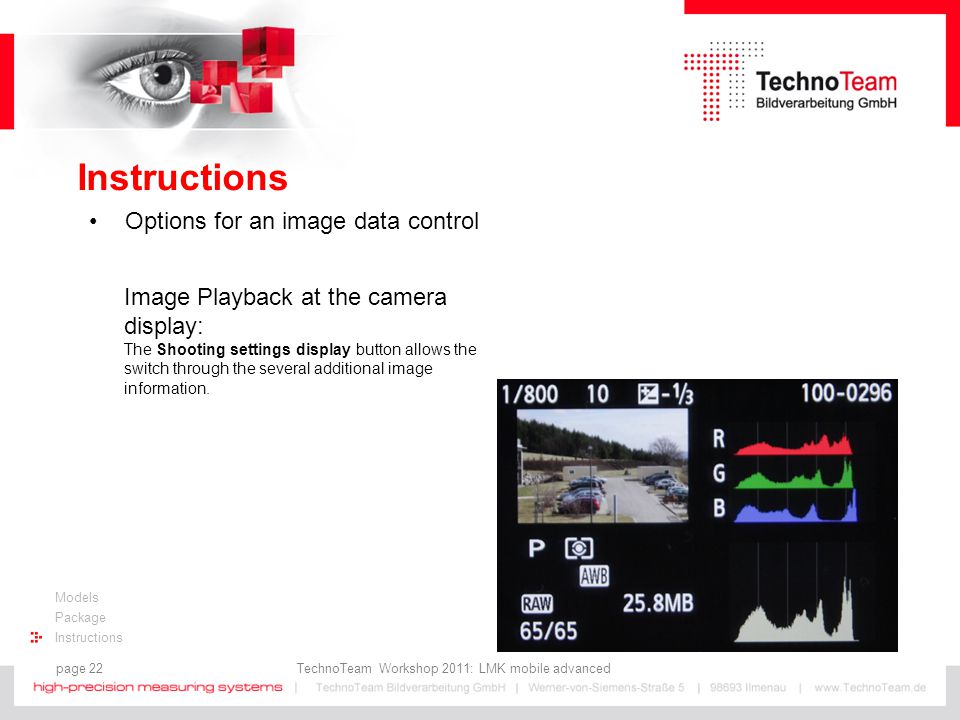

20 page 20 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Options for an image data control Image Playback at the camera display: The Shooting settings display button allows the switch through the several additional image information.

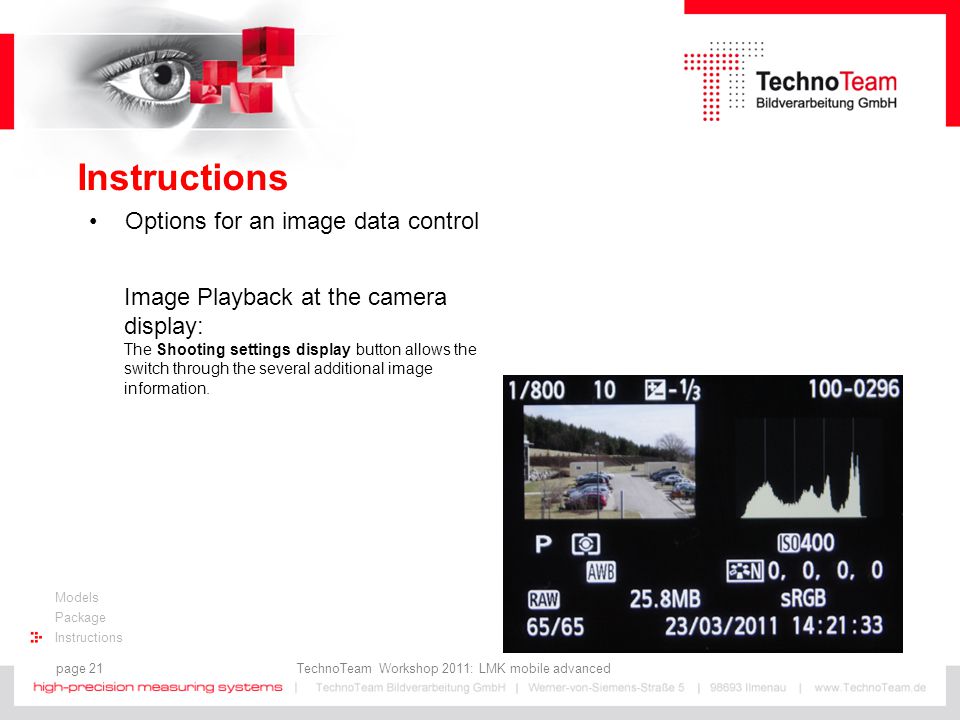

21 page 21 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Options for an image data control Image Playback at the camera display: The Shooting settings display button allows the switch through the several additional image information.

22 page 22 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Options for an image data control Image Playback at the camera display: The Shooting settings display button allows the switch through the several additional image information.

23 page 23 TechnoTeam Workshop 2011: LMK mobile advanced Models Package Instructions Aim Prior studies & apps Realisation Tests Conclusion Thank you for your attention!
