1
General Form and Graph for an Exponential Function

2
A function whose input (x) is located in the exponent. Example: Jason has $17 and quadruples his money every month. Write an equation to represent the situation. Exponential Equation Initial Multiplier

3
Exponential Table There is a constant MULTIPLIER between consecutive output values. XY 5.67 017 151 2153 3459 x3

4
For any Exponential: Graphs of y=b x 0 < b < 1 b = 1 b > 1 Increasing, asymptote y=0 Decreasing, asymptote y=0 Horizontal line y=1 Domain: x-intercept(s): y-intercept(s): Vertical asymptote: None (0,1) b > 0 Range:

5
Representations of y=ab x xy=a(b)xy=a(b)x -3 -2 0 1 2 The initial value The multiplier a (0,a) Context: a is the starting point b is the multiplier x b

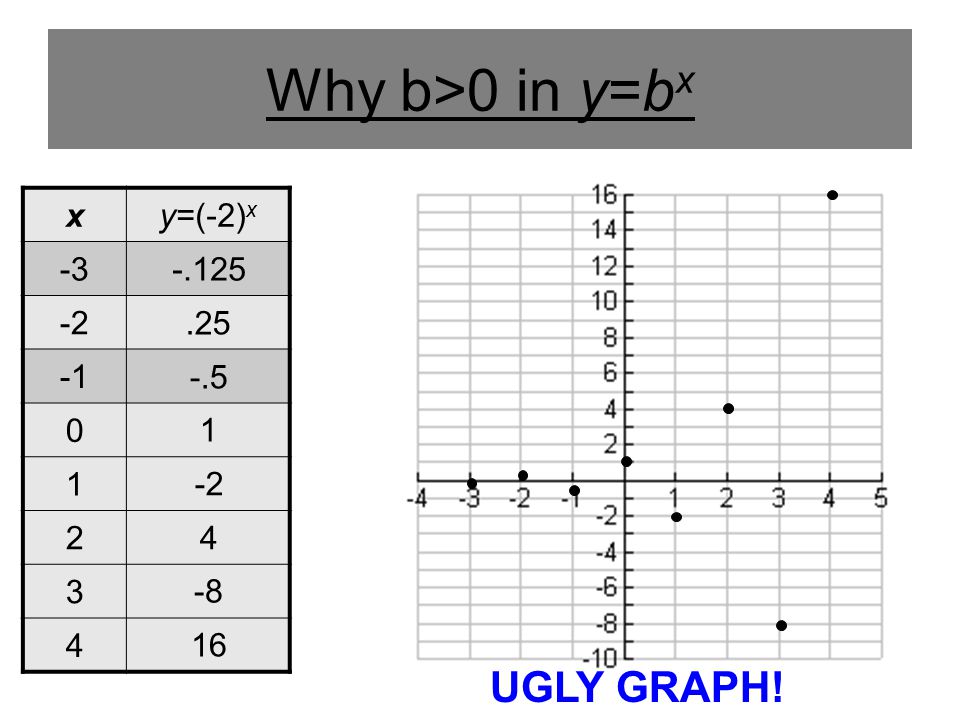

6
Why b>0 in y=b x xy=(-2) x -3 -2 0 1 2 3 4 -.125.25 -.5 1 -2 4 -8 16 UGLY GRAPH!
