Business Continuity Challenges App and Data Growth’s Impact on business continuity Increasing costsToo many complications, problems and mistakes.

Similar presentations


Presentation on theme: "Business Continuity Challenges App and Data Growth’s Impact on business continuity Increasing costsToo many complications, problems and mistakes."— Presentation transcript:

1

2

3

4

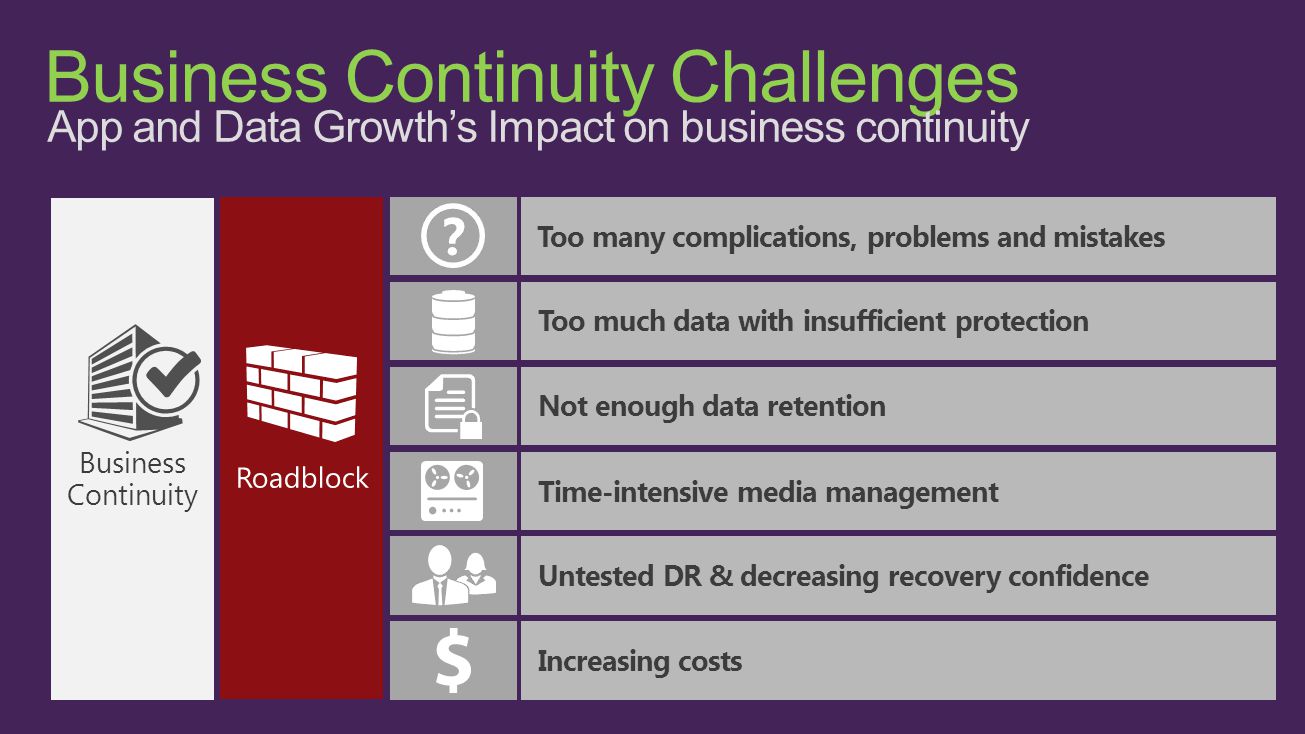

5 Business Continuity Challenges App and Data Growth’s Impact on business continuity Increasing costsToo many complications, problems and mistakes Business Continuity Not enough data retention Time-intensive media management Untested DR & decreasing recovery confidence Too much data with insufficient protection

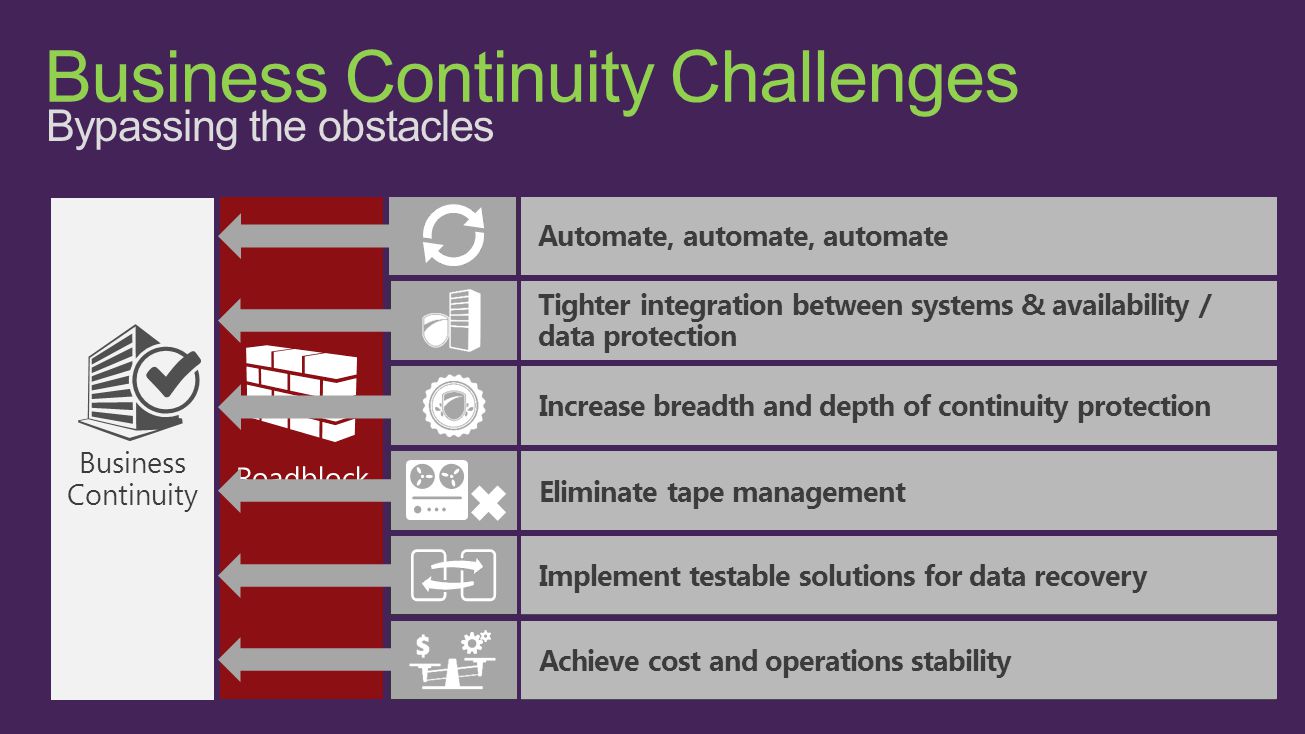

6 Business Continuity Challenges Bypassing the obstacles Increasing costsToo many complications, problems and mistakes Business Continuity Not enough data retention Time-intensive media management Untested DR & decreasing recovery confidence Too much data with insufficient protection Automate, automate, automate Tighter integration between systems & availability / data protection Eliminate tape management Achieve cost and operations stability Increase breadth and depth of continuity protection Implement testable solutions for data recovery

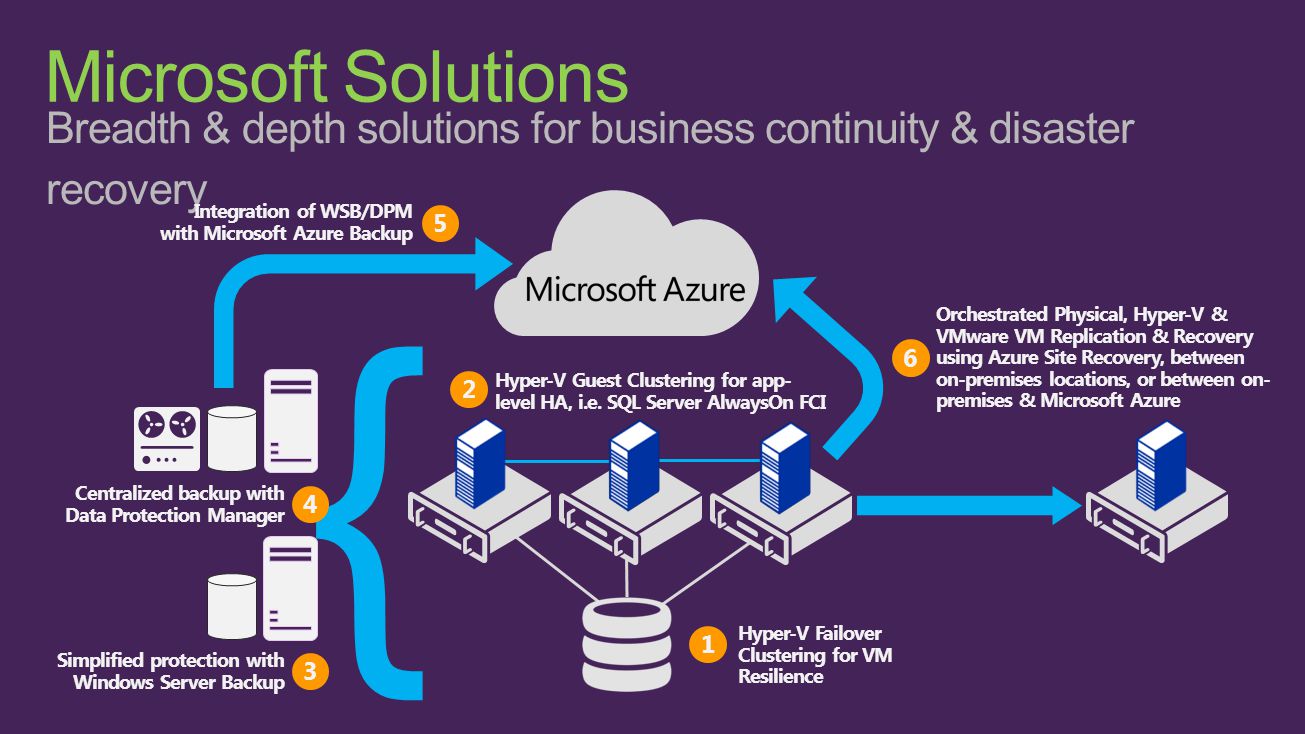

7 Microsoft Solutions Breadth & depth solutions for business continuity & disaster recovery Hyper-V Failover Clustering for VM Resilience 1 Hyper-V Guest Clustering for app- level HA, i.e. SQL Server AlwaysOn FCI 2 } Centralized backup with Data Protection Manager 4 Simplified protection with Windows Server Backup 3 Integration of WSB/DPM with Microsoft Azure Backup 5 Orchestrated Physical, Hyper-V & VMware VM Replication & Recovery using Azure Site Recovery, between on-premises locations, or between on- premises & Microsoft Azure 6

8

9 Azure Site Recovery: Year So Far… On-premises to On-premises protection Microsoft Azure Site Recovery Communication Channel Replication channel: Hyper-V Replica, SQL AlwaysOn Primary Site Windows Server Recovery Site Windows Server GA January 2014 Azure Site Recovery: DR Orchestration between on-premises Hyper-V Sites

10 Microsoft Azure Site Recovery Download Scout Replication channel: InMage Replication Primary Site Physical/ VMWare Recovery Site VMWare InMage Scout Azure Site Recovery: Year So Far… On-premises to On-premises protection GA July 2014 Azure Site Recovery: DR Orchestration between on-premises VMware Sites with InMage

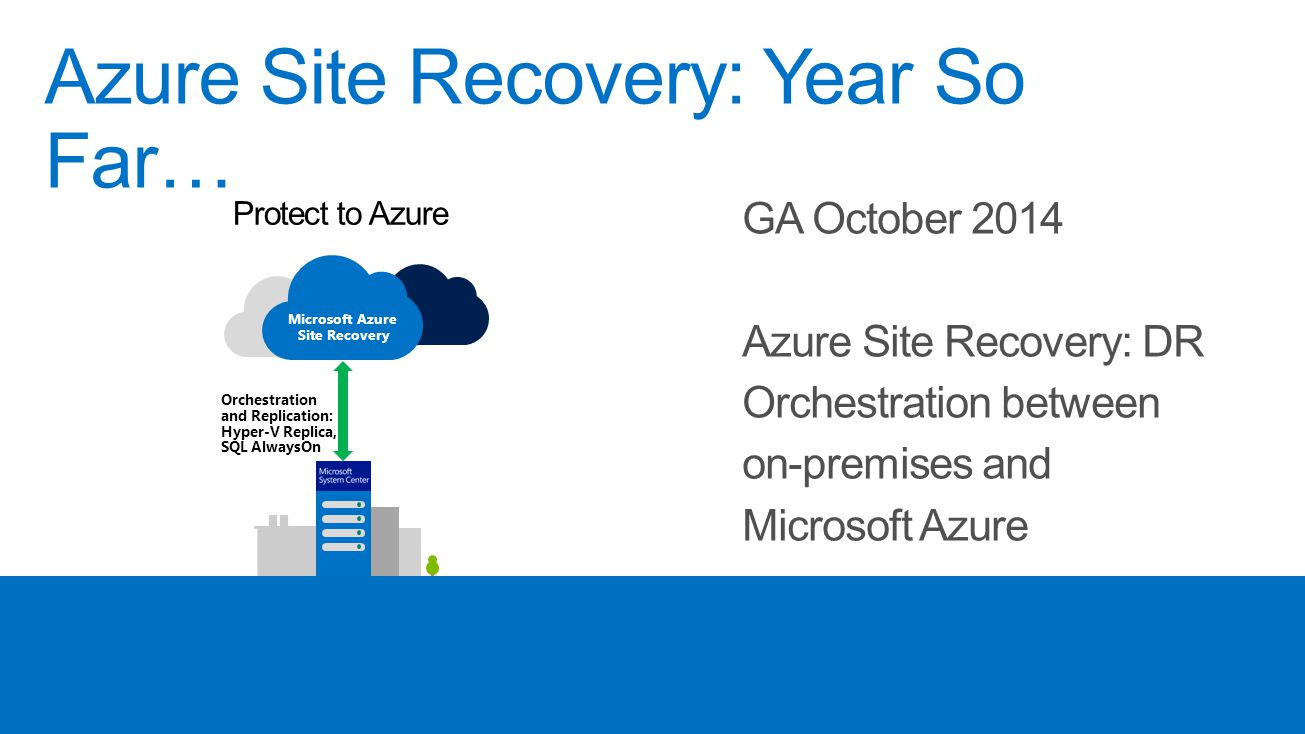

11 Windows Server Protect to Azure Orchestration and Replication: Hyper-V Replica, SQL AlwaysOn Microsoft Azure Site Recovery Primary Site Azure Site Recovery: Year So Far… GA October 2014 Azure Site Recovery: DR Orchestration between on-premises and Microsoft Azure

12 Announcing Today Public Preview Nov 2014 Public Preview of Azure Site Recovery with SAN Replication Support On-premises to On-premises protection Microsoft Azure Site Recovery Communication Channel SAN Replication Primary Site Recovery Site Windows Server

13

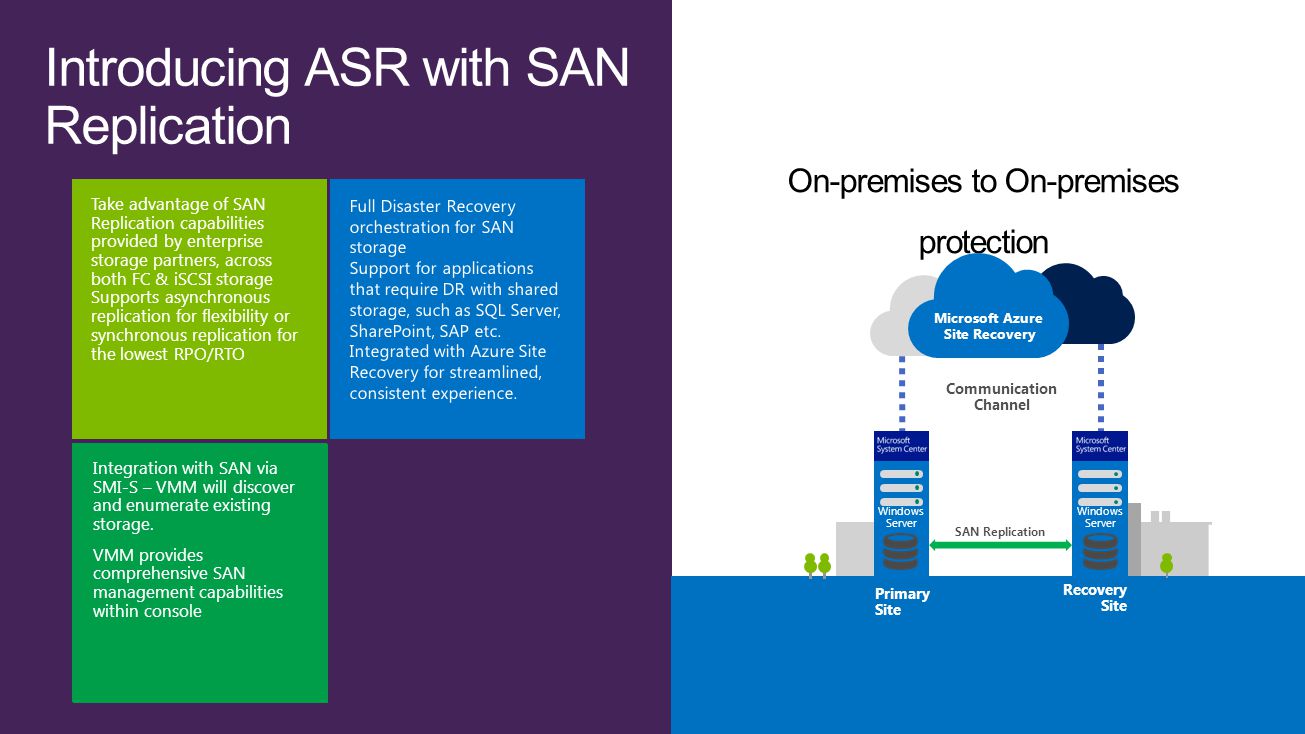

14 Partner Integration SAN Replication Take advantage of SAN Replication capabilities provided by enterprise storage partners, across both FC & iSCSI storage Supports asynchronous replication for flexibility or synchronous replication for the lowest RPO/RTO Integration with SAN via SMI-S – VMM will discover and enumerate existing storage. VMM provides comprehensive SAN management capabilities within console On-premises to On-premises protection Microsoft Azure Site Recovery Communication Channel SAN Replication Primary Site Recovery Site Windows Server

15 EMCWith Preview VMAX VNX & VNX/e NetAppWith PreviewFAS (8.2 C-MODE) HPWith Preview3PAR HDSIn DevelopmentVSP FujitsuIn DevelopmentEternus DellIn DevelopmentCompellent HuaweiIn DevelopmentOceanStor IBMIn DevelopmentXIV

16 Hypervisor Replication Enable Protection Planned Failover Unplanned Failover Test Failover Site to Site DR Site to Azure DR

17

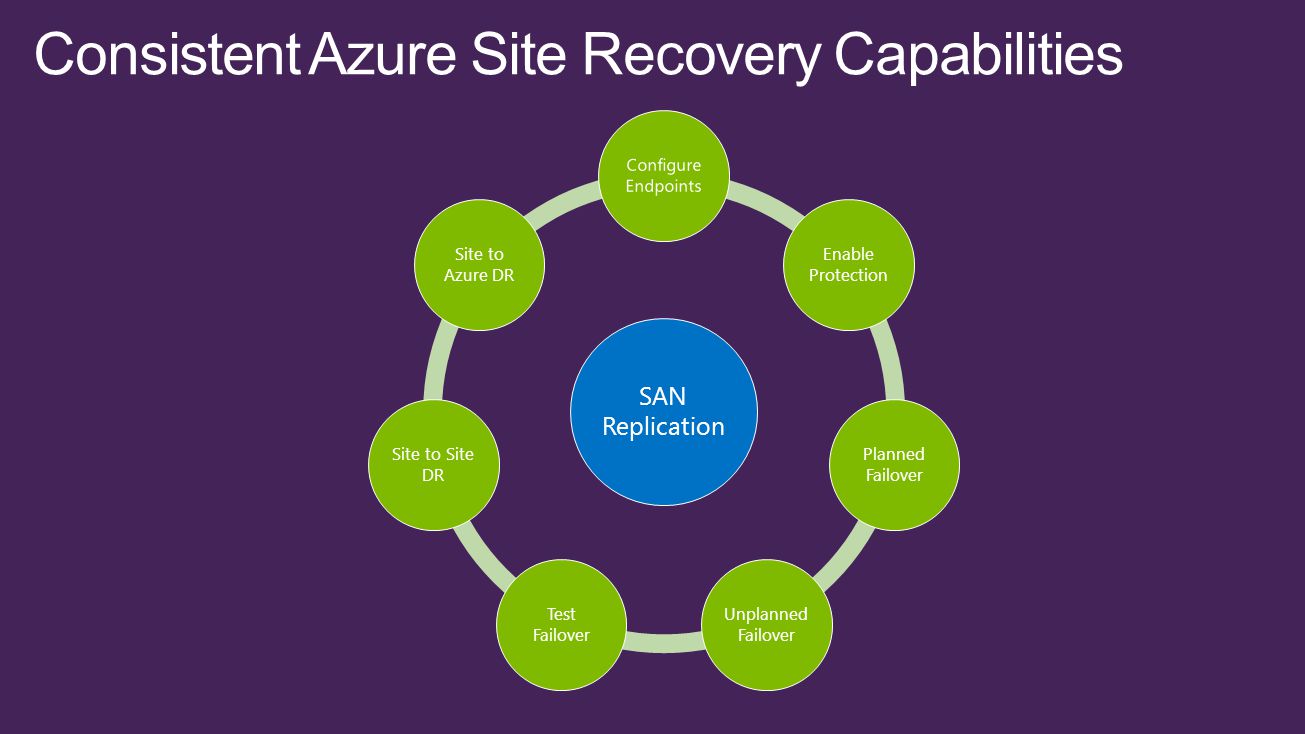

18 SAN Replication Enable Protection Planned Failover Unplanned Failover Test Failover Site to Site DR Site to Azure DR

19

20

21

22

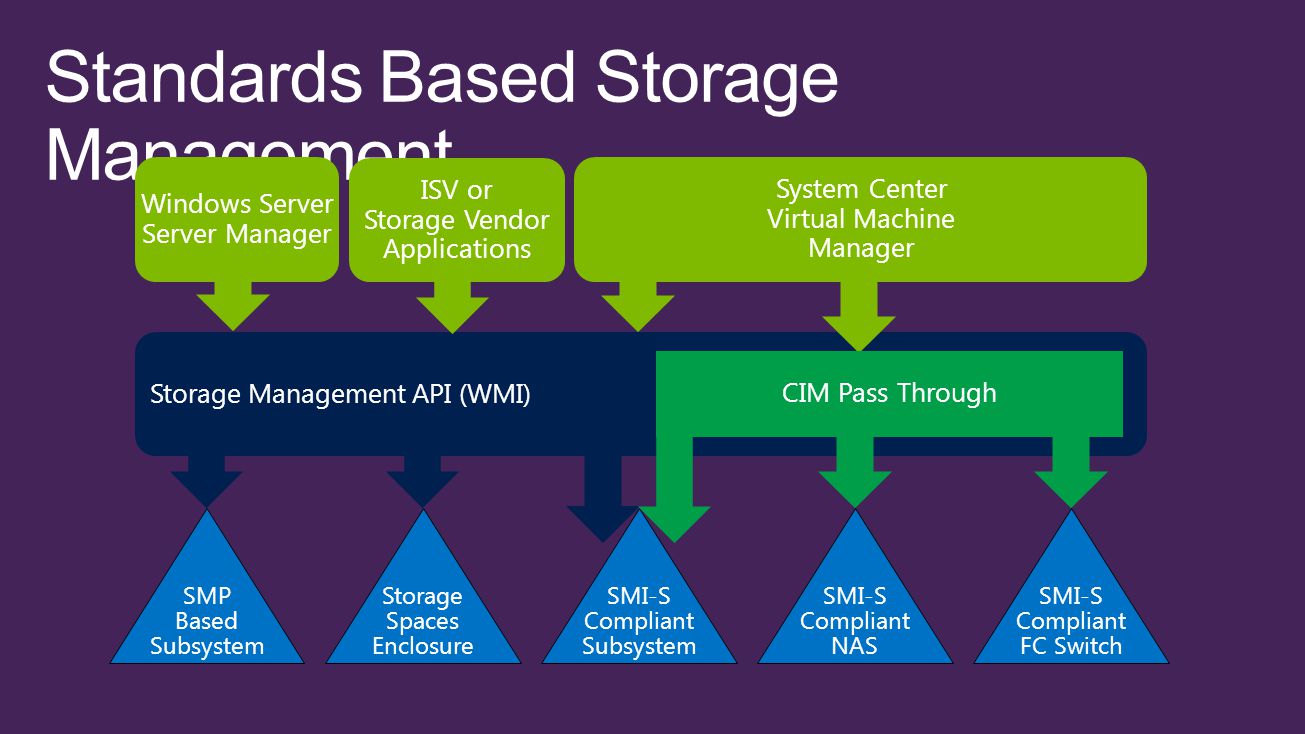

23 Storage Management API (WMI) SMP Based Subsystem SMI-S Compliant Subsystem Storage Spaces Enclosure SMI-S Compliant NAS SMI-S Compliant FC Switch Windows Server Server Manager ISV or Storage Vendor Applications System Center Virtual Machine Manager CIM Pass Through

24 Discover ComputerSystem Enumerate Properties Enumerate Storage Pools Enumerate Endpoints Enumerate Initiators

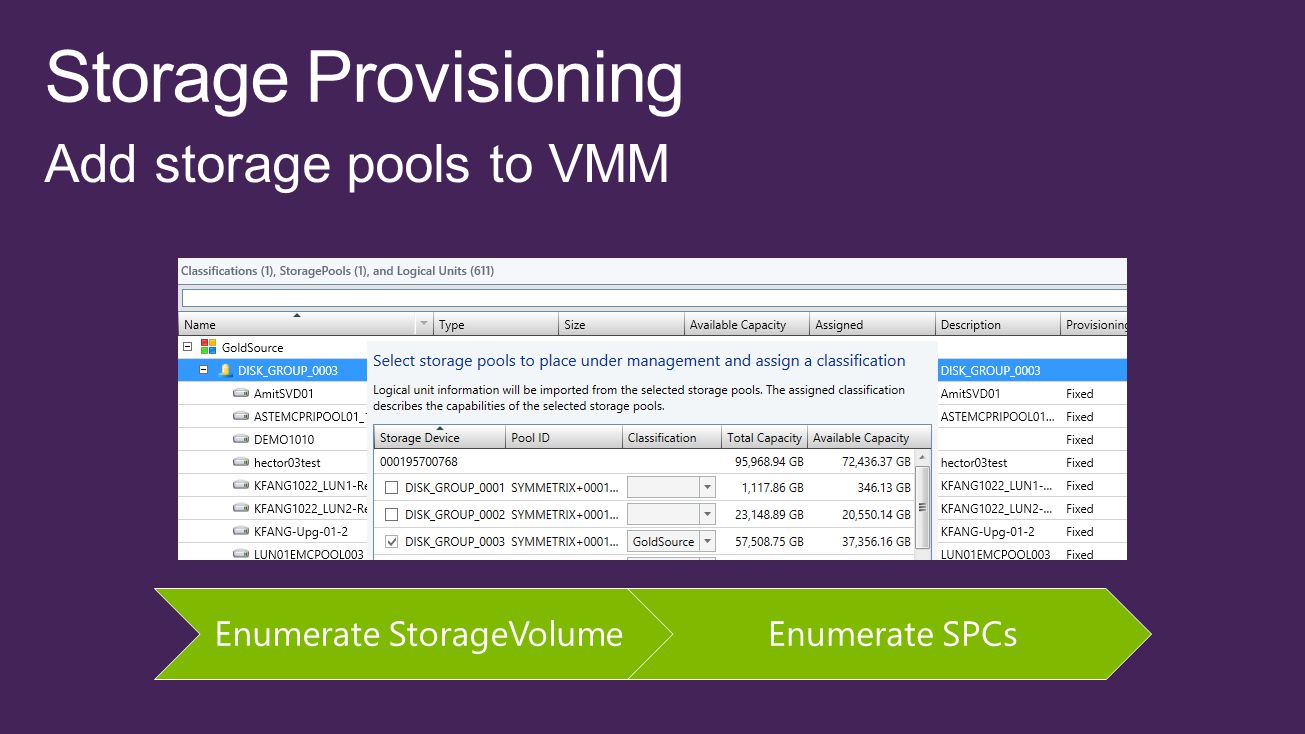

25 Enumerate StorageVolumeEnumerate SPCs

26

27

28

29

30

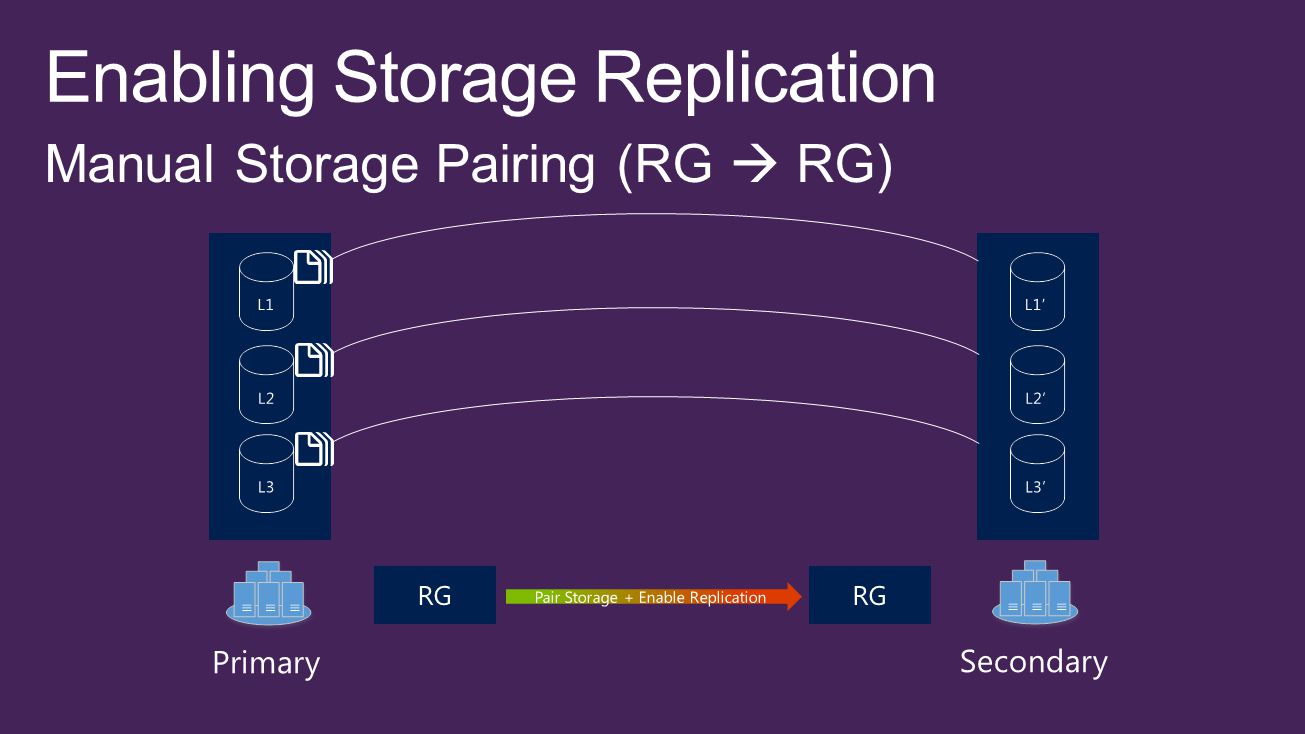

31

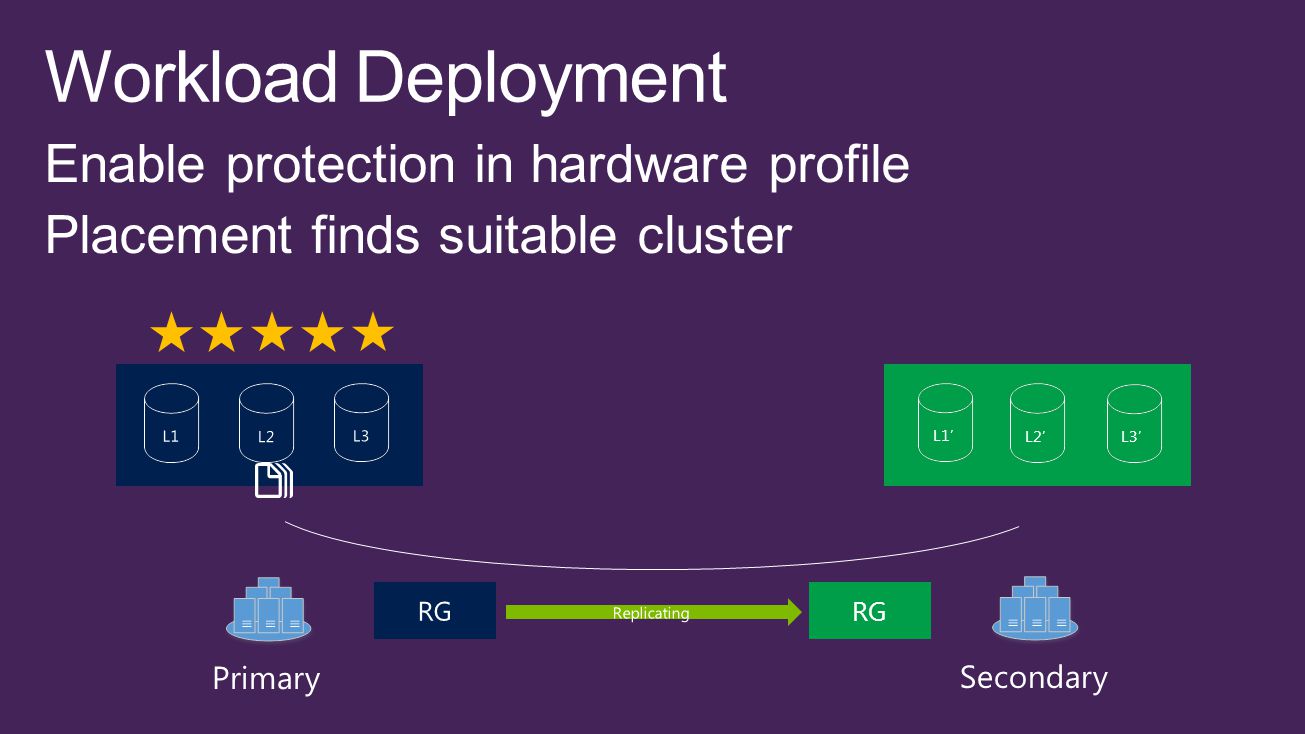

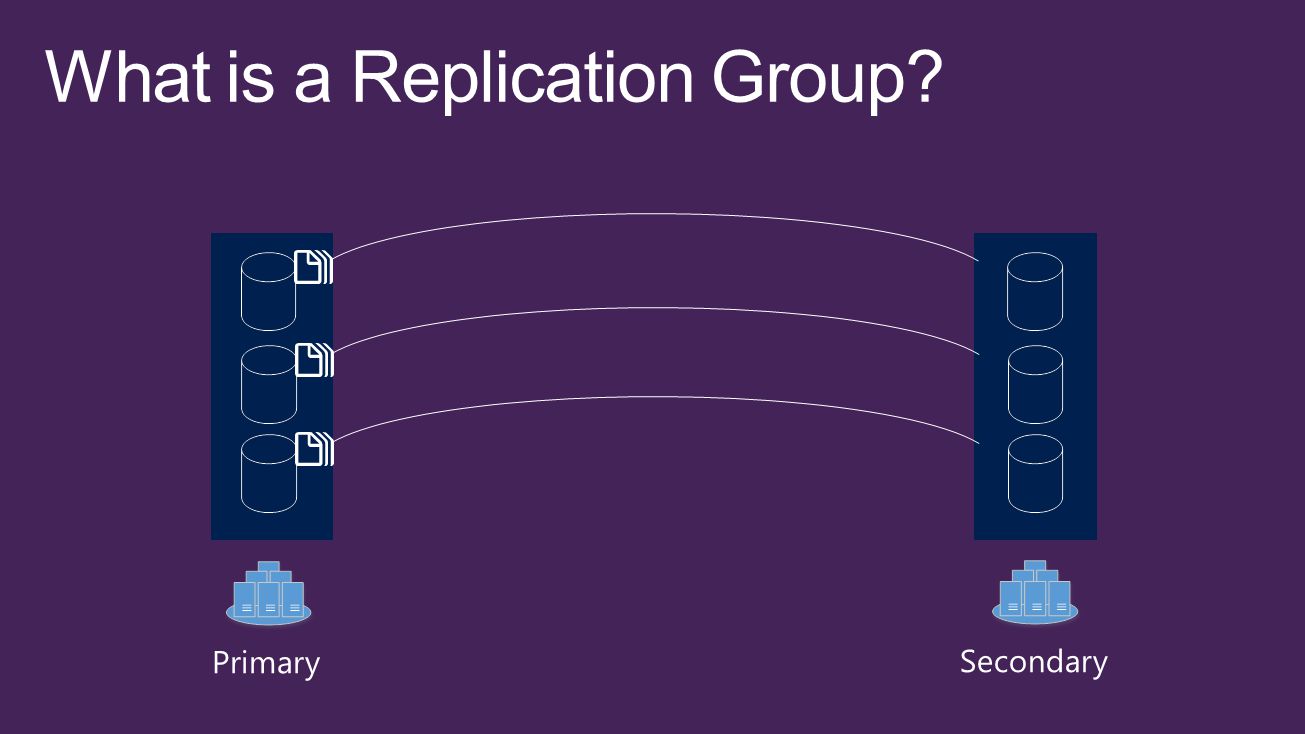

32 RG L1’ L2’ L3’

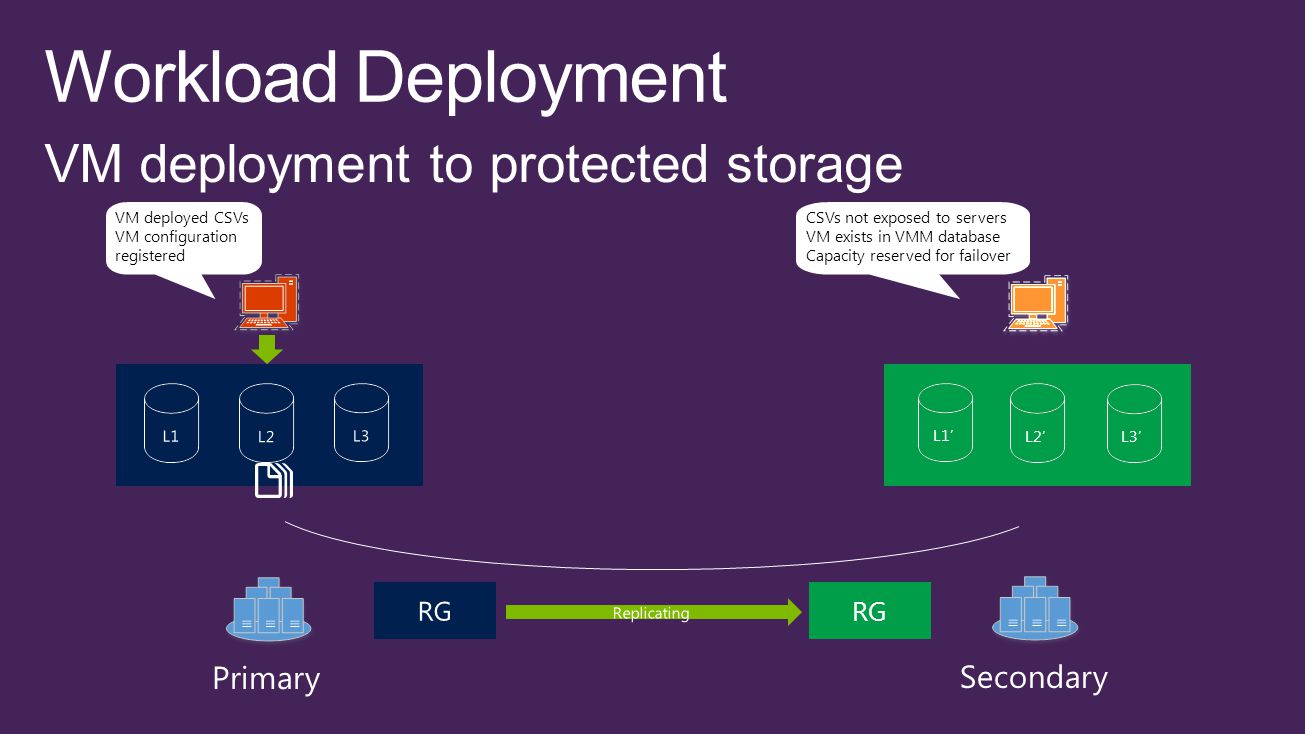

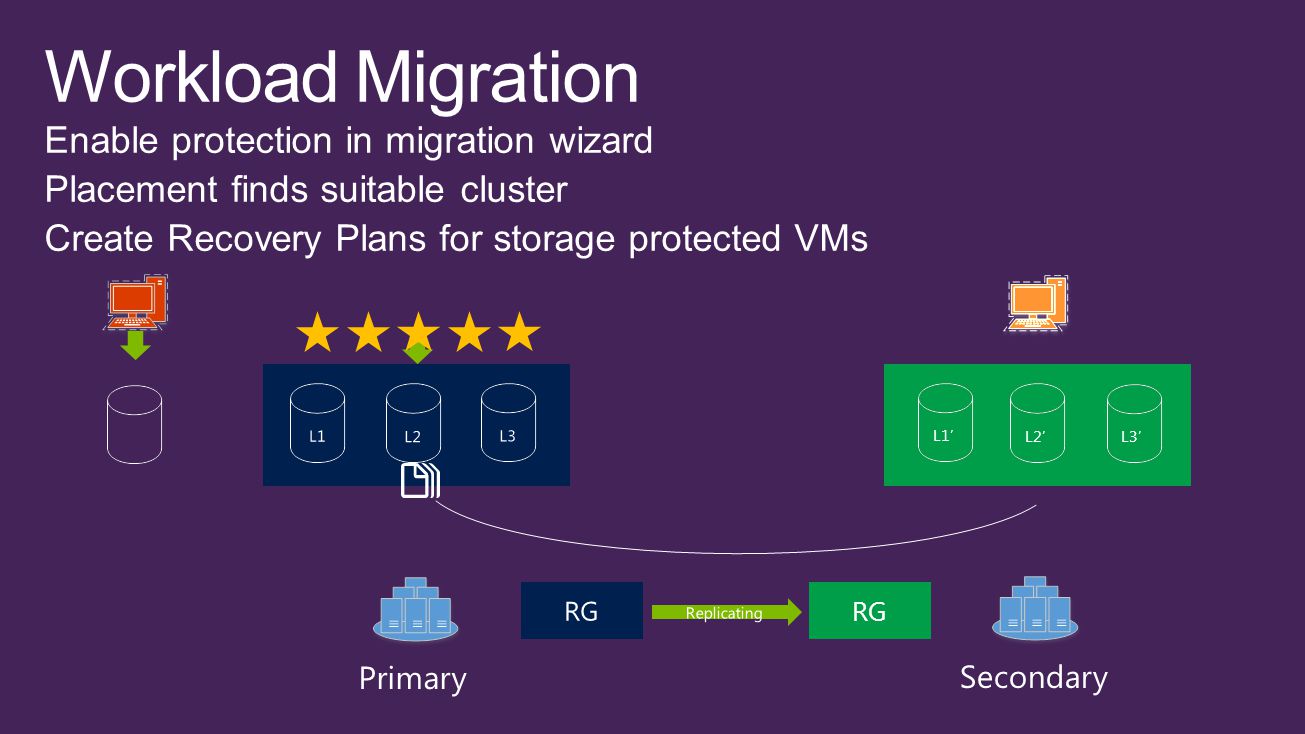

33 RG VM deployed CSVs VM configuration registered CSVs not exposed to servers VM exists in VMM database Capacity reserved for failover L1’ L2’ L3’

34 RG L1’ L2’ L3’

35

36

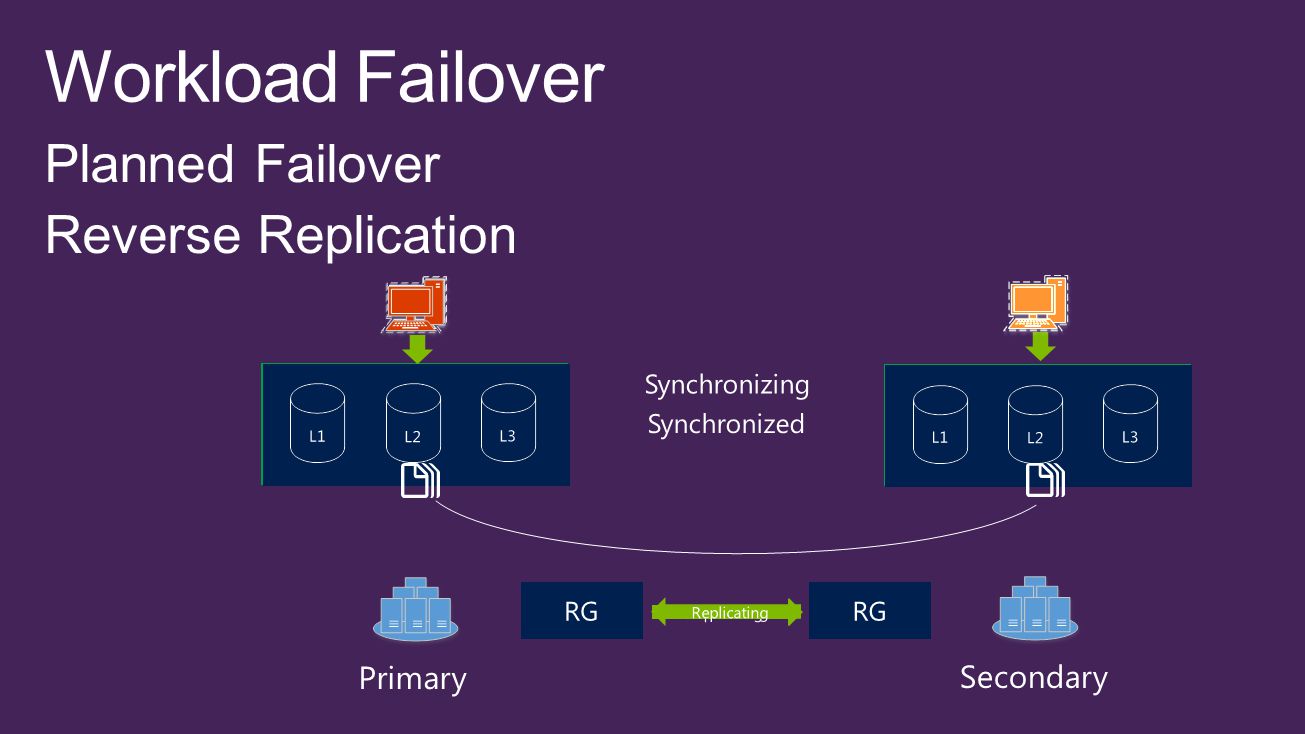

37 L1’ L2’ L3’ L1’ L2’ L3’ RG

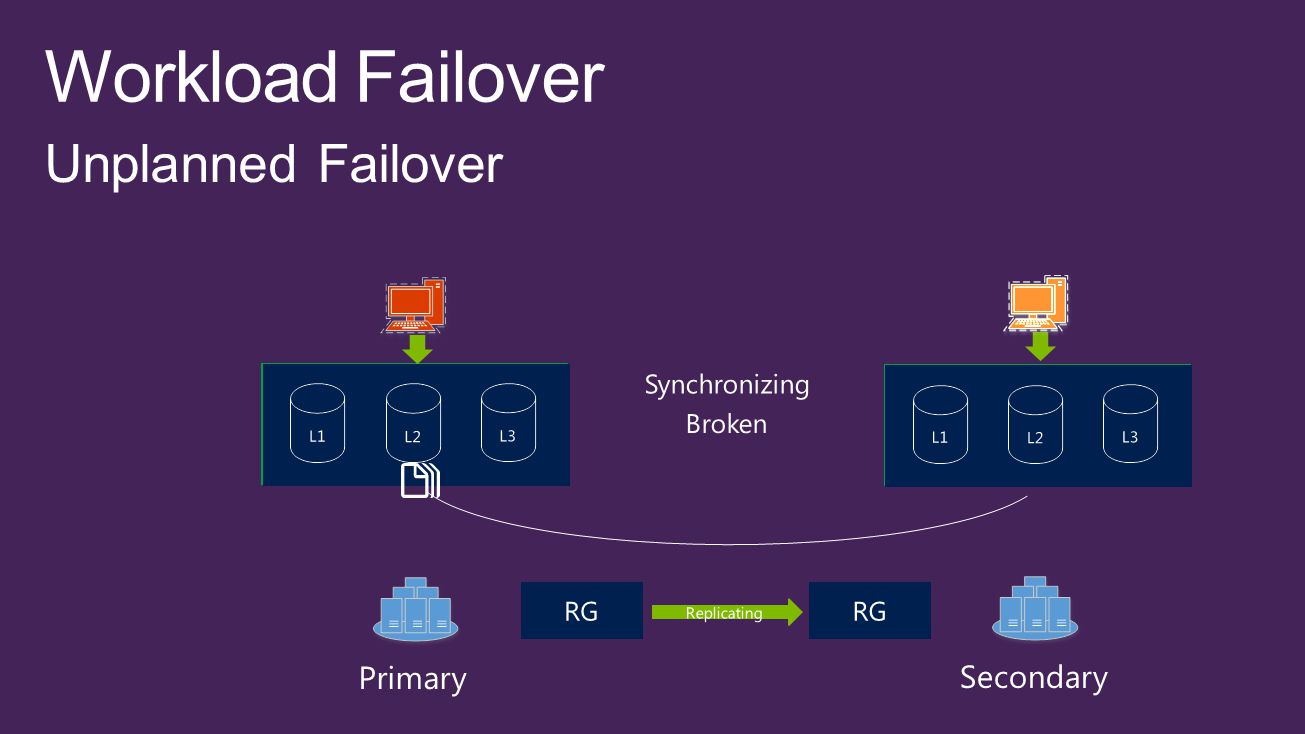

38 L1’ L2’ L3’ L1’ L2’ L3’

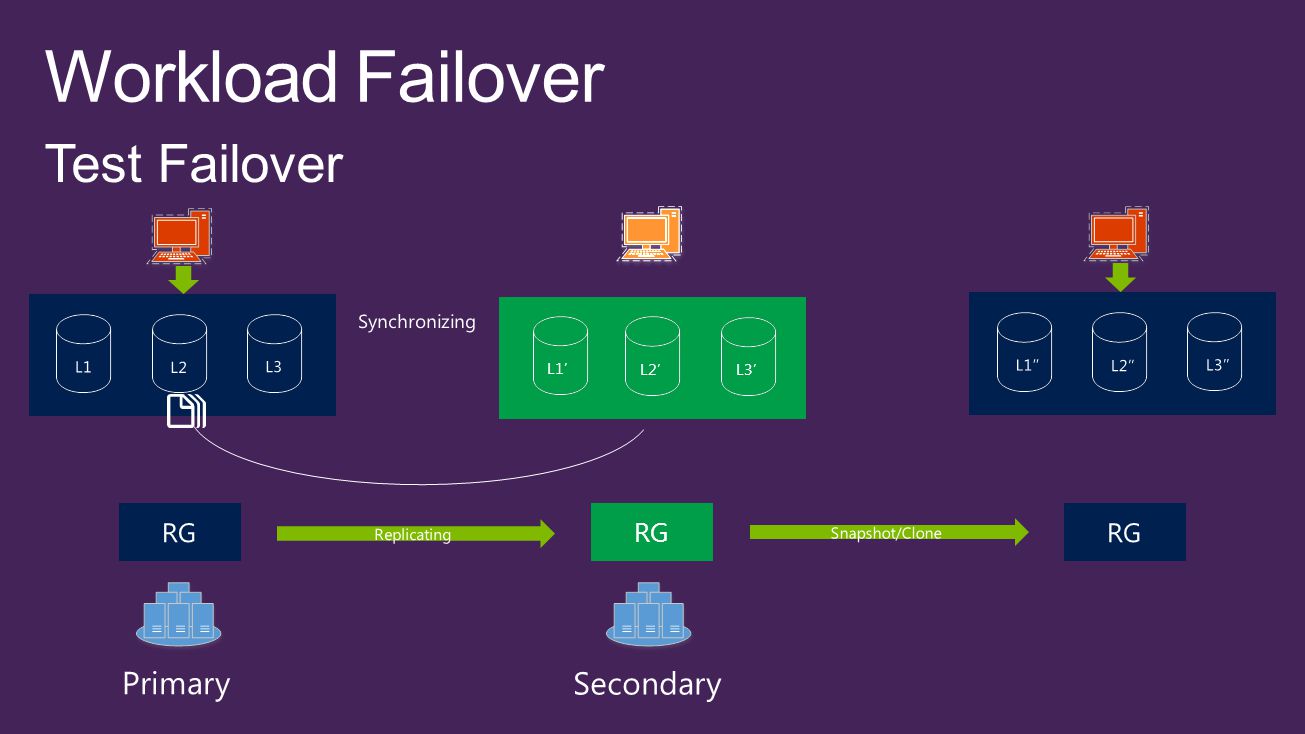

39 L1’ L2’ L3’ RG

40

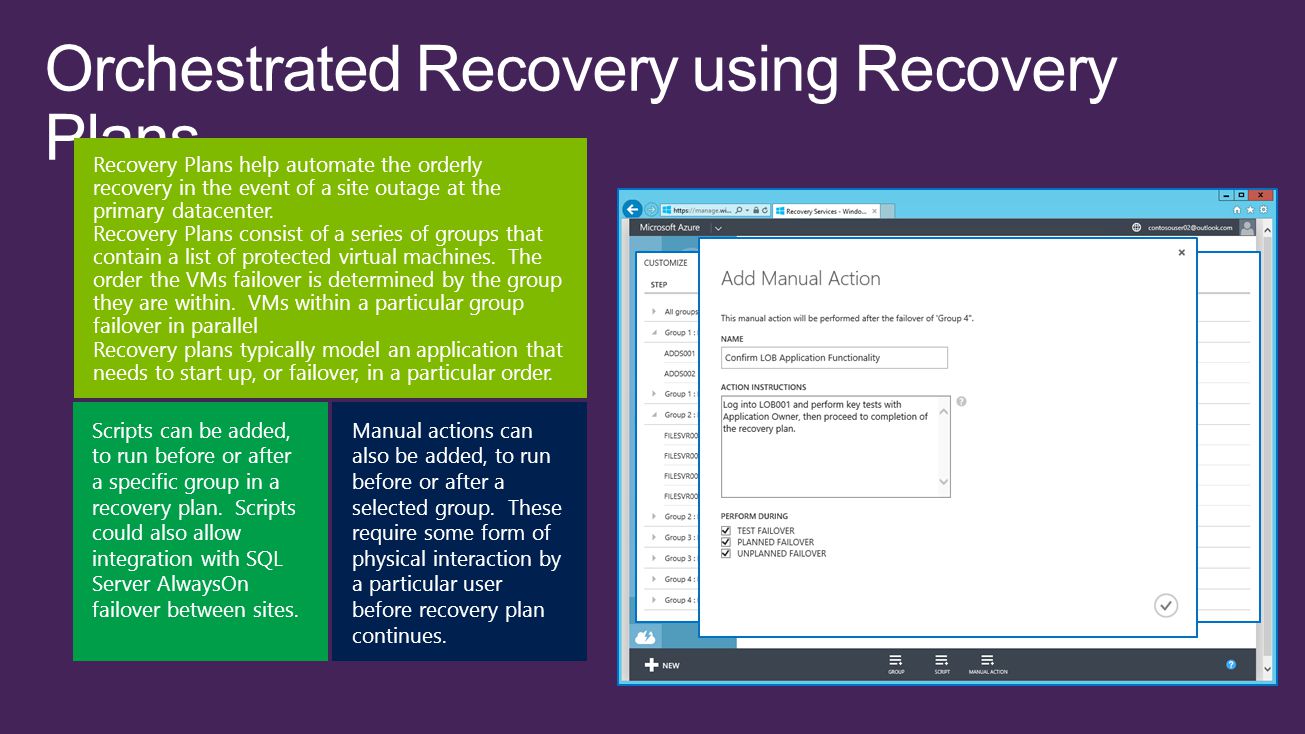

41 Manual Actions Script Integration Orchestrated Steps for Recovery Recovery Plans help automate the orderly recovery in the event of a site outage at the primary datacenter. Recovery Plans consist of a series of groups that contain a list of protected virtual machines. The order the VMs failover is determined by the group they are within. VMs within a particular group failover in parallel Recovery plans typically model an application that needs to start up, or failover, in a particular order. Manual actions can also be added, to run before or after a selected group. These require some form of physical interaction by a particular user before recovery plan continues. Scripts can be added, to run before or after a specific group in a recovery plan. Scripts could also allow integration with SQL Server AlwaysOn failover between sites.

42

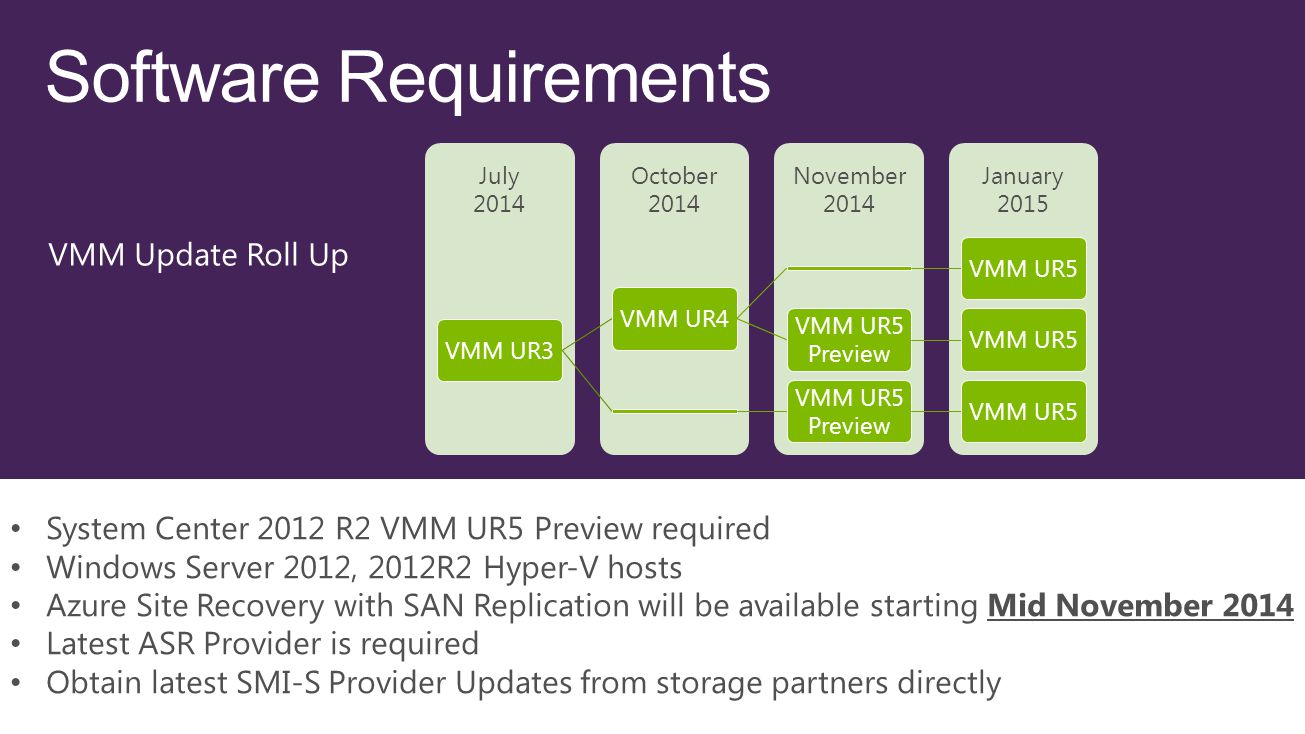

43 January 2015 November 2014 October 2014 July 2014 VMM UR3VMM UR4 VMM UR5 VMM UR5 Preview VMM UR5 VMM UR5 Preview VMM UR5 System Center 2012 R2 VMM UR5 Preview required Windows Server 2012, 2012R2 Hyper-V hosts Azure Site Recovery with SAN Replication will be available starting Mid November 2014 Latest ASR Provider is required Obtain latest SMI-S Provider Updates from storage partners directly

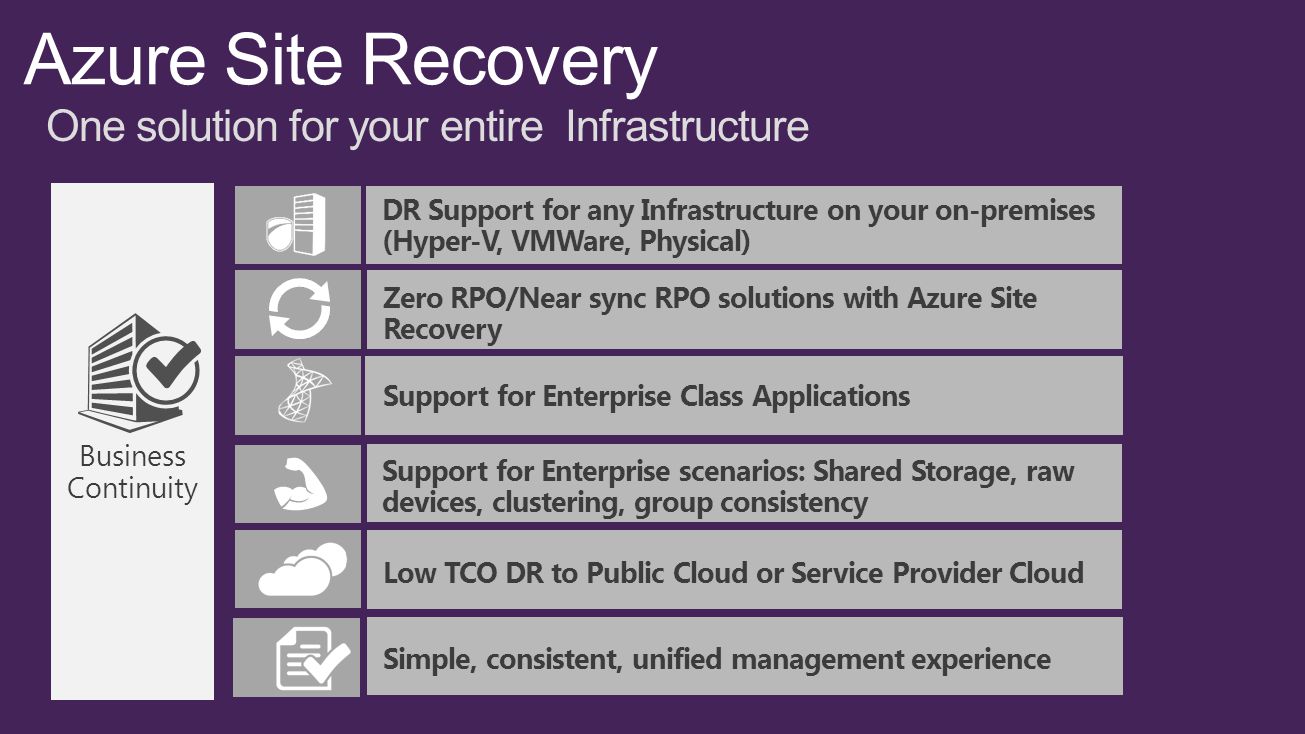

44 One solution for your entire Infrastructure Business Continuity Zero RPO/Near sync RPO solutions with Azure Site Recovery DR Support for any Infrastructure on your on-premises (Hyper-V, VMWare, Physical) Simple, consistent, unified management experience Support for Enterprise scenarios: Shared Storage, raw devices, clustering, group consistency Support for Enterprise Class Applications Low TCO DR to Public Cloud or Service Provider Cloud

45

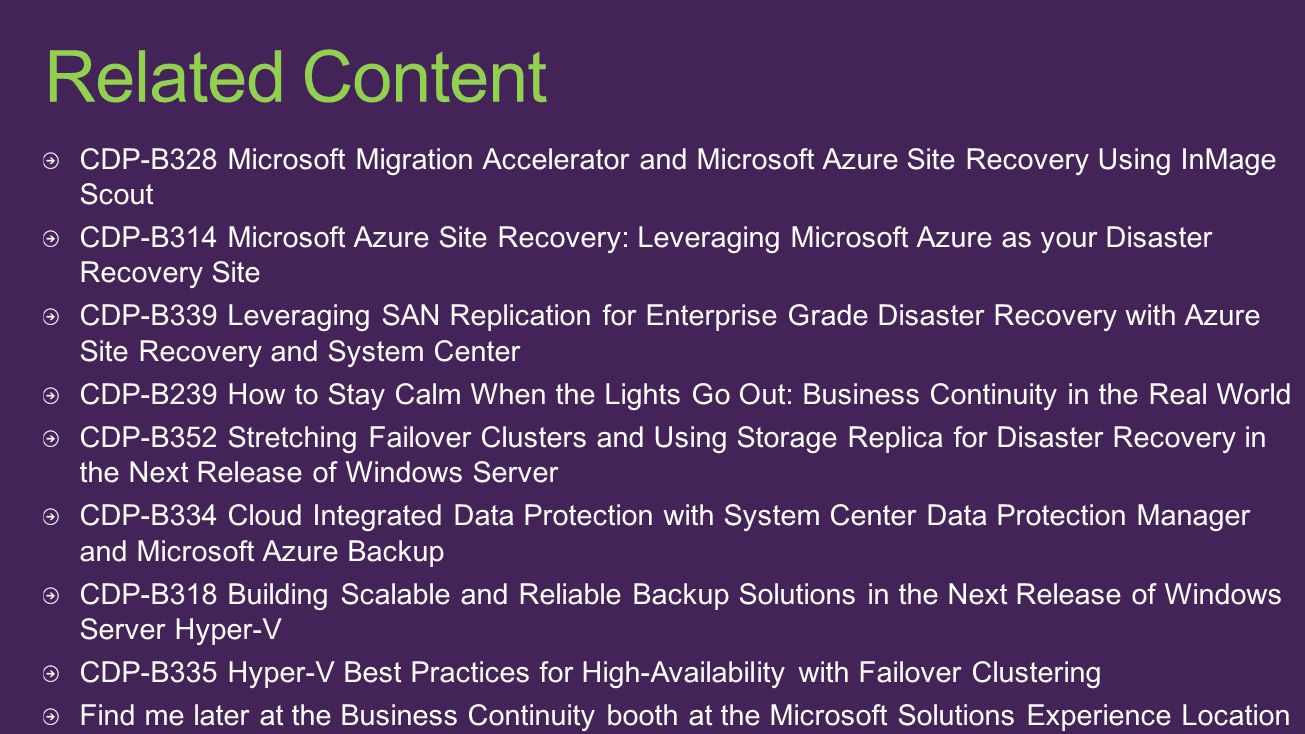

46 Related Content

47 ASR Resources

48

49

50

51

52

53
