Chapter 7 End-to-End Data Ohanes Dadian, Danny Luong, Yu Lu.

Similar presentations


Presentation on theme: "Chapter 7 End-to-End Data Ohanes Dadian, Danny Luong, Yu Lu."— Presentation transcript:

1 Chapter 7 End-to-End Data Ohanes Dadian, Danny Luong, Yu Lu

2 Contents 7.1 Presentation Formatting Taxonomy Examples Markup Languages 7.2 Multimedia Data Lossless Compression Techniques Image Representation and Compression Video Compression Audio Compression

3 Definition  Data  What is it?  Importance  Presentation Format  Agreement  An important aspect  Data manipulation function  Encoding  Argument marshalling  Decoding  Argument unmarshalling

4 7.1 Presentation Formatting

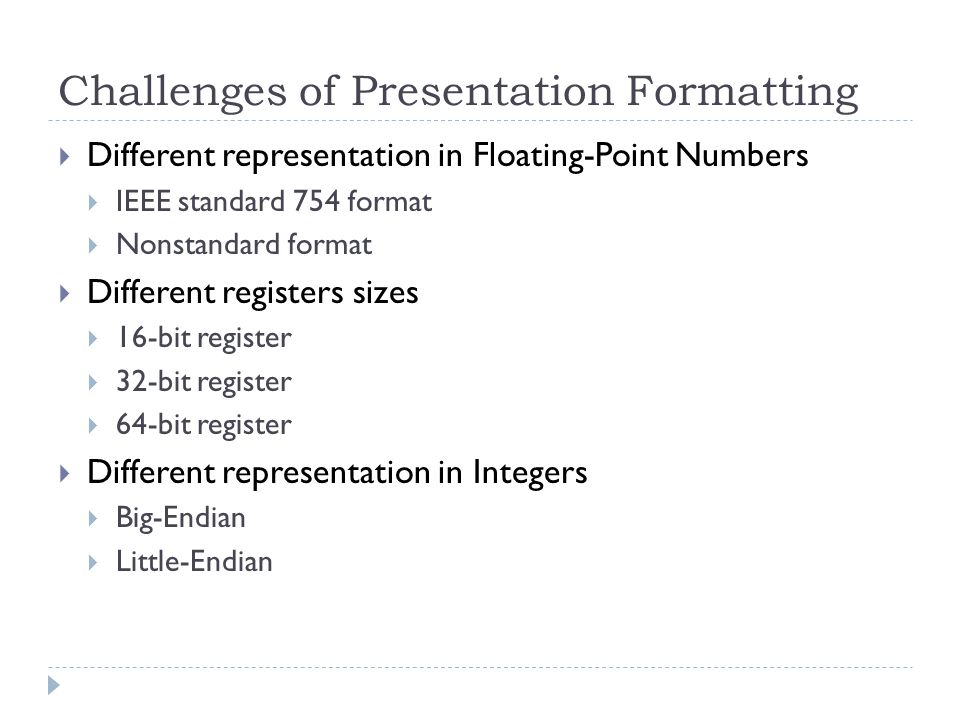

5 Challenges of Presentation Formatting  Different representation in Floating-Point Numbers  IEEE standard 754 format  Nonstandard format  Different registers sizes  16-bit register  32-bit register  64-bit register  Different representation in Integers  Big-Endian  Little-Endian

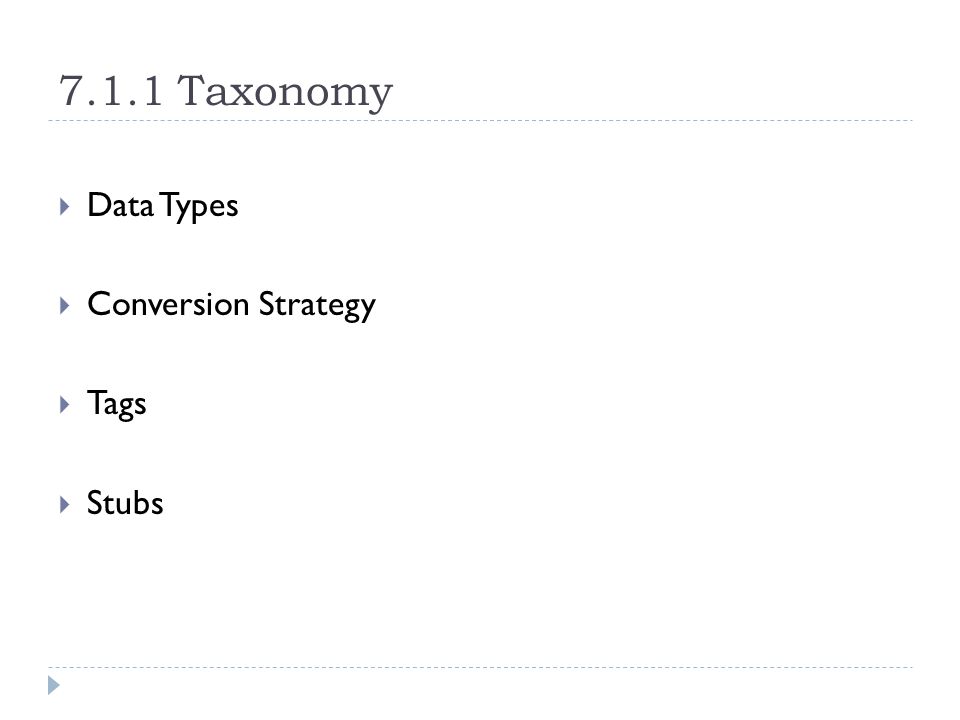

6 7.1.1 Taxonomy  Data Types  Conversion Strategy  Tags  Stubs

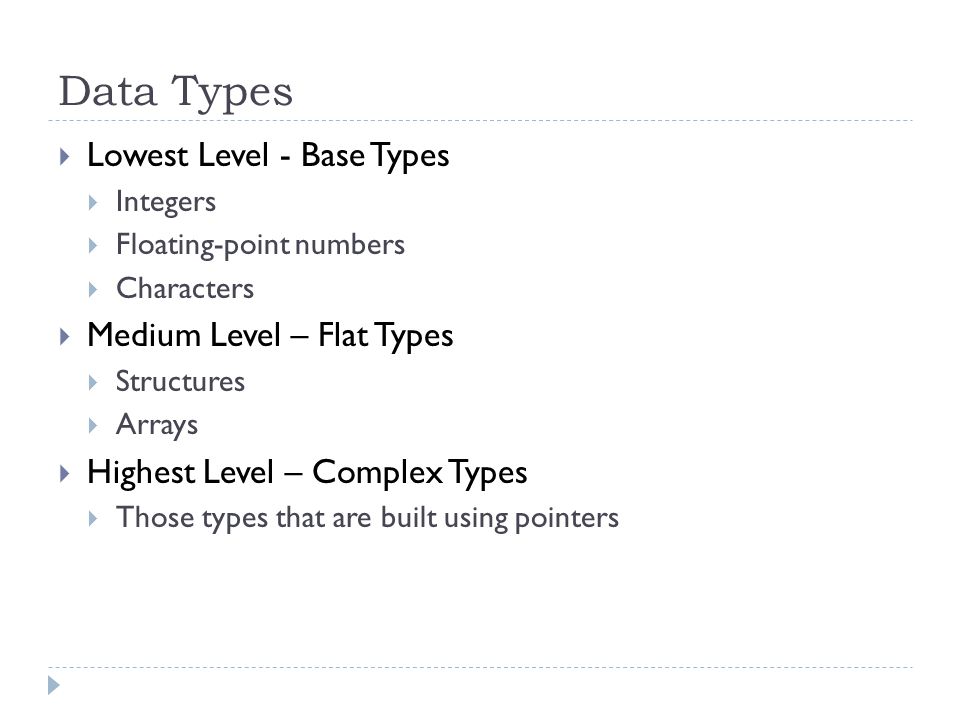

7 Data Types  Lowest Level - Base Types  Integers  Floating-point numbers  Characters  Medium Level – Flat Types  Structures  Arrays  Highest Level – Complex Types  Those types that are built using pointers

8 Data Types

9 Conversion Strategy  Canonical intermediate Form  Sender: internal representation  external representation  Receiver: external representation  internal representation  Receiver-Makes-Right  Sender : Do not convert, send its internal representation directly  receiver : Any representation  internal representation  Combined

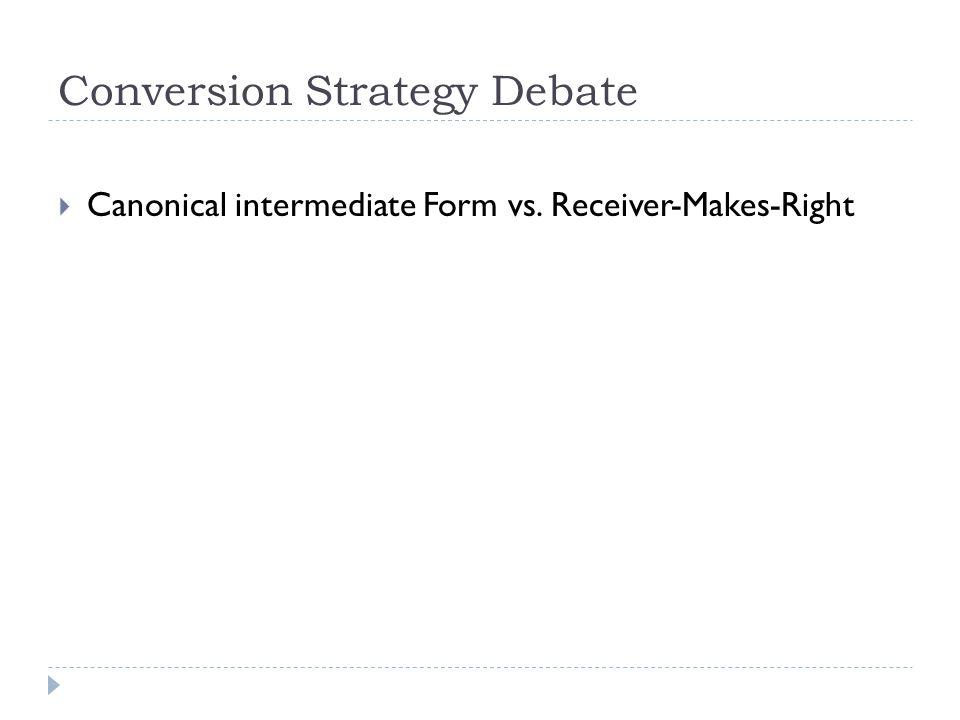

10 Conversion Strategy Debate  Canonical intermediate Form vs. Receiver-Makes-Right

11 7.2.1 Lossless Compression Techniques  Data Compression  What is it?  Bandwidth vs Throughput  When to compress?  Data Compression Categories  Lossy vs Lossless  Lossless Compression Techniques  Run Length Encoding  Differential Pulse Code Modulation  Dictionary-Based Methods

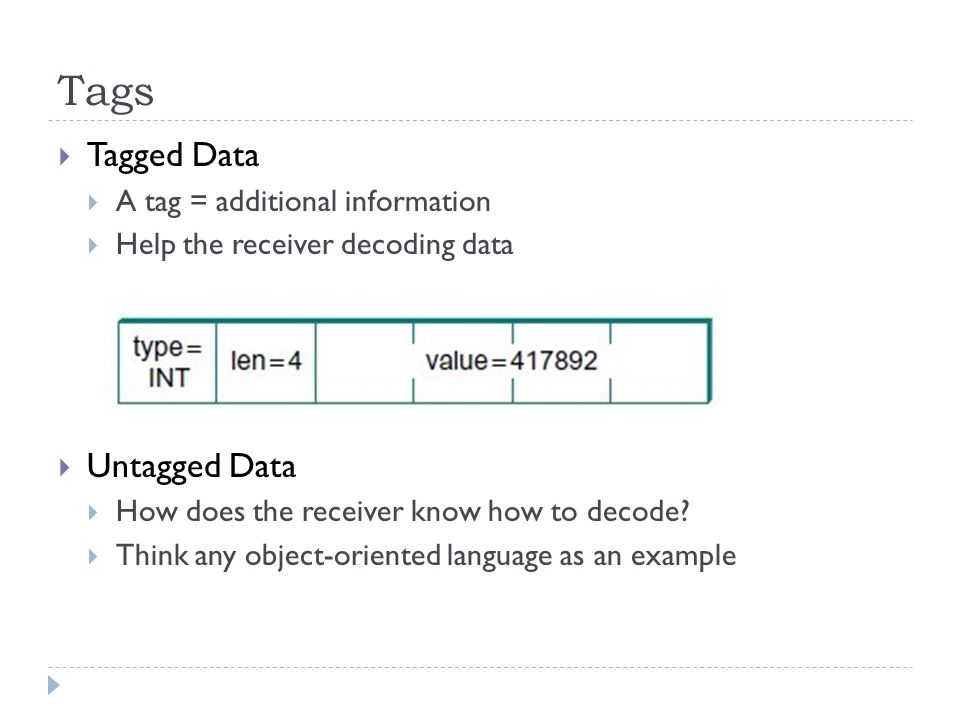

12 Tags  Tagged Data  A tag = additional information  Help the receiver decoding data  Untagged Data  How does the receiver know how to decode?  Think any object-oriented language as an example

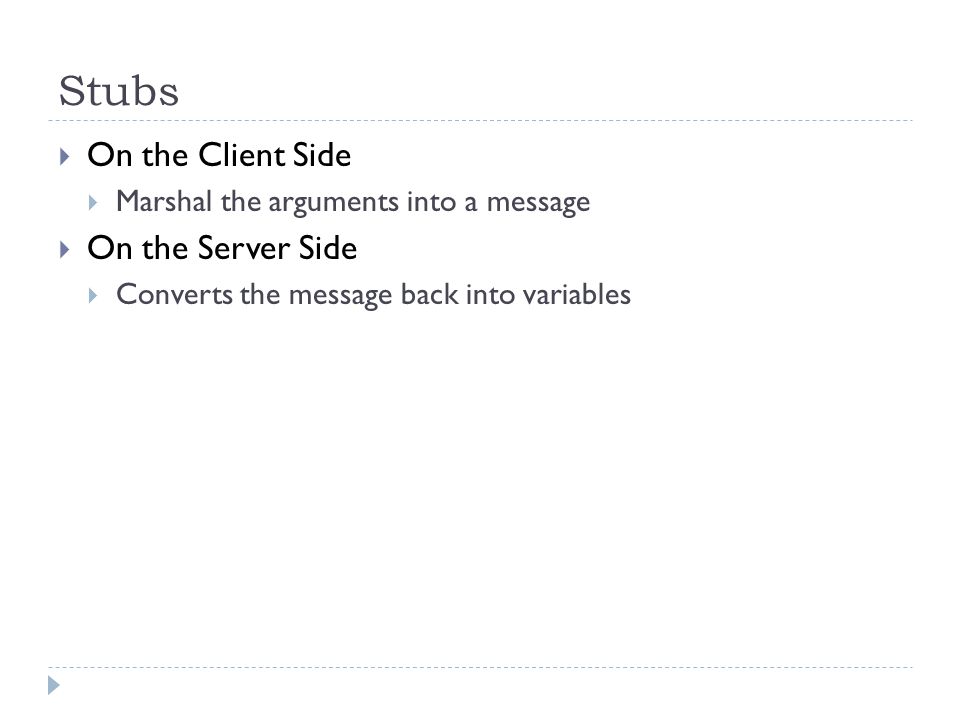

13 Stubs  On the Client Side  Marshal the arguments into a message  On the Server Side  Converts the message back into variables

14 Stubs

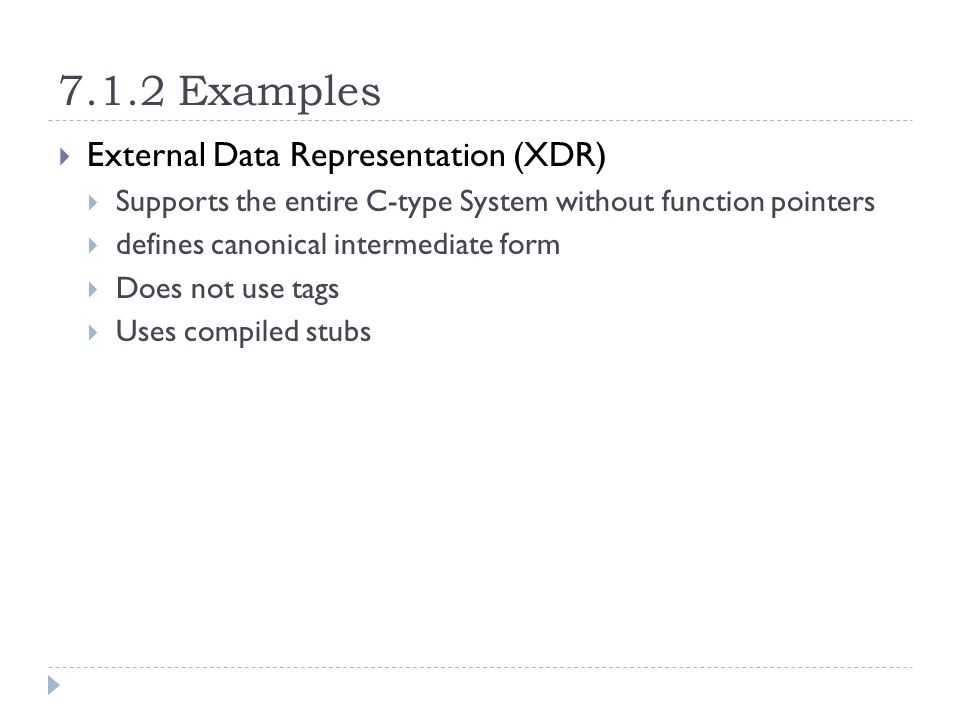

15 7.1.2 Examples  External Data Representation (XDR)  Supports the entire C-type System without function pointers  defines canonical intermediate form  Does not use tags  Uses compiled stubs

16 7.1.2 Examples  Abstract Syntax notation One (ASN.1)  Supports the C-type system without function pointers  Defines canonical intermediate form  Uses type tags  Uses either interpreted or compiled stubs  Representation 

17 7.1.2 Examples  Network Data Representation (NDR)  Supports the C-type system  Defines receiver-makes-right  Uses tags  Generates the necessary stubs  Representation

18 7.1.3 Markup Languages(XML)  Extensible Markup Language – XML  What is xml?  Can be sent as data over internet  Can be configuration file used in frameworks  XML Schema Document – XSD  Defines XML  Namespace  Solve name clashes  URI – Uniform Resource Identifier (detail in Chapter 9)  xmlns: emp = “http://www.example.com/employee”  head Bottle Washer

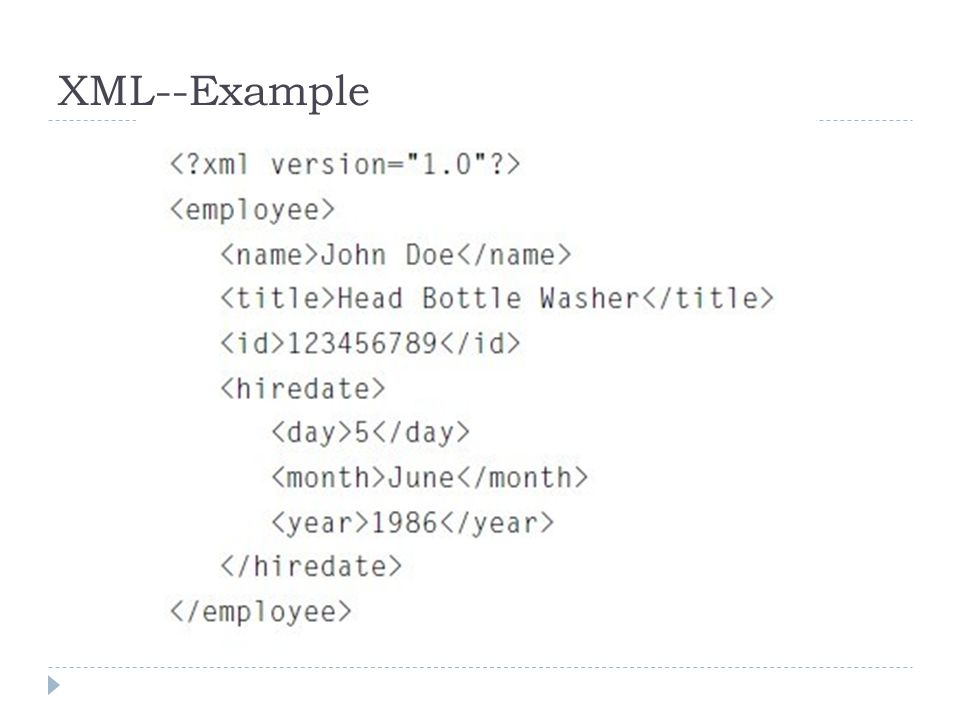

19 XML--Example

20 XSD--Example

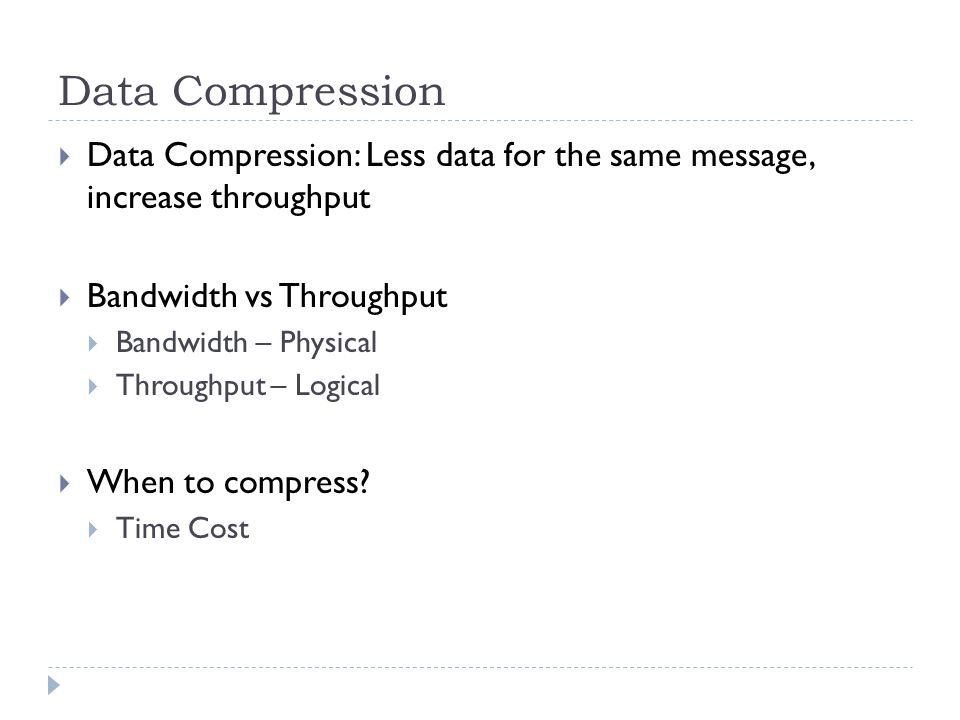

21 Data Compression  Data Compression: Less data for the same message, increase throughput  Bandwidth vs Throughput  Bandwidth – Physical  Throughput – Logical  When to compress?  Time Cost

22 Data Compression Categories  Two different categories  Lossy  Lossless  Pros and Cons of each technique  Compression ratio  Exact reconstruction Lossless Lossy

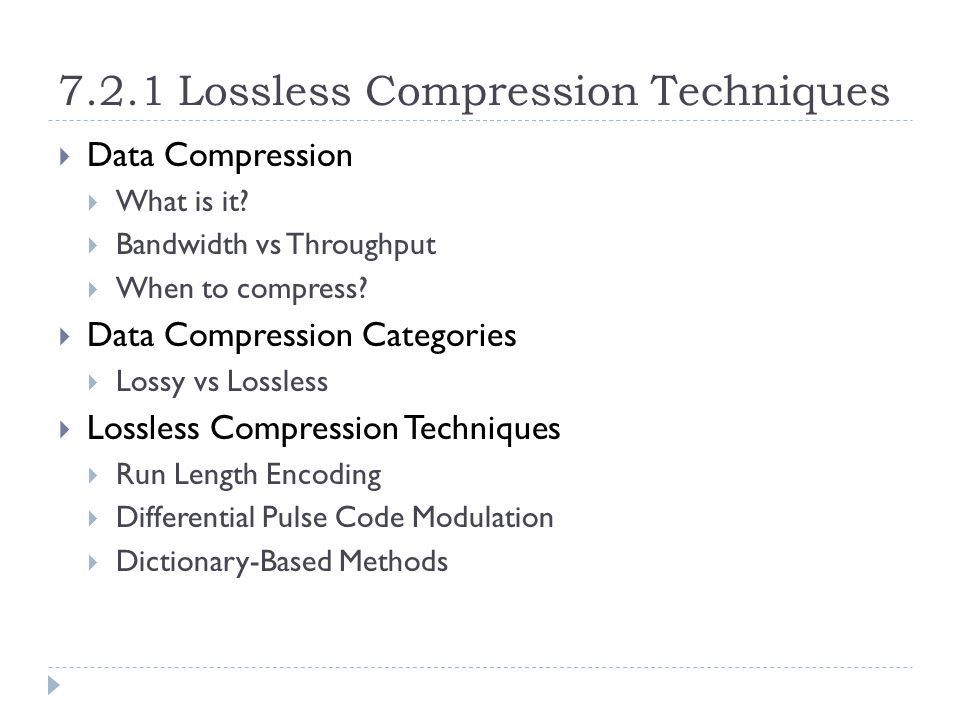

23 7.2.1 Lossless Compression Techniques  Data Compression  What is it?  Bandwidth vs Throughput  When to compress?  Data Compression Categories  Lossy vs Lossless  Lossless Compression Techniques  Run Length Encoding  Differential Pulse Code Modulation  Dictionary-Based Methods

24 Data Compression  Data Compression: Less data for the same message, increase throughput  Bandwidth vs Throughput  Bandwidth – Physical  Throughput – Logical  When to compress?  Time Cost

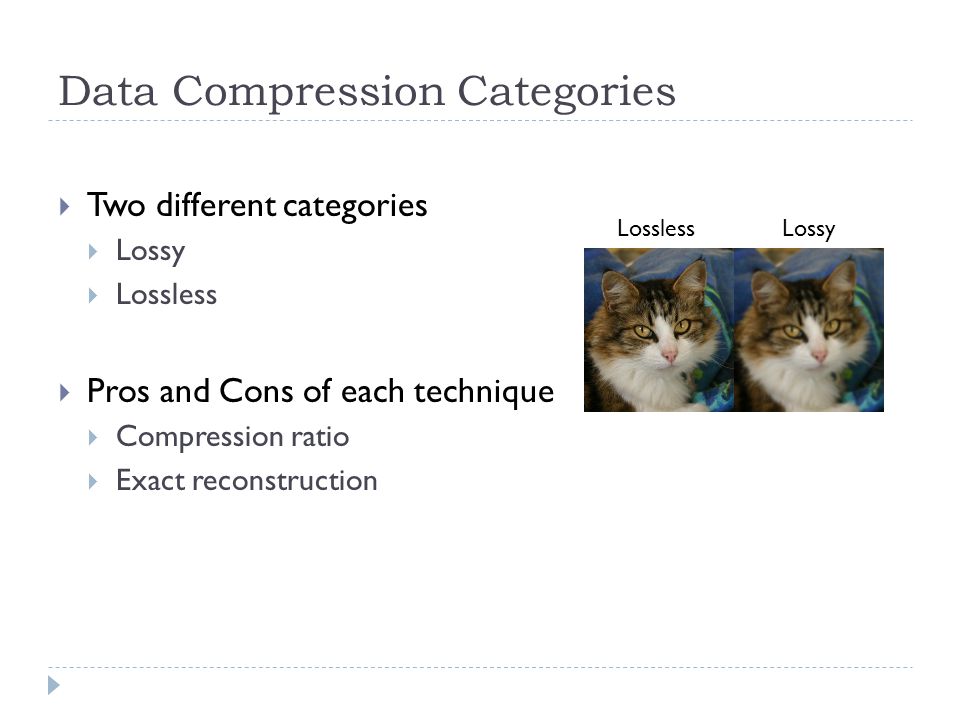

25 Data Compression Categories  Two different categories  Lossy  Lossless  Pros and Cons of each technique  Compression ratio  Exact reconstruction Lossless Lossy

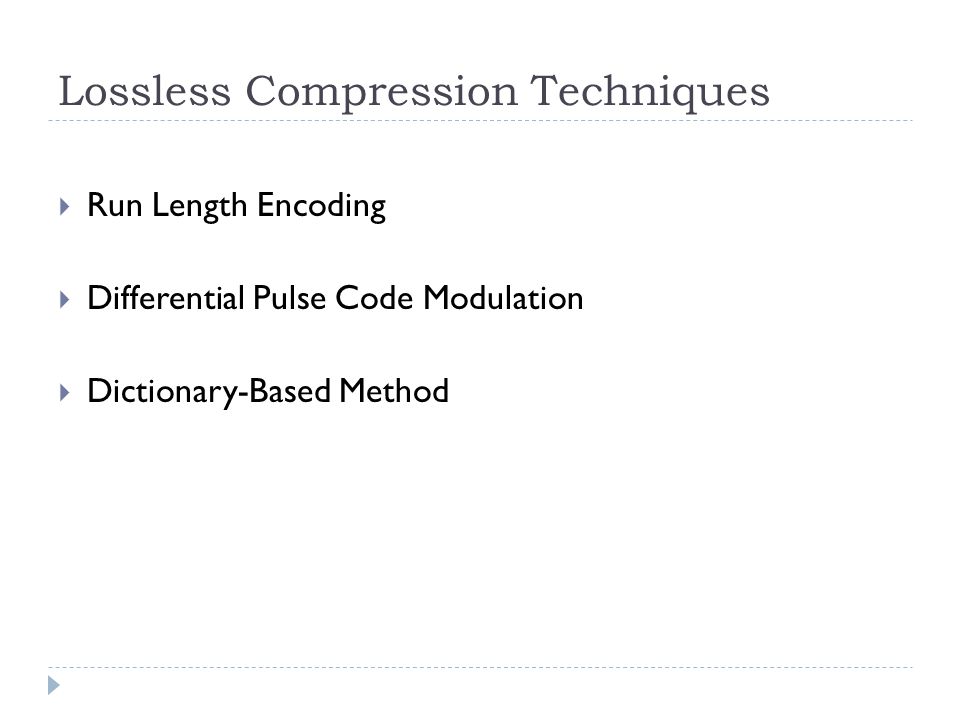

26 Lossless Compression Techniques  Run Length Encoding  Differential Pulse Code Modulation  Dictionary-Based Method

27 Run Length Encoding (RLE)  One of the simplest method of data compression  A lossless compression method  Consecutive data elements saved as one element and a count  Simplified Example AAAAAAAAAABBBBBOOOOOOOOO 10A5B9O  Real world deals with binary instead  Most useful on data that contains repeated elements

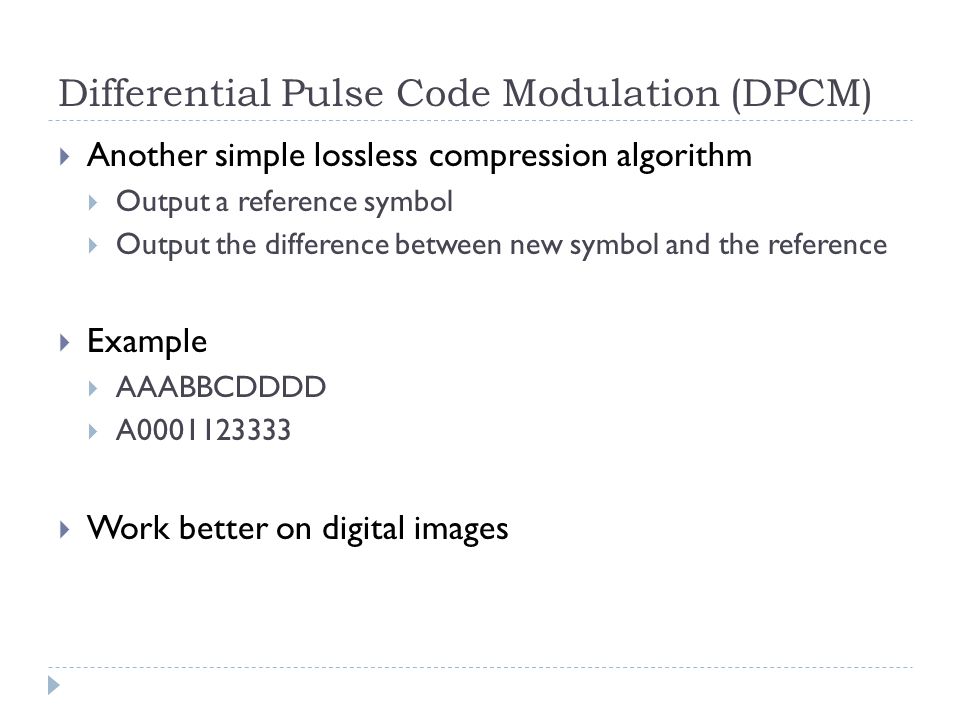

28 Differential Pulse Code Modulation (DPCM)  Another simple lossless compression algorithm  Output a reference symbol  Output the difference between new symbol and the reference  Example  AAABBCDDDD  A  Work better on digital images

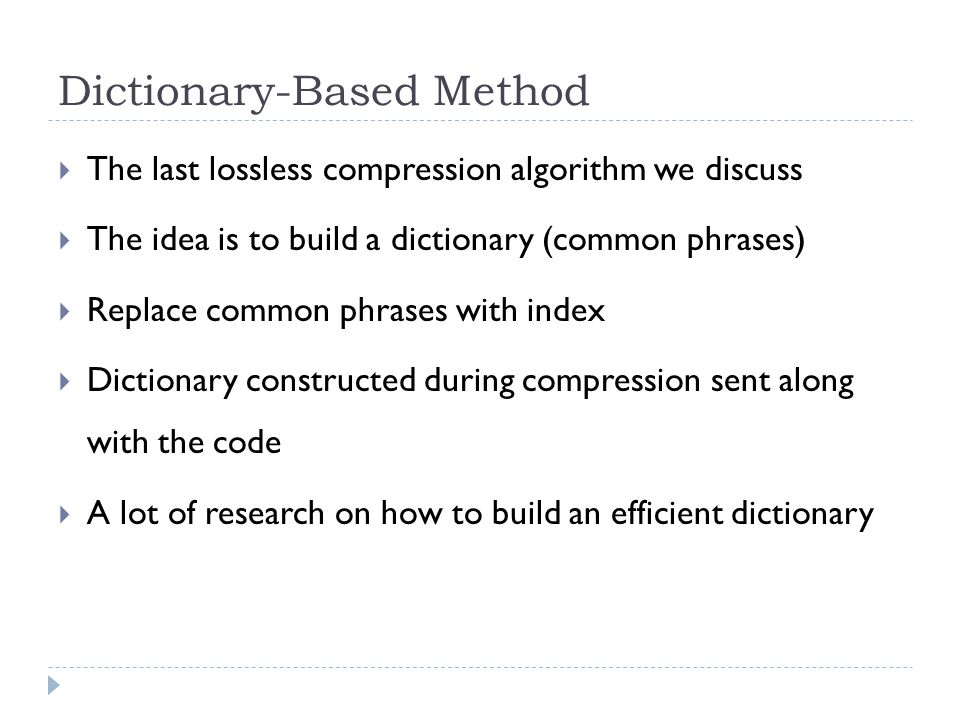

29 Dictionary-Based Method  The last lossless compression algorithm we discuss  The idea is to build a dictionary (common phrases)  Replace common phrases with index  Dictionary constructed during compression sent along with the code  A lot of research on how to build an efficient dictionary

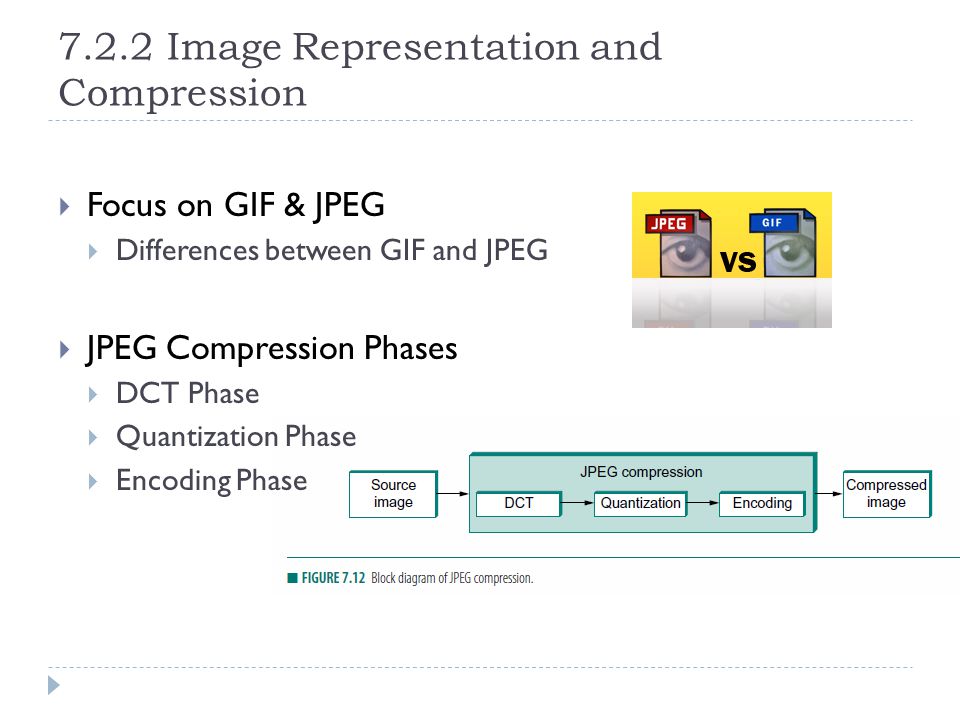

30 7.2.2 Image Representation and Compression  Focus on GIF & JPEG  Differences between GIF and JPEG  JPEG Compression Phases  DCT Phase  Quantization Phase  Encoding Phase

31 Difference between GIF and JPEG  Graphic Interchange Format (GIF)  RGB color space  8 bits each dimension = 24 bits total  Instead of sending 24 bits, reduce to 8 bits first  2 8 = 256 color  Picture has more than 256 colors, change it and cut it down  Good compression ratio, but low quality

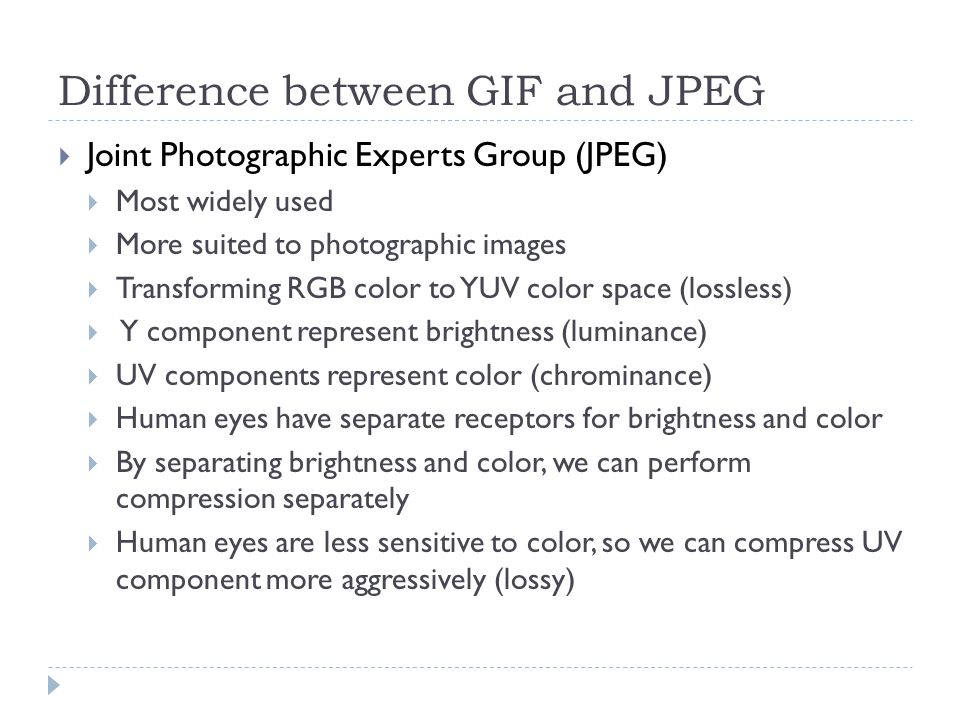

32 Difference between GIF and JPEG  Joint Photographic Experts Group (JPEG)  Most widely used  More suited to photographic images  Transforming RGB color to YUV color space (lossless)  Y component represent brightness (luminance)  UV components represent color (chrominance)  Human eyes have separate receptors for brightness and color  By separating brightness and color, we can perform compression separately  Human eyes are less sensitive to color, so we can compress UV component more aggressively (lossy)

33 GIF Compression Phases  No phases  One single step  Lossless  Each color is represented by 24 bits  Reduce it down to 8 bits  Only 256 color possible  More than 256 color, merge to closest color  Usage  Sharp-edged images (logos)

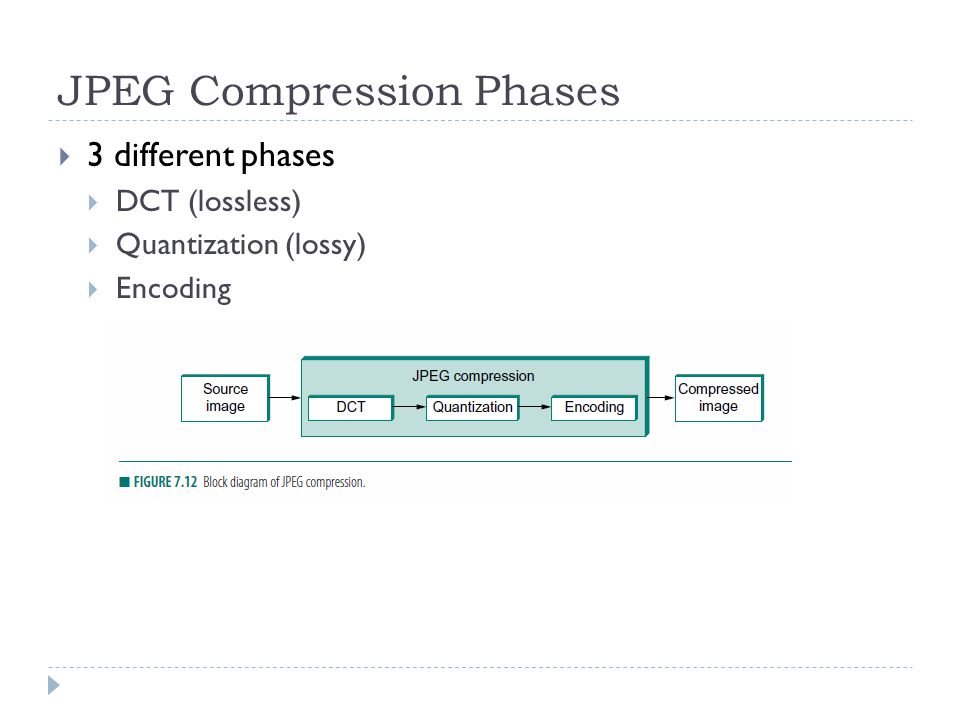

34 JPEG Compression Phases  3 different phases  DCT (lossless)  Quantization (lossy)  Encoding

35 JPEG Compression Phases  Discrete Cosine Transform (DCT) Phase  Closely related to the Fast Fourier Transform (FFT)  8x8 matrix of pixel value => matrix of frequency coefficients  Help Filter out least important pattern  Lossless  Formula

36 JPEG Compression Phases  Quantization Phase  DCT phases only transform the data into something easier to recognize  Quantization Phase drops the insignificant bits of the frequency Coefficients  Truncate information => Lossy  Dropping the insignificant bits of the frequency coefficients

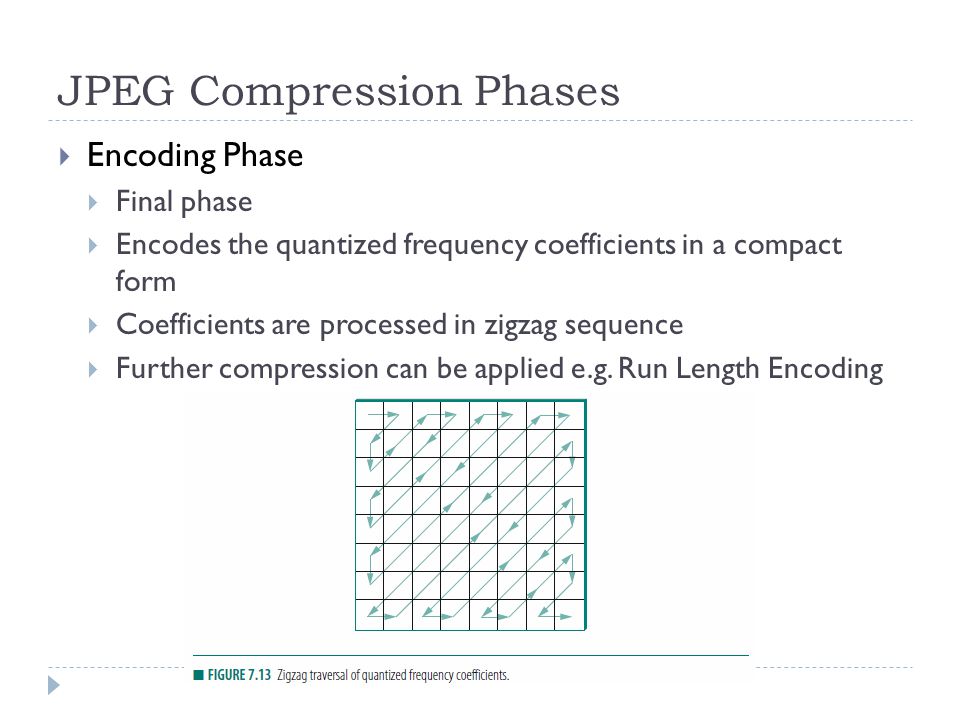

37 JPEG Compression Phases  Encoding Phase  Final phase  Encodes the quantized frequency coefficients in a compact form  Coefficients are processed in zigzag sequence  Further compression can be applied e.g. Run Length Encoding

38 7.2.3 Video Compression  What is a video?  A succession of frames, or images.  Frames can be compressed using DCT  Like JPEG  Compression should take into consideration the redundancy between frames.  Two successive frames likely have a lot of the same information, depending on the moving object.

39 MPEG  The MPEG format provides standards for multimedia compression.  Includes compression, decompression, processing and coded- representation.  MPEG 1, MPEG 2, MPEG 4  Named after the group that invented it.  Moving Picture Experts Group  Established in 1988 and included experts from ISO and IEC.

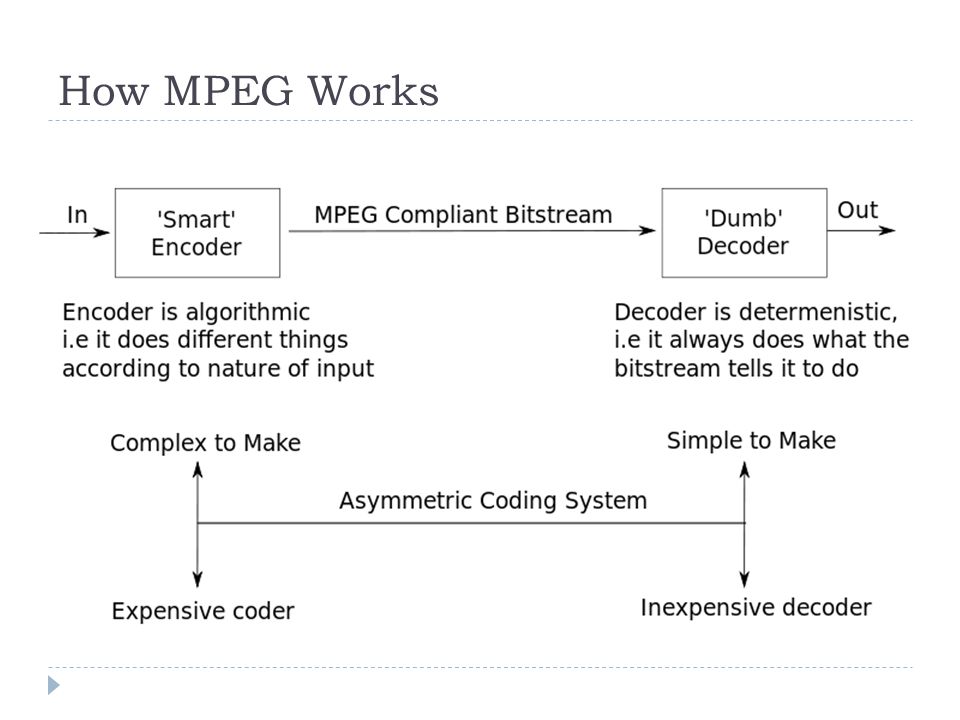

40 How MPEG Works

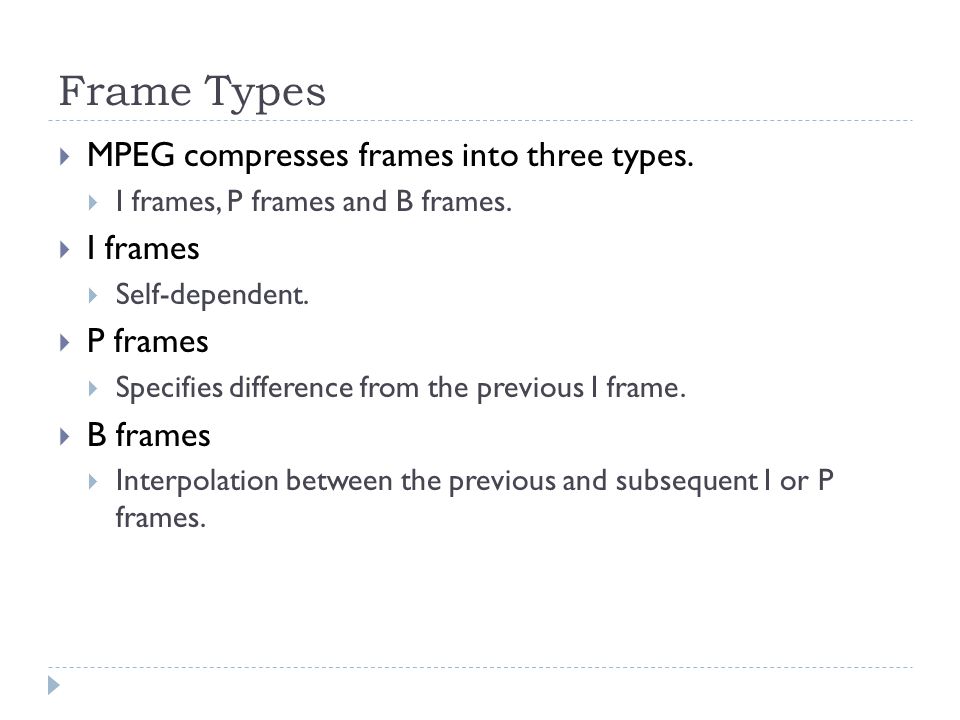

41 Frame Types  MPEG compresses frames into three types.  I frames, P frames and B frames.  I frames  Self-dependent.  P frames  Specifies difference from the previous I frame.  B frames  Interpolation between the previous and subsequent I or P frames.

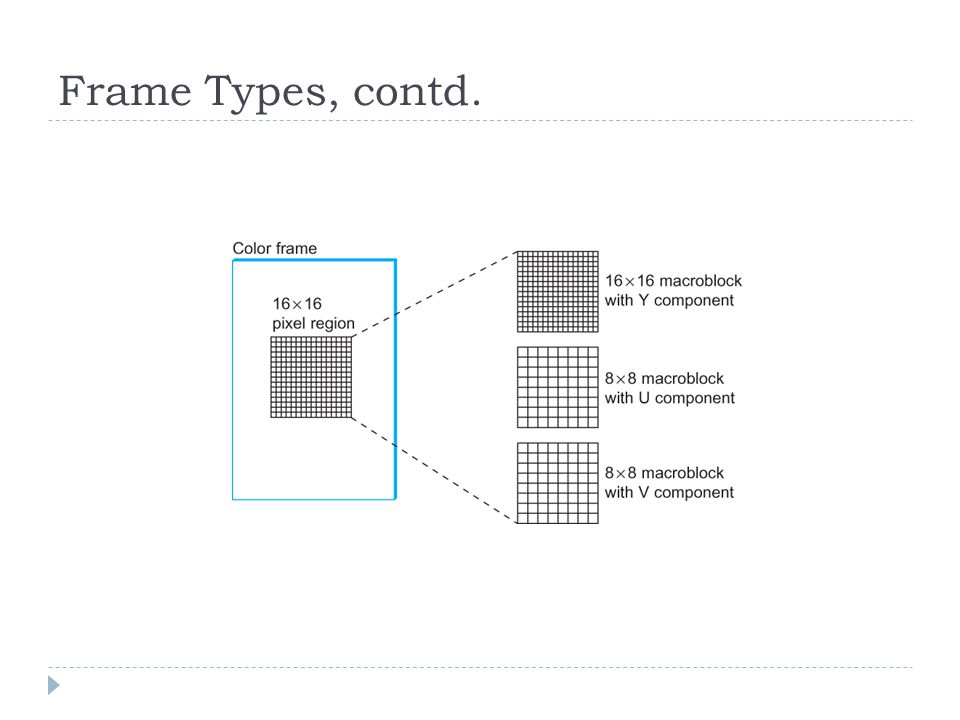

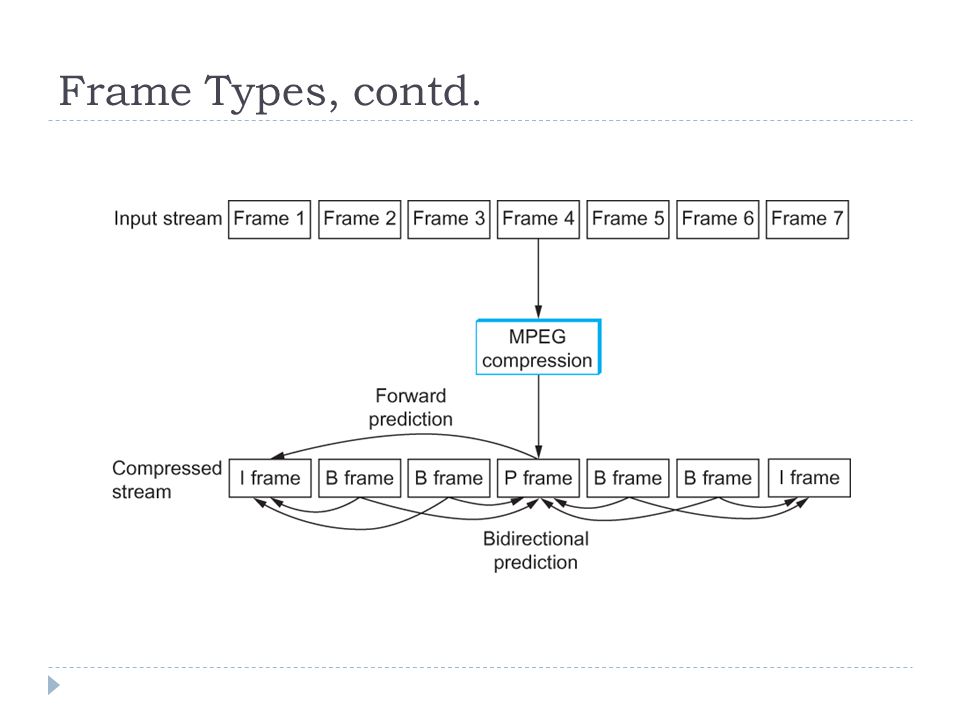

42 Frame Types, contd.

43

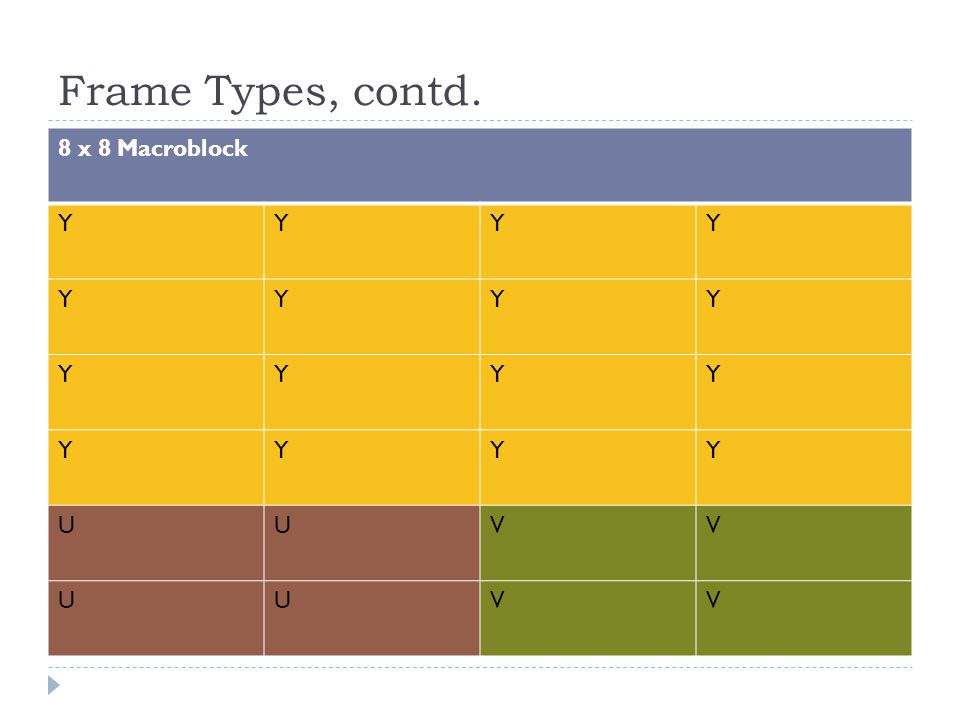

44 8 x 8 Macroblock YYYY YYYY YYYY YYYY UUVV UUVV

45 Effectiveness and Performance  MPEG video can be compressed with up to a 90:1 ratio.  Encoding/Decoding can be performed on software and hardware.  Hardware being the most prominent for encoding.  Software being the most prominent for decoding.

46 7.2.4 Transmitting MPEG over a Network  MPEG defines video stream.  Does not dictate how stream is stored.  Complex but modular.  Three variations.  MPEG 1, MPEG 2 and MPEG 4.  Focus on Main Profile MPEG 2 stream.  Used by DVD.  Nested Structure

47 MPEG Format

48 Transmitting MPEG over a Network, contd.  Allows for trading picture quality for bandwidth.  Need to packetize stream.  Not an issue with TCP.  For UDP, streams are broken at selected points.  Macroblock boundaries.  Application Level Framing.  Need to deal with packet loss.  Mark frames with drop probability.  Need to deal with application latency constraints.

49 MPEG Video Compression Algorithm

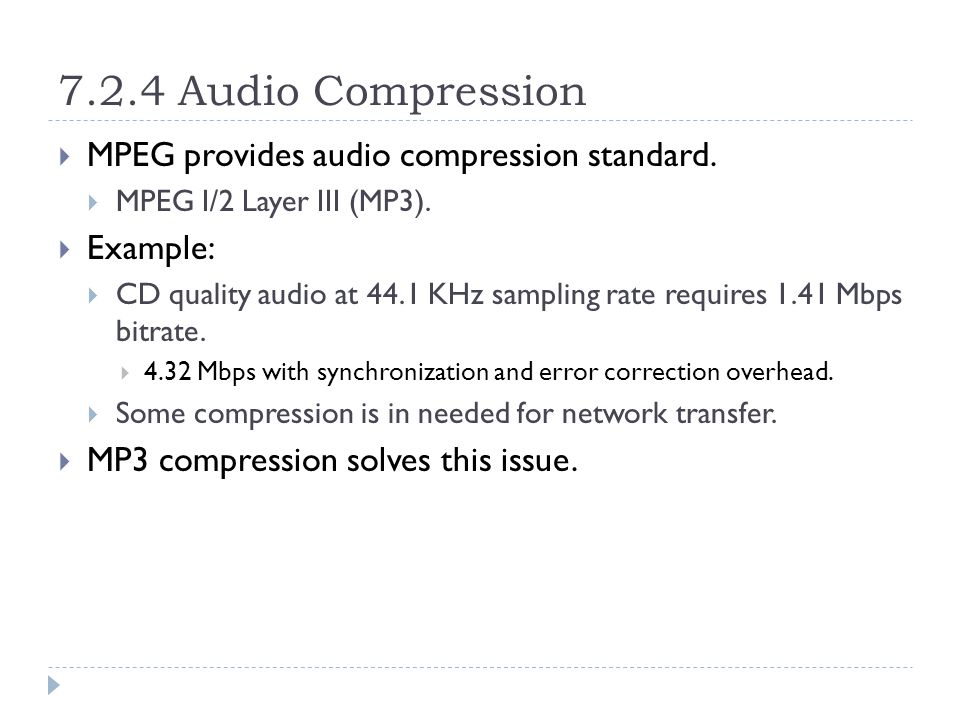

50 7.2.4 Audio Compression  MPEG provides audio compression standard.  MPEG I/2 Layer III (MP3).  Example:  CD quality audio at 44.1 KHz sampling rate requires 1.41 Mbps bitrate.  4.32 Mbps with synchronization and error correction overhead.  Some compression is in needed for network transfer.  MP3 compression solves this issue.

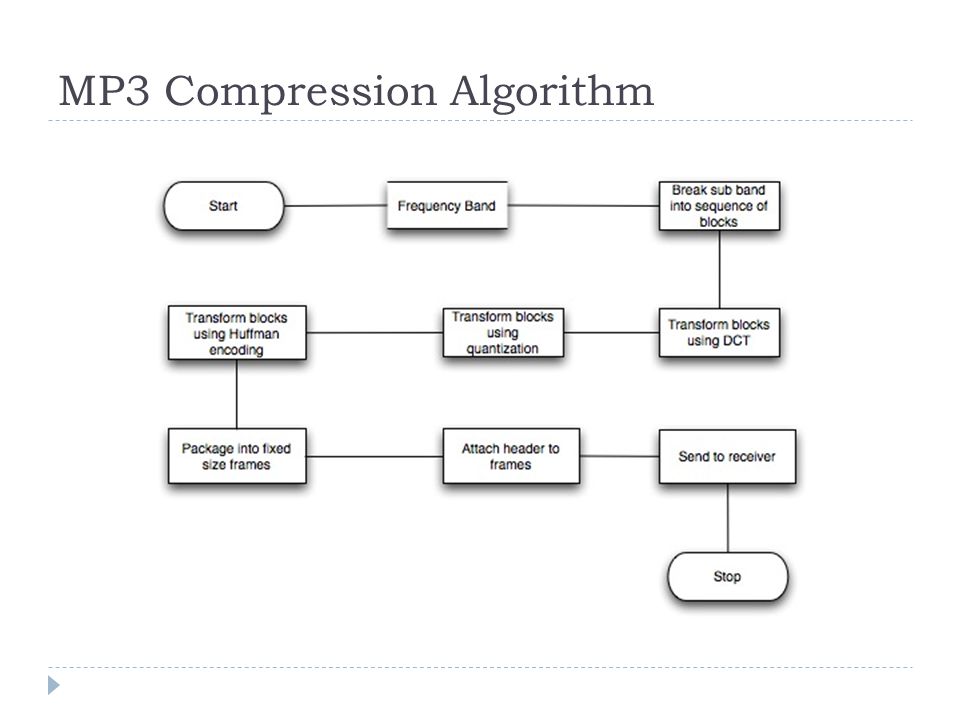

51 MP3 Compression Algorithm

52 Audio Compression, contd.  Optimization lies in the number of subbands used and how many bits are allocated for each subband.  Governed by psychoacoustic models.  Why is this the case?  Take the following for example.  A male voice requires more bits to low-frequency subbands.  A female voice requires more bits to low-frequency subbands.  Change in frequency is done by dynamically changing the quantization tables used for each subband.

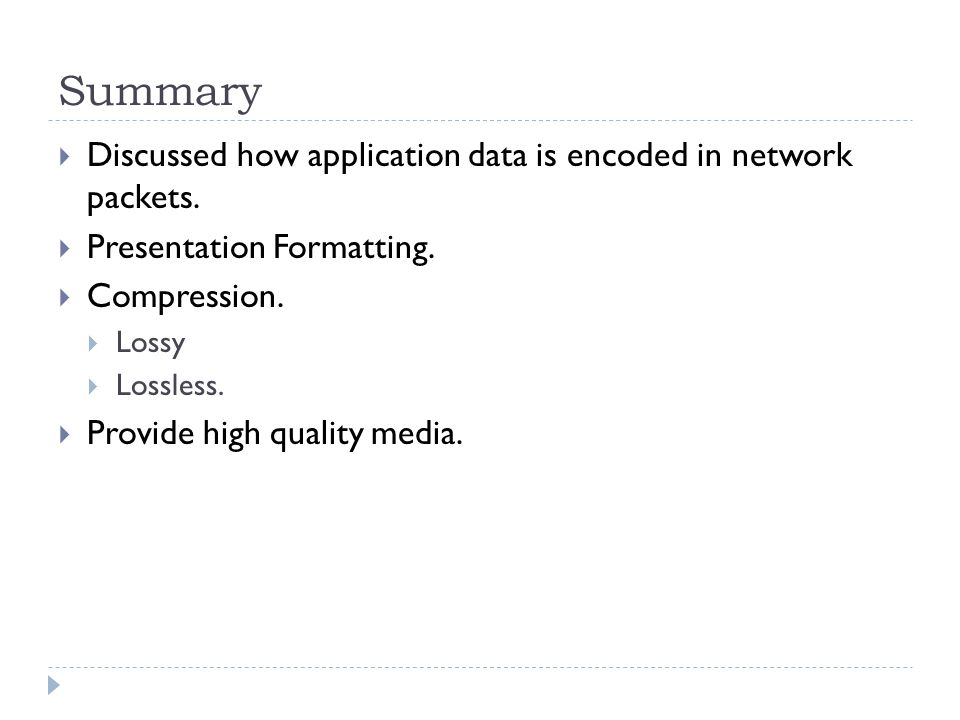

53 Summary  Discussed how application data is encoded in network packets.  Presentation Formatting.  Compression.  Lossy  Lossless.  Provide high quality media.

54 Q & A

55 Thank You

56 References Peterson, Larry L., and Bruce S. Davie. Computer Networks: A Systems Approach. 5th ed. Amsterdam: Morgan Kaufmann, Print. Motion Picture Experts Group. Wikipedia. (accessed February 19, 2013).

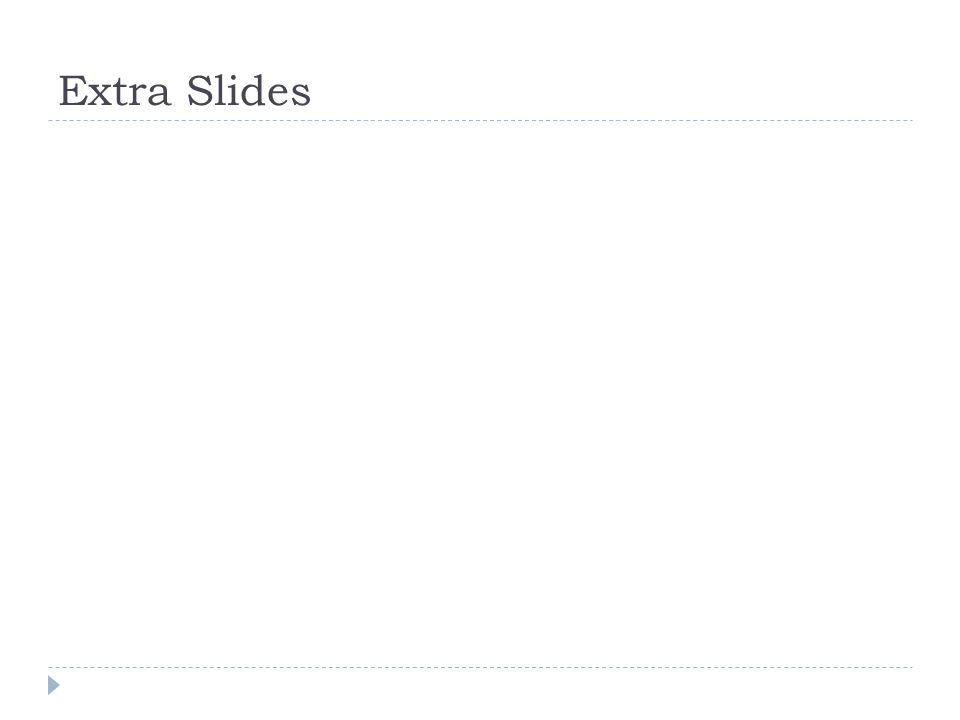

57 Extra Slides

58 Frame Types, contd. B Frame Macroblock Coordinatec Motion Vector relative to previous reference frame  Motion Vector relative to subsequent reference frame  Delta for each pixel in macroblock 

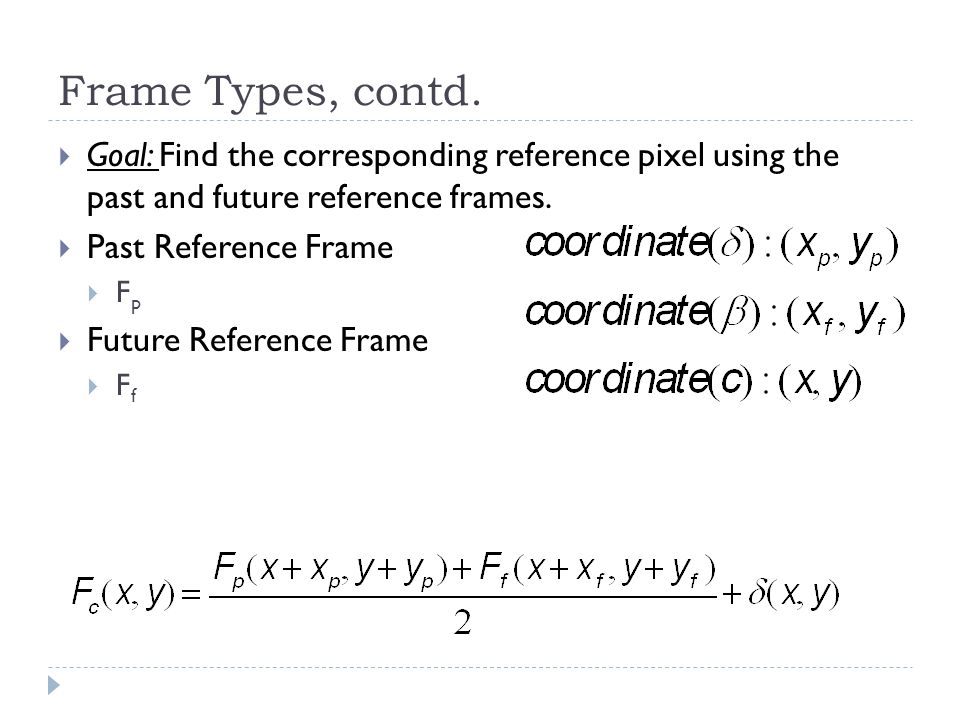

59 Frame Types, contd.  Goal: Find the corresponding reference pixel using the past and future reference frames.  Past Reference Frame  F p  Future Reference Frame  F f

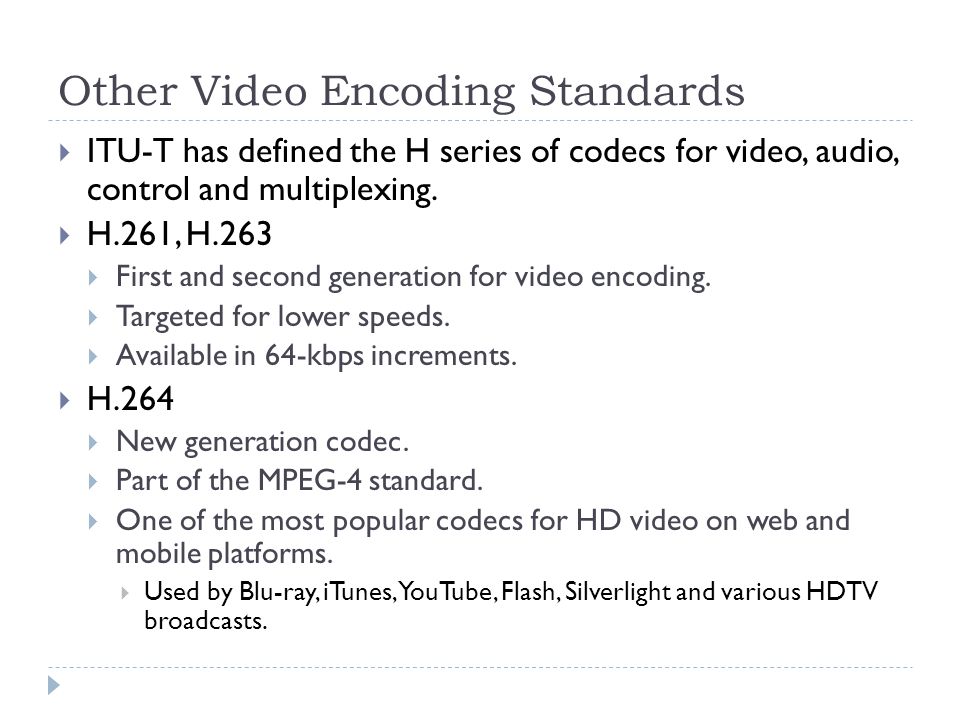

60 Other Video Encoding Standards  ITU-T has defined the H series of codecs for video, audio, control and multiplexing.  H.261, H.263  First and second generation for video encoding.  Targeted for lower speeds.  Available in 64-kbps increments.  H.264  New generation codec.  Part of the MPEG-4 standard.  One of the most popular codecs for HD video on web and mobile platforms.  Used by Blu-ray, iTunes, YouTube, Flash, Silverlight and various HDTV broadcasts.
