Presentation on theme: "America Movil 2011 Q3-Q4 Product Roadmap. Shipping Technology GPRS Type & Size 110*46*12.5mm Ringtone 64polyphonic Band Quad band (850/1900/900/1800)"— Presentation transcript:

1 America Movil 2011 Q3-Q4 Product Roadmap

2 Shipping Technology GPRS Type & Size 110*46*12.5mm Ringtone 64polyphonic Band Quad band (850/1900/900/1800) Screen 1.8” LCD Data Bluetooth Memory 128+64, External memory supports up to 2GB Multimedia FM, MP3, VGA Extras Bluetooth, Vivid screen, Torch

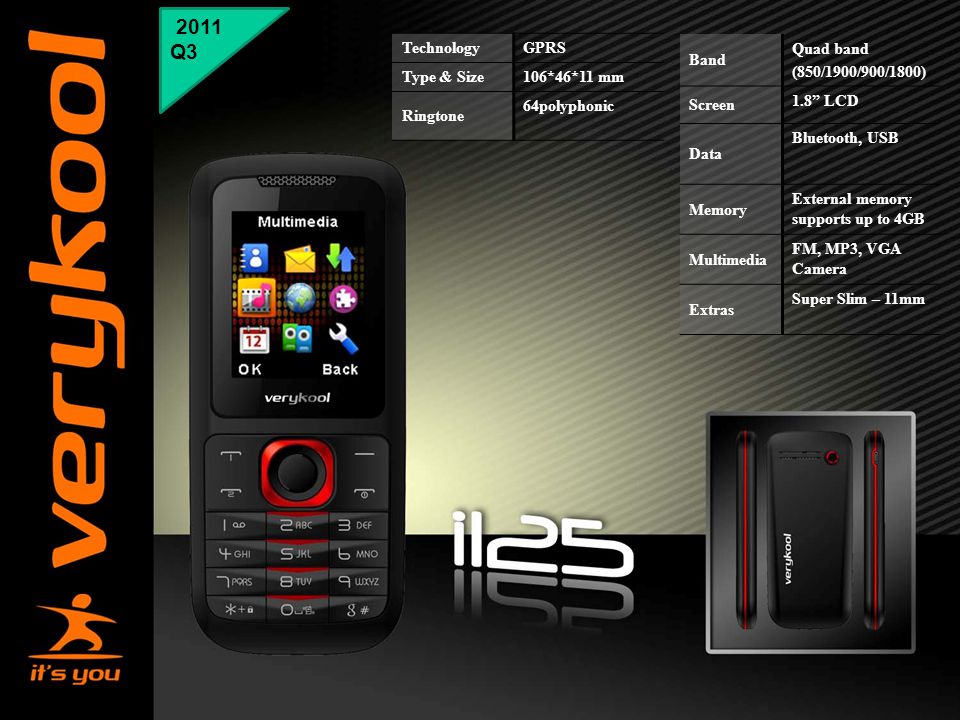

3 2011 Q3 Technology GPRS Type & Size 106*46*11 mm Ringtone 64polyphonic Band Quad band (850/1900/900/1800) Screen 1.8” LCD Data Bluetooth, USB Memory External memory supports up to 4GB Multimedia FM, MP3, VGA Camera Extras Super Slim – 11mm

4 America Movil Shipping Tema Multimedia folder with Camera TecnologíyGPRS12 Type & Size Slim Folder Type 91x46x16.2mm Ringtone 64 Polyphonic tones Band Dual Band (850/1900 or 900/1800) Screen 2.0” TFT LCD Camera1.3MP Data JAVA, WAP, SMS, Bluetooth, USB Connectivity Memory 128x64(Mbit), External memory supports up to 8GB Multimedia FM Radio, MP3 Extras Video record and play, Webcam

5 America Movil Shipping Theme Phone meets MP3 Technology GPRS Type & Size Folder with direct access to MP3 player Band Dual Band Screen 1.5” TFT LCD Data WAP, JAVA, SMS, MMS, Bluetooth Memory 2GB Embedded Multimedia FM Radio/MP3, VGA Camera Extras Superb mechanical design with steel, Camera Flash

6 America Movil Shipping Technology GPRS Type & Size Bar with full QWERTY (99.5x55.5x13.5) Camera VGA– Advanced Camera Module Band GPRS Dual band (850/1900) Screen 2.0” TFT LCD (Landscape) Data MMS/Bluetooth/US B Memory 128+32M, T flash memory supports up to 2GB Multimedia FM Radio, MP3, MPEG4, Video recorder Extras Battery size: 1100mAh allows long standby/talk, Social Networks

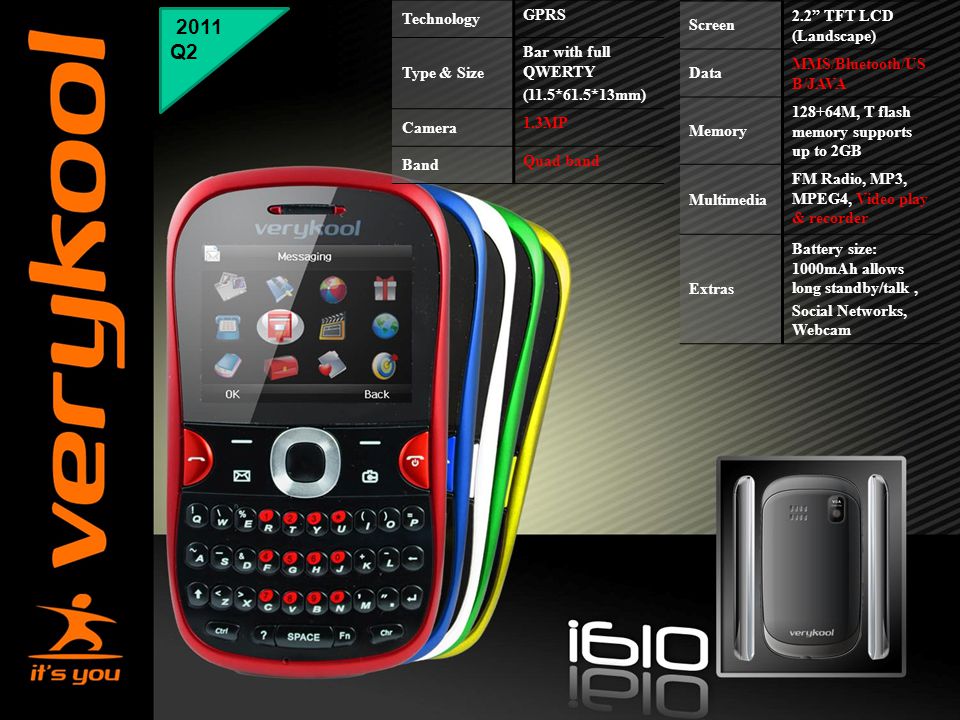

7 2011 Q2 Technology GPRS Type & Size Bar with full QWERTY (11.5*61.5*13mm) Camera 1.3MP Band Quad band Screen 2.2” TFT LCD (Landscape) Data MMS/Bluetooth/US B/JAVA Memory 128+64M, T flash memory supports up to 2GB Multimedia FM Radio, MP3, MPEG4, Video play & recorder Extras Battery size: 1000mAh allows long standby/talk, Social Networks, Webcam

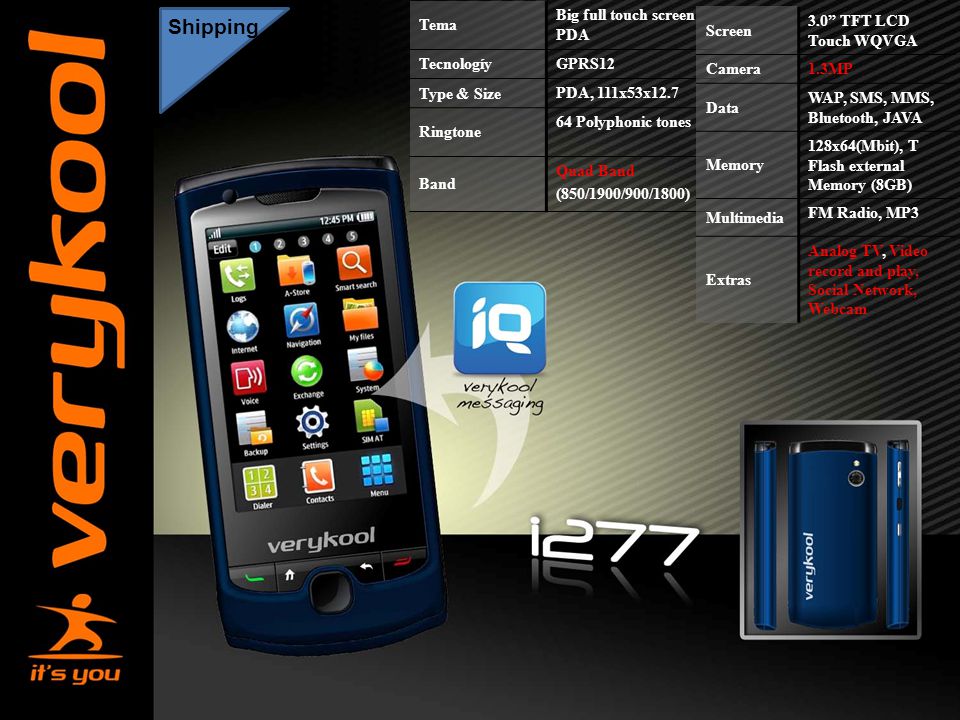

8 America Movil Shipping Tema Big full touch screen PDA Tecnologíy GPRS12 Type & Size PDA, 111x53x12.7 Ringtone 64 Polyphonic tones Band Quad Band (850/1900/900/1800) Screen 3.0” TFT LCD Touch WQVGA Camera1.3MP Data WAP, SMS, MMS, Bluetooth, JAVA Memory 128x64(Mbit), T Flash external Memory (8GB) Multimedia FM Radio, MP3 Extras Analog TV, Video record and play, Social Network, Webcam

9 America Movil Shipping Technology EDGE Type & Size 116 x 62 x 13.2mm Ringtone 64 polyphonic ring tones Band Quad 850/1900/900/1800 Screen 2.4” TFT Landscape Data WAP, JAVA, Bluetooth, WIFI Memory 1GB+256MB, External memory slot, External memory supports up to 8GB Multimedia FM Radio, MP3, Video play & Record, 2.0Mpixel Extras Speaker phone, Social Network, Optical mouse

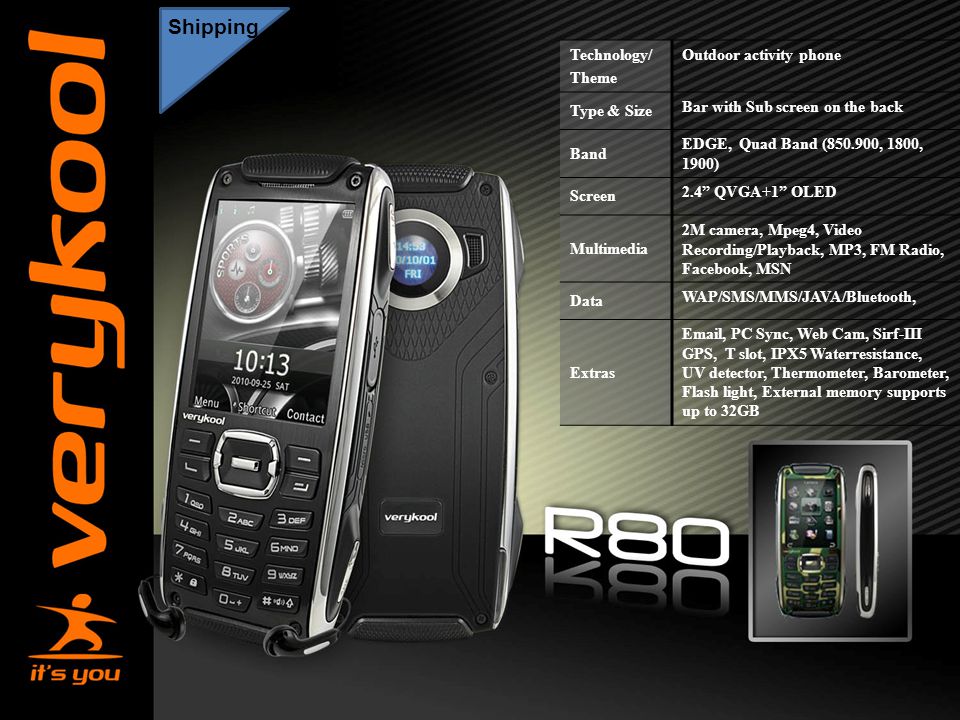

10 America Movil Shipping Technology/ Theme Outdoor activity phone Type & Size Bar with Sub screen on the back Band EDGE, Quad Band (850.900, 1800, 1900) Screen 2.4” QVGA+1” OLED Multimedia 2M camera, Mpeg4, Video Recording/Playback, MP3, FM Radio, Facebook, MSN Data WAP/SMS/MMS/JAVA/Bluetooth, Extras Email, PC Sync, Web Cam, Sirf-III GPS, T slot, IPX5 Waterresistance, UV detector, Thermometer, Barometer, Flash light, External memory supports up to 32GB

11 America Movil

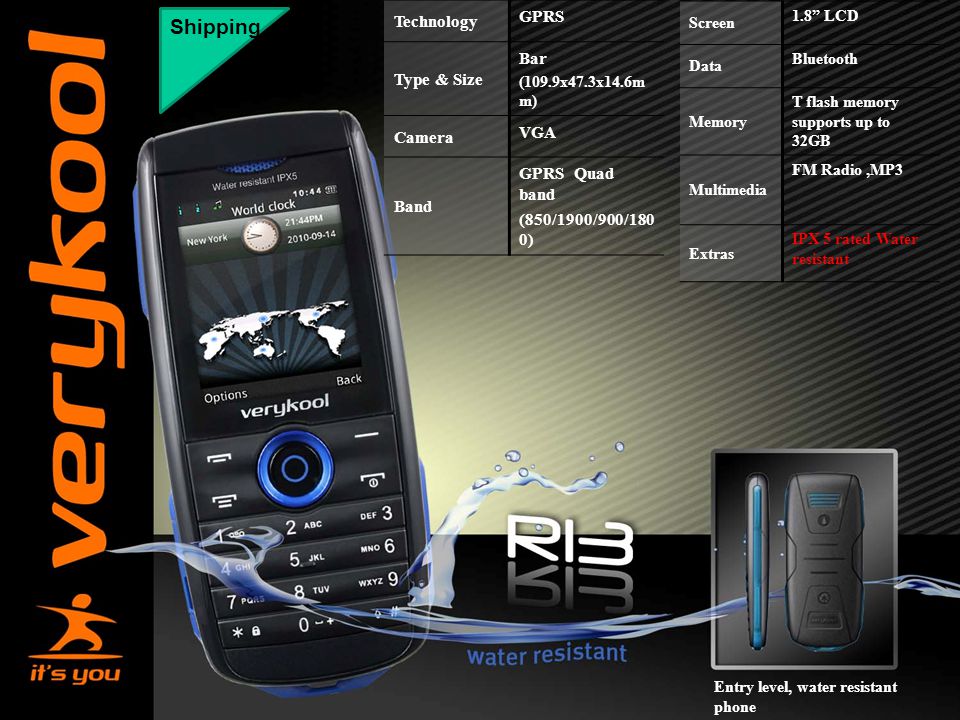

12 Shipping Technology GPRS Type & Size Bar (109.9x47.3x14.6m m) Camera VGA Band GPRS Quad band (850/1900/900/180 0) Screen 1.8” LCD Data Bluetooth Memory T flash memory supports up to 32GB Multimedia FM Radio,MP3 Extras IPX 5 rated Water resistant Entry level, water resistant phone

13 Q2 2011 Entry level, water resistant phone

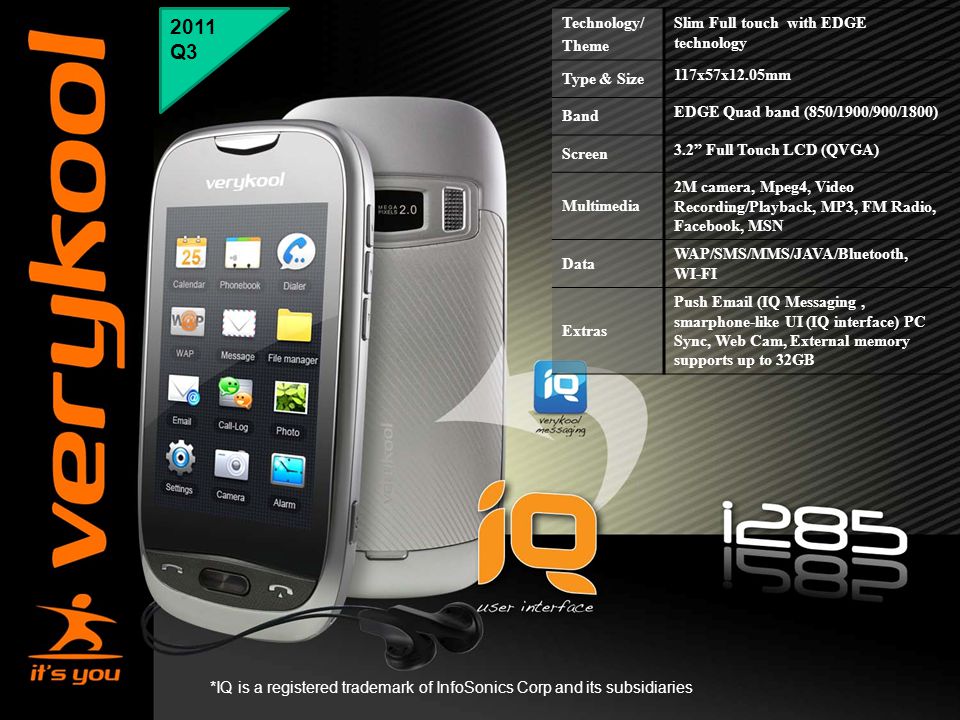

14 2011 Q3 Technology/ Theme Slim Full touch with EDGE technology Type & Size 117x57x12.05mm Band EDGE Quad band (850/1900/900/1800) Screen 3.2” Full Touch LCD (QVGA) Multimedia 2M camera, Mpeg4, Video Recording/Playback, MP3, FM Radio, Facebook, MSN Data WAP/SMS/MMS/JAVA/Bluetooth, WI-FI Extras Push Email (IQ Messaging, smarphone-like UI (IQ interface) PC Sync, Web Cam, External memory supports up to 32GB *IQ is a registered trademark of InfoSonics Corp and its subsidiaries

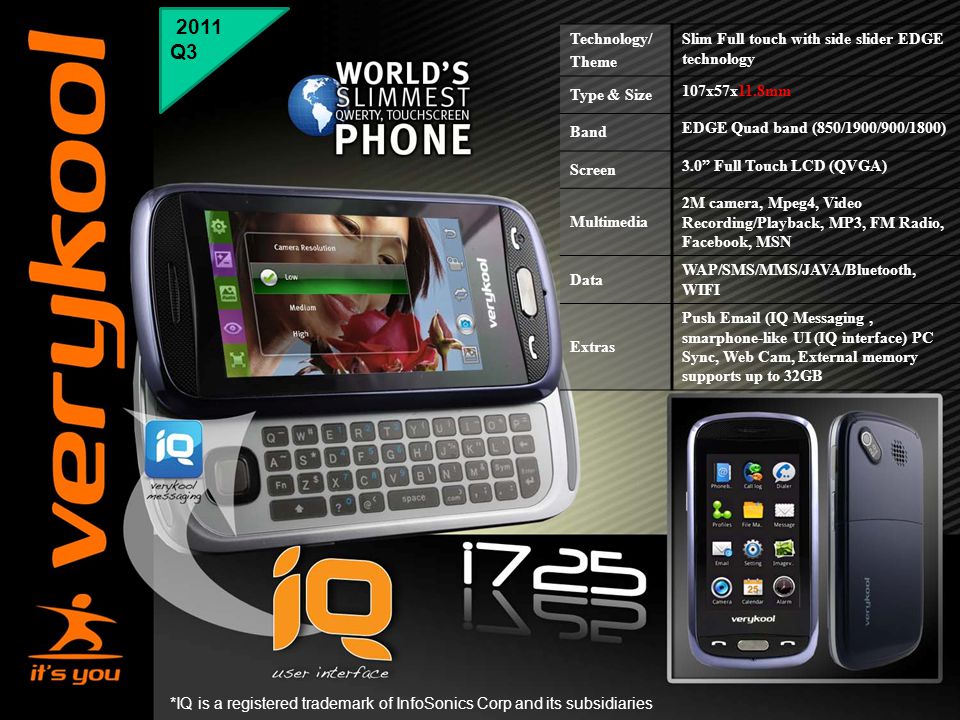

15 2011 Q3 Technology/ Theme Slim Full touch with side slider EDGE technology Type & Size 107x57x11.8mm Band EDGE Quad band (850/1900/900/1800) Screen 3.0” Full Touch LCD (QVGA) Multimedia 2M camera, Mpeg4, Video Recording/Playback, MP3, FM Radio, Facebook, MSN Data WAP/SMS/MMS/JAVA/Bluetooth, WIFI Extras Push Email (IQ Messaging, smarphone-like UI (IQ interface) PC Sync, Web Cam, External memory supports up to 32GB *IQ is a registered trademark of InfoSonics Corp and its subsidiaries

16 Available Theme HSPA+ 21mbps 4G High Speed USB Data Modem Band Quad band EDGE 850/1900 UMTS HSPA+ Features Memory T card slot – Up to 32GB LED lights (R.G.B) indicator Plug & Play OS Compatibility Windows XP/ VISTA/ win7 Mac OS X 10.5 or higher (only support INTEL platform) Tech Standard HSDPA - 3GPP Release7 , up to 21Mbps and 28.8M DL, Category 14 HSUPA - 3GPP Release6, up to 5.76M bps UL, Category 6 UMTS - 3GPP Release4, up to 384 Kbps DL and UL EDGE - 3GPP Release4, Multi slot class 12, up to 237 Kbps GPRS - 3GPP Release4, Multi slot class 10, up to 85.6Kbps

17 America Movil Shipping Technology 3G HSDPA Type & Size Bar Full QWERTY 115x54x13.5 Band Quad band GPRS 850/1900/2100 UMTS Screen 2.4” TFT LCD QVGA Camera 2MPX Memory 1G+1G, T slot Multimedia Mpeg4/H.263 Video Recording Playback, WMA, AAC, AAC+(e) Playback, FM Radio, Mp3, Full Web Browser, YouTube Viewer, MSN Extras Email, Facebook, Contact manager, Video conference, Yamaha audio enhancer

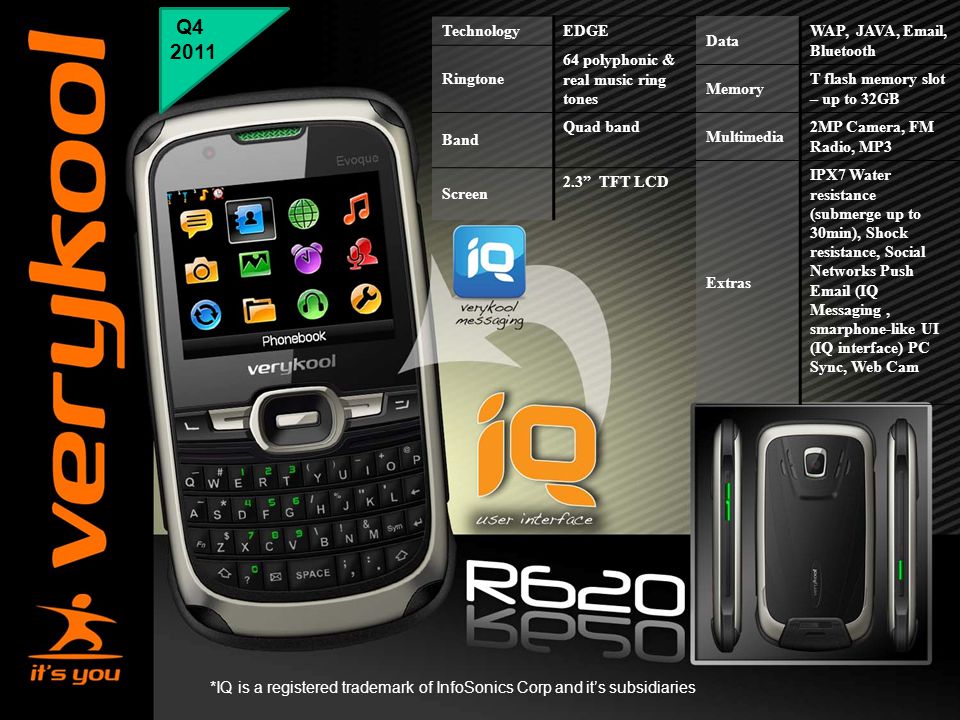

18 Q4 2011 Technology EDGE Ringtone 64 polyphonic & real music ring tones Band Quad band Screen 2.3” TFT LCD Data WAP, JAVA, Email, Bluetooth Memory T flash memory slot – up to 32GB Multimedia 2MP Camera, FM Radio, MP3 Extras IPX7 Water resistance (submerge up to 30min), Shock resistance, Social Networks Push Email (IQ Messaging, smarphone-like UI (IQ interface) PC Sync, Web Cam *IQ is a registered trademark of InfoSonics Corp and it’s subsidiaries

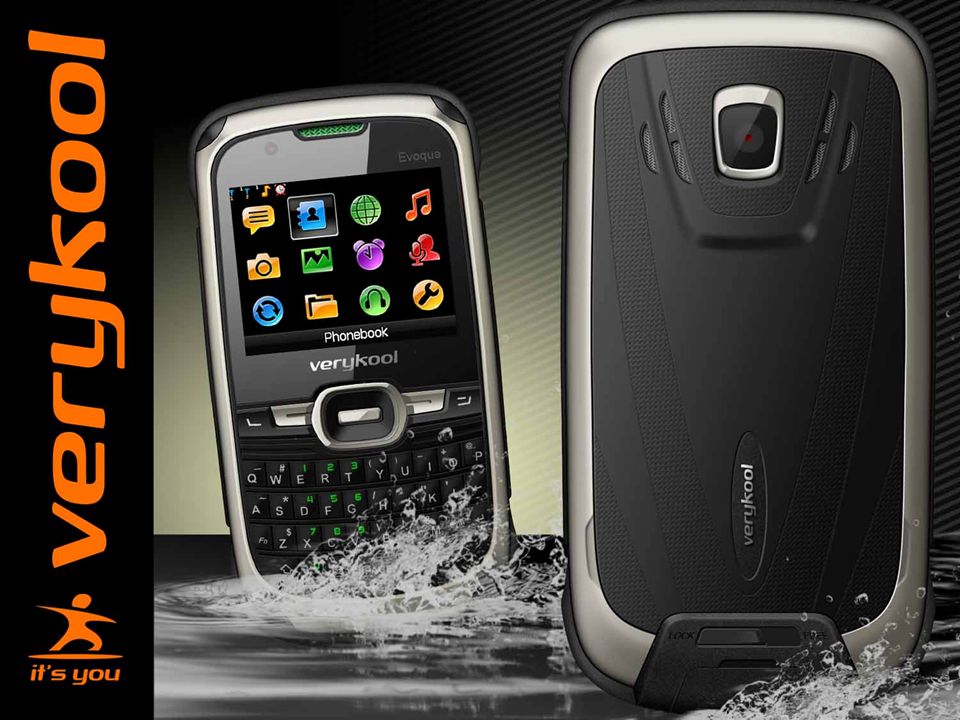

19 Q? ‘??

20 Q4 2011 Technology GPRS 12 Ringtone 64 polyphonic & real music ring tones Band Quad in GPRS Screen 2.2” TFT LCD Data WAP, JAVA, Bluetooth Memory T flash memory slot – up to 32GB Multimedia VGA Camera, FM Radio, MP3 Extras IPX7 Water resistance (submerge up to 30min), Shock resistance

21 Available Technology 3G HSDPA 3.6mbps DL Type & Size Full QWERTY 105x52x11.7 (Slim) Camera 2MPX with VGA 2 nd camera on the front Band Dual in UMTS (850/1900) Screen 2.4” TFT LCD Landscape Data Bluetooth, USB, USB modem function Memory T flash up to 16GB Multimedia 72poly ringtone, Video/Audio streaming, FM, MP3 Extras Full browser with streaming! *IQ is a registered trademark of InfoSonics Corp and its subsidiaries

22 Q4 2011 Technolog y 3G HSUPA+Android Froyo Type & Size 117 x 65 x 12.7mm Ringtone 72 polyphonic & real music ring tones Band Quad in GPRS 850/1900 in UMTS Screen 3.5” HVGA Capacitive Touch Lens Data WAP, JAVA, Email, Full browser, Bluetooth 2.1 Memory T flash memory slot – up to 32GB Multimedia 2MPX + VGA Camera, FM Radio, MP3 Extras GPS, Wi-Fi, USB Modem function, Video/Audio Streaming, Single or dual SIM available OS Android 2.2 *IQ is a registered trademark of InfoSonics Corp and it’s subsidiaries

23 Q4 2011 Technology 3G HSUPA+Android Froyo CPU Speed 800mhz, ARM 11 Screen 7” Capacitive Touch Lens Data Email, Bluetooth, Full browser, Video/Audio streaming Memory T flash memory slot – up to 32GB Multimedi a 5MP+VGA Camera Extras GPS, e-compass, Wi-Fi, Single or dual SIM available OS Android 2.2 *IQ is a registered trademark of InfoSonics Corp and it’s subsidiaries

24 America Movil Thank You
