1

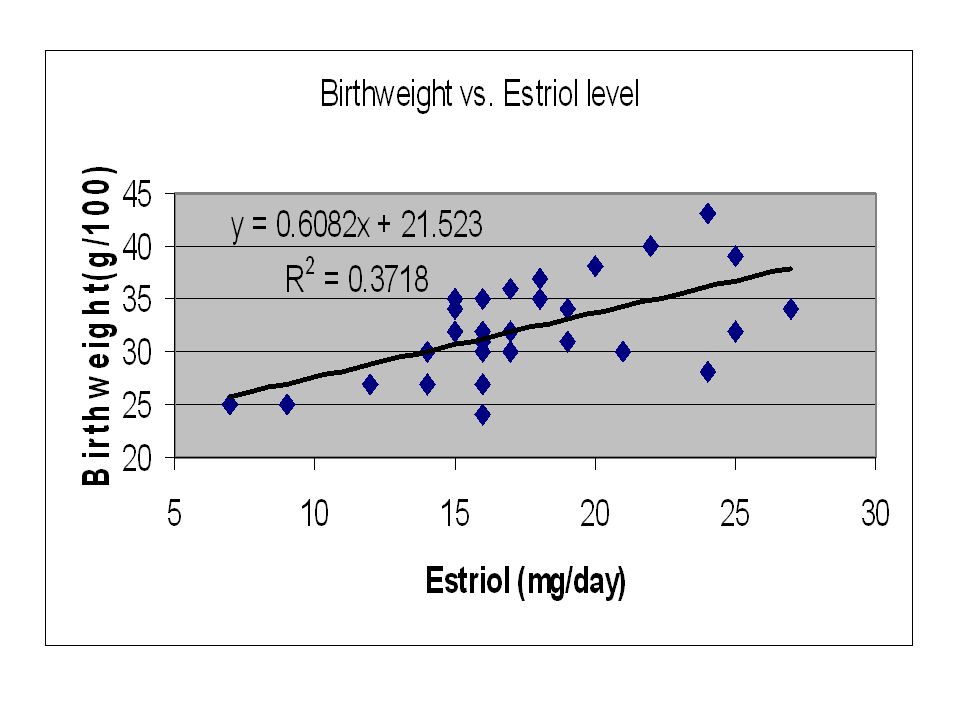

**Regression and correlation methods**

Chapter 11 Regression and correlation methods

3
Goals To relate (associate) a continuous random variable, preferably normally distributed, to other variables Abdus Wahed BIOST 2041

4
**Terminology Dependent Variable (Y):**

The variable which is supposed to depend on others e.g., Birthweight Independent variable, explanatory variable or predictors (x): The variables which are used to predict the dependent variable, or explains the variation in the dependent variable, e.g., estriol levels Abdus Wahed BIOST 2041

5
**Assumptions Dependent Variable: Independent variable:**

Continuous, preferably normally distributed Have a linear association with the predictors Independent variable: Fixed (not random) Abdus Wahed BIOST 2041

6
**Simple Linear Regression Model**

Assume Y be the dependent variable and x be the lone covariate. Then a linear regression assumes that the true relationship between Y and x is given by E(Y|x) = α + βx (1) Abdus Wahed BIOST 2041

7
**Simple Linear Regression Model**

(1) can be written as Y = α + βx + e, (2) where e is an error term with mean 0 and variance σ2. Abdus Wahed BIOST 2041

8
e e

9
Implication If there was a perfect linear relationship, every subject with the same value of x would have a common value of Y. Deterministic relationship The error term takes into account the inter-patient variability. σ2 = Var(Y) = Var(e). Abdus Wahed BIOST 2041

10
**Parameters α is the intercept of the line.**

β is the slope of the line, referred to as regression coefficient β < 0 indicates a negative linear association (the higher the x, the smaller the Y) β = 0, no linear relationship. β > 0 indicates a positive linear association (the higher the x, the larger the Y) β is the amount of change in Y for a unit change in x. Abdus Wahed BIOST 2041

11
**Data Estriol (mg/24hr) Birthweight(g/100) x1=7 y1=25 x2=9 y2=25 x3=9**

. Abdus Wahed BIOST 2041

12
**Goal How to estimate α, β, and σ2?**

Fitting Regression Lines How to draw inference? The relationship we see – is it just due to chance? Inference about regression parameters Abdus Wahed BIOST 2041

13
**Fitting Regression Line**

Least Square method Abdus Wahed BIOST 2041

14
**Least square method Idea: Implement:**

Estimate α and β in a way that the observations are “closest” to the line Impossible Implement: Estimate α and β in a way that the sum of squared deviations is minimized. Abdus Wahed BIOST 2041

15
**Least square method Minimize Σ(yi - α – βxi)2 a = (Σyi – bΣxi)/n**

Least square estimate of α a = (Σyi – bΣxi)/n Σxiyi – Σxi Σ yi/n Least square estimate of β b = Σxi2 –(Σxi)2/n Estimated Regression line: y = a + bx Abdus Wahed BIOST 2041

16
Example 11.3 Estimate the regression line for the birthweight data in Table 11.1, i.e. Estimate the intercept a and slope b We do the following calculations (see the corresponding Excel file) Abdus Wahed BIOST 2041

17
**Regression analysis for the data in Table 11.1**

Sum of products: (1) Sum of X: (2) Sum of Y: (3) Sum of squared x: (4) Corrected Sum of products : (1) - (2)*(3)/n Lxy= (5) Corrected Sum of products : (4) - (2)*(2)/n Lxx= (6) Regression coefficient: (5)/(6) b=Lxy/Lxx= (7) Intercept: [(3) - (7)*(2)]/n a= Estimated Regression Line: Birthweight (g/100) = *Estriol (mg/24hr) Abdus Wahed BIOST 2041

18
**Regression Analysis: Interpretation**

There is a positive association (statistically significant or not, we will test later) between birthweight and estriol levels. For each mg increase in estriol level, the birthweight of the newborn is increased by 61 g. Abdus Wahed BIOST 2041

19
**Prediction The predicted value of Y for a given value of x is**

Abdus Wahed BIOST 2041

20
Prediction What is the estimated (predicted) birthweight if a pregnant women has an estriol level of 15 mg/24hr? = (g/100) = 3065 g Abdus Wahed BIOST 2041

21
Calibration If low birthweight is defined as <= 2500, for what estriol level would the newborn be low birthweight? That is to what value of estriol level does the predicted birthweight of 2500 correspond to? Abdus Wahed BIOST 2041

22
**Calibration Women having estriol level of 5.72 or lower**

are expected to have low birthweight newborns Abdus Wahed BIOST 2041

23
**Goodness of fit of a regression line**

How good is x in predicting Y? Estriol (mg/24hr) Birthweight (g/100) Predicted Residual x1=7 y1=25 25.78 r1=-0.78 x2=9 y2=25 26.99 r2=-1.99 x3=9 y3=25 r3=-1.99 x4=12 y4=27 28.82 r4=-1.82 . Abdus Wahed BIOST 2041

24
**Goodness of fit of a regression line**

Residual sum of squares (Res SS) Summary Measure of Distance Between the Observed and Predicted The smaller the Res. SS, the better the regression line is in predicting Y Abdus Wahed BIOST 2041

25
**Total variation in observed Y**

Total sum of squares Summary Measure of Variation in Y Abdus Wahed BIOST 2041

26
**Total variation in predicted Y**

Total sum of squares Summary Measure of Variation in predicted Y Abdus Wahed BIOST 2041

27
**Goodness of fit of a regression line**

Abdus Wahed BIOST 2041

28
**Goodness of fit of a regression line**

It can be shown that The smaller the residual SS, the closer the total and regression sum of squares are, the better the regression is Abdus Wahed BIOST 2041

29
**Coefficient of determination R2**

R2 is the proportion of total variation in Y explained by the regression on x. R2 lies between 0 and 1. R2 = 1 implies a perfect fit (all the points are on the line). Abdus Wahed BIOST 2041

30
F-test Another way of formally looking at how good the regression of Y on x is, is through F-test. The F-test compares Reg. SS to Residual SS: Larger F indicates Better Regression Fit Abdus Wahed BIOST 2041

31
**F-test Test Test statistic Reject H0 if F > F1,n-2,1-α**

Abdus Wahed BIOST 2041

32
**Summary of Goodness of regression fit**

We need to compute three quantities Total SS Reg. SS Res. Ss Total SS = Lyy Reg. SS = b*Lxy Res. SS = Total SS – Reg.SS Abdus Wahed BIOST 2041

33
**Example 11.12 Total SS : 674 Reg. SS : 250.57**

R^2 : 0.37 => 37% of the variation in birthweight is explained by the regression on estriol level F :17.16 p-value : P(F1,29 > 17.16) = H0 is rejected => The slope of the regression line is significantly different from zero, implying a statistically significant linear relationship between estriol level and birthweight Abdus Wahed BIOST 2041

34
**T-test Same hypothesis can be tested using a t-test.**

Abdus Wahed BIOST 2041

35
T-test Abdus Wahed BIOST 2041

36
**T-test P-value = 2 Pr(tn-2 > |t|) 100(1-α)% CI for β**

Abdus Wahed BIOST 2041

37
Example 11.12 Is the regression coefficient (slope) for the estriol level significantly different from zero? S^2= s= 3.82 SE(b)= t= 4.14 p= 95% CI for reg coeff (0.31, 0.91) H0: β = 0 is rejected => The slope of the regression line is significantly different from zero, implying a statistically significant linear relationship between estriol level and birthweight Abdus Wahed BIOST 2041

38
Correlation Correlation refers to a quantitative measure of the strength of linear relationship between two variables Regression, on the other hand is used for prediction No distinction between dependent and independent variable is made when assessing the correlation Abdus Wahed BIOST 2041

39
Correlation: Example 11.14 Abdus Wahed BIOST 2041

40
Correlation Abdus Wahed BIOST 2041

41
**Correlation coefficient**

Population correlation coefficient (See section in my notes) If X and Y could be measured on everyone in the population, we could have calculated ρ. Abdus Wahed BIOST 2041

42
**Interpretation of ρ ρ lies between −1 and 1,**

ρ = 0 implies no linear relationship, ρ = −1 implies perfect negative linear relationship, ρ = +1 implies perfect positive linear relationship. Abdus Wahed BIOST 2041

43
**Sample correlation coefficient**

Unfortunately, we cannot measure X and Y on everyone in the population. We estimate ρ from the sample data as follows: Abdus Wahed BIOST 2041

44
**Interpretation of r r lies between −1 and 1,**

r = 0 implies no linear relationship, r = −1 implies perfect negative linear relationship, r = +1 implies perfect positive linear relationship, The closer |r| is to 1, the stronger the relationship is. Abdus Wahed BIOST 2041

45
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

46
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

47
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

48
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

49
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

50
**Sample correlation coefficient**

Abdus Wahed BIOST 2041

51
**Correlation: Example 11.14 Sum of products: 5156.2 (1)**

Sum of X: (2) Sum of Y: (3) Sum of squared X: (4) Sum of squared Y: (5) Corrected Sum of products : (1) - (2)*(3)/n Lxy = (6) Corrected Sum of squares of X : (4) - (2)*(2)/n Lxx = (7) Corrected Sum of squares of Y : (5) - (3)*(3)/n Lyy = (8) Sample Correlation Coefficient (6)/sqrt[(7)*(8)] r = 0.988 Abdus Wahed BIOST 2041

52
Correlation: Example 11.14 Since r = , there exists nearly perfect positive correlation between mean FEV and the height. The taller a person is the higher the FEV levels. Had we done a regression of one of the variables (FEV or height) on the other, the R2 would have been R2 = r2 = 0.976~98%. This implies that 98% of the variation in one variable is explained by the other. Abdus Wahed BIOST 2041

53
Correlation: Example 11.24 The sample correlation coefficient between estriol levels and the birth weights is calculated as r = 0.61, implying moderately strong positive linear relationship. The higher the estriol levels, the higher the birth weights. Remember, R2 = (slide # 33) which is equal to r2 = (0.61)2. Abdus Wahed BIOST 2041

54
**Statistical Significance of Correlation**

If |r| is close to 1, such as 0.988, one would believe that there is a strong linear relationship between the two variables. That means, there is no reason to believe that this strong association just happened by chance (sampling/observation). Abdus Wahed BIOST 2041

55
**Statistical Significance of Correlation**

But If |r| = 0.23, what conclusion would you draw about the relationship? Is it possible that in truth there was no correlation (ρ = 0), but the sample by chance only shows that there is some sort of correlation between the two variables? Abdus Wahed BIOST 2041

56
**Significance test for correlation coefficient**

Test the hypothesis H0: ρ = 0 vs Ha: ρ ≠ 0. Under the assumption that both variables are normally distributed, Calculate two-sided p-value from a t distribution with (n-2) d.f. Abdus Wahed BIOST 2041

57
Correlation: Example 11.24 The sample correlation coefficient between estriol levels and the birth weights is calculated as r = 0.61. Is the correlation significant? (Is the correlation coefficient significantly different from zero?) Abdus Wahed BIOST 2041

58
Correlation: Example 11.24 Since p-value is very small, we reject the null hypothesis. The correlation is statistically significant at α = => We have enough evidence to conclude that the correlation coefficient is significantly different from zero. Did you notice that the t-statistic (t = 4.14) and p-value ( ) for testing H0: ρ = 0 are exactly same as the t-statistic calculated for H0: β = 0 in slide 37? Abdus Wahed BIOST 2041

59
**Significance test for correlation coefficient**

Test the hypothesis H0: ρ = ρ0 vs Ha: ρ ≠ ρ0. Let (Fisher’s Z transformation), Abdus Wahed BIOST 2041

60
**Significance test for correlation coefficient**

Then under H0, The p-value for the test could then be calculated from a standard normal distribution We will mainly use this result to find confidence intervals for ρ Abdus Wahed BIOST 2041

61
**Confidence Interval for ρ**

Abdus Wahed BIOST 2041
