2. Installation of network operating system based GUI (Graphical User Interface) and Text HOME

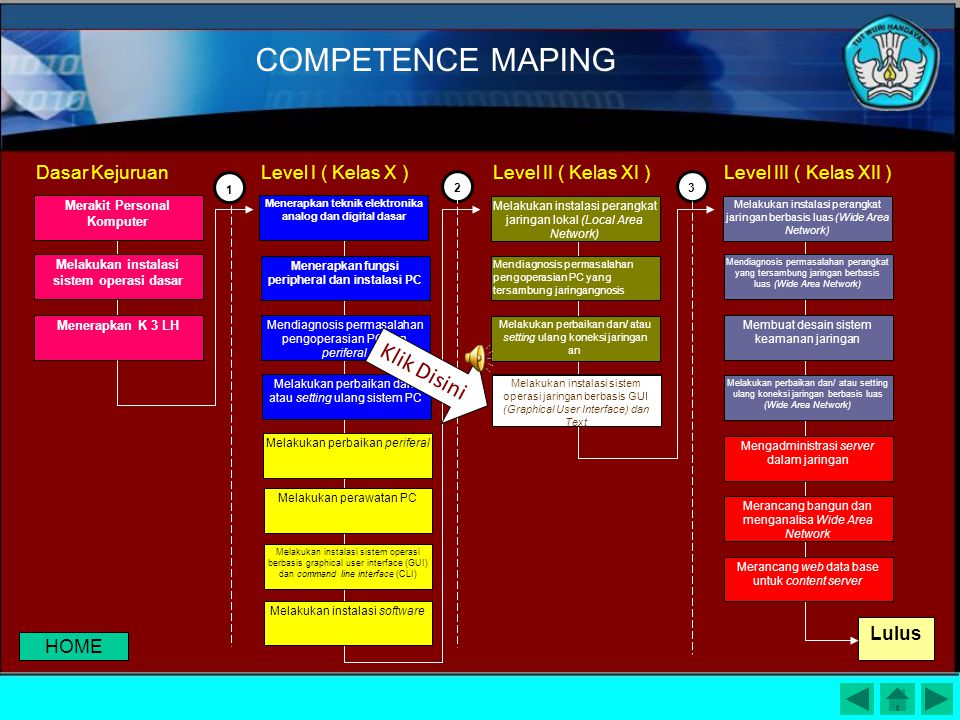

3. COMPETENCE MAPING 23 Mendiagnosis permasalahan pengoperasian PC yang tersambung jaringangnosis Melakukan perbaikan dan/ atau setting ulang koneksi jaringan an Melakukan instalasi sistem operasi jaringan berbasis GUI (Graphical User Interface) dan Text Melakukan instalasi perangkat jaringan berbasis luas (Wide Area Network) Mendiagnosis permasalahan perangkat yang tersambung jaringan berbasis luas (Wide Area Network) Membuat desain sistem keamanan jaringan Mendiagnosis permasalahan pengoperasian PC dan periferal Melakukan perbaikan dan/ atau setting ulang sistem PC Melakukan perbaikan periferal Melakukan instalasi software Melakukan perawatan PC Melakukan instalasi sistem operasi berbasis graphical user interface (GUI) dan command line interface (CLI) Melakukan instalasi perangkat jaringan lokal (Local Area Network) Menerapkan teknik elektronika analog dan digital dasar Menerapkan fungsi peripheral dan instalasi PC Melakukan perbaikan dan/ atau setting ulang koneksi jaringan berbasis luas (Wide Area Network) Mengadministrasi server dalam jaringan Merancang bangun dan menganalisa Wide Area Network Merancang web data base untuk content server Lulus Melakukan instalasi sistem operasi dasar Menerapkan K 3 LH Merakit Personal Komputer Dasar KejuruanLevel I ( Kelas X ) Level II ( Kelas XI ) Level III ( Kelas XII ) 1 Melakukan instalasi sistem operasi jaringan berbasis GUI (Graphical User Interface) dan Text Klik Disini HOME

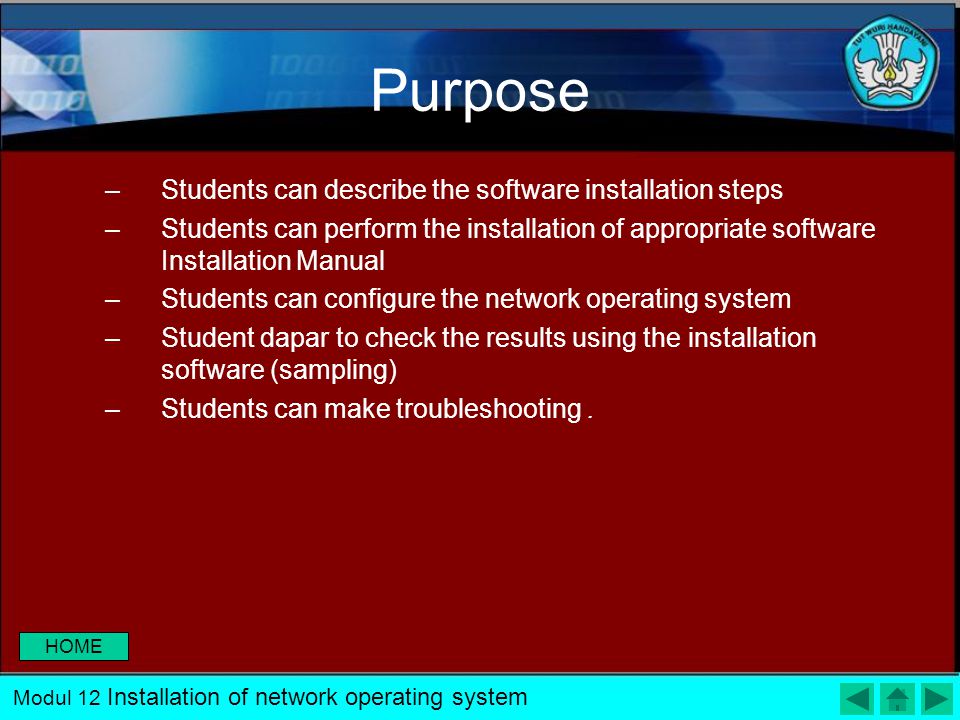

4. Purpose –Students can describe the software installation steps –Students can perform the installation of appropriate software Installation Manual –Students can configure the network operating system –Student dapar to check the results using the installation software (sampling) –Students can make troubleshooting. Modul 12 Installation of network operating system HOME

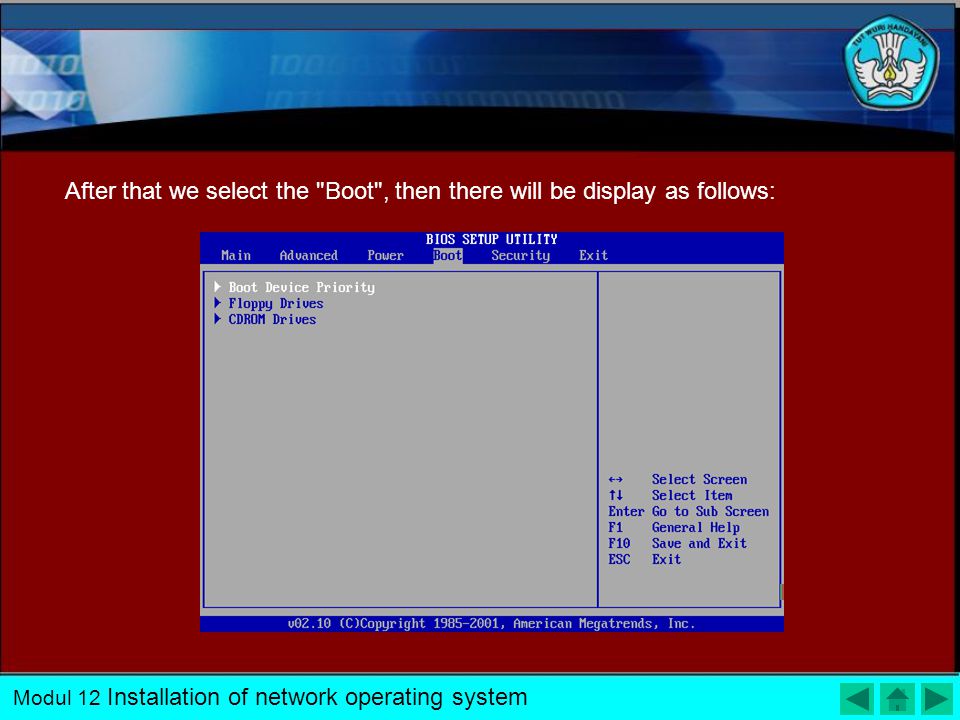

5. Before you install ubuntu, we must set the BIOS first. How to enter BIOS is we live press the "Del or F2" at the time of booting the computer to process first. You must do this quickly, because if the computer will not quickly go to the OS on the hard drive, but when you œlebih cepatâ € â € then the view will appear as follows: Modul 12 Installation of network operating system

6. After that we select the "Boot", then there will be display as follows: Modul 12 Installation of network operating system

7. After that we are setting the first boot on the CD-Room. Then we select the "Boot Device Priority" then there will be display as follows: Modul 12 Installation of network operating system

8. After our first Boot settings on the CD-Room, we now save the configuration before we have to do with pressing F10. Modul 12 Installation of network operating system

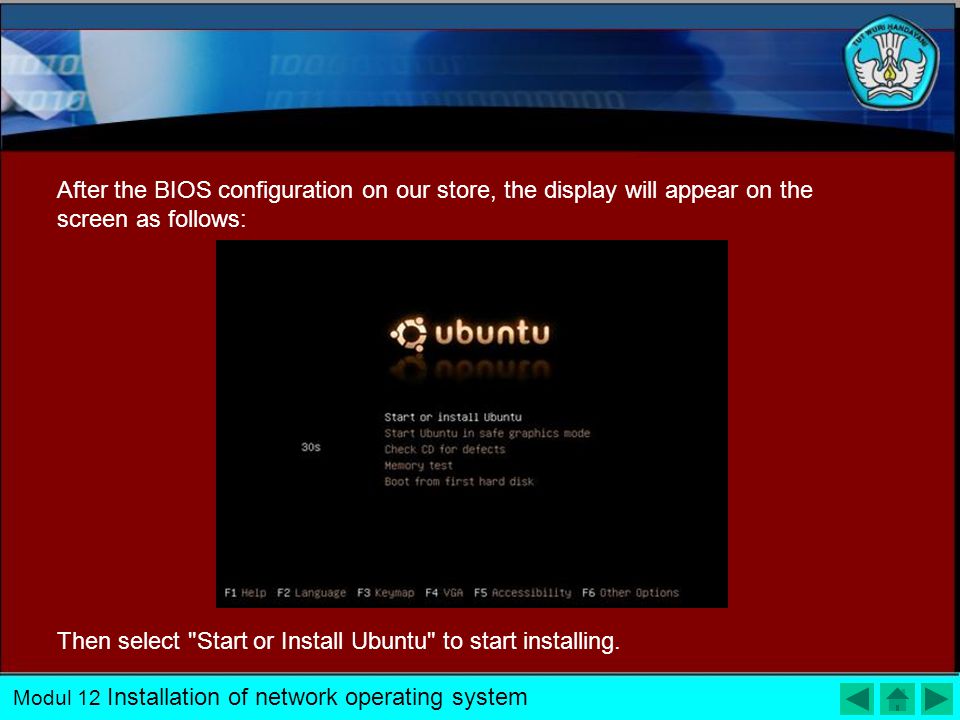

9. After the BIOS configuration on our store, the display will appear on the screen as follows: Then select "Start or Install Ubuntu" to start installing. Modul 12 Installation of network operating system

10. Once we select the "Start or Install Ubuntu" then there will be a display on the screen as follows: Modul 12 Installation of network operating system

11. Then we have to give the partition on the hard disk first, click on "System> Administration> Gnome Partition Editor." The appearance is as follows: Modul 12 Installation of network operating system

12. After that will appear on the screen display as follows: When we want to create a new partition, right-click on the area of a black youth waiting ago to appear like the picture above. Modul 12 Installation of network operating system

13. After right-click on the area of the black image will appear as follows: Click "Create" to start creating a partition. Modul 12 Installation of network operating system

14. Then the display will appear on the screen as follows: Right-click on the area of a black youth, to appear above the image, and do not forget we have to determine how large a partition that will be used. Click add if you configure it. Modul 12 Installation of network operating system

15. After we add then click the blue color will appear in the area of black youth, in the picture above there are still areas of black youth, this is still due to the hard disk space remaining. Therefore, it is then right click again and select new. Modul 12 Installation of network operating system

16. In above picture free area will be use for swap partisi, then klik add, (linux minimal need swap partisi and root) Modul 12 Installation of network operating system

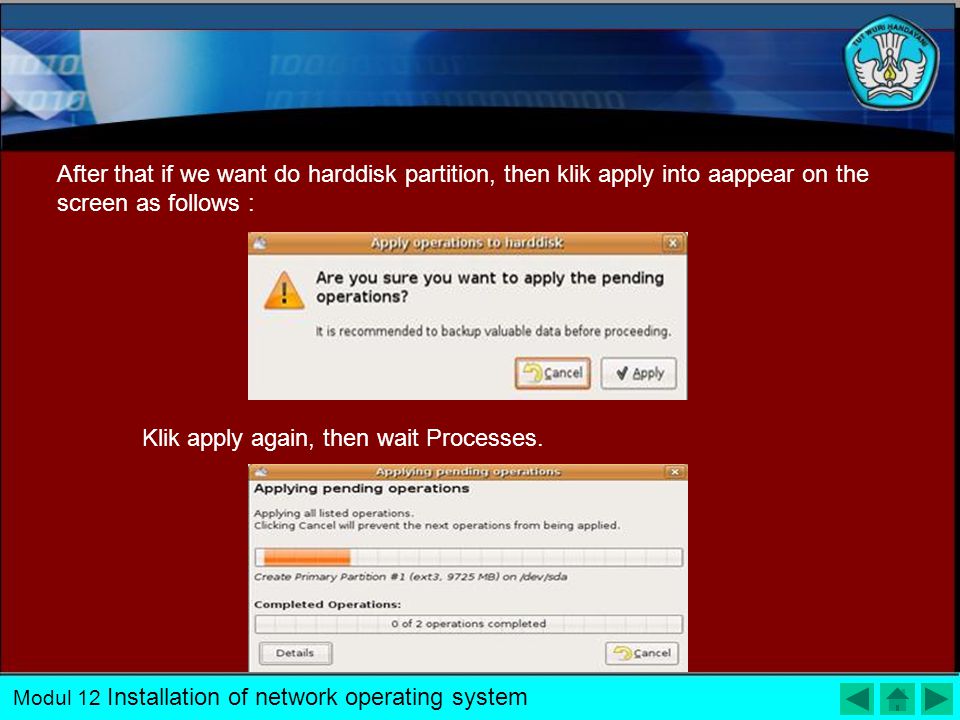

17. After that if we want do harddisk partition, then klik apply into aappear on the screen as follows : Klik apply again, then wait Processes. Modul 12 Installation of network operating system

18. After Harddisk partition proceses finish, then appear on the screen as follows : Then klik “Close”. Modul 12 Installation of network operating system

19. For Instalation we can klik INSTALL icon in the dekstop and wait proceses untik appear on the screen as follows: In Picture above we ask for choose languange we use it, After choose klik foward Modul 12 Installation of network operating system

20. After click the forward view will appear as follows: Here we will indicate where we are, because the show where we are, ubuntu system will set the time format GMT, when finished click forward Modul 12 Installation of network operating system

21. In the above picture of us in order to determine the type of keyboard we will use, once completed click forward. After clicking on the forward view will appear as follows Modul 12 Installation of network operating system

22. When done click on the forward, then the display appears as follows: Display is intended to fill our identity. Keep in mind, when filling the username letters must be used all small and can not have spaces, the same thing when we fill in the name of our computer. Modul 12 Installation of network operating system

23. Click the image forward into appear as follows: This side there are two options of "erase the disk and edit the Manual." I erase the disk is to delete all the contents of hard drives, but this is quite dangerous if you have any data stored on the hard disk. Safe to select the manual edit partition. After that click forward. Modul 12 Installation of network operating system

24. After click forward, then the image will appear as follows: Because we have made before the partition Click Fordward. Modul 12 Installation of network operating system

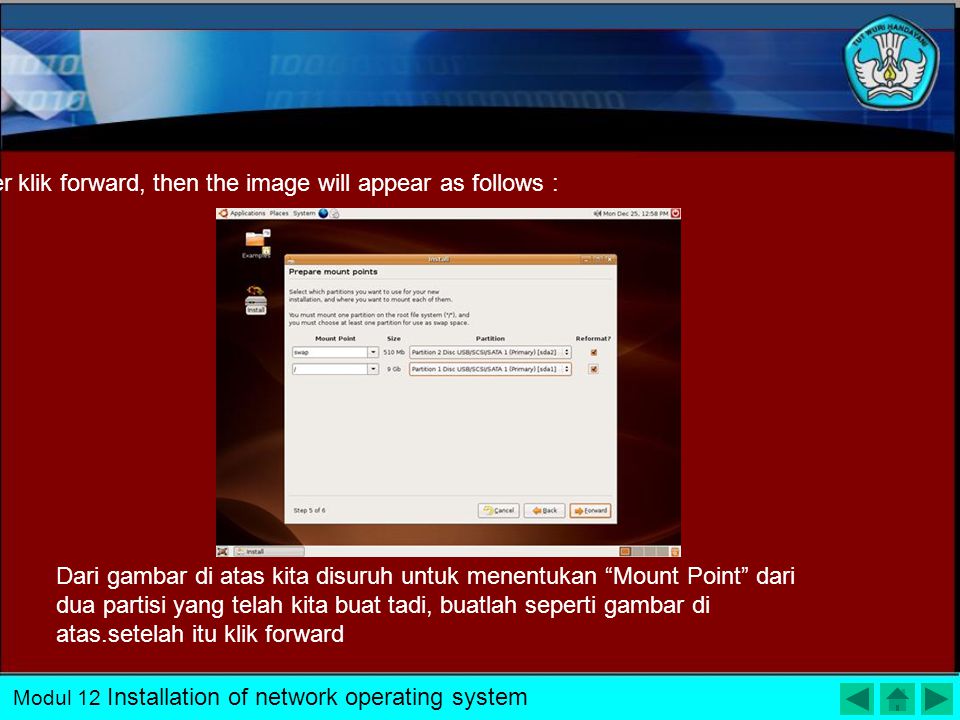

25. After klik forward, then the image will appear as follows : Dari gambar di atas kita disuruh untuk menentukan “Mount Point” dari dua partisi yang telah kita buat tadi, buatlah seperti gambar di atas.setelah itu klik forward Modul 12 Installation of network operating system

26. After click forward, then the image will appear as follows: This is a global configuration that we have created to install, click install (if the configuration is steady). Modul 12 Installation of network operating system

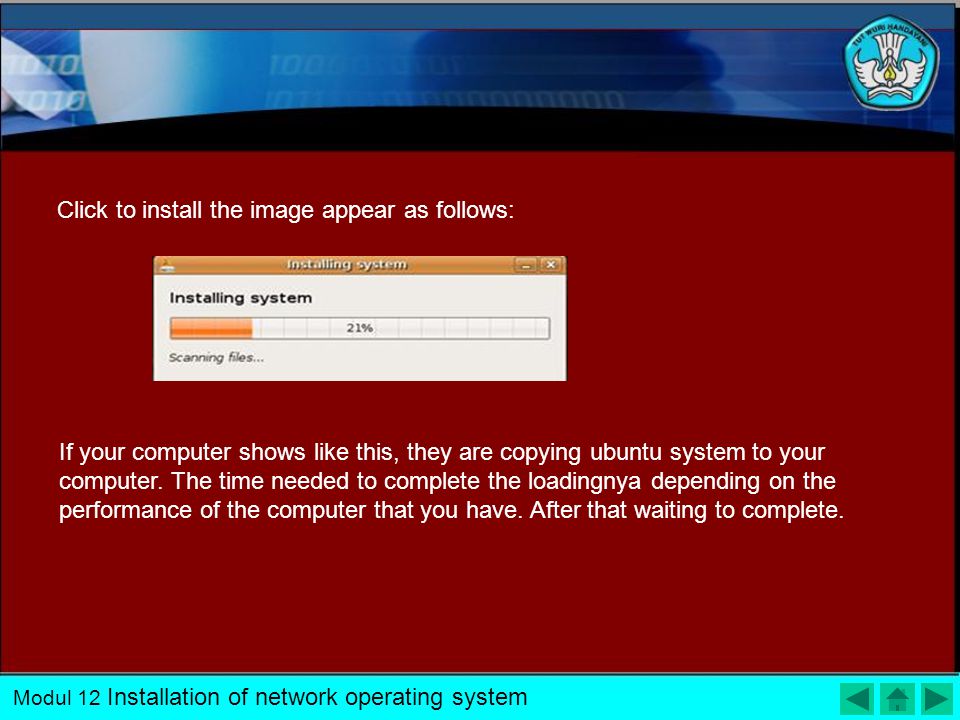

27. Click to install the image appear as follows: If your computer shows like this, they are copying ubuntu system to your computer. The time needed to complete the loadingnya depending on the performance of the computer that you have. After that waiting to complete. Modul 12 Installation of network operating system

28. Once completed the display will appear as follows: When you look at the computer screen looks like the above means that the installation of ubuntu on the computer you are finished. Modul 12 Installation of network operating system

29. Insert the Ubuntu CD Restart the Computer and Display Repeat Installation akan appear Modul 12 Installation of network operating system

30. Select a location, language, keyboard settings during the installation process Modul 12 Installation of network operating system

31. Specify the hostname to identify a computer on the network Modul 12 Installation of network operating system

32. Select the appropriate resolution to the screen. Modul 12 Installation of network operating system

33. Ubuntu Harddisk IDE check that will be used Hard drive will provide information to the label and the partition size Select the hard drive and then format to the installation process Modul 12 Installation of network operating system

34. Enter your user name and user full Username will be used to enter the system linux Modul 12 Installation of network operating system

35. To end the installation process enter a password and password confirmation Modul 12 Installation of network operating system

36. Have time to install Ubuntu Linux IP using DHCP is used, how to change the following settings IP in Ubuntu still using DHCP to Static IP using the GUI. For Static IP settings, open the System - Administrator - Networking, then select the connection icon Wired Modul 12 Installation of network operating system HOME

37. Do click on the Property ago Wired connection settings window will appear for interface eth0, you do click on the drop-down box and select the Static IP address. Modul 12 Installation of network operating system HOME
