1 THE DIFFERENCE PAL SYSTEM AND NTSC EXPLAINING BASICS VIDEO SIGNAL By. Sarbini, S.Pd (SMK Muh 3 Yogyakarta)

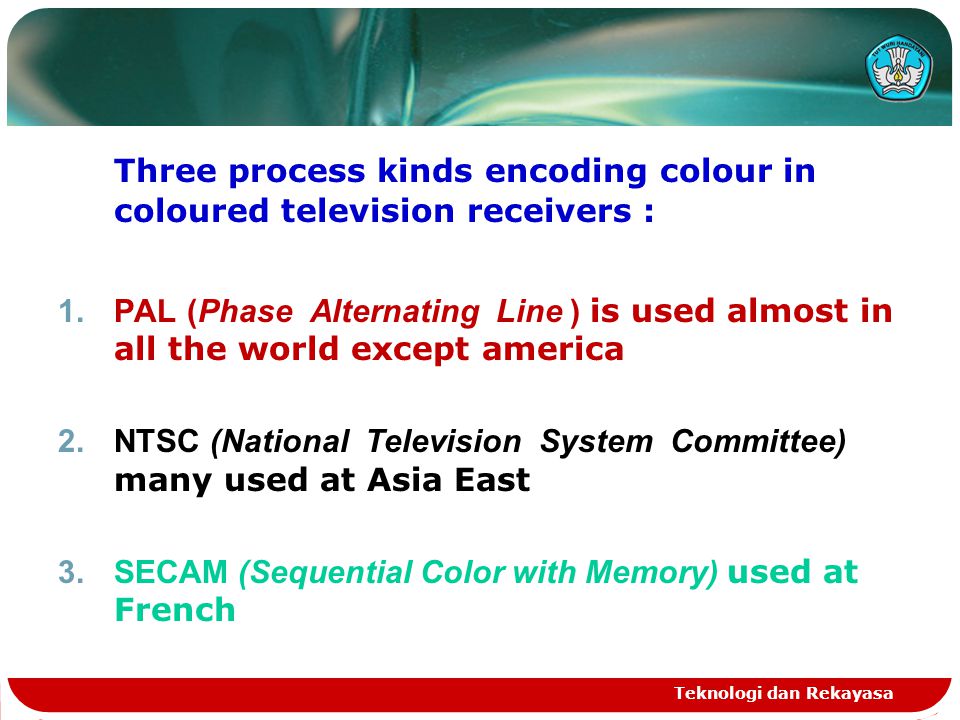

2 Teknologi dan Rekayasa Three process kinds encoding colour in coloured television receivers : 1.PAL (Phase Alternating Line ) is used almost in all the world except america 2.NTSC (National Television System Committee) many used at Asia East 3.SECAM (Sequential Color with Memory) used at French

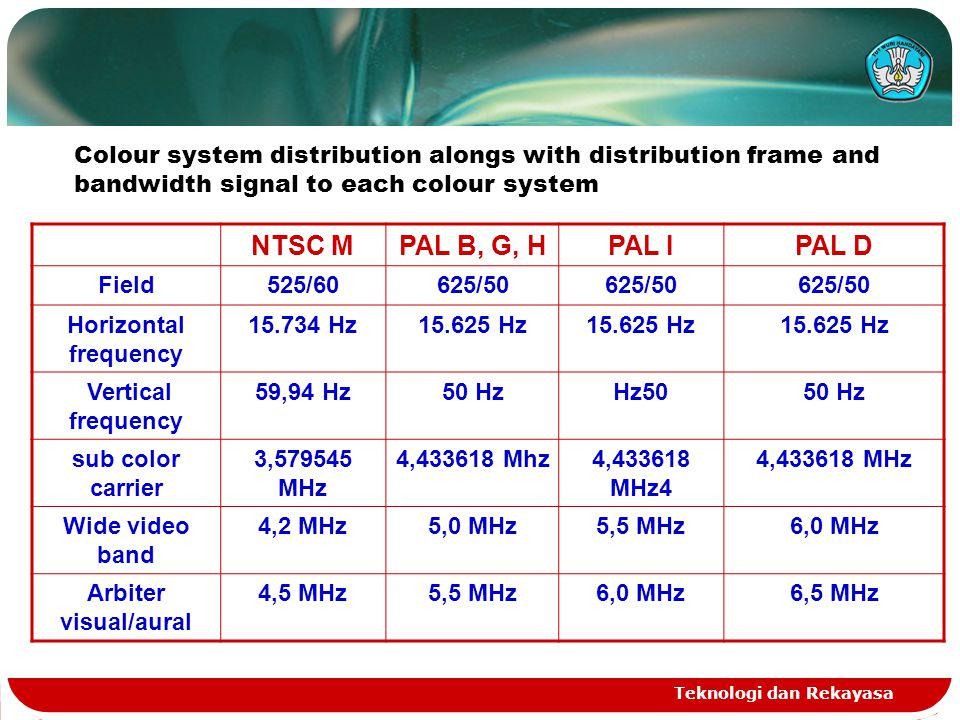

3 Teknologi dan Rekayasa NTSC MPAL B, G, HPAL IPAL D Field525/60625/50 Horizontal frequency Hz Hz Vertical frequency 59,94 Hz50 HzHz5050 Hz sub color carrier 3, MHz 4, Mhz4, MHz4 4, MHz Wide video band 4,2 MHz5,0 MHz5,5 MHz6,0 MHz Arbiter visual/aural 4,5 MHz5,5 MHz6,0 MHz6,5 MHz Colour system distribution alongs with distribution frame and bandwidth signal to each colour system

4 Teknologi dan Rekayasa SystemAudio (MHz)Video (MHz) User NTSC41,2545,75 PAL B,G33,438,9 PAL B31,37536,875Australia PAL D30,537China PAL D32,438,9 PAL I32,938,9 PAL I33,539,5U.K PAL M, N41,2545,75. IF Frequency For System NTSC, PAL
