1. McGraw-Hill/Irwin Copyright © 2007 by The McGraw-Hill Companies, Inc. All rights reserved. Chapter 14 Data and Database Administration

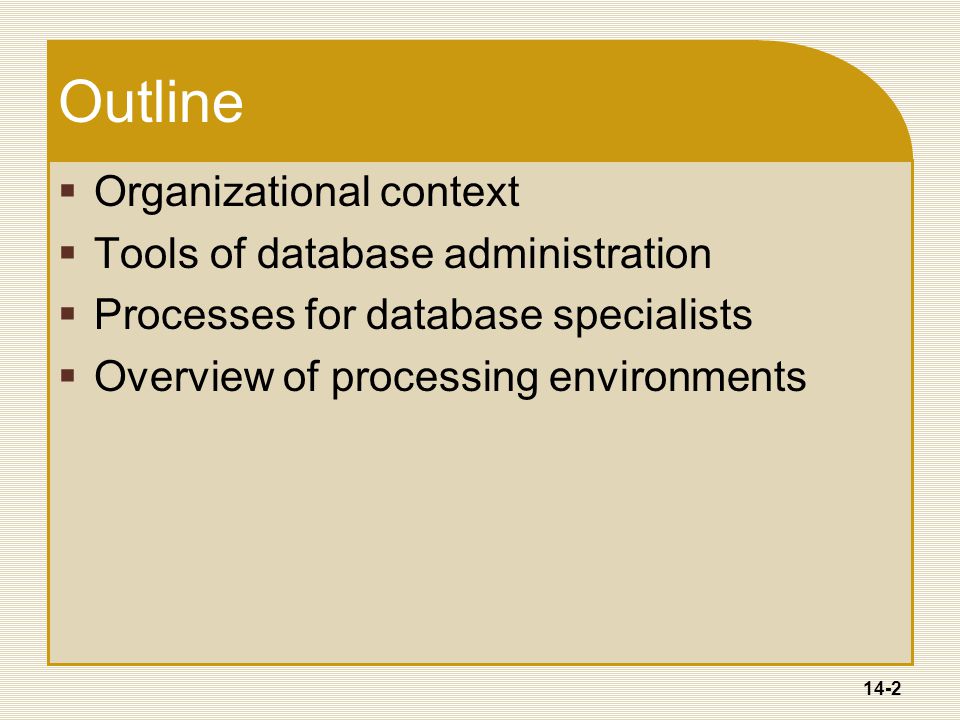

2. 14-2 Outline  Organizational context  Tools of database administration  Processes for database specialists  Overview of processing environments

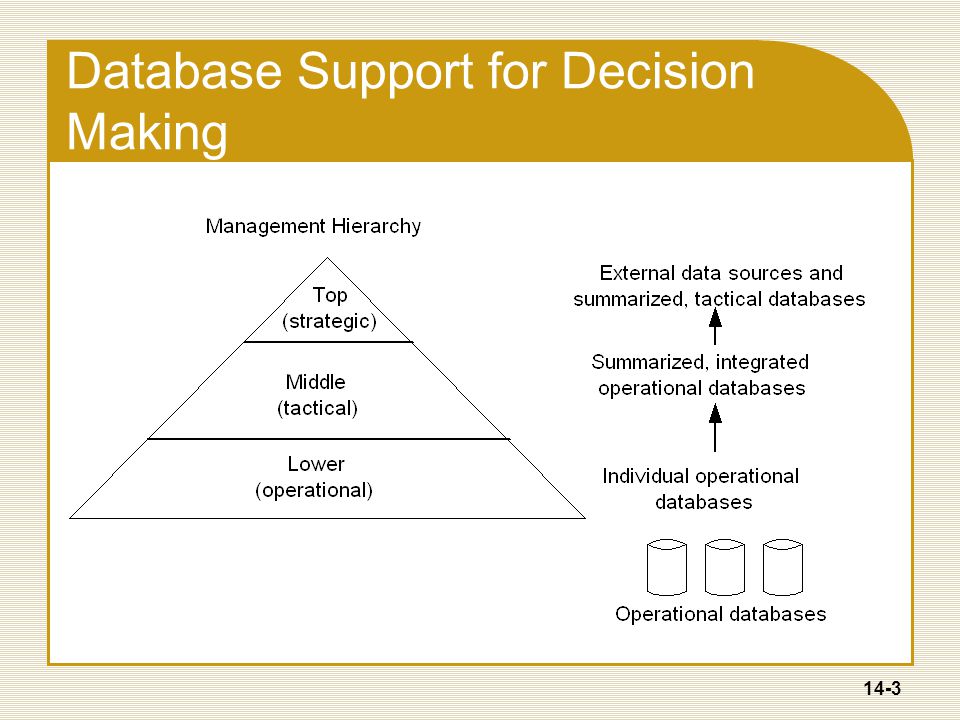

3. 14-3 Database Support for Decision Making

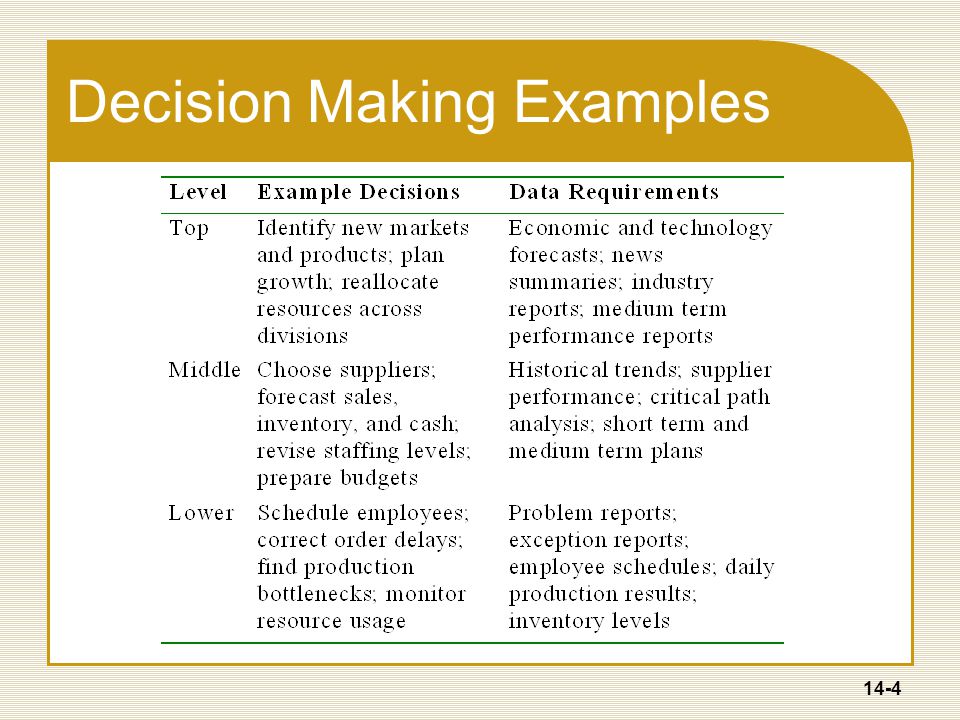

4. 14-4 Decision Making Examples

5. 14-5 Information Life Cycle

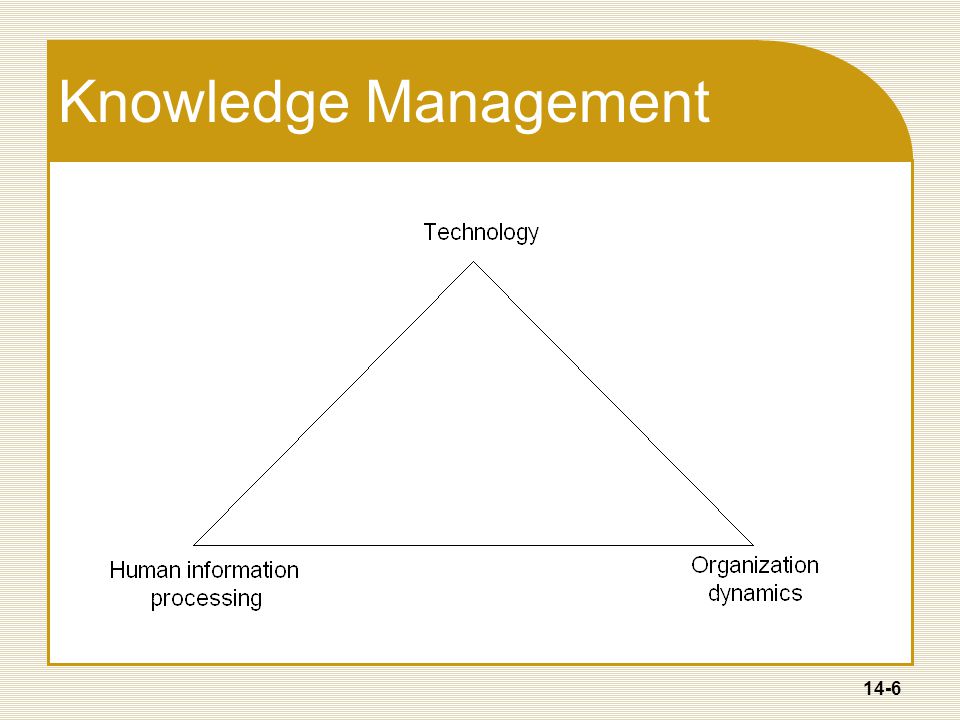

6. 14-6 Knowledge Management

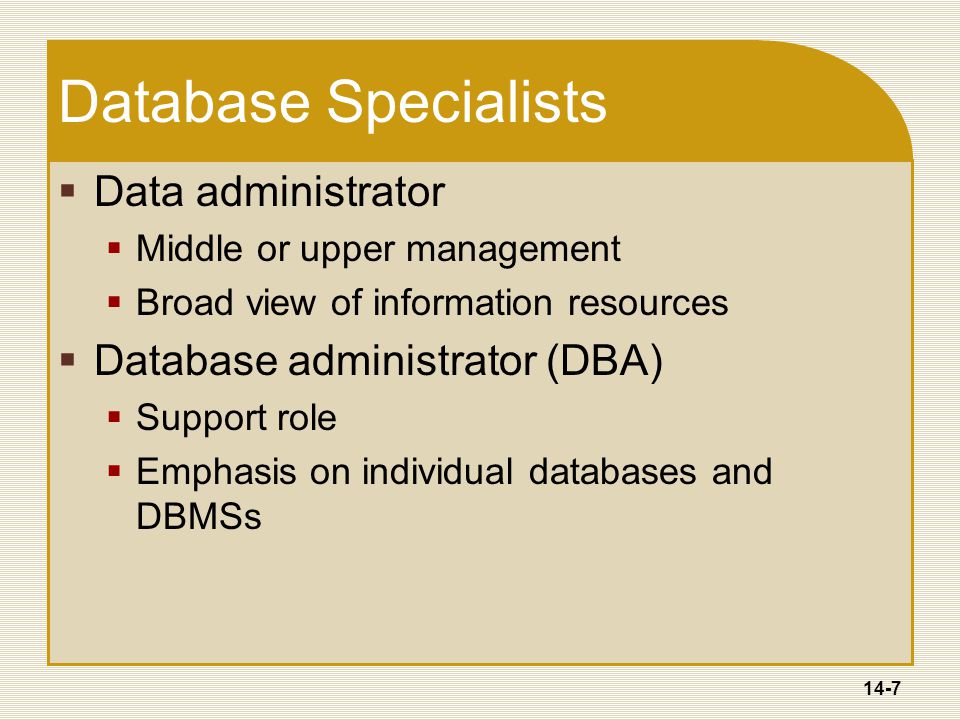

7. 14-7 Database Specialists  Data administrator  Middle or upper management  Broad view of information resources  Database administrator (DBA)  Support role  Emphasis on individual databases and DBMSs

8. 14-8 Responsibilities of Specialists  Data administrator  Develops enterprise data model  Establishes inter database standards  Negotiates contractual terms  Database administrator  Performs database development tasks  Consults on application development  Evaluates DBMS capabilities and features

9. 14-9 Database Administration Tools  Security  Integrity  Management of stored procedures and triggers  Data dictionary access

10. 14-10 Database Access Control

11. 14-11 Discretionary Access Control  Assign access rights or privileges to users  Specify ability to read, write, and delete specified parts of a database  Use views for fine level of control  Use groups to reduce the number of authorization rules

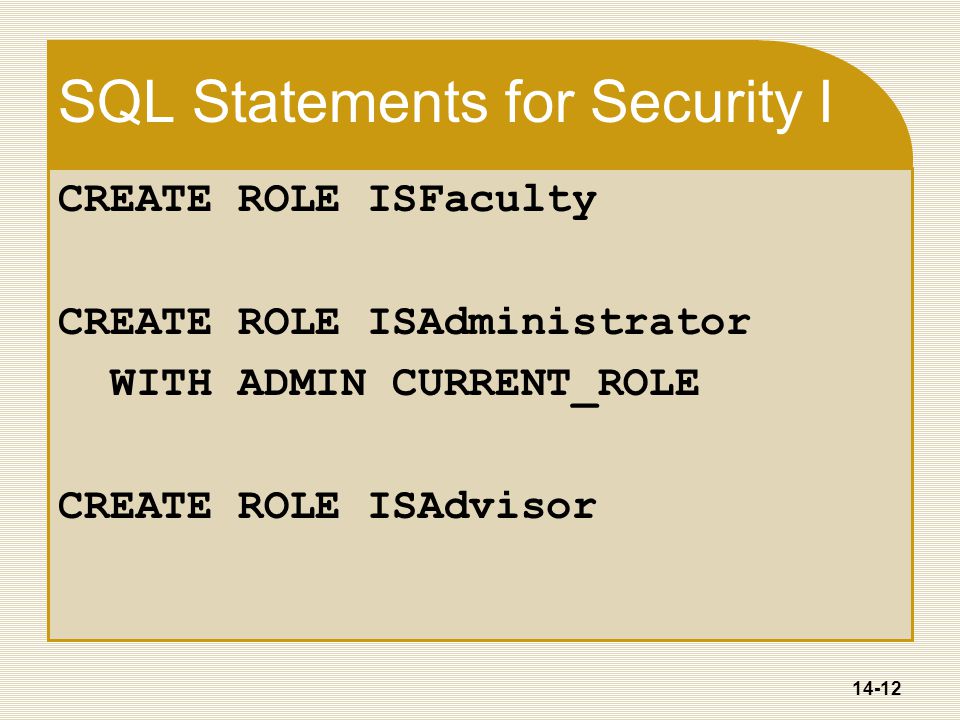

12. 14-12 SQL Statements for Security I CREATE ROLE ISFaculty CREATE ROLE ISAdministrator WITH ADMIN CURRENT_ROLE CREATE ROLE ISAdvisor

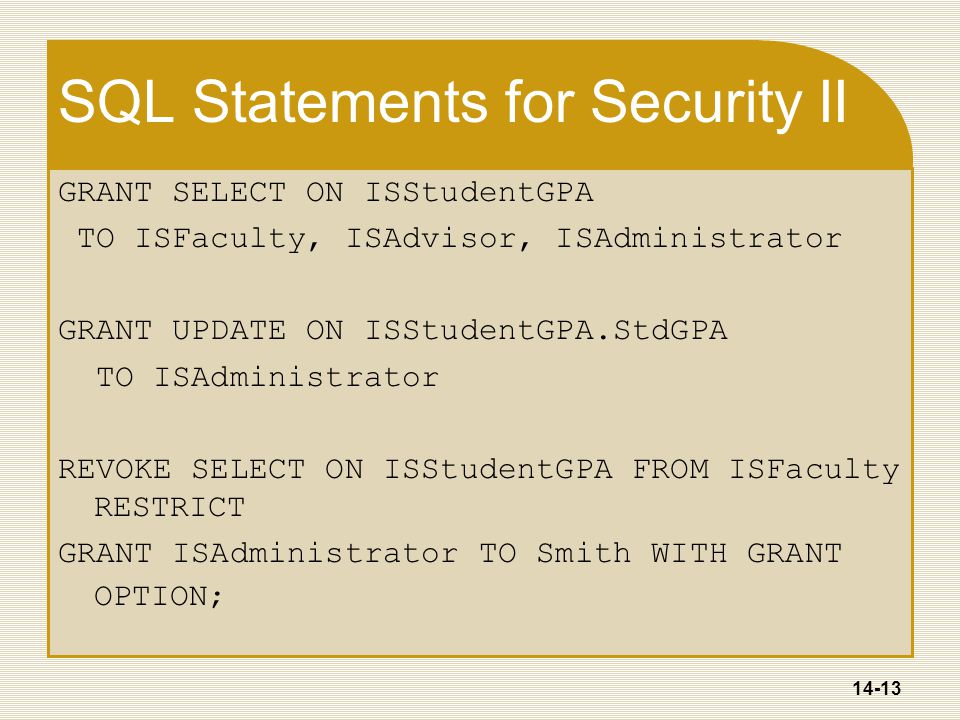

13. 14-13 SQL Statements for Security II GRANT SELECT ON ISStudentGPA TO ISFaculty, ISAdvisor, ISAdministrator GRANT UPDATE ON ISStudentGPA.StdGPA TO ISAdministrator REVOKE SELECT ON ISStudentGPA FROM ISFaculty RESTRICT GRANT ISAdministrator TO Smith WITH GRANT OPTION;

14. 14-14 Common SQL Privileges

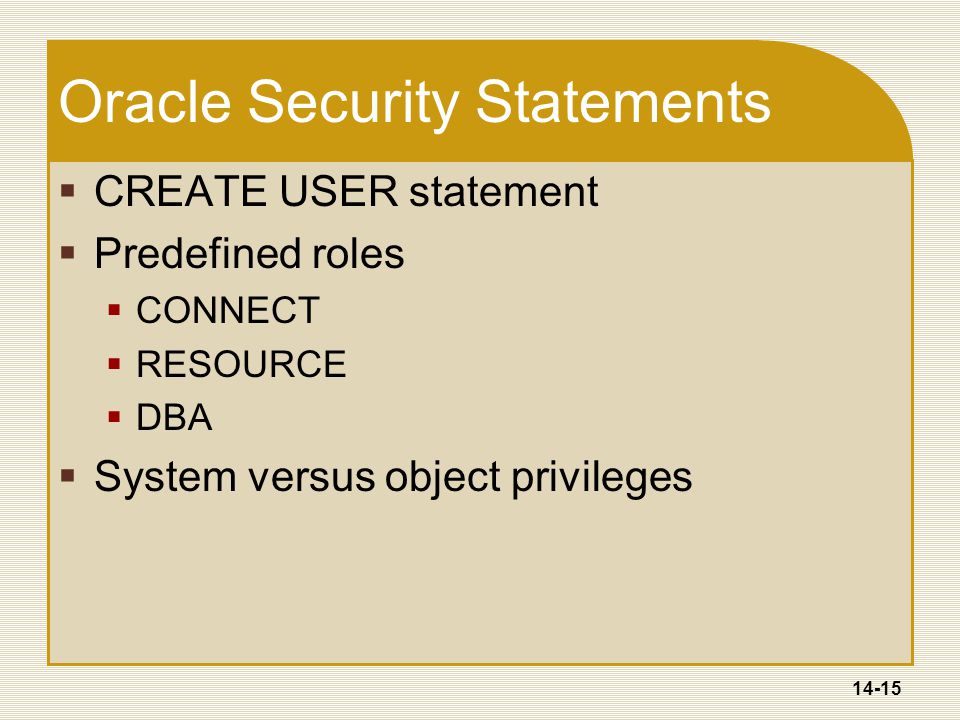

15. 14-15 Oracle Security Statements  CREATE USER statement  Predefined roles  CONNECT  RESOURCE  DBA  System versus object privileges

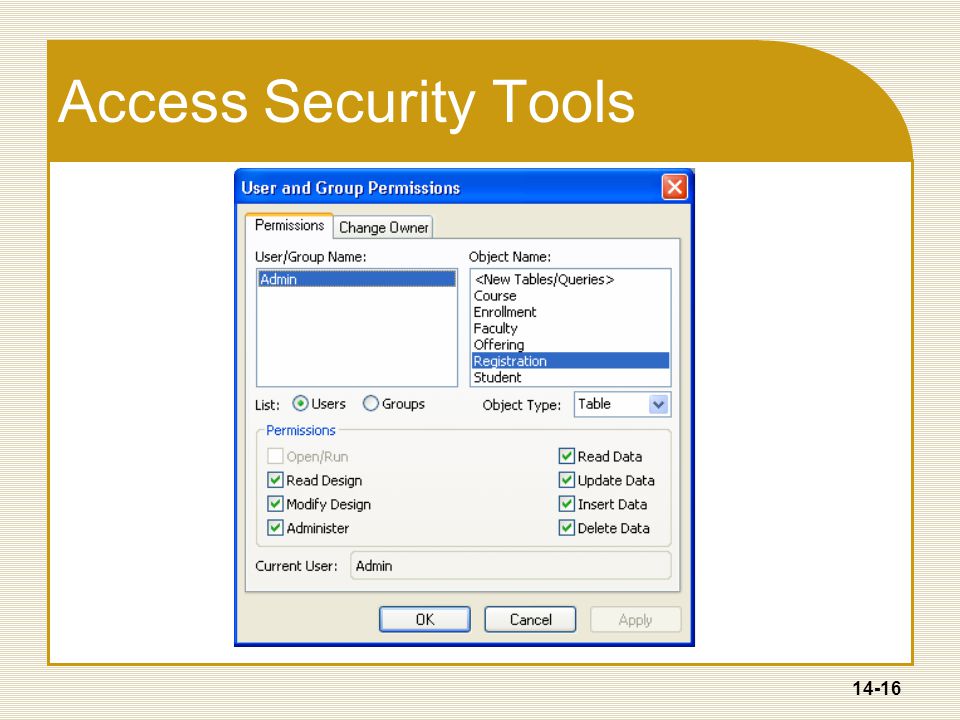

16. 14-16 Access Security Tools

17. 14-17 Mandatory Access Control  Less flexible security approach for highly sensitive and static databases  Assign classification levels to database objects  Assign clearance levels to users  Access granted if a user's clearance level provides access to the classification level of a database object

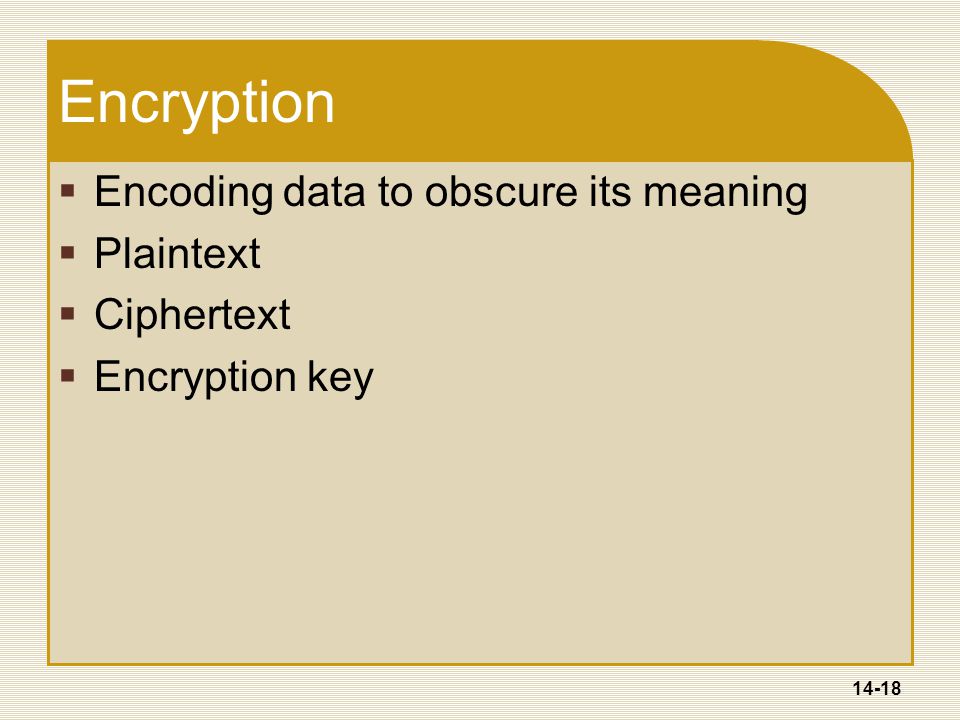

18. 14-18 Encryption  Encoding data to obscure its meaning  Plaintext  Ciphertext  Encryption key

19. 14-19 SQL Domains  Limited ability to define new domains  CREATE DOMAIN statement CREATE DOMAIN StudentClass AS CHAR(2) CHECK(VALUE IN ('FR','SO','JR','SR') )  Distinct type CREATE DISTINCT TYPE USD AS DECIMAL(10,2);

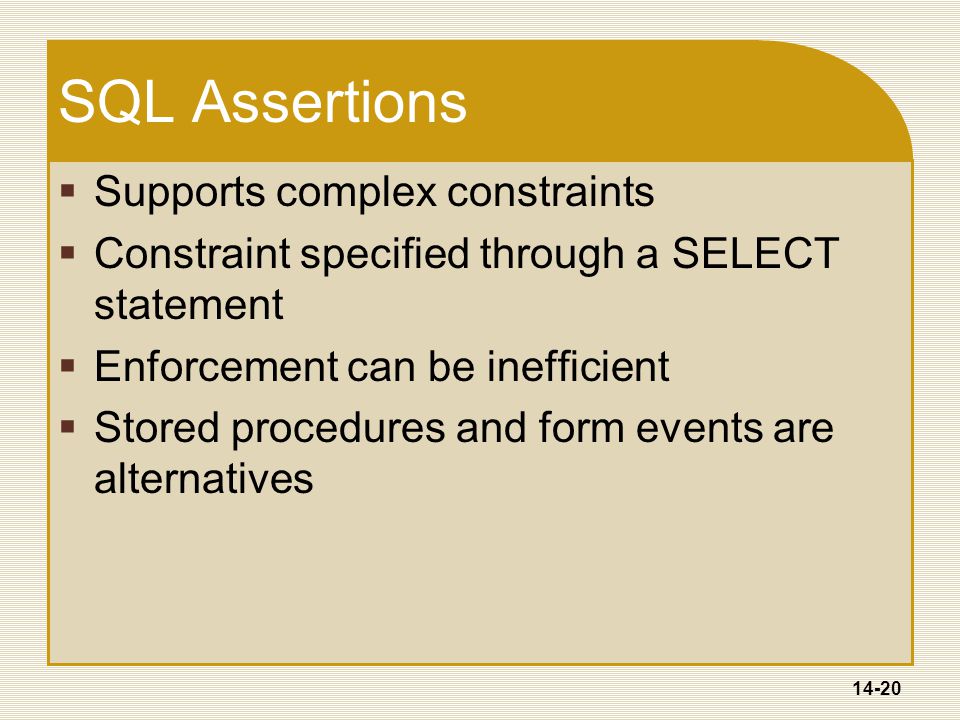

20. 14-20 SQL Assertions  Supports complex constraints  Constraint specified through a SELECT statement  Enforcement can be inefficient  Stored procedures and form events are alternatives

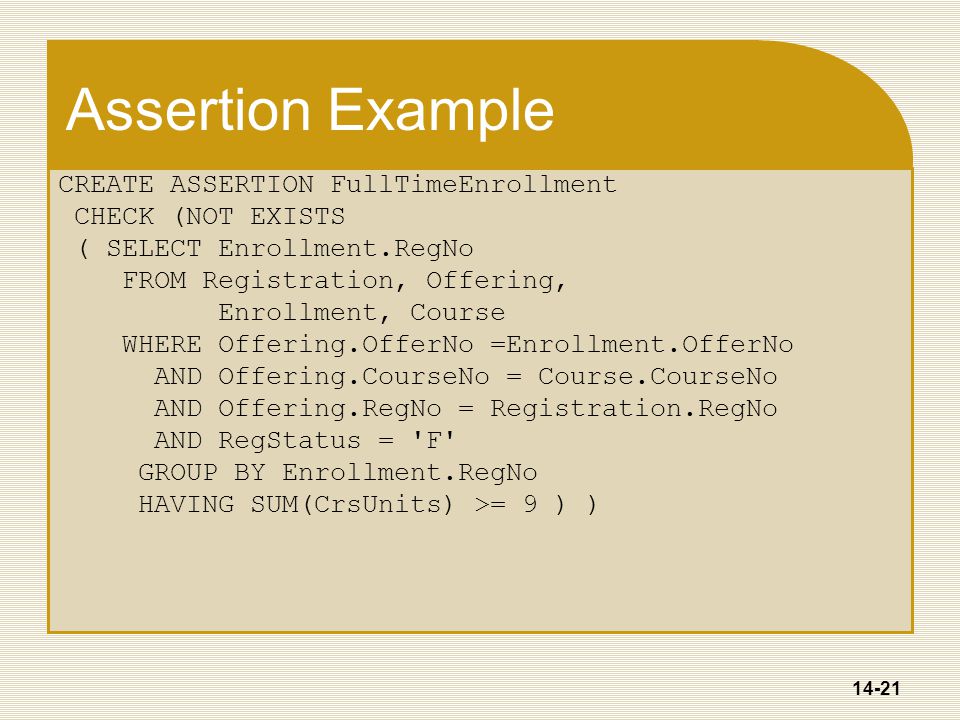

21. 14-21 Assertion Example CREATE ASSERTION FullTimeEnrollment CHECK (NOT EXISTS ( SELECT Enrollment.RegNo FROM Registration, Offering, Enrollment, Course WHERE Offering.OfferNo =Enrollment.OfferNo AND Offering.CourseNo = Course.CourseNo AND Offering.RegNo = Registration.RegNo AND RegStatus = 'F' GROUP BY Enrollment.RegNo HAVING SUM(CrsUnits) >= 9 ) )

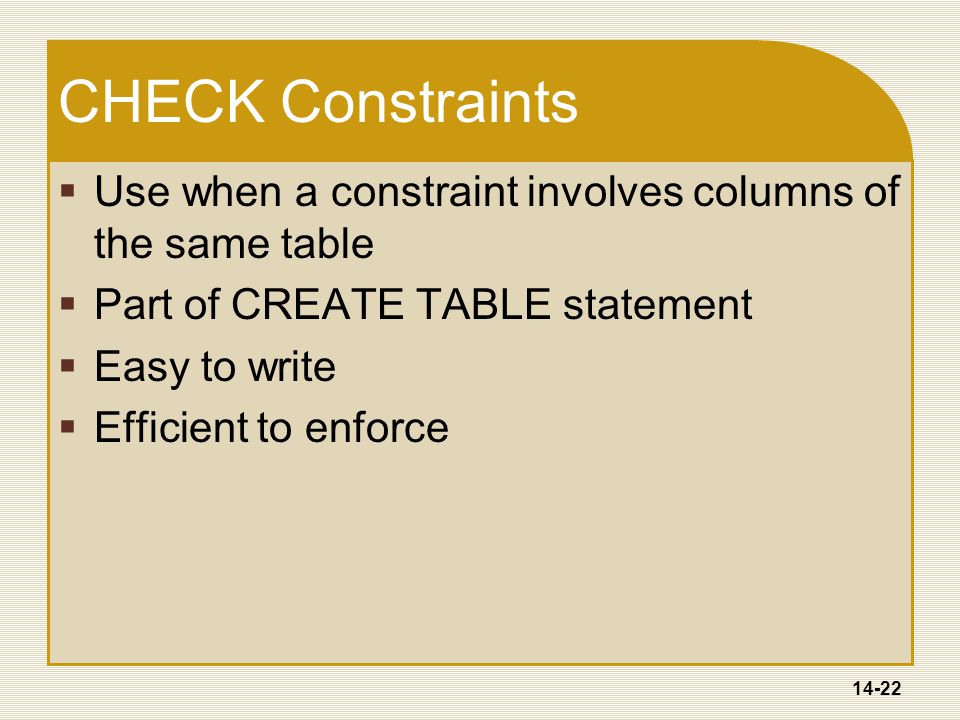

22. 14-22 CHECK Constraints  Use when a constraint involves columns of the same table  Part of CREATE TABLE statement  Easy to write  Efficient to enforce

23. 14-23 CHECK Constraints Example CREATE TABLE Student (… CONSTRAINT ValidGPA CHECK ( StdGPA BETWEEN 0 AND 4 ), CONSTRAINT MajorDeclared CHECK ( StdClass IN ('FR','SO') OR StdMajor IS NOT NULL ) )

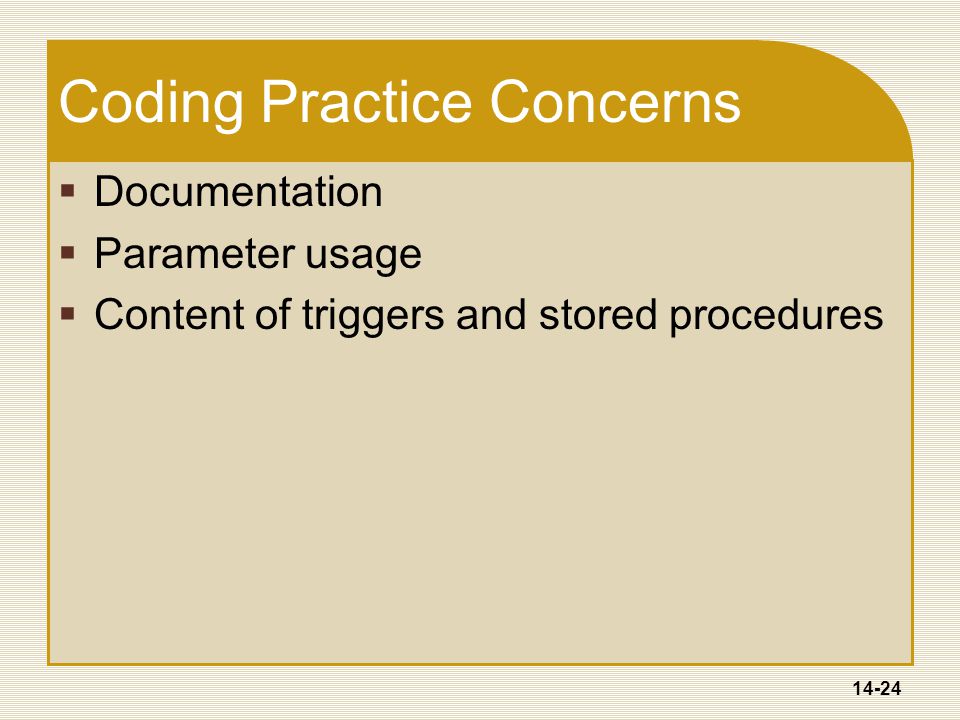

24. 14-24 Coding Practice Concerns  Documentation  Parameter usage  Content of triggers and stored procedures

25. 14-25 Management of Dependencies  Referenced tables, views, and procedures  Access plans for SQL statements  DBMS support incomplete  Obsolete statistics  Remotely stored procedures  No automatic recompilation after deletion

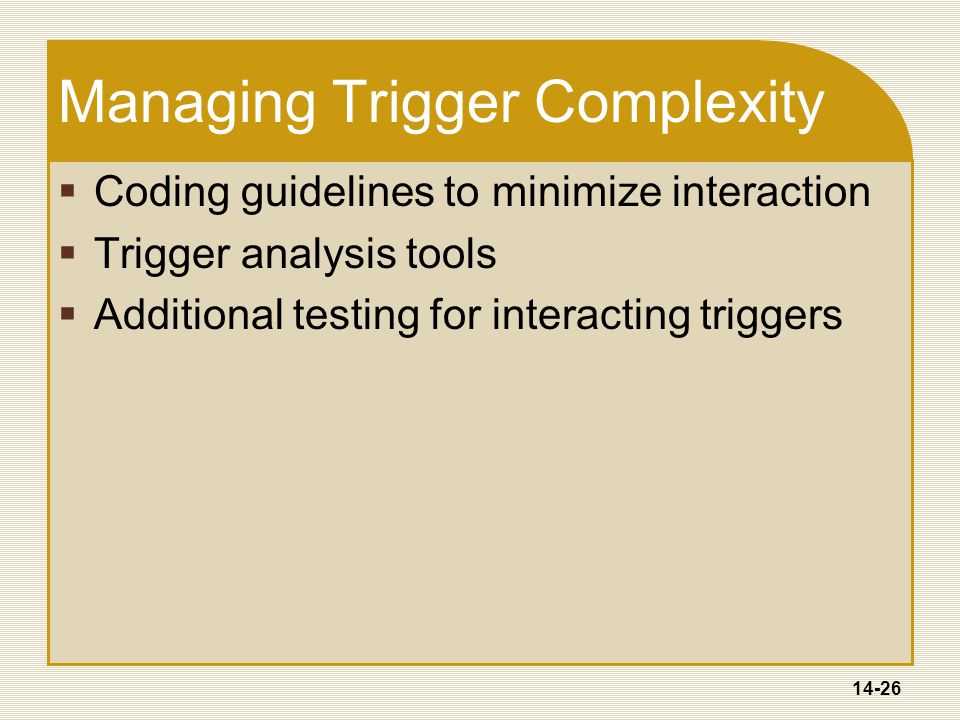

26. 14-26 Managing Trigger Complexity  Coding guidelines to minimize interaction  Trigger analysis tools  Additional testing for interacting triggers

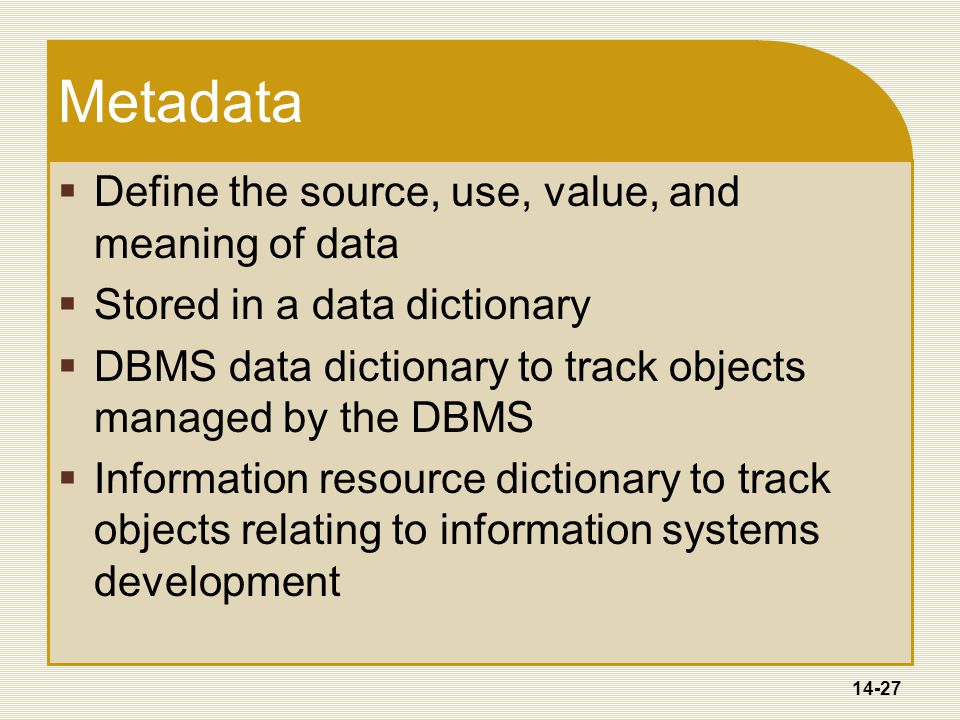

27. 14-27 Metadata  Define the source, use, value, and meaning of data  Stored in a data dictionary  DBMS data dictionary to track objects managed by the DBMS  Information resource dictionary to track objects relating to information systems development

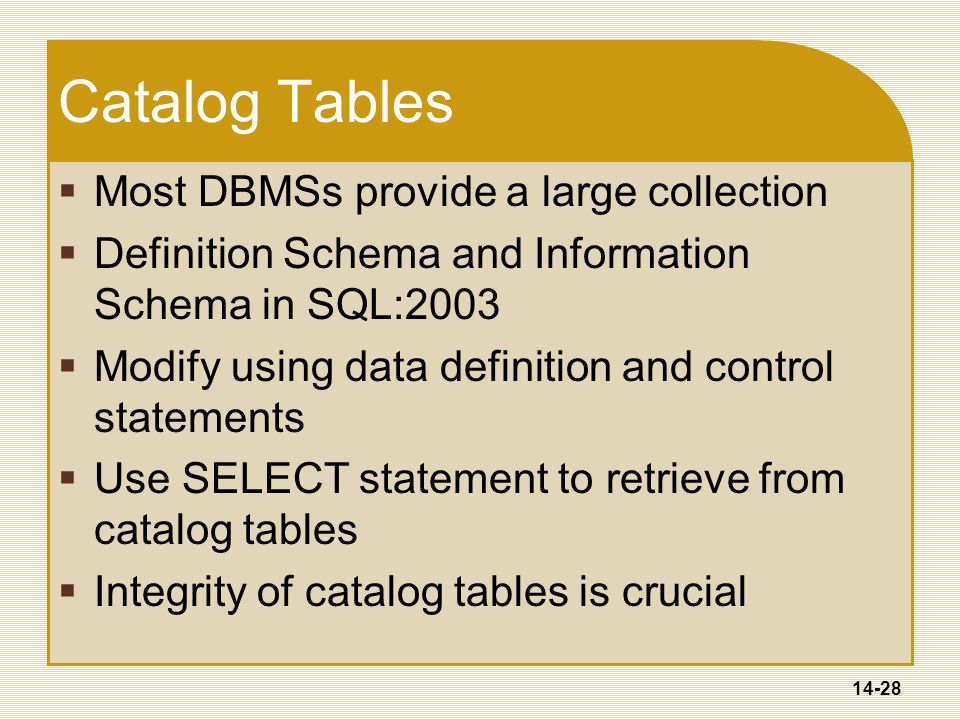

28. 14-28 Catalog Tables  Most DBMSs provide a large collection  Definition Schema and Information Schema in SQL:2003  Modify using data definition and control statements  Use SELECT statement to retrieve from catalog tables  Integrity of catalog tables is crucial

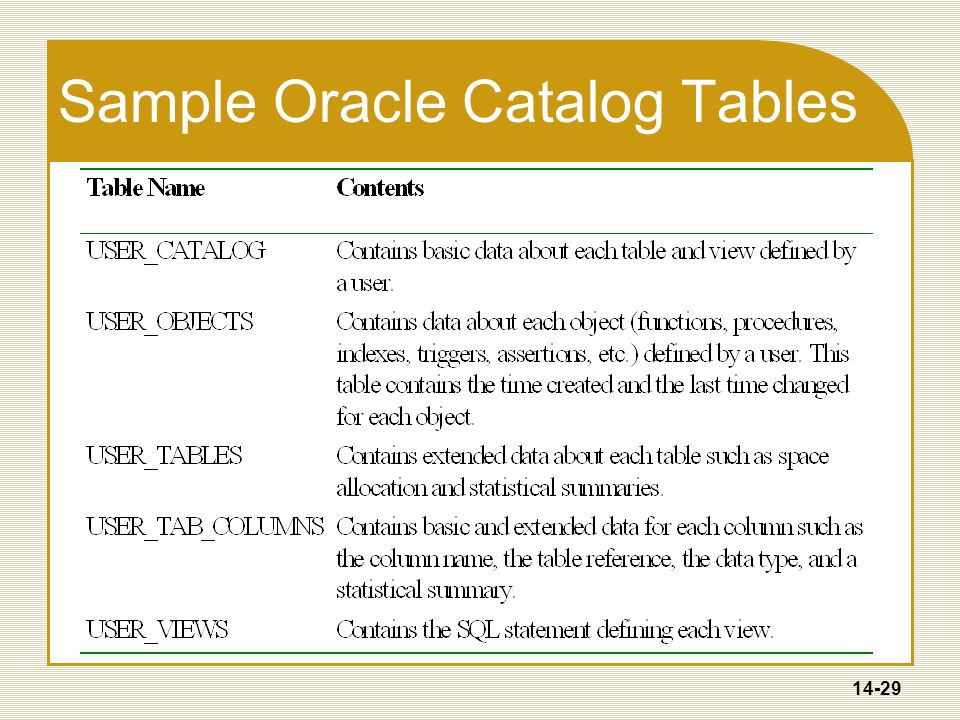

29. 14-29 Sample Oracle Catalog Tables

30. 14-30 Information Resource Dictionary

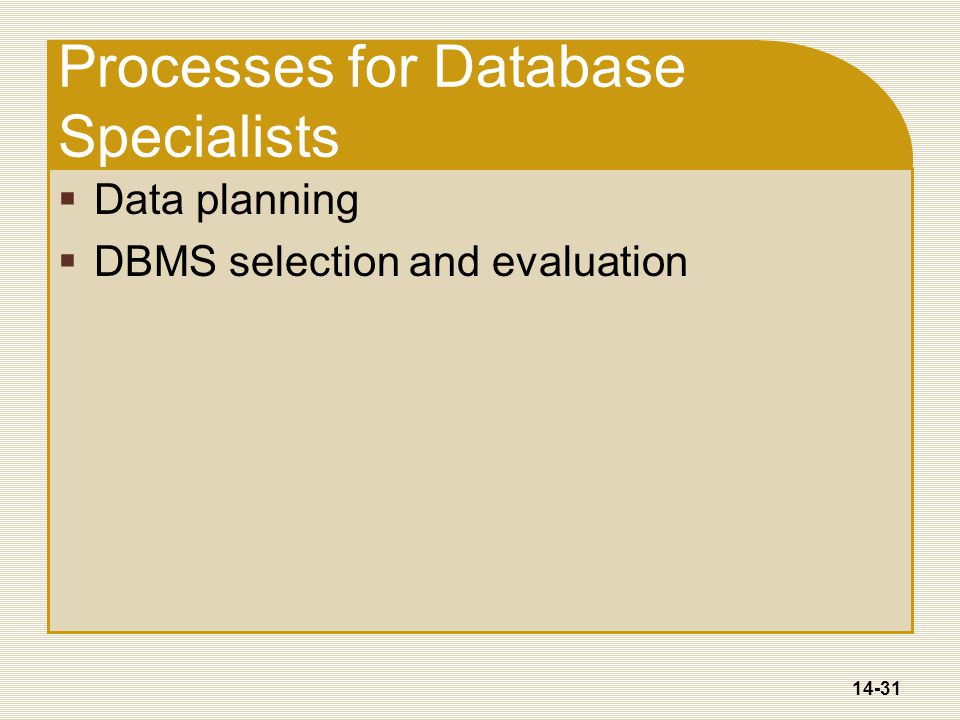

31. 14-31 Processes for Database Specialists  Data planning  DBMS selection and evaluation

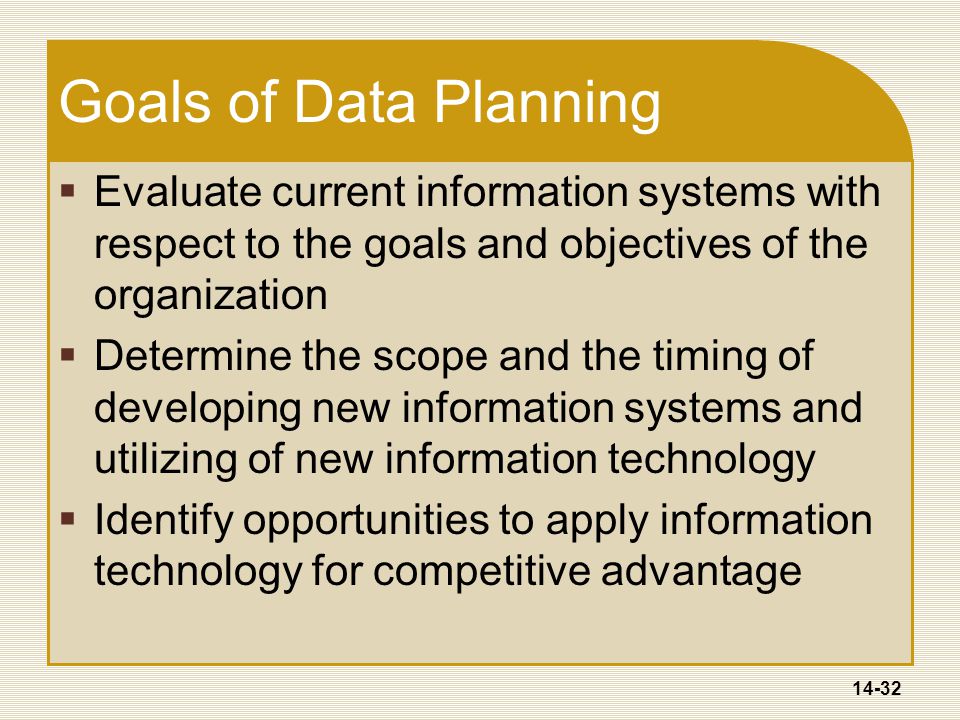

32. 14-32 Goals of Data Planning  Evaluate current information systems with respect to the goals and objectives of the organization  Determine the scope and the timing of developing new information systems and utilizing of new information technology  Identify opportunities to apply information technology for competitive advantage

33. 14-33 Planning Models

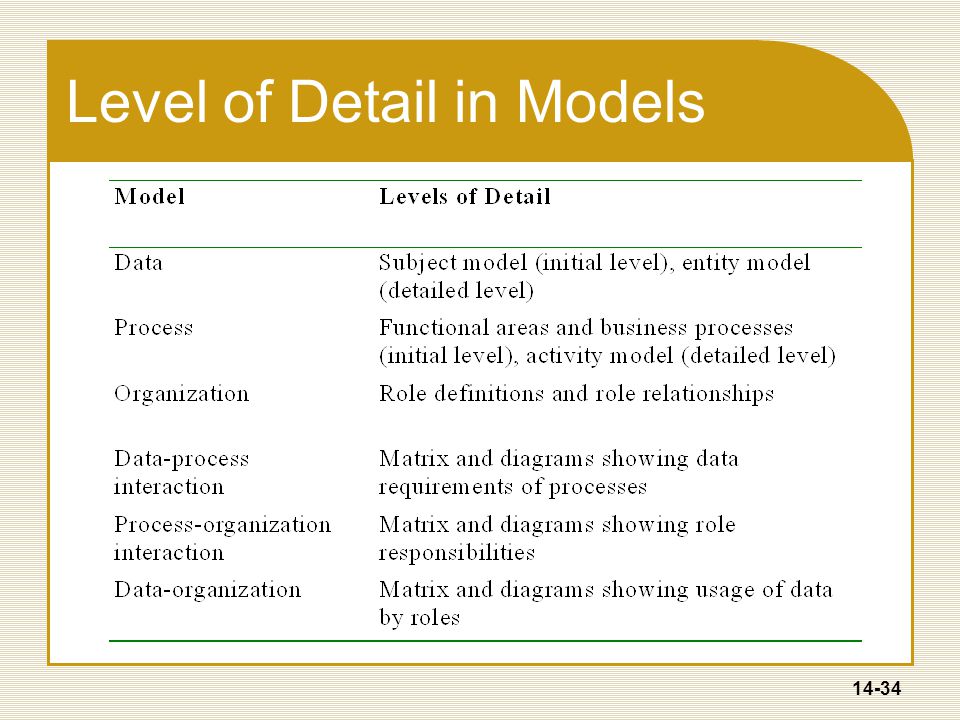

34. 14-34 Level of Detail in Models

35. 14-35 DBMS Selection  Detailed process  Requires knowledge of organization goals and DBMS features  Systematic approach is important  High switching cost if wrong choice

36. 14-36 Selection Process Phases

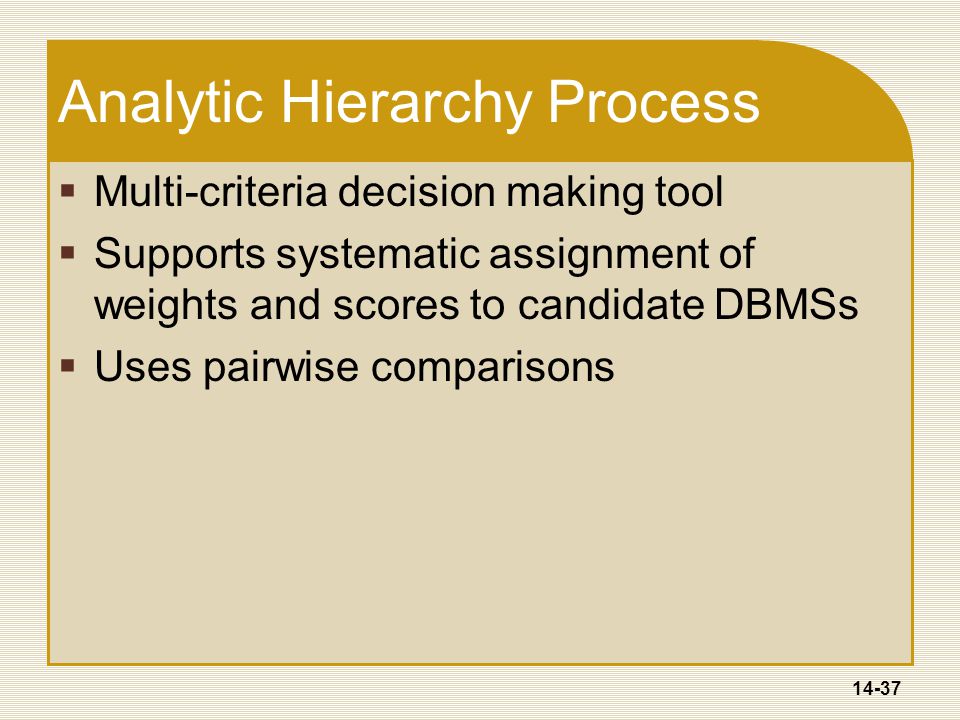

37. 14-37 Analytic Hierarchy Process  Multi-criteria decision making tool  Supports systematic assignment of weights and scores to candidate DBMSs  Uses pairwise comparisons

38. 14-38 Rating Values for Comparisons Ranking Value of A ij Meaning 1Requirements i and j are equally important. 3Requirement i is slightly more important than requirement j. 5Requirement i is significantly more important than requirement j. 7Requirement i is very significantly more important than requirement j. 9Requirement i is absolutely more important than requirement j.

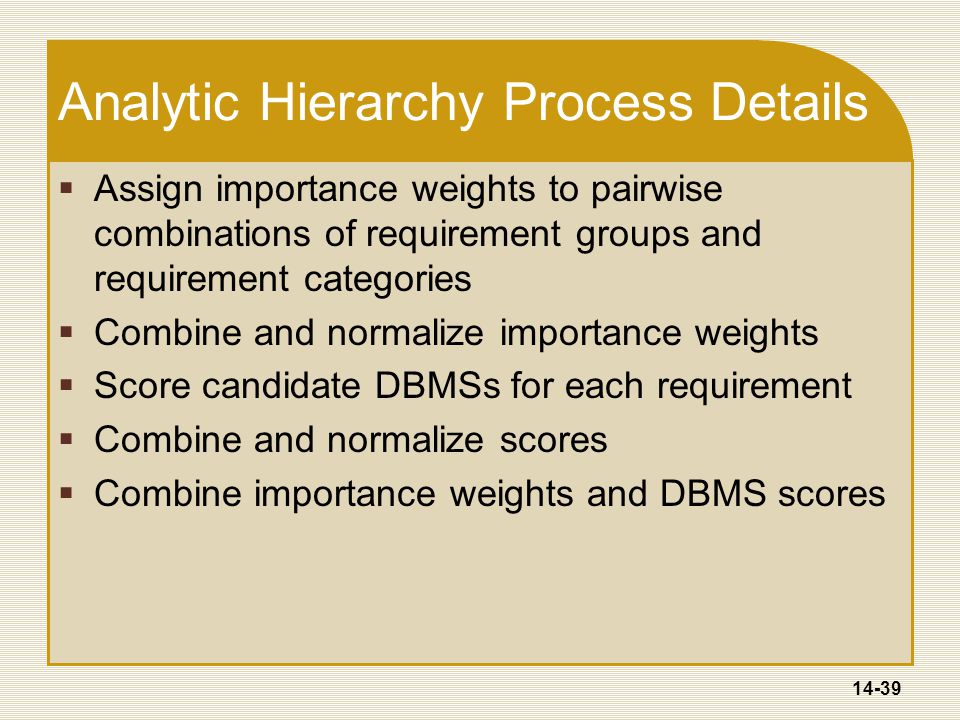

39. 14-39 Analytic Hierarchy Process Details  Assign importance weights to pairwise combinations of requirement groups and requirement categories  Combine and normalize importance weights  Score candidate DBMSs for each requirement  Combine and normalize scores  Combine importance weights and DBMS scores

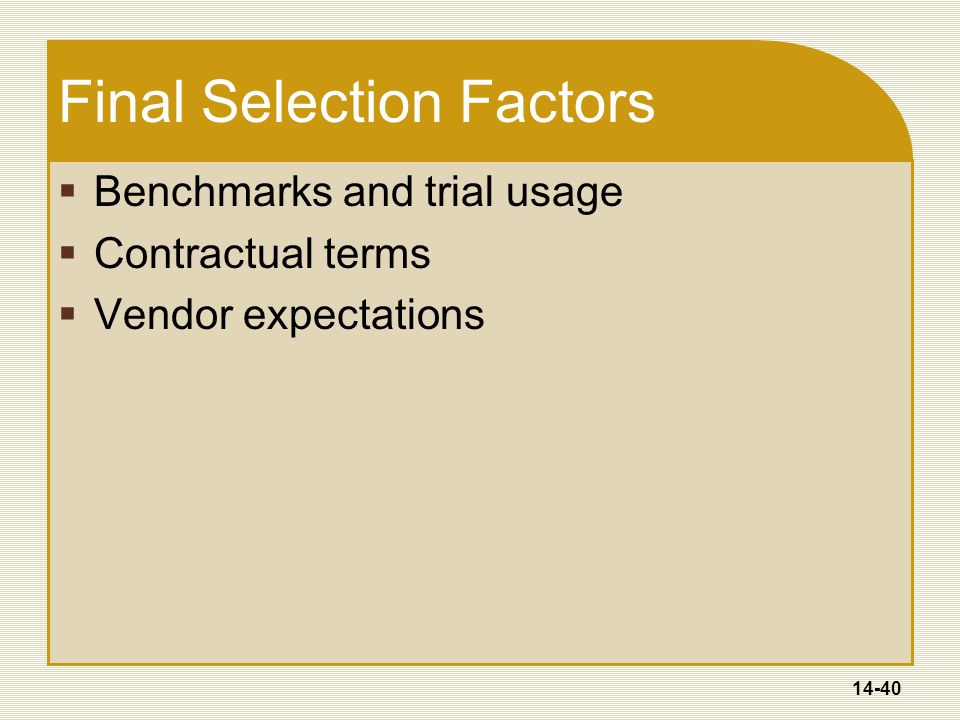

40. 14-40 Final Selection Factors  Benchmarks and trial usage  Contractual terms  Vendor expectations

41. 14-41 Benchmarking  Workload to evaluate the performance of a system or product  A good benchmark should be relevant, portable, scalable, and understandable.  Standard, domain-specific benchmarks by TPC

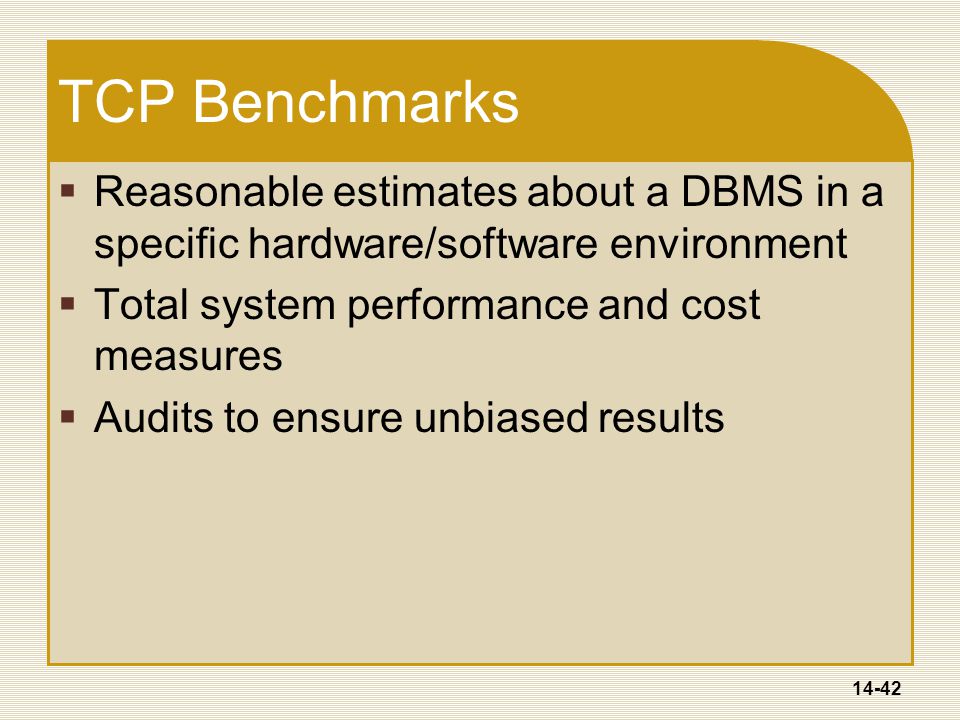

42. 14-42 TCP Benchmarks  Reasonable estimates about a DBMS in a specific hardware/software environment  Total system performance and cost measures  Audits to ensure unbiased results

43. 14-43 Current TCP Benchmarks  TPC-C: order entry benchmark  TPC-App: business to business transactions  TPC-H: decision support ad hoc queries  TPC-W: Ecommerce benchmark

44. 14-44 Managing Database Environments  Transaction processing  Data warehouse processing  Distributed processing  Object data management

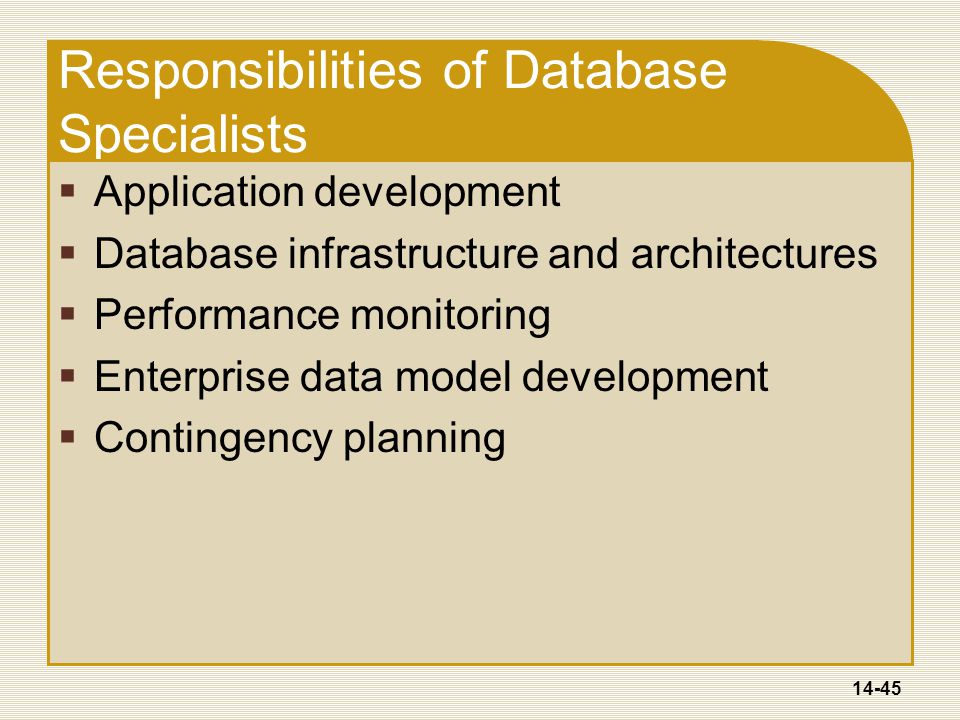

45. 14-45 Responsibilities of Database Specialists  Application development  Database infrastructure and architectures  Performance monitoring  Enterprise data model development  Contingency planning

46. 14-46 Summary  Two roles for managing information resources  Tools for security, integrity, rule processing, stored procedures, and data dictionary manipulation  Processes for data planning and DBMS selection  Context for studying other Part 7 chapters
