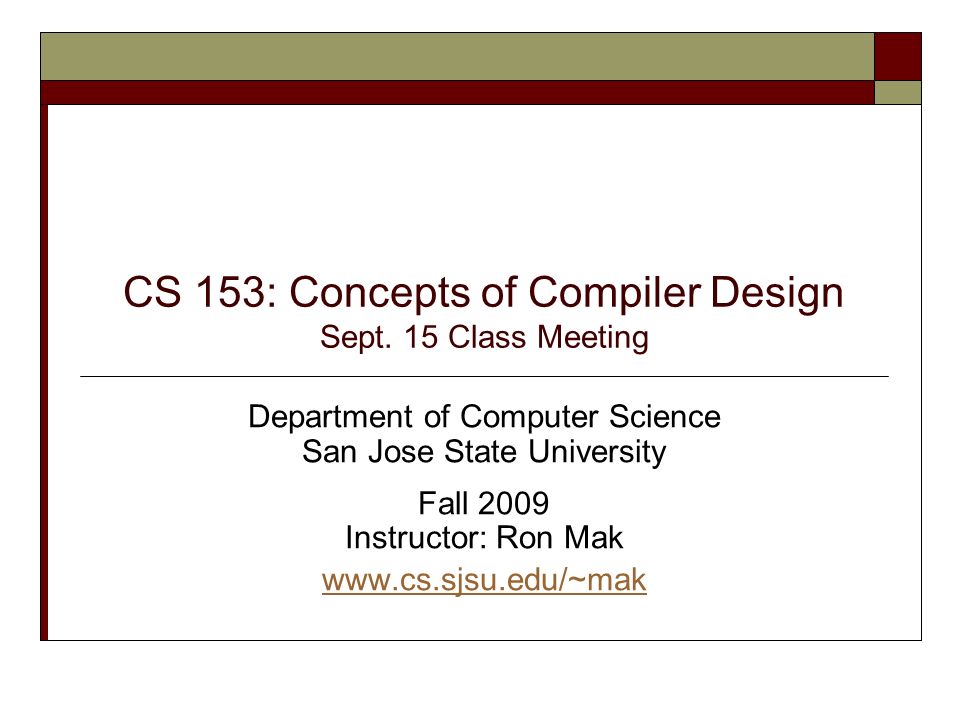

1. CS 153: Concepts of Compiler Design Sept. 15 Class Meeting Department of Computer Science San Jose State University Fall 2009 Instructor: Ron Mak www.cs.sjsu.edu/~mak

2. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 2 Unofficial Field Trip [Tentative] Computer History Museum in Mt. View. http://www.computerhistory.org/ Saturday: October 24 at 2:00 pm. (~2 hours) See (and hear) a fully restored IBM 1401 mainframe computer from the early 1960s in operation. My summer seminar: http://www.cs.sjsu.edu/~mak/1401/http://www.cs.sjsu.edu/~mak/1401/ http://en.wikipedia.org/wiki/IBM_1401, http://ed- thelen.org/1401Project/1401RestorationPage.html http://en.wikipedia.org/wiki/IBM_1401http://ed- thelen.org/1401Project/1401RestorationPage.html See a life-size working model of Charles Babbages Difference Engine in operation, a hand-cranked mechanical computer designed in the early 1800s. http://en.wikipedia.org/wiki/Difference_engine

3. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 3 Unofficial Field Trip (contd) IBM 1401 computer, restored and operational A small transistor-based mainframe computer. Extremely popular with small businesses in the late 1950s through the mid 1960s Maximum of 16K bytes of memory. 800 card/minute card reader (wire brushes). 600 line/minute line printer (impact). 6 magnetic tape drives, no disk Babbage Difference Engine, fully operational Hand-cranked mechanical computer for computing polynomial functions. Designed by Charles Babbage in the early to mid 1800s. Arguably the worlds first computer scientist, lived 1791-1871. He wasnt able to build it because he lost his funding. His plans survived and this working model was built. Includes a working printer!

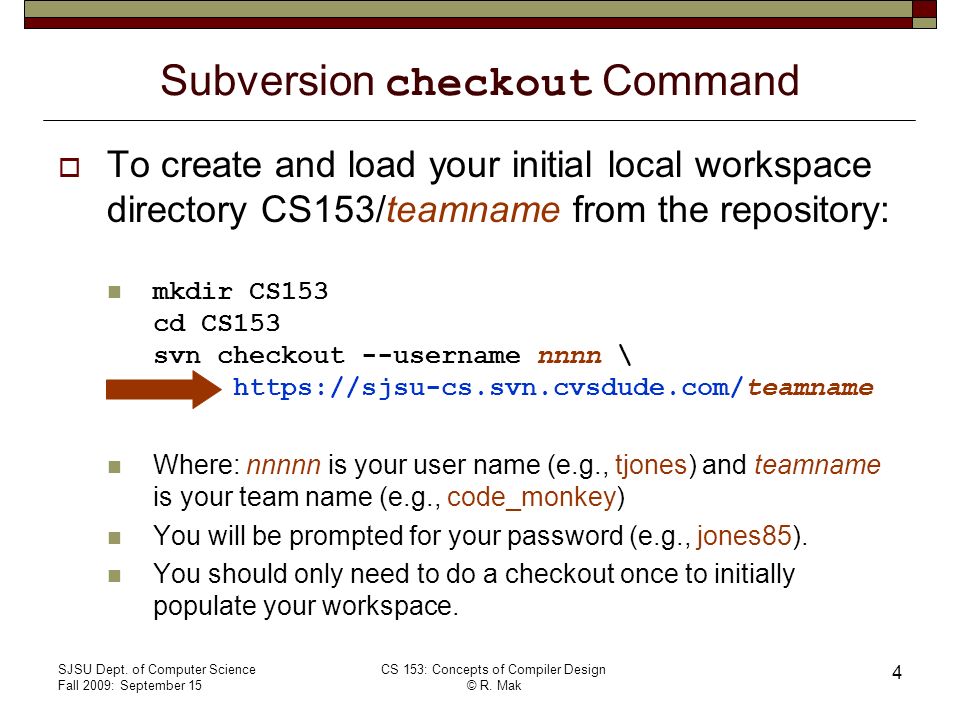

4. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 4 Subversion checkout Command To create and load your initial local workspace directory CS153/teamname from the repository: mkdir CS153 cd CS153 svn checkout --username nnnn \ https://sjsu-cs.svn.cvsdude.com/teamname Where: nnnnn is your user name (e.g., tjones) and teamname is your team name (e.g., code_monkey) You will be prompted for your password (e.g., jones85). You should only need to do a checkout once to initially populate your workspace.

5. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 5 How to Get Automatic Emails CVSDude demo: Log in at https://cvsdude.com/ajax#loginhttps://cvsdude.com/ajax#login Click the My Settings tab (upper right corner) Click the Email Notification Preferences EDIT button. Check all three Basic Options Click the SPECIFY PATHS button. Check your project. Now you should get an automatic email every time a team member commits a change to the repository.

6. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 6 Pascal Control Statements Looping statements REPEAT UNTIL WHILE DO FOR TO FOR DOWNTO Conditional statements IF THEN IF THEN ELSE CASE

7. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 7 Statement Syntax Diagram

8. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 8 Pascal Statement Parsers New statement parser subclasses. RepeatStatementParser WhileStatementParser ForStatementParser IfStatementParser CaseStatementParser Each parse() method builds a parse subtree and returns the root node.

9. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 9 REPEAT Statement Example: REPEAT j := i; k := i UNTIL i <= j Keep looping until the boolean expression becomes true. Execute the loop at least once. Use LOOP and TEST nodes for source language independence. Exit the loop when the test expression evaluates to true.

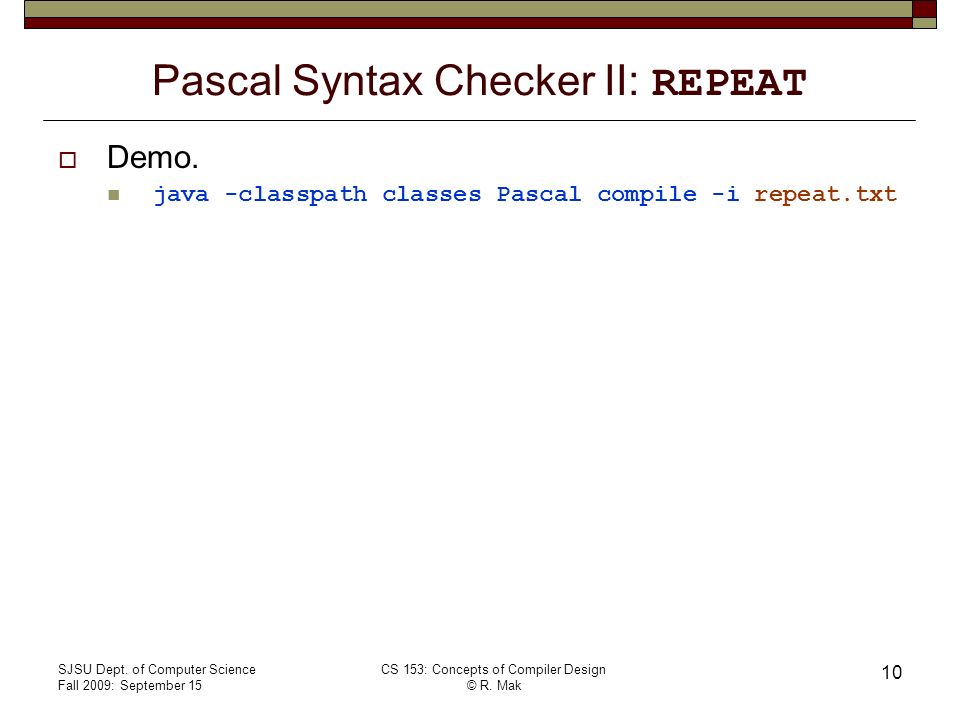

10. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 10 Pascal Syntax Checker II: REPEAT Demo. java -classpath classes Pascal compile -i repeat.txt

11. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 11 Syntax Error Handling Recall that syntax error handling in the front end is a three-step process. 1. Detect the error. 2. Flag the error. 3. Recover from the error. Good syntax error handling is important!

12. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 12 Options for Error Recovery Stop after the first error. No error recovery at all. Easiest for the compiler writer, annoying for the programmer. Worse case: The compiler crashes or hangs. Become hopelessly lost. Attempt to continue parsing the rest of the source program. Spew out lots of irrelevant and meaningless error messages. No error recovery here, either … … but the compiler writer doesnt admit it! Skip tokens after the erroneous token until … The parser finds a token it recognizes, and It can safely resume syntax checking the rest of the source program.

13. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 13 Parser Synchronization Skipping tokens to reach a safe, recognizable place to resume parsing is known as synchronizing. Resynchronize the parser after an error. Good error recovery with top-down parsers is more art than science. How many tokens should the parser skip? Skipping too many (the rest of the program?) can be considered panic mode recovery. For this class, well take a rather simplistic approach to synchronization.

14. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 14 public Token synchronize(EnumSet syncSet) throws Exception { Token token = currentToken(); if (!syncSet.contains(token.getType())) { errorHandler.flag(token, UNEXPECTED_TOKEN, this); do { token = nextToken(); } while (!(token instanceof EofToken) && !syncSet.contains(token.getType())); } return token; } The synchronize() Method The synchronize() method of class PascalParserTD. Pass it an enumeration set of good token types. The method skips tokens until it finds one that is in the set. Flag the first bad token. Recover by skipping tokens not in the synchronization set. Resume parsing at this token! (Its the first token after the error that is in the synchronization set.

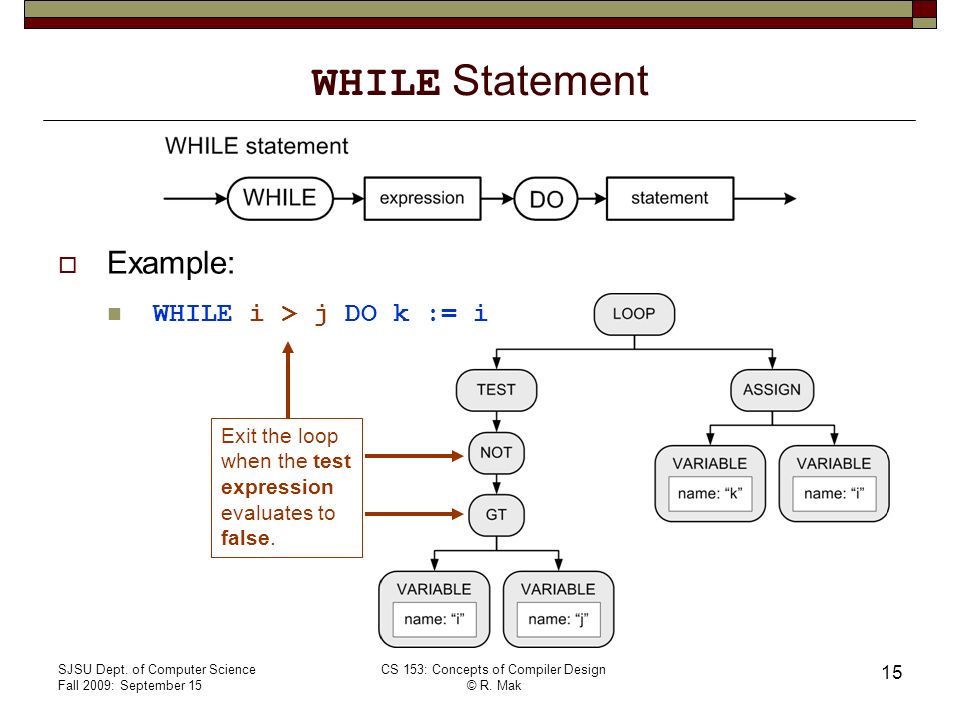

15. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 15 WHILE Statement Example: WHILE i > j DO k := i Exit the loop when the test expression evaluates to false.

16. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 16 Class WhileStatementParser From parent class StatementParser : // Synchronization set for DO. private static final EnumSet DO_SET = StatementParser.STMT_START_SET.clone(); static { DO_SET.add(DO); DO_SET.addAll(StatementParser.STMT_FOLLOW_SET); } // Synchronization set for starting a statement. protected static final EnumSet STMT_START_SET = EnumSet.of(BEGIN, CASE, FOR, PascalTokenType.IF, REPEAT, WHILE, IDENTIFIER, SEMICOLON); // Synchronization set for following a statement. protected static final EnumSet STMT_FOLLOW_SET = EnumSet.of(SEMICOLON, END, ELSE, UNTIL, DOT); In class WhileStatementParser : DO_SET contains all the tokens that can start a statement or follow a statement, plus the DO token.

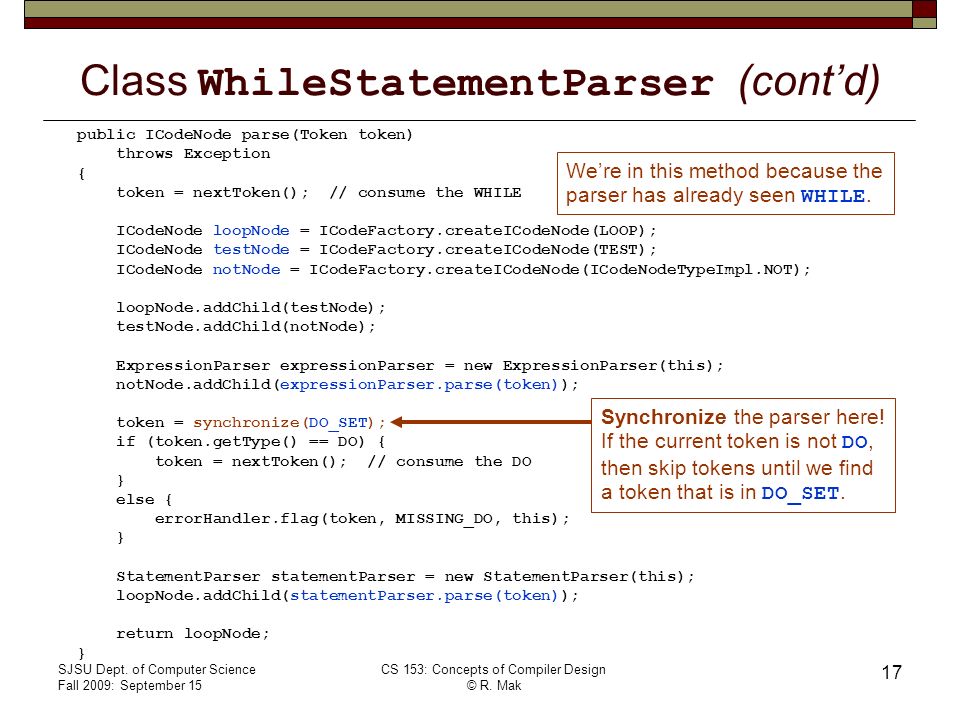

17. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 17 Class WhileStatementParser (contd) public ICodeNode parse(Token token) throws Exception { token = nextToken(); // consume the WHILE ICodeNode loopNode = ICodeFactory.createICodeNode(LOOP); ICodeNode testNode = ICodeFactory.createICodeNode(TEST); ICodeNode notNode = ICodeFactory.createICodeNode(ICodeNodeTypeImpl.NOT); loopNode.addChild(testNode); testNode.addChild(notNode); ExpressionParser expressionParser = new ExpressionParser(this); notNode.addChild(expressionParser.parse(token)); token = synchronize(DO_SET); if (token.getType() == DO) { token = nextToken(); // consume the DO } else { errorHandler.flag(token, MISSING_DO, this); } StatementParser statementParser = new StatementParser(this); loopNode.addChild(statementParser.parse(token)); return loopNode; } Synchronize the parser here! If the current token is not DO, then skip tokens until we find a token that is in DO_SET. Were in this method because the parser has already seen WHILE.

18. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 18 Pascal Syntax Checker II: WHILE We can recover (better) from syntax errors. Demo. java -classpath classes Pascal compile -i while.txt java -classpath classes Pascal compile -i whileerrors.txt

19. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 19 FOR Statement Example: FOR k := j TO 5 DO n := k Initial assignment. Node type GT for TO and LT for DOWNTO. DO statement. Increment/decrement: Node type ADD for TO and SUBTRACT for DOWNTO.

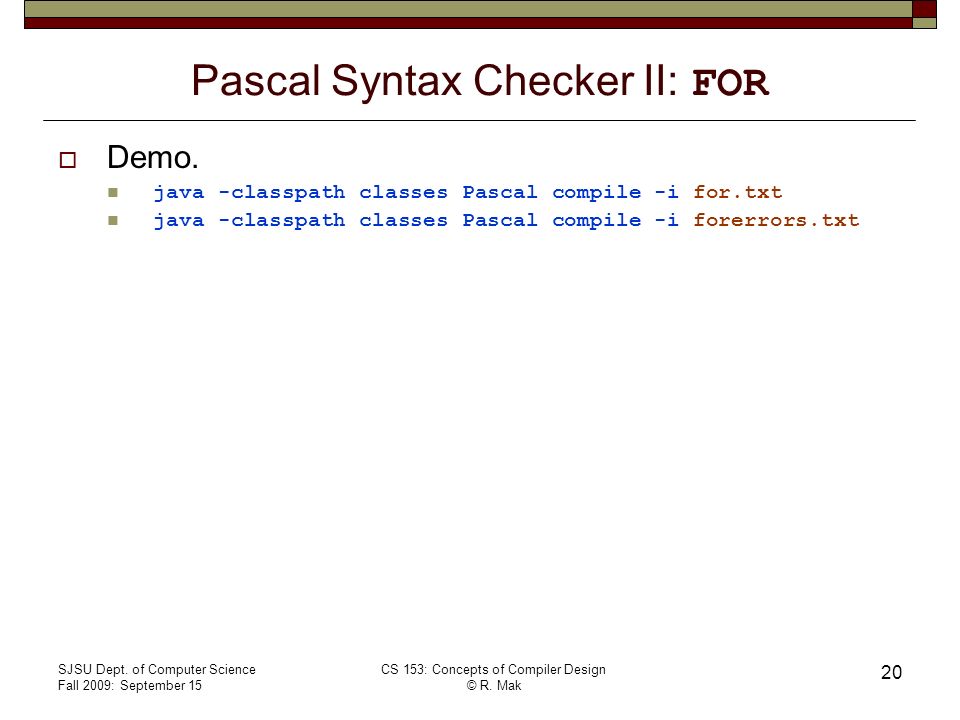

20. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 20 Pascal Syntax Checker II: FOR Demo. java -classpath classes Pascal compile -i for.txt java -classpath classes Pascal compile -i forerrors.txt

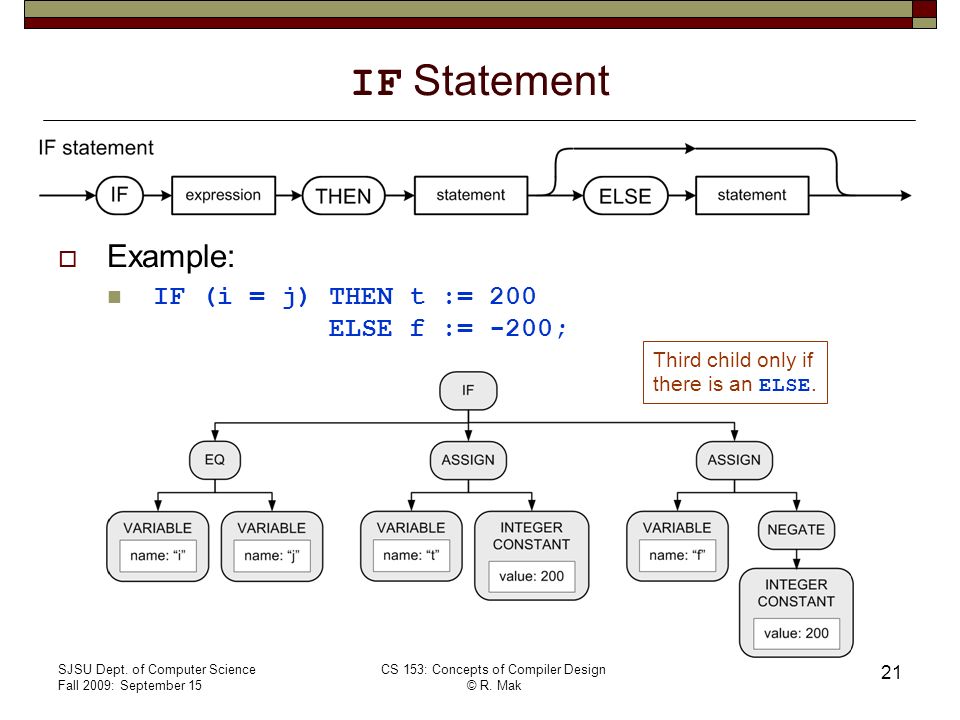

21. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 21 IF Statement Example: IF (i = j) THEN t := 200 ELSE f := -200; Third child only if there is an ELSE.

22. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 22 The Dangling ELSE Consider: IF i = 3 THEN IF j = 2 THEN t := 500 ELSE f := -500 Which THEN does the ELSE pair with? Is it IF i = 3 THEN IF j = 2 THEN t := 500 ELSE f := -500 or IF i = 3 THEN IF j = 2 THEN t := 500 ELSE f := -500 According to Pascal syntax, the second IF is the THEN statement of the first IF IF i = 3 THEN IF j = 2 THEN t := 500 ELSE f := -500 Therefore, the ELSE pairs with the closest (i.e., the second) THEN.

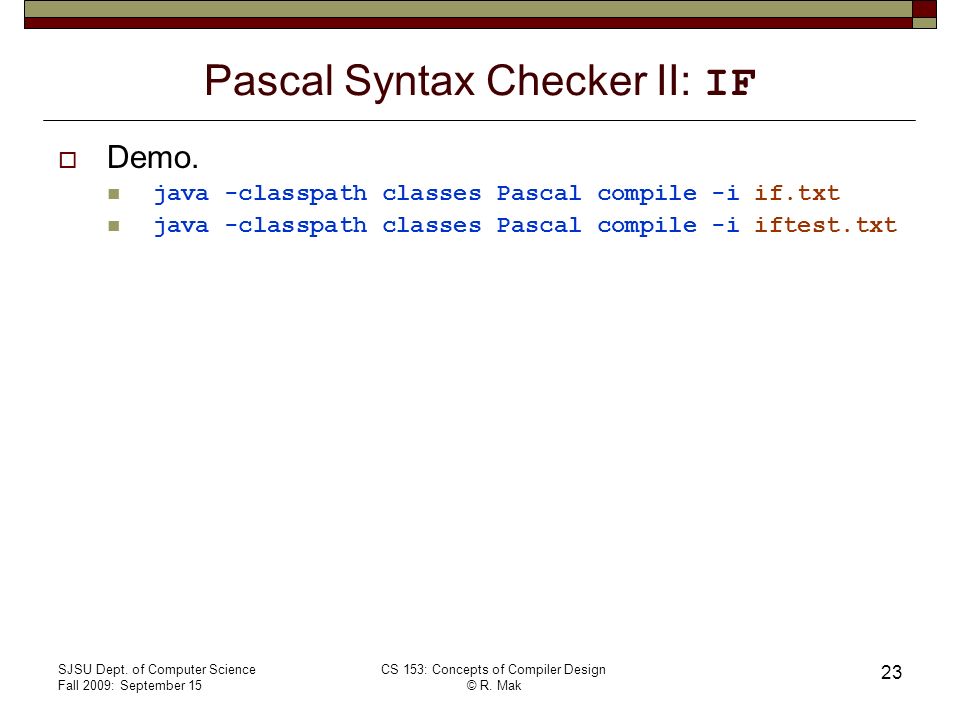

23. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 23 Pascal Syntax Checker II: IF Demo. java -classpath classes Pascal compile -i if.txt java -classpath classes Pascal compile -i iftest.txt

24. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 24 CASE Statement Example: CASE i+1 OF 1: j := i; 4: j := 4*i; 5, 2, 3: j := 523*i; END

25. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 25 CASE Statement (contd) Example: CASE i+1 OF 1: j := i; 4: j := 4*i; 5, 2, 3: j := 523*i; END

26. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 26 Pascal Syntax Checker II Demo. java -classpath classes Pascal compile -i case.txt java -classpath classes Pascal compile -i caseerrors.txt

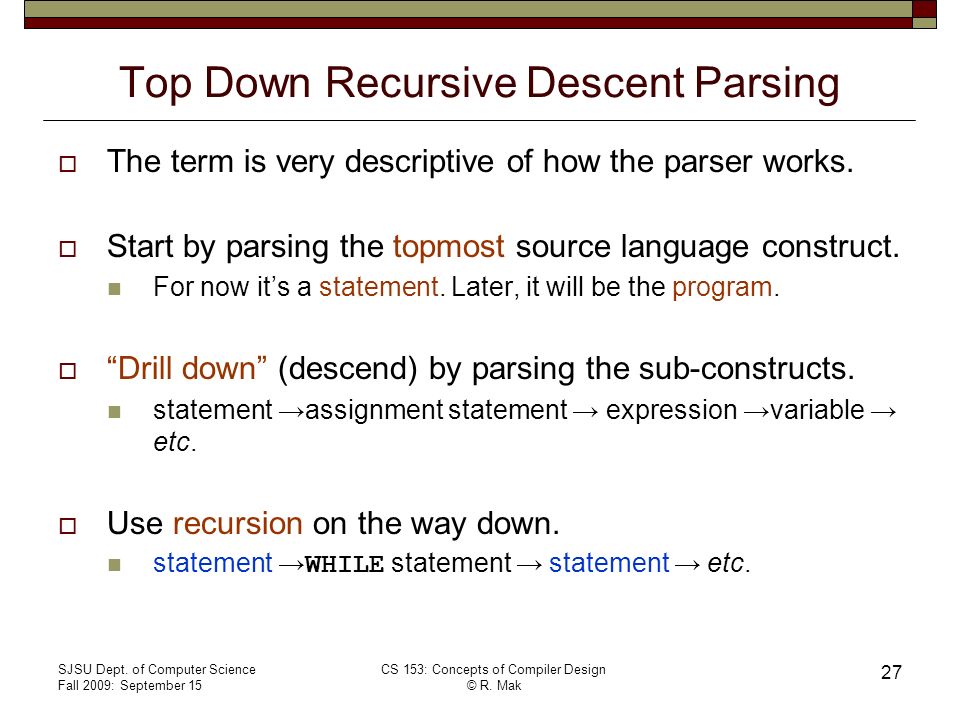

27. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 27 Top Down Recursive Descent Parsing The term is very descriptive of how the parser works. Start by parsing the topmost source language construct. For now its a statement. Later, it will be the program. Drill down (descend) by parsing the sub-constructs. statement assignment statement expression variable etc. Use recursion on the way down. statement WHILE statement statement etc.

28. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 28 Top Down Recursive Descent Parsing (contd) This is the technique for hand-coded parsers. Very easy to understand and write. The source language grammar is encoded in the structure of the parser code. Close correspondence between the parser code and the syntax diagrams. Disadvantages Can be tedious coding. Ad hoc error handling. Big and slow! Bottom-up parsers can be smaller and faster. Error handling can still be tricky. To be covered later in this course.

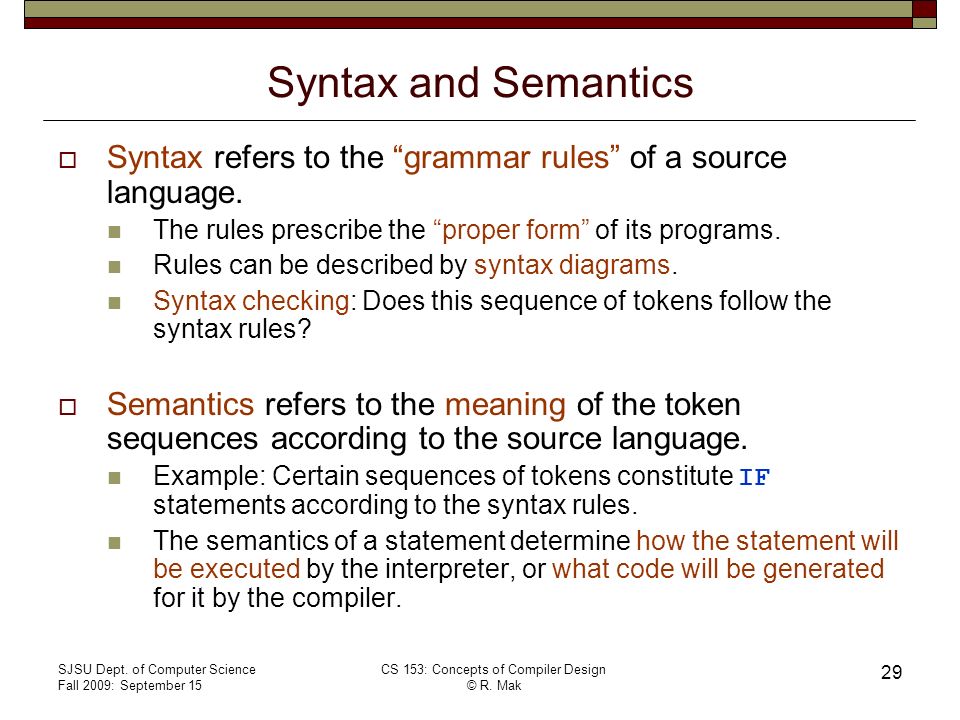

29. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 29 Syntax and Semantics Syntax refers to the grammar rules of a source language. The rules prescribe the proper form of its programs. Rules can be described by syntax diagrams. Syntax checking: Does this sequence of tokens follow the syntax rules? Semantics refers to the meaning of the token sequences according to the source language. Example: Certain sequences of tokens constitute IF statements according to the syntax rules. The semantics of a statement determine how the statement will be executed by the interpreter, or what code will be generated for it by the compiler.

30. SJSU Dept. of Computer Science Fall 2009: September 15 CS 153: Concepts of Compiler Design © R. Mak 30 Syntax and Semantics (contd) Semantic actions by the front end parser. Building symbol tables. Type checking (which well do later). Building proper parse trees. The parse trees encode type checking and operator precedence in their structures. Semantic actions by the back end. Interpreter: The executor runs the program. Compiler: The code generator emits object code.
