1 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 1 Project: IEEE P Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [The Performance of QPSK Transceiver (IEEE802. with the IQ Imbalance ] Date Submitted: [Apr. 13, 2005] Source: [ Liang Zhang, Hongyu Gu, Liang Li, Yafei Tian, Chenyang Yang, Zhijian Hu, Yong Guan] Company: [WXZJ Inc. ] Address: [2 Xinxi St, Building D, Haidian District, Beijing, China ] Voice:[ ], Re: [Response to the call for proposal of IEEE b] Abstract:[This presentation compares all proposals for the IEEE b PHY standard.] Purpose:[Proposal to IEEE b Task Group] Notice:This document has been prepared to assist the IEEE P It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P

2 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 2 The PSD of Tx Signal at 915MHz band without IQ imbalance (1) Tx PSD without PA (2) Tx PSD with and PA PSD without IQ imbalance

3 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 3 The PSD of Tx Signal at 915MHz band with IQ imbalance (1) Tx PSD with IQ imbalance and without PA (2) Tx PSD with IQ imbalance and PA At 4x sampling rate, and 26% EVM.

4 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 4 The PSD of Tx Signal at 915MHz band with IQ imbalance (1) Tx PSD with IQ imbalance and without PA (2) Tx PSD with IQ imbalance and PA At 4x sampling rate, and 35% EVM.

5 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 5 The Rx Performance of QPSK system at 915MZh band with IQ imbalance Packet Number: PSDU Length: 20 Byte Tx/Rx Over Sample Rate: 2 Channel Over Sample Rate: 4 Time offset: No EVM: 26% Frame Detection: No Phase noise :No SFD: No Sync.: Correlation Down sampling error: Yes

6 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 6 The Rx Performance of OQPSK system at 915MZh band with IQ imbalance Packet Number: PSDU Length: 20 Byte Tx/Rx Over Sample Rate: 2 Channel Over Sample Rate: 4 Time offset: No EVM: 35% Frame Detection: No Phase noise :No SFD: No Sync.: Correlation Down sampling error: Yes

7 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 7 The PSD of Tx Signal at 868 MHz without IQ imbalance (1) Tx PSD without Tx filter or PA (2) Tx PSD with Tx filter, no PA (3) Tx PSD with Tx filter and PA At 4x sampling rate, the impact of PA nonlinearity is neglectable. (1) (2) (3)

8 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 8 The PSD of Tx Signal at 868 MHz with IQ imbalance (1) Tx PSD with IQ imbalance without Tx filter or PA (2) Tx PSD with IQ imbalance, Tx filter, no PA (3) Tx PSD with IQ imbalance, Tx filter and PA At 4x sampling rate, and 26% EVM. (1) (2) (3)

9 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 9 The PSD of Tx Signal at 868 MHz without IQ imbalance (1) Tx PSD with IQ imbalance without Tx filter or PA (2) Tx PSD with IQ imbalance, Tx filter, no PA (3) Tx PSD with IQ imbalance, Tx filter and PA At 4x sampling rate, and 35% EVM. (1) (2) (3)

10 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 10 The Rx Performance of QPSK system at 868 MZh band with IQ imbalance Packet Number: PSDU Length: 20 Byte Tx/Rx Over Sample Rate: 2 Channel Over Sample Rate: 4 Time offset: No EVM: 26% Frame Detection: No Phase noise :No SFD: No Sync.: Correlation Down sampling error: No

11 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 11 The Rx Performance of OQPSK system at 868 MZh with IQ imbalance Packet Number: PSDU Length: 20 Byte Tx/Rx Over Sample Rate: 2 Channel Over Sample Rate: 4 Time offset: No EVM: 35% Frame Detection: No Phase noise :No SFD: No Sync.: Correlation Down sampling error: No

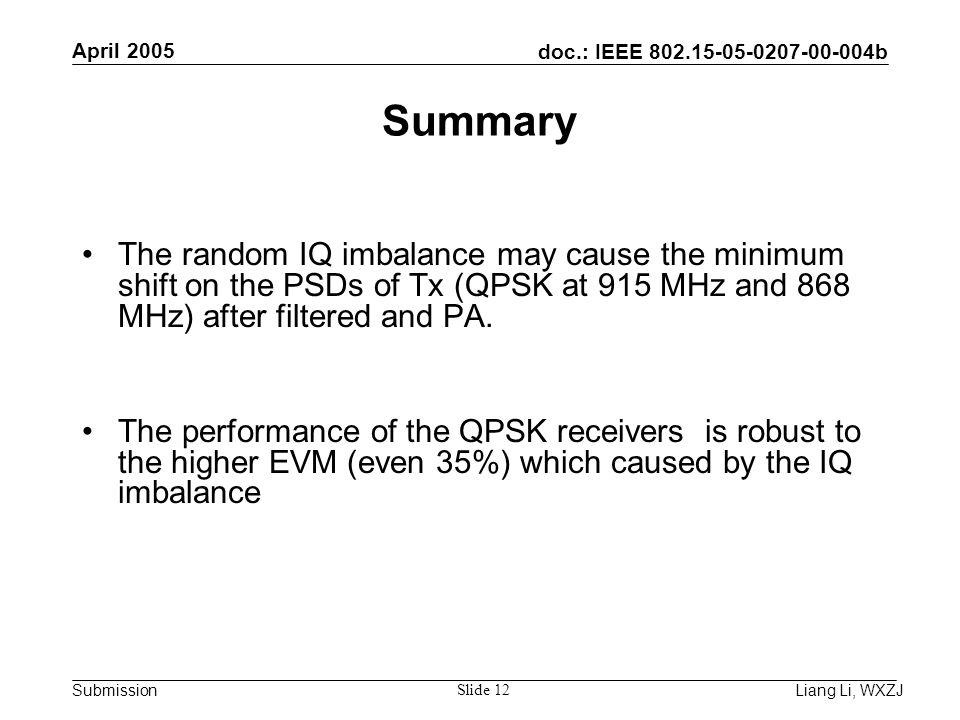

12 doc.: IEEE b Submission April 2005 Liang Li, WXZJ Slide 12 Summary The random IQ imbalance may cause the minimum shift on the PSDs of Tx (QPSK at 915 MHz and 868 MHz) after filtered and PA. The performance of the QPSK receivers is robust to the higher EVM (even 35%) which caused by the IQ imbalance
