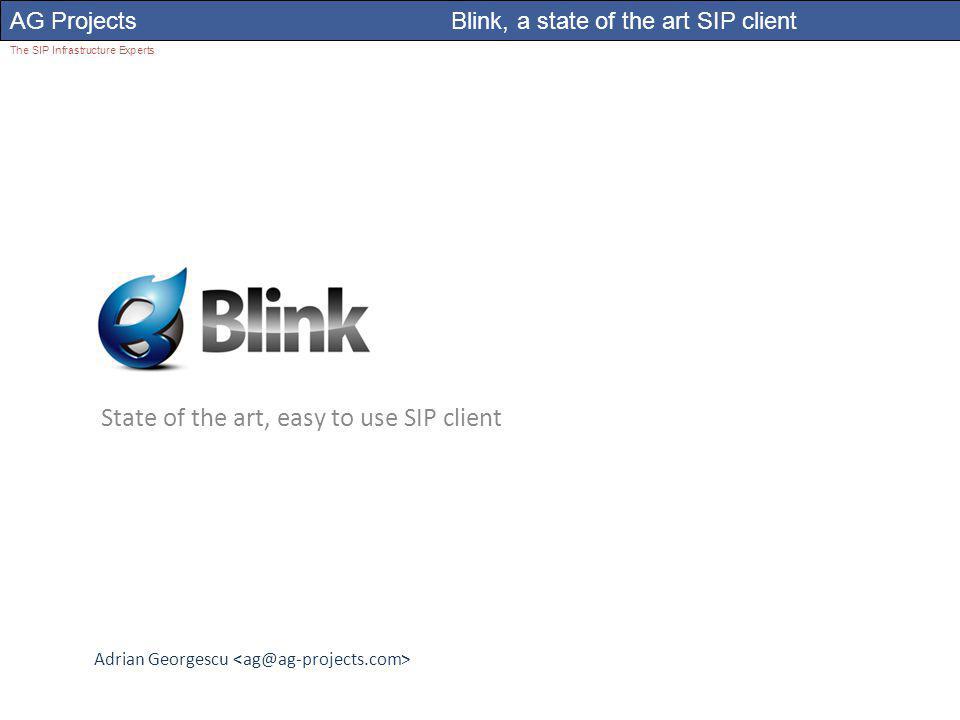

1. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts State of the art, easy to use SIP client

2. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Adrian Georgescu Founder and CEO of AG Projects Advocate of IETF standards Co-chair of the Dutch ISOC SIP WG Treasurer of OpenSIPS Software Foundation http://opensips.org

3. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts I always wanted to create an easy to use real-time communications software

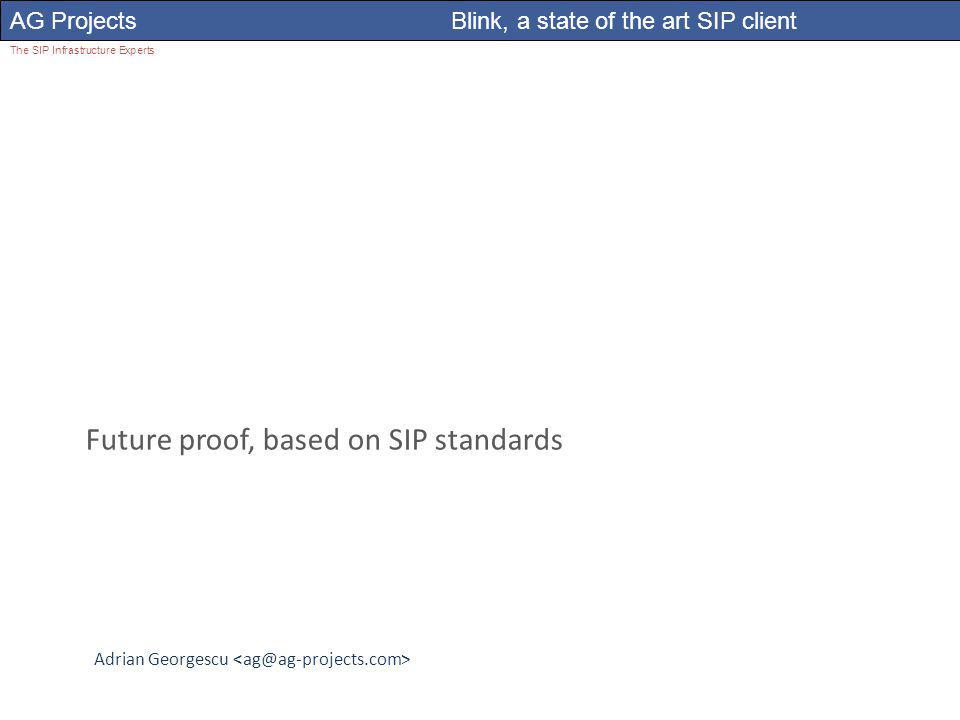

4. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Future proof, based on SIP standards

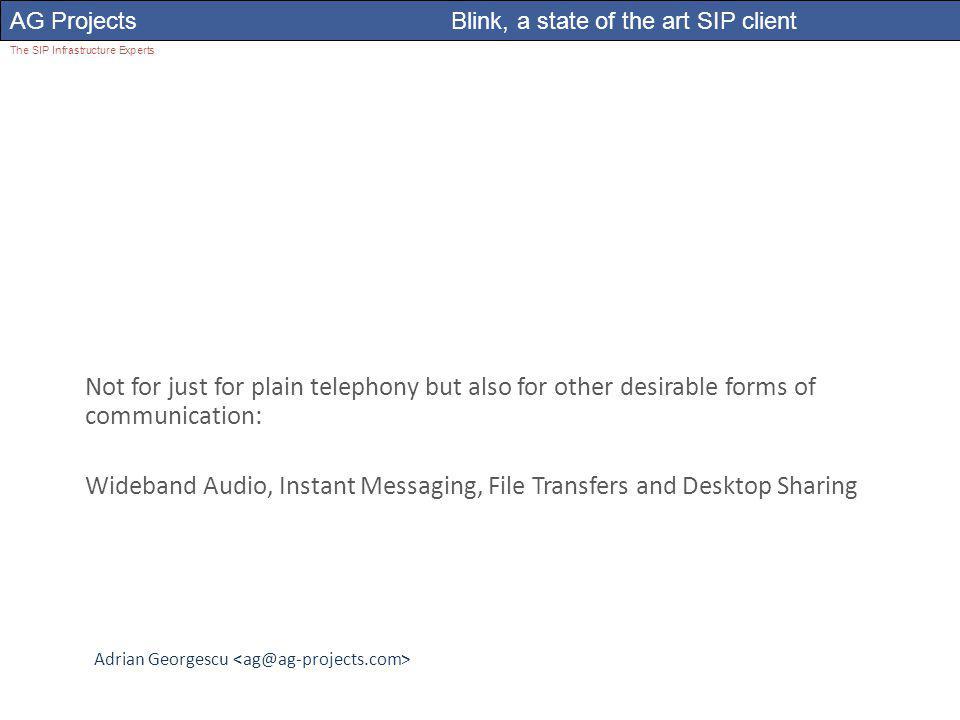

5. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Not for just for plain telephony but also for other desirable forms of communication: Wideband Audio, Instant Messaging, File Transfers and Desktop Sharing

6. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts I knew it was a difficult task

7. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts There are +1200 standards related to SIP today

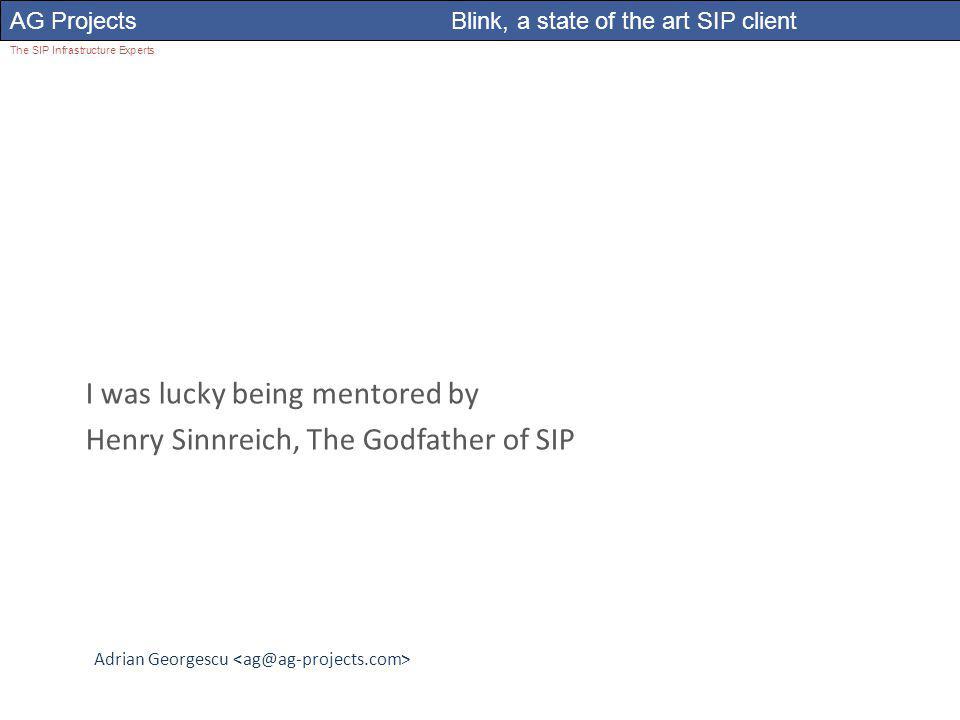

8. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts I was lucky being mentored by Henry Sinnreich, The Godfather of SIP

9. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Most of all relevant Internet technologies are embedded into such software

10. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Many have tried and many have failed

11. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Those who have tried and succeeded are silos, they do not interoperate and are not using Open Standards

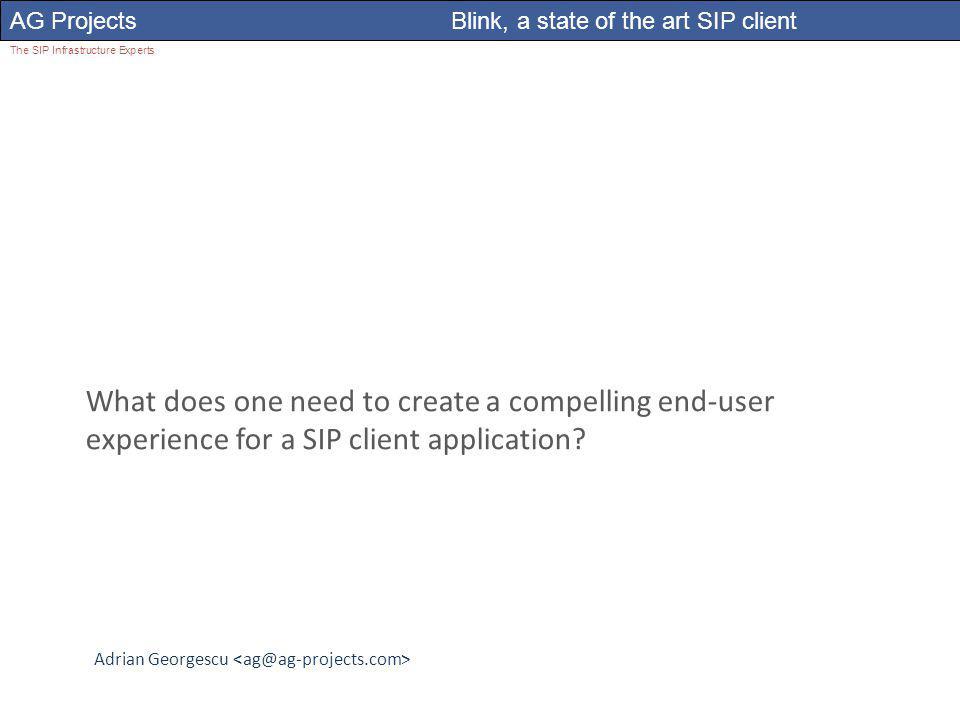

12. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts What does one need to create a compelling end-user experience for a SIP client application?

13. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts First, it has to work!

14. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts And one needs a good SIP server implementation with all relevant features to make it work

15. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts I started from my goal backwards in 2003

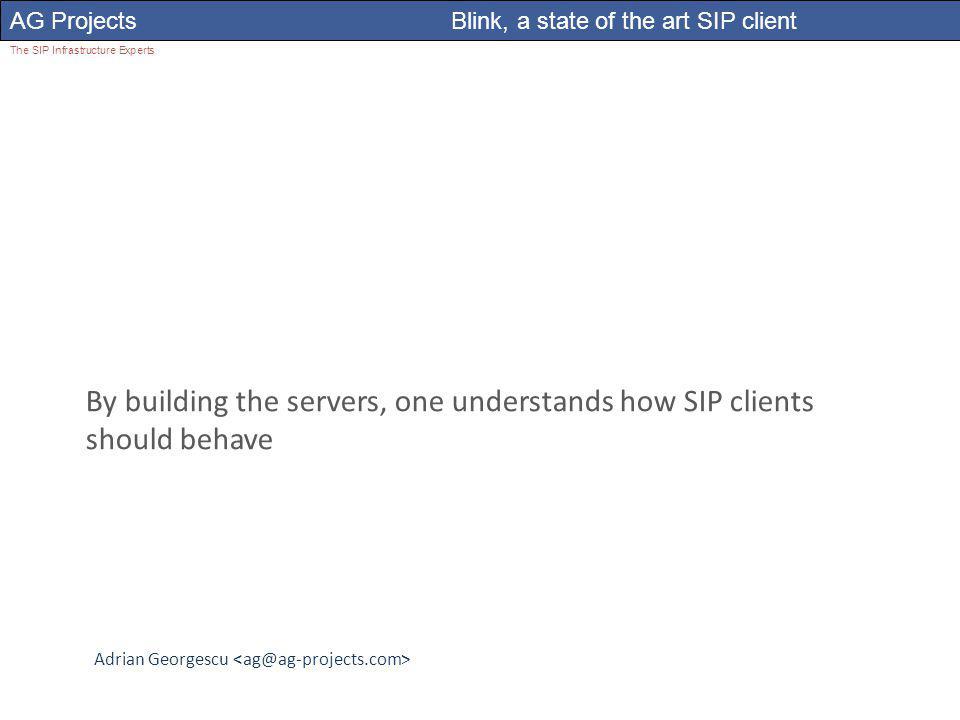

16. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts By building the servers, one understands how SIP clients should behave

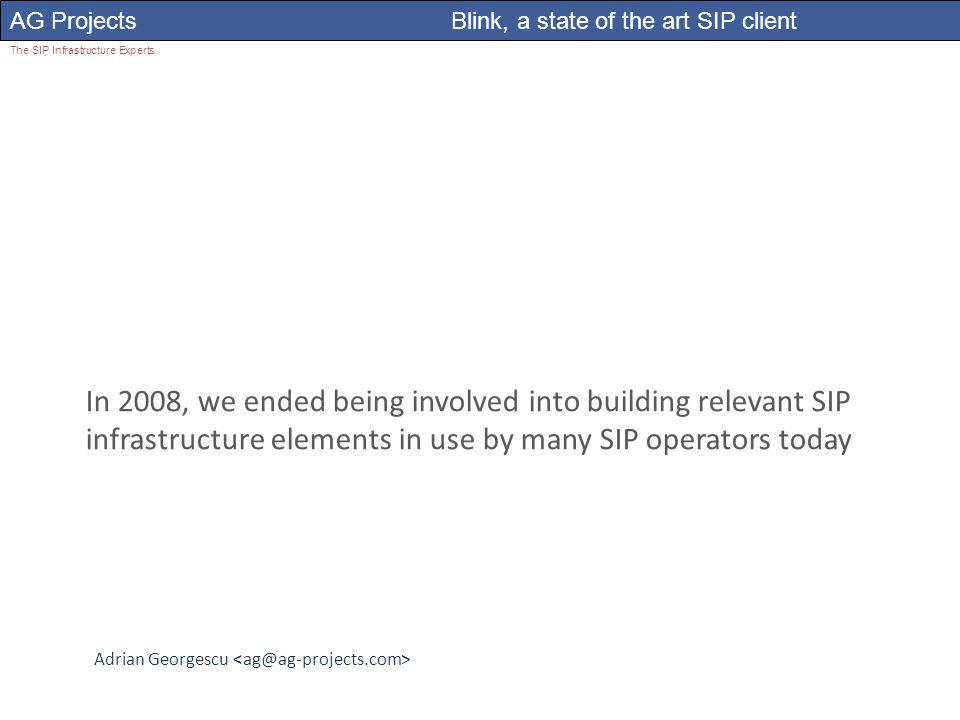

17. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts In 2008, we ended being involved into building relevant SIP infrastructure elements in use by many SIP operators today

18. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts OpenSIPS, MediaProxy, OpenXCAP, CDRTool, MSRPRelay

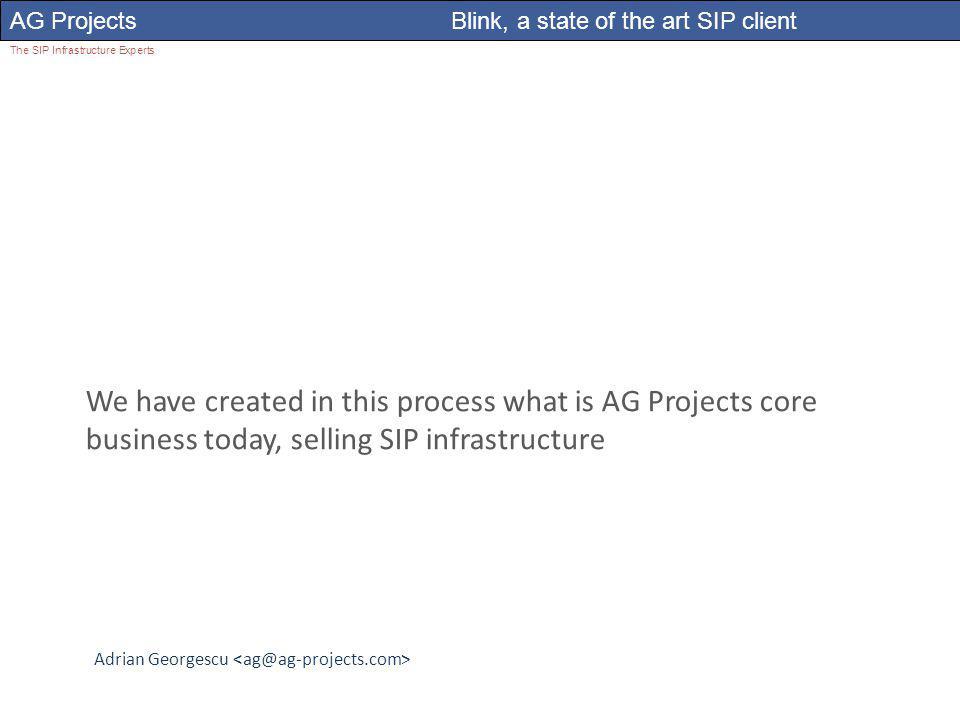

19. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts We have created in this process what is AG Projects core business today, selling SIP infrastructure

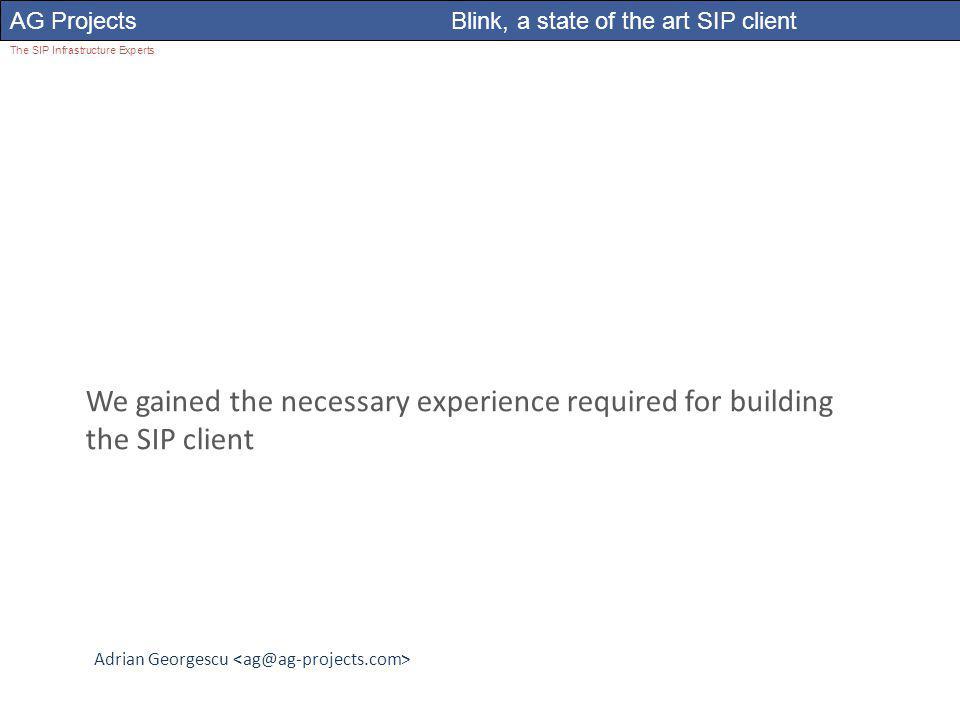

20. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts We gained the necessary experience required for building the SIP client

21. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Phase 1. We secured the necessary funding in early 2008

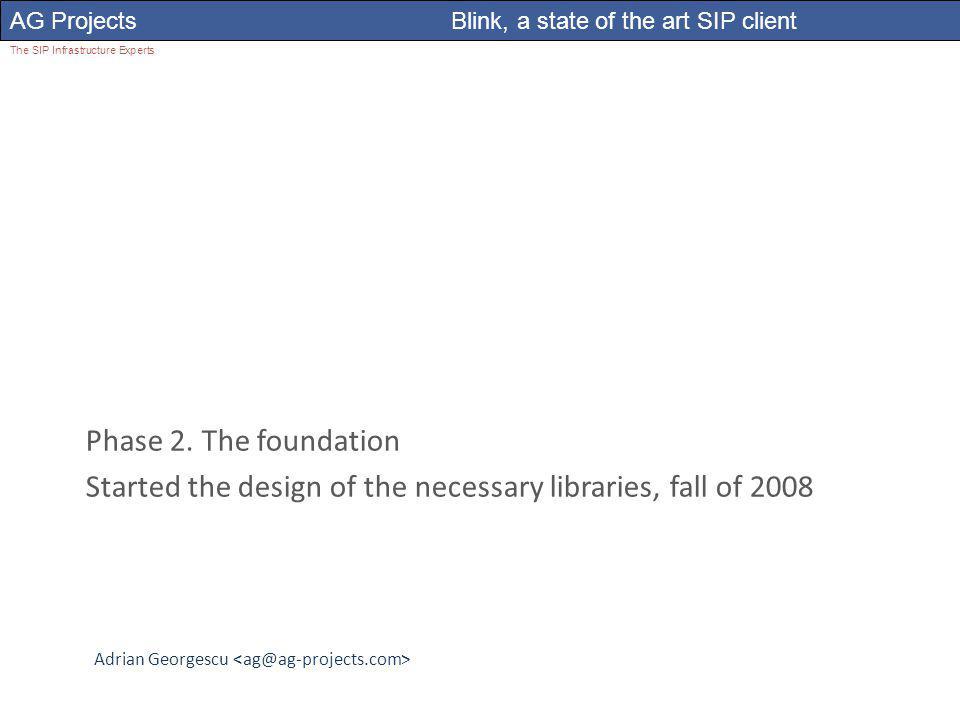

22. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Phase 2. The foundation Started the design of the necessary libraries, fall of 2008

23. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts SIP SIMPLE client SDK SIP SIMPLE client SDK is a Software Development Kit for development of Real Time Applications based on SIP and related protocols for media transport like Presence, Audio and Instant Messaging (IM). Other media types can be easily added by using an extensible high-level API.

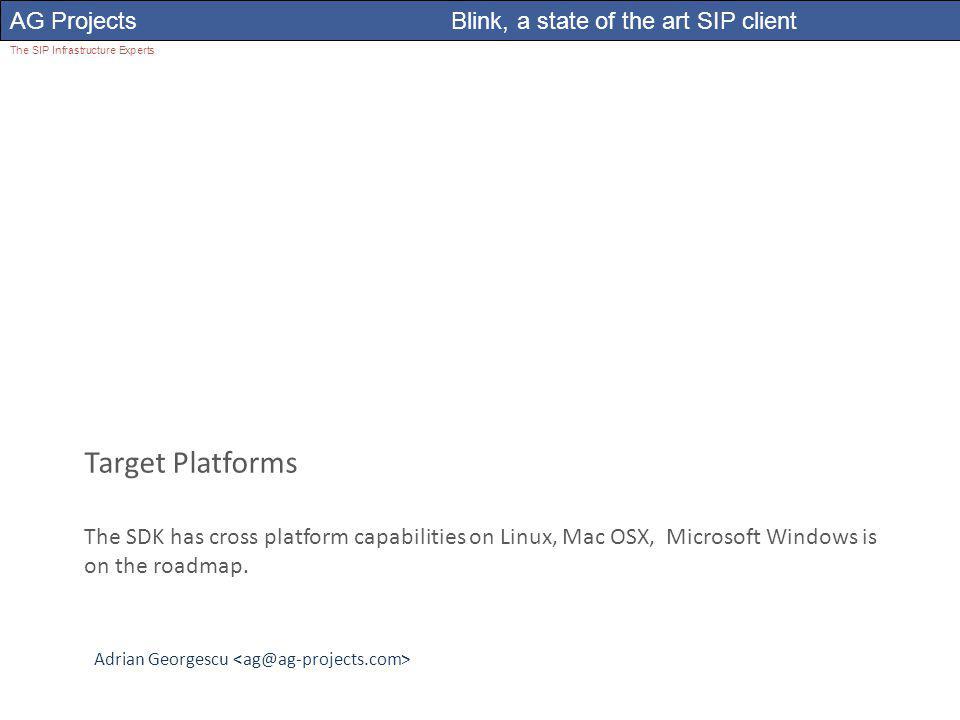

24. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Target Platforms The SDK has cross platform capabilities on Linux, Mac OSX, Microsoft Windows is on the roadmap.

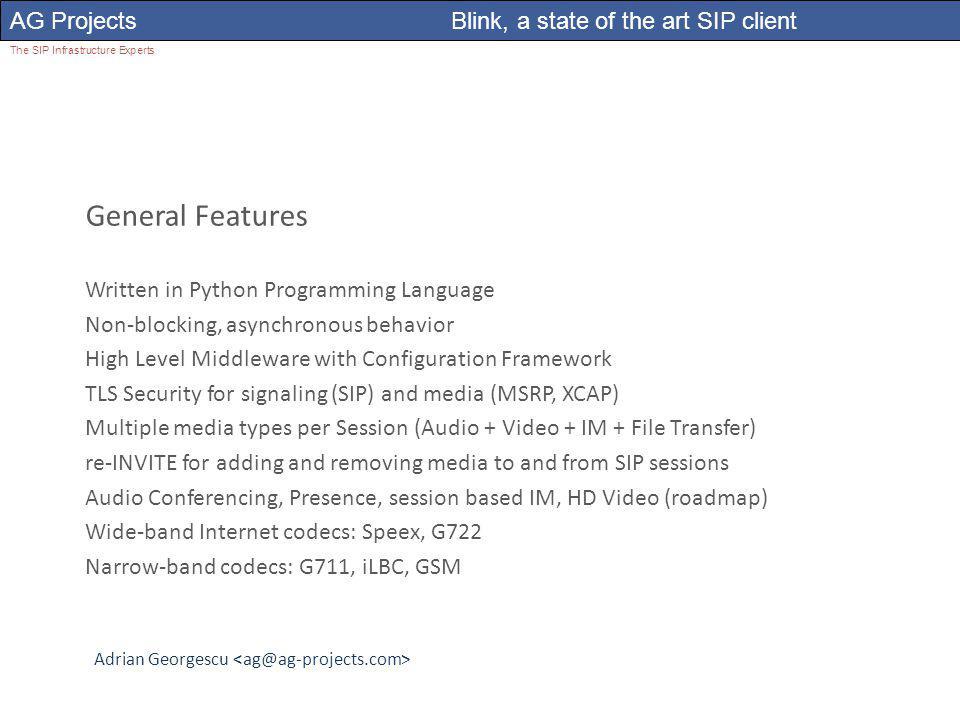

25. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts General Features Written in Python Programming Language Non-blocking, asynchronous behavior High Level Middleware with Configuration Framework TLS Security for signaling (SIP) and media (MSRP, XCAP) Multiple media types per Session (Audio + Video + IM + File Transfer) re-INVITE for adding and removing media to and from SIP sessions Audio Conferencing, Presence, session based IM, HD Video (roadmap) Wide-band Internet codecs: Speex, G722 Narrow-band codecs: G711, iLBC, GSM

26. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts SIP Signaling Session Initiation Protocol RFC3261 Session Description Protocol RFC4566 An Offer/Answer Model with SDP RFC4566

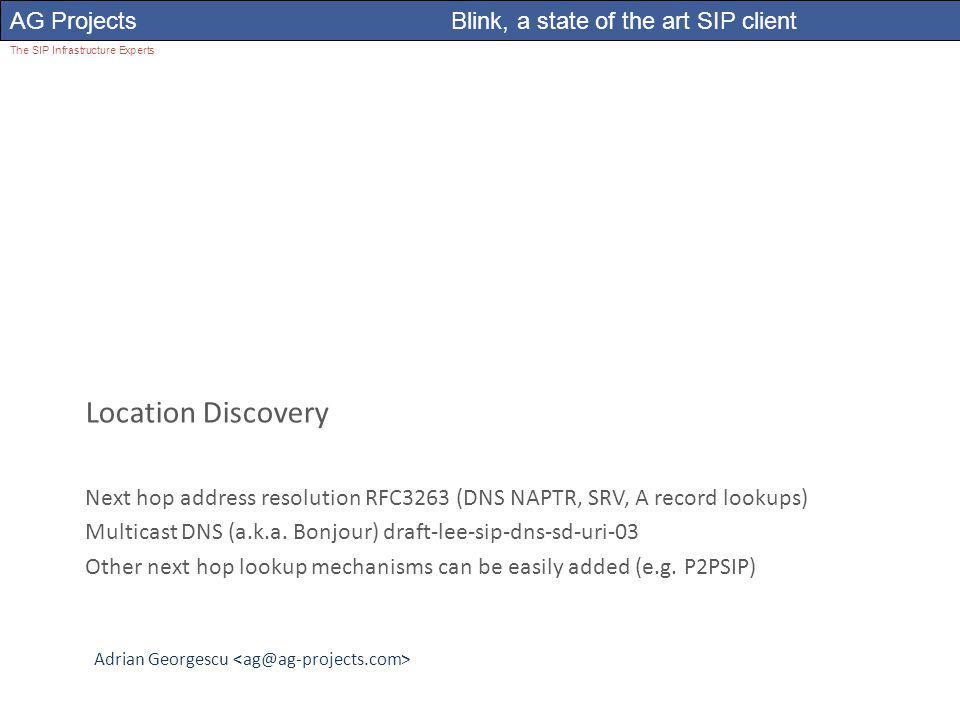

27. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Location Discovery Next hop address resolution RFC3263 (DNS NAPTR, SRV, A record lookups) Multicast DNS (a.k.a. Bonjour) draft-lee-sip-dns-sd-uri-03 Other next hop lookup mechanisms can be easily added (e.g. P2PSIP)

28. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts NAT Traversal SIP Signaling: Symmetric Response Routing Symmetric media RFC3581 RTP media (Audio and Video): Interactive Connectivity Establishment (ICE) RFC5245 MSRP media (IM and File Transfers): Relay Extension RFC4976 and MSRP-ACM

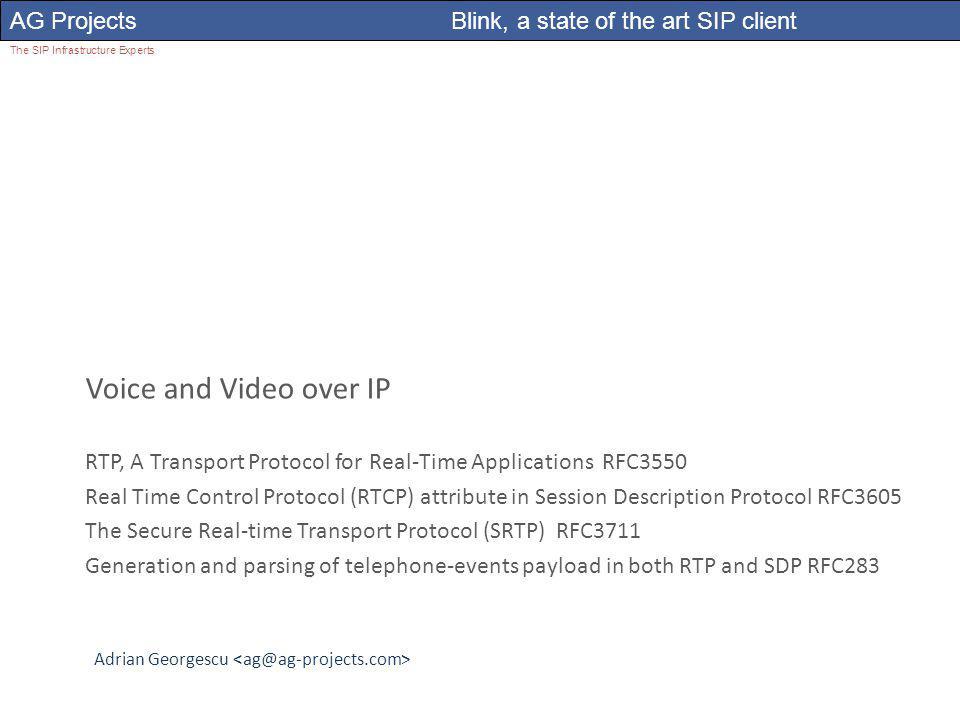

29. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Voice and Video over IP RTP, A Transport Protocol for Real-Time Applications RFC3550 Real Time Control Protocol (RTCP) attribute in Session Description Protocol RFC3605 The Secure Real-time Transport Protocol (SRTP) RFC3711 Generation and parsing of telephone-events payload in both RTP and SDP RFC283

30. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Multi-party Conferencing Conference Event Package RFC4575 A Framework for Conferencing with the SIP RFC4353 (work in progress) SIP Call Control - Conferencing for User Agents RFC4579 (work in progress) MSRP ad-hoc multi-party chat sessions draft-ietf-simple-chat-06 (work in progress)

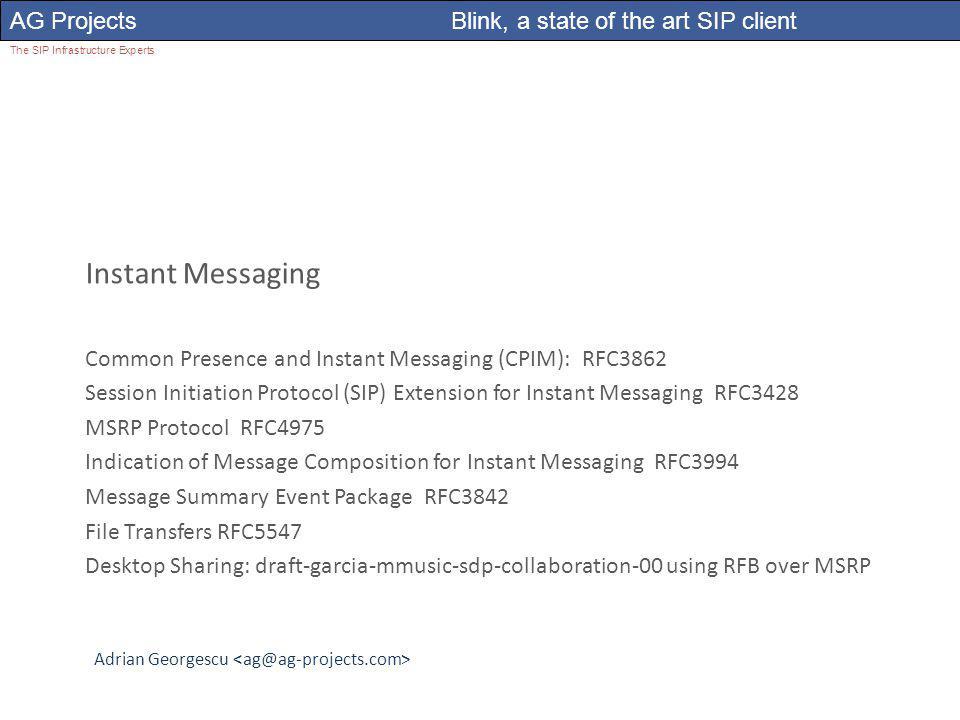

31. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Instant Messaging Common Presence and Instant Messaging (CPIM): RFC3862 Session Initiation Protocol (SIP) Extension for Instant Messaging RFC3428 MSRP Protocol RFC4975 Indication of Message Composition for Instant Messaging RFC3994 Message Summary Event Package RFC3842 File Transfers RFC5547 Desktop Sharing: draft-garcia-mmusic-sdp-collaboration-00 using RFB over MSRP

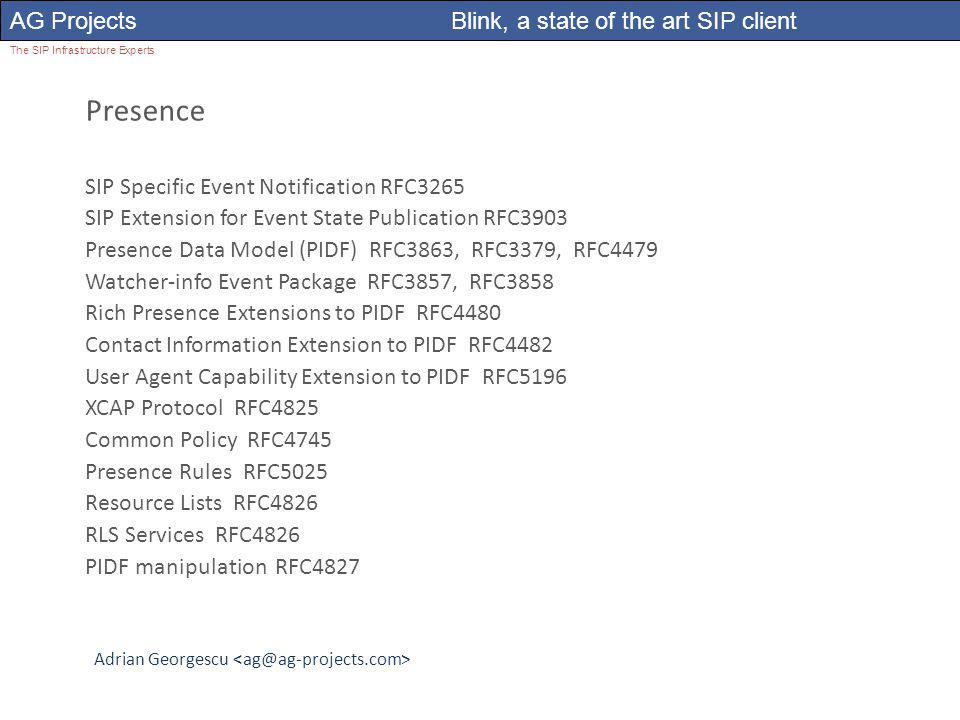

32. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Presence SIP Specific Event Notification RFC3265 SIP Extension for Event State Publication RFC3903 Presence Data Model (PIDF) RFC3863, RFC3379, RFC4479 Watcher-info Event Package RFC3857, RFC3858 Rich Presence Extensions to PIDF RFC4480 Contact Information Extension to PIDF RFC4482 User Agent Capability Extension to PIDF RFC5196 XCAP Protocol RFC4825 Common Policy RFC4745 Presence Rules RFC5025 Resource Lists RFC4826 RLS Services RFC4826 PIDF manipulation RFC4827

33. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts

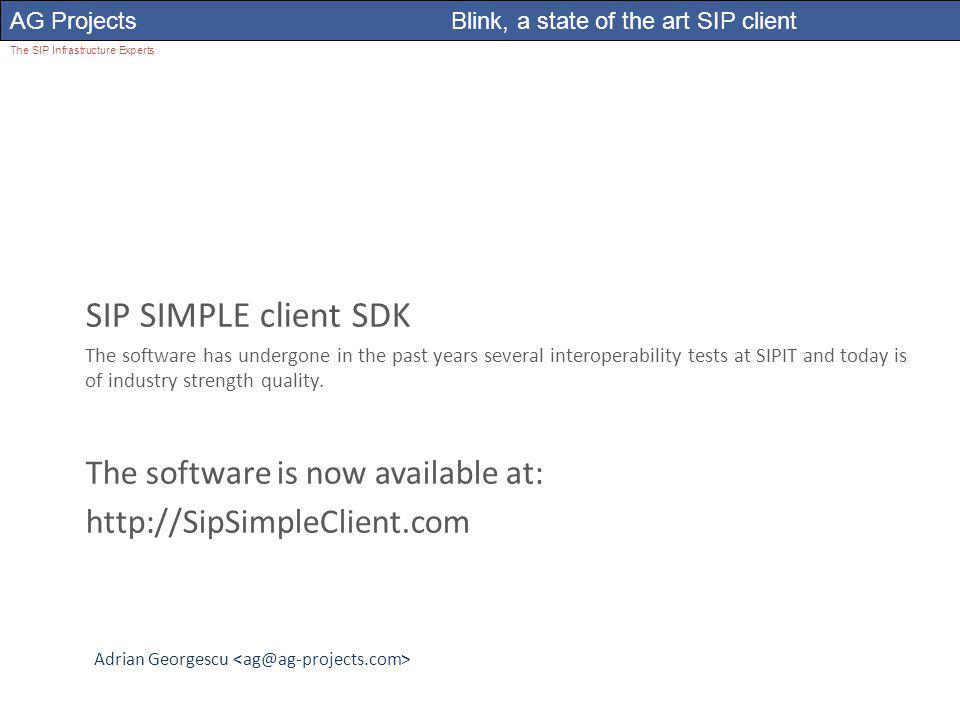

34. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts SIP SIMPLE client SDK The software has undergone in the past years several interoperability tests at SIPIT and today is of industry strength quality. The software is now available at: http://SipSimpleClient.com

35. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Having the foundation in place we moved to the next stage Phase 2. The design of the GUI

36. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts The key was simplicity and desirability

37. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts My father should be able to use it

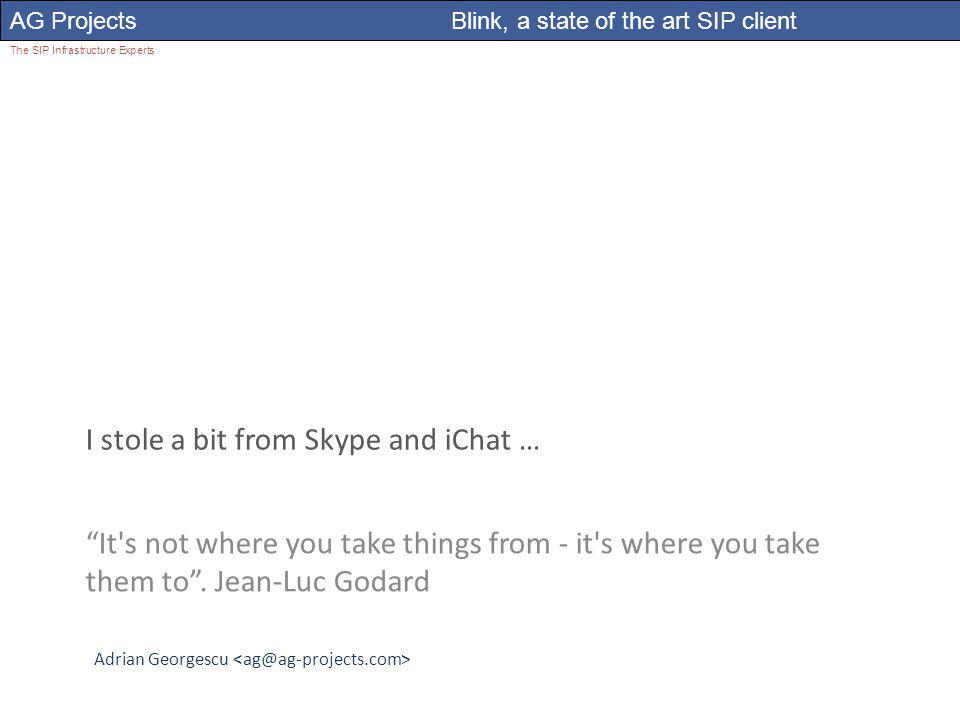

38. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts I stole a bit from Skype and iChat … “It's not where you take things from - it's where you take them to”. Jean-Luc Godard

39. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts

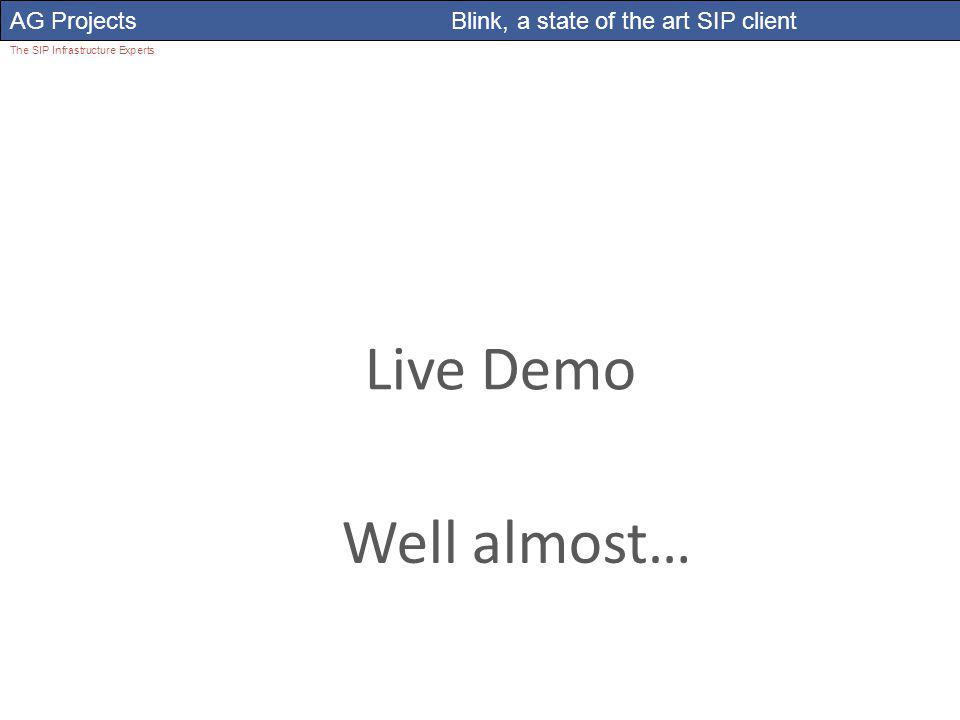

40. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Live Demo Well almost…

41. Adrian Georgescu AG Projects Blink, a state of the art SIP client The SIP Infrastructure Experts Adrian Georgescu ag@ag-projects.com Twitter: agprojects http://icanblink.com
