CAD Hans Johnson Build/Design Captain FRC 3018 Nordic Storm 2013 Lake Superior Excellence in Engineering Award 2013 10,000 Lakes Engineering Inspiration.

Similar presentations


Presentation on theme: "CAD Hans Johnson Build/Design Captain FRC 3018 Nordic Storm 2013 Lake Superior Excellence in Engineering Award 2013 10,000 Lakes Engineering Inspiration."— Presentation transcript:

1 CAD Hans Johnson Build/Design Captain FRC 3018 Nordic Storm 2013 Lake Superior Excellence in Engineering Award ,000 Lakes Engineering Inspiration Award 2013 Championship Xerox Creativity Award

2 Why do we use CAD? Model robot Concepts Testing Iterations Modifications between tournaments Make drawings Sponsor machining

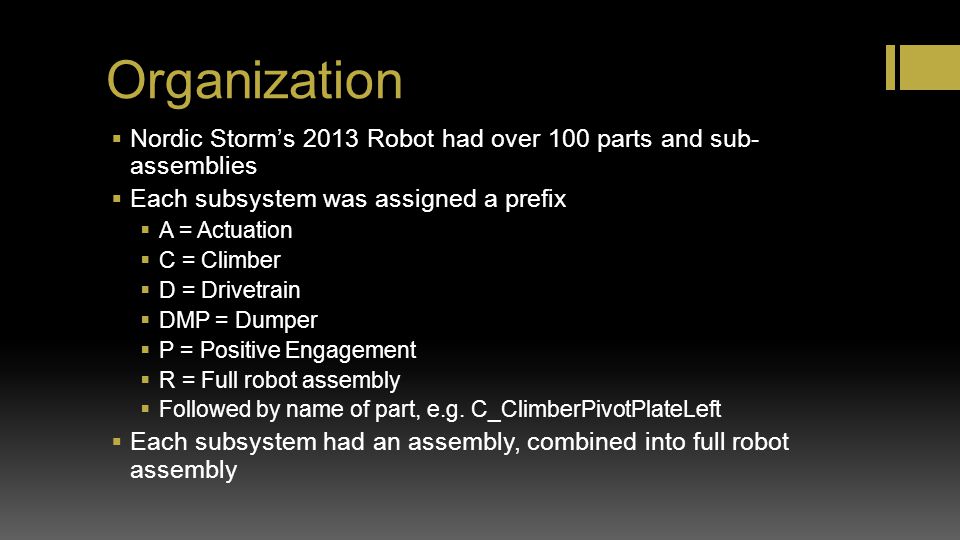

3 Organization Nordic Storms 2013 Robot had over 100 parts and sub- assemblies Each subsystem was assigned a prefix A = Actuation C = Climber D = Drivetrain DMP = Dumper P = Positive Engagement R = Full robot assembly Followed by name of part, e.g. C_ClimberPivotPlateLeft Each subsystem had an assembly, combined into full robot assembly

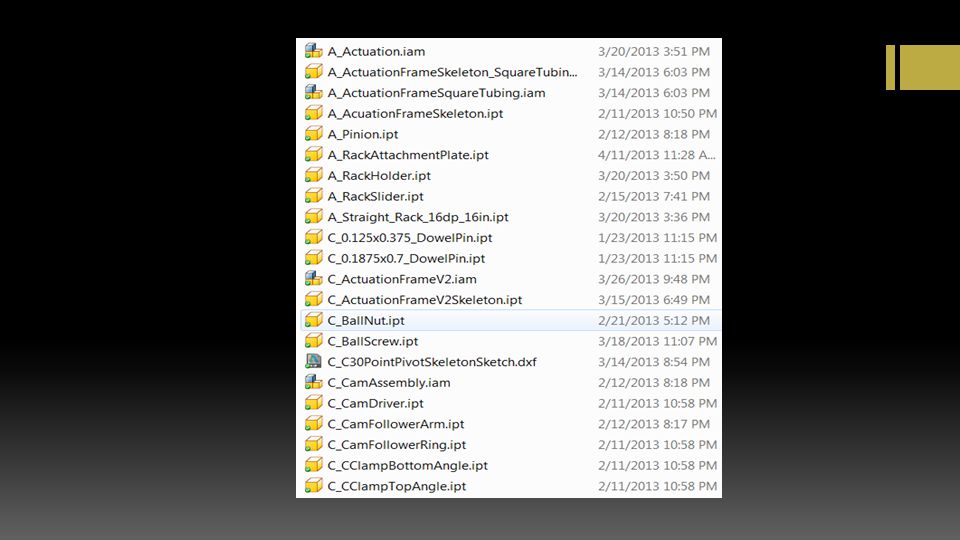

4

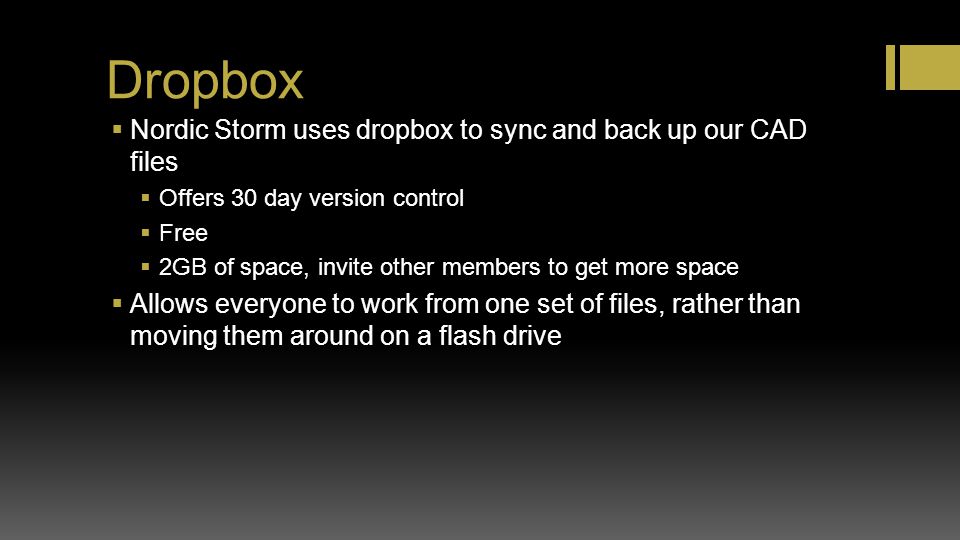

5 Dropbox Nordic Storm uses dropbox to sync and back up our CAD files Offers 30 day version control Free 2GB of space, invite other members to get more space Allows everyone to work from one set of files, rather than moving them around on a flash drive

6 Our Process Drivetrain CADed within the first couple days Manipulator/superstructure designs in parallel with prototyping of mechanisms Once full robot model is largely complete, parts that will be manufactured by sponsors are sent off For parts made in house, drawings are made and reviewed by a mentor before being printed and given to student machinist. As parts are assembled, tested, and the design is modified, the CAD model is updated nightly

7 Simulation FEA Size Motion

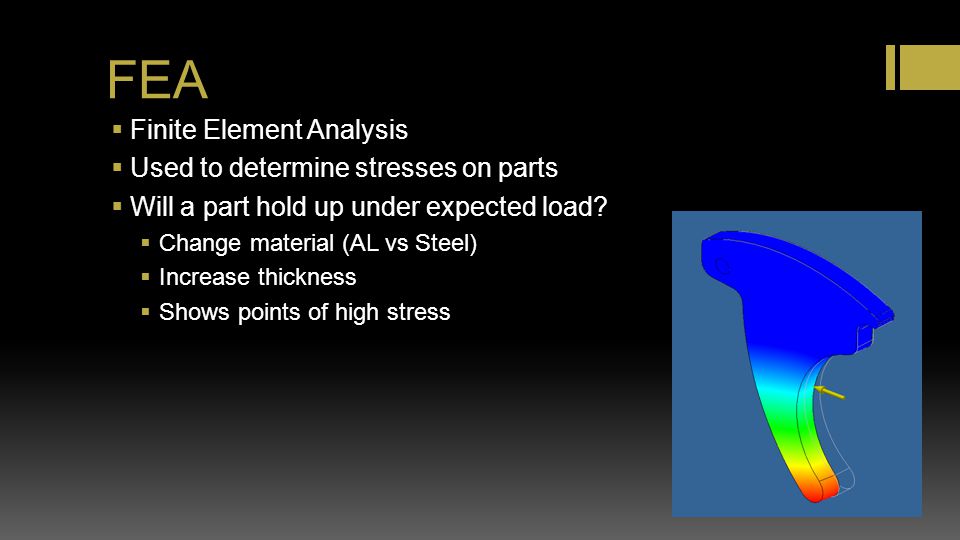

8 FEA Finite Element Analysis Used to determine stresses on parts Will a part hold up under expected load? Change material (AL vs Steel) Increase thickness Shows points of high stress

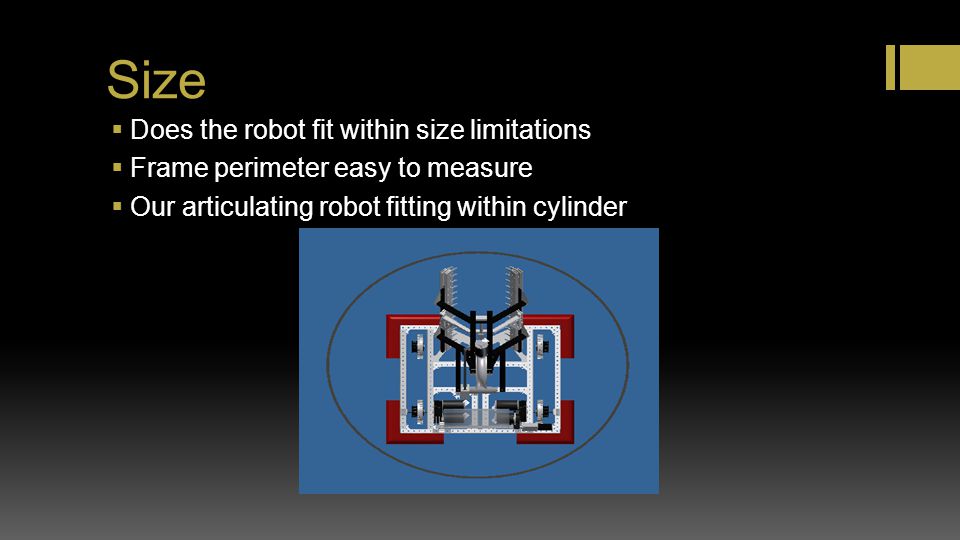

9 Size Does the robot fit within size limitations Frame perimeter easy to measure Our articulating robot fitting within cylinder

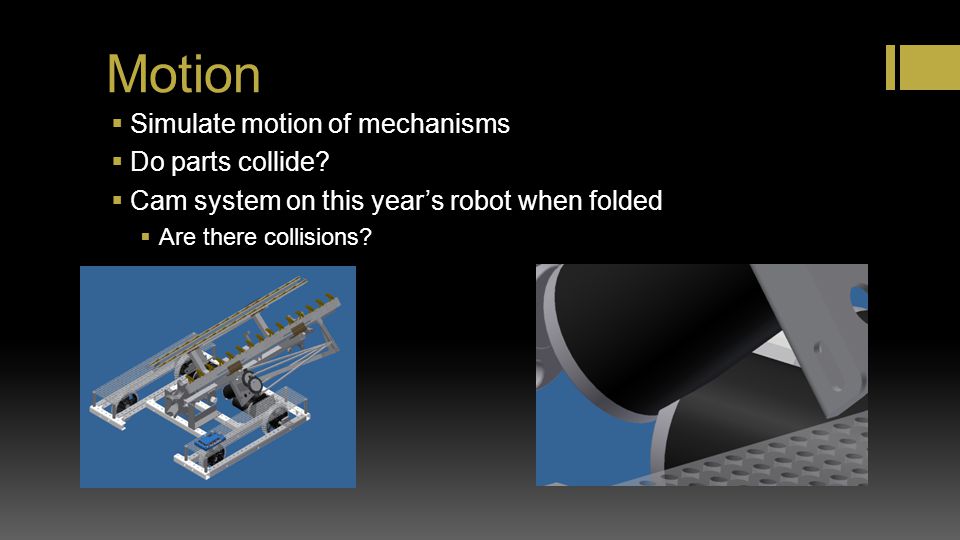

10 Motion Simulate motion of mechanisms Do parts collide? Cam system on this years robot when folded Are there collisions?

11 Gotchas/Tips and Tricks Design some tolerance into your parts Holes on laser cutting/waterjet should be cut small and drilled/reamed to size Nesting parts – blocks into tubing Clearances between moving mechanisms Things get bent, make sure it wont break something else if it does Things wont be perfect, make sure your design can handle that Electronics boards Make sure they arent an afterthought and there is enough space for everything Make sure they are accessible Battery Its big and heavy, use it to your advantage and include it in your design Inventor has a CoG calculator. Use it! Many COTS parts have CAD models available that can be imported AM McMaster 3D Content Central

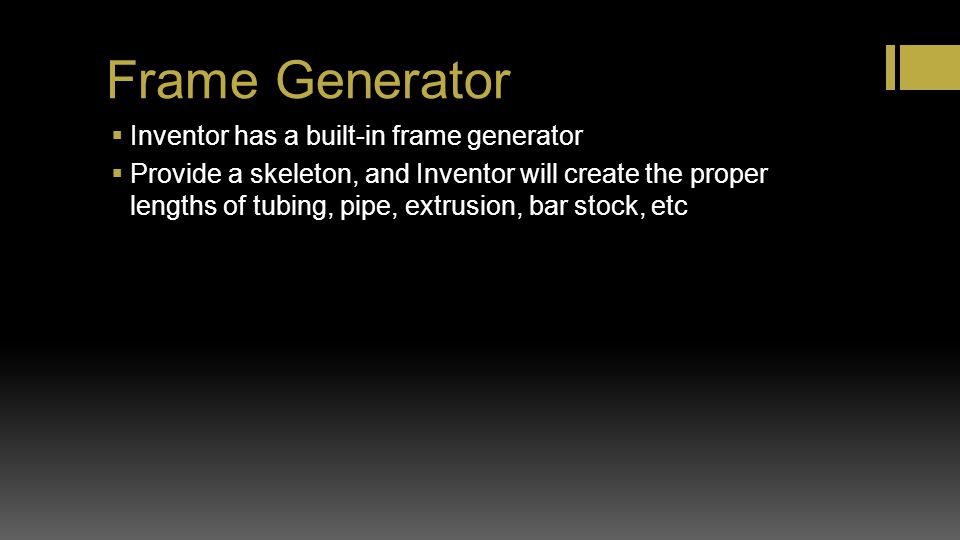

12 Frame Generator Inventor has a built-in frame generator Provide a skeleton, and Inventor will create the proper lengths of tubing, pipe, extrusion, bar stock, etc

13 Drawings Drawings are made for all parts machined in house or sent to sponsors with material Part files sent for laser and CNC After part is created and design is reviewed by multiple students and mentors, a drawing is created Drawing is then checked to ensure it is complete before printing Each drawing has a revision number in the title block to avoid confusion between multiple versions of the part – updated every time the drawing is printed
