2. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. General procedure for vulcanized repair of mining cables type SHD-GC. 1.Introduction 2.Preparation 3.Insulation 4.Jacket 5.Vulcanization

3. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 1. Introduction

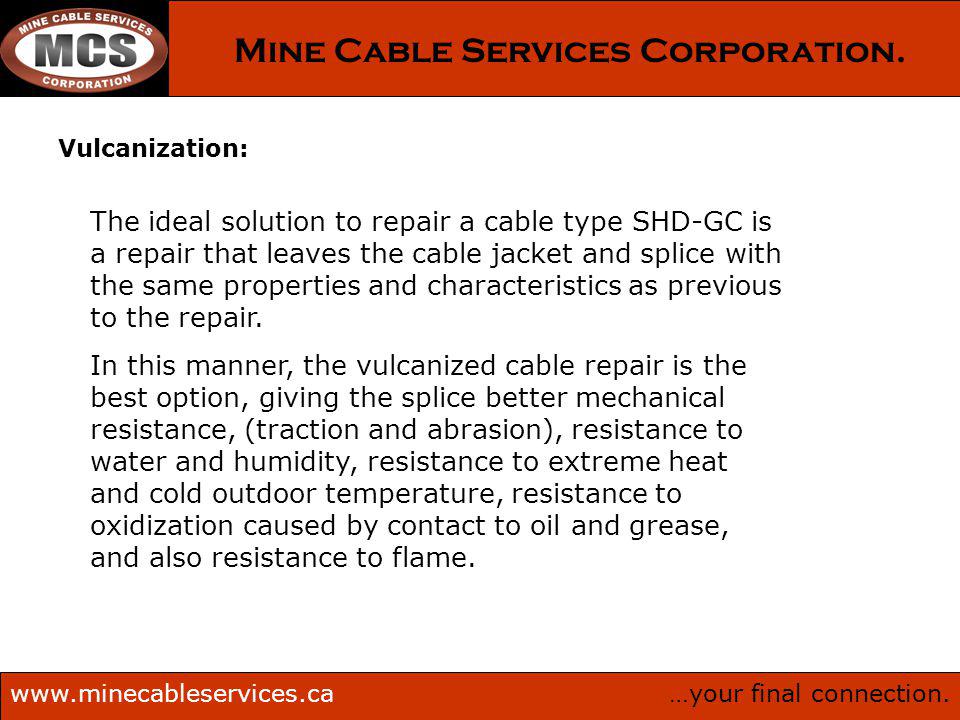

4. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanization: The ideal solution to repair a cable type SHD-GC is a repair that leaves the cable jacket and splice with the same properties and characteristics as previous to the repair. In this manner, the vulcanized cable repair is the best option, giving the splice better mechanical resistance, (traction and abrasion), resistance to water and humidity, resistance to extreme heat and cold outdoor temperature, resistance to oxidization caused by contact to oil and grease, and also resistance to flame.

5. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanization: In order to do a vulcanized splice and cable repair, you Need the following items: 1.Vulcanizer 2.Moulds for cables 3.Vulcanizing Kits (tapes, ThermoWeld, etc.)

6. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanizing, Repair and Cable Terminations Cables Vulcanizer Complete Repair Kit MCS supplies all necessary materials required to do a cable repair including: Moulds and Vulcanizer EPR and Insulating tapes Reinforcing tapes Semi-Conducting tapes Jacket tapes, Hypalon or Neoprene Miscellaneous accessories

7. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanizing, Cable Repairs, and Cable Terminations Cable Vulcanizer Individual cable molds are machined from solid aluminum material and Teflon coated. The control box includes temperature and timer controls for precise vulcanizer operation. Vulcanizers are designed with dual heating platens, precision ground shaft supports and captive securing hardware. MCS manufactures vulcanizers and cable moulds specifically for cable repairs.

8. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Cable Vulcanizer Model 3000H

9. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 3. Vulcanizing, Cable Repairs, and Cable Terminations Cable Vulcanizer Model MCS 4800HD (Hydraulic)

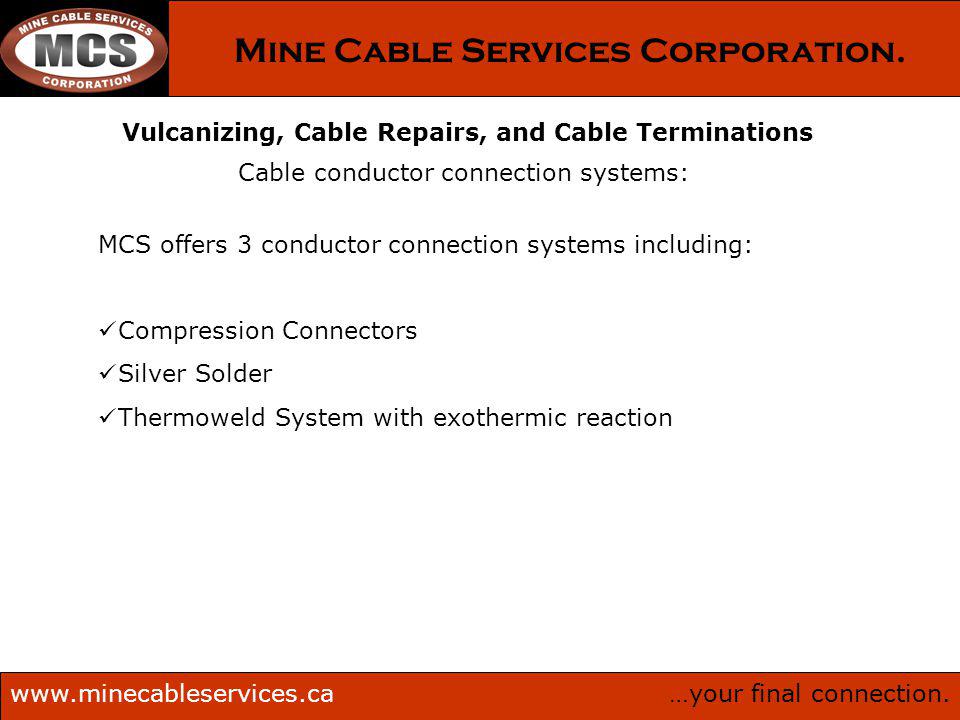

10. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanizing, Cable Repairs, and Cable Terminations Cable conductor connection systems: MCS offers 3 conductor connection systems including: Compression Connectors Silver Solder Thermoweld System with exothermic reaction

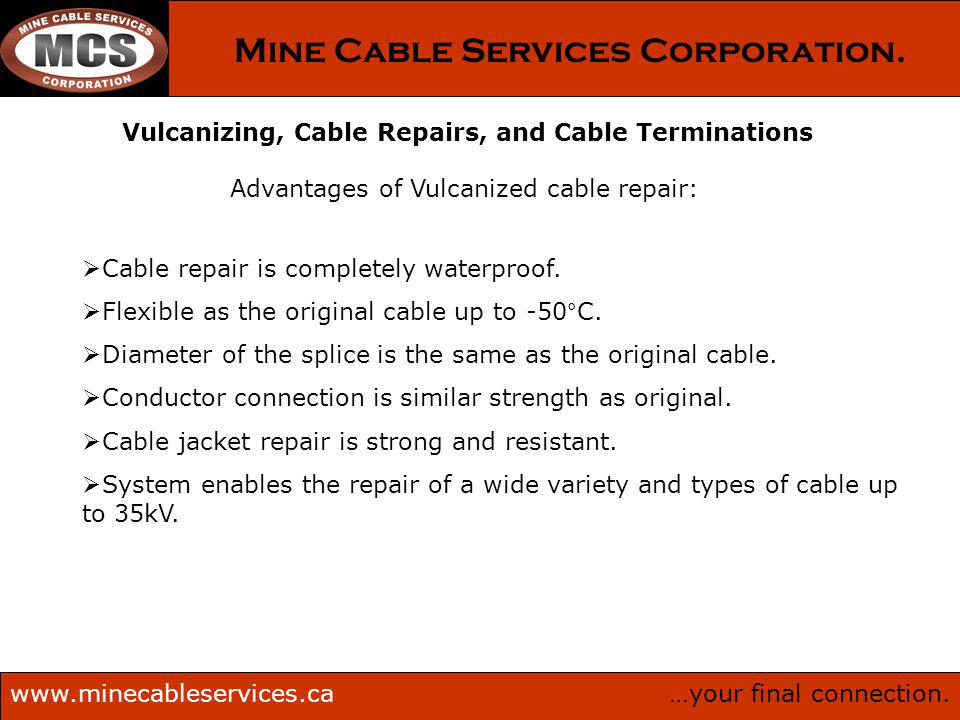

11. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanizing, Cable Repairs, and Cable Terminations Advantages of Vulcanized cable repair: Cable repair is completely waterproof. Flexible as the original cable up to -50°C. Diameter of the splice is the same as the original cable. Conductor connection is similar strength as original. Cable jacket repair is strong and resistant. System enables the repair of a wide variety and types of cable up to 35kV.

12. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 2. Preparation

13. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Damaged Cable

14. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Cut the cable and the 3 phase conductors and grounds.

15. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Cut conductors to required lengths, remove the copper shield.

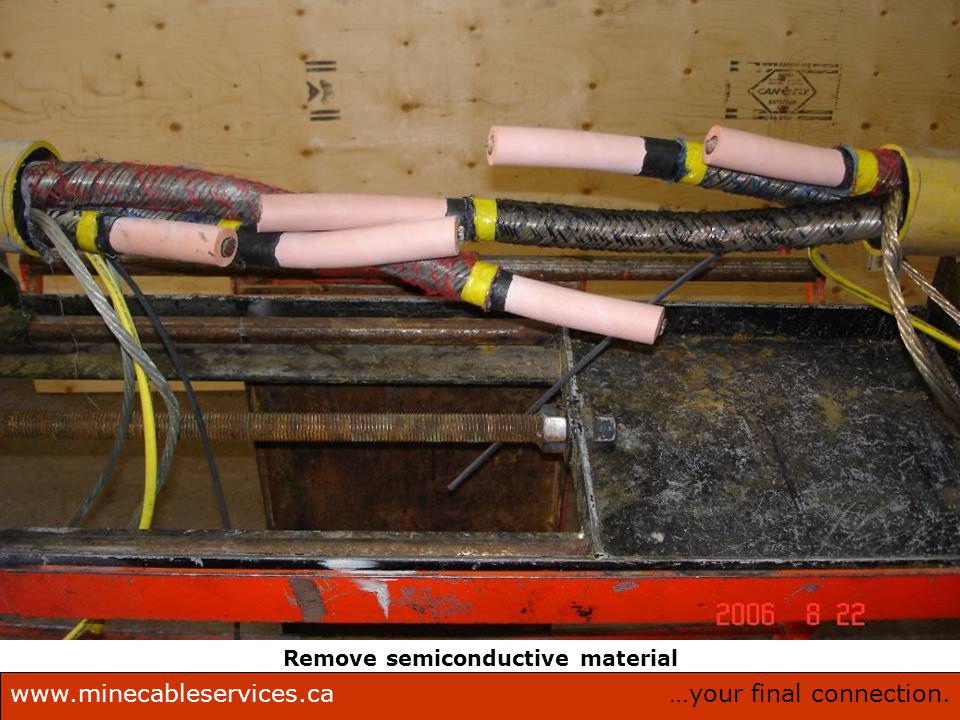

16. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Remove semiconductive material

17. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Cut and remove insulation material leaving the conductors exposed.

18. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Conductor connection using ThermoWeld system.

19. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. ThermoWeld Connection

20. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Conductor connection using silver solder.

21. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Connection of all 3 phases, grind and file connection.

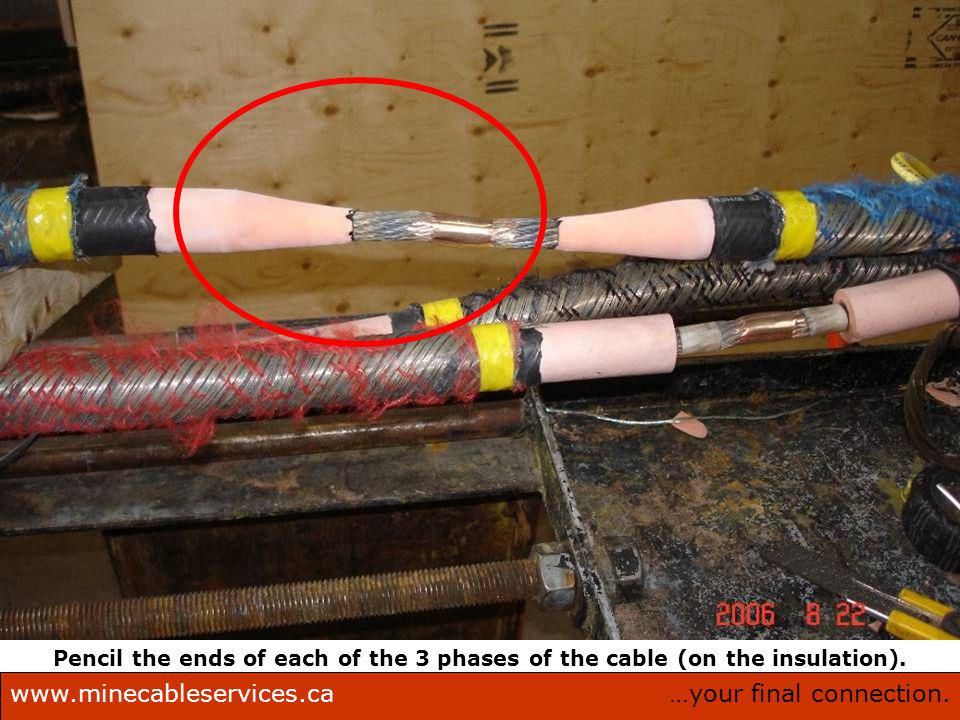

22. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Pencil the ends of each of the 3 phases of the cable (on the insulation).

23. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 3. Insulation

24. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Once it has been sanded and cleaned

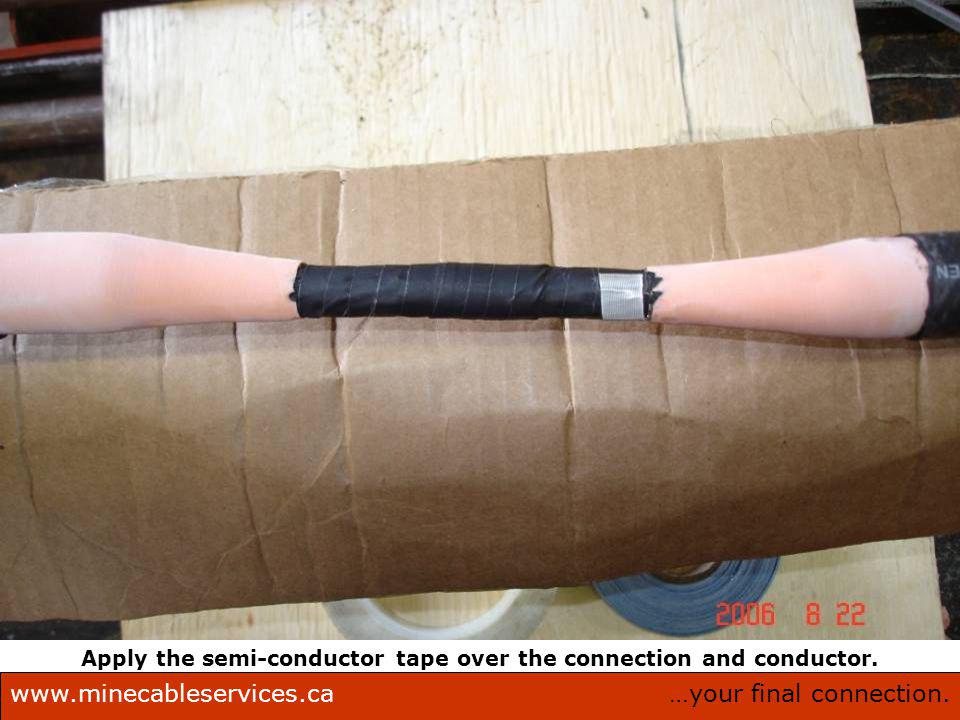

25. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply the semi-conductor tape over the connection and conductor.

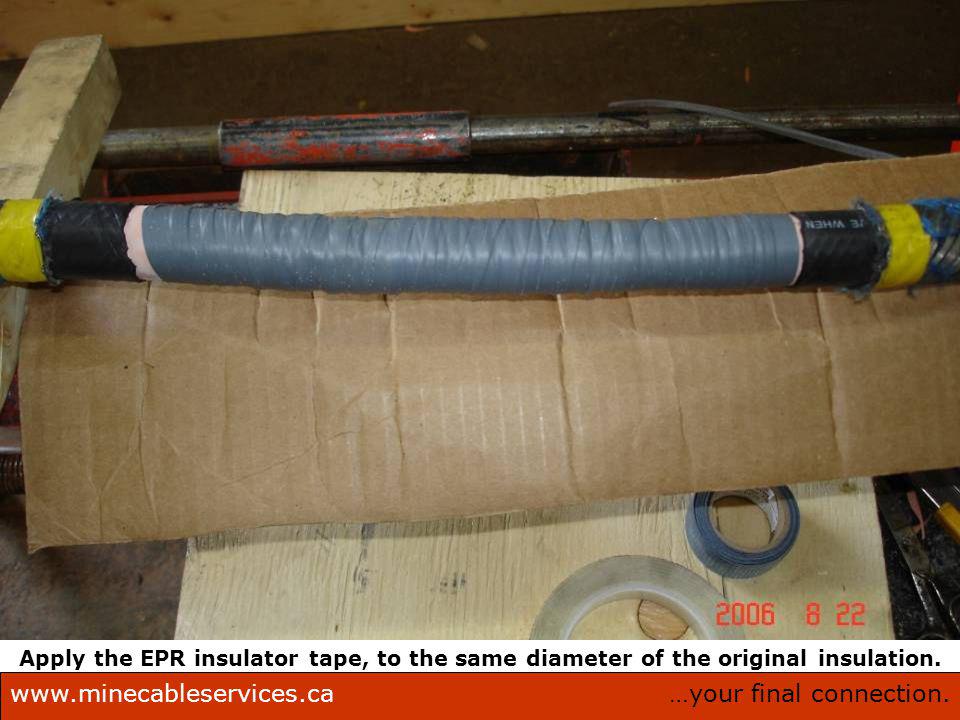

26. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply the EPR insulator tape, to the same diameter of the original insulation.

27. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Over the EPR tape, cover once again with a layer of semi-conductor tape.

28. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply tinned copper braid tape.

29. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Repeat for each phase.

30. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Repair completed in all 3 phases.

31. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Connection of pilot conductor using silver solder.

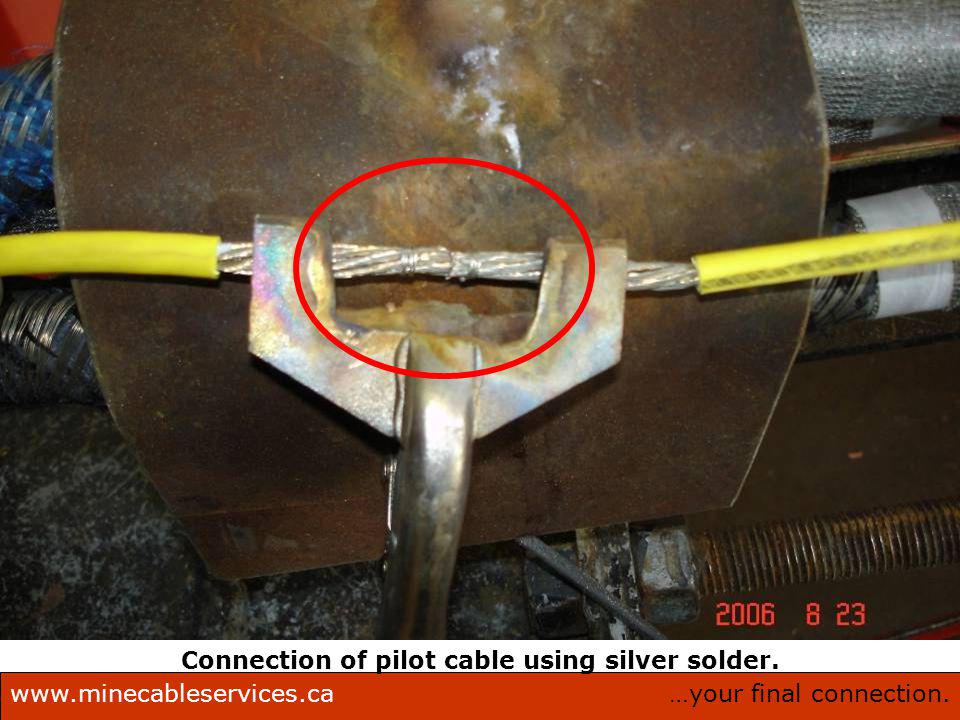

32. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Connection of pilot cable using silver solder.

33. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Connection of ground cable using silver solder.

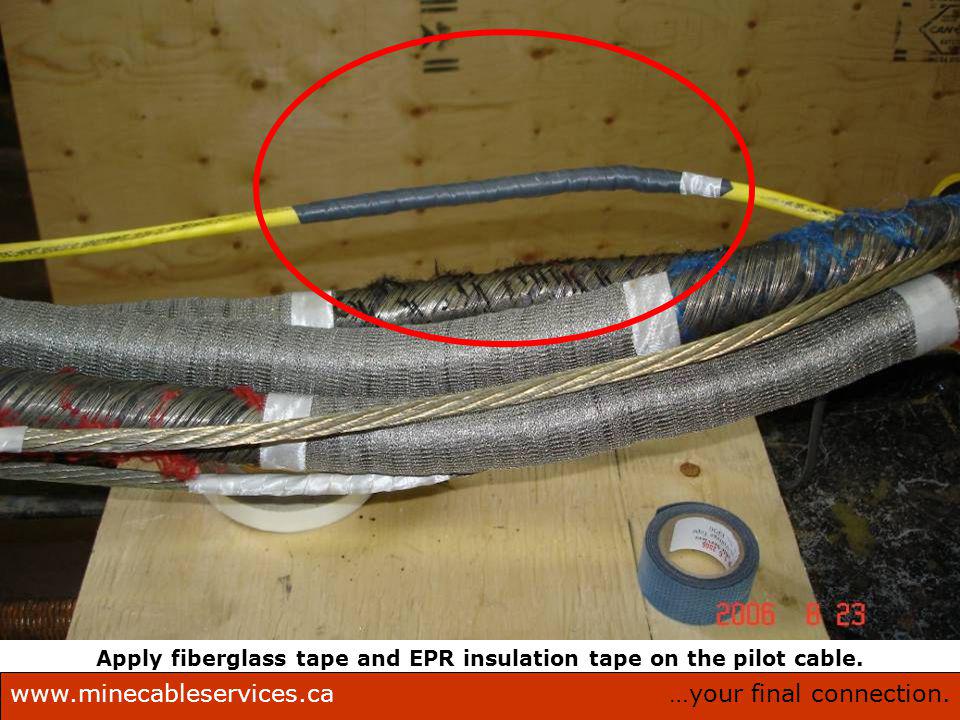

34. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply fiberglass tape and EPR insulation tape on the pilot cable.

35. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. All the cable components have been completed. Add fiberglass tape to the pilot and ground cables.

36. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 4. Jacket

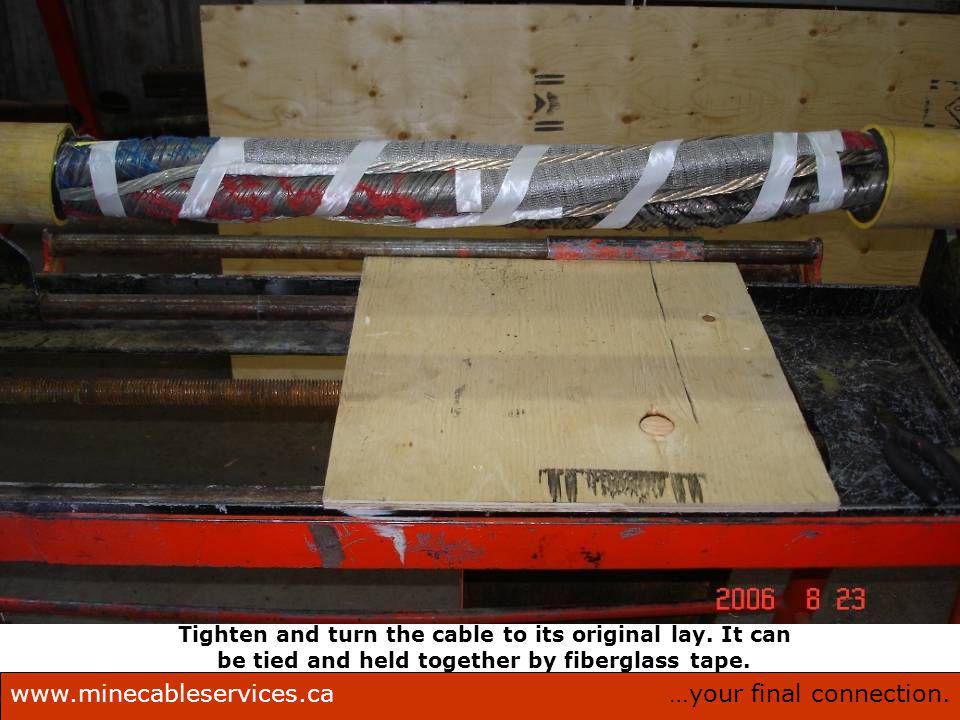

37. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Tighten and turn the cable to its original lay. It can be tied and held together by fiberglass tape.

38. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply separator tape.

39. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Pencil the ends of the jacket.

40. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Pencelling of the jacket.

41. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply reinforcing tape.

42. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply bonding cement at the ends of the splice.

43. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply cable jacket tape.

44. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Apply enough tape, so that the diameter is more then the mold.

45. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. 5. Vulcanization

46. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Vulcanization: For the Vulcanization Process: 1. Heat the vulcanizer and mold to 150° C. 2. Apply mold release spray to both sides of the mold. 3. Open the vulcanizer, put a strip of jacket type in the bottom cavity of the mold. 4. Put the cable in the mold with a strip of jacket tape on top of it. 5. Close the mold and vulcanizer, apply pressure with the closing bolts. 6. Wait until the rubber is heated and begins to flow from the mold. 7. When the mold is completely closed, a small amount of rubber should continue to flow from the mold.

47. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Insert the mold with the cable into the vulcanizer.

48. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Set the timer for 60 minutes.

49. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. The rubber from the jacket will continue to flow.

50. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Allow for the mold to cool to room temperature, then carefully remove the cable form the mold.

51. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Let the vulcanized cable cool down.

52. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Sand and clean the finished jacket.

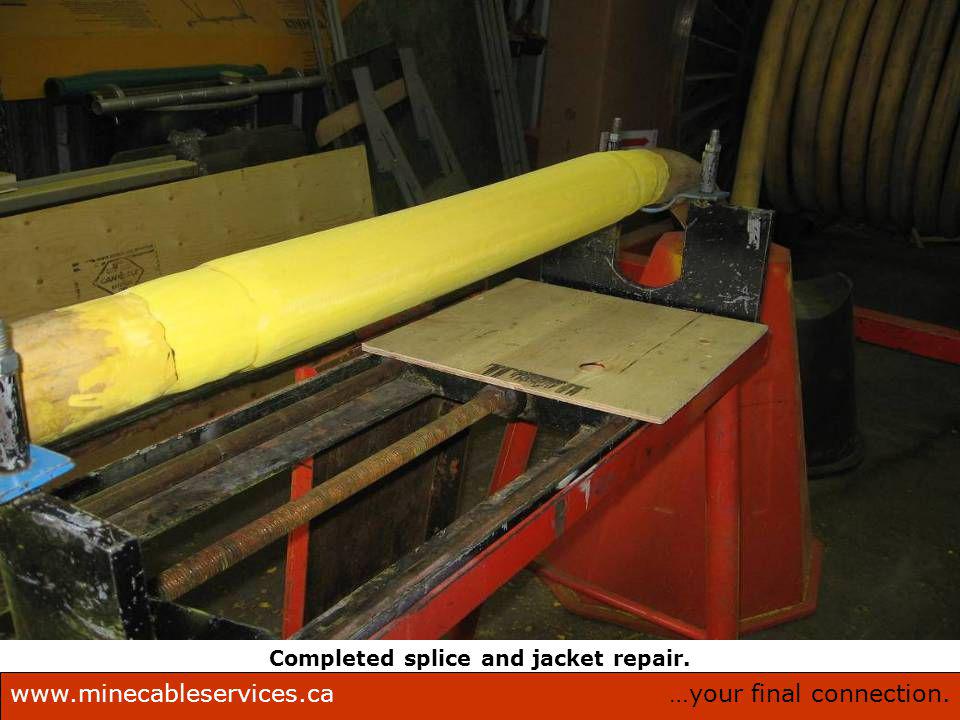

53. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Completed splice and jacket repair.

54. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Splice is of similar diameter to the original cable.

55. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Completed cable repair splice.

56. …your final connection.www.minecableservices.ca Mine Cable Services Corporation. Advantages of Vulcanized Splice Completely impermeable to water and humidity. Vulcanized technique is for all types of jacket tape including, TPU, CPE, Hypalon. Vulcanized jacket has superior adhesion to the original cable jacket. The size and the diameter of the cable repair, allows for cable to be reeled.
