1 Robin Lafever LBNL1 Parts List TPC-05-C Xenon test chamber Recirculation and Vacuum systems 11/5/2009

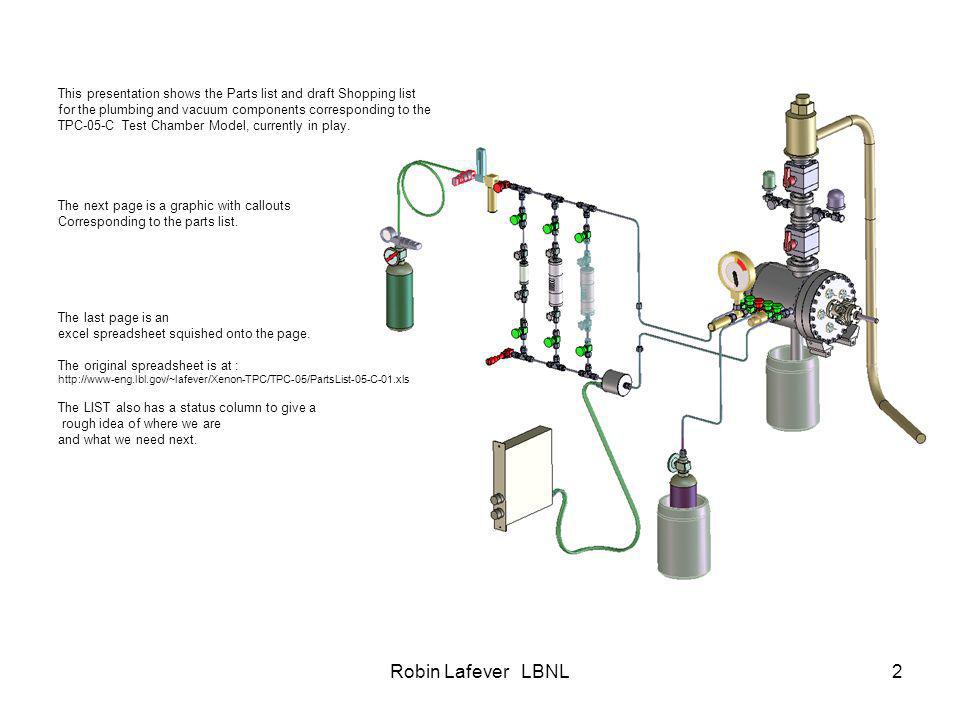

2 Robin Lafever LBNL2 This presentation shows the Parts list and draft Shopping list for the plumbing and vacuum components corresponding to the TPC-05-C Test Chamber Model, currently in play. The next page is a graphic with callouts Corresponding to the parts list. The last page is an excel spreadsheet squished onto the page. The original spreadsheet is at : The LIST also has a status column to give a rough idea of where we are and what we need next.

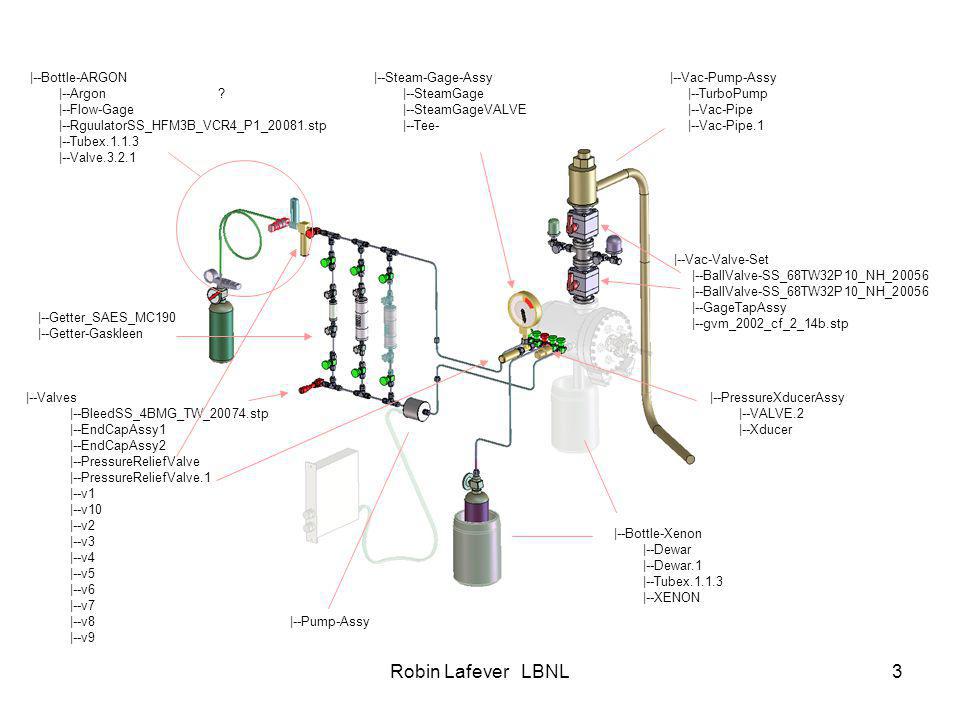

3 Robin Lafever LBNL3 |--Vac-Pump-Assy |--TurboPump |--Vac-Pipe |--Vac-Pipe.1 |--Bottle-ARGON |--Argon? |--Flow-Gage |--RguulatorSS_HFM3B_VCR4_P1_20081.stp |--Tubex |--Valve |--Valves |--BleedSS_4BMG_TW_20074.stp |--EndCapAssy1 |--EndCapAssy2 |--PressureReliefValve |--PressureReliefValve.1 |--v1 |--v10 |--v2 |--v3 |--v4 |--v5 |--v6 |--v7 |--v8 |--v9 |--PressureXducerAssy |--VALVE.2 |--Xducer |--Pump-Assy |--Steam-Gage-Assy |--SteamGage |--SteamGageVALVE |--Tee- |--Bottle-Xenon |--Dewar |--Dewar.1 |--Tubex |--XENON |--Getter_SAES_MC190 |--Getter-Gaskleen |--Vac-Valve-Set |--BallValve-SS_68TW32P10_NH_20056 |--GageTapAssy |--gvm_2002_cf_2_14b.stp

4 Robin Lafever LBNL4
