TEAL Control Pictures For SAHARA and Its Affiliates Triethylaluminium (TEAL), [(CH3CH2)3Al] ISD-Fire Protection,
2
4 3 3 Triethylaluminium (TEAL) : Spontaneously flammable in air. Reacts violently with water Main Hazard: Pyrophoric Triethylaluminium (TEAL), [(CH3CH2)3Al], is a colorless, pyrophoric liquid which reacts violently with water. It is spontaneously flammable in air and unreacted TEAL may re-ignite when in contact with air or water. Skin contact can cause severe burn and inhalation may cause irritation. Oxidation of TEAL can generate aluminium oxide dust which may cause toxic effects to the liver and kidneys in test animals.
3
TEAL Demonstration
4

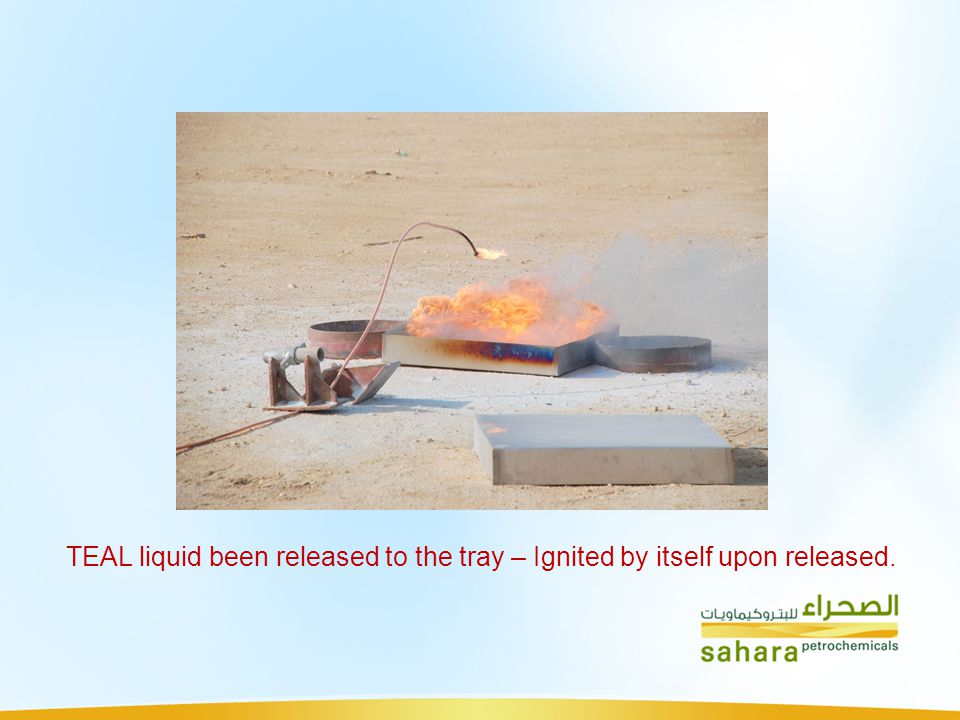

TEAL liquid been released to the tray – Ignited by itself upon released.
5

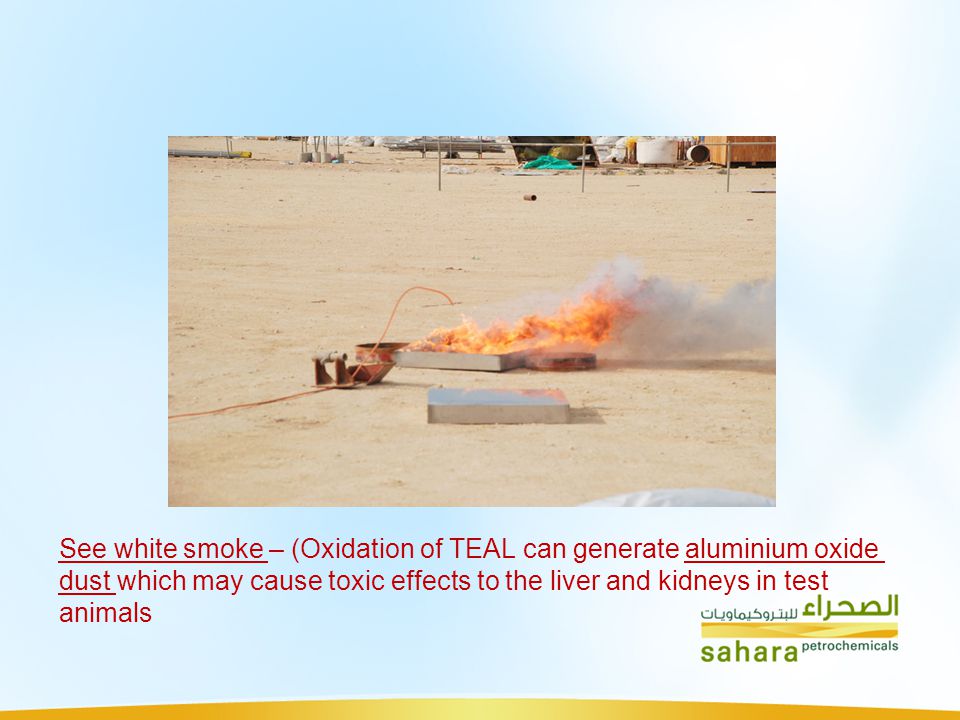

See white smoke – (Oxidation of TEAL can generate aluminium oxide dust which may cause toxic effects to the liver and kidneys in test animals
6

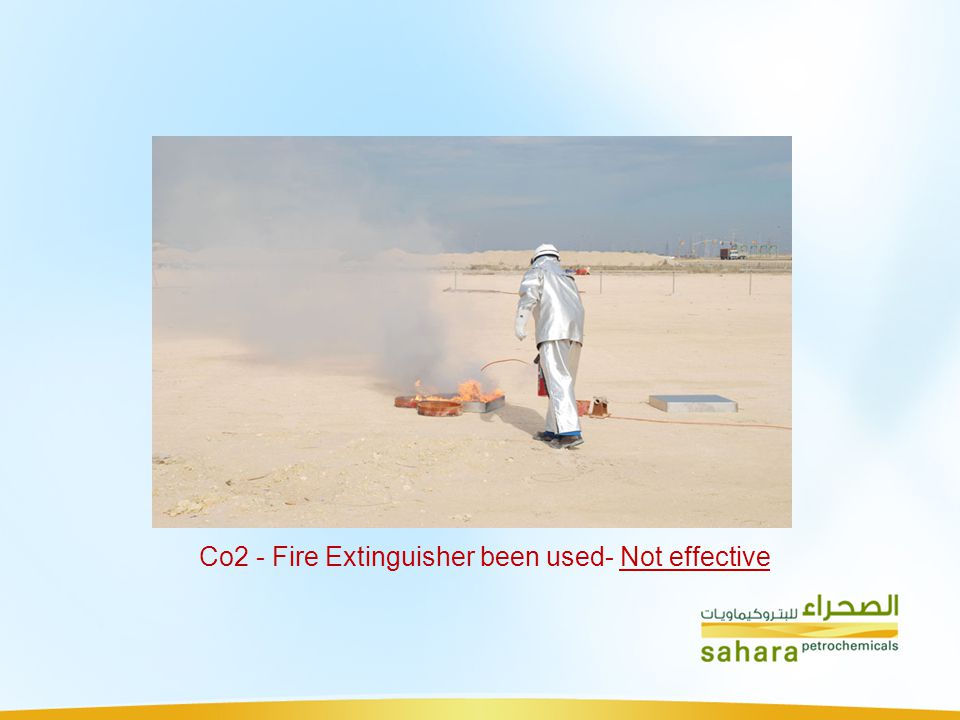

Co2 - Fire Extinguisher been used- Not effective
7
Dry Chemical Fire Extinguisher been used
8
Dry Chemical - Fire Extinguisher been used
9
Dry Chemical Fire Extinguisher been used- Effective momentarily
10
Starts igniting Aegean
11
Smothering with Fire Blanket
13

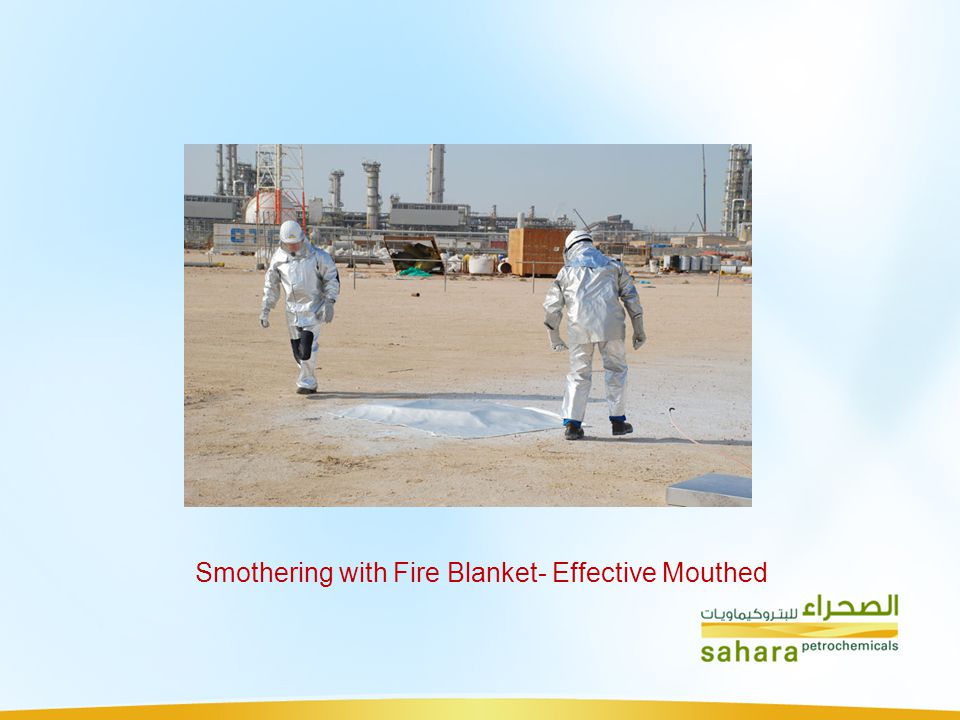

Smothering with Fire Blanket- Effective Mouthed
14

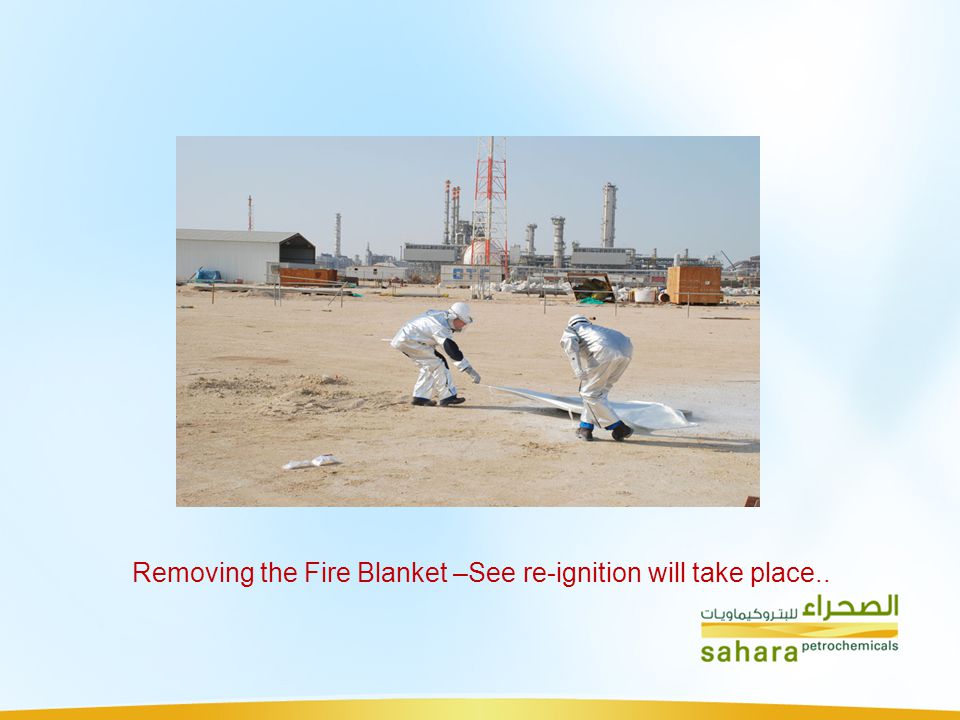

Removing the Fire Blanket –See re-ignition will take place..
15
See re-ignition taking place
16
See re-ignition toke place
17

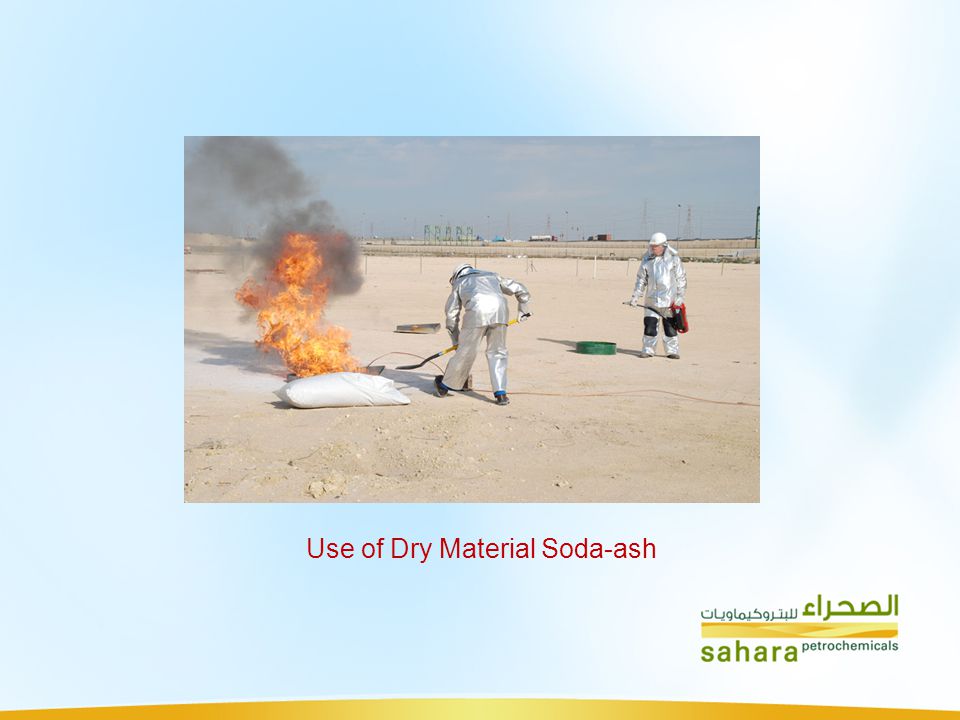

Use of Dry Material Soda-ash
18

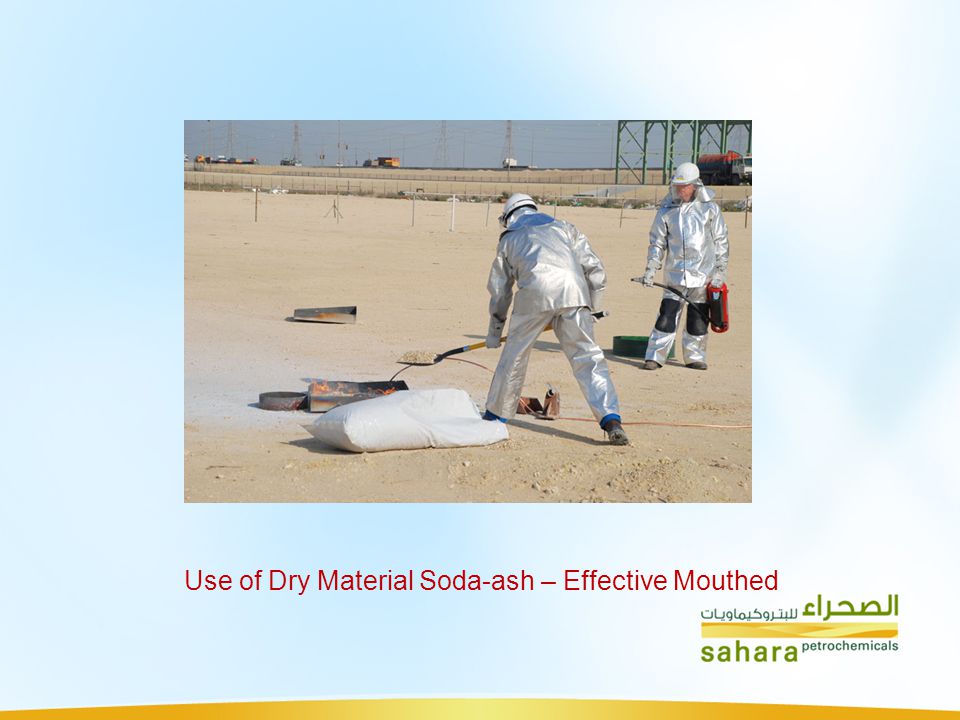

Use of Dry Material Soda-ash – Effective Mouthed
20
Trying to use little water from a distant.. Dont Use Of Water
21

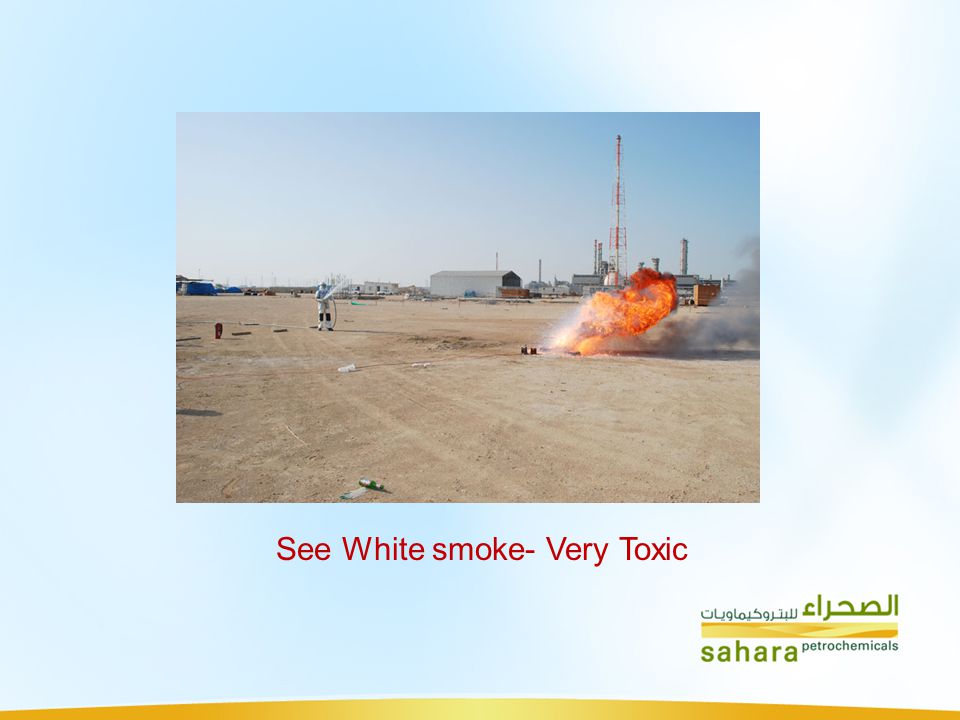

See White smoke- Very Toxic
22
Use of little water from a distant.. See Fire is getting bigger and smoke is getting more Dont Use Of Water
23
See what happen with water Never…. Never….. Never Use Of Water
24
Never Use Water – Use Aluminized PPE with SCBA..use Dry Chemical Fire extinguisher until Leak is isolated or purged with Oil back to the Iso- Container
