1. Electric Bus Management System
Project Proposal
William Chow, Amer Al-Mousa, Osama Mohammed

2. Electric Bus Management System
Project Overview
Managerial Process Plans
Technical Process
Questions

3. Project Overview Problem Outline Purpose, Scope, and Objectives
Constraints
Project Deliverables

4. Problem Outline
Public transportation faces problems with pollution and high fuel prices.
Currently no electric bus made by any North American manufacturer.

5. Purpose
The purpose of this project is to provide a flexible control system.
The system will provide an easy interface to add new electrical hardware.
Provide a GUI for the control system.

6. Scope
The scope of this project is only to provide a software control system.
The software control system will also be modular, so future software engineer students may add more features.

7. Objective
Provide a software foundation for later software engineering students to build upon.
Provide a working software control system for the electrical hardware supplied.

8. Constraints
The major Constraint is with how much hardware Electrodynamics is supplying.
No battery provided at this point.

9. Project Deliverables Deliverable Due Date Project Proposal October 9th
Project Proposal Presentation
October 16th
Progress Report
January 8th
Progress Report Presentation
January 15th
Final Report Draft
March 15th
Final Report
March 29th
Final Presentation
April 7th

10. Managerial Process Plans
Start-up Plan
Estimation Plan
Staffing Plan
Resource Acquisition Plan
Project Staff Training Plan
Work Plan
Deliverables (Work Activities)
Schedule Allocation
Control Plan
Requirement Control Plan
Schedule Control Plan
Quality Control Plan
Reporting Plan

11. Start-up Plan Estimation Plan:
Formal techniques and tools will be used estimate, track and evaluate the progress of the project (Rational Team Concert) RTC
Top-down approach is used to identify deliverables, sub-deliverables, up to the task level
Deliverables are grouped into a Work Breakdown Structure WBS
Tasks are implemented in a time-boxed iterations-sprint (2-4 weeks)
The progress of each task and its work package is tracked using automated project management tools

12. Start-up Plan - (Cont.) Staffing Plan: Resource Acquisition Plan:
Three of us should contribute equally into the project, and would be available for the whole duration of the project
Resource Acquisition Plan:
Any required resources, such as hardware, software, documentations, and any other type of resources, should be supplied by the client
Project Staff Training Plan:
Educational sessions

13. Work Plan Deliverables (Work Activities): The Documentations
The Software development Documentations
The Product Documentations
The GUI sub-systems
The Admin UI
The Dashboard UI
The Central Management System (CMS)
Helper Systems
Microcontrollers
Microcontroller to control motor
Microcontroller to simulate driver

14. Work Plan (Cont.)
Initial WBS

15. Work Plan – (Cont.)
Schedule Allocation:

16. Control Plan Requirement Control Plan Schedule Control Plan
We do not expect many changes in the requirements
Changes are classified as a minor, or major changes
Risks to be highlighted at the very beginning
Schedule Control Plan
Some of the deliverables have a fixed due dates and it should be respected
Tasks are sized and implemented in their assigned sprints, otherwise remaining work is carried over to next sprint as a technical debt
Planning tasks in short sprint is usually accurate

17. Control Plan – (Cont.) Quality Control Plan Reporting Plan
The over all system undergoes different type of verifications tests
Every component has a Functional Verification Test Plan – FVT
Design reviews, Test Plan reviews, and Code reviews
Reporting Plan
Tasks are placed in the sprint backlog, then assigned to team members
Team members report their progress of their individual backlogs
Automated tools are used for compute the sprint progress, and the over all progress

18. Technical Process Electric Bus Management System (EBMS)
Technical System Overview
Tools and Programming Language
Process Model

19. EBMS
The Electric Bus Management System (EBMS) is a system designed to control electrical devices or systems of an electric bus or vehicle

20. EBMS Components EBMS composed of several subsystems
2 Different Software Systems
Central Management System (CMS)
GUI (Dashboard, Admin UI)
2 Microcontrollers
Microcontroller to control Electric Motor
Microcontroller to interface with a Mechanical Device used to simulate a bus driver

21. Devices Interacting with EBMS
Electric Motor (EBMS should be able to interact with any electrical device that can part of an electric bus)
Mechanical Device that issues commands simulating a bus driver

22. GUI
2 displays
Admin UI: simple console-like (Console Display) display to make it easy to add components to the system and print messages
Dashboard UI: Resembles the Dashboard of a car

23. CMS Central component of the EBMS Updates Dashboard Display
Sends commands to electrical devices (through a microcontroller)
Receives commands from the driver simulator
Responds to commands issued through Admin UI

24. Microcontrollers
They are programmable chips that are used to interact with electrical devices
Device Specific
CMS uses functions programmed into a microcontroller to communicate with an electrical device hooked up to the microcontroller.

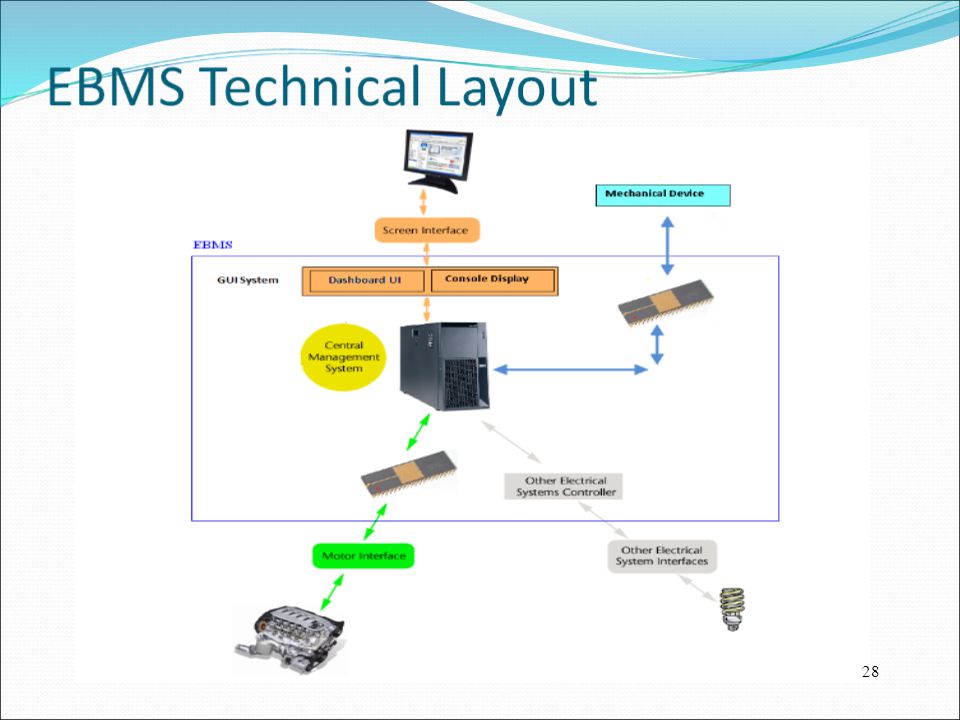

26. EBMS Communications

27.               Black Arrow: Function Call
              Blue Arrow: Response Message

29. Iterative & Incremental Life Cycle Model

30. Tools and Programming Languages

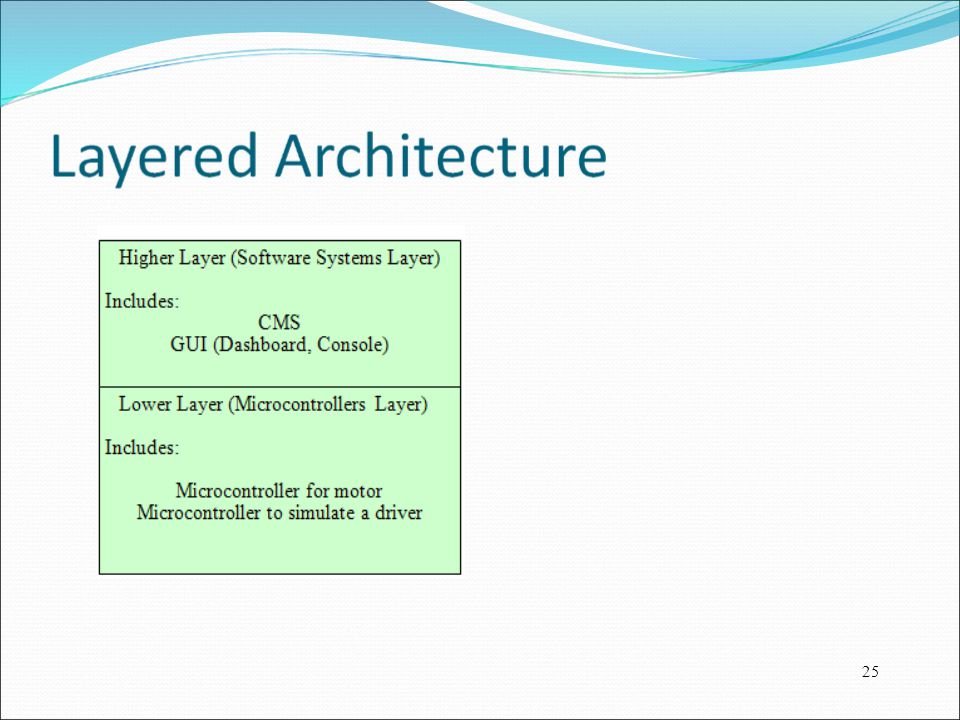

IDE used to help with programming lower layer (microcontrollers)
Programming Languages
Lower Layer: C
Higher Layer: C++, Java, or C Sharp
Hardware
2 microcontroller (for the electric motor and for simulating a driver)
Server Machine – install CMS & GUI on it (or virtual server)
Electric motor
Network Protocol (to communicate with microcontrollers)
