Closed-Loop System

2
**Closed-Loop Control System**

4
**Amplifier with Feedback**

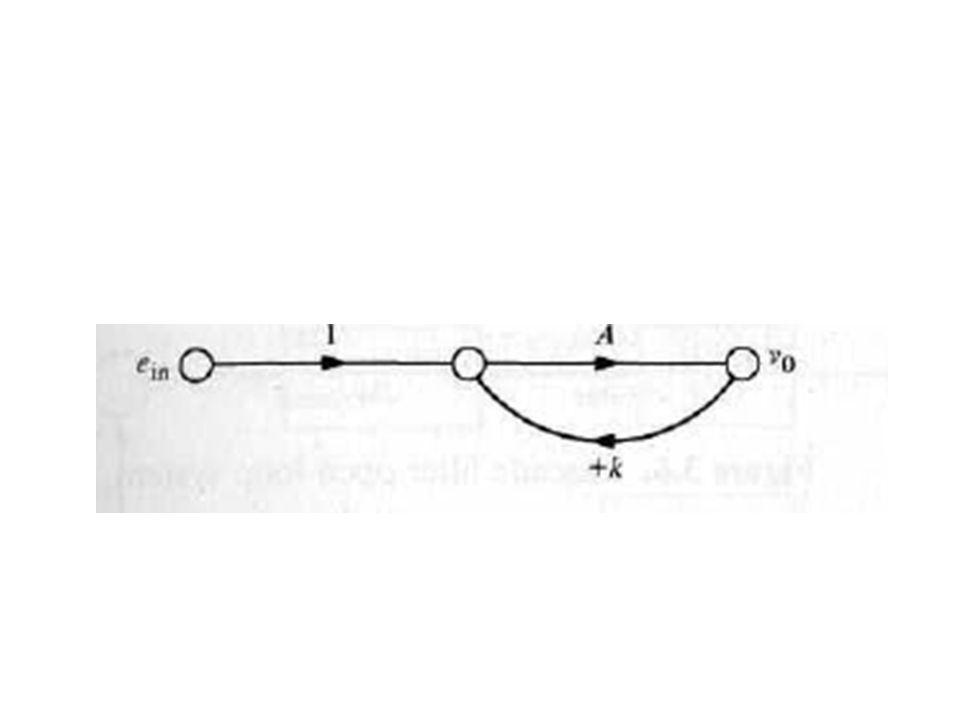

Open-Loop Amplifier Amplifier with Feedback

5
**Block diagram model of feedback amplifier assuming Rp>>R0 of the amplifier.**

14
**Transient Response of Control Systems**

15
**Open-loop speed control system (without feedback).**

16
**Closed-loop speed control system.**

(b) Transistorized closed-loop speed control system.

19
The response of the open-loop and closed-loop speed control system when τ 5 10 and K1. Ka. Kt =100. The time to reach 98% of the final value for the open-loop and closed- loop system is 40 seconds and 0.4 second,respectively.

20
**Disturbance in Feedback Control System**

21
Steel rolling mill.

22

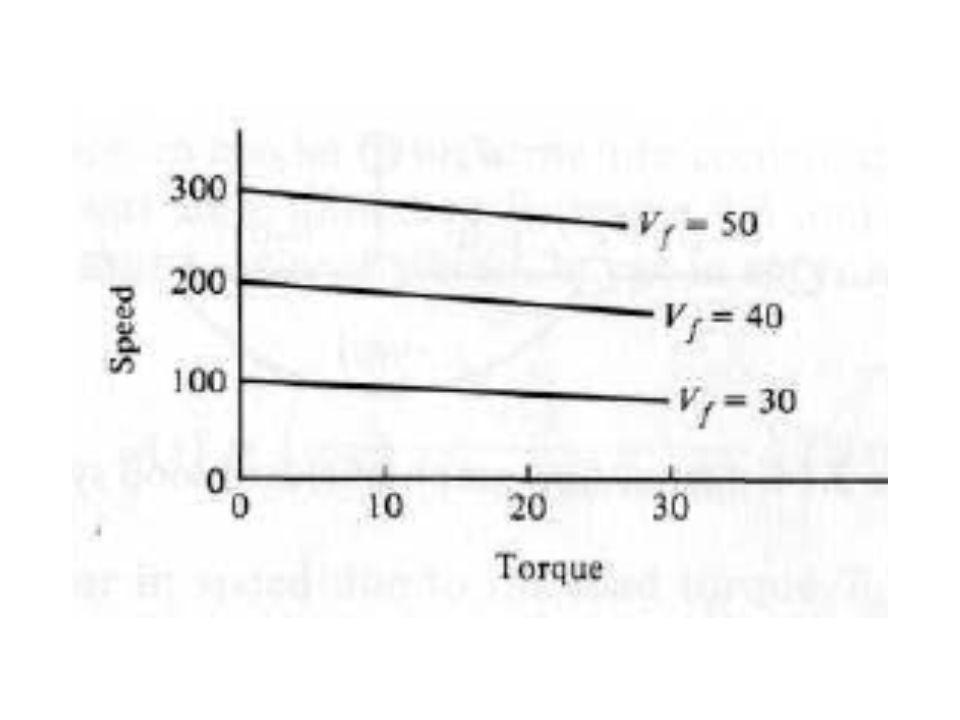

**Open-loop speed control system (without external feedback).**

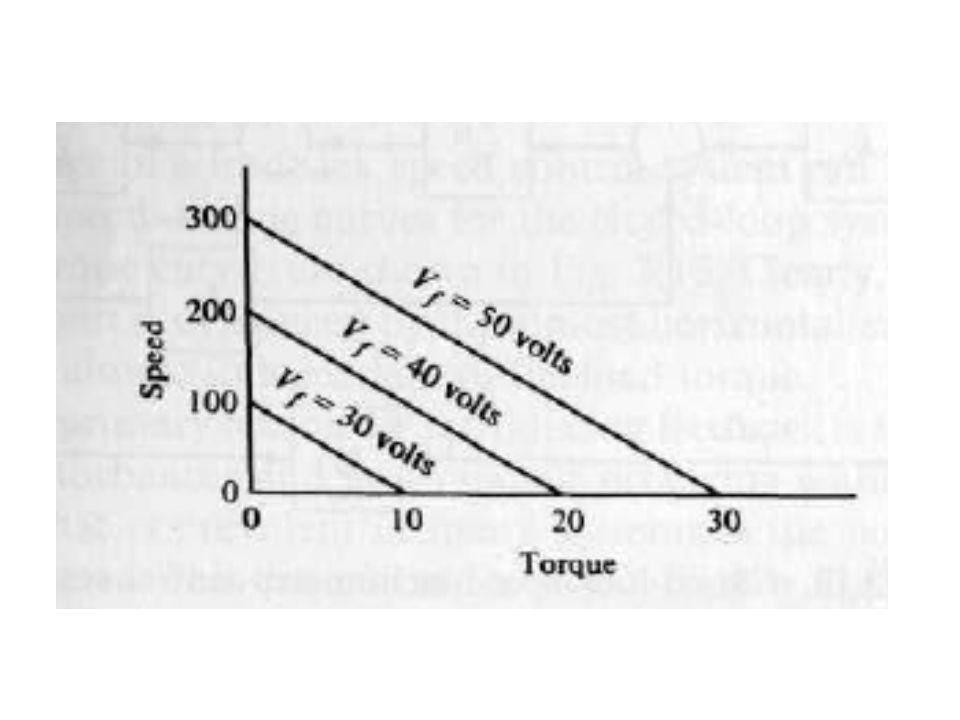

24
**Closed-loop speed tachometer control system**

25

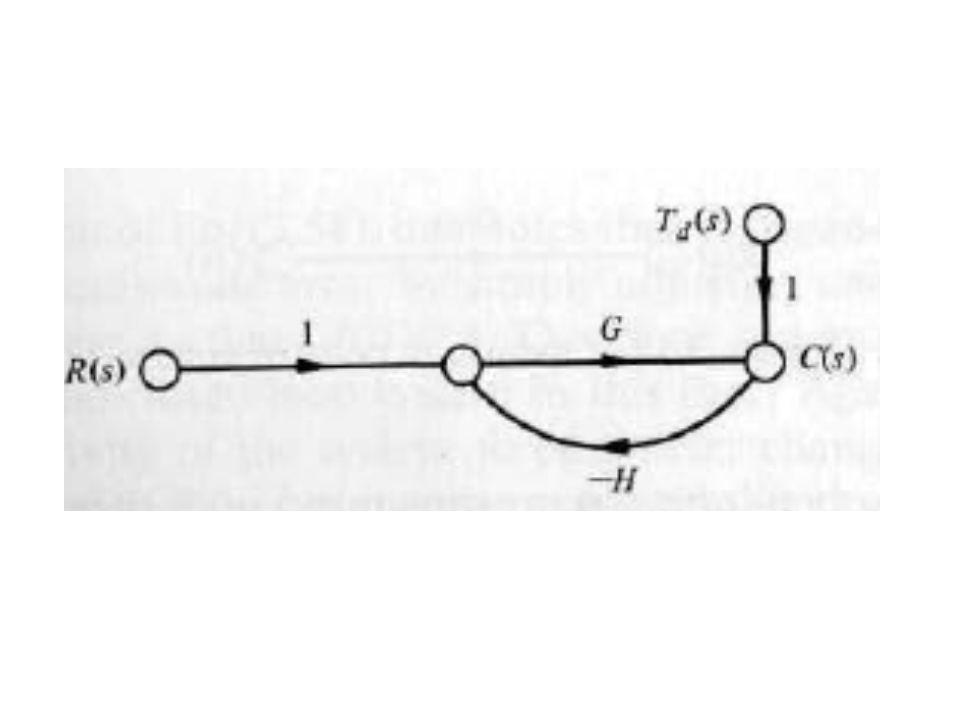

**Closed-loop system. (a) Block diagram model.**

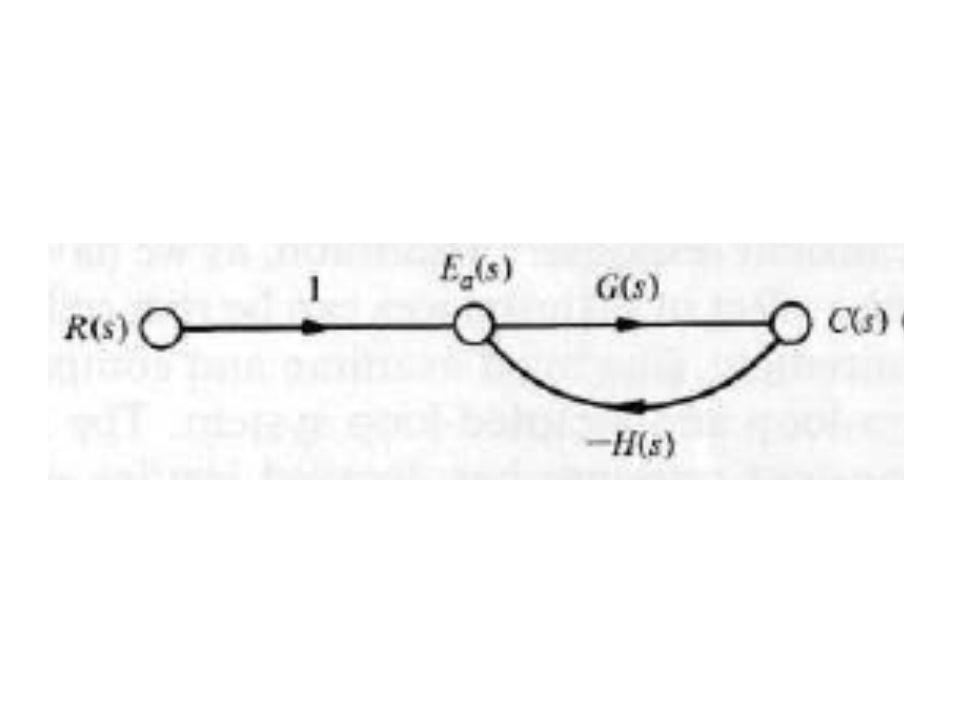

(b) Signal-flow graph model.

27
**Closed-loop control system with measurement noise.**

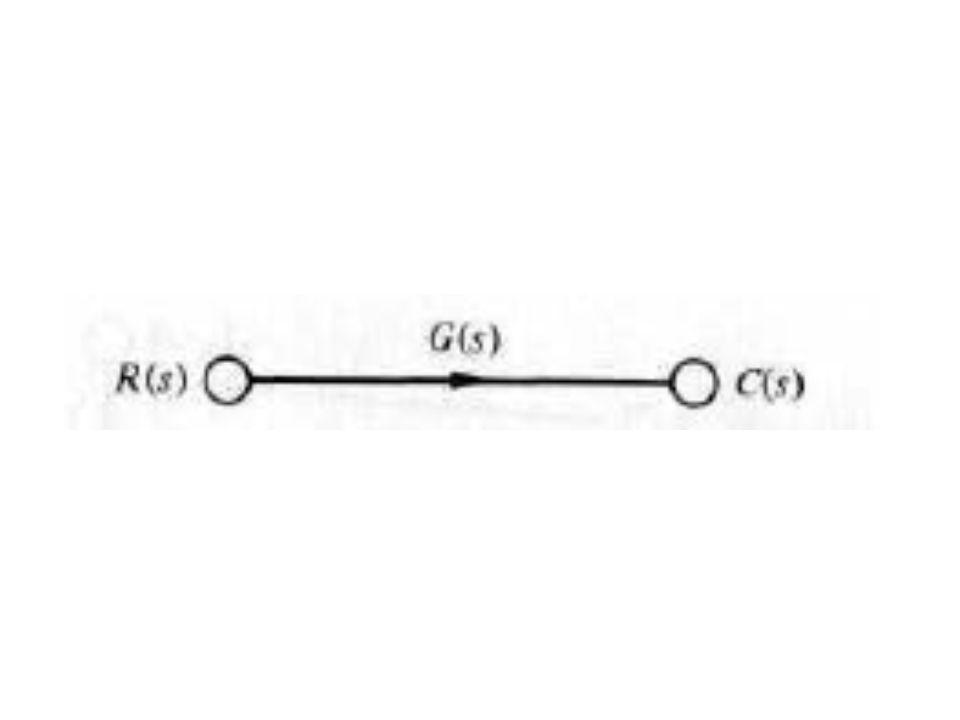

31
**A block diagram model of a boring machine control system**

32
**The response y(t) to (a) a unit input step r(t) and **

(b) a unit disturbance step input D(s) 5 1/s for K=100.

33
The response y(t) for a unit step input (solid line) and for a unit step disturbance (dashed line) for K=20.

34
The solar-powered Mars rover,named Sojourner,landed on Mars on July 4,1997 andwas deployed on its journey on July 5,1997. The 23-pound rover is controlled by anoperator on Earth using controls on the rover [21,22]. (Photo courtesy of NASA.)

35
Control system for rover; (a) open-loop (without feedback) and (b) closed-loop with feedback. The input is R(s)=1/s.

36
**The magnitude of the sensitivity of the closed-loop system for the Mars rover vehicle.**

37
**Control system for disk drive head reader.**

38
**Disk drive head control system with the typical parameters of Table 2**

39
Closed-loop response. MATLABscript. (b) Step response for Ka=10 and Ka=80.

40
**Disturbance step response. (a) MATLABscript. **

(b) Disturbance response for Ka=80.

41

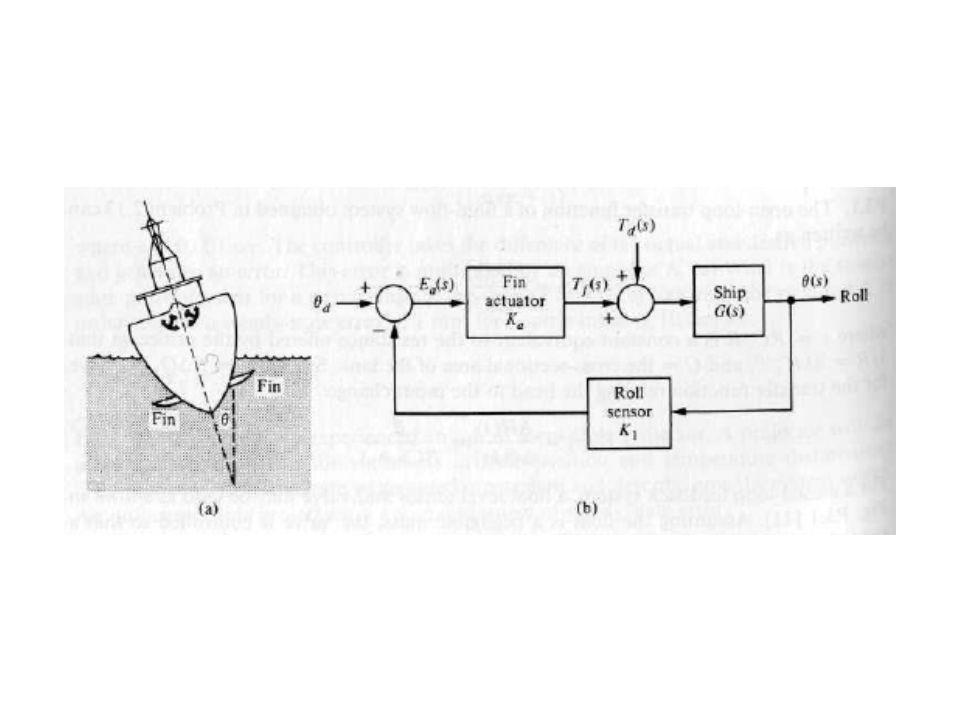

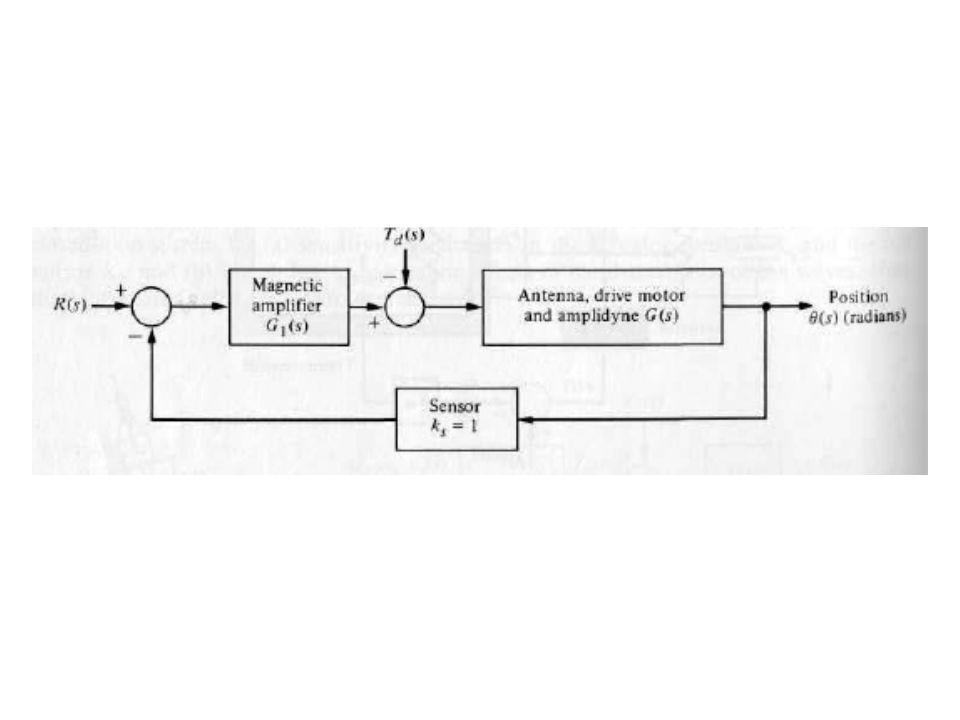

**A single-loop feedback control system. **

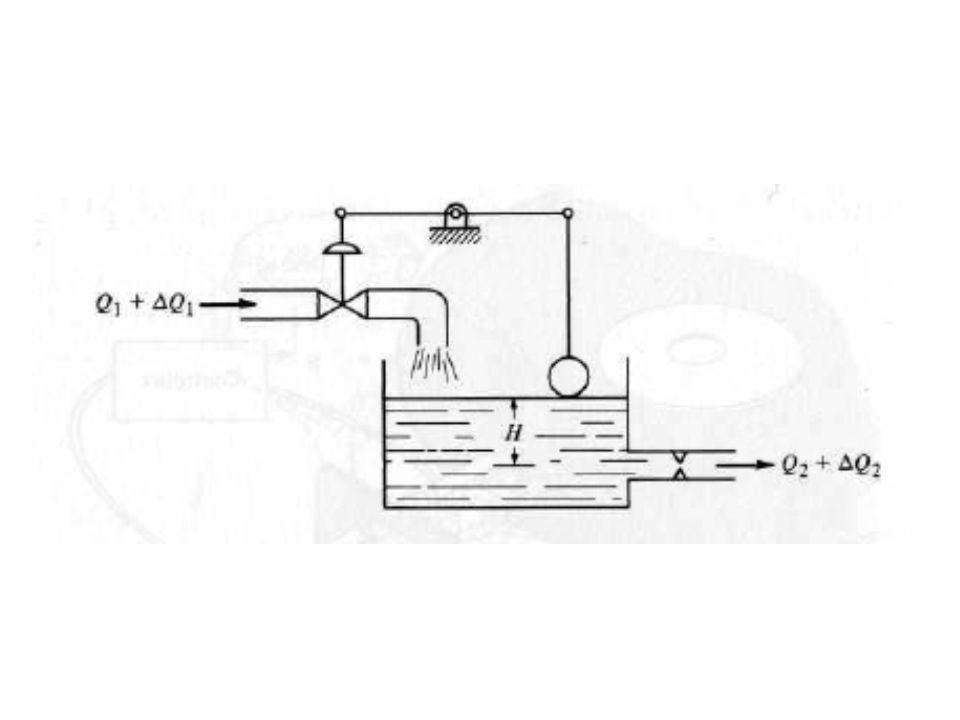

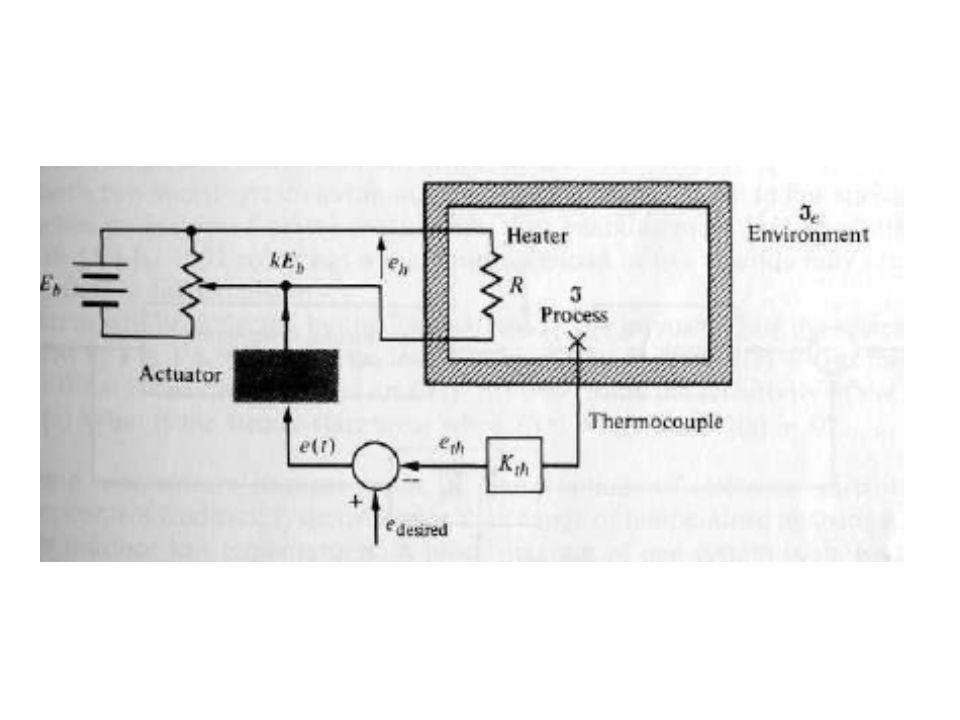

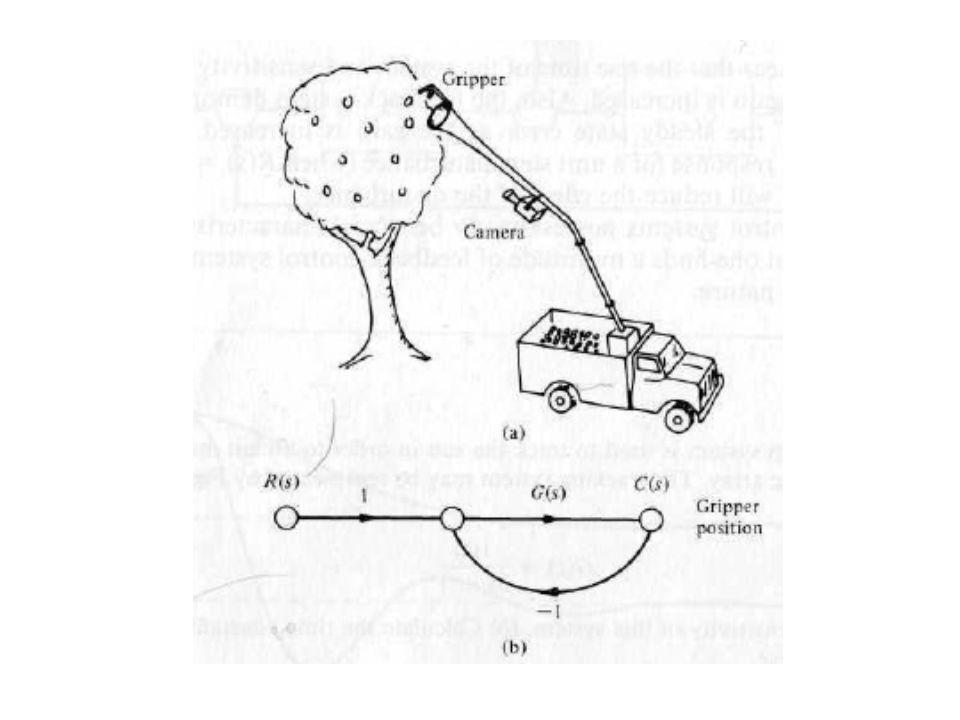

(b) The error response for a unit step disturbance when R(s) 0
