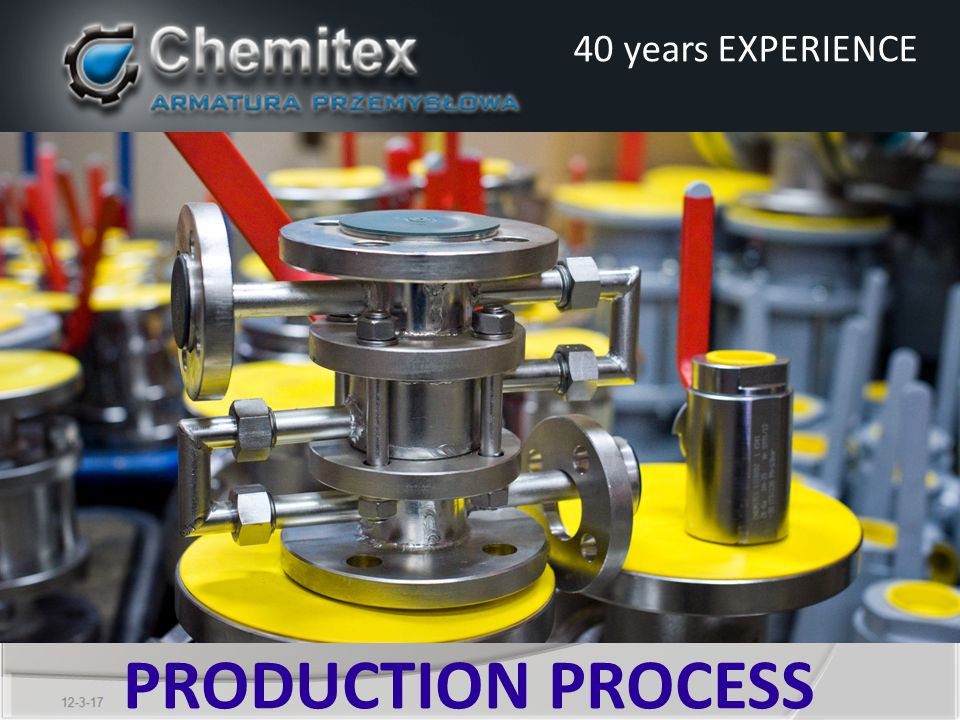

1 PRODUCTION PROCESS 40 years EXPERIENCE

2 - established in headquarter: Sieradz central Poland - central location in Europe The company Chemitex 40 years EXPERIENCE

3 Field of activity: steel ball valves (stainless steel and carbon), performed in connection: flanged, threaded and welding Sights and sights vanes Producing of spare parts in accordance with customer's construction Sale pneumatic and electric actuators with its accessories The company's activity 40 years EXPERIENCE

4 We can produce valves from all kinds of steel. Mainly we use: Carbon steel f.eg.: - P355 NH - P355NL1 - S355J2 stainless steel f.eg.: - Hastelloy (C-22), (1H18N9T, AISI 321) (0H18N9, AISI 304) (00H22N24M4TCu, AISI 904) Used materials 40 years EXPERIENCE

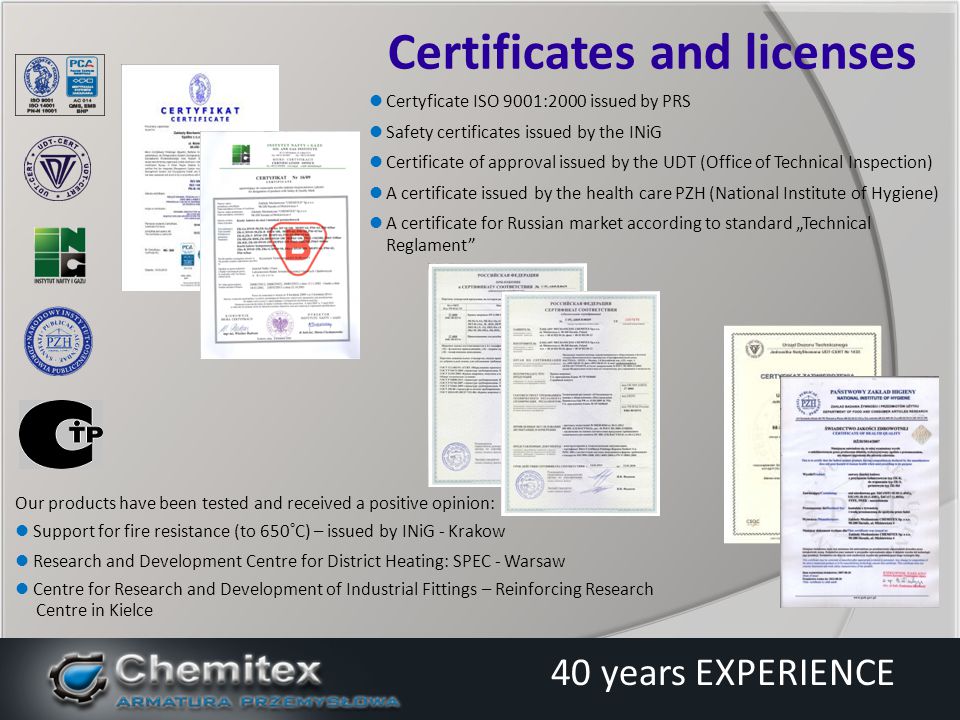

5 Our products have been tested and received a positive opinion: Support for fire resistance (to 650°C) – issued by INiG - Krakow Research and Development Centre for District Heating: SPEC - Warsaw Centre for Research and Development of Industrial Fittings – Reinforcing Research Centre in Kielce Certificates and licenses Certyficate ISO 9001:2000 issued by PRS Safety certificates issued by the INiG Certificate of approval issued by the UDT (Office of Technical Inspection) A certificate issued by the health care PZH (National Institute of Hygiene) A certificate for Russian market according to standard Technical Reglament 40 years EXPERIENCE

6 Industry petrochemical mining shipbuilding oil heating chemicalgas 40 years EXPERIENCE

7 Technology department receives information about the media, temperature and operating pressure. Based on this information the type of valve is selected with the relevant valve seals. design process 40 years EXPERIENCE

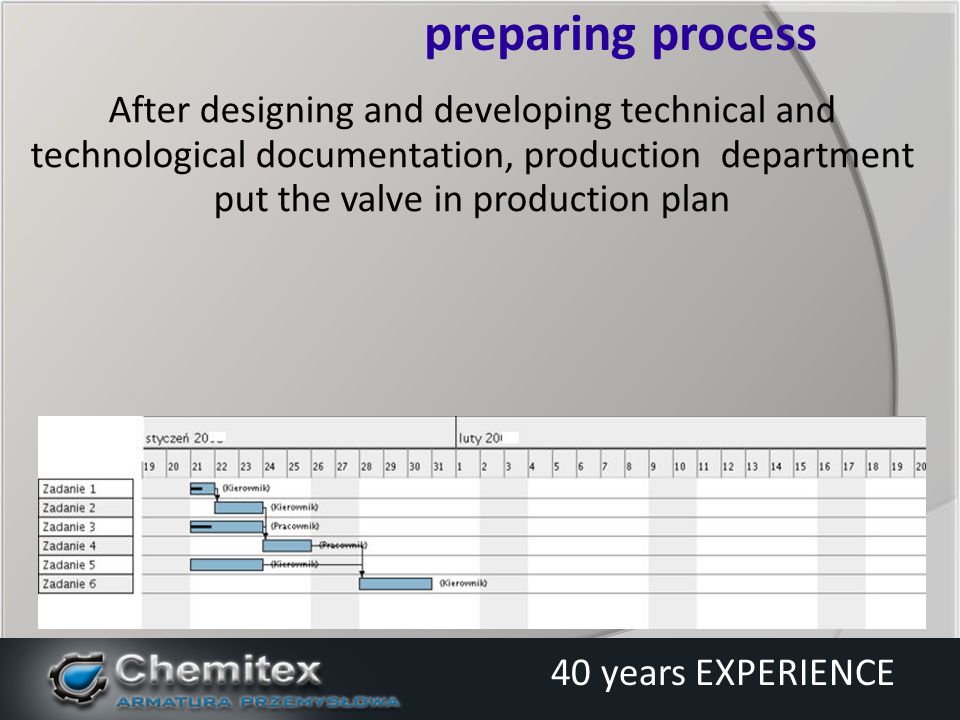

8 After designing and developing technical and technological documentation, production department put the valve in production plan preparing process 40 years EXPERIENCE

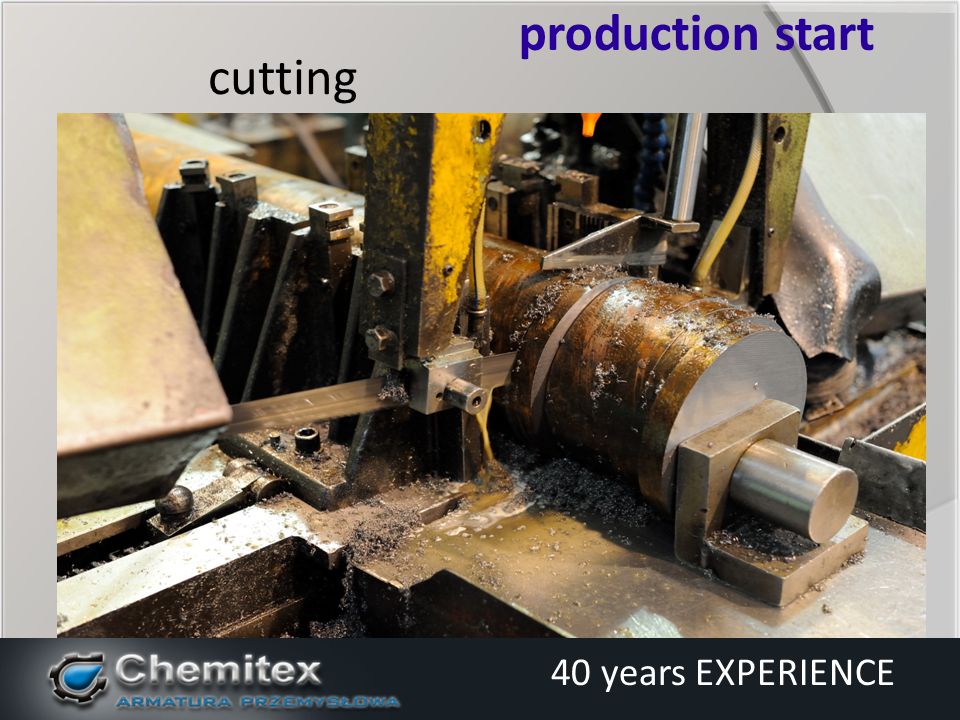

9 cutting production start 40 years EXPERIENCE

10 CNC treatment... production 40 years EXPERIENCE

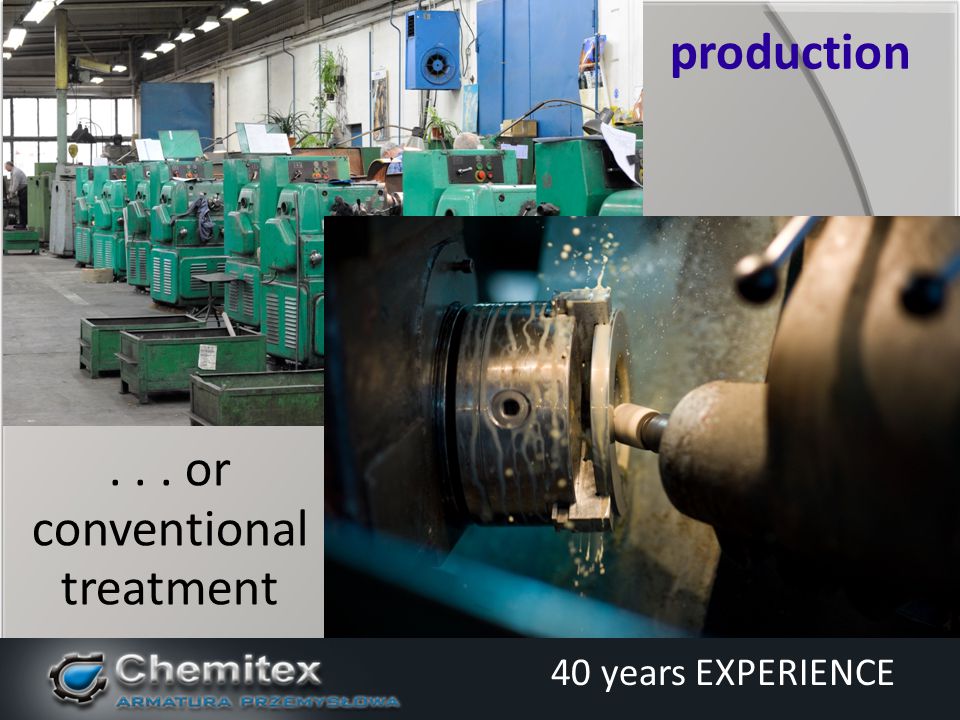

11 ... or conventional treatment production 40 years EXPERIENCE

12 welding details production 40 years EXPERIENCE

13 Hardening (1200 C) production 40 years EXPERIENCE

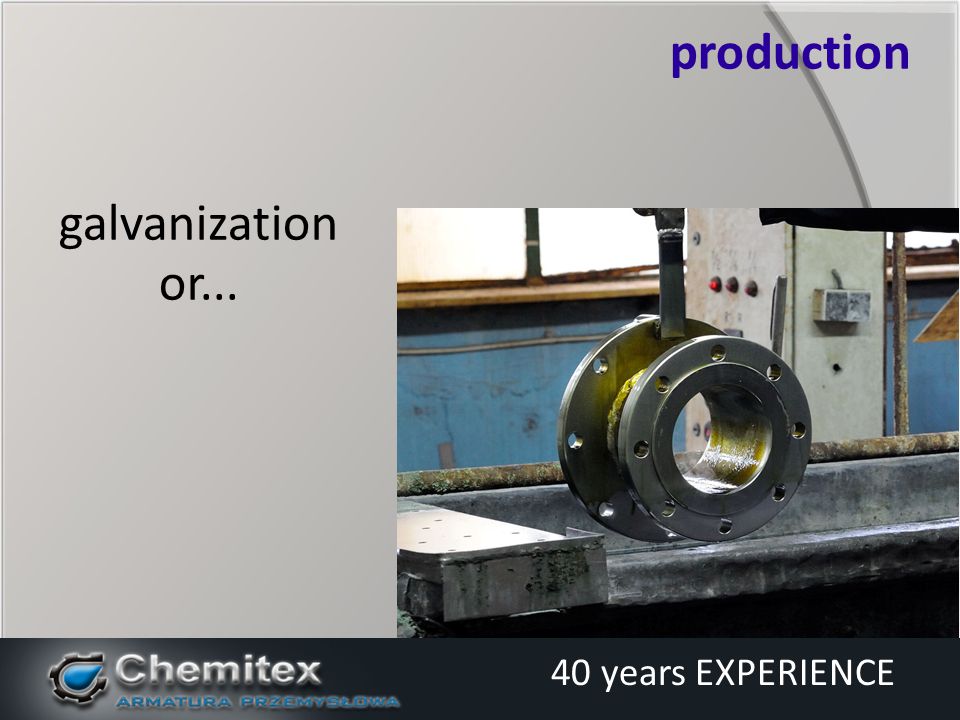

14 galvanization or... production 40 years EXPERIENCE

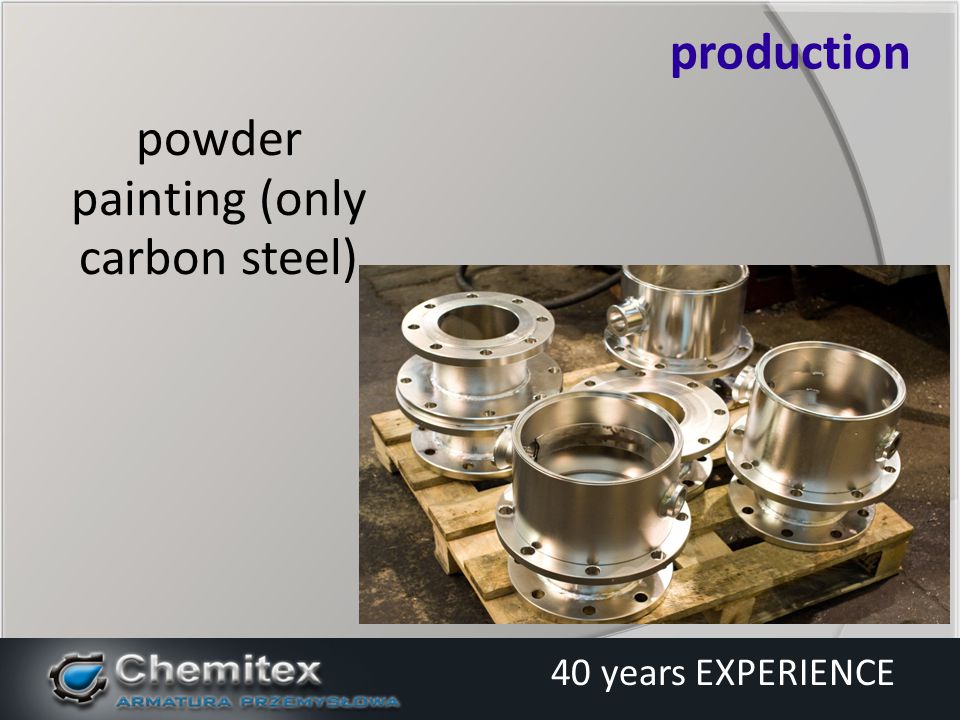

15 powder painting (only carbon steel) production 40 years EXPERIENCE

16 details during powder coating production 40 years EXPERIENCE

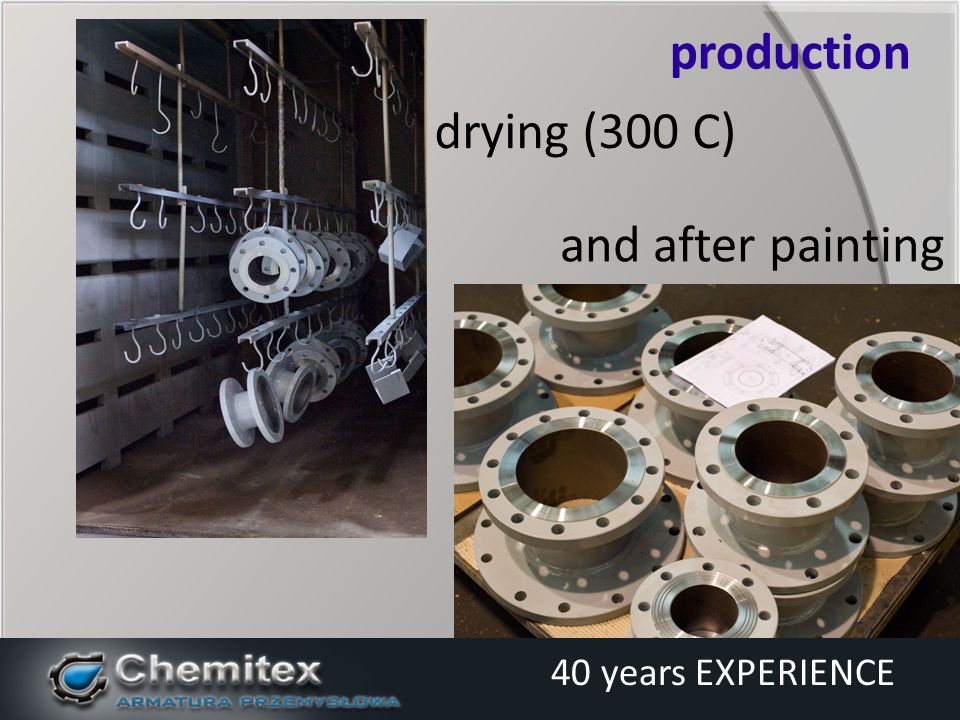

17 and after painting production 40 years EXPERIENCE drying (300 C)

18 Details prepared for assembling production 40 years EXPERIENCE

19 Leakage test by air, argon, helium or liquid production 40 years EXPERIENCE

20 packaging and shipment or years EXPERIENCE

21 packaging and shipment or years EXPERIENCE

22 … or storage 40 years EXPERIENCE

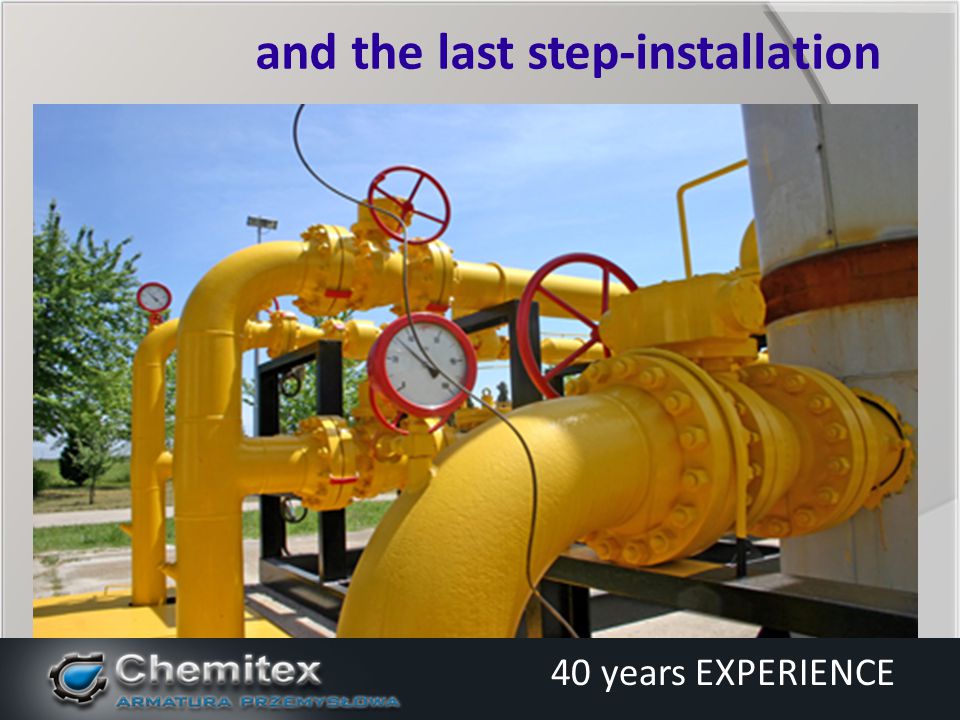

23 and the last step-installation 40 years EXPERIENCE

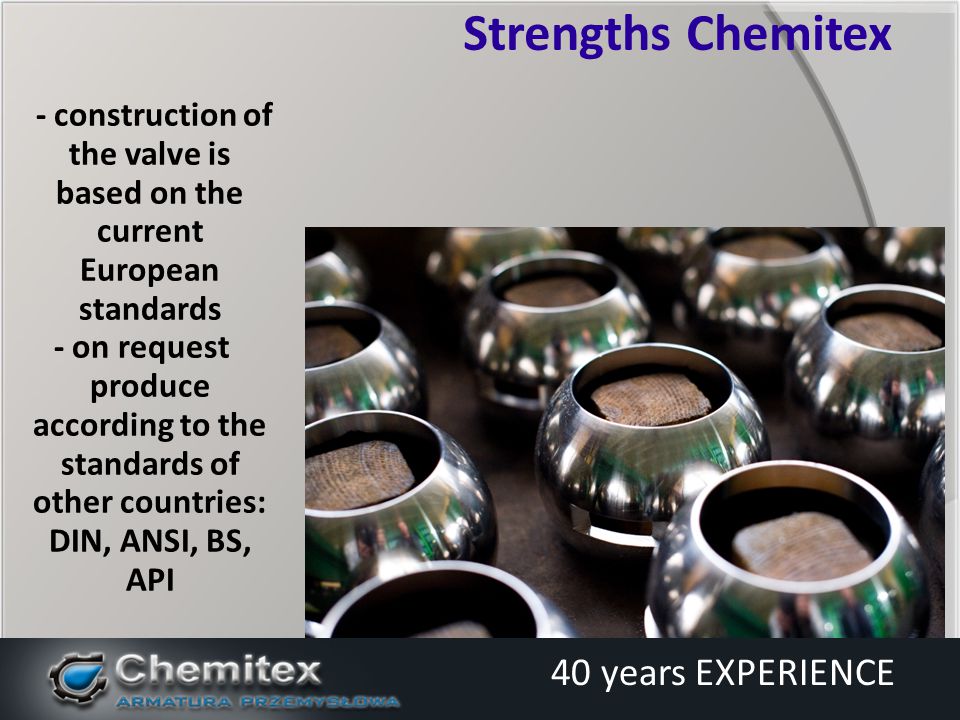

24 - construction of the valve is based on the current European standards - on request produce according to the standards of other countries: DIN, ANSI, BS, API Strengths Chemitex 40 years EXPERIENCE

25 manufacture valves according to individual requirements f.eg: other face to face lenght, bore flanges, handles elevation, etc). Strengths Chemitex 40 years EXPERIENCE

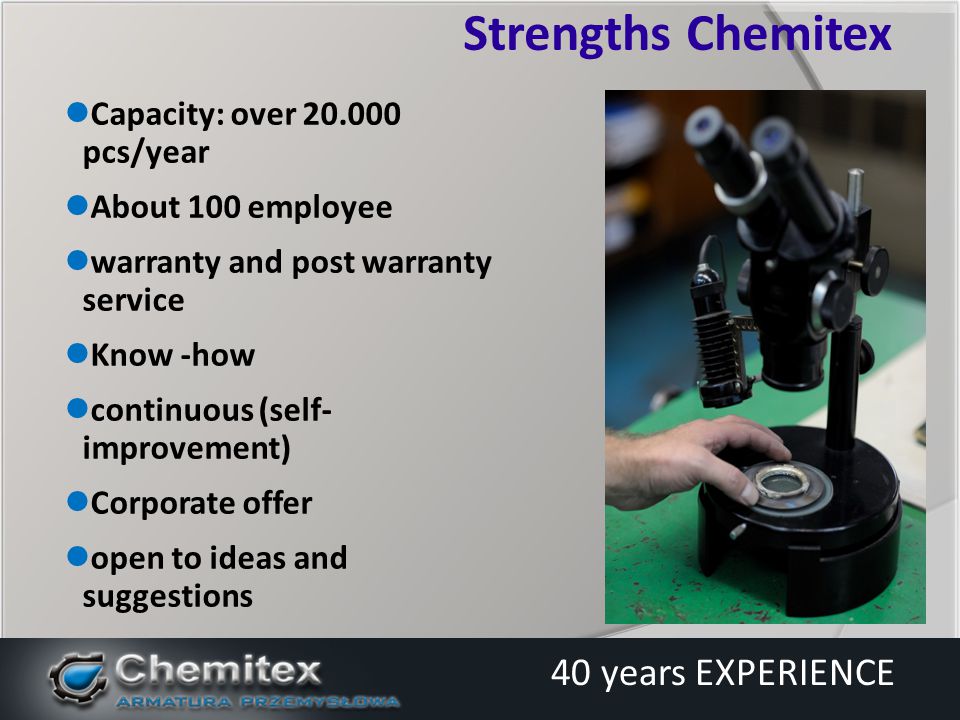

26 Capacity: over pcs/year About 100 employee warranty and post warranty service Know -how continuous (self- improvement) Corporate offer open to ideas and suggestions Strengths Chemitex 40 years EXPERIENCE

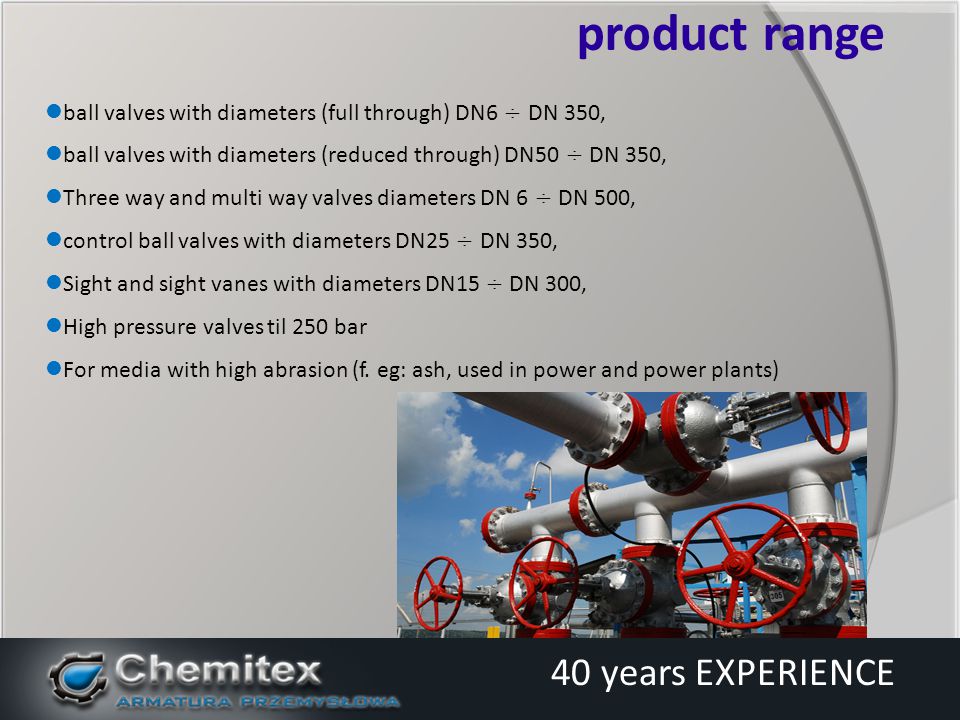

27 ball valves with diameters (full through) DN6 ÷ DN 350, ball valves with diameters (reduced through) DN50 ÷ DN 350, Three way and multi way valves diameters DN 6 ÷ DN 500, control ball valves with diameters DN25 ÷ DN 350, Sight and sight vanes with diameters DN15 ÷ DN 300, High pressure valves til 250 bar For media with high abrasion (f. eg: ash, used in power and power plants) product range 40 years EXPERIENCE

28 Thank you for your attention look forward to cooperation !!! 40 years EXPERIENCE
