1 1 SQL Best Coding Practice in PeopleTools 7.x David Kurtz Go-Faster Consultancy Ltd.

2 2 Who are you? Familiar with SQL not necessarily the DBA Might be –Application developer –Team Leader

3 3 So Where is all the SQL? Views Scrollxxx() PeopleCode SQLExec() PeopleCode Mass Change Application Engine PS/Query / Crystal SQR Stored Statements

4 4 Views

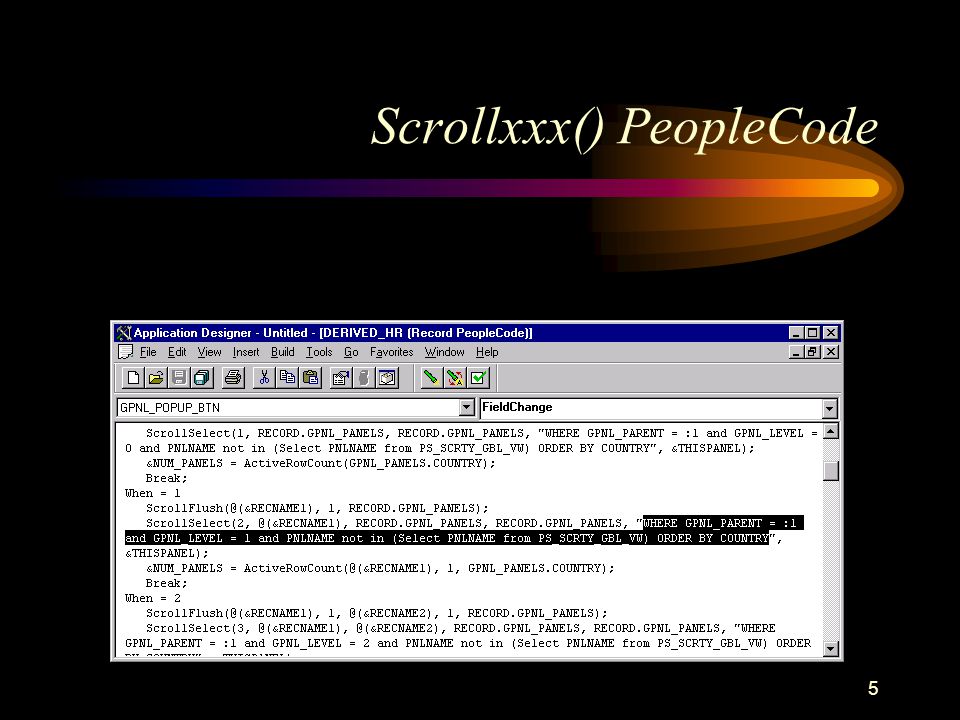

5 5 Scrollxxx() PeopleCode

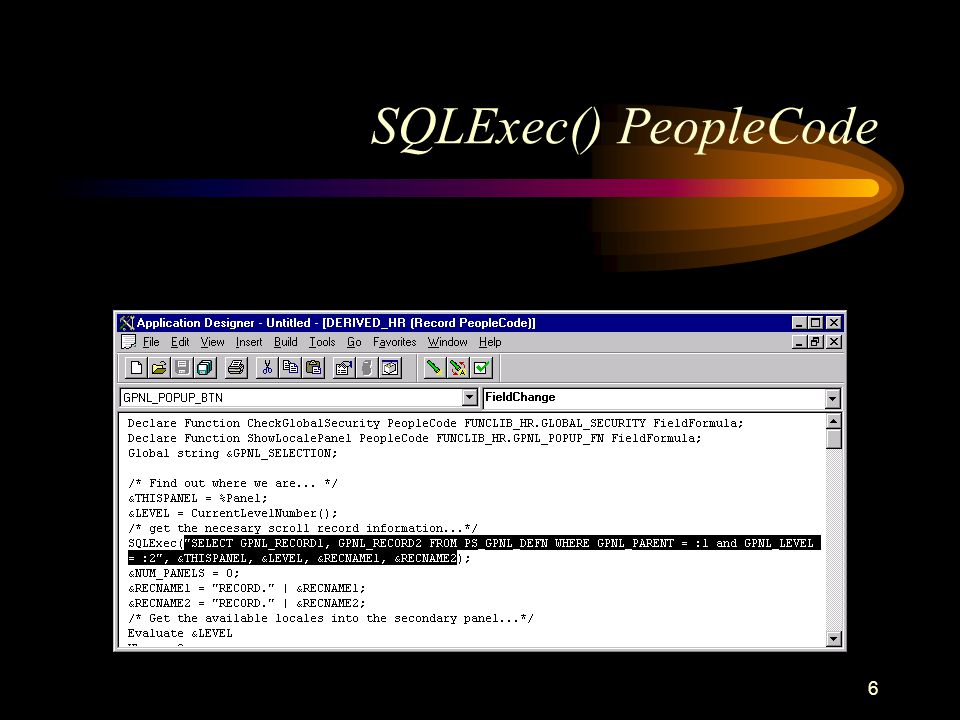

6 6 SQLExec() PeopleCode

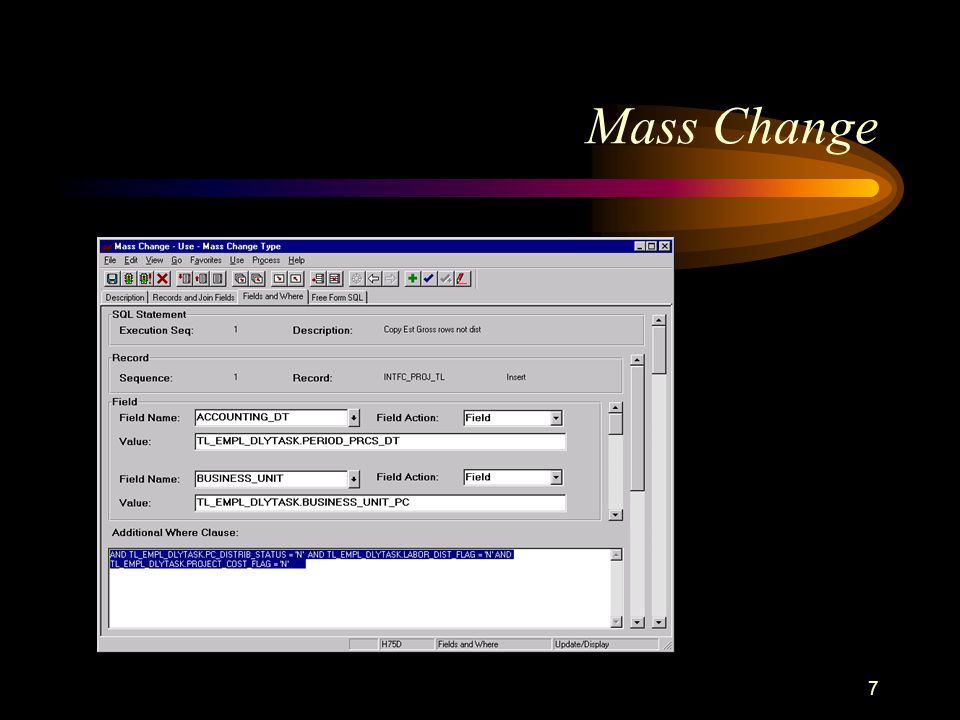

7 7 Mass Change

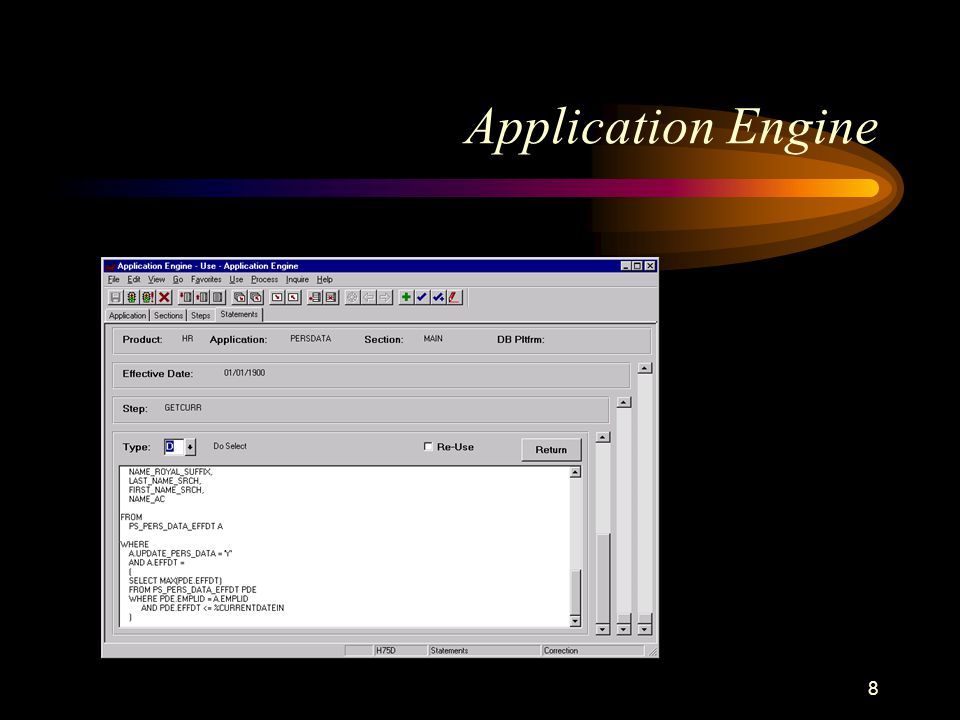

8 8 Application Engine

9 9 PS/Query / Crystal

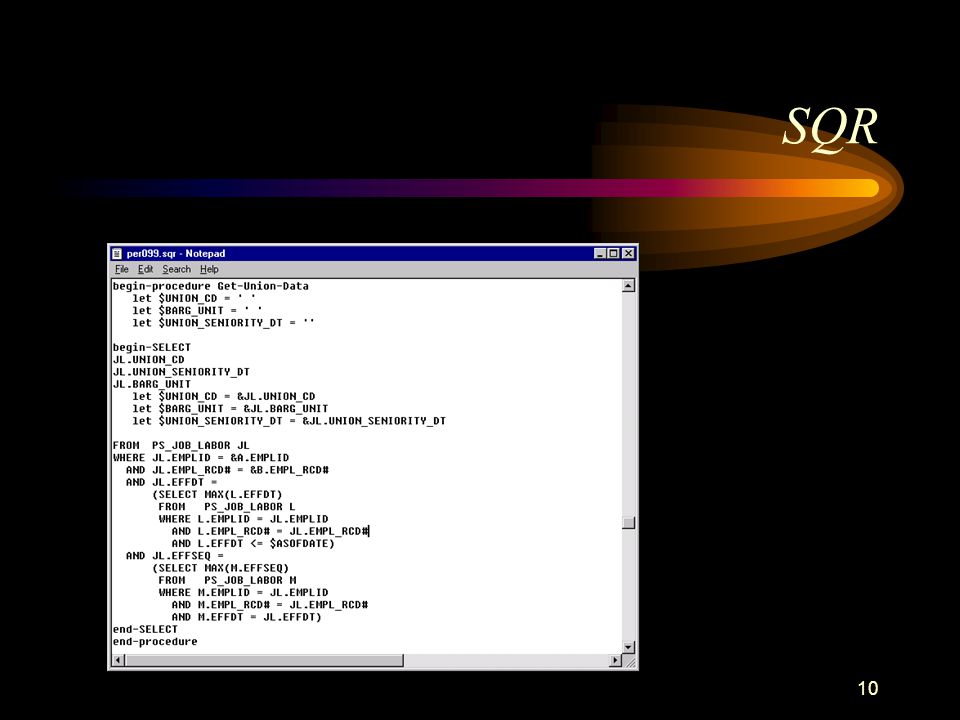

10 10 SQR

11 11 Stored Statements

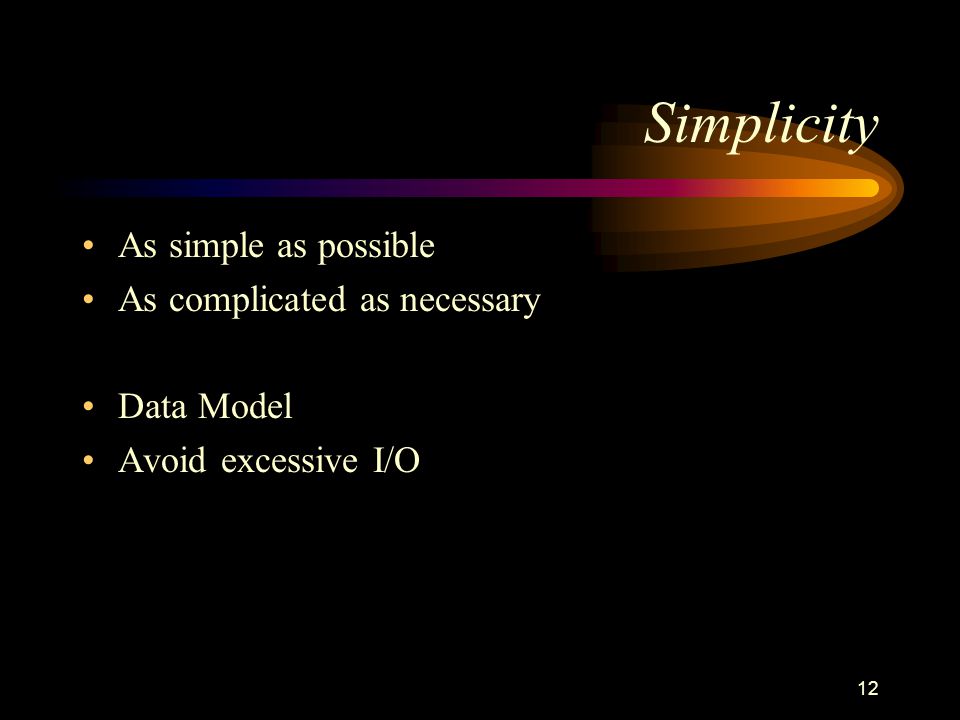

12 12 Simplicity As simple as possible As complicated as necessary Data Model Avoid excessive I/O

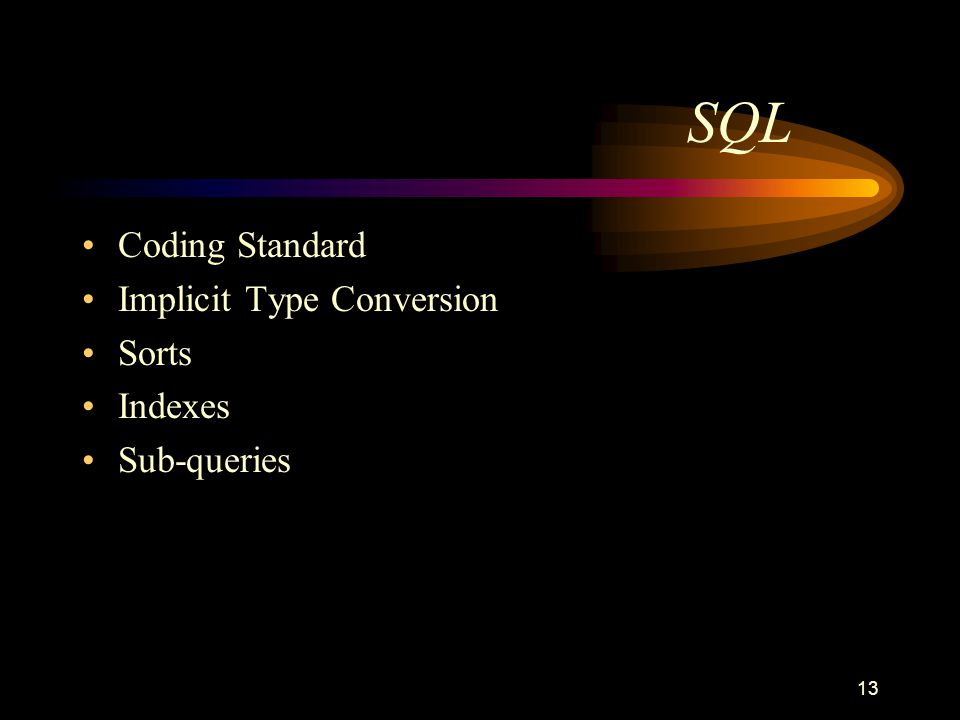

13 13 SQL Coding Standard Implicit Type Conversion Sorts Indexes Sub-queries

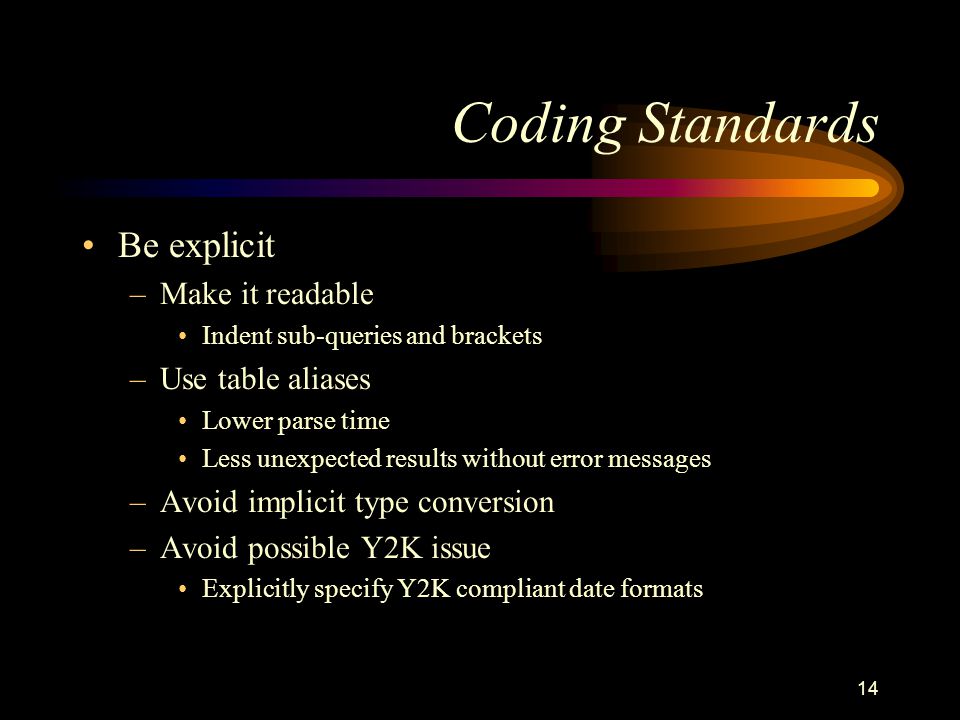

14 14 Coding Standards Be explicit –Make it readable Indent sub-queries and brackets –Use table aliases Lower parse time Less unexpected results without error messages –Avoid implicit type conversion –Avoid possible Y2K issue Explicitly specify Y2K compliant date formats

15 15 Readability CREATE TABLE PS_GEN_JOB_TBL(...) AS SELECT DISTINCT... FROM PS_PERSONAL_DATA A, PS_JOB B, PS_PERS_NID ND, PS_NID_TYPE_TBL NDT WHERE A.EMPLID=B.EMPLID ANDA.EMPLID=ND.EMPLID ANDB.EMPLID=ND.EMPLID ANDND.NATIONAL_ID_TYPE=NDT.NATIONAL_ID_TYPE AND (B.EFFDT>=%CURRENTDATEIN OR (B.EFFDT=(SELECTMAX(B2.EFFDT) FROM PS_JOB B2 WHERE B2.EMPLID=B.EMPLID ANDB2.EMPL_RCD#=B.EMPL_RCD# AND B2.EFFDT<=%CURRENTDATEIN) ANDB.EFFSEQ=(SELECTMAX(B3.EFFSEQ) FROM PS_JOB B3 WHERE B3.EMPLID=B.EMPLID AND B3.EMPL_RCD#=B.EMPL_RCD# ANDB3.EFFDT=B.EFFDT)))

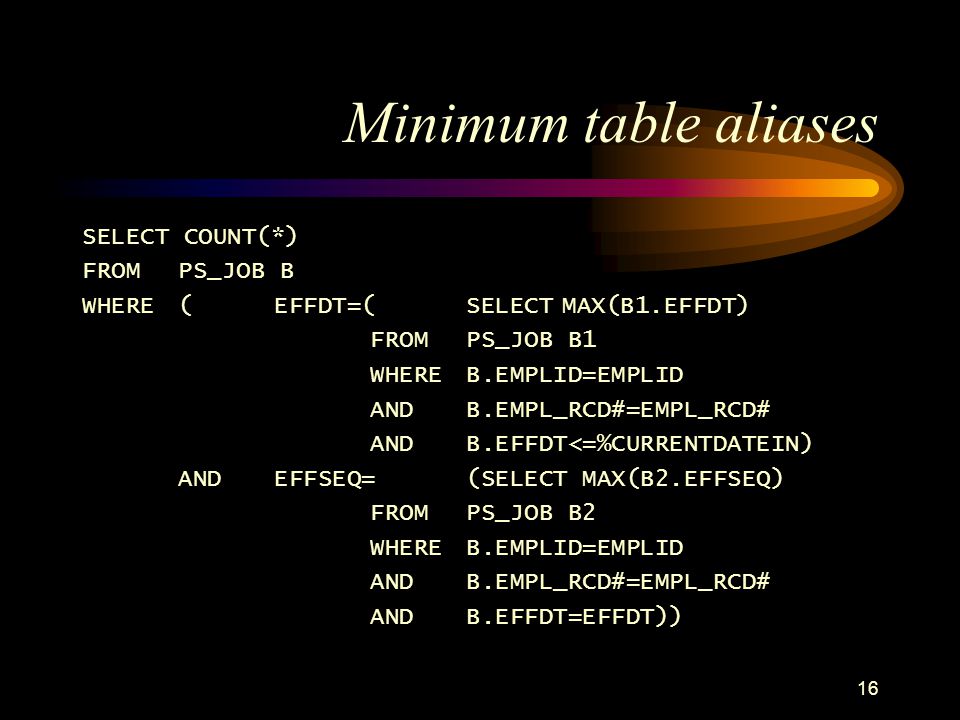

16 16 Minimum table aliases SELECT COUNT(*) FROM PS_JOB B WHERE (EFFDT=(SELECTMAX(B1.EFFDT) FROM PS_JOB B1 WHERE B.EMPLID=EMPLID ANDB.EMPL_RCD#=EMPL_RCD# AND B.EFFDT<=%CURRENTDATEIN) ANDEFFSEQ=(SELECT MAX(B2.EFFSEQ) FROM PS_JOB B2 WHERE B.EMPLID=EMPLID AND B.EMPL_RCD#=EMPL_RCD# ANDB.EFFDT=EFFDT))

17 17 Maximum table aliases SELECT COUNT(*) FROM PS_JOB B WHERE (B.EFFDT=(SELECTMAX(B1.EFFDT) FROM PS_JOB B1 WHERE B1.EMPLID=B.EMPLID ANDB1.EMPL_RCD#=B.EMPL_RCD# AND B1.EFFDT<=%CURRENTDATEIN) ANDB.EFFSEQ=(SELECT MAX(B2.EFFSEQ) FROM PS_JOB B2 WHERE B2.EMPLID=B.EMPLID AND B2.EMPL_RCD#=B.EMPL_RCD# ANDB2.EFFDT=B.EFFDT))

18 18 Wrong table alias SELECT COUNT(*) FROM PS_JOB B WHERE (EFFDT=(SELECTMAX(B1.EFFDT) FROM PS_JOB B1 WHERE B.EMPLID=EMPLID ANDB.EMPL_RCD#=EMPL_RCD# AND B.EFFDT<=%CURRENTDATEIN) ANDEFFSEQ=(SELECT MAX(B2.EFFSEQ) FROM PS_JOB B2 WHERE B2.EMPLID=EMPLID AND B2.EMPL_RCD#=EMPL_RCD# ANDB2.EFFDT=EFFDT))

19 19 Implicit Type Conversion SELECT * FROM PS_JOB WHERE EMPLID=8001 SELECT * FROM PS_JOB WHERE EMPLID=8001

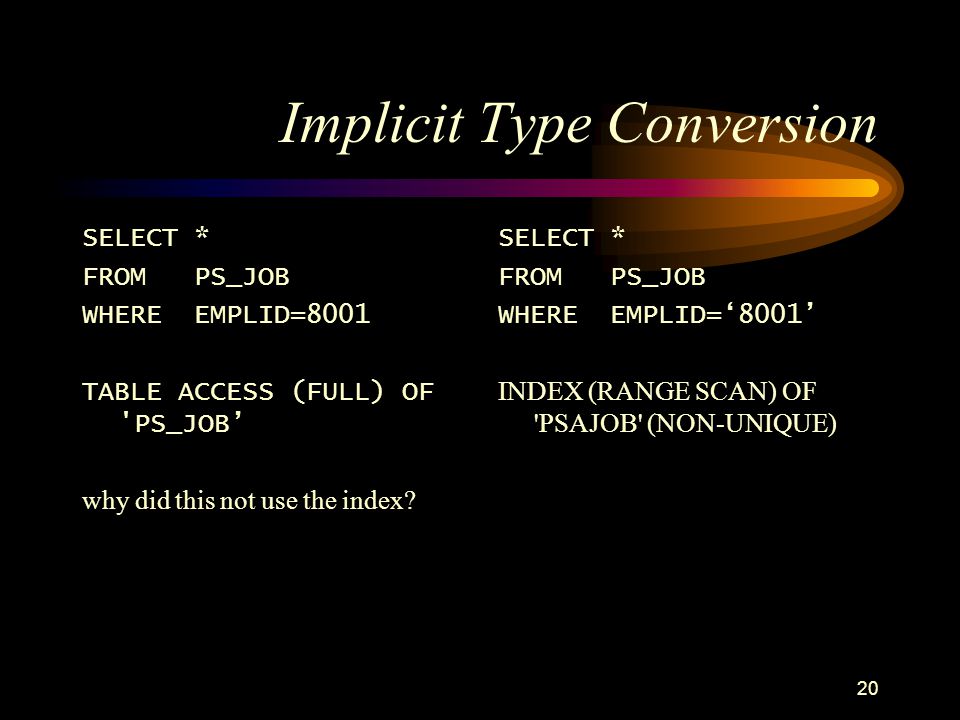

20 20 Implicit Type Conversion SELECT * FROM PS_JOB WHERE EMPLID=8001 TABLE ACCESS (FULL) OF 'PS_JOB why did this not use the index? SELECT * FROM PS_JOB WHERE EMPLID=8001 INDEX (RANGE SCAN) OF 'PSAJOB' (NON-UNIQUE)

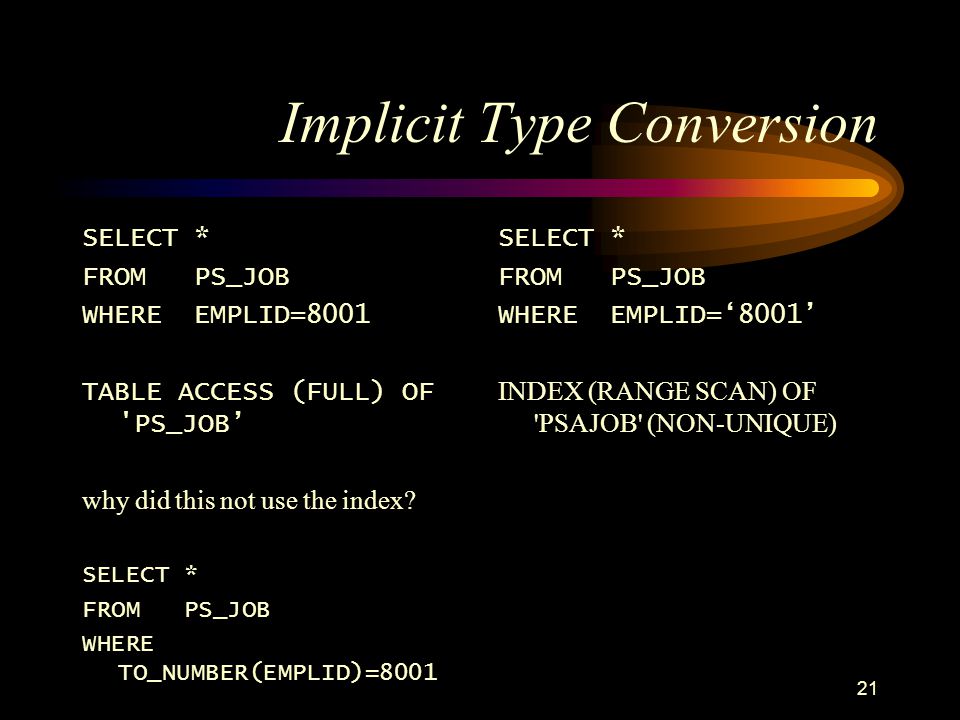

21 21 Implicit Type Conversion SELECT * FROM PS_JOB WHERE EMPLID=8001 TABLE ACCESS (FULL) OF 'PS_JOB why did this not use the index? SELECT * FROM PS_JOB WHERE TO_NUMBER(EMPLID)=8001 SELECT * FROM PS_JOB WHERE EMPLID=8001 INDEX (RANGE SCAN) OF 'PSAJOB' (NON-UNIQUE)

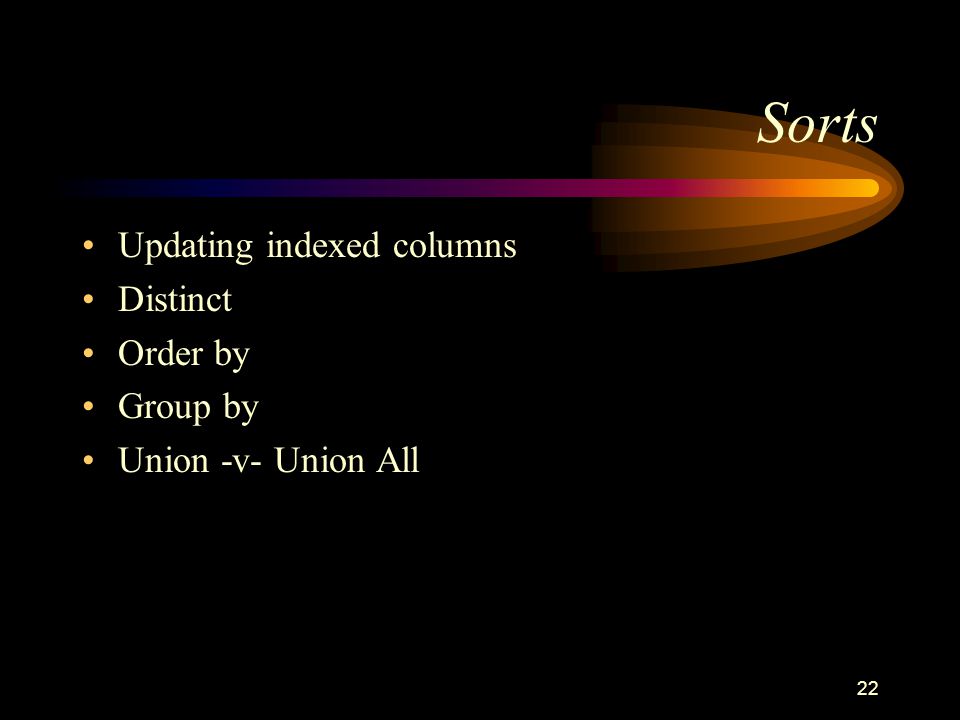

22 22 Sorts Updating indexed columns Distinct Order by Group by Union -v- Union All

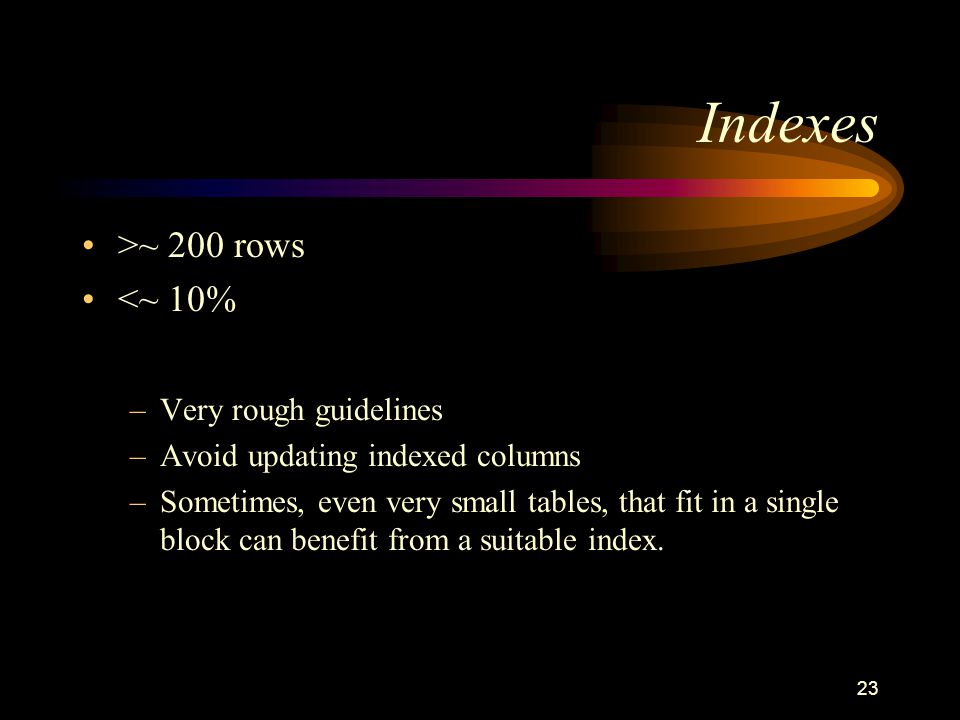

23 23 Indexes >~ 200 rows <~ 10% –Very rough guidelines –Avoid updating indexed columns –Sometimes, even very small tables, that fit in a single block can benefit from a suitable index.

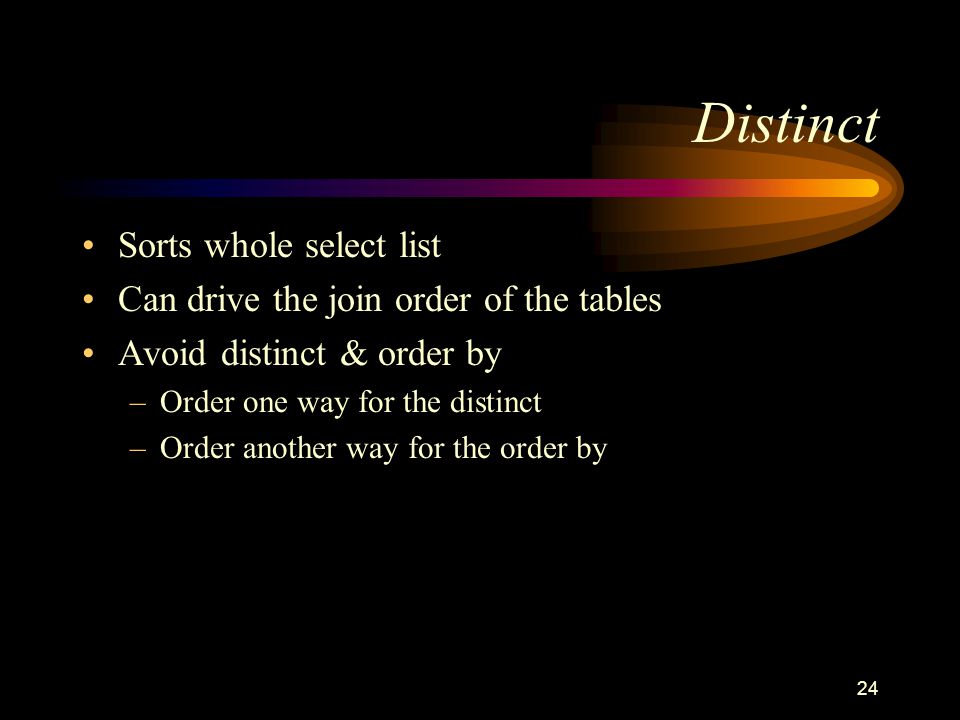

24 24 Distinct Sorts whole select list Can drive the join order of the tables Avoid distinct & order by –Order one way for the distinct –Order another way for the order by

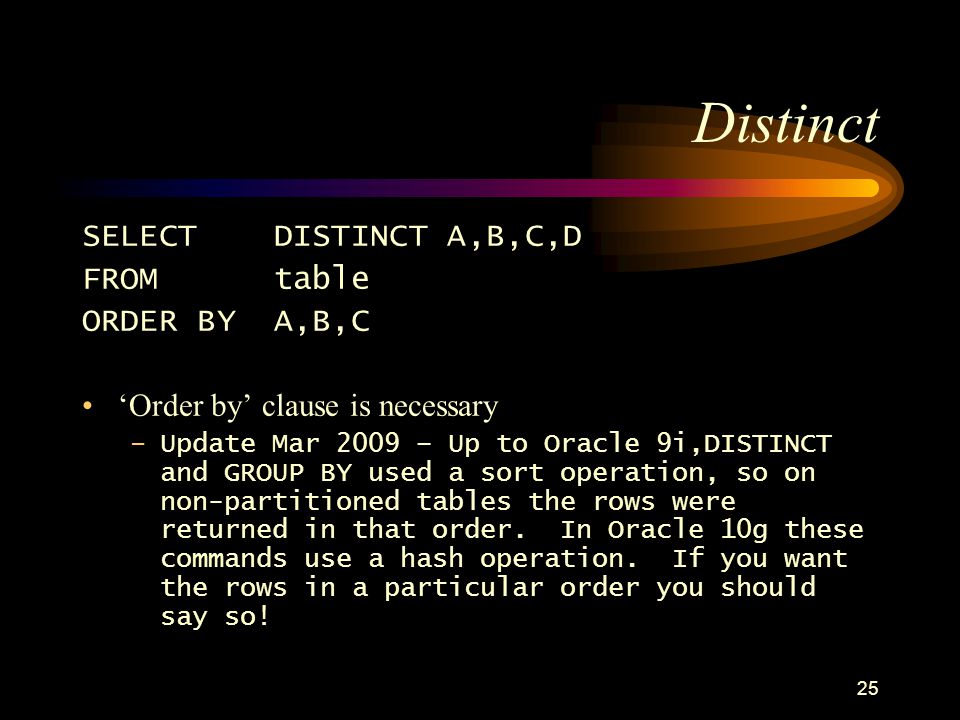

25 25 Distinct SELECTDISTINCT A,B,C,D FROMtable ORDER BY A,B,C Order by clause is necessary –Update Mar 2009 – Up to Oracle 9i,DISTINCT and GROUP BY used a sort operation, so on non-partitioned tables the rows were returned in that order. In Oracle 10g these commands use a hash operation. If you want the rows in a particular order you should say so!

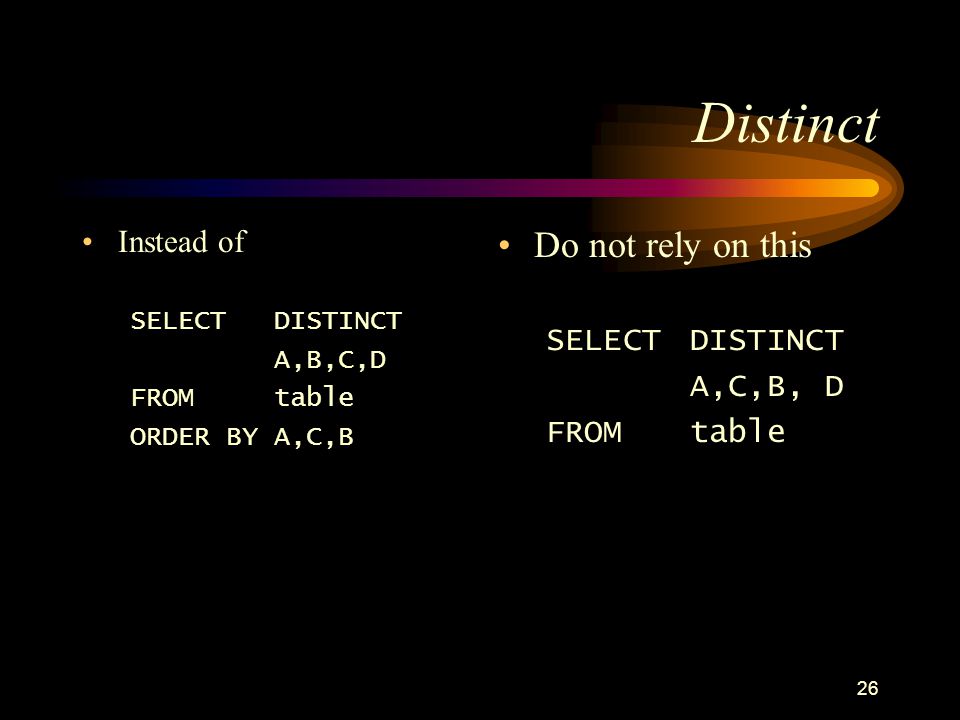

26 26 Distinct Instead of SELECTDISTINCT A,B,C,D FROMtable ORDER BY A,C,B Do not rely on this SELECT DISTINCT A,C,B, D FROMtable

27 27 Group by Instead of SELECTA,B,C, SUM(D) FROMtable GROUP BY A,B,C ORDER BY A,C,B Do not rely on this SELECT A,C,B, SUM(D) FROMtable GROUP BY A,C,B

28 28 But if hash operation disabled Instead of SELECTA,B,C, SUM(D) FROMtable GROUP BY A,B,C ORDER BY A,C,B Match the group and order clauses SELECT A,C,B, SUM(D) FROMtable GROUP BY A,C,B ORDER A,C,B

29 29 Union -v- Union All Union –Each query is distinct, and so is sorted Hash operation possible in Oracle 10g –Duplicates are eliminated Union All –One query followed by the next

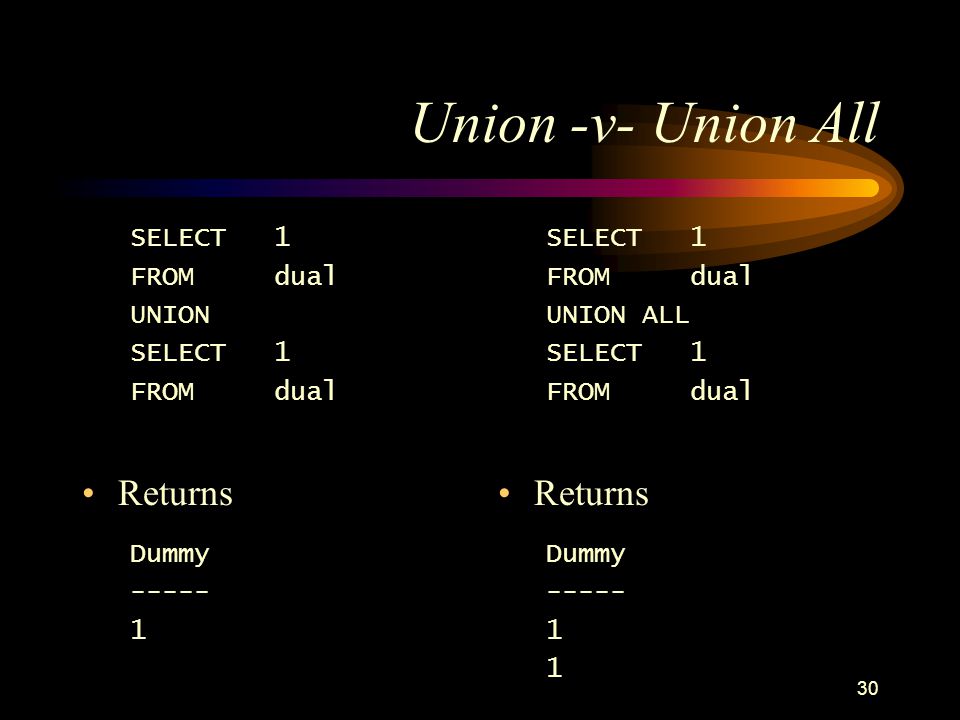

30 30 Union -v- Union All SELECT1 FROMdual UNION SELECT 1 FROM dual Returns Dummy SELECT 1 FROMdual UNION ALL SELECT1 FROMdual Returns Dummy

31 31 Union -v- Union All SELECT2 FROMdual UNION SELECT 1 FROM dual Returns Dummy SELECT 2 FROMdual UNION ALL SELECT1 FROMdual Returns Dummy

32 32 Disabling Indexes Functions on columns Index disabled –TO_CHAR(column,DD-MM-YYYY) = :bind Index enabled –column = TO_DATE(:bind, DD-MM-YYYY) Oracle syntax, generic principle

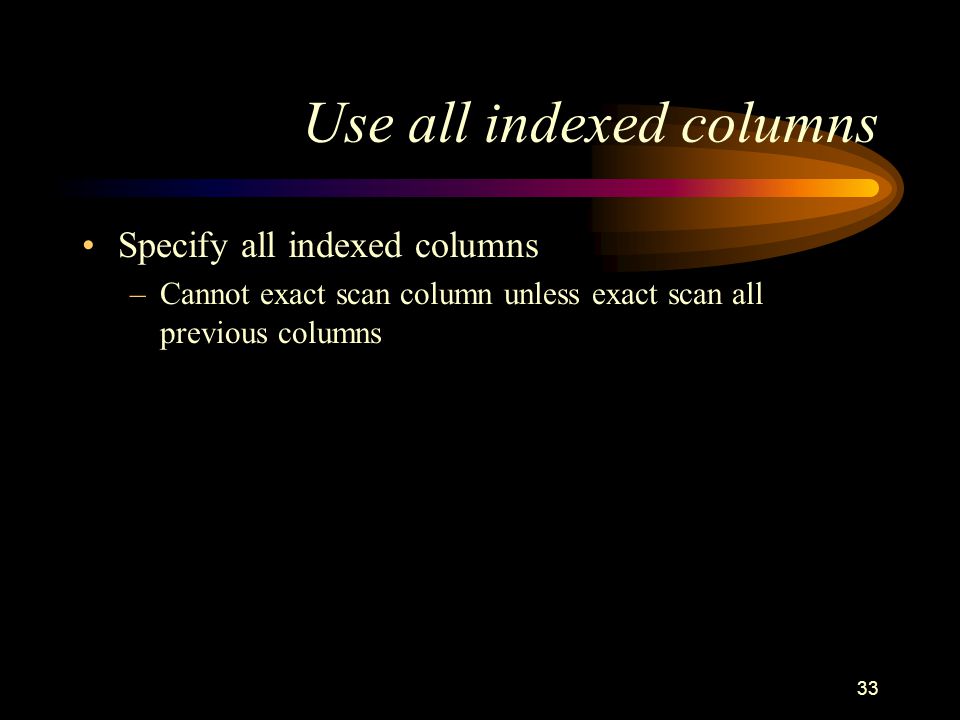

33 33 Use all indexed columns Specify all indexed columns –Cannot exact scan column unless exact scan all previous columns

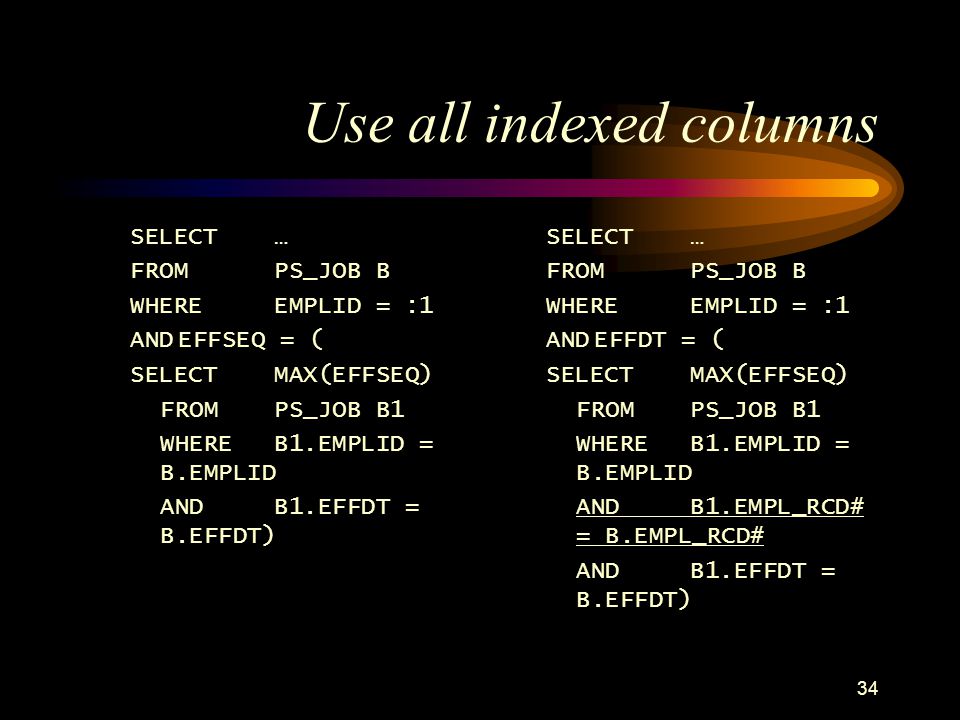

34 34 Use all indexed columns SELECT… FROMPS_JOB B WHEREEMPLID = :1 ANDEFFSEQ = ( SELECTMAX(EFFSEQ) FROM PS_JOB B1 WHEREB1.EMPLID = B.EMPLID ANDB1.EFFDT = B.EFFDT) SELECT… FROMPS_JOB B WHEREEMPLID = :1 ANDEFFDT = ( SELECTMAX(EFFSEQ) FROM PS_JOB B1 WHEREB1.EMPLID = B.EMPLID ANDB1.EMPL_RCD# = B.EMPL_RCD# ANDB1.EFFDT = B.EFFDT)

35 35 High Water Marks (Oracle) Oracle specific Delete -v- Truncate DELETE FROM table; TRUNCATE TABLE table; –Full Scans - HWM

36 36 Sub-queries Correlated –executed once per parent row –(because PeopleSoft recommend disabling _UNNEST_SUBQUERY from Oracle 9i). Not Correlated –executed once in advance

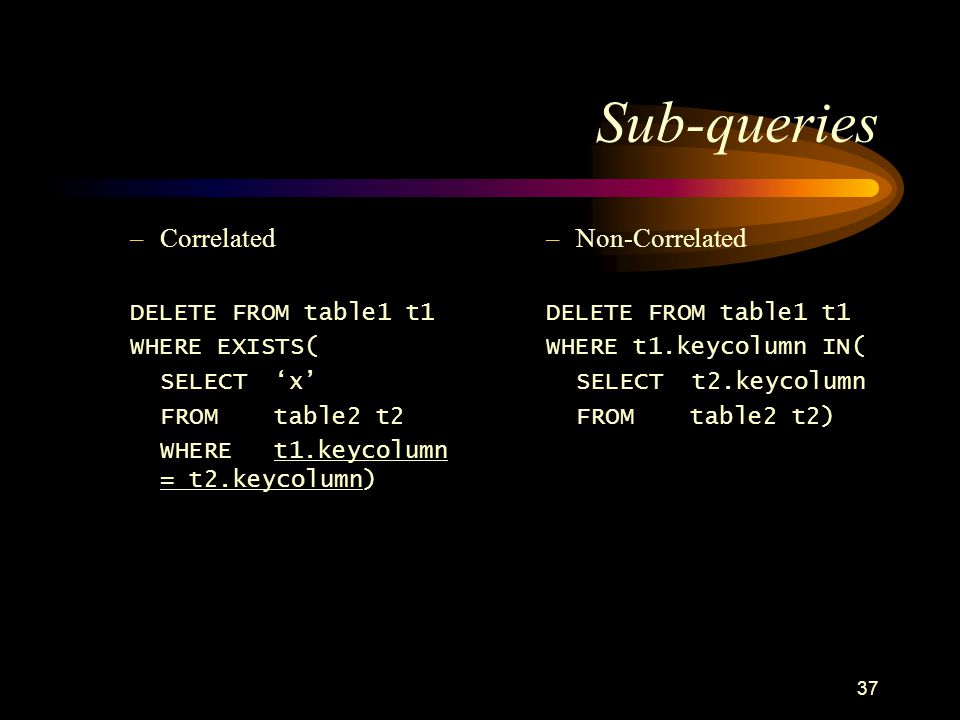

37 37 Sub-queries –Correlated DELETE FROM table1 t1 WHERE EXISTS( SELECTx FROMtable2 t2 WHERE t1.keycolumn = t2.keycolumn) –Non-Correlated DELETE FROM table1 t1 WHERE t1.keycolumn IN( SELECT t2.keycolumn FROM table2 t2)

38 38 Sub-queries (Oracle) Oracle specific DELETE FROM table1 t1 WHERE (t1.keycolumn1, t1.keycolumn2) IN( SELECT t2.keycolumn1, t2.keycolumn2 FROM table2 t2)

39 39 ROWID (Oracle) Oracle specific physical address of row

40 40 Sub-queries (Oracle) Oracle specific DELETE FROM table1 t1 WHERE t1.rowid IN( SELECTt1b.rowid FROM table1 t1b, table2 t2 WHERE t1b.keycolumn1 = t2.keycolumn2 ANDt1b.keycoulmn2 = t2.keycolumn2)

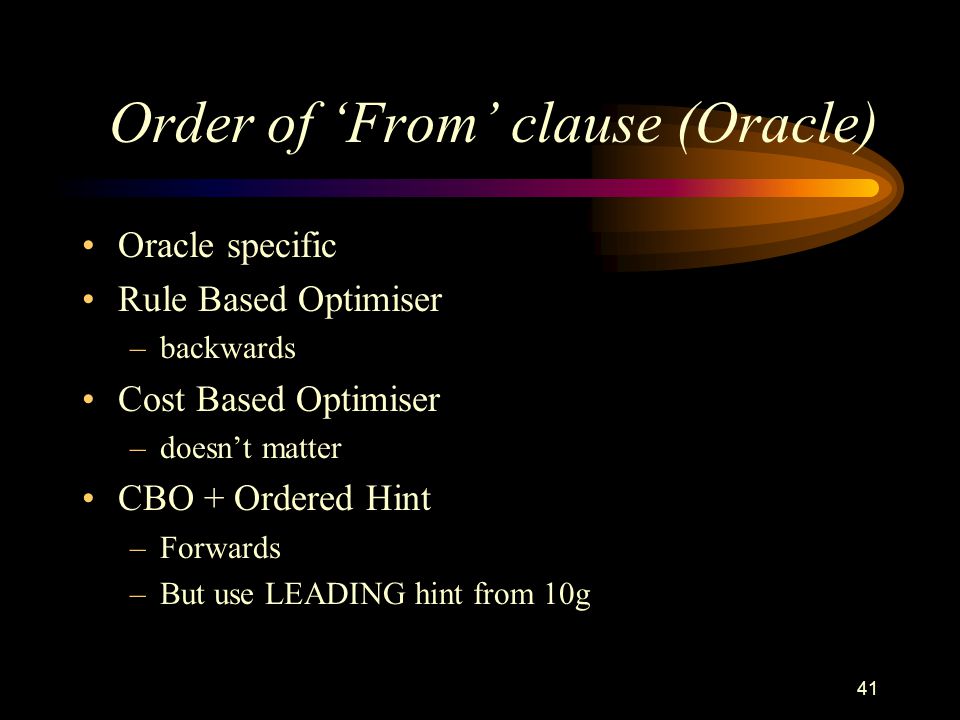

41 41 Order of From clause (Oracle) Oracle specific Rule Based Optimiser –backwards Cost Based Optimiser –doesnt matter CBO + Ordered Hint –Forwards –But use LEADING hint from 10g

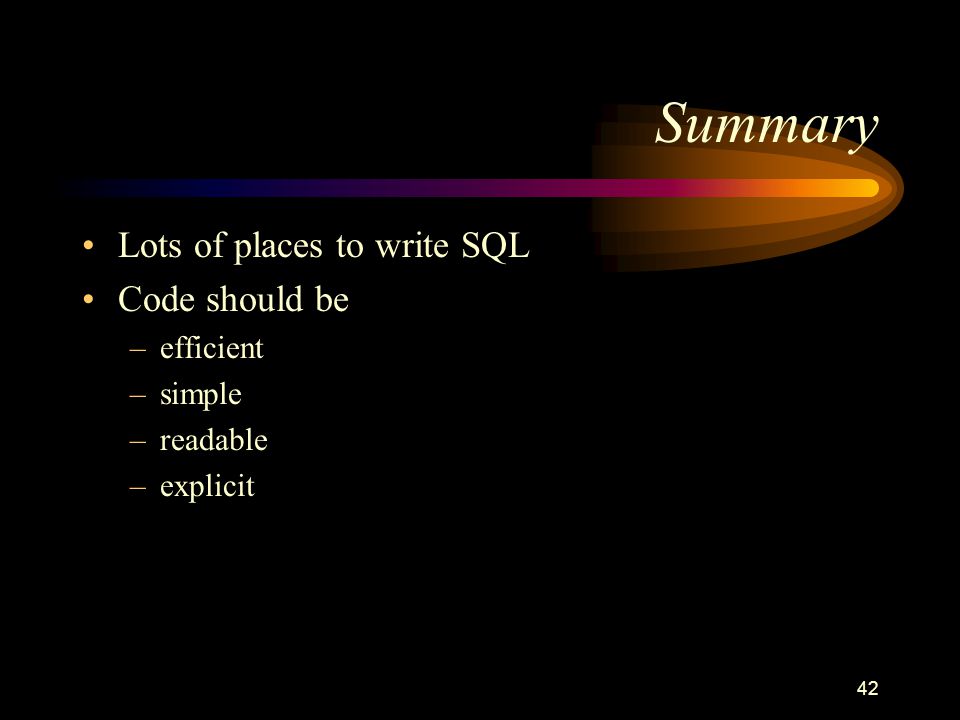

42 42 Summary Lots of places to write SQL Code should be –efficient –simple –readable –explicit

43 43 SQL Best Coding Practice in PeopleTools 7.x David Kurtz Go-Faster Consultancy Ltd.
