1
T SREEJITH KAILAS Edited By Sarath S Nair www.technologyfuturae.com MODELLING AND ANALYSIS OF A TWO PHASE INDUCTION MACHINE WITH NON-ORTHOGONAL STATOR WINDINGS

2
Introduction Starting torque is produced by designing the stator windings to be electrically different. Unsymmetrical 2-phase IM is designed to operate from a single- phase source Stationary reference frame is used in order to obtain voltage equations with constant coefficients. Rating of two phase induction machine is usually low. www.technologyfuturae.com

3

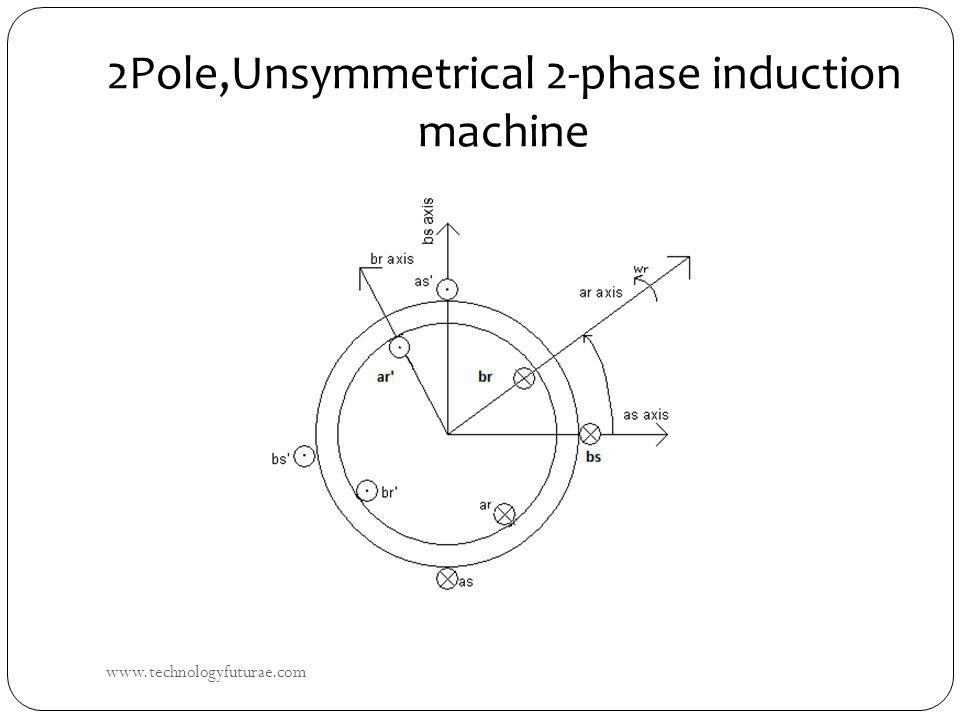

2Pole,Unsymmetrical 2-phase induction machine θrθr www.technologyfuturae.com

4
V QS,V DS =QS and DS-axis stator voltages Rm,Xm and Ra,Xsa-QS and DS-axis resistance and leakage inductance Rotor voltages are set to zero(because of squirrel-cage rotors) Voltage and flux equations 4 V DS =R a *i DS +(P/ ω b * ψ DS ) ……(2) V QS =R m *i QS + (P/ ω b * ψ QS ) ……(1) 0=(R r *i QR )-1/k* ( ω r / ω b )* ψ DR +(P/ ω b )* ψ QR …….(3) 0=(K ^2 *Rr*i DR )-k* ( ω r / ω b )* ψ QR +(P/ ω b )* ψ DR.....(4) www.technologyfuturae.com

5
5 www.technologyfuturae.com

6
www.technologyfuturae.com

7
Te,Tl =electromagnetic instantaneous torque and load torque J= inertia constant of motor P= number of poles Torque Equation 7 www.technologyfuturae.com

8
8 Equivalent circuit 88 www.technologyfuturae.com

9
Advantages Robustness in its operation Low cost Highly reliable Disadvantage Inability to produce a smoothly rotating internal flux Needs two capacitors www.technologyfuturae.com

10
Applications Mostly used in single phase applications such as Refrigerators Washing machines Furnace fans Air conditioners www.technologyfuturae.com

11

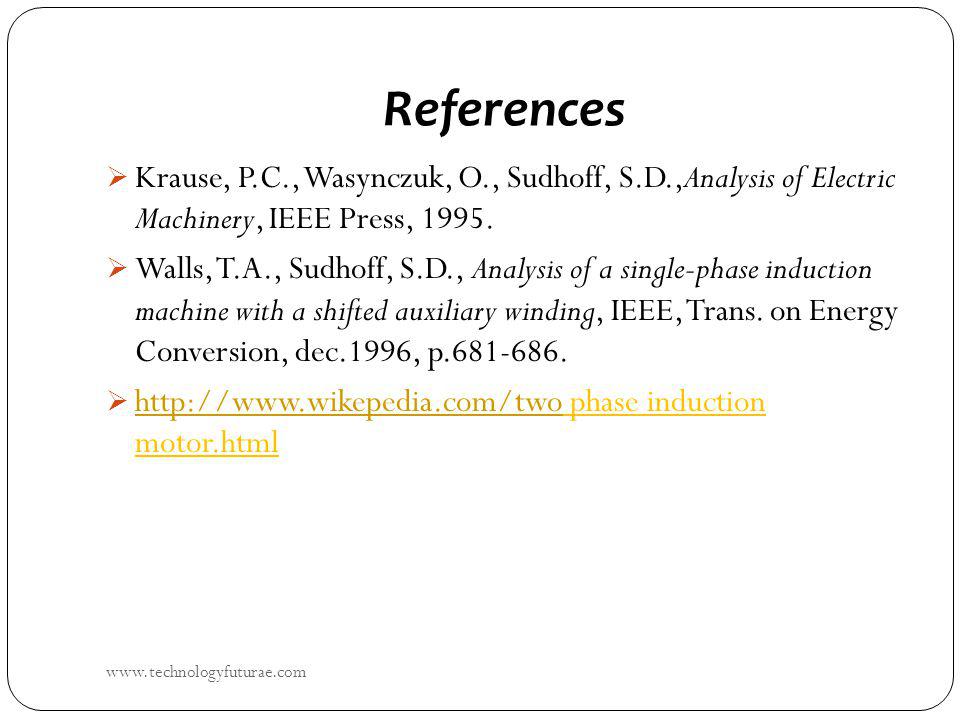

References Krause, P.C., Wasynczuk, O., Sudhoff, S.D.,Analysis of Electric Machinery, IEEE Press, 1995. Walls, T.A., Sudhoff, S.D., Analysis of a single-phase induction machine with a shifted auxiliary winding, IEEE, Trans. on Energy Conversion, dec.1996, p.681-686. http://www.wikepedia.com/two phase induction motor.html http://www.wikepedia.com/two www.technologyfuturae.com

12
Conclusion The mathematical model for a two-phase unsymmetrical induction machine was developed and its equivalent circuit is drawn www.technologyfuturae.com

13
Log On to www.technologyfuturae.com Technical Presentations, Research Reviews, New designs & Developments

14
www.technologyfuturae.com
