JDeveloper ADF and the Oracle database – friends not foes SAGE Computing Services Customised.

Similar presentations


Presentation on theme: "JDeveloper ADF and the Oracle database – friends not foes SAGE Computing Services Customised."— Presentation transcript:

1 JDeveloper ADF and the Oracle database – friends not foes SAGE Computing Services Customised Oracle Training Workshops and Consulting Penny Cookson (Building applications using JDeveloper ADF without killing database performance)

2 SAGE Computing Services Customised Oracle Training Workshops and Consulting Penny Cookson Managing Director and Principal Consultant Working with since 1987 Oracle Magazine Educator of the Year 2004

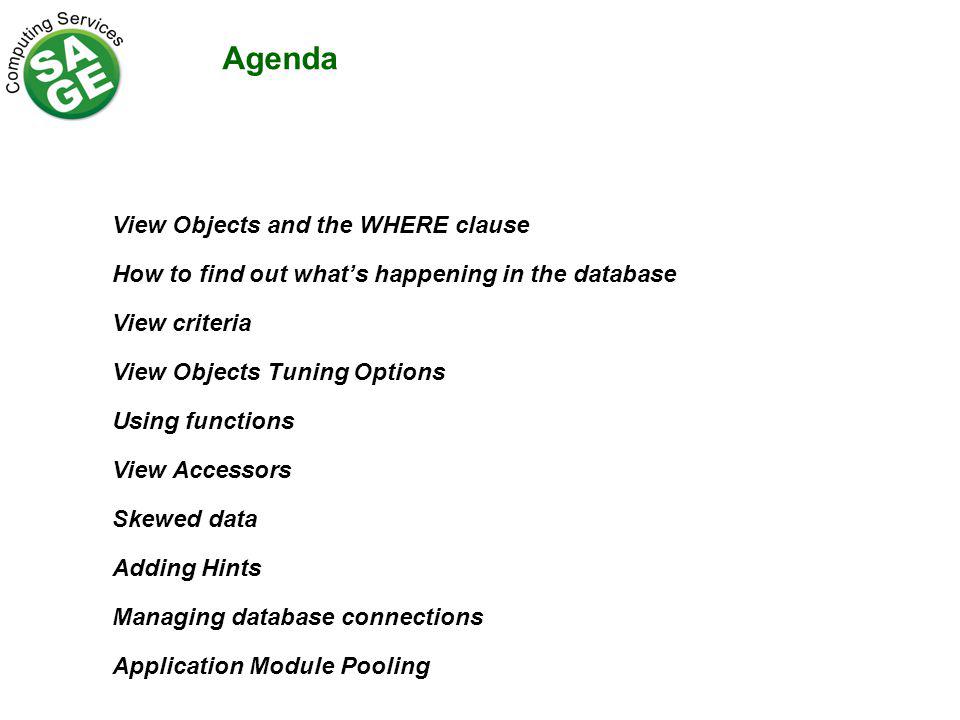

3 Agenda View Objects and the WHERE clause How to find out what’s happening in the database View criteria View Objects Tuning Options Using functions View Accessors Skewed data Adding Hints Managing database connections Application Module Pooling

4 “ADF Business Components stands out for the task of business service development and object relational mapping by virtue of its highly declarative metadata based development style.” Planning Stage

5 The database is just a persistent data store, we don’t need to worry about it Development Stage

6 This new web application is really slow Production Stage

7 What have you done to MY database Production Stage

8 S So how do you protect your database from the Java people?

9 Its all about education

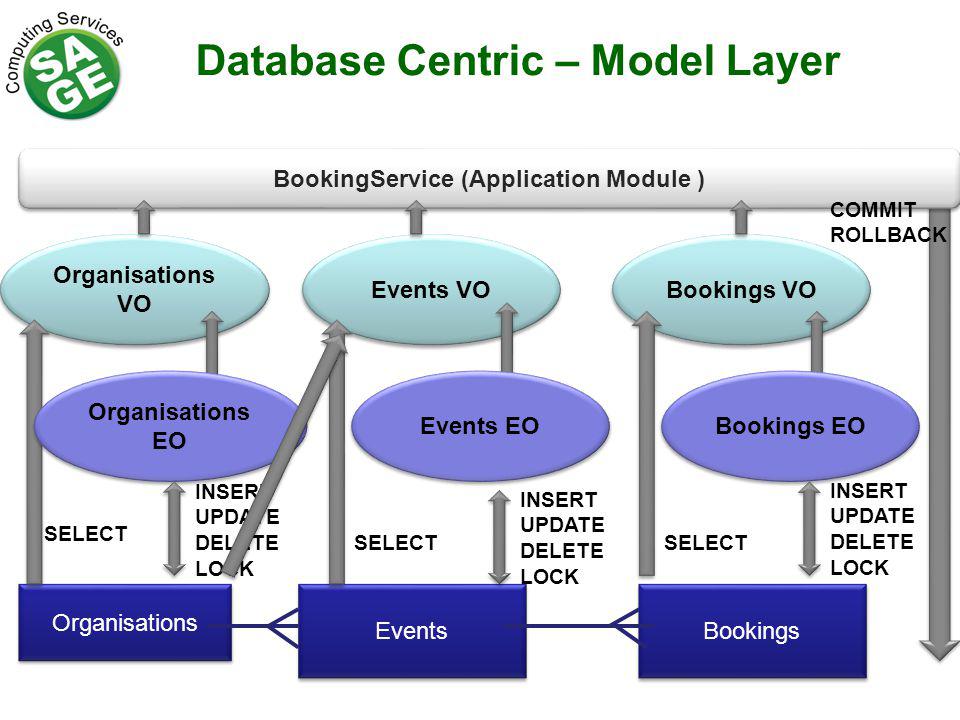

10 Database Centric – Model Layer Events Organisations Bookings Organisations VO Bookings VO Events VO SELECT Organisations EO Bookings EO Events EO INSERT UPDATE DELETE LOCK INSERT UPDATE DELETE LOCK INSERT UPDATE DELETE LOCK BookingService (Application Module ) COMMIT ROLLBACK

11 We are letting JDeveloper generate our SELECT statements Events Organisations Bookings Organisations VO Bookings VO Events VO SELECT Organisations EO Bookings EO Events EO INSERT UPDATE DELETE LOCK INSERT UPDATE DELETE LOCK INSERT UPDATE DELETE LOCK BookingService (Application Module ) COMMIT ROLLBACK

12 SELECT …….WHERE col = ‘bbbbb’ Full table scan Index scan aaaaa bbbbb ccccc ddddd eeeee aaaaa ggggg ccccc ddddd eeeee aaaaa kkkkk ccccc ddddd eeeee aaaaa bbbbb ccccc ddddd eeeee a z bbbb rowid aaaaa bbbbb ccccc ddddd eeeee aaaaa ggggg ccccc ddddd eeeee aaaaa kkkkk ccccc ddddd eeeee aaaaa bbbbb ccccc ddddd eeeee DB

13 Optimizer estimates cost of each possible access path and picks the cheapest DB

14 Determining the View Object query Jdev Bind variables View Criteria Custom sql (Expert mode)

15 An example - View Object with a Bind Variable Jdev

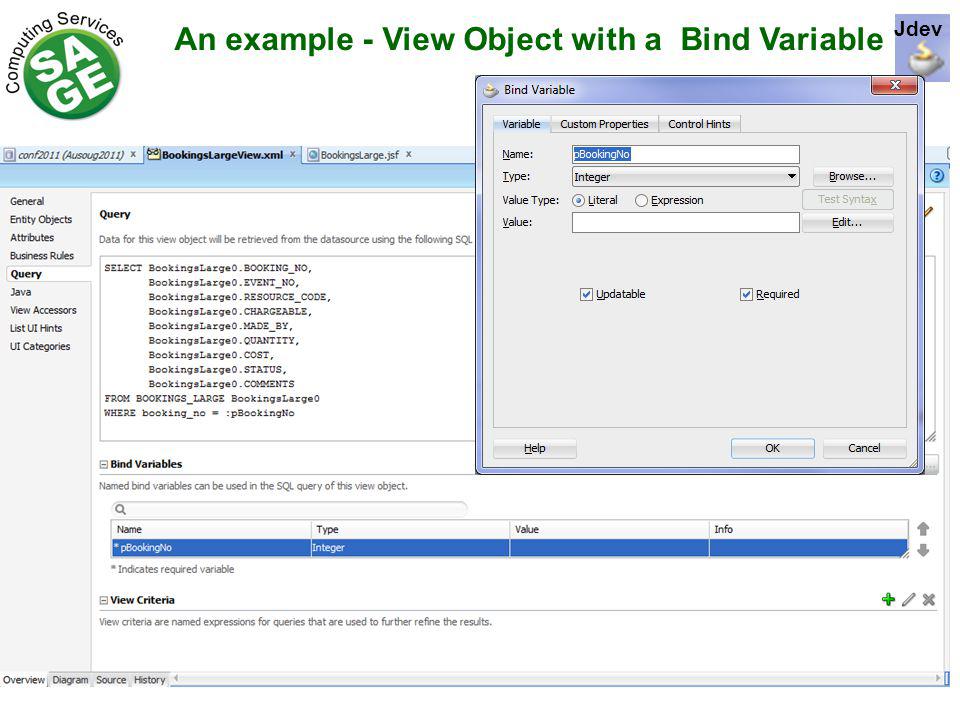

16 An example - View Object with a Bind Variable

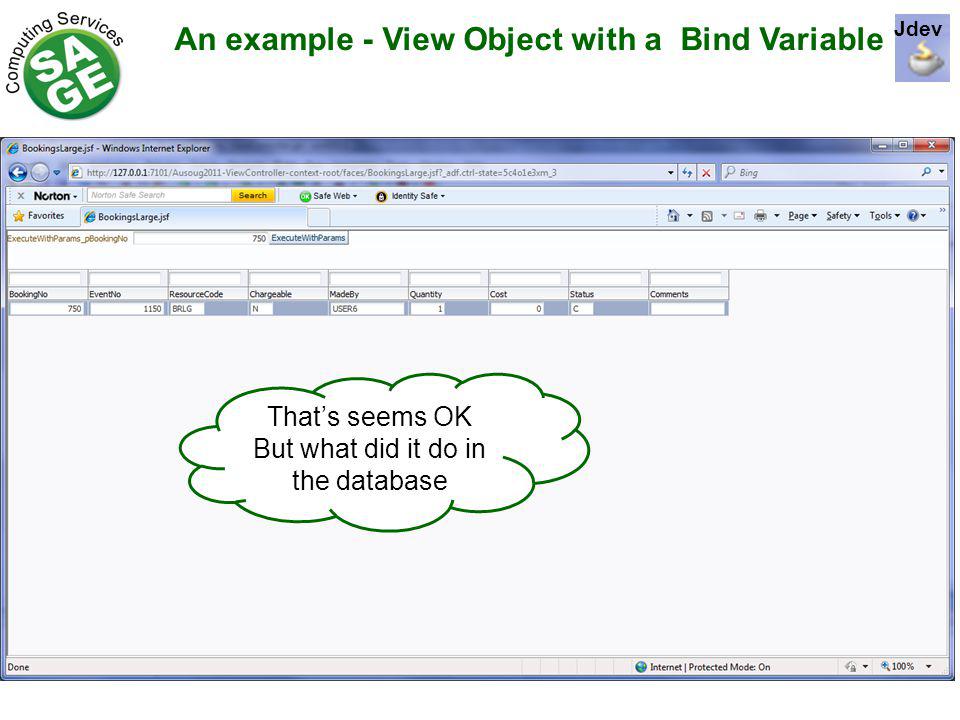

17 That’s seems OK But what did it do in the database Jdev An example - View Object with a Bind Variable

18 View Objects – Finding the SQL There’s a row in here for each optimisation of a sql statement (until it gets aged out) It has been executed once With 135 blocks read per execution DB

19 View Objects – Finding the SQL DB

20 View Objects – Finding the SQL Plan Paste the sql_id in here DB

21 Why bother with all that database stuff when Jdev gives me an Explain Plan Jdev

22

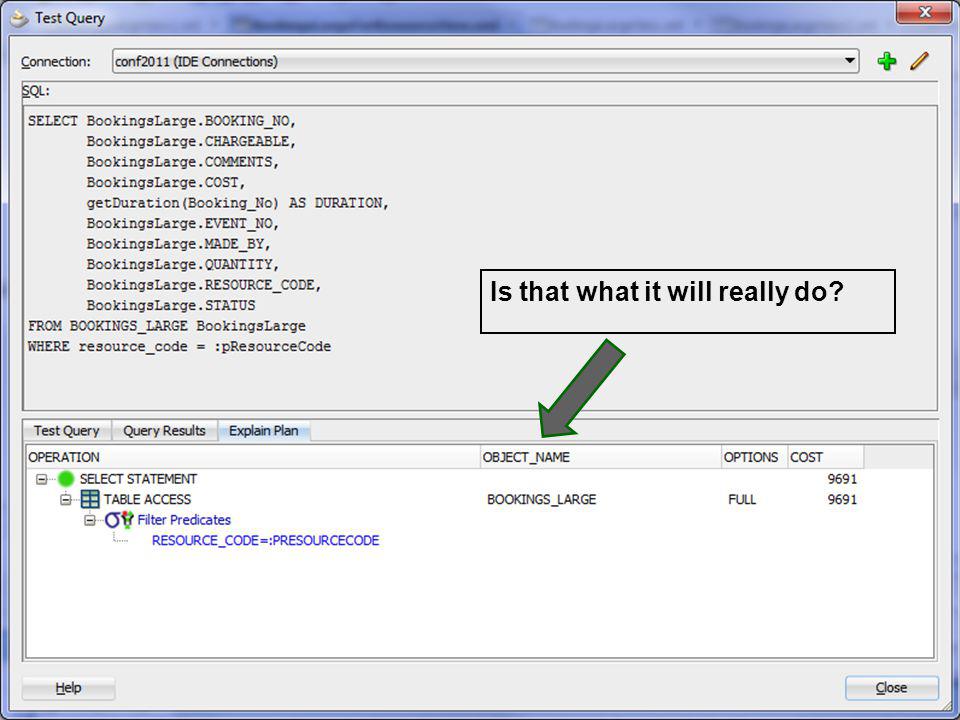

23 Is that what it will really do?

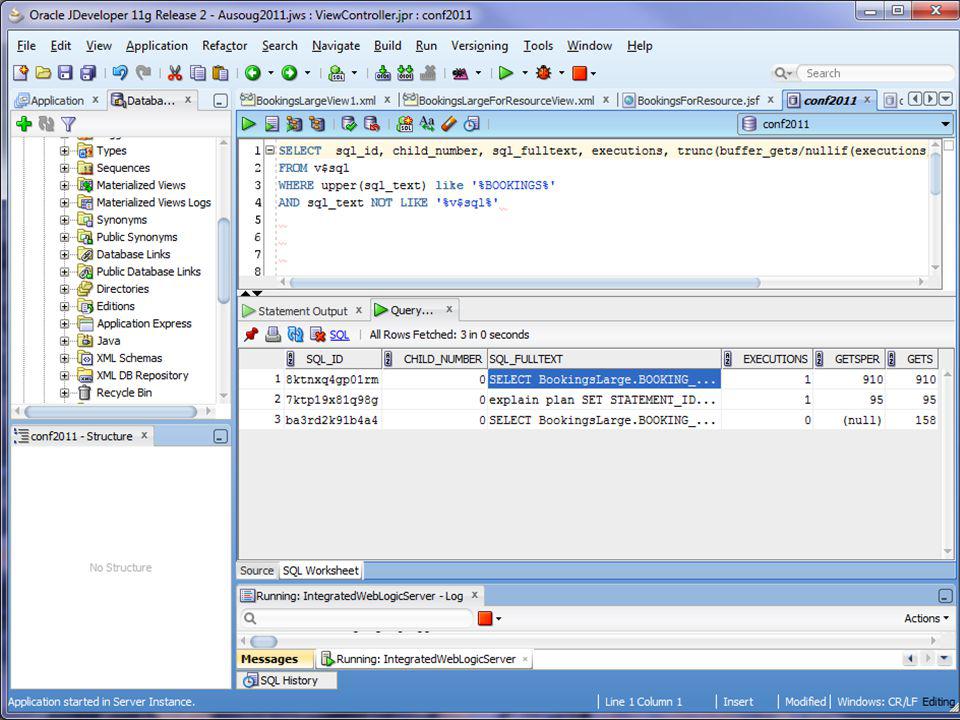

24 Jdev

25

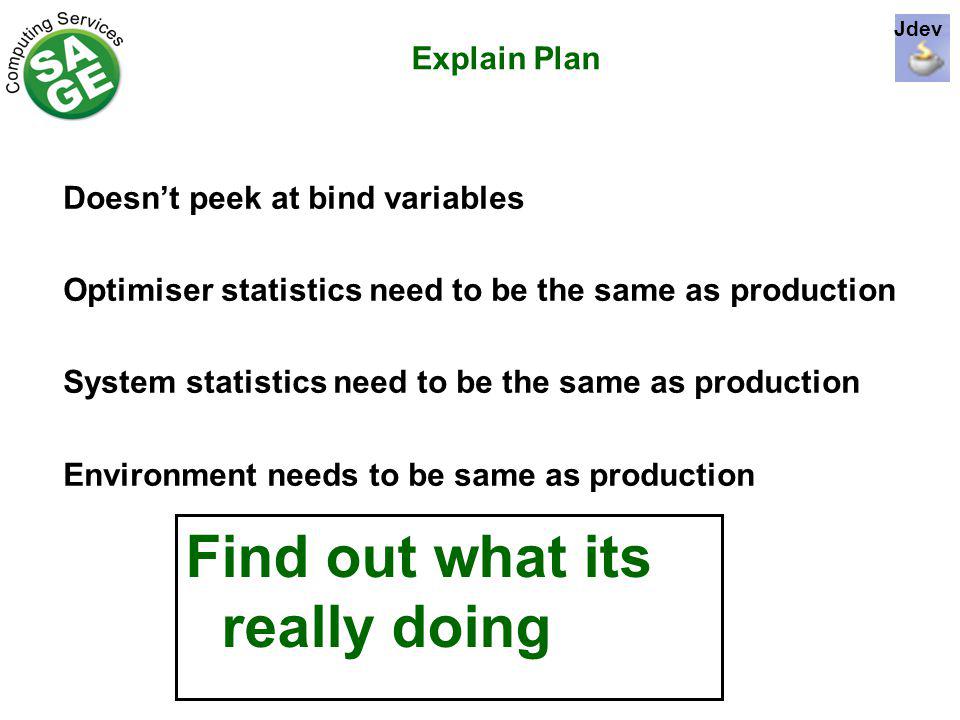

26 Doesn’t peek at bind variables Optimiser statistics need to be the same as production System statistics need to be the same as production Environment needs to be same as production Jdev Explain Plan Find out what its really doing

27 VO Tuning Options affect the statements executed Jdev

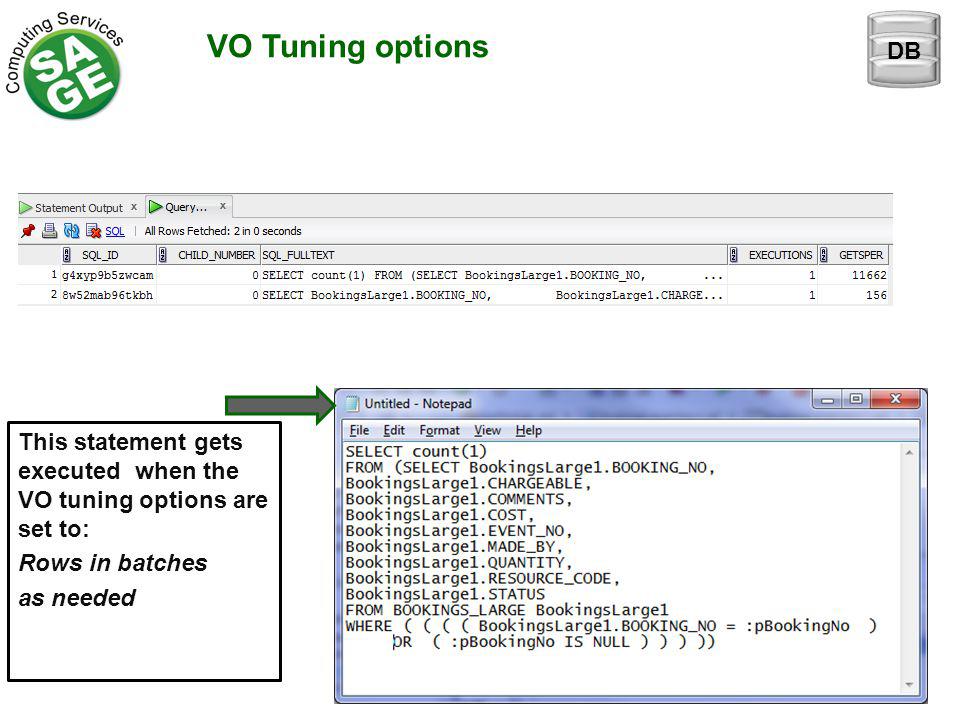

28 VO Tuning options This statement gets executed when the VO tuning options are set to: Rows in batches as needed DB

29 Jdev Managing Optional Parameters Required parameter works fine, but returns no rows if the parameter is null

30 Make the Bind variable Required = No Jdev

31 Bind Variable Oracle Documentation Required Select if you want to make the value of a name bind variable required for any usage the references the named bind variable. For example, when the value is required (default), all view criteria items that reference the named bind variable will fail to execute unless a valid value is supplied at runtime. Alternatively, you can leave the value not required and use the Create View Criteria dialog to specify whether or not individual view criteria items require the value

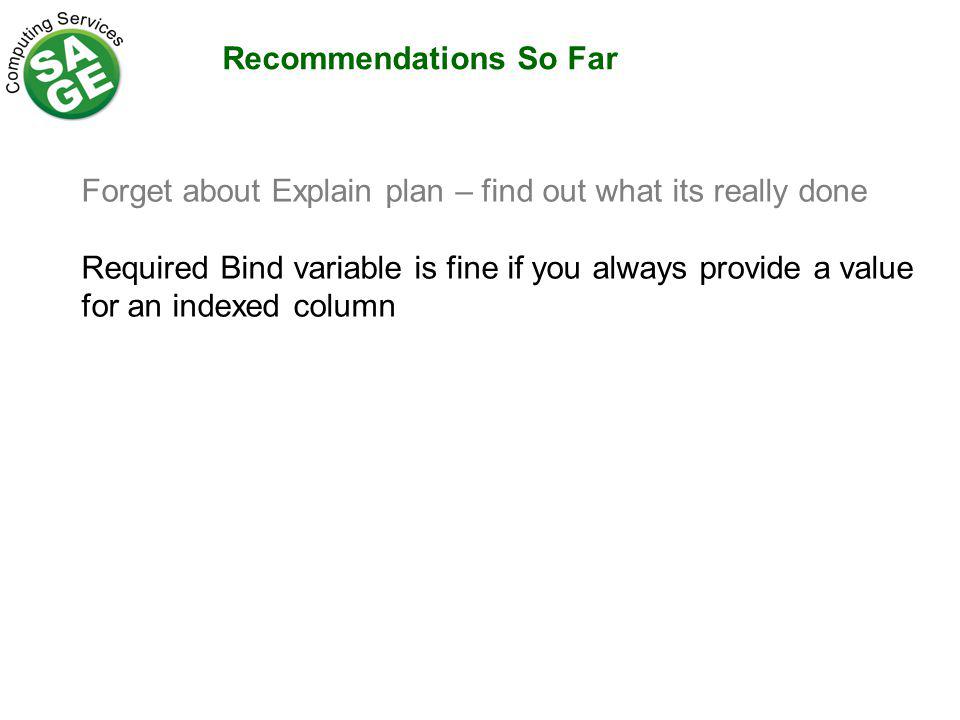

32 Recommendations So Far Forget about Explain plan – find out what its really done Required Bind variable is fine if you always provide a value for an indexed column

33 Using View Criteria View Criteria – Optional View Criteria – Ignore Null Values = Y Jdev

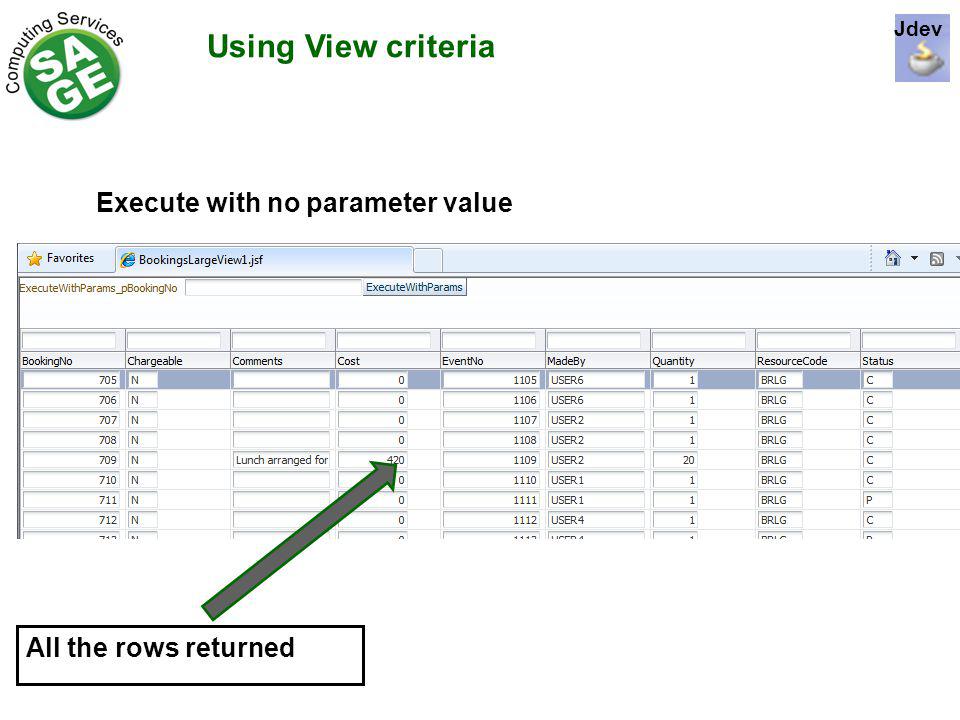

34 Using View criteria Execute with no parameter value All the rows returned Jdev

35 Bind Parameter – Required = Y View Criteria – Optional View Criteria – Ignore Null Values = Y No parameter value This is the statement that returns the rows DB

36 Bind Parameter – Required = Y View Criteria – Optional View Criteria – Ignore Null Values = Y No parameter value Read the entire table DB

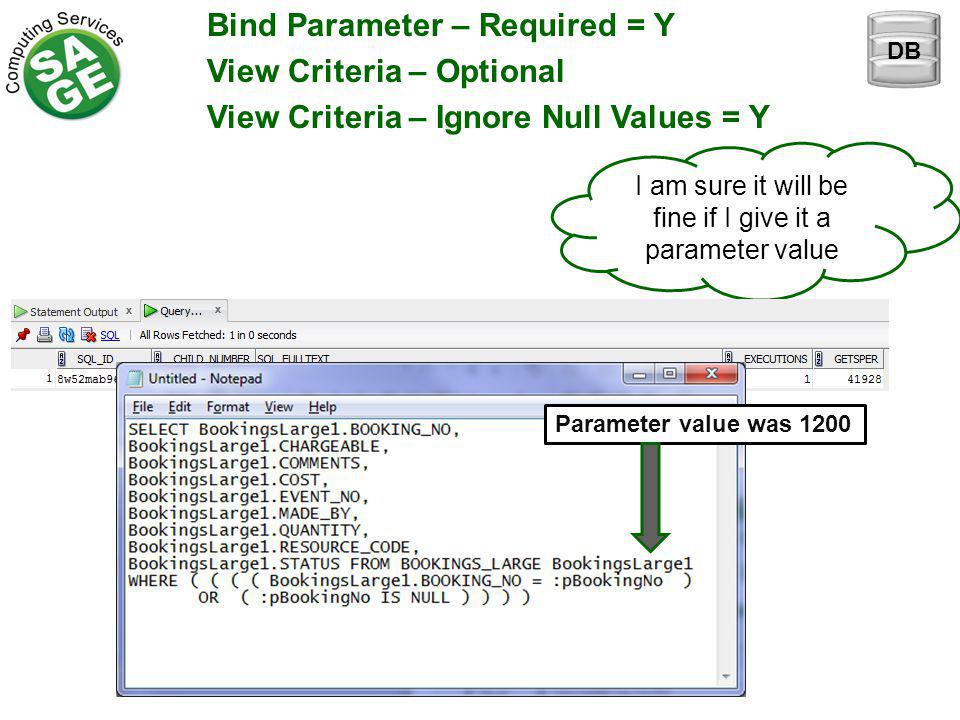

37 I am sure it will be fine if I give it a parameter value Bind Parameter – Required = Y View Criteria – Optional View Criteria – Ignore Null Values = Y Parameter value was 1200 DB

38 Bind Parameter – Required = Y View Criteria – Optional View Criteria – Ignore Null Values = Y With parameter value DB

39 Bind Parameter – Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y Required = N Jdev

40 Bind Parameter – Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y View Criteria – Optional View Criteria – Ignore Null Values = Y Jdev

41 Bind Parameter – Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y No parameter value supplied All the rows returned Jdev

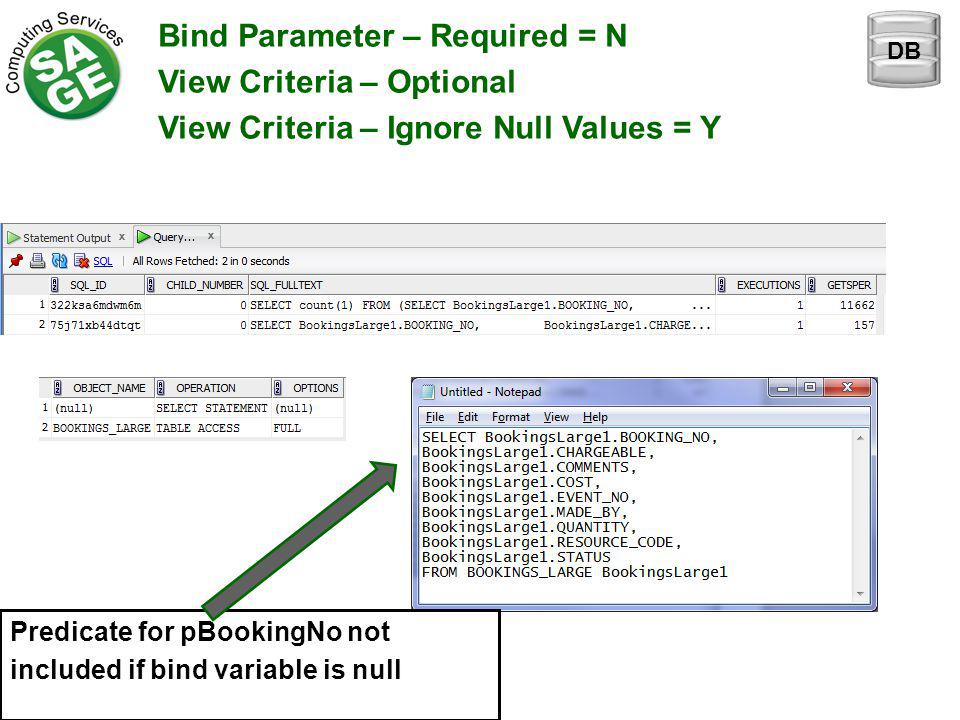

42 Bind Parameter – Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y DB Predicate for pBookingNo not included if bind variable is null

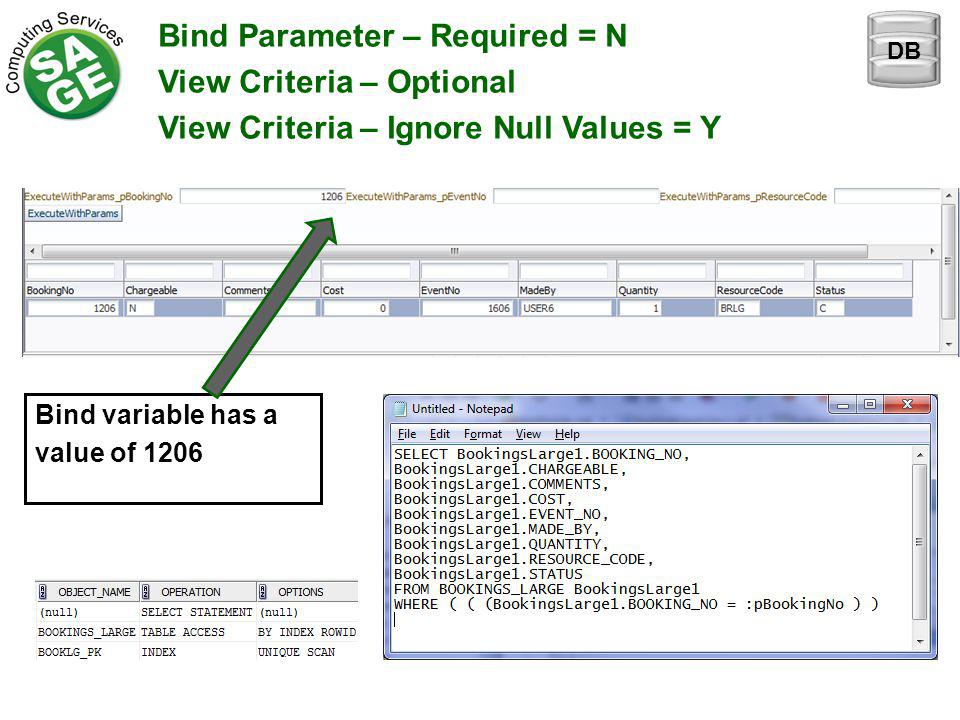

43 Bind Parameter – Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y DB Bind variable has a value of 1206

44 Bind Parameters – Required = N Multiple View Criteria – Optional Multiple View Criteria – Ignore Null Values = Y Jdev

45 Bind Parameters – Required = N Multiple View Criteria – Optional Multiple View Criteria – Ignore Null Values = Y Jdev

46 Bind Parameters – Required = N Multiple View Criteria – Optional Multiple View Criteria – Ignore Null Values = Y Jdev

47 Bind Parameters – Required = N Multiple View Criteria – Optional Multiple View Criteria – Ignore Null Values = Y Includes the where clause if we have supplied a parameter value DB

48 Bind Parameters – Required = N Multiple View Criteria – Optional Multiple View Criteria – Ignore Null Values = Y Which allows it to choose the best index DB

49 Recommendations So Far Forget about Explain plan – find out what it really did Required Bind variable is fine if you always provide a value for an indexed column For flexibility and performance use multiple View Criteria with Parameter Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y

50 Using Functions in the SELECT Jdev

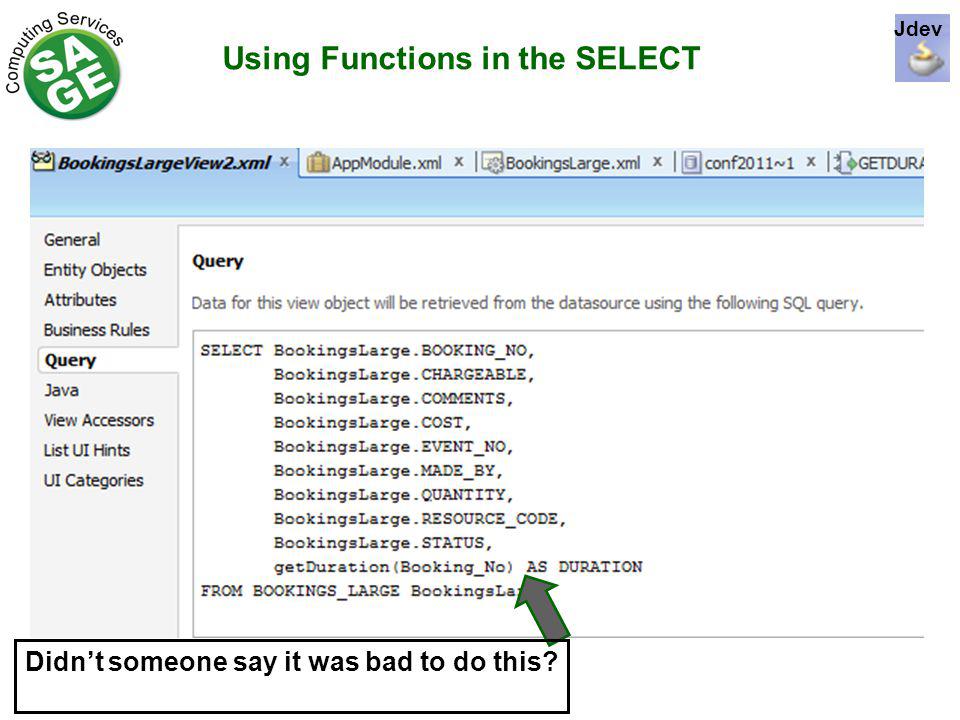

51 Using Functions in the SELECT Didn’t someone say it was bad to do this? Jdev

52 View Object Tuning Options But it doesn’t matter - I am only getting 20 rows Jdev

53 Using Functions in the SELECT DB

54 Sort the Rows (either User Sort or in the VO) Jdev

55 Sort the Rows (either User Sort or in the VO) You might be getting only getting 20 rows back to the middle tier – but the database has to read all of them DB

56 View Object – Multiple Entities + Transient Attribute Jdev

57 View Object – Multiple Entity Objects Jdev

58 View Object – Multiple Entity Objects - Sort Jdev

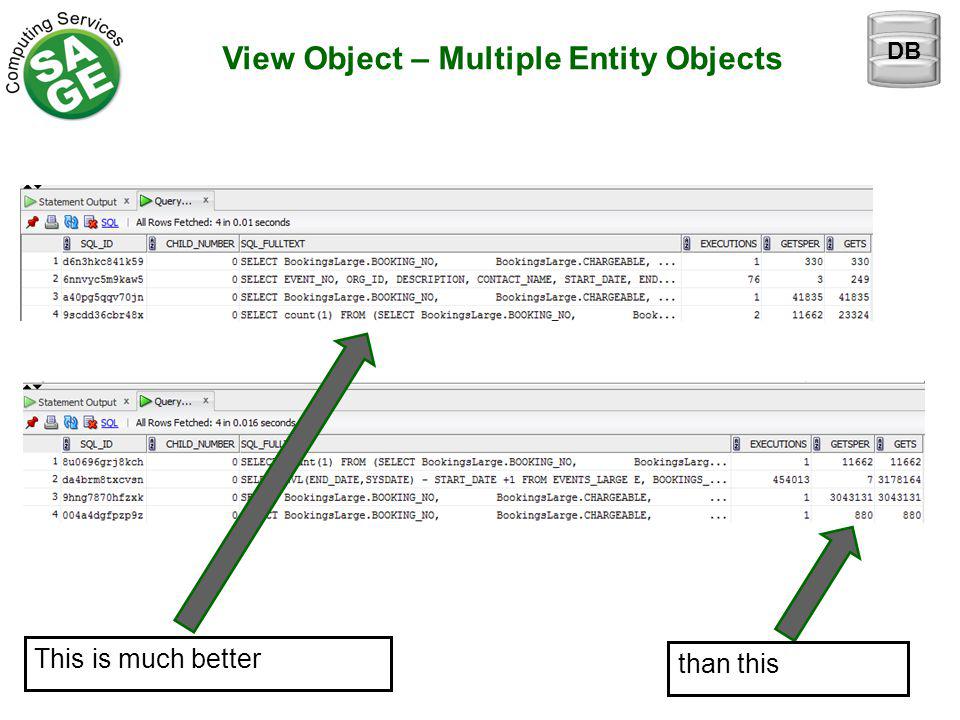

59 View Object – Multiple Entity Objects than this This is much better DB

60 View Object – Multiple Entity Objects But why does it have to keep selecting from EVENTS DB

61 View Object – Multiple Entity Objects Jdev

62 View Object – Multiple Entity Objects Now its all selected from the join DB So – if you include a derived attribute from another EO also include the source attributes

63 View Object – Fetching multiple values from the same tables SELECT taxFileNo, getTaxCalc1(taxFileNo), getTaxCalc2(taxFileNo); getTaxCalc3(taxFileNo), getTaxCalc4(taxFileNo) FROM TaxDetailsTable All these functions get the same rows from the tables, they just return different columns Jdev

64 View Object – Fetching multiple values from the same tables SELECT taxFileNo, getTaxCalcs(taxFileNo), FROM TaxDetailsTable value1 value1|value2|value3|value4 value2value3value4 Define transient attributes in the VO Jdev

65 View Object – Tuning Options It defines how many rows are returned to the middle tier NOT how many are read from the database Jdev

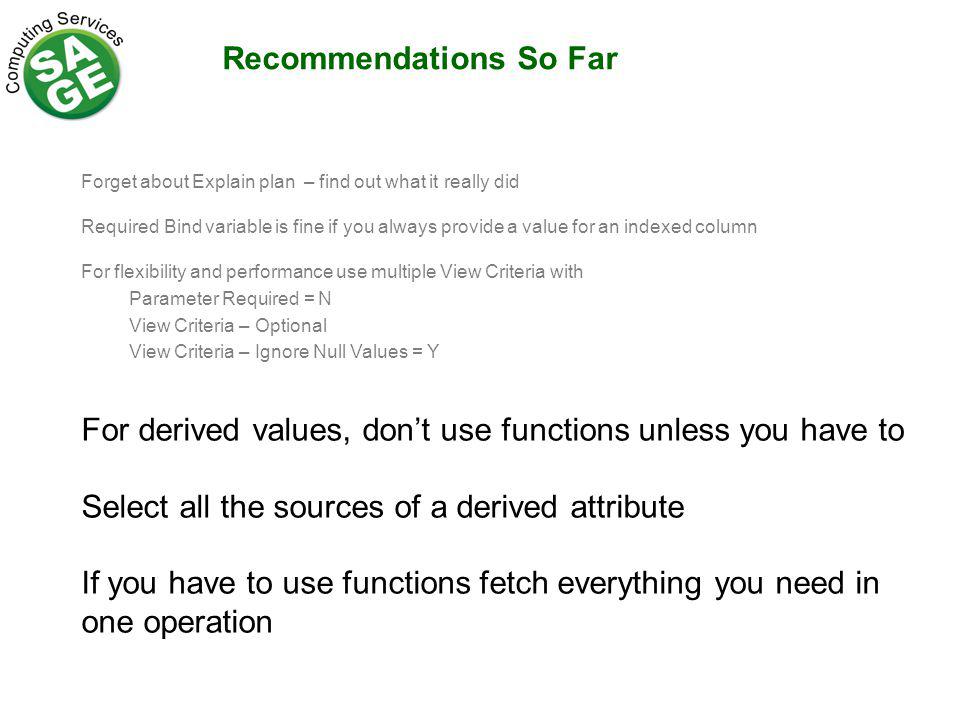

66 Recommendations So Far Forget about Explain plan – find out what it really did Required Bind variable is fine if you always provide a value for an indexed column For flexibility and performance use multiple View Criteria with Parameter Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y For derived values, don’t use functions unless you have to Select all the sources of a derived attribute If you have to use functions fetch everything you need in one operation

67 Modified columns in the WHERE clause Modified columns don’t use an index on the column DB Columns that are modified by expressions or functions are unable to use an index unless a function based index has been created Examples: WHERE upper(name) = ‘VALUE’ WHEREsal * 1.1 = 2000 WHEREto_char(start_date,’dd/mm/yy’) = ‘01/03/93’

68 View Object – Case Sensitive View Criteria Jdev

69 View Object – Case Sensitive View Criteria Create a function based index DB

70 Validation – IN View Accessor Jdev

71 Validation – IN View Accessor Jdev

72 Validation – IN View Accessor Jdev Validating this reads 100,438 blocks in a full scan of EVENTS_LARGE (and takes a very long time)

73 Validation – KEY EXISTS in View Accessor Jdev

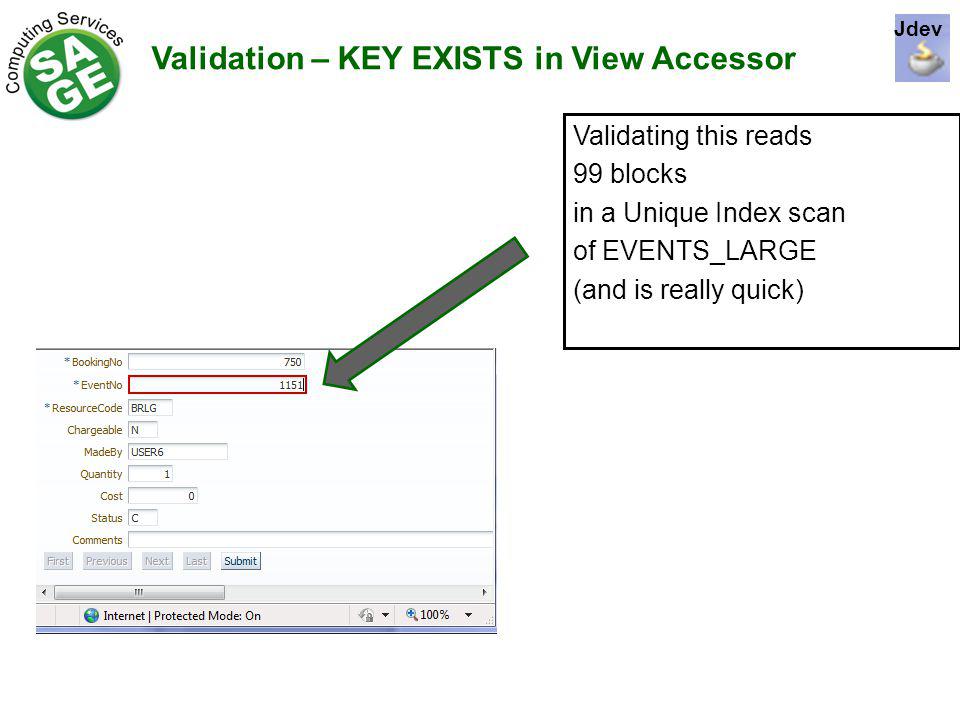

74 Validation – KEY EXISTS in View Accessor Jdev Validating this reads 99 blocks in a Unique Index scan of EVENTS_LARGE (and is really quick)

75 Displaying Additional Data – View Accessor Jdev

76 Displaying Additional Data – View Accessor

77 Jdev Displaying Additional Data – View Accessor

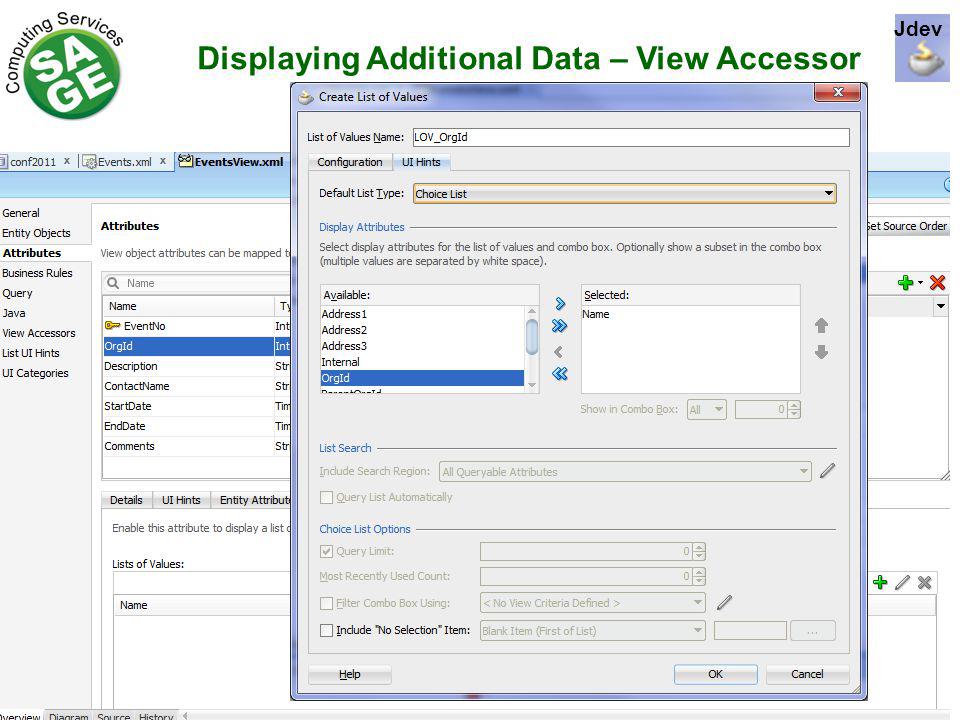

78 Jdev Displaying Additional Data – View Accessor

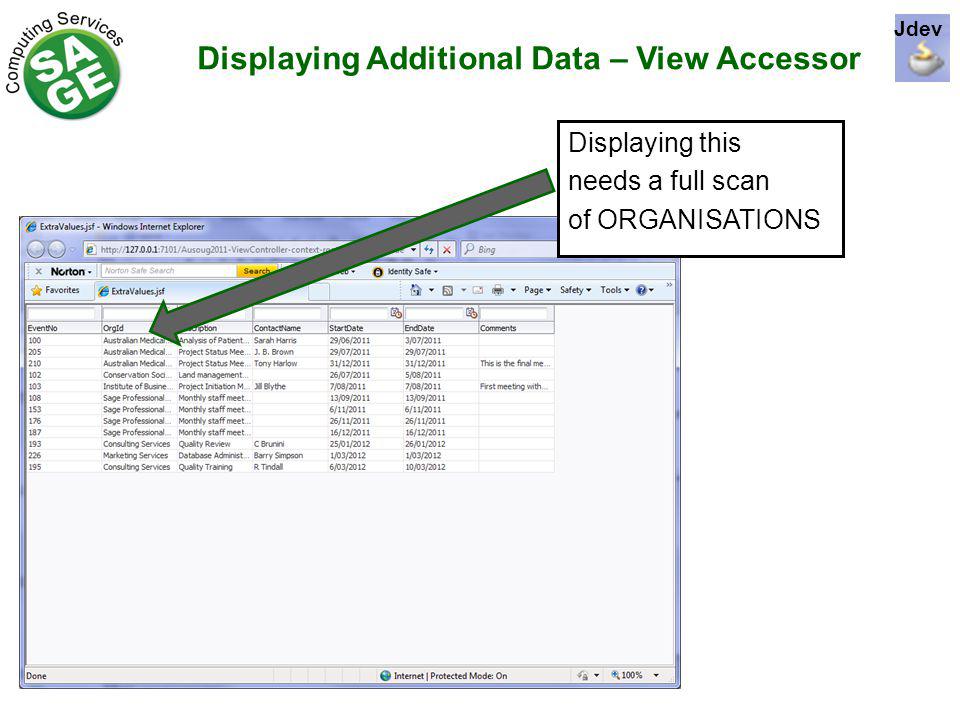

79 Jdev Displaying this needs a full scan of ORGANISATIONS Displaying Additional Data – View Accessor

80 Displaying Additional Data - Multiple Entity Usages Jdev

81 Displaying Additional Data - Multiple Entity Usages Jdev

82 Displaying Additional Data - Multiple Entity Usages Jdev Displaying this fetches Organisations.name from a join in the VO query

83 Recommendations So Far Forget about Explain plan – find out what it really did Required Bind variable is fine if you always provide a value for an indexed column For flexibility and performance use multiple View Criteria with Parameter Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y For derived values, don’t use functions unless you have to Select all the sources of a derived attribute If you have to use functions fetch everything you need in one operation Don’t use Ignore Case unless you have a function based index Be wary of using View Accessors for large data sets

84 Skewed Data Majority value Minority value DB

85 Skewed Data in SQL If I execute the statement with a minority value then a majority (twice) it reassesses the plan and makes a different decision DB

86 Skewed Data in ADF Query for the minority case Jdev

87 Skewed Data in ADF DB

88 Skewed Data in ADF Query for the majority case Jdev

89 View Object – Skewed Data in ADF Even after 4 executions its still using the same plan DB

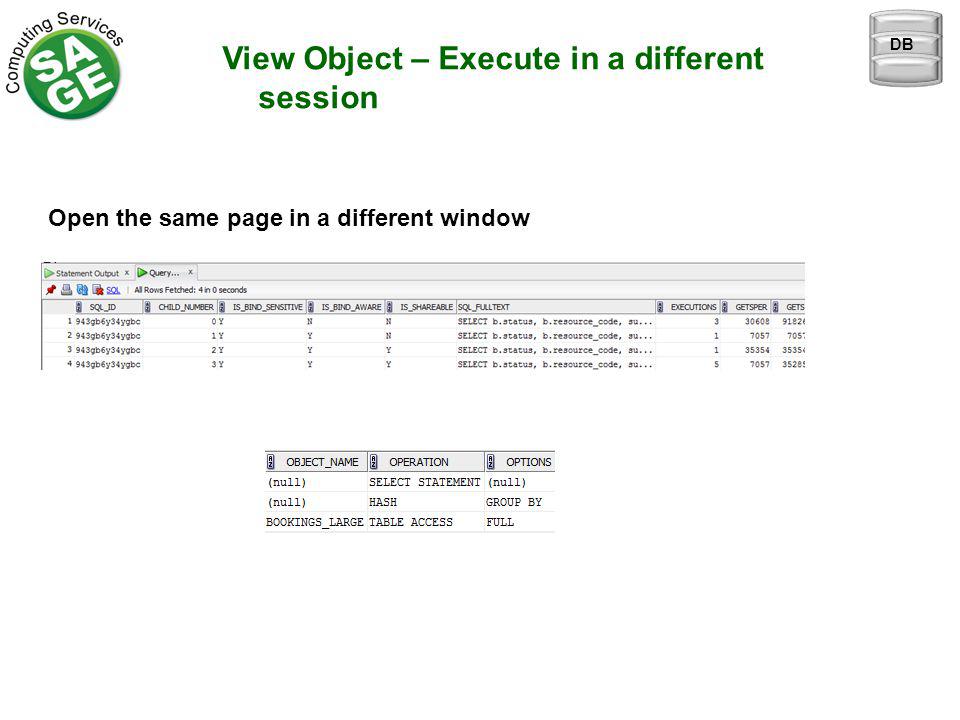

90 View Object – Execute in a different session Open the same page in a different window DB

91 View Object – BIND_AWARE Add this hint to all Vos on skewed data (with histograms) Jdev

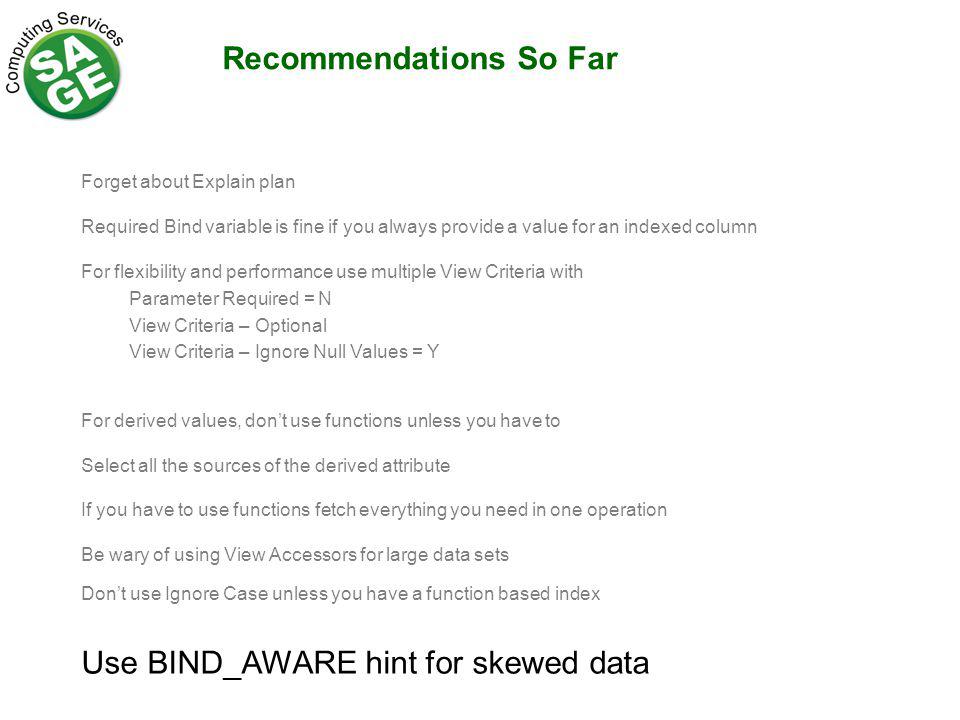

92 Recommendations So Far Forget about Explain plan Required Bind variable is fine if you always provide a value for an indexed column For flexibility and performance use multiple View Criteria with Parameter Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y For derived values, don’t use functions unless you have to Select all the sources of the derived attribute If you have to use functions fetch everything you need in one operation Be wary of using View Accessors for large data sets Don’t use Ignore Case unless you have a function based index Use BIND_AWARE hint for skewed data

93 So what about all the cute new query components

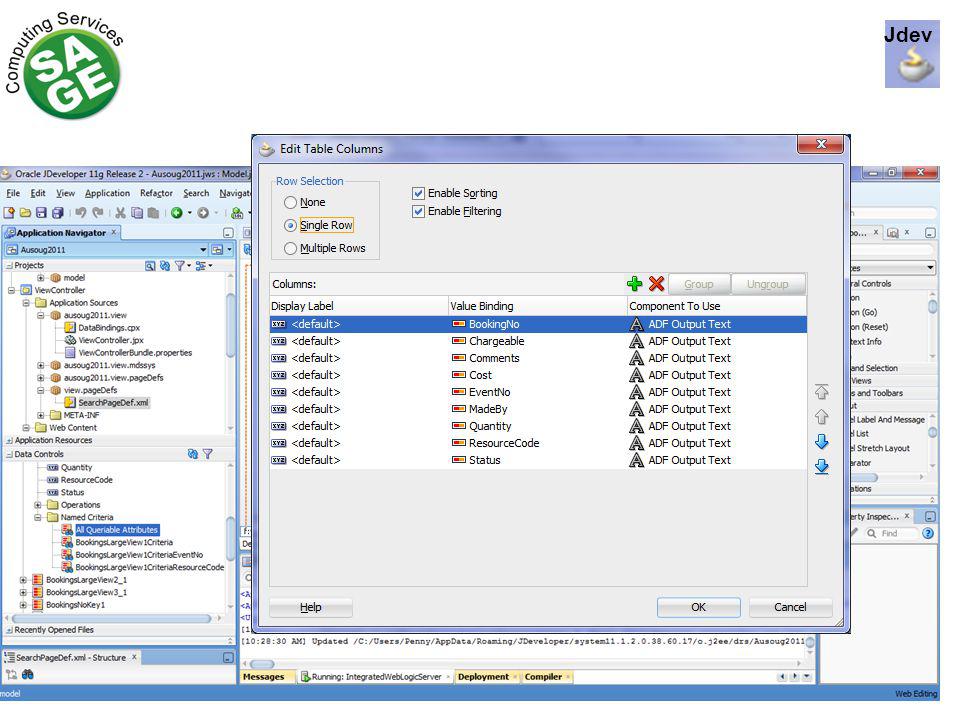

94 Jdev

95

96 xxxxxxxxxx

97

98

99

100 This is fine because the user picked an indexed attribute to query

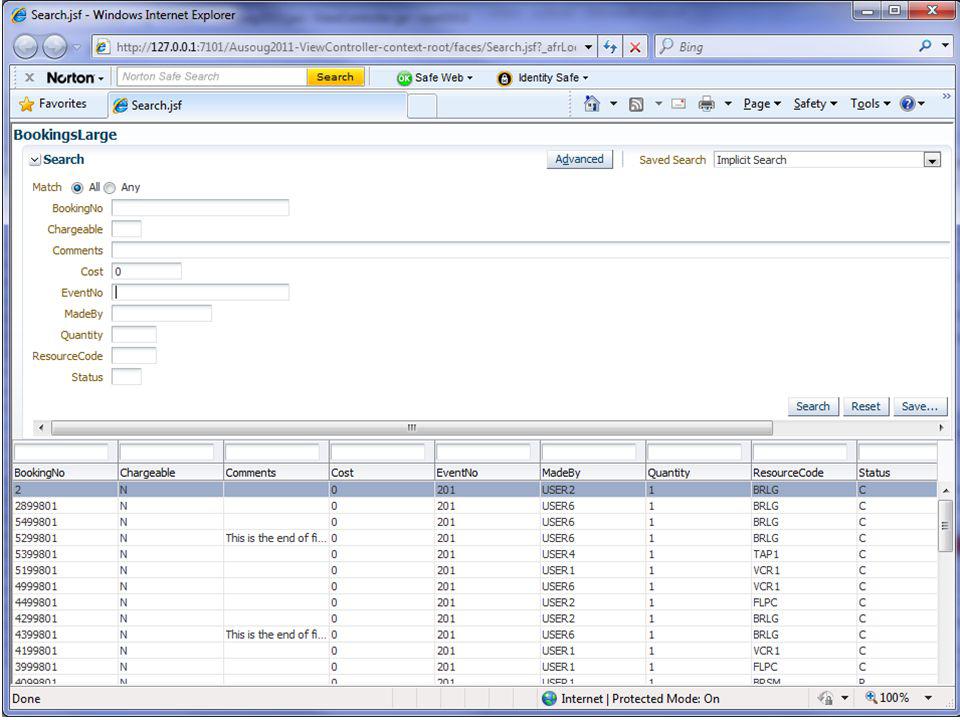

101 xxxxxxxxxx

102

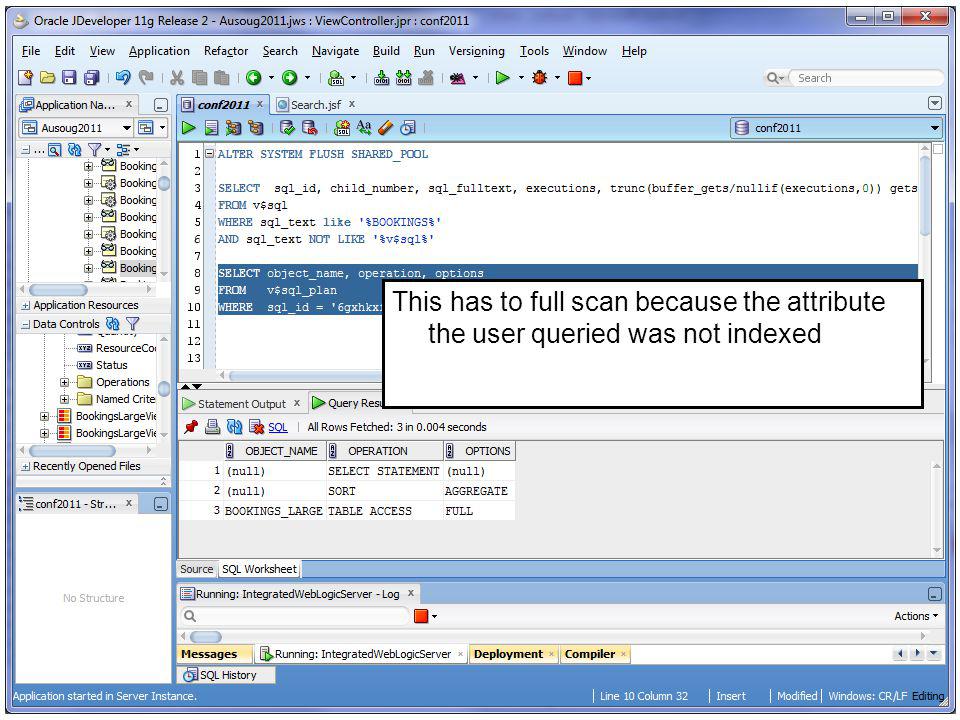

103 This has to full scan because the attribute the user queried was not indexed

104 xxxxxxxxxx

105 Running PL/SQL from Java LIKE ‘%something%’ can’t use an index even if there is one

106 xxxxxxxxxx

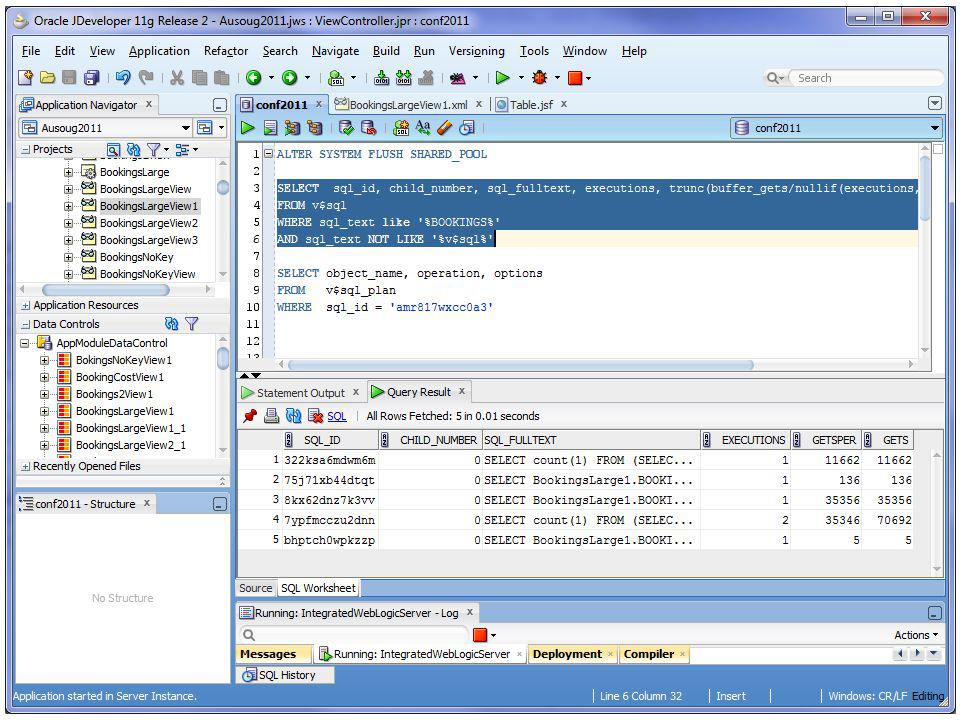

107

108 Write our own searches with a known set of parameters Don’t allow users to sort large sets of records

109 Connections - Logging Jdev

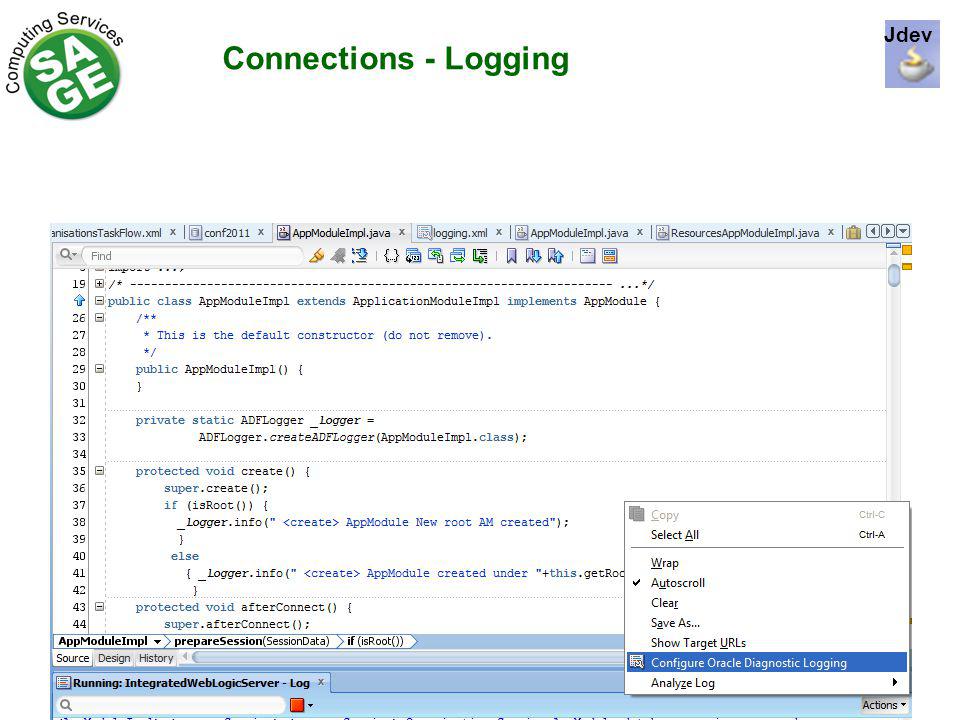

110 Connections - Logging Jdev

111 Connections - Logging Jdev

112 Connections - Logging Jdev

113 Connections Jdev

114 Using BTFs in Regions Jdev AppModule Connection defined as: java:comp/env/jdbc/conf2011DS

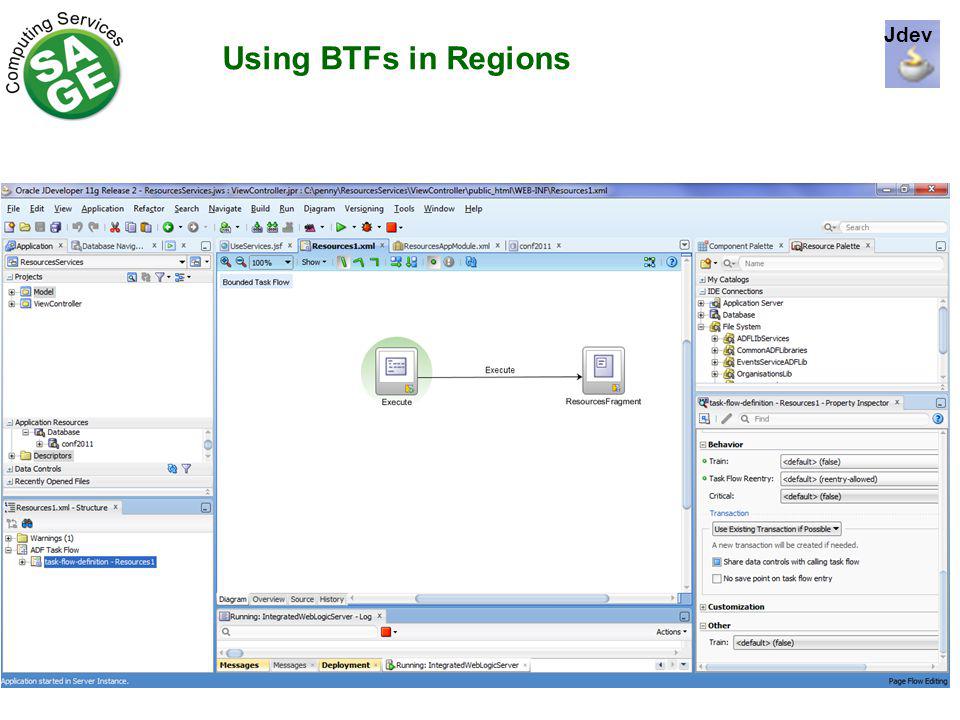

115 Using BTFs in Regions Jdev

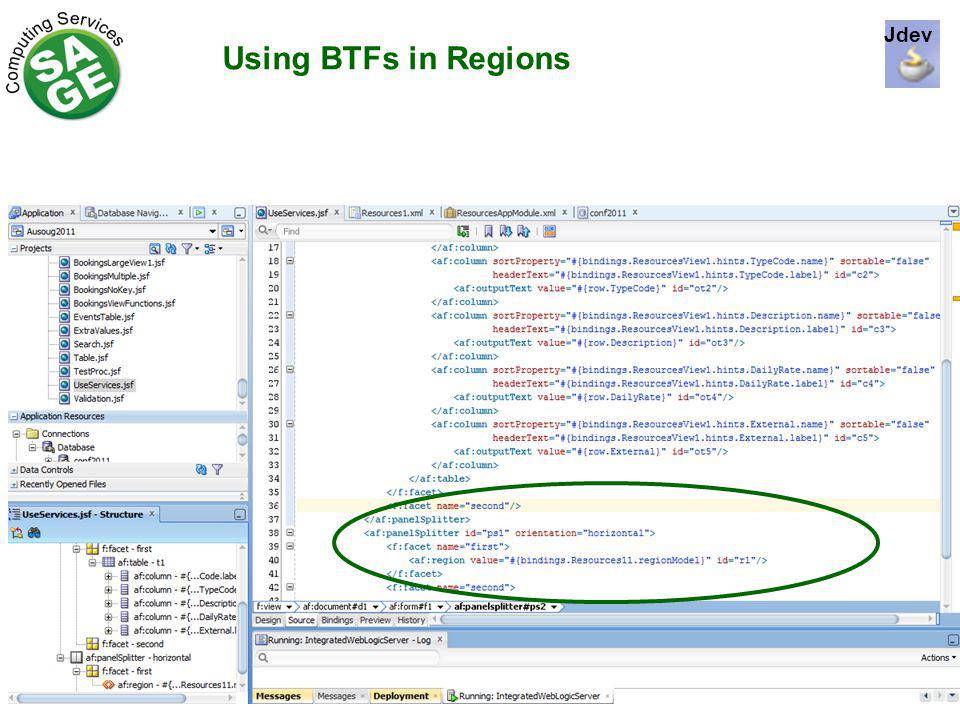

116 Using BTFs in Regions Jdev

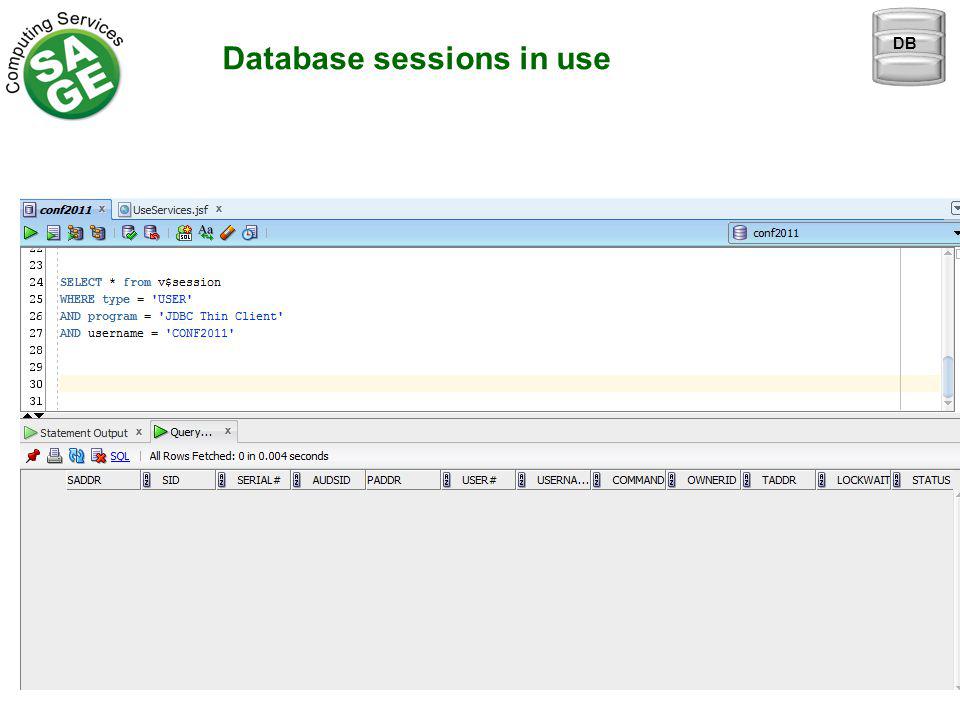

117 Database sessions in use DB

118

119 Using BTFs in Regions Jdev

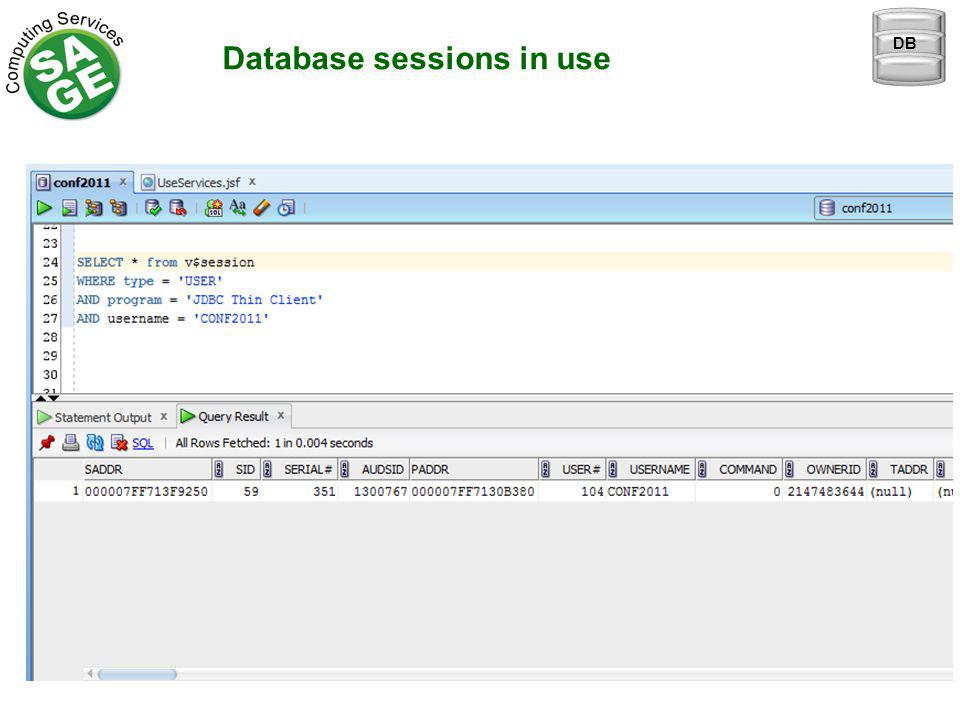

120 Database sessions in use DB

121 Using BTFs in Regions AppModule Connection defined as: java:comp/env/jdbc/EventsServiceConnDS Jdev

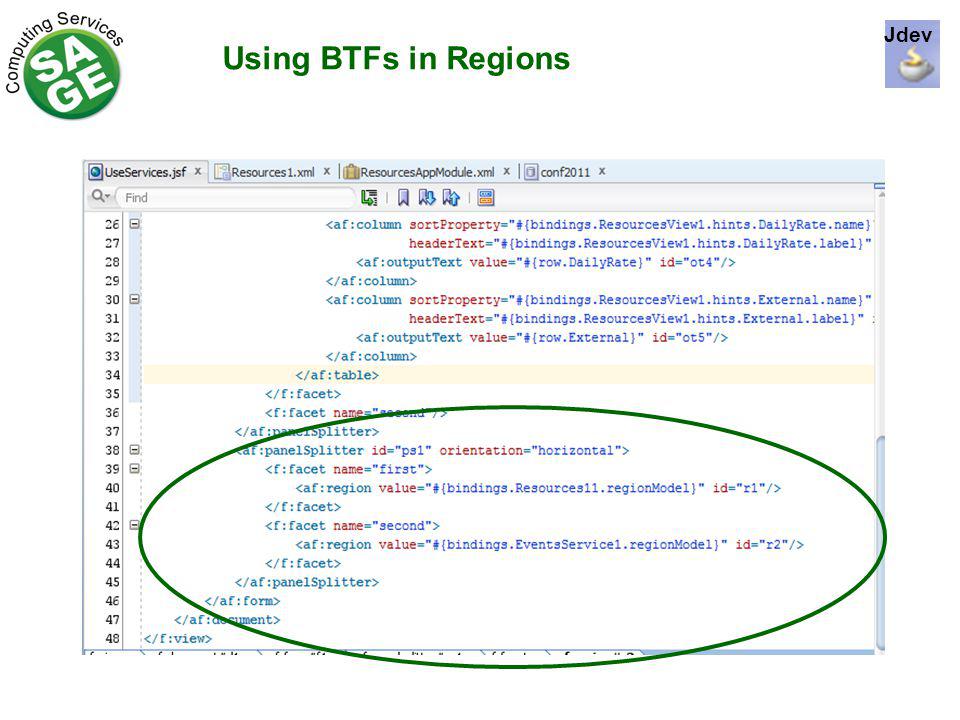

122 Using BTFs in Regions Jdev

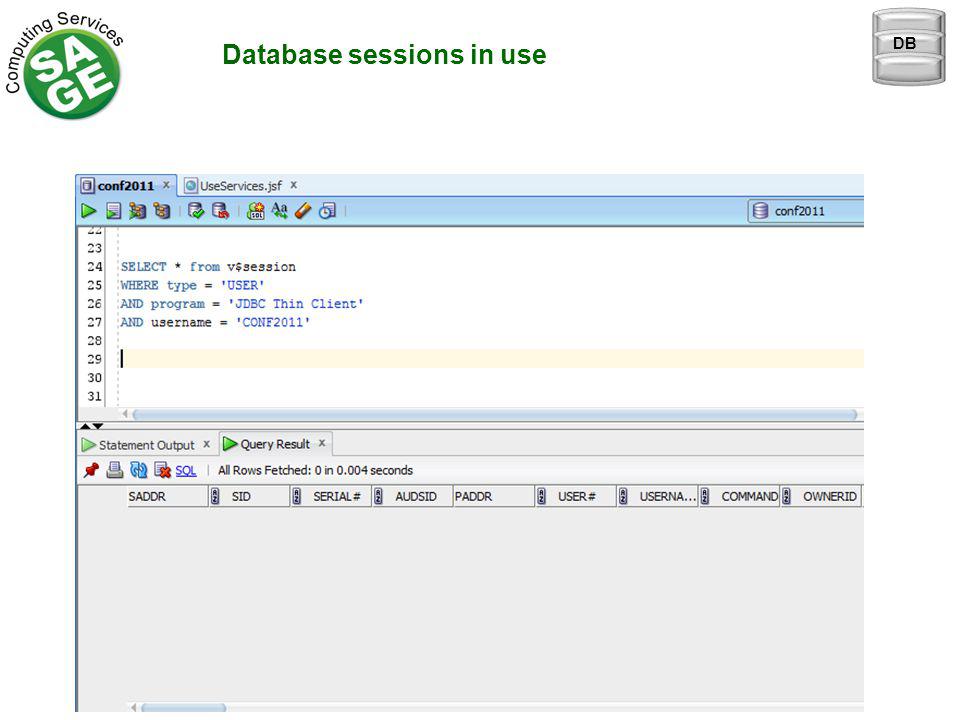

123 Database sessions in use DB

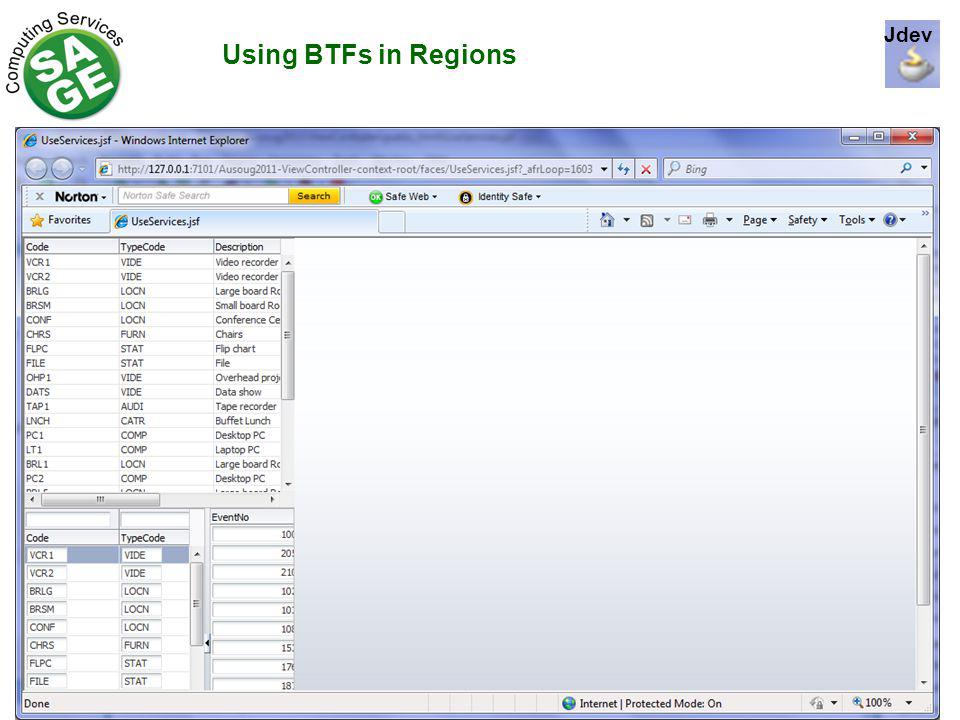

124 Using BTFs in Regions Jdev

125 Using BTFs in Regions Jdev

126 Database sessions in use DB

127 Use the same connection

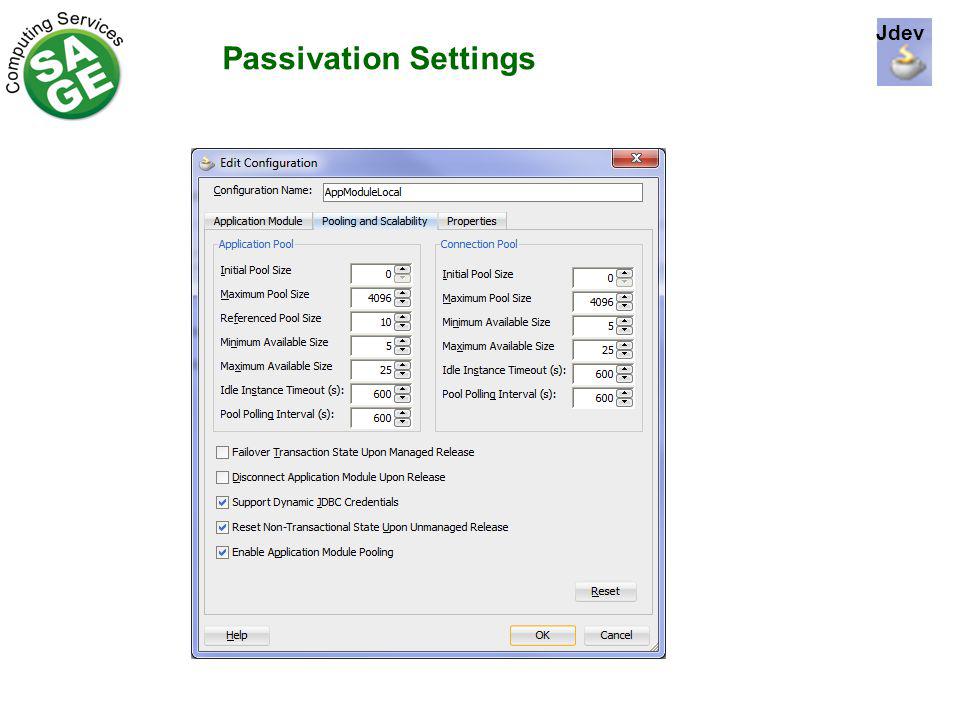

128 Passivation Settings Jdev

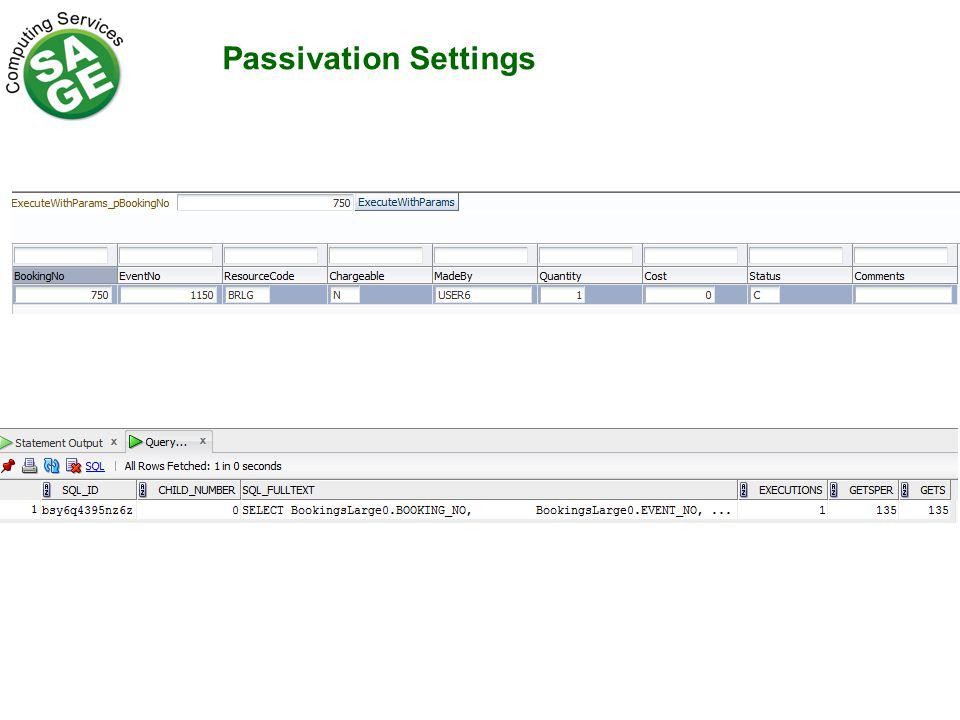

129 Passivation Settings

130 Recommended for Development / Testing

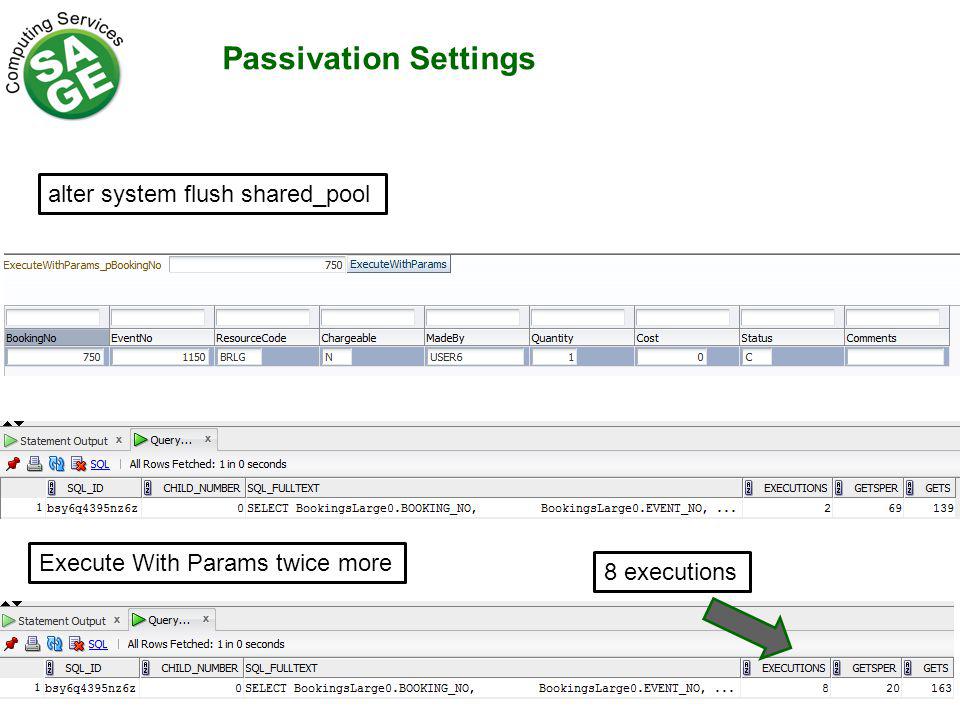

131 Passivation Settings alter system flush shared_pool Execute With Params twice more 8 executions

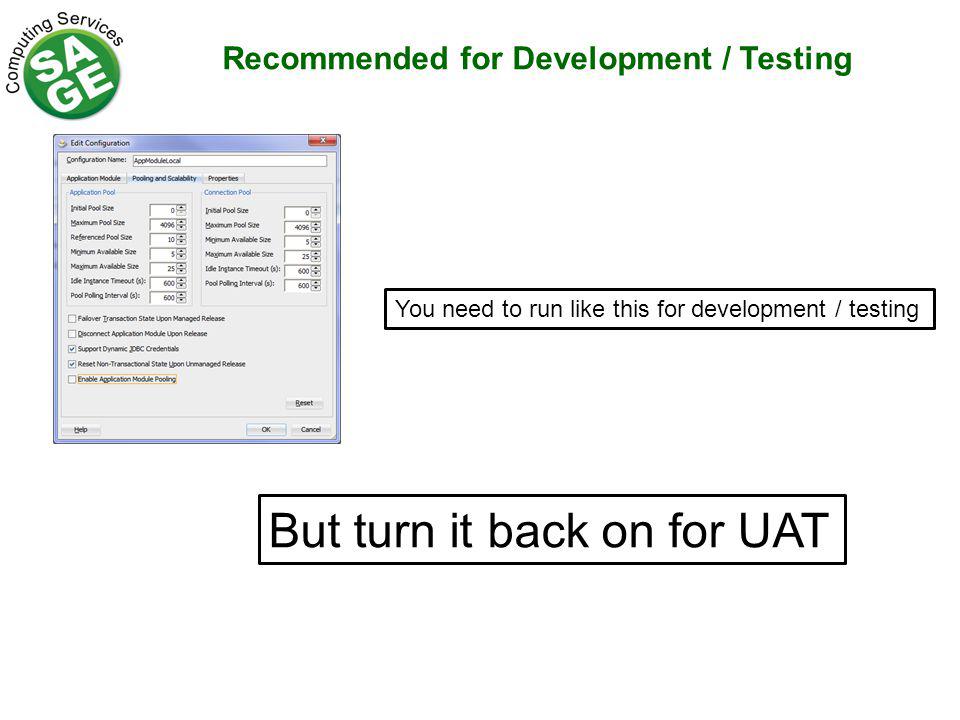

132 Recommended for Development / Testing You need to run like this for development / testing But turn it back on for UAT

133 Recommendations  Forget about Explain plan  Required Bind variable is fine if you always provide a value for an indexed column  For flexibility and performance use multiple View Criteria with Parameter Required = N View Criteria – Optional View Criteria – Ignore Null Values = Y  For derived values, don’t use functions unless you have to  Select all the sources of the derived attribute  If you have to use functions fetch everything you need in one operation  Don’t use Ignore Case unless you have a function based index  Be wary of using View Accessors for large data sets  Use BIND_AWARE hint for skewed data  Use the same connection  Bundle PL/SQL calls  Use Application Module pooling in UAT

134

135 JDeveloper ADF and the Oracle database – friends not foes SAGE Computing Services Customised Oracle Training Workshops and Consulting Penny Cookson Questions
