1. Confidential ASWM Installation Guide in Main Server ( for Windows Server 2008 R2 ) 1

2. Confidential Agenda System Requirement of Main Server Win Server 2008R2 Installation ASWM Enterprise Main Program Download Main Server Setting & Installation Steps Server Setting – Role and Feature Microsoft Silverlight Installation SQL Server 2008R2 SP2 Express Edition Installation ASWM Enterprise Installation 2

3. Confidential 3 System Requirement of Main Server Windows  Win Server 2003  Win Server 2003 R2  Win Server 2008  Win Server 2008 R2  Win Server 2012  Win Server 2012 R2  IIS 6 (above) .NET Framework 3.5 .NET Framework 4  SQL Server 2005 Express (above)  Firewall Setting Operating System Server Role & Feature

4. Confidential 4 Win Server 2008R2 Installation (Users should install operating system first by themselves.)

5. Confidential 5 ASWM Enterprise Main Program Download Please access below download link to get the software : http://www.asus.com/tw/supportonly/ASWM%20Enterprise/HelpDesk_Download/ [Main Server Support Operating System] - Windows Server 2003 32/64 bit - Windows Server 2008 32/64 bit - Windows Server 2008 R2 64 bit - Windows Server 2012 64 bit - Windows Server 2012 R2 64 bit [Agent Support Operating System] - Windows Server 2003 32/64 bit - Windows Server 2008 32/64 bit - Windows Server 2008 R2 64 bit - Windows Server 2012 64bit - Windows Server 2012 R2 64bit - *Windows 7 32/64 bit - Windows 8 32/64 bit - Windows 8.1 32/64 bit *Remark: It will be ISO file after downloading. User needs to have suitable software to open it if the operating system is Windows 7 32/64 bit.

6. Confidential Main Server Setting 6 Step 1. Enable Related Server Roles and features.NET Framework 3.5 IIS setting SNMP Service Firewall Setting Step 2. Install Silverlight Step 3. Install SQL Server Express (SDVD) Step 4. Install ASWM Enterprise (SDVD)

7. Confidential 7 1. Click “ Add Roles “ A. Install.NET Framework 3.5.1

8. Confidential 8 2. Select “ Application Server “ and click “ Next “

9. Confidential 9 3. Click “ Next “

10. Confidential 10 4. Select “.NET Framework 3.5.1 “ & all options under “ Windows Process Activation Service Support “, and then click “ Next “ v v v v v

11. Confidential 11 5. Click “ Install “

12. Confidential 12 6. Installation under processing.7. Click “ Close “ after installation finished.

13. Confidential 13 1. Click “ Add Roles “ B. Add IIS Server Role

14. Confidential 14 2. Click “ Next “

15. Confidential 15 3. Select “ Web Server ( IIS ) “ and click “ Next “

16. Confidential 16 4. Select “ Application Development “ and activate all the sub-options.

17. Confidential 17 5. Pull down the roll-bar and find “ Windows Authentication “ under “ Security “ option. Then activate it.

18. Confidential 18 6. Pull down the roll-bar and activate all options under “ Management Tools “. Then click “ Next “. v v v

19. Confidential 19 7. Click “ Install “

20. Confidential 20 8. Installation under processing. 9. Click “ Close “ after installation finished.

21. Confidential 21 1. Select “ Features “ and click “ Add Features “ C. Install SNMP Service

22. Confidential 22 2. Pull down the roll-bar and find “ SNMP Services “, activate it and all the sub-options. Then click “ Next “.

23. Confidential 23 3. Click “ Install “

24. Confidential 24 4. Click “ Close “ after installation finished.

25. Confidential 25 1. Select “ Inbound Rules “ under “ Windows Firewall with Advanced Security “ at left-hand side and click “ New Rule “ D. Set up Windows Firewall

26. Confidential 26 2. Select “ Port “ and then click “ Next “

27. Confidential 27 3. Add TCP 2623 & 2624 port in Specific local ports, and then click “ Next “.

28. Confidential 28 4. Click “ Next “.

29. Confidential 29 5. Click “ Next “.

30. Confidential 30 6. Give it a name and click “ Finish “.

31. Confidential Main Server Installation 31 Step 1. Enable Related Server Roles and features Step 2. Install Silverlight Step 3. Install SQL Server Express Step 4. Install ASWM Enterprise

32. Confidential 32 1. After downloading and extracting ASWM Enterprise program, open the folder and click “ Setup “ to run installation wizard. 2. Select “ Microsoft Silverlight 5.1.30214.0 “ and click it

33. Confidential 33 Install Silverlight 3. Click “ Install now “ 4. Click “ Next “ 5. Installation finished, Click “ Close “

34. Confidential Main Server Installation 34 Step 1. Enable Related Server Roles and features Step 2. Install Silverlight Step 3. Install SQL Server Express Step 4. Install ASWM Enterprise

35. Confidential 35 1. Select “ Microsoft SQL Server 2008 R2 SP2 Express Edition “ and click it.

36. Confidential 36 2. Select first option to install SQL Server 2008 R2.

37. Confidential 37 3. Click “ Next “ after file extracting finished.

38. Confidential 38 4. Click “ Next “

39. Confidential 39 5. Click “ Next “

40. Confidential 40 6. Click “ Next “

41. Confidential 41 7. Click “ Next “

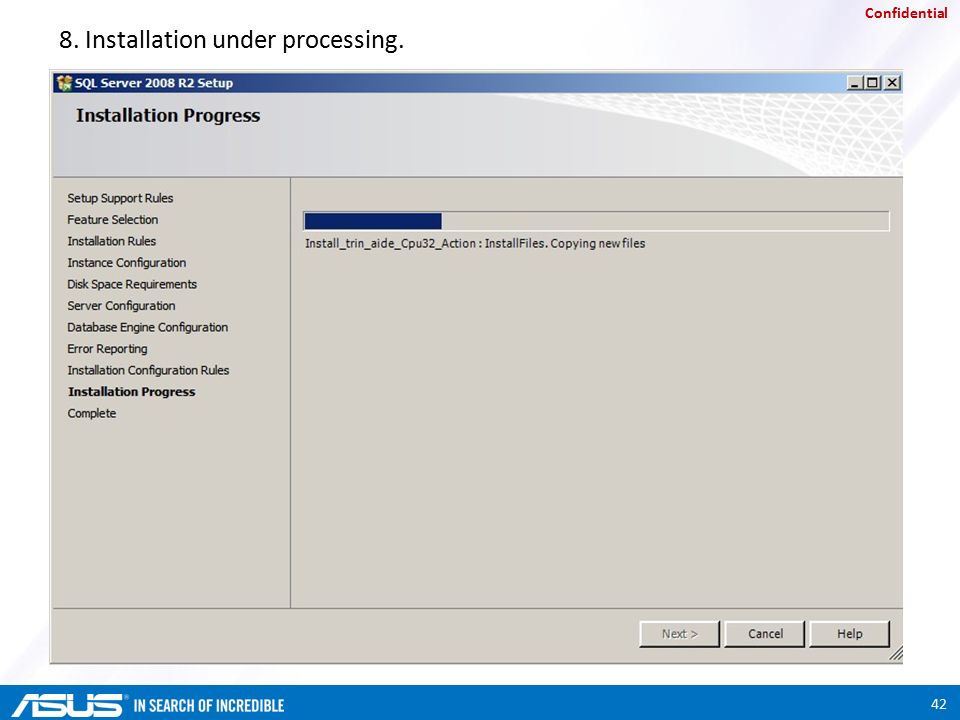

42. Confidential 42 8. Installation under processing.

43. Confidential 43 9. Click “ Close “ to finish the installation.

44. Confidential Main Server Installation 44 Step 1. Enable Related Server Roles and features Step 2. Install Silverlight Step 3. Install SQL Server Express Step 4. Install ASWM Enterprise

45. Confidential 45 1. Select “ ASWM Enterprise V1.4.28 “ and click it.

46. Confidential 46 2. Click “ Next “ and follow the installing steps.

47. Confidential 47 3. Microsoft.NET framework 4 is required, and it will start the install procedure during the ASWM installation process. Just follow the step and install it.

48. Confidential 48 4. When the framework installation finished, you may check if all the requirements were installed well, and then click “ Next “.

49. Confidential 49 5. Click “ Connection Test “ first, and then click “ Next “

50. Confidential 50 7. Click “ OK “6. Installation continues.

51. Confidential 51 8. Click “ Close “ to finish the installation.

52. Confidential 52 9. Double click the desktop icon of ASWM Enterprise and run the program. Press “ ENTER “

53. Confidential 53 10. Name : Administrator Password: aswm

54. Confidential 54 11. Click “ Skip “ and program runs successfully

55. Confidential 55 THANK YOU !!
