1 Confidential ASUS LED Projector S1 Display Date: Jan. 6 th, 2014

2 Confidential Contents Product Overview Market Status / Comparison Target Users Benefits of S1 Service and Support Appendix

3 Confidential PRODUCT OVERVIEW

4 Confidential S1: Ultra-portable LED Projector and Mobile Power in One! P.4 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Short Throw for Big Screen (41”@1m) Short Throw for Big Screen (41”@1m) HDMI/ MHL port Built in HDMI/ MHL port, which MHL provides a single- cable video and power connection for compatible smartphones Built in ASUS SonicMaster audio technology Flexible Connection Flexible Connection Mercury-free R/G/B LED light source allows longevity, up to 30000 hours DLP® projection technology with 200 lumens light output and 100% NTSC color saturation Instant On/Off capability Bright LED Projection Bright LED Projection Built-in rechargeable 22Wh battery supports up to 3- hour projection As a portable power backup(6000mAh) to charge mobile devices. Battery Inside Battery Inside Easy to carry with light weight and palm size Beautiful & durable Zen-inspired concentric circle finish 2014 CES Innovation Award Winner Premium Design Premium Design

5 Confidential Product Design with Elaborate Details P.5 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Power Key HDMI/MHL Power Adapter Inlet USB Power Output (5V/1A) Earphone out simple function keys Battery charge indicator Power indicator / Battery Status Indicator 110.5mm 102mm 30.7 mm

6 Confidential Package Contents P.6 Carrying Bag OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT MHL cable* HDMI cable* Quick Start Guide Projector * actual product specifications may vary per country or region Warranty Card Power Adaptor (type by region) AC Power Cord* (type by region) USB cable* (inner)(outer)

7 Confidential MARKET STATUS/ COMPARISON

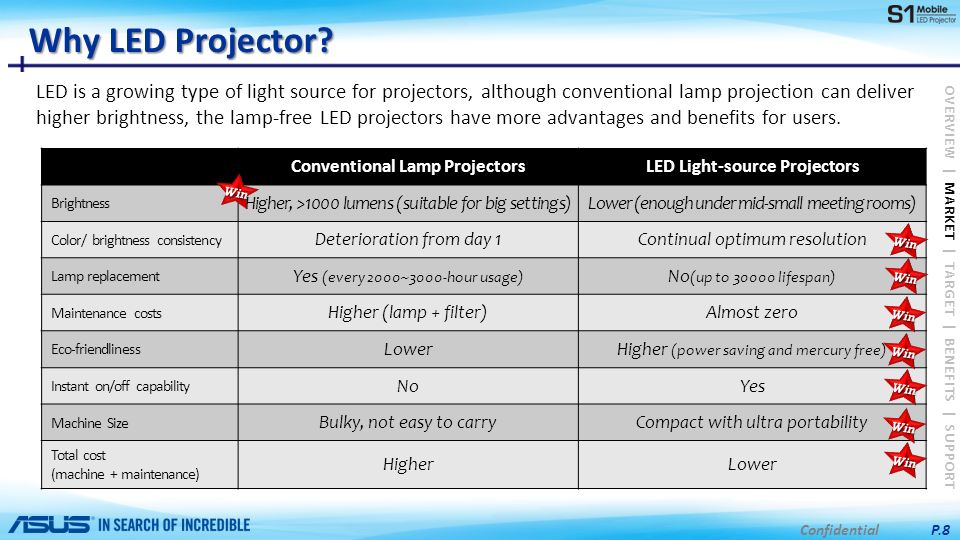

8 Confidential Why LED Projector? P.8 LED is a growing type of light source for projectors, although conventional lamp projection can deliver higher brightness, the lamp-free LED projectors have more advantages and benefits for users. Conventional Lamp ProjectorsLED Light-source Projectors Brightness Higher, >1000 lumens (suitable for big settings)Lower (enough under mid-small meeting rooms) Color/ brightness consistency Deterioration from day 1Continual optimum resolution Lamp replacement Yes (every 2000~3000-hour usage) No (up to 30000 lifespan) Maintenance costs Higher (lamp + filter)Almost zero Eco-friendliness LowerHigher (power saving and mercury free) Instant on/off capability NoYes Machine Size Bulky, not easy to carryCompact with ultra portability Total cost (machine + maintenance) HigherLower Win Win Win Win Win Win Win Win OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT

9 Confidential S1: Bright LED Projector with the Best Mobility and Design P.9 Brand/ Model name ASUS S1 Acer C205 Brookstone Pocket Projector Mobile Philips PicoPix PPX3410 Photo Native Resolution 854x480(WVGA) Display 0.3” TI DLP Brightness (max) 200 Lumens150 lumens85 lumens100 lumens Throw ratio 1.1 (41” @1m) 1.5(30”@1m)1.7(24”@1m) LED Life time(max) 30,000 hours20,000 hours Signal Input HDMI/MHL(HDCP support)HDMI/MHLHDMI Mini HDMI, VGA, Component YPbPr (up to 1080i); Composite, card reader, USB port Internal Battery * Up to 3 hoursUp to 2 hours Up to 2 hours (7.4V, 1800mAh) Built in Power bank Yes, 6000mAh (5V@1A)Yes, 3980mAh (3.7V)Yes, 3800 mAh(5V@500mA)No Speaker 2W Speaker (with ASUS SonicMaster Aduio Technology) 2Wx2 Speakers1Wx2 Speakers1Wx1 speaker others Lens cover, Tripod socket 2014 CES Innovation Award Winner Tripod socket OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT *fully single charged Win

10 Confidential TARGET USING SCENARIOS

11 Confidential Versatile for Multi-taskers P.11 Need to have small meetings with <5 people; need to conduct a quick presentation along with the laptop; need to visit clients often and like to share work information. Office Presentation On the Road Mobile Companion Home Entertainment Those who use laptop/ tablet PC/ smartphone for sharing work, professional presentation, brainstorming, and more interaction with large screen easily. Those who value convenience and functionality for personal entertainment and like to enjoy games, watch movies, or any kind of multimedia entertainment with larger screen. OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT

12 Confidential BENEFITS

13 Battery-powered, to Enjoy Big Screen Anywhere P.13 S1 comes with rechargeable battery in an incredibly compact design for playtime up to 3 hours anywhere. Battery life will depend on projection light output. For example, Presentation mode: 1.8 hours @70 Lumens Battery mode: 3 hours @50 Lumens OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Power Indicator Solid Green: either plugged to a power source or running on battery mode (battery power>25%.) Solid Red: The LED projector is running on battery mode Battery charge indicator This LED indicator lights up when the LED projector is plugged to a power source using its power adapter.

14 Confidential As Backup Battery for Mobile Devices P.14 *The battery has a lifespan and ages every time when it is charged and discharged. It will gradually loose its charging capability as it ages. Replace the battery at the end of its lifespan. OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Battery Status Indicator Solid Green: charging without power on

15 Confidential Short Distance with Big Screen P.15 Equipped with a short-throw lens(Throw Ratio: 1.1:1) for the projection of 41- inch images at a distance of 1 meter, it’s perfect for presentation in a small meeting or classroom. Screen size and projection distance table OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT 1m 41 ” wide image Adjust the LED projector’s distance from the screen using the table below.

16 Confidential S1 Minimize Shadow and Shine Interference P.16 3 1 2 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Conventional Lamp Projector S1 LED Projector

17 Confidential Built in HDMI/ MHL for Extensive Connectivity P.17 S1 offers HDMI/ MHL port, so that users can easily connect it to various IT, multimedia and mobile devices for large-screen enjoyment. ASUS SonicMaster Audio Technology delivers optimized hardware with precision-tuned software for professional-grade audio. OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT 41” 1 meter

18 Confidential Simply connect your MHL-enabled* phone to ASUS S1 projector to mirror everything on your phone to the larger screen, while charging the phone. Ultimate Mobile to Big Screen Experience OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT *You can refer to http://www.mhlconsortium.org/productlist/mobile-devices/ to find MHL-enabled mobile devices. http://www.mhlconsortium.org/productlist/mobile-devices/ P.18

19 Confidential Easy to Carry with Compact Design P.19 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT iPad mini S1  Almost equivalent to a 7-inch tablet S1 provides 200 lumen brightness with small size (110.5 x 102 x 30.7 mm), which is similar to two business cards, and weighs 342g, close to the new iPad mini. It’s compact enough to easily move between rooms or take on a road.  Similar dimension to two business cards 102mm 110.5mm ≈

20 Confidential Low Cost of Ownership Lifetime = up to 30,000 hours = 8 hours a day x 10 years = 4 hours a day x 20 years No need to replace any mercury lamps Lamp lifetime=2000~3000 hours usage, to keep brightness. a lamp costs around USD200/pc  Total Maintenance cost will over $2,000USD P.20 To use the projector for 8 hours per day, the life span of 30000 hours is close to 20-year usage. OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Conventional Lamp Projector LED Projector

21 Confidential Quick and Convenient Control for Time Saving Time-consuming for On/Off Warm-up/ Cool-down for 30 ~ 60 seconds! Instant On/Off Capability 5 seconds on and instant off! P.21  Generic tripods to deliver viewing versatility! OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT Conventional Lamp Projector S1 LED Projector

22 Confidential SUPPORT

23 Marketing Materials What we will provide for S1 Product Page by wk03 POSM by wk03 eMarketing Material (banner, eDM, Landing Page) by wk04 Product video by wk05 On-machine Sticker Color Box P.23 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT

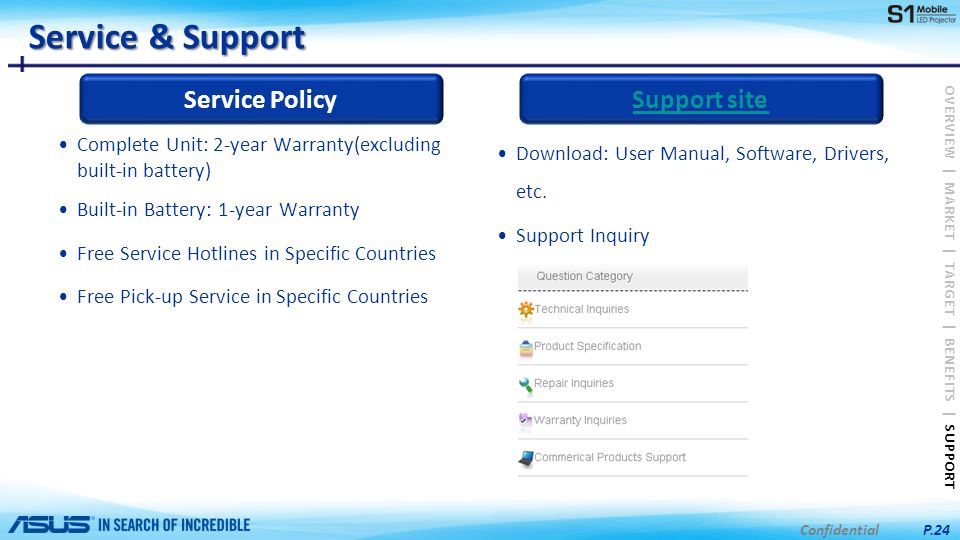

24 Confidential Service & Support Service Policy Complete Unit: 2-year Warranty(excluding built-in battery) Built-in Battery: 1-year Warranty Free Service Hotlines in Specific Countries Free Pick-up Service in Specific Countries Support site Download: User Manual, Software, Drivers, etc. Support Inquiry P.24 OVERVIEW | MARKET | TARGET | BENEFITS | SUPPORT

25 Confidential APPENDIX

26 Q&A Q&A What are your questions about ASUS S1 Mobile LED Projector? LED Light Source Q. What’s difference between LED light source and Traditional Lamp light source. –Ans: Except the better color saturation, LED light source have more benefits than traditional ones. It has about 30,000 hours life time which equal to traditional lamp replacing lamp by 10 times (normal life time is about 3,000 hours). Also, we have 10 times less chances to using “Mercury” lamp to pollute the earth. Besides, LED light source enable “Instant On/Off” with compact module due to LED light source structure. That’s also why we could using LED technology to make compact and simple to use projector product. Brightness and Image Quality Q. What’s difference between LED brightness/light output and traditional lamp brightness? –Ans: LED projection technology naturally has better color saturation than traditional mercury lamp light source. When seeing the real projection screen, users could perceive as bright images as lamp projectors with higher lumens. Besides, lamp projectors can often experience deterioration in color and brightness from day 1 whereas LED projectors ensure even several thousand hours usage you’re still getting crisp bright images. P.26

27 Confidential Q&A Q&A What are your questions about ASUS S1 Mobile LED Projector? Operation Q. What’s the most proper projection distance of S1? –Ans: The proper projection distance will be set on 0.73~2.43m which forms 30”~100” screen size. If you prefer bigger size, could adjust projection distance to 2.43m or above, the screen could reach over 100”.But the brightness will also look darker when screen size goes bigger. Q. What environment does S1 work the best under? –Ans. S1 is recommended to work the best in small settings, around 5 people meeting room, with less interference of ambient light. Short Throw Ratio Q. What does S1 with 1.1:1 throw ratio mean? –A projector’s throw ratio is defined as the distance (D), measured from lens to screen, that a projector is placed from the screen, divided by the width (W) of the image that it will project (D/W). Throw ratio (TR) = Throw Distance (D)/ Image Width (W) = D/W i.e. @ TR 1.1 : 41” Display at 1 meter away from the projector [S1’s TR] @ TR 1.55 : 30” Display at 1 meter away from the projector [Others] P.27

28 Confidential Q&A Q&A What are your questions about ASUS S1 Mobile LED Projector? Battery-powered Q. What is the benefit of S1 on embedded battery? –Ans. Embedded batteries are not often found on portable projectors, and that battery is usually optional, and is relatively large. S1 features rechargeable 22Wh battery in a palm-sized chassis, to provide up to 3 hours projection time of movie, photo and music playback enjoyment on a single charge. It provides flexibility for the environment without mains to plug in to make you ready to share wherever and whenever. When powered by battery only, two preset modes for selection BATTERY MODE (3 hours@ 50 lumens) PRESENTATION MODE(1.8 hours@ 70 lumens) Note. The battery has a lifespan and ages every time when it is charged and discharged. It will gradually loose its charging capability as it ages. Power bank inside Q. What is the benefit of S1 as USB backup power? –Ans. More and more people rely on mobile devices, such as smartphones, tablets and ultrabooks, to work or entertain all the day. They need portable battery chargers to keep mobile devices running through a busy day. The S1 LED projector not only is embedded internal battery to power up projection, but also doubles as a USB backup battery for those mobile devices. It equips with 6000mAh capacity(fully charge), which lets you completely charge, for example, iPhone 5, four times. P.28

29 Confidential Detail Specification P.29 Display Display Technology0.3" DLP® Light Source / lifetime(Max)R/G/B LED, 30,000 hours True Resolution(native)WVGA 854x480 Light Output(Max.) 200 lumens (up to 70 Lumens with battery) Contrast Ratio(typical)1000:1 DCR Color Saturation (NTSC)100% Display Colors16.7 M Projectio n Lens Throw Ratio(@16:9)1.1:1 (41” @ 1m) Projection Distance/ Screen Size 0.73~2.43m/ 30~100 inches Projection Offset100 % Zoom RatioFixed Video Feature Picture Modes 6 Modes(Battery Mode / Presentation Mode / Standard Mode / Theater Mode /Flashlight mode / SOS Mode) Aspect RatioAuto/ 16:9 / 4:3 Projector Placement Front Table, Rear Table, Front Ceiling, Rear Ceiling Audio Feature Built-in Speaker Yes, 2W speaker(ASUS SonicMaster Audio technology) Power Consumption32W Internal Battery6000mAh (5V@1A) Battery Life22Wh(up to 3 hours) Acoustic Noise(Typical)28 dB (Battery mode) Mechanical Design Chassis ColorsSilver Lens coverYes Tripod SocketYes Interface Signal InputHDMI/ MHL Audio OutputEarphone out USB PortYes (1xType A, for power charge usage) Phy.Dimension/ Net Weight110.5 x 102 x 30.7 mm/ 342g Operating Temperature/ Humidity 0˚C ~ 40˚C/ 20% ~ 90% Accessories carry bag, power adapter, power cord, HDMI cable, USB cable, MHL cable,Quick Start Guide, Warranty card *Specifications are subject to change without prior notice.

30 Confidential Thank You !!
