1. Flat Printing Process Textile Finishing Technology SMKN 1 KATAPANG KABUPATEN BANDUNG Kelas XII Semester 5 & 6

2. Teknologi dan Rekayasa Flat Printing Process  Make a description of the flat printing process  Controling of flat printing process and parameter  Fixation, washing and drying process

3. Teknologi dan Rekayasa Printing Process

4. Teknologi dan Rekayasa PRINTING DEFINITION It’s the proces of dye stuff among the paturn design to stick to a fabric with some way until make good a colour fasness proff motif

5. Teknologi dan Rekayasa 4 Dasar Metode Pencapan  Pencapan langsung (Direct Printing)  Pencapan tumpang (Over Printing)  Pencapan rintang (Resist Printing)  Pencapan etsa (Discharge Printing)

6. Teknologi dan Rekayasa Direct printing It’s a printing paste to contain of dye stuff that printed to a white fabric

7. Teknologi dan Rekayasa Over Printing It’s a printed paste to contain of dye stuff tat printed to colorless fabric as a basic of the motif

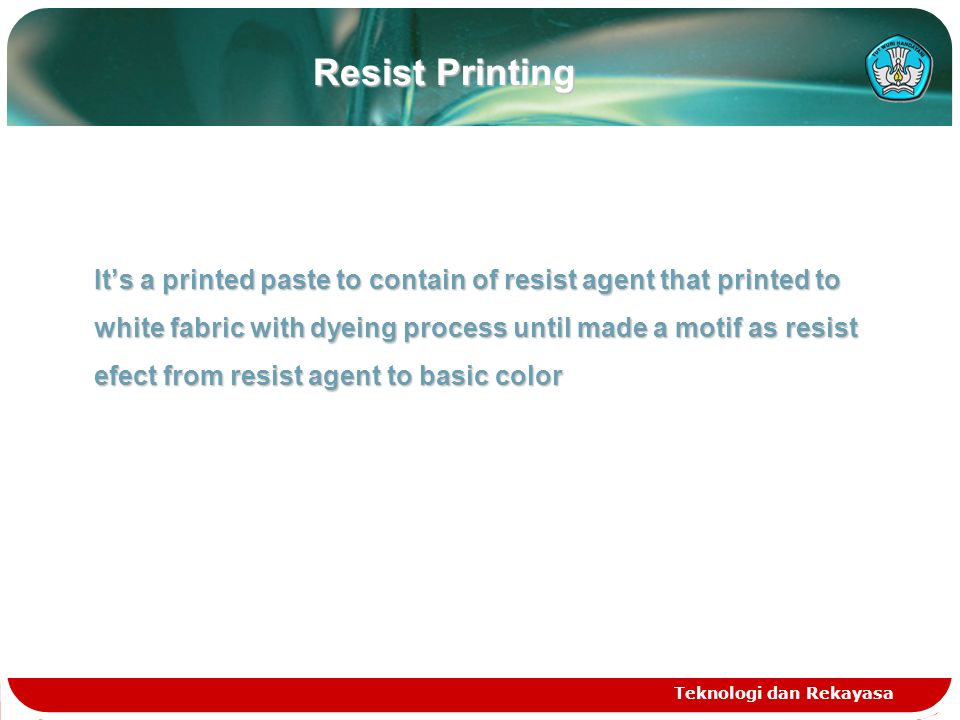

8. Teknologi dan Rekayasa Resist Printing It’s a printed paste to contain of resist agent that printed to white fabric with dyeing process until made a motif as resist efect from resist agent to basic color

9. Teknologi dan Rekayasa Discharge Printing It’s a printed paste to contain of discharge agent that printed to a collories fabric that make discharge efect from the discharge agent to collories fabric

10. Teknologi dan Rekayasa Fabric Printing Process  Cotton fabric printing with direct dye-stuff  Cotton fabric printing with reaktif dye-stuff  Polyester fabric printing with dispersi dye-stuff  T/C fabric printing with pigmen dye-stuff  Nylon fabric printing with asam dye-stuff  Batik

11. Teknologi dan Rekayasa Cotton fabric printing with direk dye-stuff Carakteristic of direct dye-stuff :  Solid with water  Washing ability not so good  Light ability good  Oksidator & reduktor resistense is bad

12. Teknologi dan Rekayasa  Thickening process  Printing paste process  Printing process  Drying process 80-100 C, 2-5minute  Steaming 100-103 C,30 minute  Washing to wide fabric direction  Cold washing  Iring process  Drying process Process

13. Teknologi dan Rekayasa Cotton fabric printing with Reaktif dye-stuff Kind of ficsation with reactive dye-stuff :  Steam  Curring  Flash ageing  Air hanging  Wet developmen  Pad- batch

14. Teknologi dan Rekayasa  Thickening process  Printing paste process  Printing process  Drying process 80-100 C, 2-5 minute  Baking 140 C,30 minute  warm washing 40 C, 10 minute  Soaping, 15 minute  Heat washing 10 minute  Cold washing 10 minute  Drying process Process

15. Teknologi dan Rekayasa Polyester fabric printing with Dispersi dye-stuff Kind of ficsation with reactive dye-stuff :  Normal steaming  High Presurre steaming  HighTemperatur steaming  Baking/ dry heat baking/ termofiksasi

16. Teknologi dan Rekayasa  Thickening process  Printing paste process  Printing process  Drying process 100 C, 2 minute  Termofiksasi 180 C,2 minute  RC washing  Soaping, 15 minute  Heat washing 10 minute  Cold washing 10 minute  Drying process Process

17. Teknologi dan Rekayasa T/C fabric printing with Pigmen dye-stuff Process  Emulsi Thickening process  Printing paste process  Printing process  Drying process 100 C, 2 minute  Curing 120-130 C,2 minute

18. Teknologi dan Rekayasa Nylon fabric printing with Asam dye-stuff Process  Thickening process  Printing paste process  Printing process  Drying process 100 C, 2 minute  Steaming 102 C,30 minute  washing

19. Teknologi dan Rekayasa Batik Process

20. Teknologi dan Rekayasa Mordanting Process Boiling fabric process before batiking to make good colour fasness

21. Teknologi dan Rekayasa Batik tulis Sticking wax on the fabric

22. Teknologi dan Rekayasa Batik cap Sticking wax on the fabric

23. Teknologi dan Rekayasa Dyeing Process colouring fabric

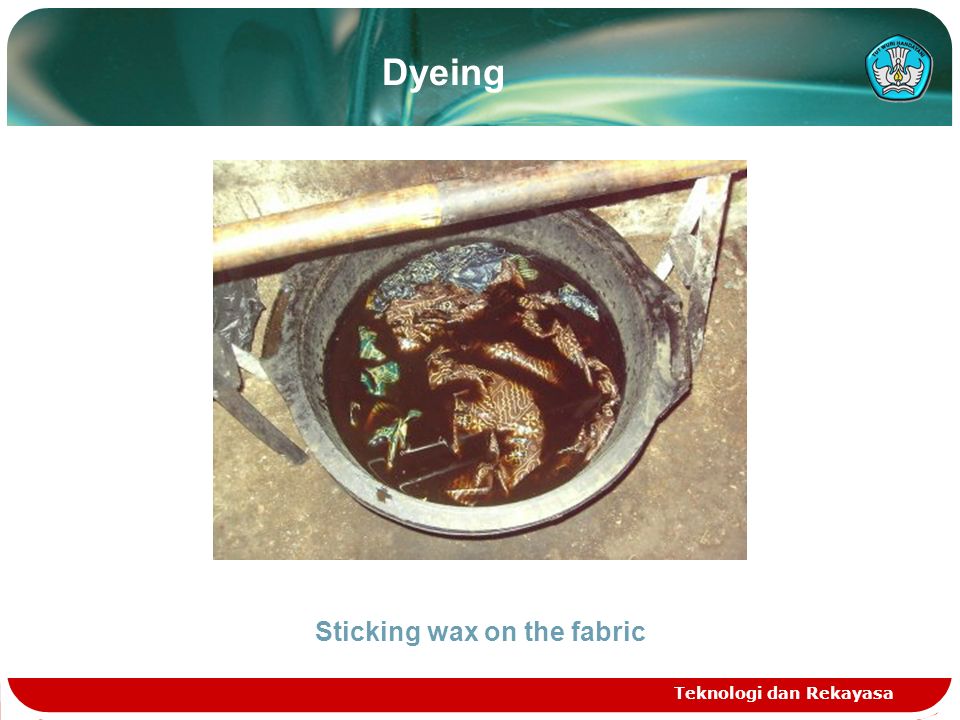

24. Teknologi dan Rekayasa Dyeing Sticking wax on the fabric

25. Teknologi dan Rekayasa Pelorodan Moving wax from fabric surface

26. Teknologi dan Rekayasa Pelorodan Process removing wax from fabric surface

27. Teknologi dan Rekayasa Washing Process removing inpurity from fabric surface

28. Teknologi dan Rekayasa Result of batik
