Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Wear parameters defined in ISO Standard 3685 Figure Legend:
2
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Experimental test set-up Figure Legend:
3
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Experimental tests performed with relative varying process parameters Figure Legend:
4
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 (a) Tool sections for crater profile measurement, (b) typical acquired crater profile, (c) filtered profile, and (d) 3D representation of the crater of the insert Figure Legend:
5
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Measuring technique for VB: test 8, t = 4 min Figure Legend:
6
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Evolution of (a) VB and (b) KT Figure Legend:
7
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Probability plots for (a) VB, (b) √VB, (c) KT, and (d) ln(KT) Figure Legend:
8

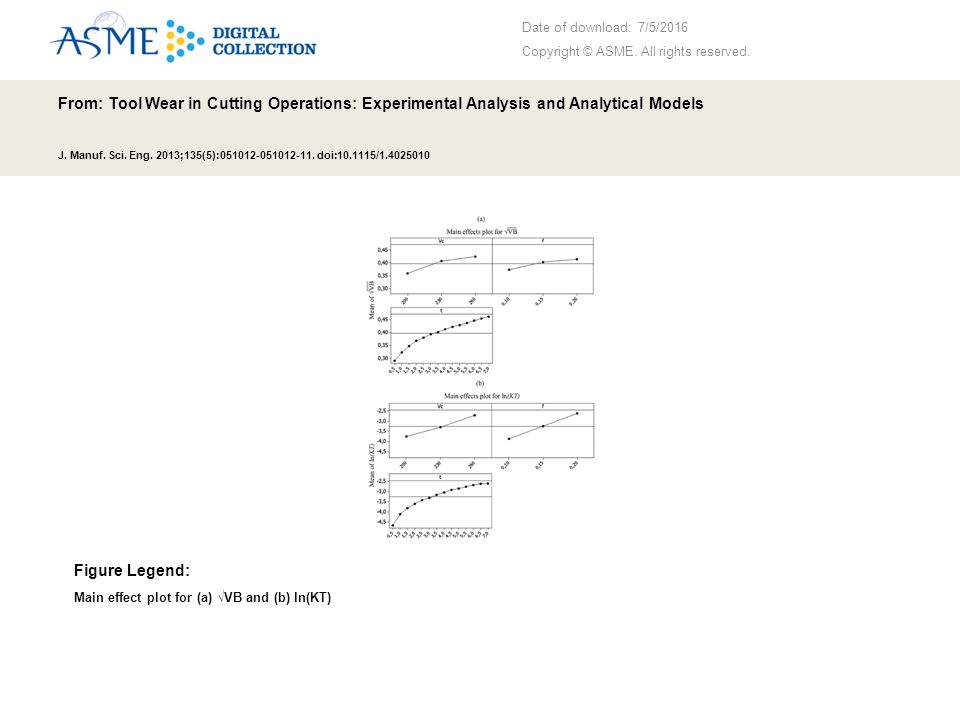

Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Main effect plot for (a) √VB and (b) ln(KT) Figure Legend:
9
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Interaction plot for (a) √VB and (b) ln(KT) Figure Legend:
10
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 VB and KT absolute errors after 7 min of cut; (a), (b) 2nd order RSM models; (c), (d) 3rd order RSM models, and (e), (f) ANNs models (tests from 1 to 9 in light grey, tests from 10 to 12 in dark grey) Figure Legend:
11
Date of download: 7/5/2016 Copyright © ASME. All rights reserved. From: Tool Wear in Cutting Operations: Experimental Analysis and Analytical Models J. Manuf. Sci. Eng. 2013;135(5):051012-051012-11. doi:10.1115/1.4025010 Fitting surface of experimental data (a), (b), 2nd order RSM model (c), (d), 3rd order RSM model (e), (f), and ANNs model (g), (h) for VB and for KT after 7 min of cut Figure Legend:
