3. Brian Blanchard Twitter: @BrianBlanchard Web: Oakwoodsys.com Blog: aka.ms/BrianBlanchard

4. Feel the <3: 1. Pure PaaS: Save your butt when you’re out of ammo 2. PaaS IaaS: Controlled & anticipated explosions 3. Full Blown Hybrid: 80 to 13 in hours

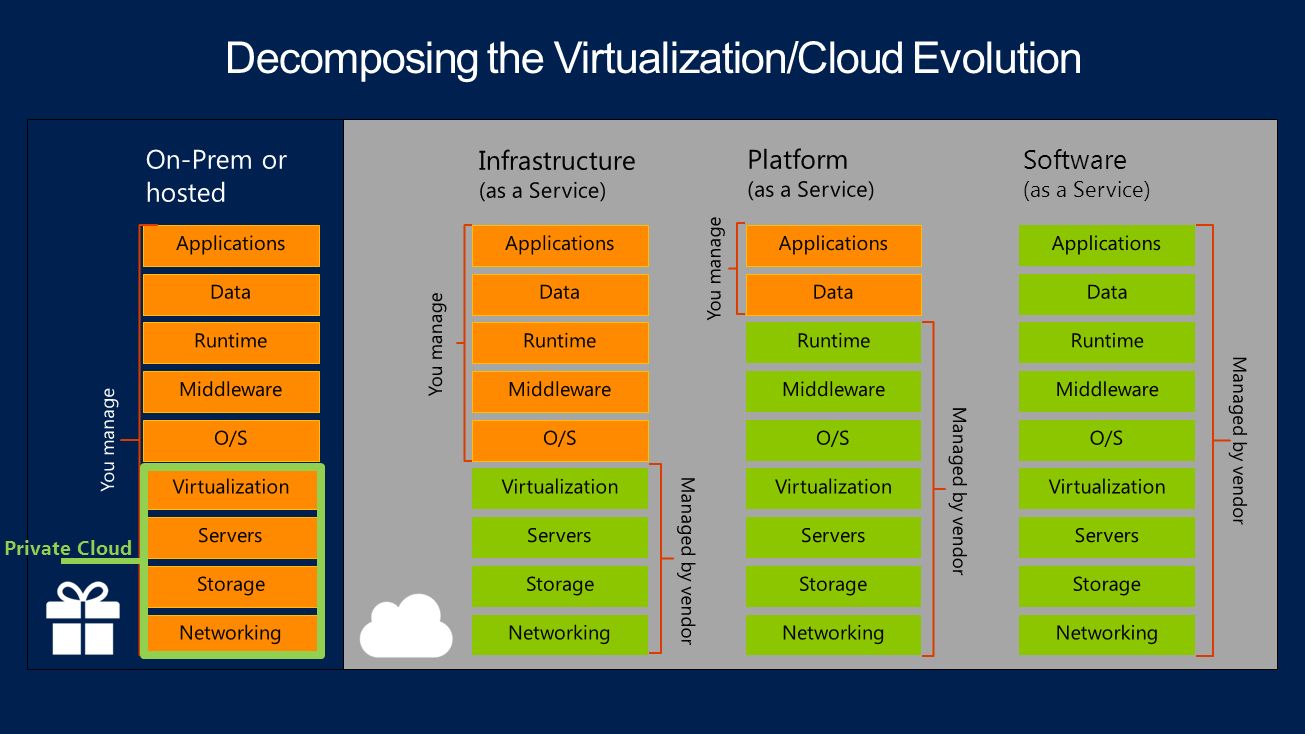

6. On-Prem or hosted Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime You manage Infrastructure (as a Service) Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime Managed by vendor You manage Platform (as a Service) Managed by vendor You manage Storage Servers Networking O/S Middleware Virtualization Applications Runtime Data Software (as a Service) Managed by vendor Storage Servers Networking O/S Middleware Virtualization Applications Runtime Data Private Cloud

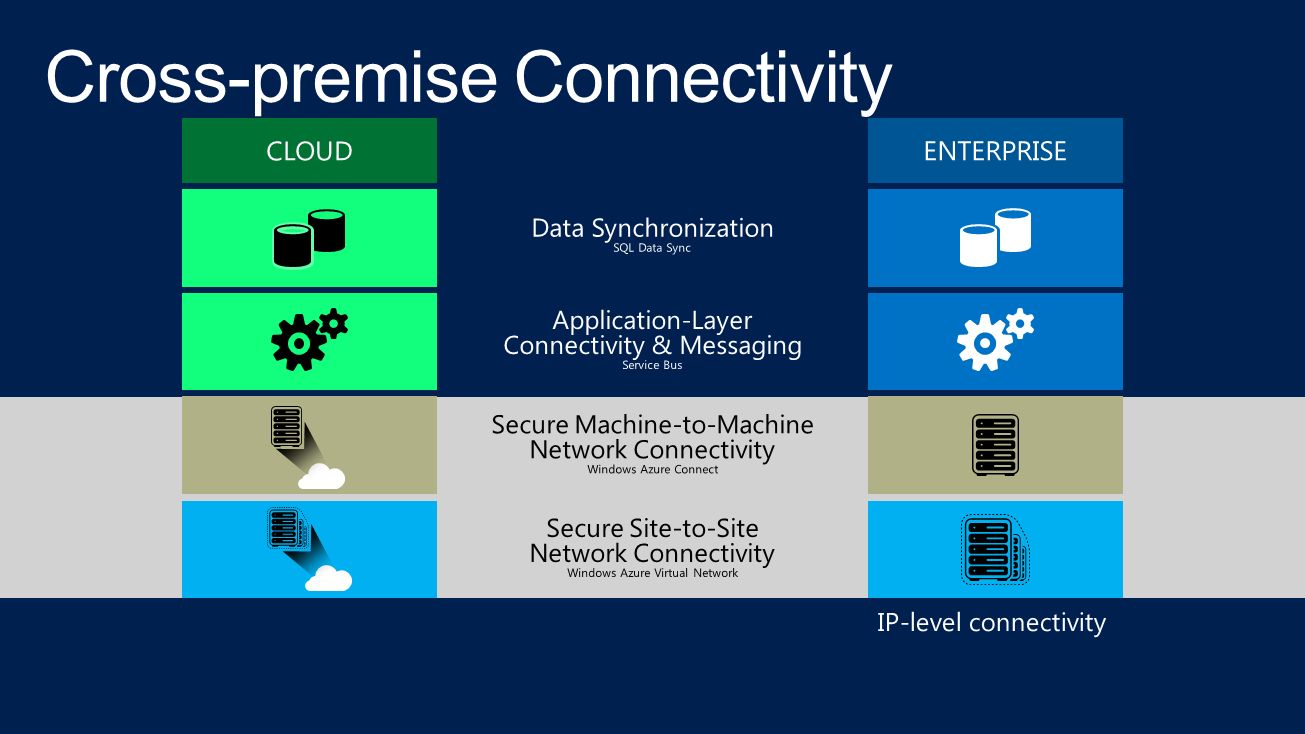

7. Secure Machine-to-Machine Network Connectivity Windows Azure Connect Secure Site-to-Site Network Connectivity Windows Azure Virtual Network Data Synchronization SQL Data Sync Application-Layer Connectivity & Messaging Service Bus Secure Site-to-Site Network Connectivity Windows Azure Virtual Network Secure Machine-to-Machine Network Connectivity Windows Azure Connect IP-level connectivity

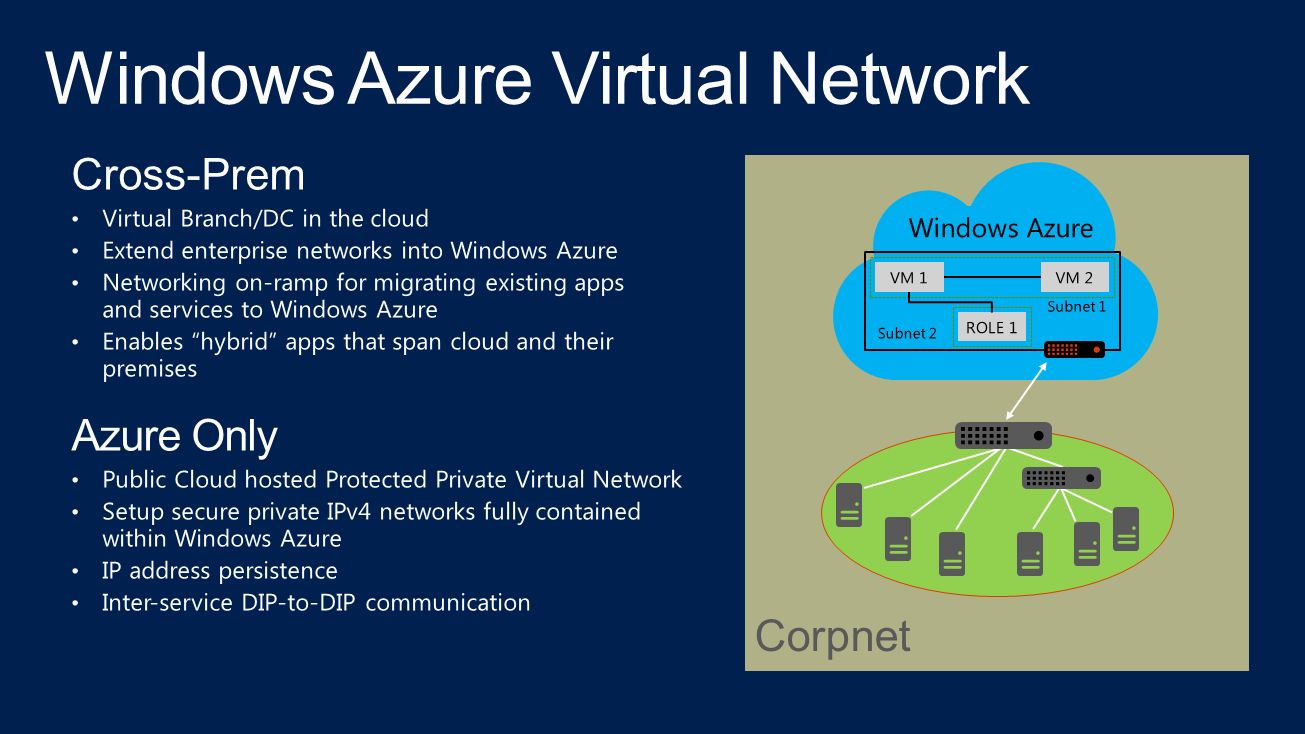

8. Cross-Prem Virtual Branch/DC in the cloud Extend enterprise networks into Windows Azure Networking on-ramp for migrating existing apps and services to Windows Azure Enables “hybrid” apps that span cloud and their premises Azure Only Public Cloud hosted Protected Private Virtual Network Setup secure private IPv4 networks fully contained within Windows Azure IP address persistence Inter-service DIP-to-DIP communication Windows Azure Virtual Network

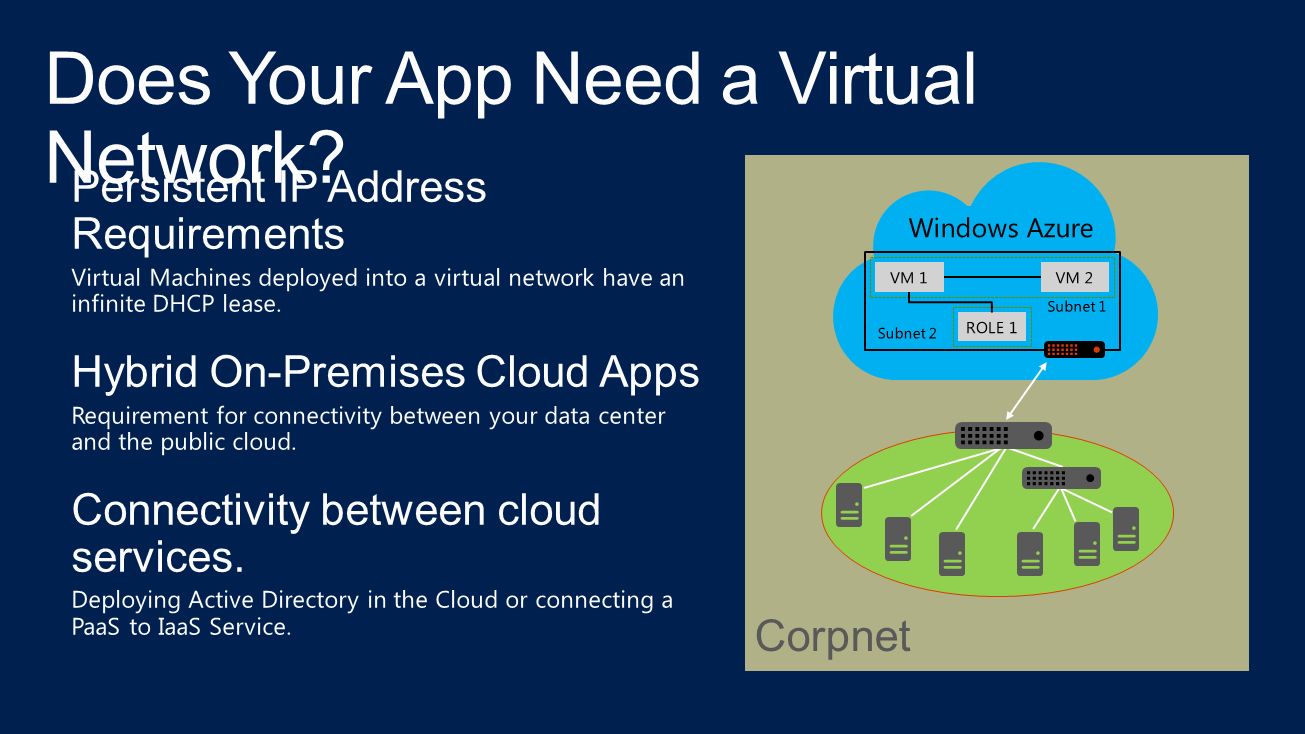

9. Persistent IP Address Requirements Virtual Machines deployed into a virtual network have an infinite DHCP lease. Hybrid On-Premises Cloud Apps Requirement for connectivity between your data center and the public cloud. Connectivity between cloud services. Deploying Active Directory in the Cloud or connecting a PaaS to IaaS Service. Does Your App Need a Virtual Network?

11. Customer Architecture: Out of Ammo – Bursting Scenarios

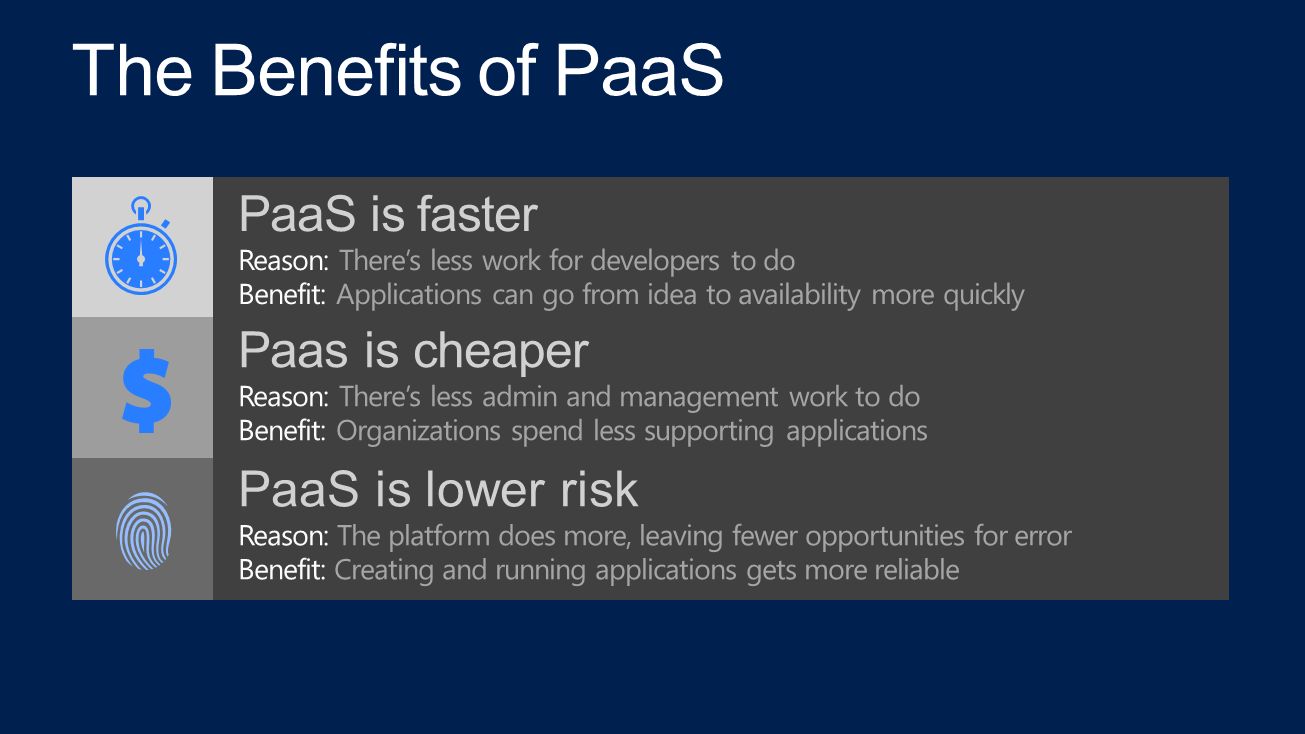

12. Paas is cheaper Reason: There’s less admin and management work to do Benefit: Organizations spend less supporting applications PaaS is faster Reason: There’s less work for developers to do Benefit: Applications can go from idea to availability more quickly PaaS is lower risk Reason: The platform does more, leaving fewer opportunities for error Benefit: Creating and running applications gets more reliable

16. Customer Architecture: Controlled & anticipated explosions

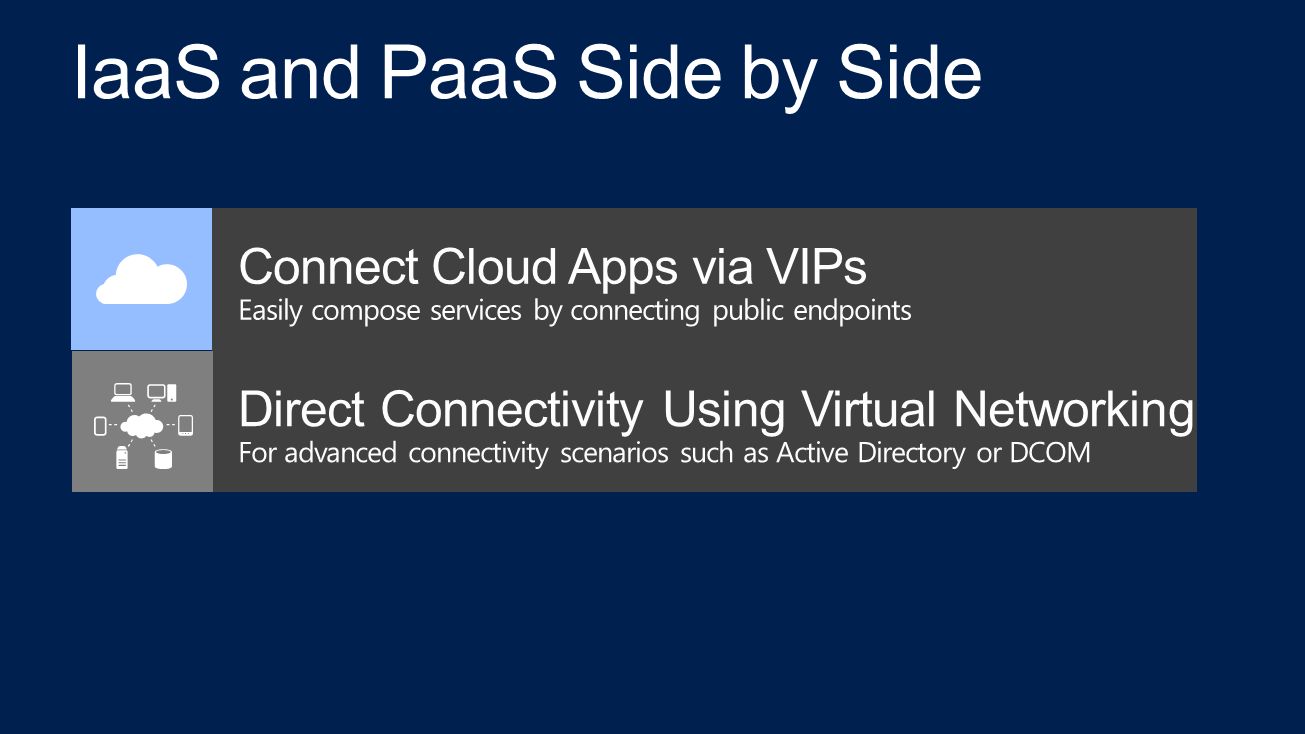

17. Direct Connectivity Using Virtual Networking For advanced connectivity scenarios such as Active Directory or DCOM Connect Cloud Apps via VIPs Easily compose services by connecting public endpoints

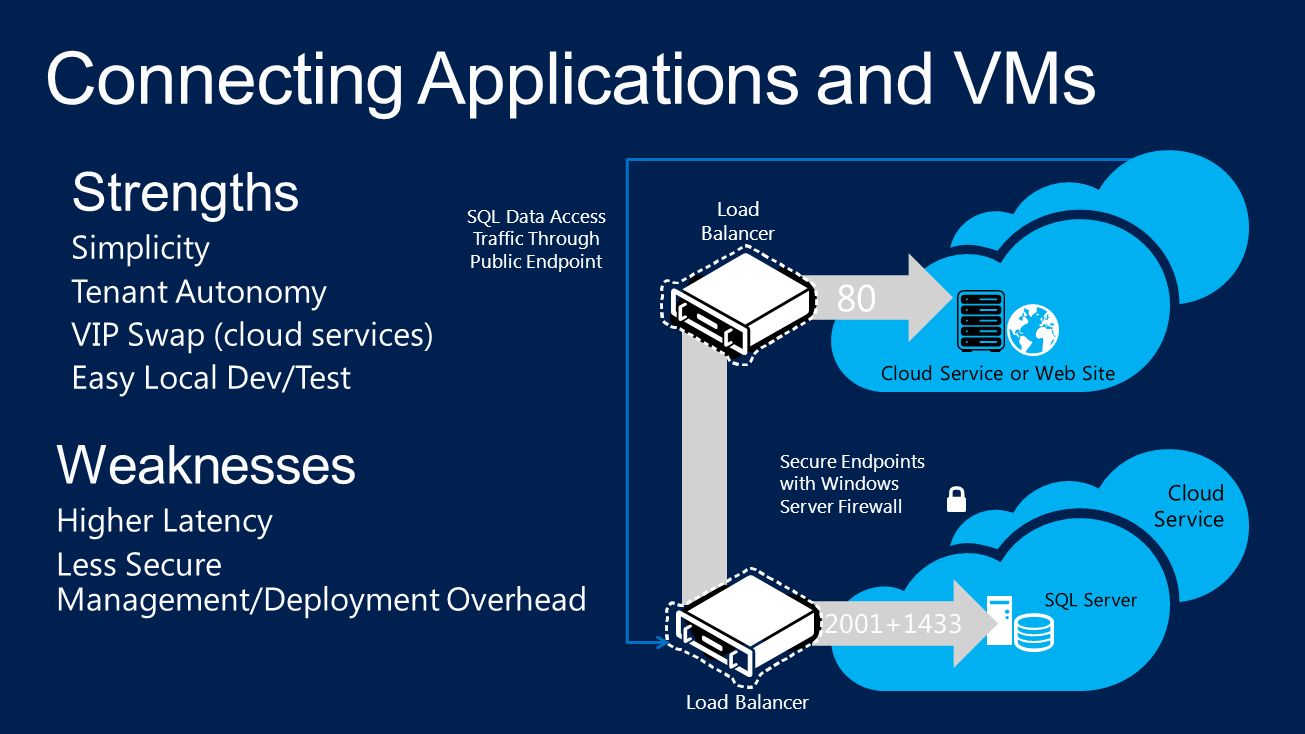

18. Strengths Simplicity Tenant Autonomy VIP Swap (cloud services) Easy Local Dev/Test Connecting Applications and VMs SQL Data Access Traffic Through Public Endpoint Weaknesses Higher Latency Less Secure Management/Deployment Overhead Cloud Service or Web Site Cloud Service SQL Server Load Balancer Secure Endpoints with Windows Server Firewall Load Balancer

22. Strengths More Secure Low Latency Cloud Service Autonomy VIP Swap (web / worker roles) Advanced Connectivity Requirements Connecting Cloud Services with VNET Direct connectivity via VNET AppSubnet (10.0.0.0/16) SQLSubnet (10.1.0.0/16) WA Web Role Cloud Service1 Cloud Service 2 AD SQL Mirror AD Subnet (10.2.0.0/16) ContosoVNet (10.0.0.0/8)

26. Customer Architecture: Full Blown Hybrid: 80 to 13 in 3600 seconds

27. Strengths Capitalize on existing investments Control via on-prem via AD & DNS More Secure Cloud Service Autonomy VIP Swap (web / worker roles) Connecting On-prem with VNET Direct connectivity via VNET AppSubnet (10.0.0.0/16) SQLSubnet (10.1.0.0/16) Load Balancer WA Web Role Cloud Service1 Private Cloud AD SQL Mirror AD Subnet (10.2.0.0/16) ContosoVNet (10.0.0.0/8)
