1. 3GPP Mobile Surveillance

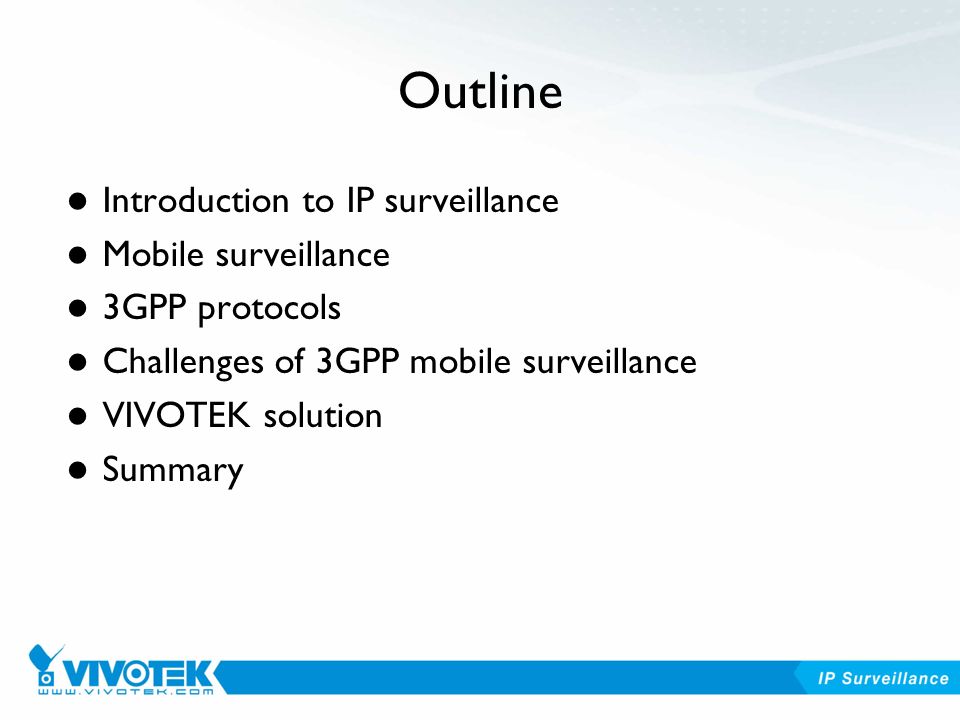

2. Outline Introduction to IP surveillance Mobile surveillance 3GPP protocols Challenges of 3GPP mobile surveillance VIVOTEK solution Summary

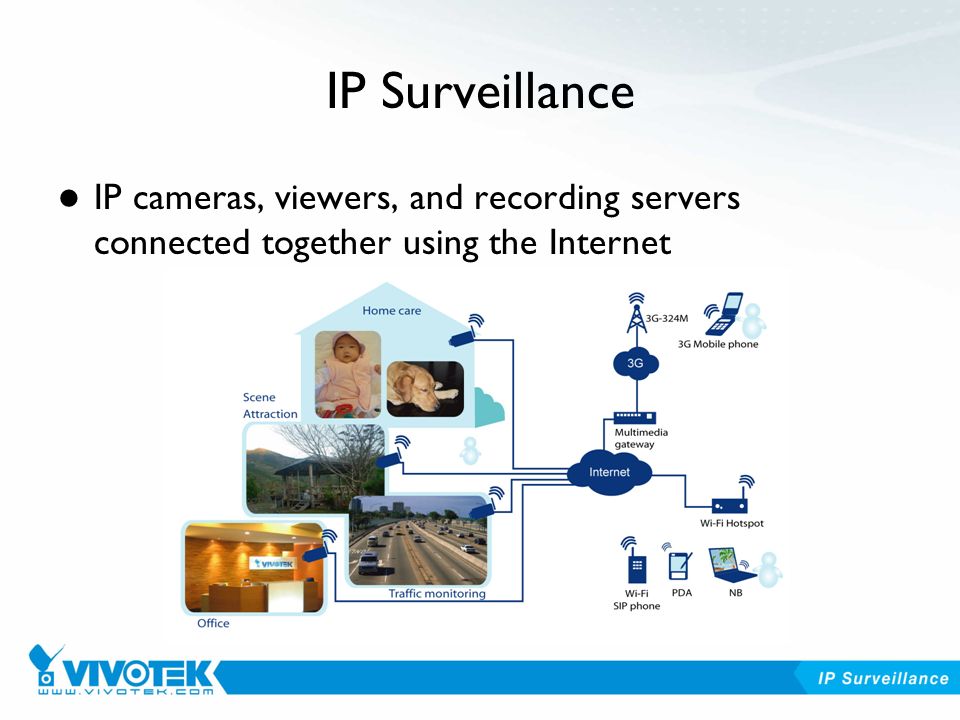

3. IP Surveillance IP cameras, viewers, and recording servers connected together using the Internet

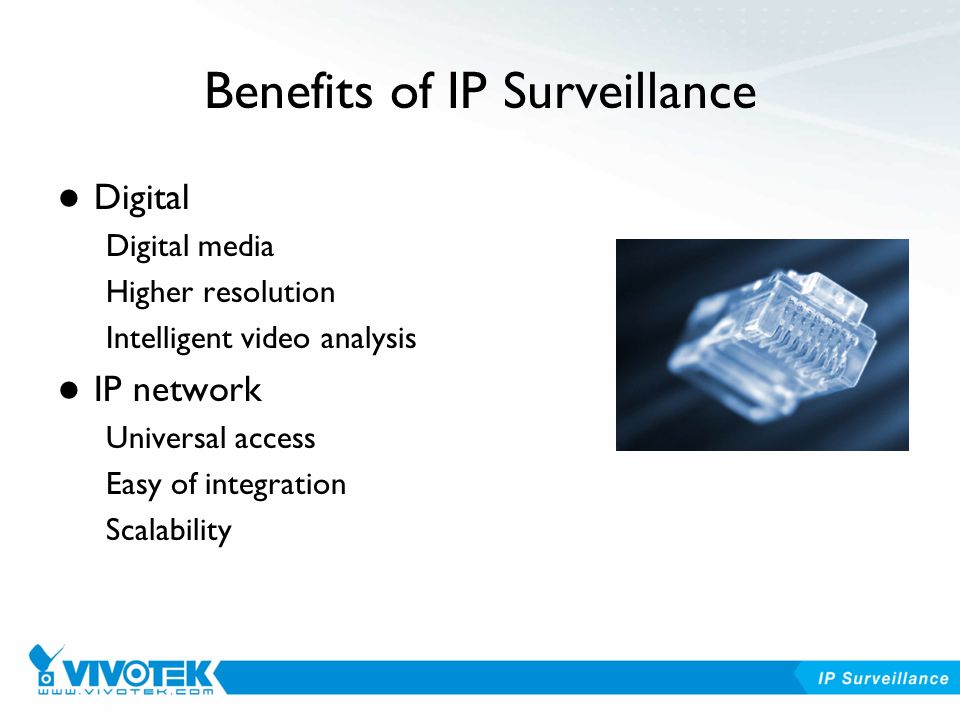

4. Benefits of IP Surveillance Digital Digital media Higher resolution Intelligent video analysis IP network Universal access Easy of integration Scalability

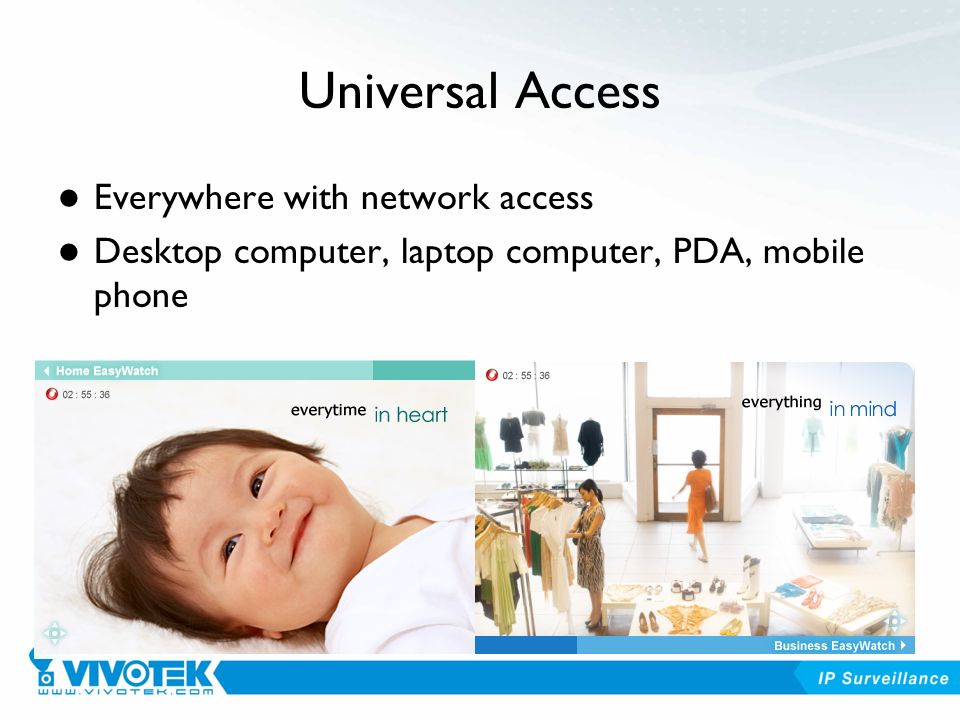

5. Universal Access Everywhere with network access Desktop computer, laptop computer, PDA, mobile phone

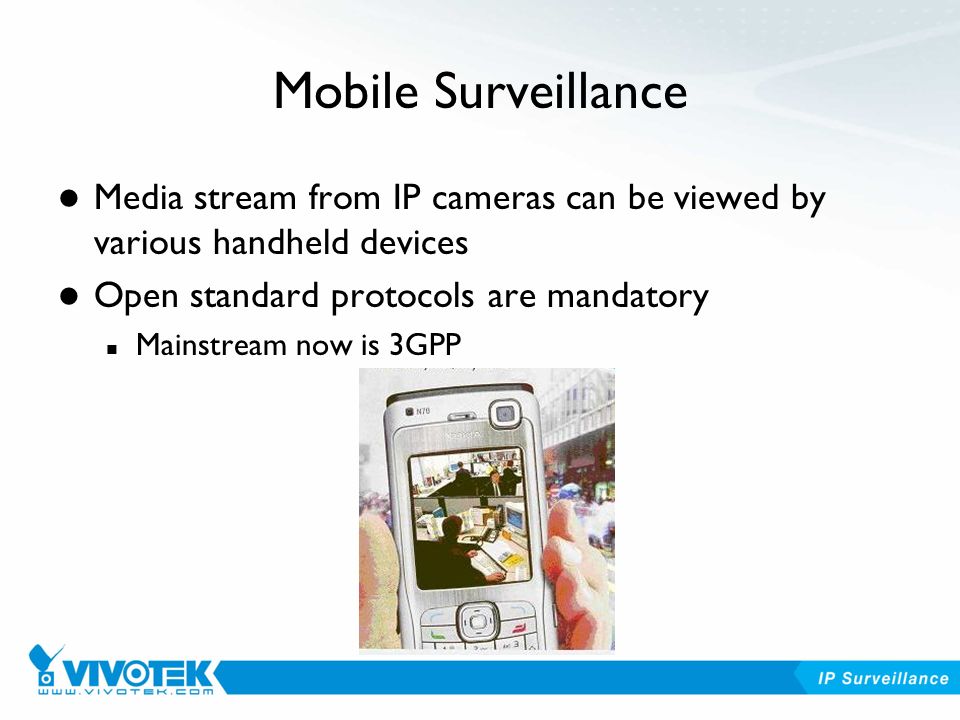

6. Mobile Surveillance Media stream from IP cameras can be viewed by various handheld devices Open standard protocols are mandatory Mainstream now is 3GPP

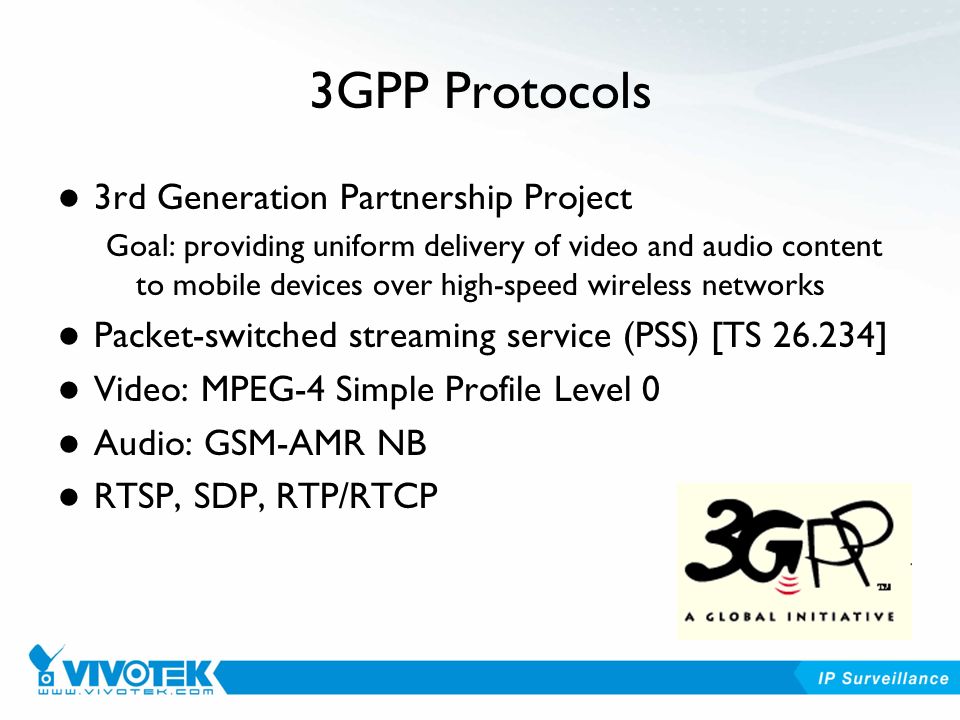

7. 3GPP Protocols 3rd Generation Partnership Project Goal: providing uniform delivery of video and audio content to mobile devices over high-speed wireless networks Packet-switched streaming service (PSS) [TS 26.234] Video: MPEG-4 Simple Profile Level 0 Audio: GSM-AMR NB RTSP, SDP, RTP/RTCP

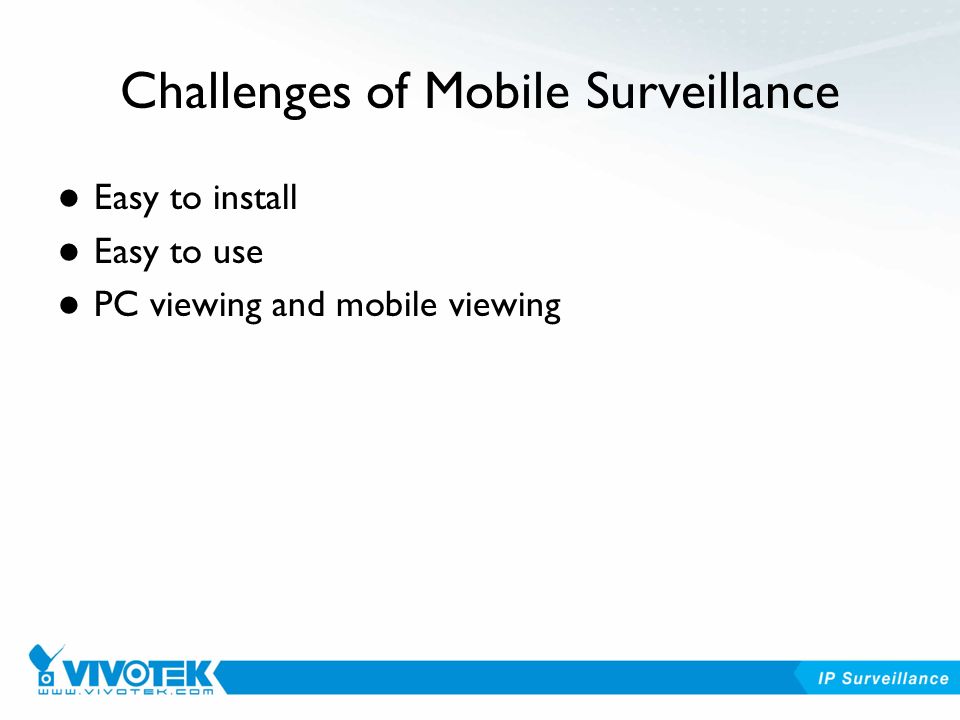

8. Challenges of Mobile Surveillance Easy to install Easy to use PC viewing and mobile viewing

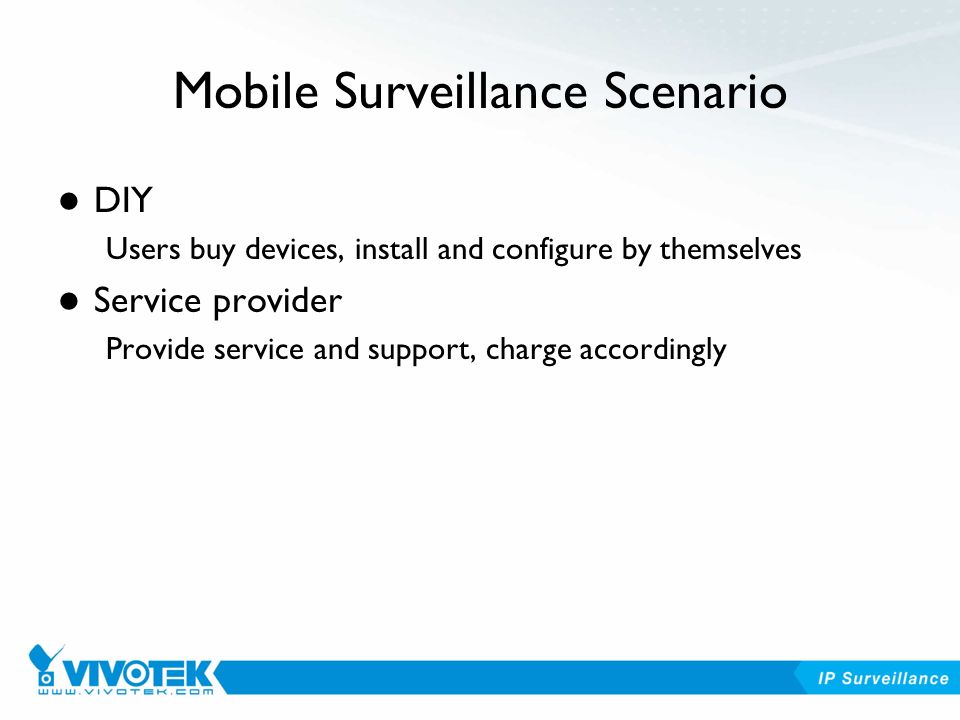

9. Mobile Surveillance Scenario DIY Users buy devices, install and configure by themselves Service provider Provide service and support, charge accordingly

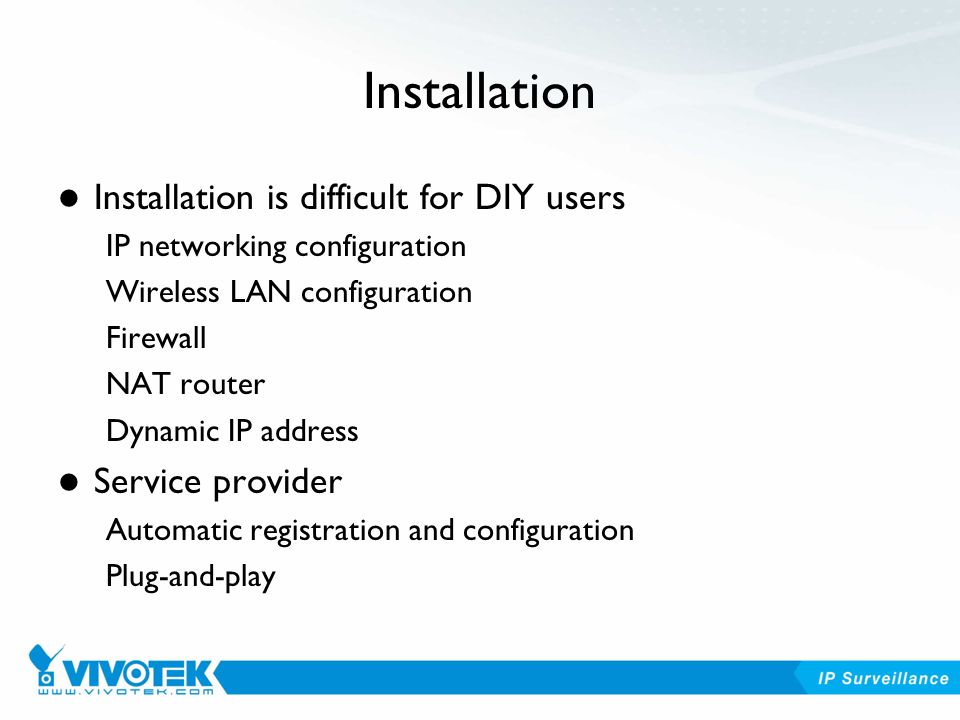

11. Installation Installation is difficult for DIY users IP networking configuration Wireless LAN configuration Firewall NAT router Dynamic IP address Service provider Automatic registration and configuration Plug-and-play

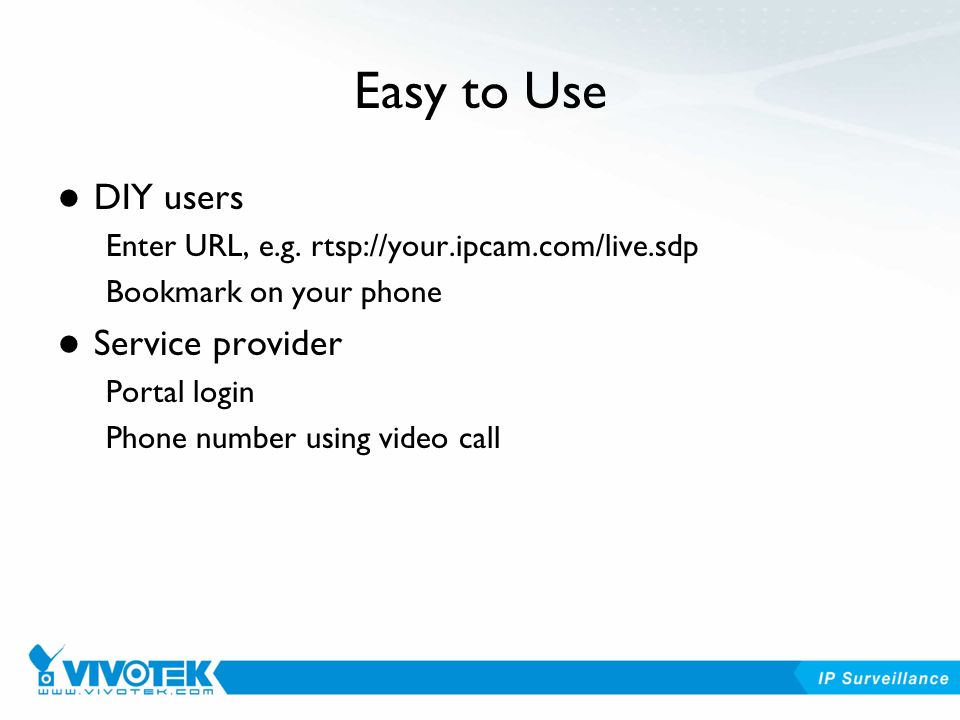

12. Easy to Use DIY users Enter URL, e.g. rtsp://your.ipcam.com/live.sdp Bookmark on your phone Service provider Portal login Phone number using video call

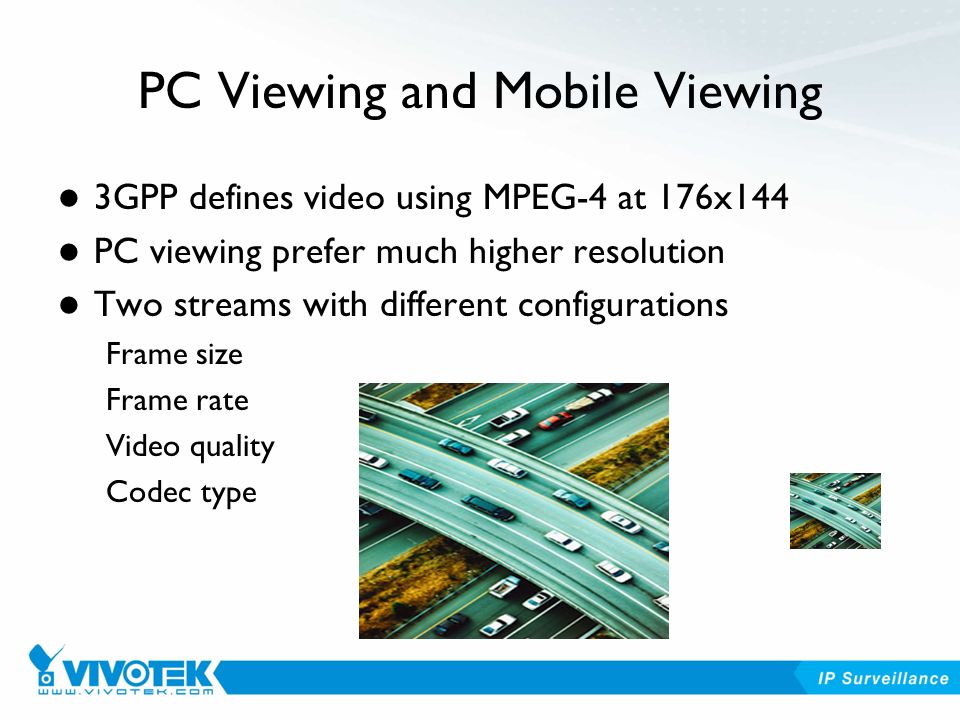

13. PC Viewing and Mobile Viewing 3GPP defines video using MPEG-4 at 176x144 PC viewing prefer much higher resolution Two streams with different configurations Frame size Frame rate Video quality Codec type

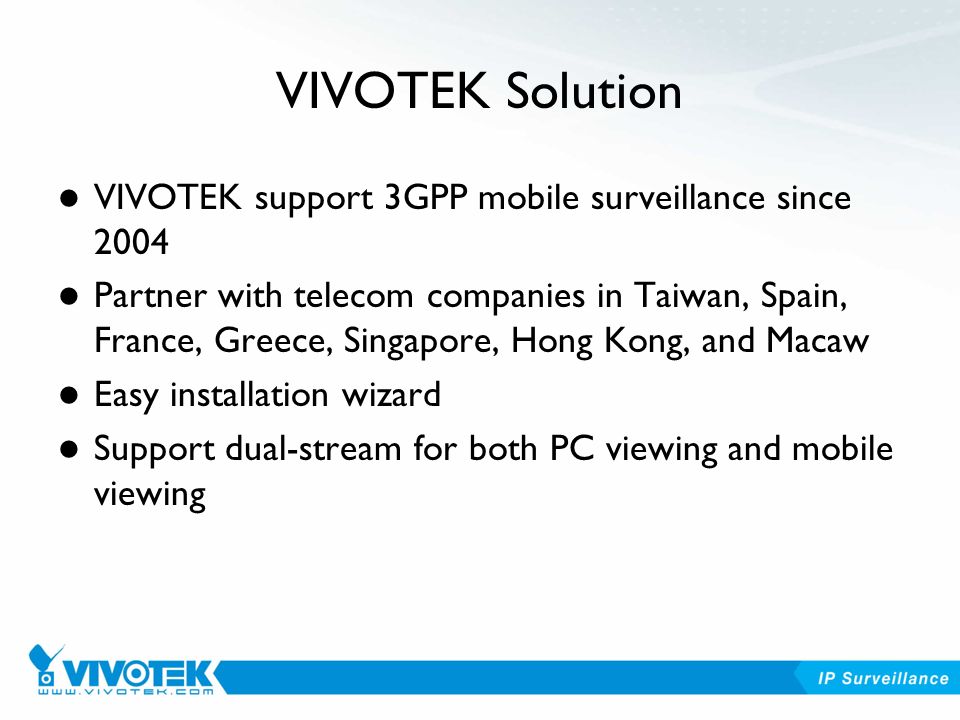

14. VIVOTEK Solution VIVOTEK support 3GPP mobile surveillance since 2004 Partner with telecom companies in Taiwan, Spain, France, Greece, Singapore, Hong Kong, and Macaw Easy installation wizard Support dual-stream for both PC viewing and mobile viewing

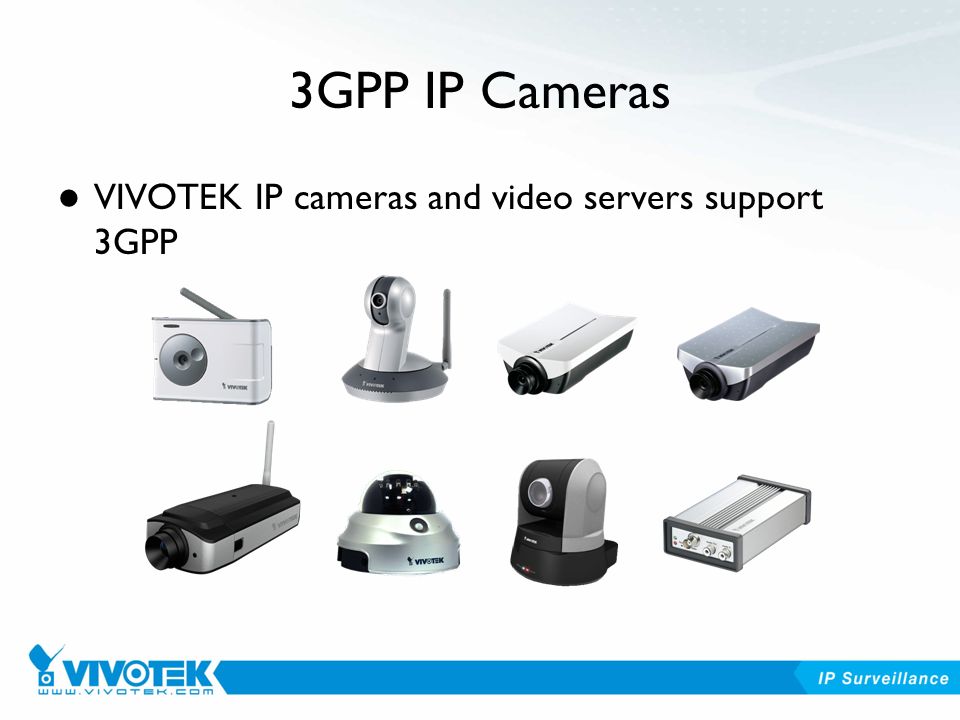

15. 3GPP IP Cameras VIVOTEK IP cameras and video servers support 3GPP

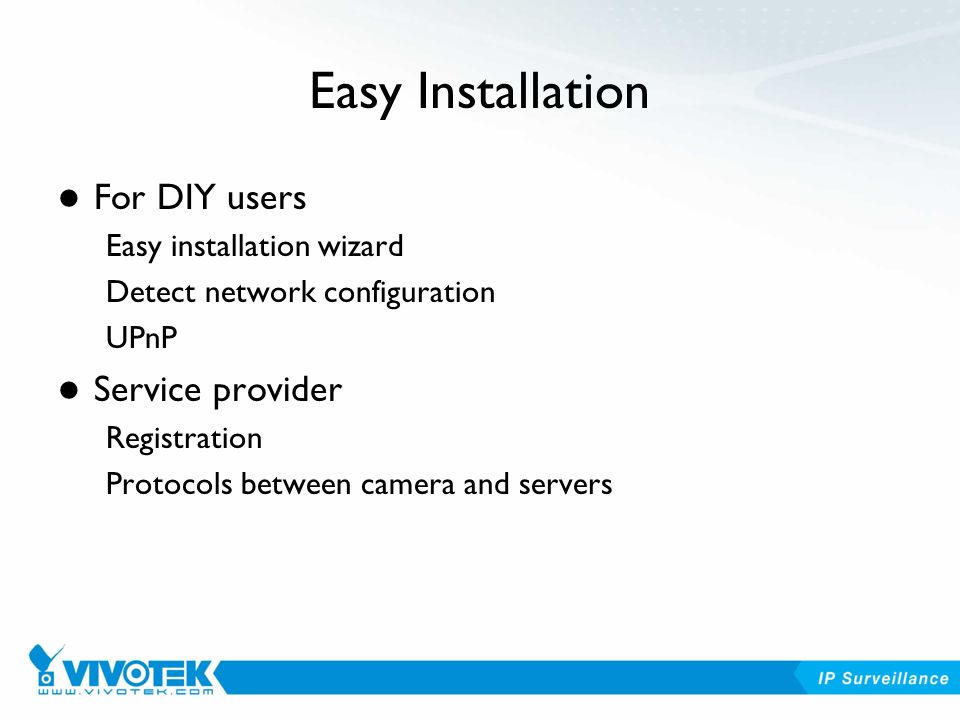

16. Easy Installation For DIY users Easy installation wizard Detect network configuration UPnP Service provider Registration Protocols between camera and servers

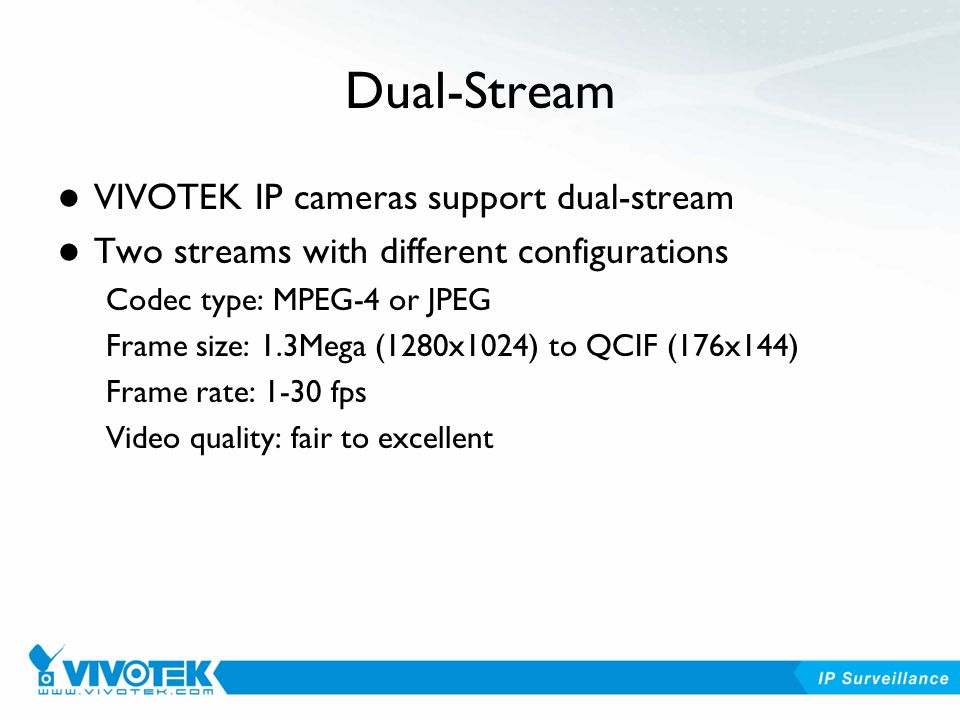

17. Dual-Stream VIVOTEK IP cameras support dual-stream Two streams with different configurations Codec type: MPEG-4 or JPEG Frame size: 1.3Mega (1280x1024) to QCIF (176x144) Frame rate: 1-30 fps Video quality: fair to excellent

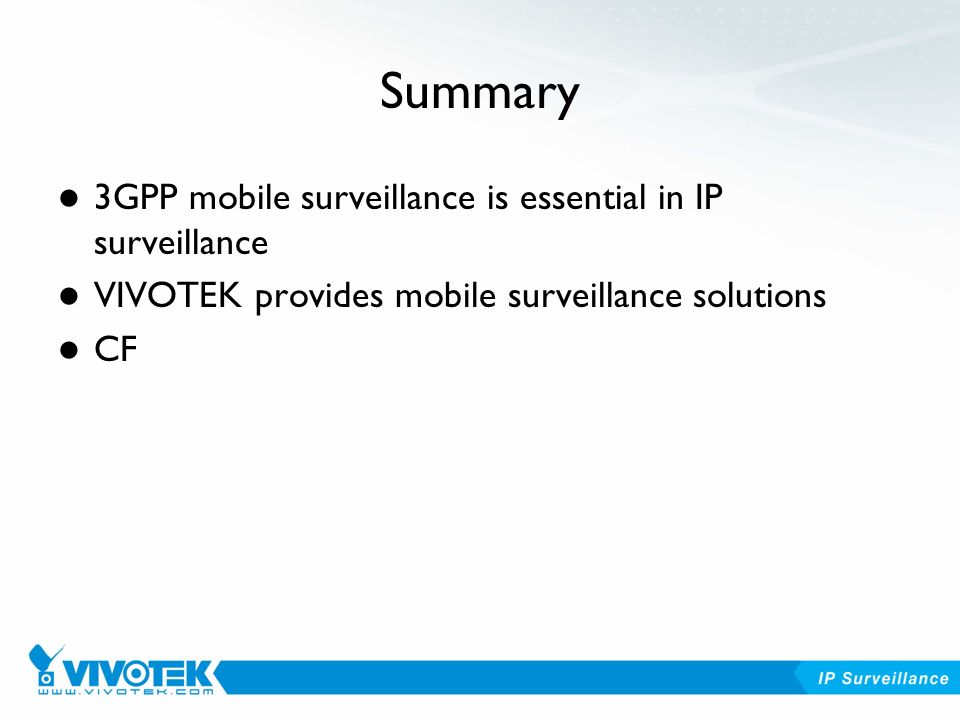

18. Summary 3GPP mobile surveillance is essential in IP surveillance VIVOTEK provides mobile surveillance solutions CF
