1. Siemens New Process Interlock Tool PCS 7 Logic Matrix
Unrestricted © Siemens 2016
usa.siemens.com/process

2. Jeff Sibley, Dow Chemical How does Logic Matrix help you?
In R&D we use PCS 7 as our MET for research process control
Logic Matrix is critical for our complex interlock management
Benefits / Improvement
Engineering
More efficient programming of complex interlocks schema
Less prone to errors / less testing required after a change
Considerable time savings on current visualization
Operations
Better visualization of cause/effect for our technologist and scientist
Additional Comments: I estimate utilizing Logic Matrix will save between 15% and 25% of project programming time over the life of a system.

3. Guy Burnaman, DuPont How does Logic Matrix help you?
At DuPont SRW we use PCS 7 as our BPCS & SIS for regulatory process control
System 1
4 servers, 21 clients, 13 AS (5 Safety AS)
PCS 7 Software V8.0 SP2, WinCC Update 11
Safety Matrix utilized for SIF logic – 7 Matrices
System 2
4 servers, 21 clients, 16 AS, 2 RIO (5 Safety AS)
PCS7 Software V8.0 SP2, WinCC Update 11
System 3
4 servers, 20 clients, 15 AS, 1 RIO (5 Safety AS)
PCS7 Software V8.0 SP2, WinCC Update 12

4. Guy Burnaman, DuPont How does Logic Matrix help you?
Safety Matrix is used extensively for safety interlocking functions since 2007
Benefits
Visualization for Operations
Cause/Effect understanding
First out monitoring
Sequence of Events
Configuration efficiency for Engineering
Cause/Effect strategy
Commissioning & Checkout
Considerable time savings on console design
Additional Comments: We estimate time savings of 15%-20% by utilizing Logic Matrix for project programming – Avg. of 50 hours per standard system.

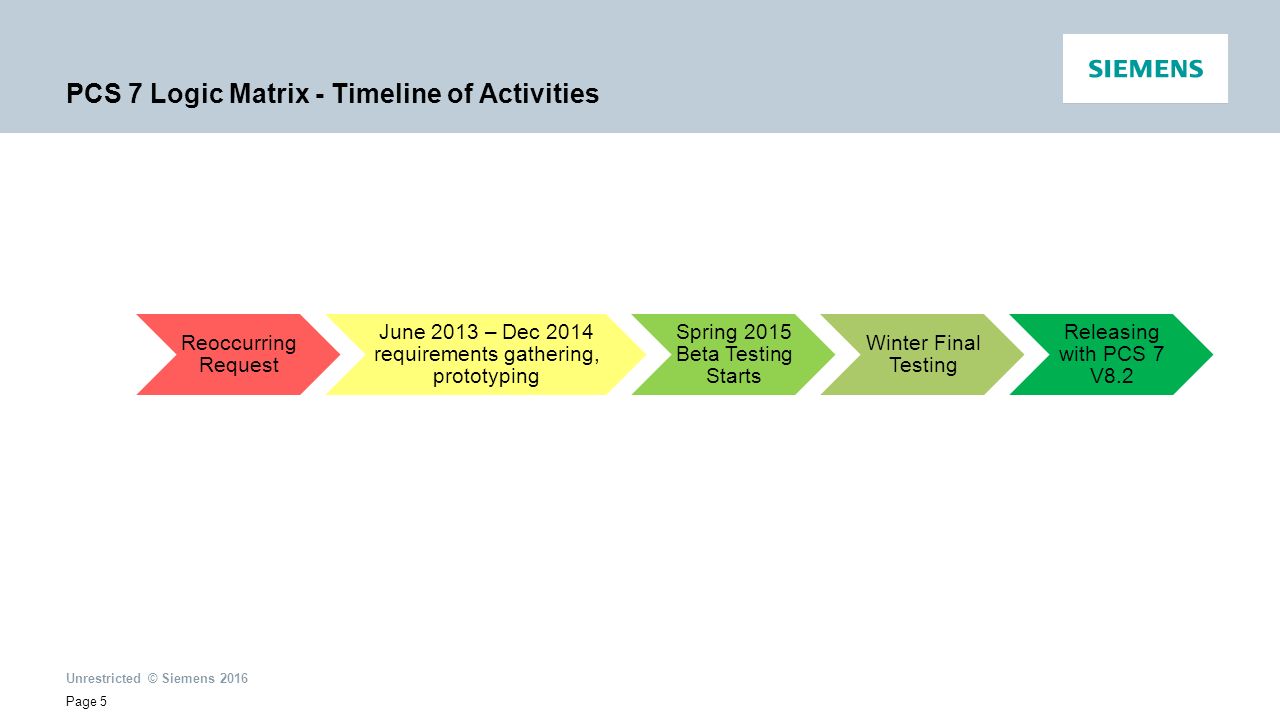

5. PCS 7 Logic Matrix - Timeline of Activities
Reoccurring Request
June 2013 – Dec 2014 requirements gathering, prototyping
Spring 2015 Beta Testing Starts
Winter Final Testing
Releasing with PCS 7 V8.2

6. USA Beta Testing Team Beta Testing Team:
Air Products, Dow Chemical, DuPont, aeSolutions and Pigler Automation
Recent Activities:
April: beta V1 hands-on workshop with HQ PCS 7 R&D
Feedback provided by user community to create next version
May: beta V2 provided to team
Winter: testing of final system for functionality confirmation, bug fixes and future release requests
On-going product feedback meetings with Siemens product management

7. Tools to Empower the Operators Expanded Interlock Capabilities – Logic Matrix
Configuration of cause & effect logic via a matrix editor
128 Causes w/each having up to 6 inputs
128 Effects
Creation of CFC logic and OS visualization based on matrix configuration similar to Safety Matrix
Beta Testing by USA Users has been ongoing since early in 2015
Key Benefits:
Significant reduction in the engineering effort required to generate interlocks and shutdown logic
Fast recognition of equipment state for the operator

8. SIMATIC PCS 7 Introduction to Logic Matrix
Logic Matrix solves a number of problems in the process automation industry:
Provides an comprehensive tool spanning multiple phases of the automation process lifecycle
Reduces development effort
Reduces operator response time and workload

9. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Consistent view for design, documentation, implementation, test and operations phases
Simplifies documentation with easy to understand interface
Built-in version tracking
Powerful programming language
Supports complicated trip conditions, far superior to traditional interlock function blocks
Allows sequential logic to be easily developed and visualized
The Logic Matrix is a comprehensive tool providing support in a many phases of your process plant‘s automation lifecycle.
During the HAZOP meetings in the analysis phase, LM offers a simplied method of documenting the design of the process conditions and their associated process response(s) in a graphical view similar to the format of safe charts specified in API RP 14C.
The simplified interface allows the non-programmer to define complicated conditions with a rich selections of options for filtering, alarming and operator functionality.
With its consistent view of process conditions and responses, the LM easily facilitates transistions from the design to implementation, while reducing development costs.

10. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Allows ease of understanding and communication of requirements
Simple Interface allows “non-programmers” to develop complex algorithms
Based of safe chart format specified in API RP 14C

11. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Process upsets are recorded in rows, or what we refer to as “Causes”.
Causes support analog as well as discrete tags

12. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Easy to understand dialogs allow selection from a rich library of options
Voting schemes

13. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Easy to understand dialogs allow selection from a rich library of options
Voting schemes
Deviation alarming, Timing, additional features

14. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Easy to understand dialogs allow selection from a rich library of options
Voting schemes
Deviation alarming, timing, additional features
Analog and warning limits, Gradient limits, etc.

15. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Process responses are recorded in columns, or what we refer to as “Effects”.
Like Causes, Effects support multiple tags and many options, such as reset tags, delays, bypassing, etc.

16. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Intersections associate a Cause with an Effect
A Cause can be associated with any number of Effects
Likewise an Effect can be associated with any number of Causes

17. Logic Matrix: Comprehensive tool spanning phases of the automation lifecycle
Logic Matrix as a documentation/design tool
Intersections associate a Cause with an Effect
A Cause can be associated with any number of Effects
Likewise an Effect can be associated with any number of Causes
Four types of Intersections:
N - Not Stored
S - Stored (or Latched)
O - Overridable
R – Combination Stored and Overridable

18. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Automatically generates the program
Eliminates translation errors
Reduces need to develop custom function blocks
Automatic visual feedback on HMI screens
From the documented design, the associated logic is automatically generated, reducing cost and more importantly eliminating translation errors.
The powerful programming capability of LM supports advanced trip conditions such as: mixed analog and discretes; XooN voting; timing functions; rate of change; quality based automatic voting degradation as well as many more, without the need to develop test and maintain custom FBs or charts.
From the controller logic, the HMI symbols and faceplates are automatically generated fascilitating ease of commissioning and operations with the same graphical format.
With the HMI object automatically generated, there is no need for additional engineering of indicators for trip conditions or states.

19. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Automatic generation of controller program, based on design documentation

20. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Matrix is part of the project

21. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Matrix is part of the project
Projects may contain many matrices

22. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Matrix is part of the project
Projects may contain many matrices
Automatically generates the logic

23. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Matrix is part of the project
Projects may contain many matrices
Automatically generates the logic
Creates CFCs (charts)

24. Logic Matrix: Reducing your engineering development effort
From Documentation/Design to Implementation
Matrix is part of the project
Projects may contain many matrices
Automatically generates the logic
Creates CFCs (charts)
Places function blocks
Wires to process tags (channel drivers), user logic, etc.

25. Logic Matrix: Reducing operator response time and workload
Helping your operators to work more efficiently
Intuitive HMI symbols allows operators to quickly identify and correct problems
Built in user interface supports: Bypassing; Reset; Overrides; etc.
Customizable alarms integrated into the HMI

26. Logic Matrix: Reducing operator response time and workload
Helping your operators to work more efficiently
Intuitive HMI Logic Matrix faceplates and navigation
From the HMI, the operator can rapidly determine why an object, such as a motor, valve, or PID is interlocked through the LM icon or ultilizing the APL navigation capabilities to see what is holding a device out.
The LM online visualization is simple to interpret and provides runtime process values for quick identification of abnormal conditions.
Based on the configured authorizations, the operator can bypasss conditions, reset latched responses, acknowledge innitiating events and much more.
As part of your plants alarm management strategy, LM provides fine resolution of what events generate OS messages.

27. Logic Matrix: Reducing operator response time and workload
Helping your operators to work more efficiently
Intuitive HMI Logic Matrix faceplates and navigation
Example: Interlocked Motor

28. Logic Matrix: Reducing operator response time and workload
Helping your operators to work more efficiently
Intuitive HMI Logic Matrix faceplates and navigation
Example: Interlocked Motor

29. Logic Matrix: Reducing operator response time and workload
Helping your operators to work more efficiently
Intuitive HMI Logic Matrix faceplates and navigation
Example: Interlocked Motor
Direct navigation to all permissives of the motor
Easily understand the Low Level upset condition

30. Logic Matrix - Summary
Provides an efficient tool spanning multiple phases of the automation process lifecycle
Simple interface
Common look and feel
Reduces development effort
Auto generate Logic
Auto generate HMI visualization
Reduces operator response time and workload
Ease of problem identification
Full featured operator controls with authorization
Alarm configuration to meets Alarm Mgt strategies

31. SIMATIC PCS 7 Logic Matrix Opening of the Full Logic Matrix from the Block Icon
Causes
Effects
Detailed Block Icon View
Optional
Summary Block Icon View

32. SIMATIC PCS 7 Logic Matrix PCS 7 OS Client Visualization
The Logic Matrix Control and faceplates have the same Look & Feel as the APL.

33. SIMATIC PCS 7 Logic Matrix PCS 7 OS Client Trip Visualization

34. Thank you for your attention
Paul Morgan PCS 7 Siemens Consulting Application Engineer
1201 Sumneytown Pike Spring House, PA 19477
Phone: (267) Mobile: (267)
