1. User Evaluation of the NASA Technical Report Server Recommendation Service Michael L. Nelson, Johan Bollen Old Dominion University {mln,jbollen}@cs.odu.edu JoAnne R. Calhoun, Calvin E. Mackey NASA Langley Research Center {joanne.r.calhoun,calvin.e.mackey}@nasa.gov

2. Outline OAI-PMH NASA Technical Report Server (NTRS) Experimental Methodology Results Future Work & Conclusions

3. OAI-PMH Metadata Harvesting Model data providers (repositories) service providers (harvesters)

4. Aggregators data providers (repositories) service providers (harvesters) aggregator aggregators allow for: scalability for OAI-PMH load balancing community building discovery

5. NTRS OAI-PMH aggregator –OAI-PMH baseURL & humans: http://ntrs.nasa.gov/ http://ntrs.nasa.gov/ Technology –MySQL 4.0.12 –Va Tech OAI-PMH harvester http://oai.dlib.vt.edu/odl/software/harvest/ –Buckets 1.6.3 Coverage –837,000+ abstracts approaching a similar number of full-text –17 different repositories 13 NASA, 4 non-NASA –in use since 1995 since 2003 as an OAI-PMH service provider

6. NTRS Contents

7. NTRS Search Results http://ntrs.nasa.gov/?method=display&redirect=http://techreports.larc.nasa.gov/ltrs/PDF/2000/aiaa/NASA-aiaa-2000-4886.pdf& oaiID=oai:ltrs.larc.nasa.gov:NASA-aiaa-2000-4886

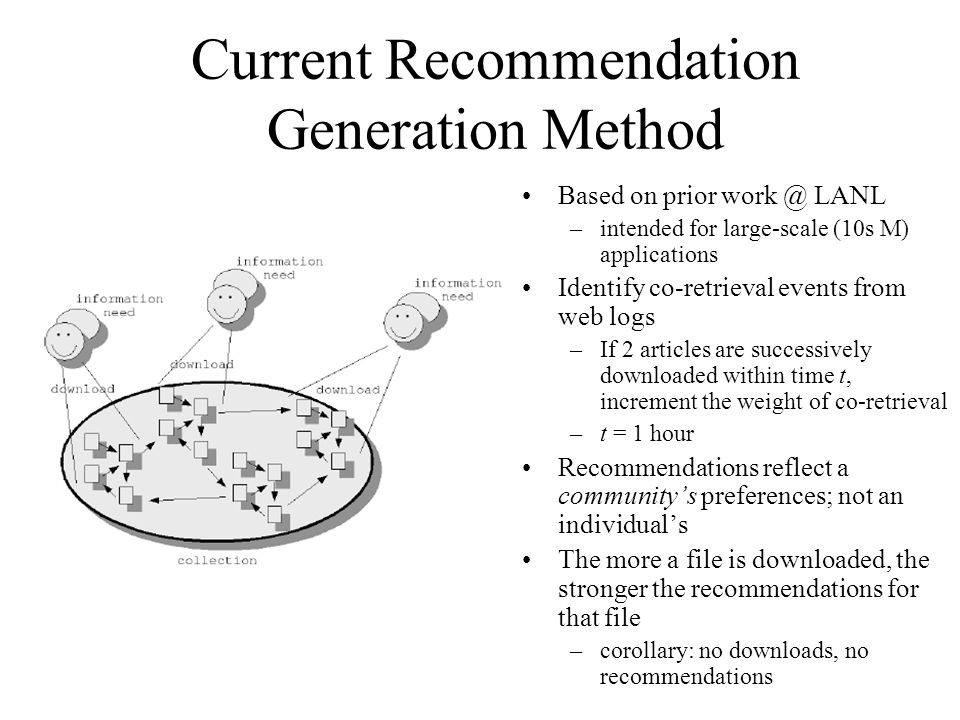

8. Current Recommendation Generation Method Based on prior work @ LANL –intended for large-scale (10s M) applications Identify co-retrieval events from web logs –If 2 articles are successively downloaded within time t, increment the weight of co-retrieval –t = 1 hour Recommendations reflect a community’s preferences; not an individual’s The more a file is downloaded, the stronger the recommendations for that file –corollary: no downloads, no recommendations

9. U.S. Government & Web Privacy Policy Children's Online Privacy Protection Act of 1998 –http://www.ftc.gov/ogc/coppa1.htm Office of Management & Budget –http://www.whitehouse.gov/omb/memoranda/m99-18.html –http://www.whitehouse.gov/omb/memoranda/m00-13.html NASA –http://www.nasa.gov/about/highlights/HP_Privacy.html DOJ –http://www.usdoj.gov/04foia/privstat.htm B) but does not include-- (i) matches performed to produce aggregate statistical data without any personal identifiers;

10. Recommender Architecture recommender.cs.odu.eduntrs.nasa.gov 1. harvest log files from NTRS 2. compute recommendation matrix 3. NTRS requests recommendations for an OAI id 4. recommender responds with 10 OAI ids 5.NTRS does a local lookup on the ids & displays results

11. How Effective is the Log Analysis Method? Anecdotally, we knew that the recommendations were well received –but are they better than recommendations generated by another method? Goal: compare the perceived quality of recommendations generated by: –log analysis (Method A) –vector space model (Method B)

12. Call for Volunteers Announcements made in LaRC intranet, mailing lists, etc. Four 90 minute sessions held on base in a separate training facility Bribed with donuts & soft drinks

13. Methodology Pick 10 papers from the LaRC collection that have recommendations in the log analysis Create VSM-based recommendations for all LaRC papers –~ 4100 LaRC papers Instructions to volunteers –for each of the 10 documents read the abstract score “good” evaluations generated by log analysis score “good” evaluations generated by VSM –search for their own papers, or papers they know well scored evaluations for log analysis & VSM

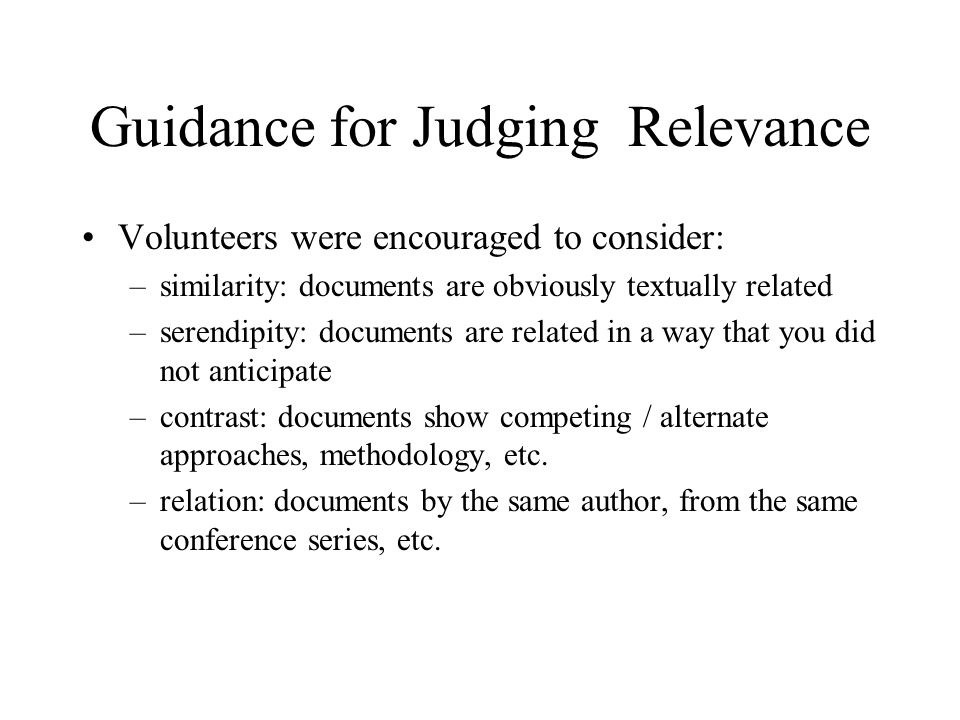

14. Guidance for Judging Relevance Volunteers were encouraged to consider: –similarity: documents are obviously textually related –serendipity: documents are related in a way that you did not anticipate –contrast: documents show competing / alternate approaches, methodology, etc. –relation: documents by the same author, from the same conference series, etc.

15. User Evaluation Session

16. Results Result set –129 comparisons –29 documents –13 volunteers ANOVA –null hypothesis rejected at p<0.1; means are marginally different Spearman correlation coefficients –a weak negative correlation between rater knowledge and log analysis ratings (-0.156) –no correlation between rater knowledge & VSM (0.12931) –positive, significant relationship between log analysis & VSM ratings (0.20100) some documents produce better relationships than others

17. Rating Distribution A=log analysis B=VSM

18. We Did Not Find What We Hoped… Possible methodological shortcomings –we chose the documents randomly; we did not choose the most “mature” documents from the collection positive, significant correlation between number of downloads and preference for the log analysis method (0.201) negative, significant correlation between number of downloads and preference for VSM method (-0.32) positive significant correlation (0.384) between A/B and # of downloads –paradox: the best qualified raters are the least likely to show up…

19. Document / Volunteer Mismatch? Titles from the NASA STI Subject Categories, http://www.sti.nasa.gov/subjcat.pdf Organization names ca. March 2004 1.raters not expert in the documents 2.raters’ own publications outside of the NTRS core

20. Robots in the Mist? robot noise?

21. Future Work More frequent harvesting of logs for more up-to- date recommendations –currently monthly granularity Minimize robot impact on the logs / recommendations Seed log analysis recommendations with VSM results –recommendations converge & mature more quickly Re-run the experiment with: –more mature documents –more subjects aerospace engineering graduate students? –pay them $$$

22. Conclusions Slightly disappointing results –VSM preferred over log analysis …but, VSM had the deck stacked in its favor: –significant mismatch between volunteer expertise & article subject –articles randomly chosen from the LaRC collection most mature articles not chosen; evidence that log analysis improves with download frequency Next steps: –scrub logs more to remove robots, other spurious data sources –mix VSM & log analysis –find a larger, more captive audience
