1. 1 To Insert AS Origin field into APNIC IP address database Xing Li Shuang Zhu CERNET 2001-08-30

2. 2 Problem Statement  APNIC’s IRR service APNIC needs to provide  Wrong IP prefix announcement in the BGP routing table from PA (holes) Make chaos in the global routing table (-:  Distinction of PA and PI IP blocks How about based on AS origin?

3. 3 Example BGP routing table entry for 202.120.0.0/15, version 36730882 Paths: (2 available, best #2) Advertised to peer-groups: rr-pop 6453 4538, (aggregated by 4538 202.112.61.253) 198.32.136.146 (metric 445900) from 165.117.1.133 (165.117.1.133) Origin IGP, metric 4294967294, localpref 100, valid, internal, atomic-aggregate Community: 2548:201 2548:666 3706:152 6453 4538, (aggregated by 4538 202.112.61.253) 198.32.176.38 (metric 345600) from 165.117.1.219 (165.117.1.219) Origin IGP, metric 4294967294, localpref 100, valid, internal, atomic-aggregate, best Community: 2548:204 2548:666 3706:153

4. 4 Example BGP routing table entry for 202.120.232.0/21, version 36649952 Paths: (2 available, best #2) Advertised to peer-groups: rr-pop 6453 4799 198.32.136.146 (metric 445900) from 165.117.1.133 (165.117.1.133) Origin IGP, metric 4294967294, localpref 100, valid, internal Community: 2548:201 2548:666 3706:152 6453 4799 198.32.176.38 (metric 345600) from 165.117.1.219 (165.117.1.219) Origin IGP, metric 4294967294, localpref 100, valid, internal, best Community: 2548:204 2548:666 3706:153

5. 5 Example of Current APNIC whois database inetnum: 202.120.0.0 - 202.120.63.255 netname: SJTU-CN descr: Shanghai Jiaotong University country: CN admin-c: SW1-CN tech-c: ZG1-CN notify: dbmon@apnic.net changed: hostmaster@apnic.net 950222 source: APNIC

6. 6 Example of RA whois database route: 202.120.0.0/15 descr: CERNET Center Tsinghua University Central Bldg. Bejing P. R. China origin: AS4538 member-of: RS-COMM_NSFNET notify: yjh@noc5.net.edu.cn mnt-by: MAINT-AS4538 changed: yjh@noc5.net.edu.cn 19951213 source: RADB

7. 7 Suggestions AS origin  as a mandatory field in the APNIC whois database  as a required procedure for the IP address application

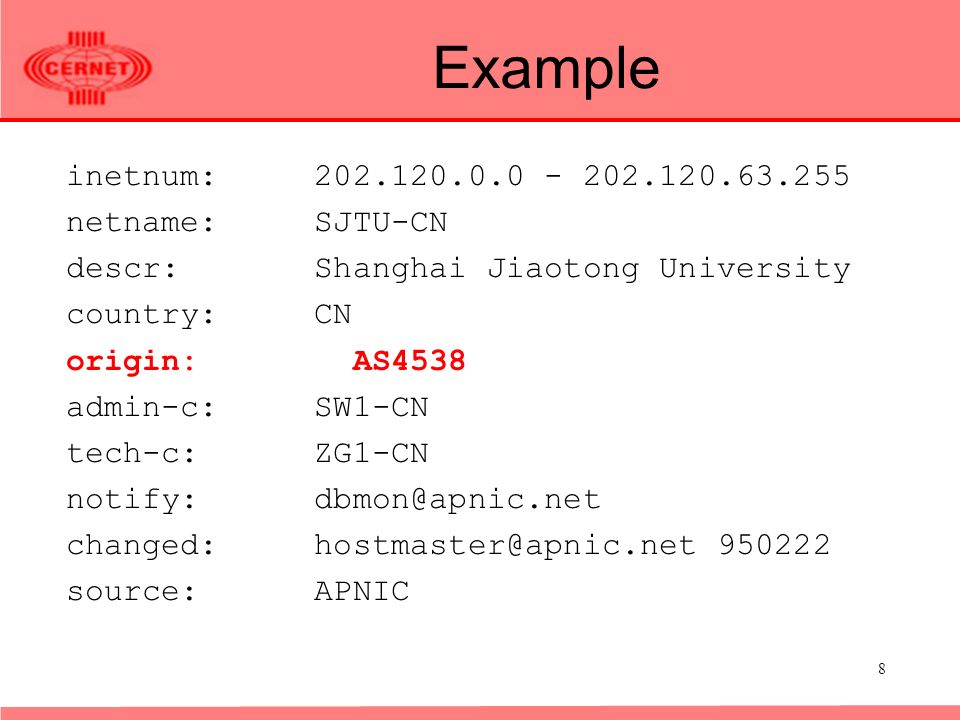

8. 8 Example inetnum: 202.120.0.0 - 202.120.63.255 netname: SJTU-CN descr: Shanghai Jiaotong University country: CN origin: AS4538 admin-c: SW1-CN tech-c: ZG1-CN notify: dbmon@apnic.net changed: hostmaster@apnic.net 950222 source: APNIC

9. 9 Suggested Application Form #[NETWORK TEMPLATE V:5.0]# netname: descr: country: origin: admin-c: tech-c: remarks: changed: mnt-by: source: APNIC

10. 10 Comments  Provide APNIC’s “IRR lit” service APNIC is the Authority  Define PA and PI based on AS origin Owns AS = PI, upper-stream’s AS = PA  Check of the immediate use of IP address Own AS or upper-stream’s AS  Evaluate Confederation membership number of AS

11. 11 Questions? 

12. 12 Example inetnum: 202.120.224.0 - 202.120.255.255 netname: FDU-CN descr: Fudan University descr: Network and Information Engineering Center descr: 5th Floor, Yifu Building descr: 220 Handan Road descr: Shanghai, 200433 country: CN admin-c: SZ1-CN tech-c: QS1-CN tech-c: CW1-CN notify: dbmon@apnic.net changed: hostmaster@apnic.net 960229 source: APNIC

13. 13 Example route: 202.120.0.0/15 descr: CERNET Center Tsinghua University Central Bldg. Bejing P. R. China origin: AS4538 member-of: RS-COMM_NSFNET notify: yjh@noc5.net.edu.cn mnt-by: MAINT-AS4538 changed: yjh@noc5.net.edu.cn 19951213 source: RADB

14. 14 Example )-: route: 202.120.232.0/21 descr: JITONG Route Object origin: AS4799 mnt-by: JITONG-2MBJ-MCI changed: george@chinagb.net 19980322 source: CW
